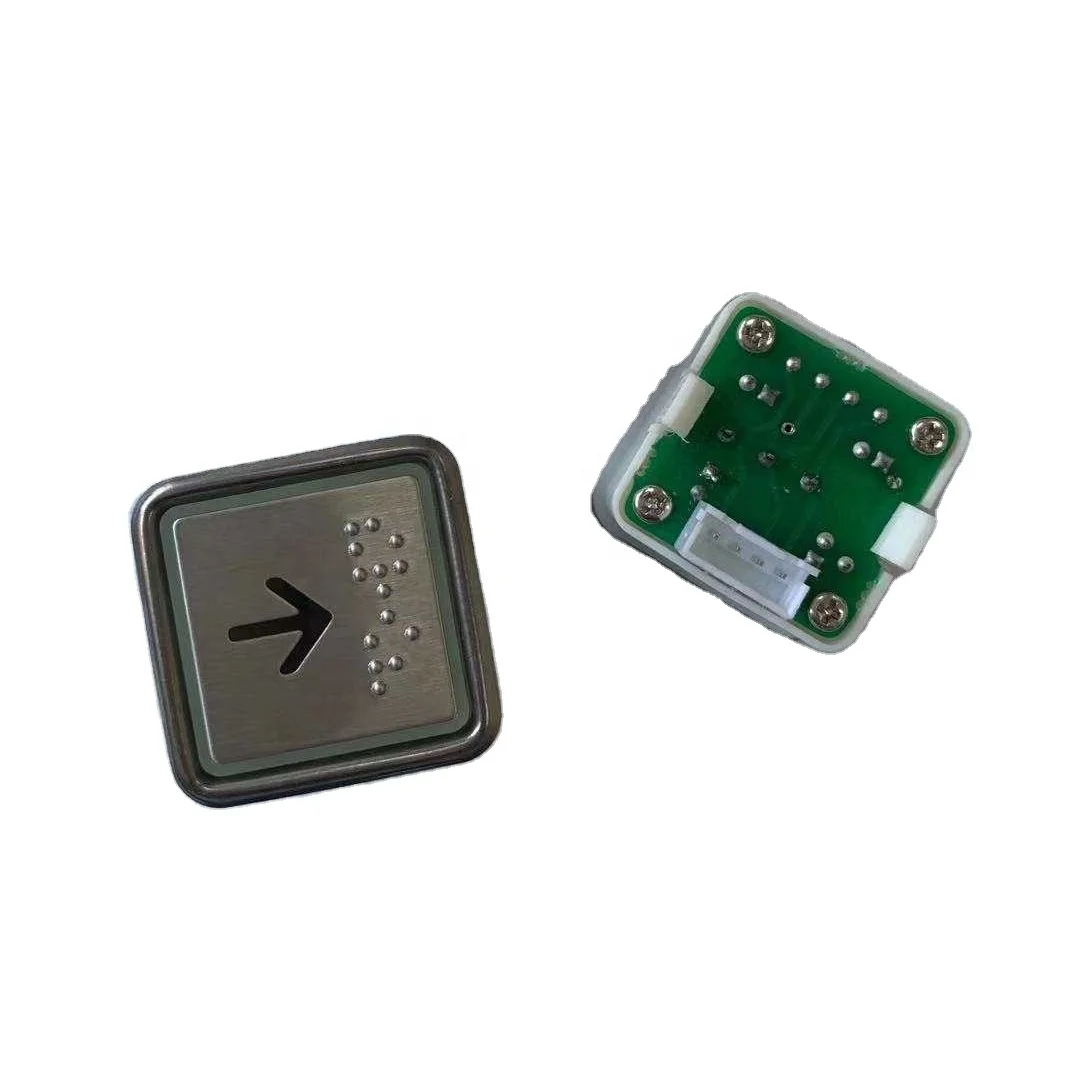

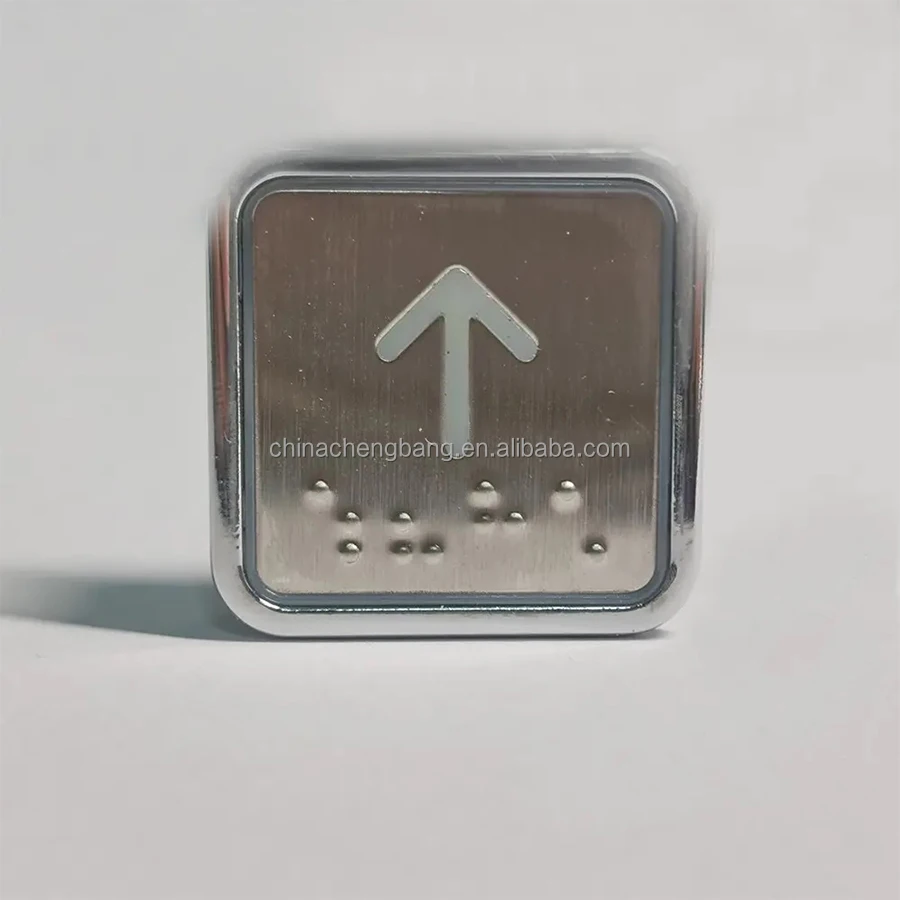

Квадратная кнопка для лифта
328,95 ₽ - 438,60 ₽

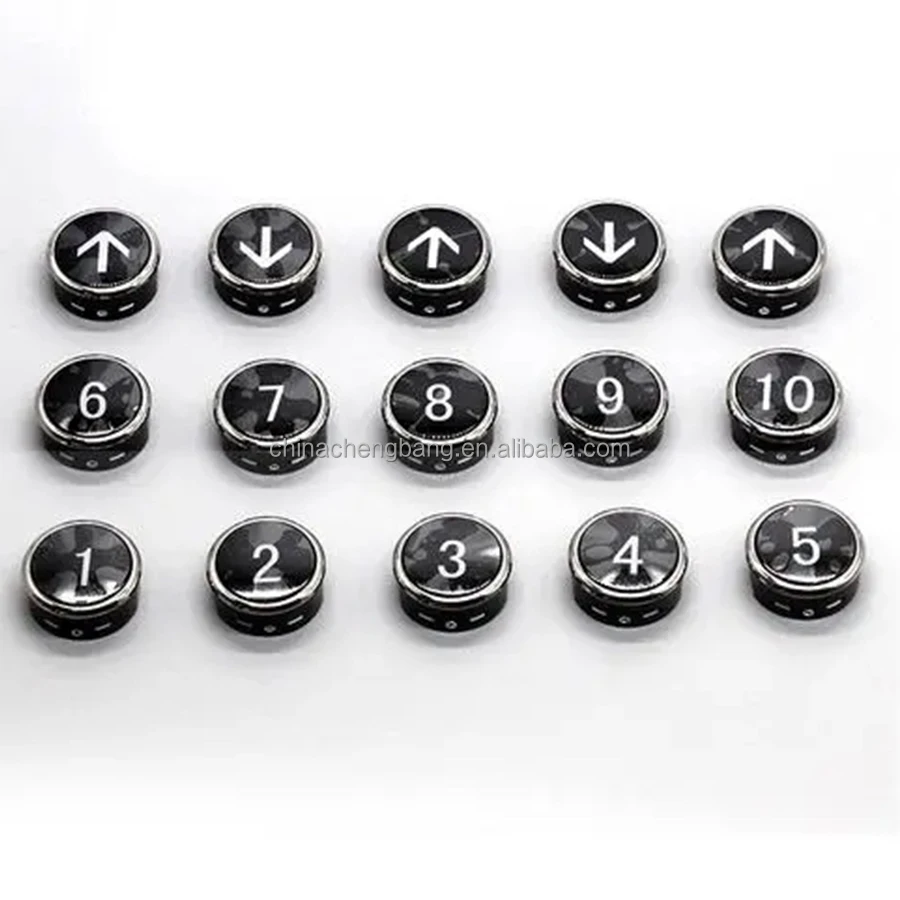

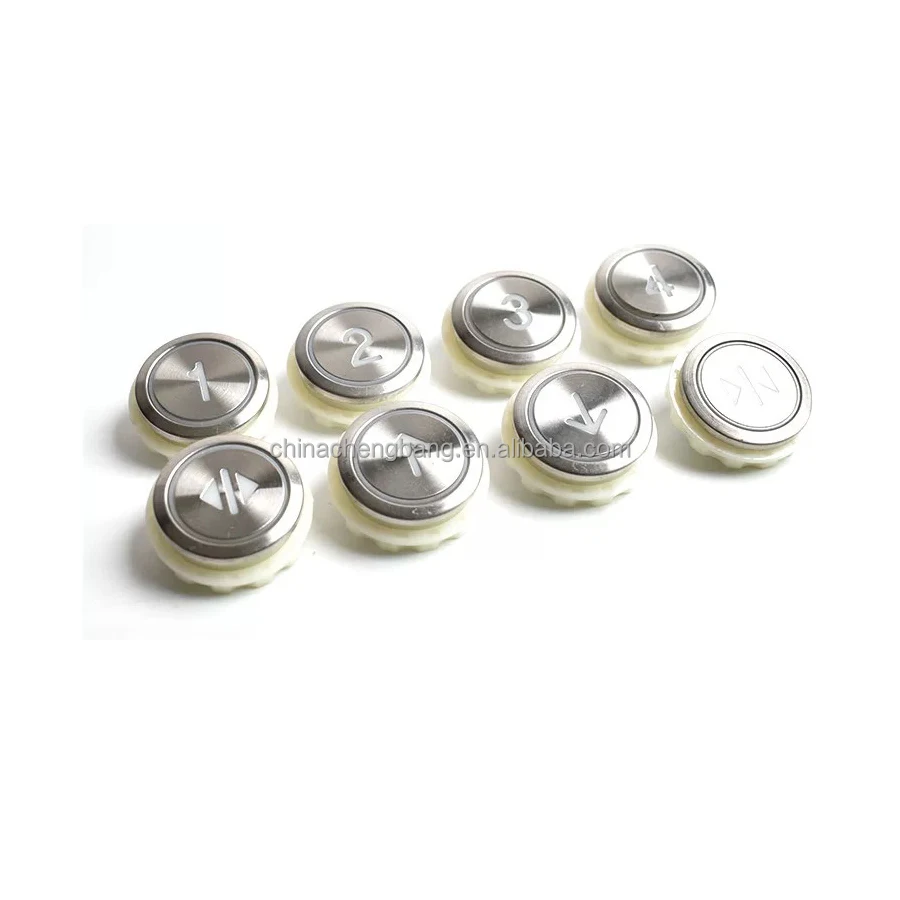

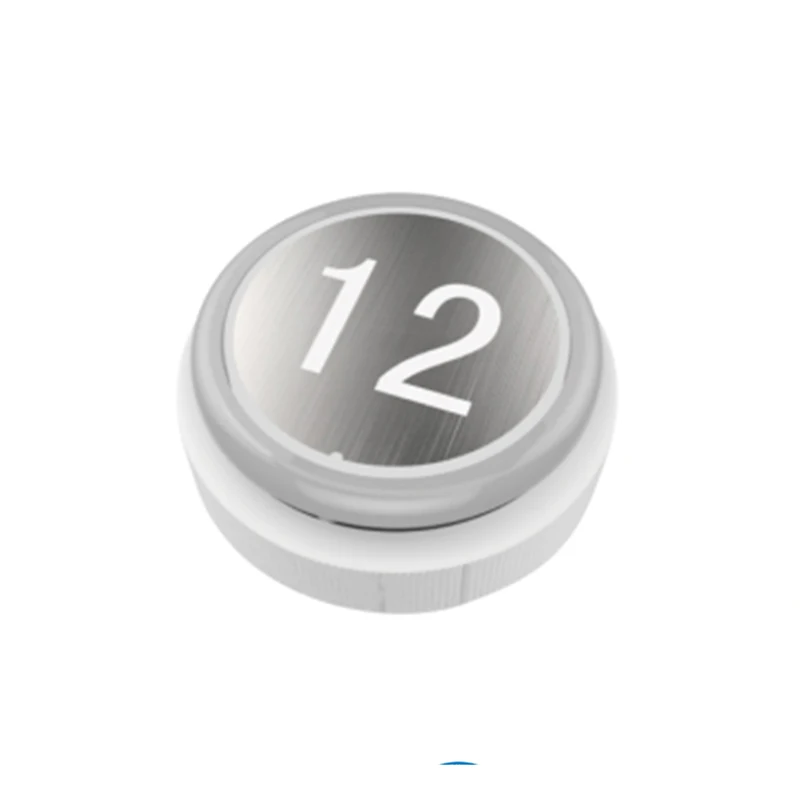

Лифт LOP и COP кнопка круглая для подъемников с опцией Брайля светодиодное освещение
- Категория: >>>
- Поставщик: Jinan Shengbang Machinery Co. Ltd.
Сохранить в закладки 1601269014332:
Описание и отзывы
Характеристики
MOQ and delivery:
1. Mini order quantity is 5pcs, Order can be mixed in different button type.
2. If you wan to deliver to your place by sea, or by air, or send to your appointed wareroom in China,
We also can arrange the delivery according to your request.
3. When order,please list your demand details as follows:
(1) Tell us the specific model you need
(2) you want to choose which color for the button LED when it work(Red, Blue,or white)?
(3) you want to choose which color for the button face letter or symbol(Red, Blue,white,or Yellow)?
2. If you wan to deliver to your place by sea, or by air, or send to your appointed wareroom in China,
We also can arrange the delivery according to your request.
3. When order,please list your demand details as follows:
(1) Tell us the specific model you need
(2) you want to choose which color for the button LED when it work(Red, Blue,or white)?
(3) you want to choose which color for the button face letter or symbol(Red, Blue,white,or Yellow)?
(4) you plan to show what content such as symbol or number on the button?

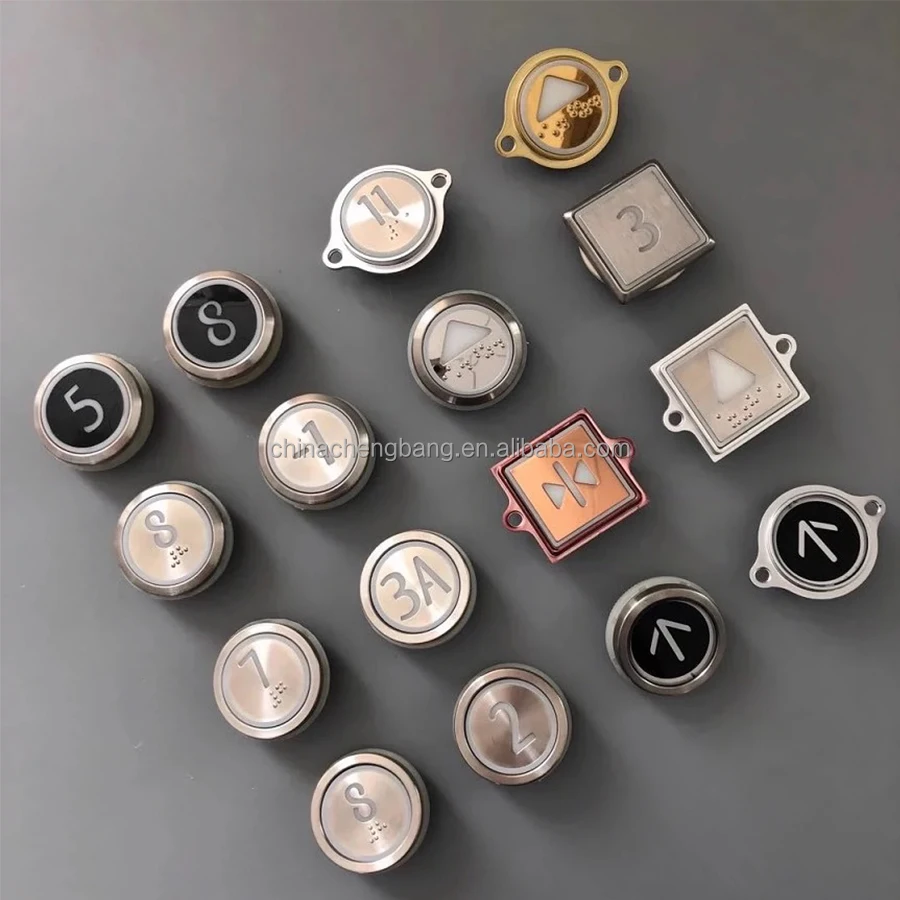

Button optional:
LED color: Red LED, Blue LED, Yellow LED, White LED, other special color LED.

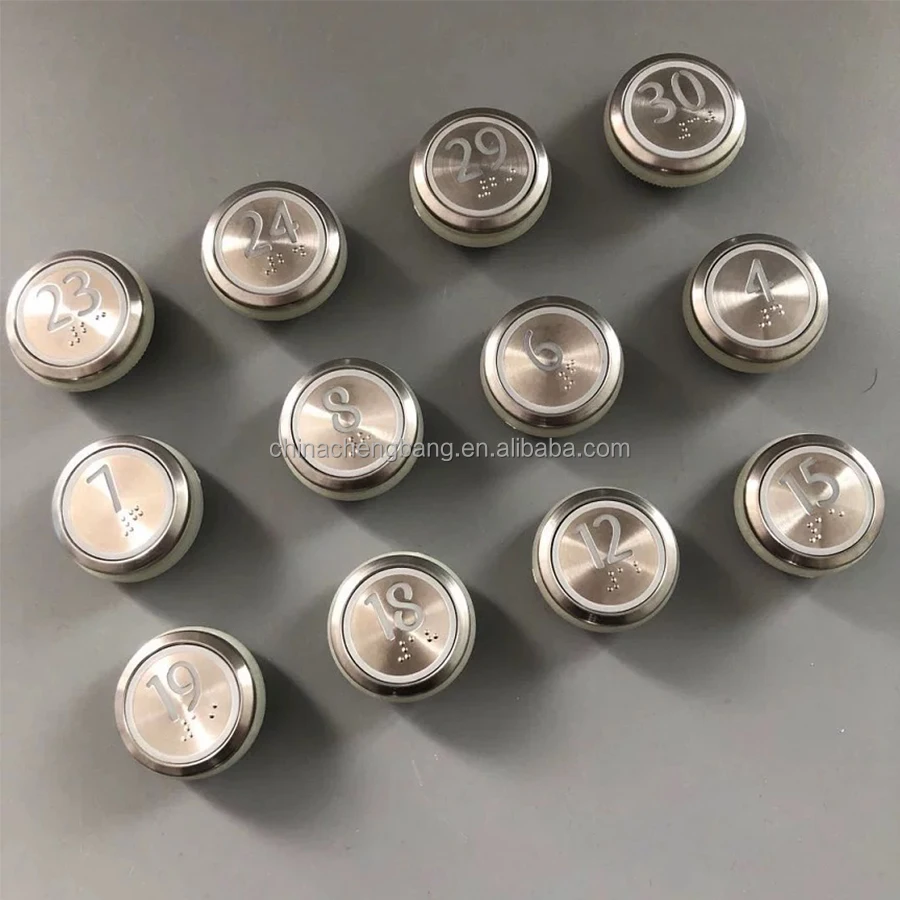

Braille: without Braille, or with Braille in button surface.
Button Surface: Flat surface(normal), high relief surface.
Connection: wire connection, terminal connection.
Voltage: 24VDC,12VDC,6VDC
Normal open, normal closed.
Number & Figure in button surface: Number -6,-5, -4, -3, -2, -1, 0,1,2,3,......64,
figure: door open, door close, arrowup, arrowdown, alarm bell, telephone, G, B, P, B1, B2, etc.
Braille: without Braille, or with Braille in button surface.
Button Surface: Flat surface(normal), high relief surface.
Connection: wire connection, terminal connection.
Voltage: 24VDC,12VDC,6VDC
Normal open, normal closed.
Number & Figure in button surface: Number -6,-5, -4, -3, -2, -1, 0,1,2,3,......64,
figure: door open, door close, arrowup, arrowdown, alarm bell, telephone, G, B, P, B1, B2, etc.
Feature:
Button surface material: outer frame material is ABS, button surface cover material is stainless steel.
The thickness of installation plate: 2-7mm, installed by plastic screw(supplied together with our button),
very easy for installing.
Fire-proof components, in accordance with European standard EN-81.
Life: >5 million time of operation life.
General use type,suitable for all elevator.
The thickness of installation plate: 2-7mm, installed by plastic screw(supplied together with our button),
very easy for installing.
Fire-proof components, in accordance with European standard EN-81.
Life: >5 million time of operation life.
General use type,suitable for all elevator.
Travel | 0.3 - 0.6mm | ||||||
Pressure | 2.5 - 5N | ||||||
Current | 12 mA | ||||||
Voltage | 24V | ||||||
Lifespan | 3000000 times | ||||||
Electrical lifespan for alarm | 30000 times | ||||||
Light color | Red, white, blue, green, yellow, orange | ||||||
Our company has excellent production equipment, advanced and reasonable processes, complete testing methods, strong technical strength, and experienced technical workers; The product uses Italian and German hydraulic pump station systems, Italian hydraulic system explosion-proof devices, and hydraulic self-locking devices. The company has a high-quality talent team and has introduced advanced quality management systems and production equipment, which plays an important role in ensuring the production of high-quality elevator products.
Product packaging
Gate and shaft
Semi automatic sliding door handle
Product packaging
Past cases
Q: how long is your delivery date?
A: *The general specification of the product is about 15 days after receiving the advance payment.
*Special requirements take about 25-30 days.
*Special requirements take about 25-30 days.
Q: Transportation security and payment security.
A: We choose a safe and reliable shipping company for our customers, with short shipping period and safe transportation.Under the supervision of Alibaba, our account ensures timely delivery and good quality.
Q: What information is absolutely needed before asking for price?
A: 1.How many floors and the height of each floor?
2.How many stops/ doors?
3.What’s the installation space? (width by depth)
4. How many people will use?
2.How many stops/ doors?
3.What’s the installation space? (width by depth)
4. How many people will use?
Q: How can we guarantee the good quality of your products?
A: In during the production process we will inspect all purchased and produced parts and take a record after put in crates, before shipping out we will do the final inspection and take photo and video as record to make customer being at ease.
Q: What is your payment terms and Shipping&Price term?
A: *TT and L/C are acceptable and TT will be more appreciated. other terms can also be discussed.
*50% deposit can be paid first for production, and the balance can be made up before delivery.
*Both FOB/CIF/DDP price term are ok,we have reliable forwarder helping arrange the shipment for you.
*50% deposit can be paid first for production, and the balance can be made up before delivery.
*Both FOB/CIF/DDP price term are ok,we have reliable forwarder helping arrange the shipment for you.
Q: How to do with the elevator installation and maintenance?
Our support for on-site installation requires payment of a certain installation fee
Похожие товары
Квадратная кнопка для лифта
767,54 ₽ - 1 206,14 ₽
Площадь прочный Лифт пол вызов Нажмите кнопки для лифтовых кабин
164,48 ₽ - 436,41 ₽
Бестселлер запчасти для лифта зеркальная кнопка квадратные кнопки Брайля
Лифтовая квадратная кнопка 29 5*29 5 мм
Низкая цена Нержавеющее стальное белый кнопочный переключатель для подъемники
34x34 грузовой тип Лифт кнопка красная светодиодная квадратная для полицейского бедра
219,30 ₽ - 548,25 ₽

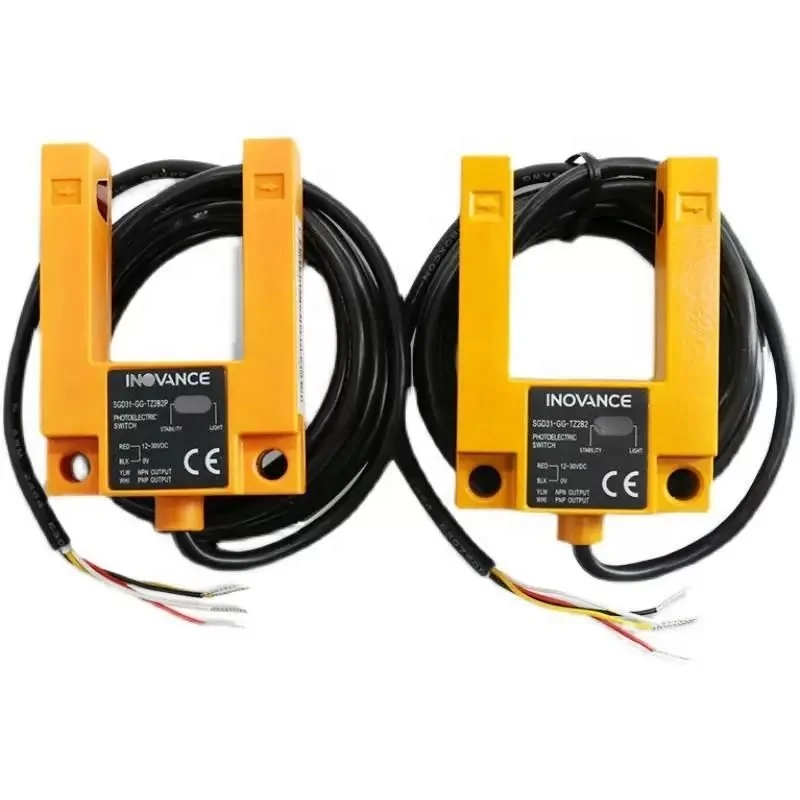

SGD31-GG-TZ2B2 датчика выравнивания фотоэлектрического переключателя лифта U-типа
