Skelner, печь для плавки меди, 1 м
2 373 751,60 ₽
Печь для выплавки меди с гидравлическим наклоном сердечника частотой 650 кг / ч
- Категория: >>>
- Поставщик: Wuxi Wondery Industry Equipment Co. Ltd.
Сохранить в закладки 1601269255005:
Описание и отзывы
Характеристики
Product Application
This product is designed using the principle of electromagnetic induction.
After applying an alternating voltage to the induction coil, an alternating magnetic flux is generated, which passes through the iron core to form a closed magnetic circuit. This alternating magnetic flux induces electromotive force and secondary current in the melting groove. This current passes through the resistance of the metal charge, converting electrical energy into thermal energy, which melts the metal in the melting groove.

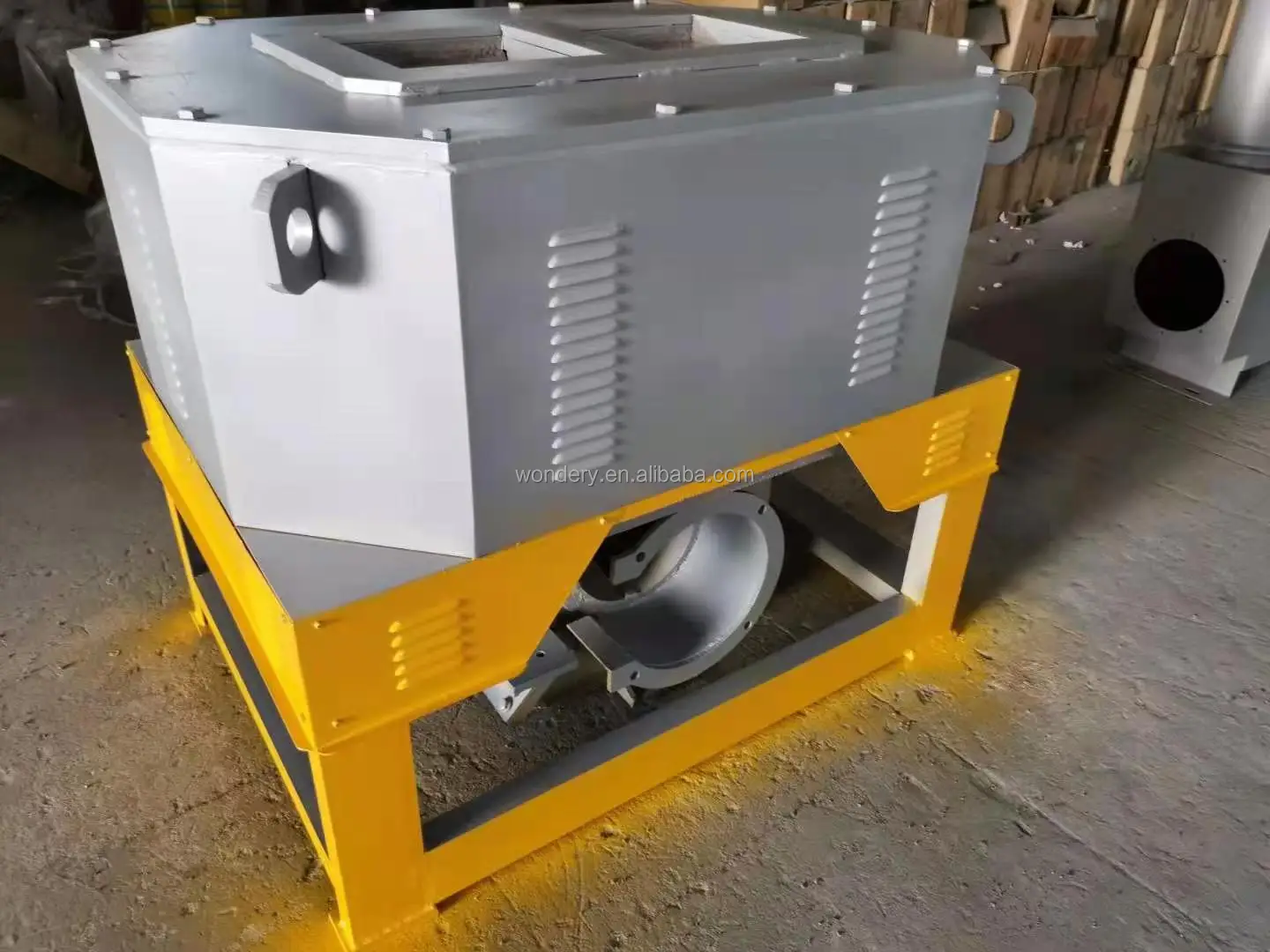

Tilt induction furnace Tilt induction furnace Tilt induction furnace Tilt induction furnace
Technical parameters of power frequency core hydraulic tilting furnace
No. | Name | Unit | Data |
1 | Minimum capacity (i.e. min melting weight) | T | 0.3 |
2 | Rated total capacity | T | 2.5(According to customer requirements, it can be increased or decreased） |
3 | Rated power | KW | 150 |
4 | Rated voltage of sensor | V | 380 |
5 | Sensor phase number | 3 | |
6 | Sensor frequency | HZ | 50 |
7 | Melting rate | T/H | 0.65 |
8 | Holding power | KW | 50 |
9 | Rated operating temperature | ℃ | 1250 |
10 | power factor | 0.45~0.5(Before compensation) 0.9~1(After compensation) | |
11 | Cooling water pressure | Pa | (2~3)×105 |
12 | Cooling water consumption | T/H | 6(Induction coil:2) (Water cooling jacket:4) |
Wuxi Wondery Industry Equipment Co., Ltd is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 45 days after receipt of down payment.
