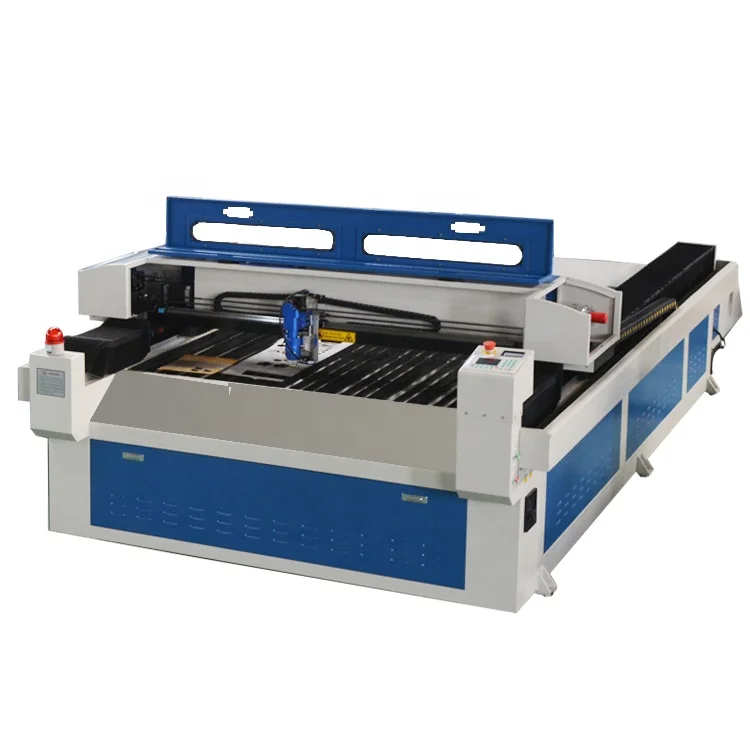

Горячая Распродажа 1325 300 Вт 500 600 co2 лазерная резка для металла и неметалла

Сохранить в закладки 1601269300019:


Цена:711 057,10 ₽ - 1 258 024,10 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


180W 300w 500w hot sale co2 laser cutting machine plexiglass steel lazer cutter for metal and non metal



Product Description


Main feature of metal laser cutting machine


#High speed DSP offline control system with colorful TFT screen displaying and USB interface.2MHZ data transfer and designing display on TFT screen.


Dynamic display the working process during machine cutting work.


Can change the parameter on TFT panel.

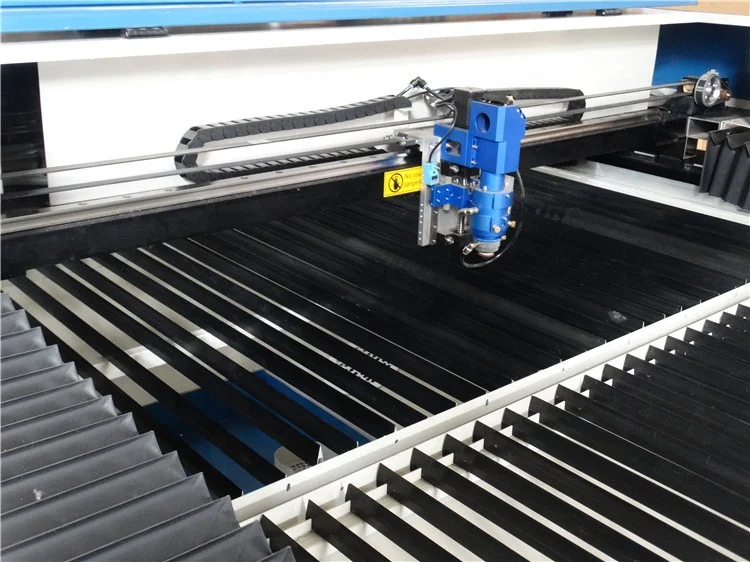

Jinan Good quality 1325 co2 sheet metal laser cutting machine metal laser head.jpg


#Special follow up laser cutting head for both metal and nonmetal materials cutting.


USA imported focus lens.


Industry heavy duty machine body to ensure machine stable and high precision


Jinan Good quality 1325 co2 sheet metal laser cutting machine control panel.jpg

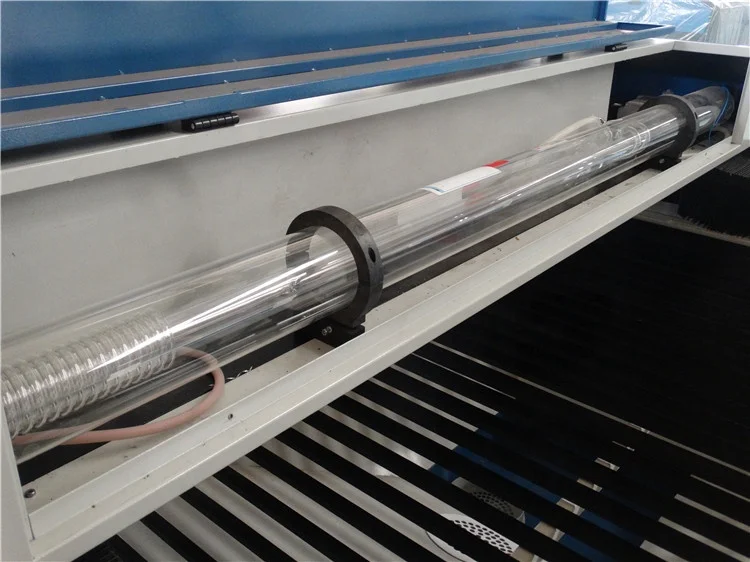

280W YONGLI Laser


Jinan Good quality 1325 co2 sheet metal laser cutting machine metal laser tube.jpg


Industry chiller


Jinan Good quality 1325 co2 sheet metal laser cutting machine water chiller.jpg


#Electrical components


 Jinan Good quality 1325 co2 sheet metal laser cutting machine.jpg


Techncial speiciation of metal laser cutting machine












































































































































No



Model



FMJ1325/ FMJ1390 / FMJ1610/ FMJ1410



1



Effective working size



2500*1300mm/ 1300 *900mm/ 1600*1000mm/ 1400*1000mm



2



Laser power



W6/W8 150W/180W RECI laser tube



3



Laser type



CO2 laser tube



4



Cutting speed



0-200mm/s



5



Working accuracy



±0.005mm



6



Control system



Ruida control system--model 6332



7



Guide rail



Taiwan HIWIN square rail



8



Motor



Step motor and drivers



9



Cutting thickness



0-2 mm



10



Table structure



Mesa of the blade



11



Dust collector



550W x air exhaust fan with tube ducts



12



Transmission way



Shanghai Fulong Belt drive



13



Min. shaping character



Character 2*2mm, English 1 x 1mm



14



Graphic format supported



PLT, DXF, BMP, AI, DSP



15



Software supported



CorelDraw, Photoshop, AutoCAD



16



Driving system



Step motor



17



Cooling system



Water pump/Water chiller



18



Water chiller



CW5000/CW5200



19



Laser tube lifetime



RECI laser tube:10000h



20



Power supply



220V±10% 50HZ or 110V±10% 60HZ



21



Operation temperature



0 - 45°C



22



Operation humidity



5 - 95%



23



Recommended spare part



Laser tube and lens



24












Main configuration



1X Laser tube



1set X Mirror and lens



1X Water chiller 1X EXHAUST FAN   1x exhaust fan smoke pipe, 1X water pipe



1x USB cable      1x communication cable    1x CD(Ruida software english version)



Application of metal laser cutting machine


Widely used in advertising signs, sheet metal structure, high and low voltage cabinet making, t


extile machinery, kitchenware, automobiles, machinery, electric saws,


precision parts, subway parts, metal crafts and so on

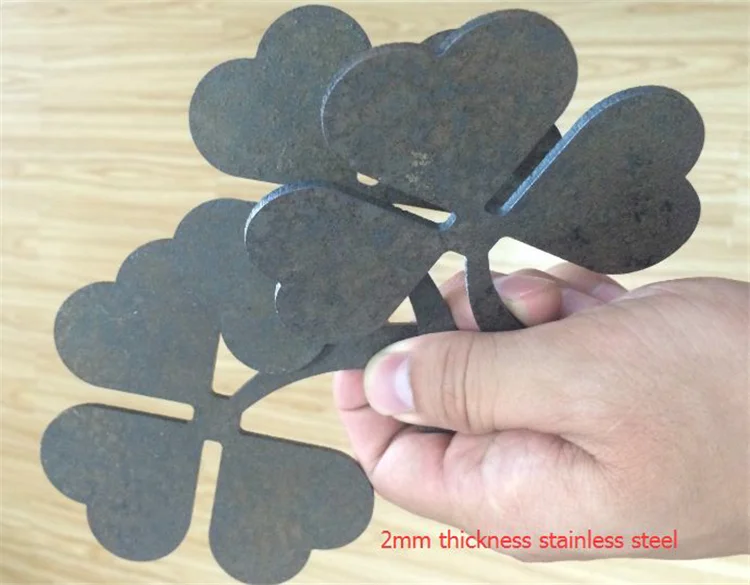

Samples of metal laser cutting machine


Jinan Good quality 1325 co2 sheet metal laser cutting machine.jpg





Hot sale products


Other related laser engraving cutting machines














#Small 3d laser engraving cutting machine


Jinan Good quality 1325 co2 sheet metal laser cutting machine.jpg



#Auto feeding fabric laser cutting machine


 Jinan Good quality 1325 co2 sheet metal laser cutting machine.jpg



#Small metal laser cutting machine


Jinan Good quality 1325 co2 sheet metal laser cutting machine.jpg



#Two heads laser engraving cutting machine


 CO2 laser machine Jinan High quality metal laser cutting machine.jpg






Company Information


FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.


We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.


Jinan Good quality 1325 co2 sheet metal laser cutting machine.jpg


Customer visit factory


Jinan Good quality 1325 co2 sheet metal laser cutting machine.jpg


After sale service


1. 24 hour Technical support by phone, e-mail or MSN around the clock.


2. Friendly English version manual and operation video CD disk.


3.7-15 working days after down payment or full payment.


4. Machine will be adjusted before it is delivered; operation disk/CD was included.


5. Our technician can give you remote guide online (Skype or MSN) if you have any question.


6. Engineers available to service machinery overseas, seller and buyer discuss the charges



Package


1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.


2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.


3) fumigation-free


4)With shipping mark if you like.


5)Outside: Marked packing size, model, weight and other information


Jinan Good quality 1325 co2 sheet metal laser cutting machine package.jpg





FAQ


FAQ


1.Can you recommend a laser machine to me ?


Yes, In order to give you a suitable laser machine,pls tell me your working area ? processing materials ? engraving or cutting ?


if cutting, what's the max cutting thickness ? Then perfect suitable machine will be recommend.


2.Do you have operation manual and working video?


Yes, after we confirm order, operation manual will be send to you.


3.Does your company can processing my samples?


Yes, we can


4.If I bought machine, but don't know how to operation, what I can do?


Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .


5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?


During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .


6.Does your engineer do aftersale service at abroad? how much cost?


Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
