Хит продаж, двухкомпонентный теплопроводный Огнестойкий Электронный силиконовый клей для заливки
399,23 ₽ - 431,60 ₽
Конкурентоспособная цена хорошее качество двухкомпонентный Огнестойкий Электронный Компаунд силиконовый клей для заливки
- Категория: >>>
- Поставщик: Shanghai Max Tech Co. Ltd.
Сохранить в закладки 1601269408315:
Описание и отзывы
Характеристики
Specification
TESTING ITEM | ESTING STANDARD | Part A | Part B | |||
Color | Visual inspection | White / black viscous liquid | White viscous liquid | |||
Viscosity, cps , 25℃ | GB/T 10247-2008 | 2500±500 | 2300±500 | |||
Density,,g/cm3, 25℃ | GB/T 15223-1994 | 1.63±0.05 | 1.63±0.05 | |||
Mixture ratio | Weight Ratio | A：B = 100：100 | ||||
Viscosity of mixture,4#rotor,cps , 25℃ | GB/T 10247-2008 | 2500±500 | ||||
Operation time,mins , 25℃ | GB/T 10247-2008 | 50±10 | ||||
Tack free, mins, 25℃ | GB/T 10247-2008 | 90±20 | ||||
Cure condition | GB/T 10247-2008 | 25℃/3-5 hr or 80℃/ 30mins | ||||
Characteristics after curing | ||||||
Cured appearance | Visual inspection | Gray, white or black elastomer | ||||
Hardness, Shore A | GB/T 531-2008 | 55±5 | ||||
Thermal conductivity，W/mK | GB/T 10297-1998 | 0. 75 | ||||
Linear expansion，K-1，ppm | HGT 2625-1994 | 230 | ||||
Dielectric strength ,kV/mm, 25℃ | GB/T 1695-2005 | ≥15 | ||||
Volume resistance,DC 500V， Ω·CM | GB/T 1692-92 | 1.1×1014 | ||||
Loss factor(1 MHz) | GB/T 1693-2007 | 0.009 | ||||
Dielectric constant(1 MHz) | GB/T 1693-2007 | 3.00 | ||||
Application temperature, ℃ | GBT 20028-2005 | - 50 ∽ 250 | ||||
Flame resistance | UL-94 | V-0 | ||||
Product Description
Description

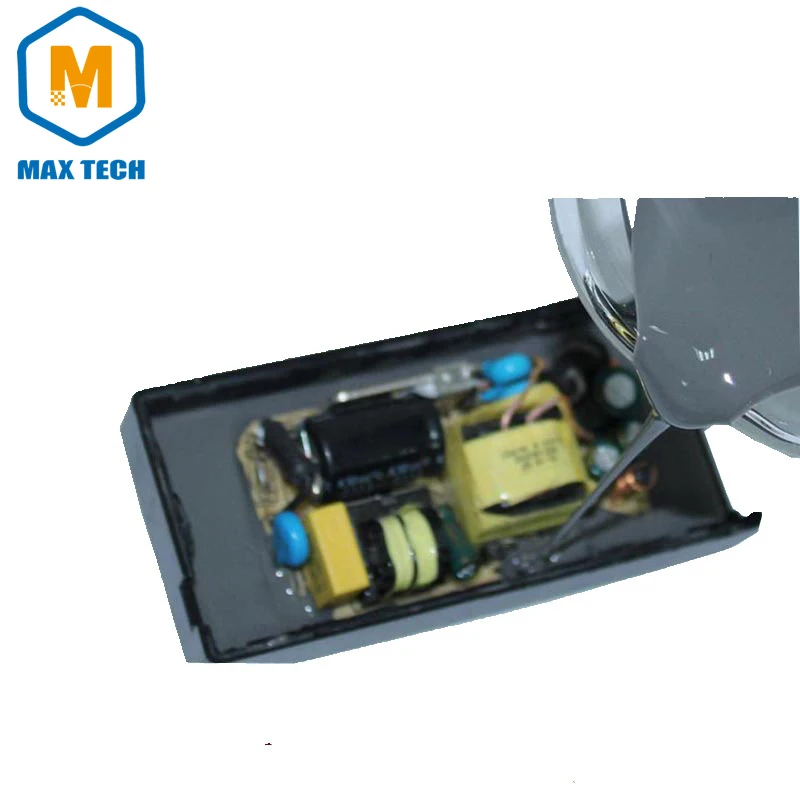

SI8230 is two-component silicone based thermal conductive potting adhesive. It has a good fluidity after mixing, can vulcanize to deep layer in room temperature. The operation time can be adjusted according to the temperature. Used to potting protection of varied heat dissipation and temperature resistance components. Fully compliant with RoHS and SVHC REACH standard.
Typical Applications

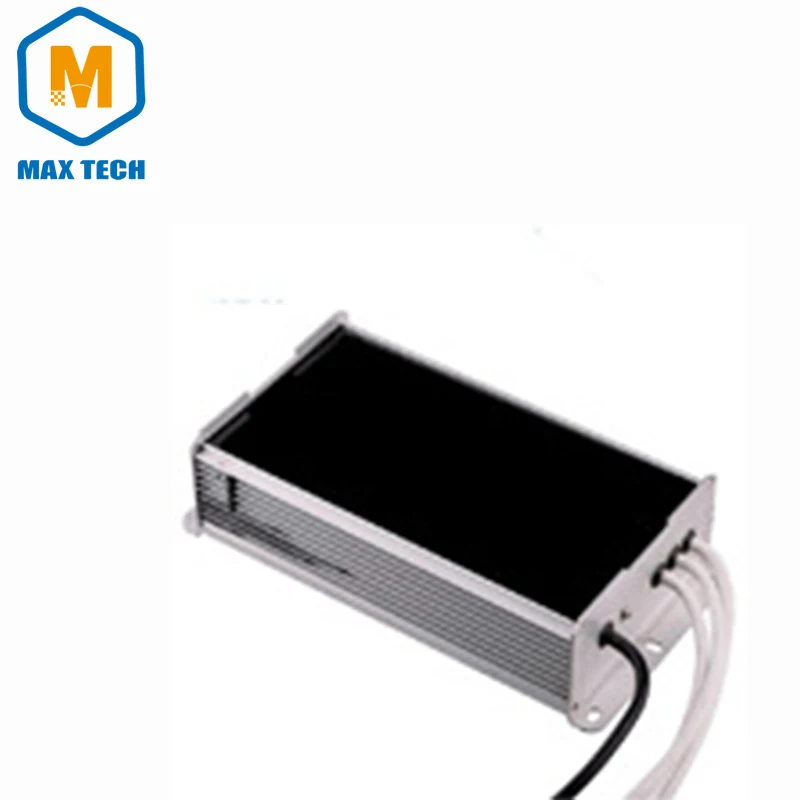

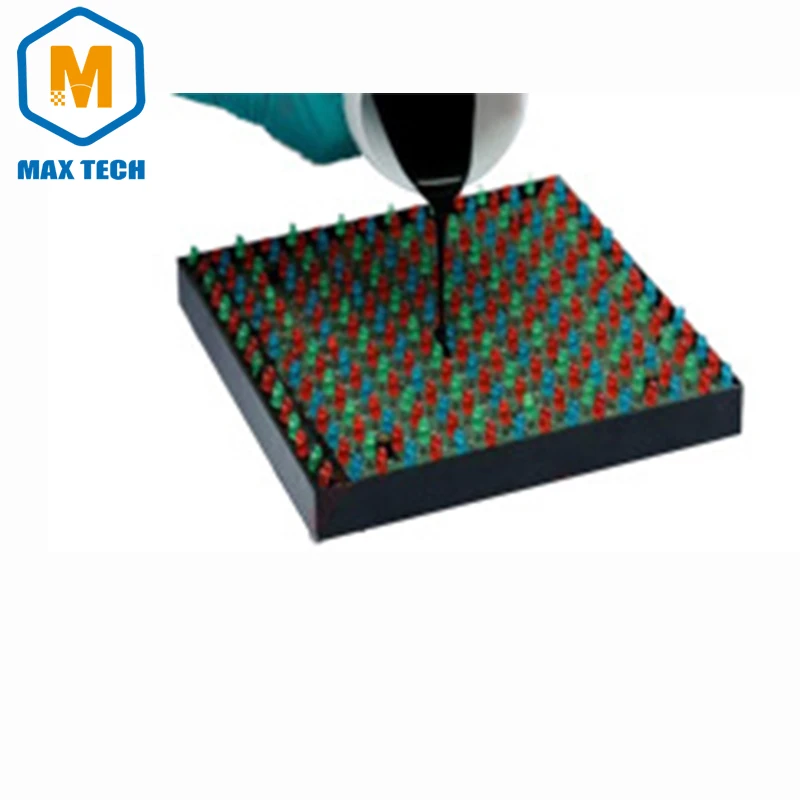

●Used for encapsulation of various modules, automotive module, LED Power driver modules, Solar panel junction box, EV charging column module, Lithium battery pack, Capacitor banks, Magnetic induction coils, Power inverters, etc.
Key Features
1.Two-part 1:1 mixture addition type silicone adhesive
2.Low hardening shrinkage
3.Excellent electrical insulation in high temperature and stability
4.Good waterproof and moisture resistance
5.Excellent flame resistance
2.Low hardening shrinkage
3.Excellent electrical insulation in high temperature and stability
4.Good waterproof and moisture resistance
5.Excellent flame resistance
Packing Specification
●SI8230W white thermal conductivity silicone potting sealant，code：A0105012/B0105013
●SI8230B black thermal conductivity silicone potting sealant，code：A0105028/B0105029
●SI8230G graythermal conductivity silicone potting sealant，code：A0105080/B0105081
Part A：25 kg/plastic drum
Part B：25 kg/plastic drum
Part A：250 kg/plastic drum
Plat B：250 kg/plastic drum
●SI8230B black thermal conductivity silicone potting sealant，code：A0105028/B0105029
●SI8230G graythermal conductivity silicone potting sealant，code：A0105080/B0105081
Part A：25 kg/plastic drum
Part B：25 kg/plastic drum
Part A：250 kg/plastic drum
Plat B：250 kg/plastic drum
Transport &Storage
● When stored at or below 35°C in the original unopened containers, this product has a usable life of 12 months from the date of production. Sampling test is necessary for products which exceed shelf life before taking use. During storage may have little settlement stratification, stirring evenly when use, does not affect performance.
It’s non-dangerous goods, can be transported as normal chemicals, CAUTION leakage during transport.
It’s non-dangerous goods, can be transported as normal chemicals, CAUTION leakage during transport.
Company Profile
Our Advantages
Certifications
Exhibition
Packing & Delivery
FAQ
Q:How long can I get a quote
A:The quotation can be provided no longer than 24hours on condition that we know all detailed requirement.
Q:Do you accept private Label?
A:Yes. ODM & OEM are Welcome.
Q:Can I get a samle before order?
A: Of course. Generally, we provide 1-3 pieces free samples for quality testing and the courier fee be born by customers. Thanks for your understanding.
Q:Do you have MOQ.
A:Yes, Generally ,MOQ is 1000pcs or 1000kg.
Q: How long will finished my order?
A: It’s depend on your order quantity.
Generally, Our production time is 10-15 days after get the payment.
Q:How to find the suitable sealant?
A: Please let me know your application purpose,substrate, application method and all your requirements. We would like give you a better recommendation.
A:The quotation can be provided no longer than 24hours on condition that we know all detailed requirement.
Q:Do you accept private Label?
A:Yes. ODM & OEM are Welcome.
Q:Can I get a samle before order?
A: Of course. Generally, we provide 1-3 pieces free samples for quality testing and the courier fee be born by customers. Thanks for your understanding.
Q:Do you have MOQ.
A:Yes, Generally ,MOQ is 1000pcs or 1000kg.
Q: How long will finished my order?
A: It’s depend on your order quantity.
Generally, Our production time is 10-15 days after get the payment.
Q:How to find the suitable sealant?
A: Please let me know your application purpose,substrate, application method and all your requirements. We would like give you a better recommendation.
