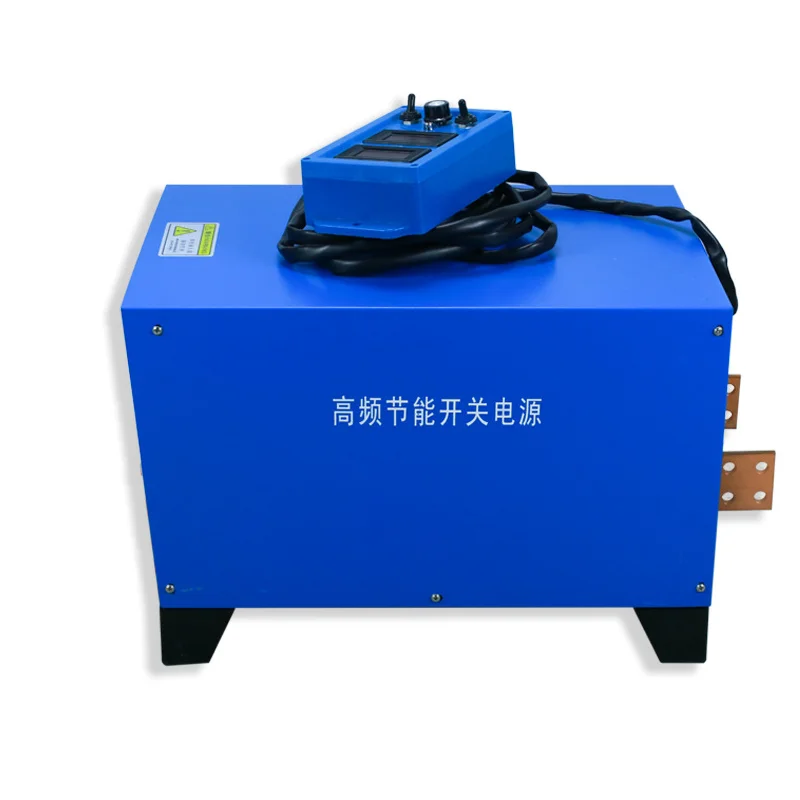

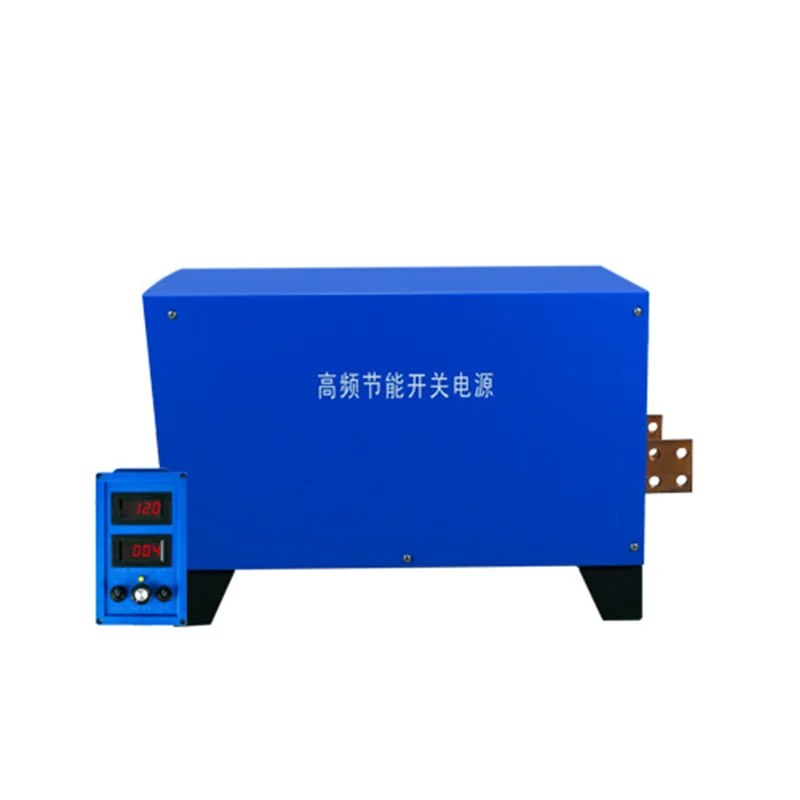

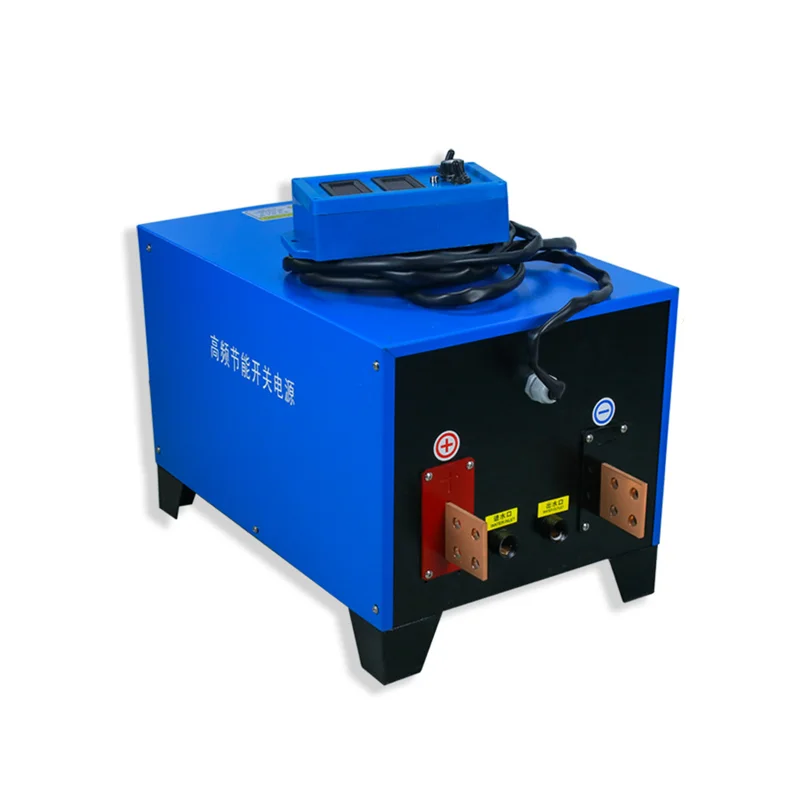

Выпрямитель с высоким током IGBT 1000 А 1500 2000 12 В
- Категория: >>>
- Поставщик: Shenzhen Zhongxintai Power Technology Co. Ltd.
Сохранить в закладки 1601269446985:
Описание и отзывы

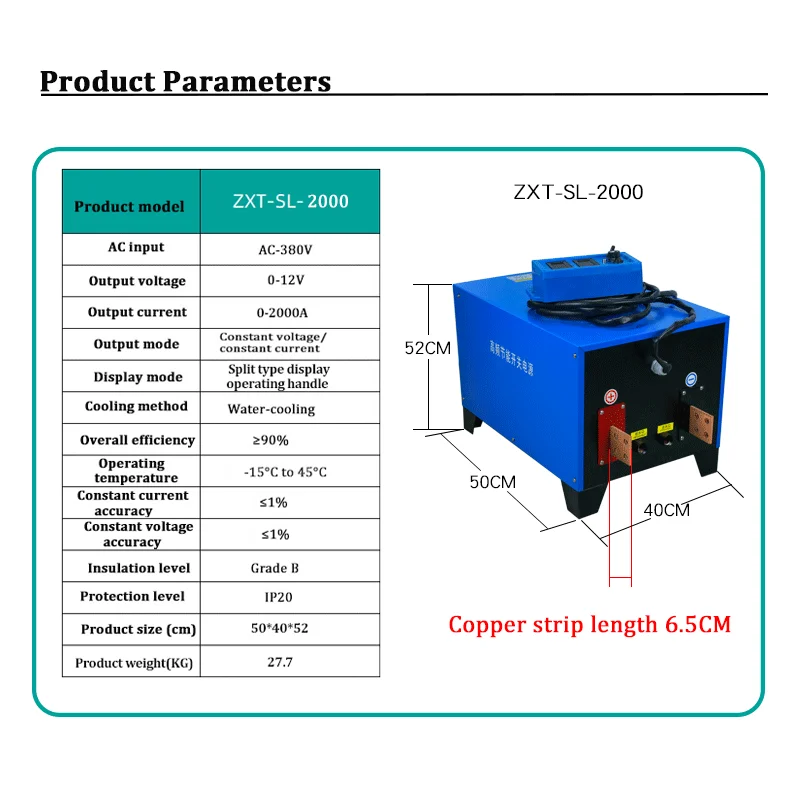

Характеристики
output | current | 0~1000a 1500a 1500a optional | |
voltage | 0~12V | ||
frequency | 50khz 60khz | ||
effiencicy | ≥95% | ||
voltage stability | ≤1% | ||
current stability | ≤1% | ||
Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) | ||
adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range | ||
control part | cooling system | water cooling | |

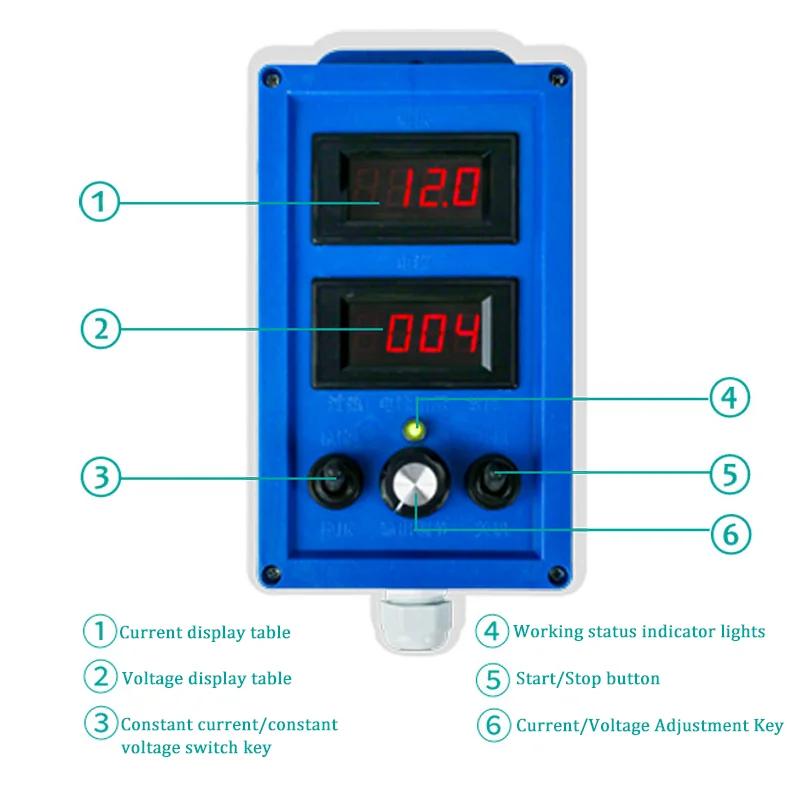

control method | Remote box | ||
Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. | ||
Protection method | Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc. | ||
use environment | Operating temperature | -20-50℃ | |
Ambient temperature | 30-65℃ | ||
Ambient humidity | ≤90% | ||
Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation | ||
Reduced Ripple | Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point | ||
The product is widely used in many industries, including but not limited to fine electroplating of precious metals, surface treatment of hardware, electroplating process of plastic materials, strengthening of hard chromium electroplating, optimization of electrolytic metallurgy process, oxidation treatment and coloring process of aluminum profiles, improvement of electrochemically polishing technology, and even widely used in environmental protection and electronics fields such as wastewater treatment and PCB circuit board electroplating.
Products Description
1.The power host has the advantages of elegant appearance, convenient installation, safe use,anti-corrosion and durability.
2. The unique heat dissipation isolation structure not only ensures good heat dissipation of the power supply, but also isolates the heat dissipation air duct from the electronic accessories inside the power supply, playing an excellent heat dissipation and anti-corrosion effect.
3. The power supply has the protection functions of overheating, overcurrent, short circuit, undervoltage and overvoltage.
4. High power factor, high efficiency, stable output frequency, high control accuracy, high voltage and current output stability,Which can effectively improve product quality.
2. The unique heat dissipation isolation structure not only ensures good heat dissipation of the power supply, but also isolates the heat dissipation air duct from the electronic accessories inside the power supply, playing an excellent heat dissipation and anti-corrosion effect.
3. The power supply has the protection functions of overheating, overcurrent, short circuit, undervoltage and overvoltage.
4. High power factor, high efficiency, stable output frequency, high control accuracy, high voltage and current output stability,Which can effectively improve product quality.
Feature
▪ Using high-quality imported IGBT as the main power device;
▪ The transformer core is mainly made of amorphous nano magnetic core alloy material;
▪ The main control system adopts multi loop control technology;
▪ Structurally, anti salt spray acidification treatment has been adopted;
▪ Suitable for various precision surface treatment sites such as oxidation, electrolysis, galvanizing,
nickel plating, tin plating, chrome plating, optoelectronics, smelting, corrosion, etc.
▪ Proficient in anodizing, vacuum coating,electrolysis, electrophoresis, water treatment, polishing, electric heating, and other related fields.
▪ The main control system adopts multi loop control technology;
▪ Structurally, anti salt spray acidification treatment has been adopted;
▪ Suitable for various precision surface treatment sites such as oxidation, electrolysis, galvanizing,
nickel plating, tin plating, chrome plating, optoelectronics, smelting, corrosion, etc.
▪ Proficient in anodizing, vacuum coating,electrolysis, electrophoresis, water treatment, polishing, electric heating, and other related fields.
What Does Rectifier Work In Chrome Zinc Plating?
▪Rectifier is a high frequency switching power supply unit that can convert AC (AC) to DC (DC). turn ac (AC) into dc(DC) and provide to load or inverter after smoothing ,then provide charging voltage to battery.
▪Plating rectifier has a transformer that reduces the voltage, diodes responsible for the conversion, a control system for both the voltage and the current, a device for cooling the rectifier and overload protection.
▪Plating rectifier applicating in plating process is: In the salt solution containing the metal to be plated, the substrate metal to be plated is used as the cathode, and the cations to be plated in the plating solution are deposited on the surface of the substrate metal by electrolytic.
▪Plating rectifier has a transformer that reduces the voltage, diodes responsible for the conversion, a control system for both the voltage and the current, a device for cooling the rectifier and overload protection.
▪Plating rectifier applicating in plating process is: In the salt solution containing the metal to be plated, the substrate metal to be plated is used as the cathode, and the cations to be plated in the plating solution are deposited on the surface of the substrate metal by electrolytic.
Details Images
Company Profile
Shenzhen Zhongxintai Power Technology Co., Ltd. has been committed to the research and development, production, and sales of a series of industrial power supplies such as electroplating power supply, oxidation power supply, and pulse power supply since its brilliant birth in 2007. It is a high-tech enterprise with strong technical strength and comprehensive innovation capabilities.After 18 years of refinement and accumulation, the company has successfully established a rigorous and efficient production management system, ensuring excellence in every aspect from product research and development to manufacturing; At the same time,the company has established a comprehensive and strict quality control system, striving to meet the high standards of the industry for every product that leaves the factory, as well as a continuous selection and updating of R&D systems that closely follow market demand, constantly driving the company's cutting-edge exploration in the field of power technology.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Southern Europe(15.00%),Western Europe(12.00%),Eastern Europe(10.00%),North America(10.00%),Northern Europe(5.00%),Mid East(4.00%),Domestic Market(30.00%),South Asia(2.00%),Southeast Asia(2.00%),Africa(2.00%),Central America(2.00%),South America(2.00%),Eastern Asia(2.00%),Oceania(2.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electroplating power supply,Oxidation power supply,Pulse power supply,Electrolysis power supply,Electrophoresis power supply,Air-cooled rectifier,Water-cooled rectifier
4. why should you buy from us not from other suppliers?
Good Quality, Good Price, Good Service= No.1
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
We are based in Guangdong, China, start from 2007,sell to Southern Europe(15.00%),Western Europe(12.00%),Eastern Europe(10.00%),North America(10.00%),Northern Europe(5.00%),Mid East(4.00%),Domestic Market(30.00%),South Asia(2.00%),Southeast Asia(2.00%),Africa(2.00%),Central America(2.00%),South America(2.00%),Eastern Asia(2.00%),Oceania(2.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electroplating power supply,Oxidation power supply,Pulse power supply,Electrolysis power supply,Electrophoresis power supply,Air-cooled rectifier,Water-cooled rectifier
4. why should you buy from us not from other suppliers?
Good Quality, Good Price, Good Service= No.1
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,German,Korean
What Equipments zxt power Provide For Chrome Plating Process?
zxt power Equipment is widely used in plating gold, silver, zinc, nickel, copper, chrome, anodizing, electrolysis,electrophoresis,and provide a variety of item for chrome plating line,such as IGBT rectifier,tank,immersion heater, lead tin anode,filter.
Похожие товары

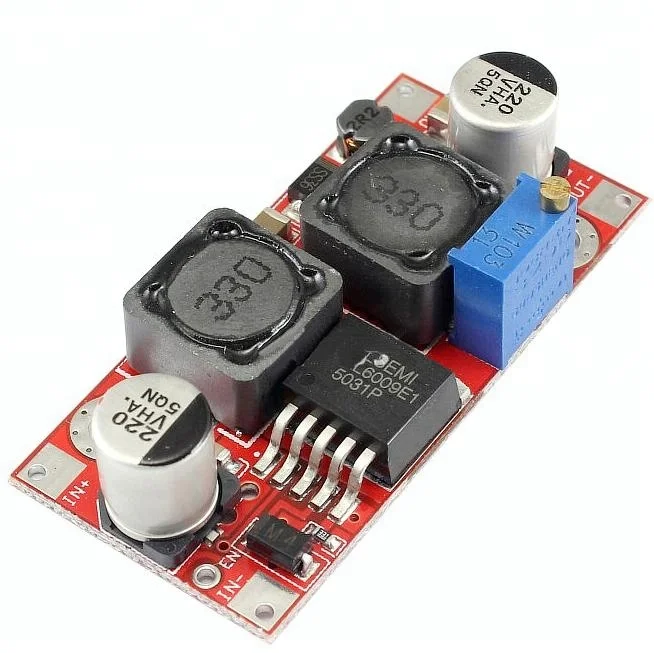

Boost Buck DC-DC регулируемый шаг вверх-вниз конвертер XL6009 модуль питания 20 Вт 5-32 В
Преобразователь постоянного тока от 48 В до 12 В, 10А для гольф-автомобиля, автомобильный регулятор напряжения, понижающий источник питания
Преобразователь постоянного тока 48V 60V 72V до 12V 20A 240W

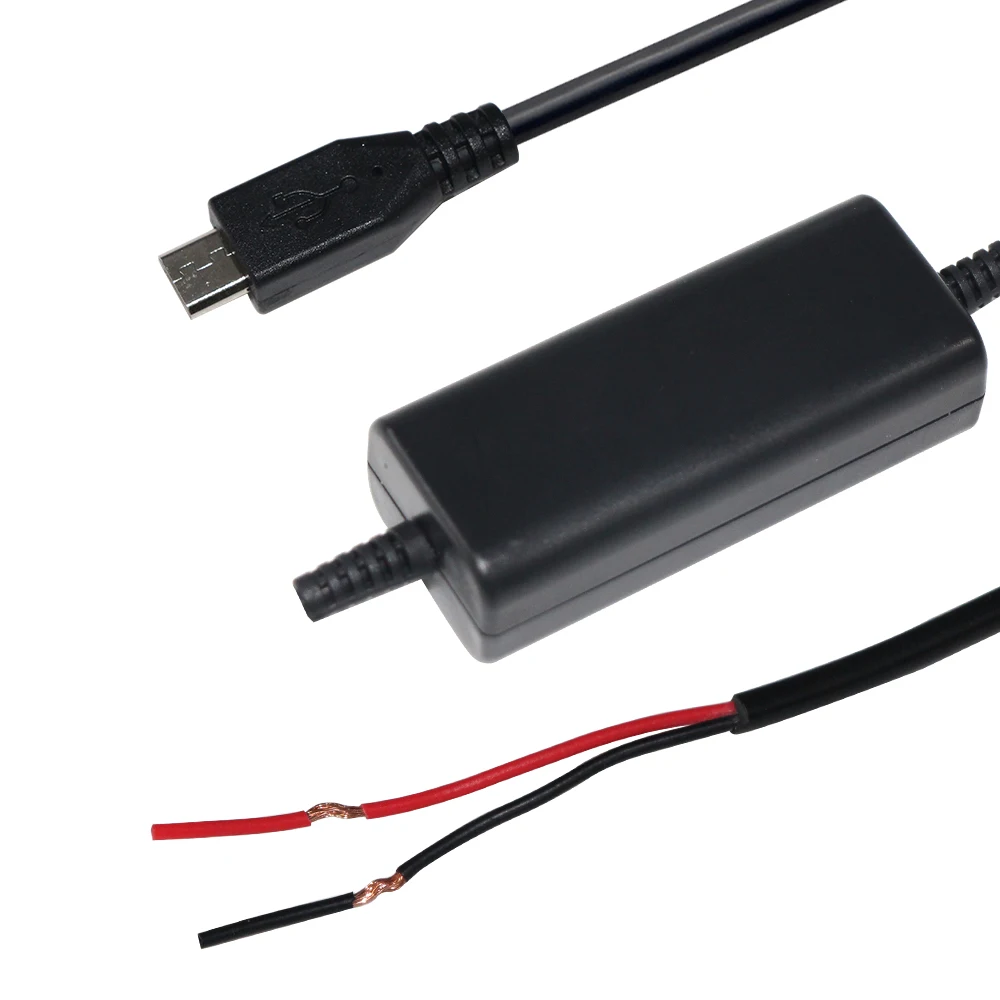

Usb Micro Dc-Dc мощность 24 Шаг вниз 5Vdc 3.3Vdc Conberter 5 в 12 В до 1,5 в конвертер

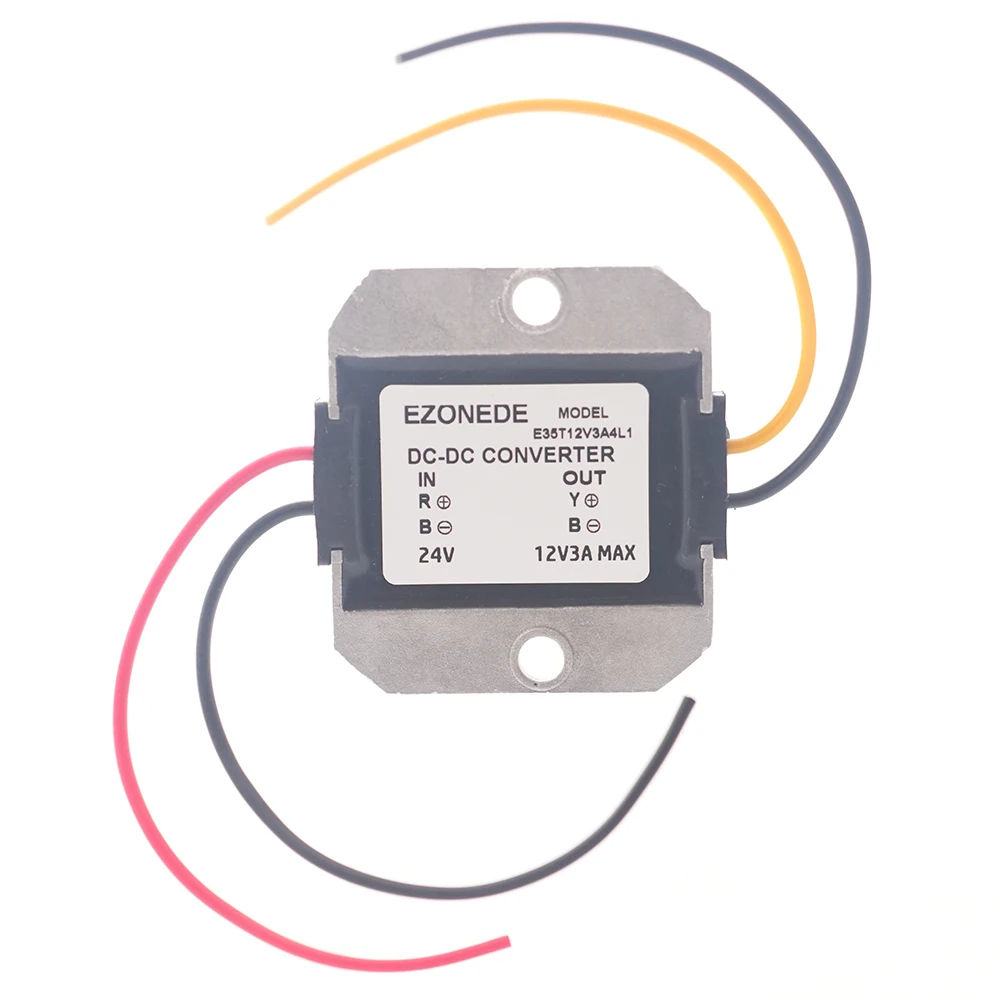

DC-DC преобразователь 12 В/24 В до 12 В 3A 36 Вт понижающий модуль питания модуль регулятора напряжения водонепроницаемый для автомобильного светодиодного экрана монитора
380,88 ₽ - 413,25 ₽

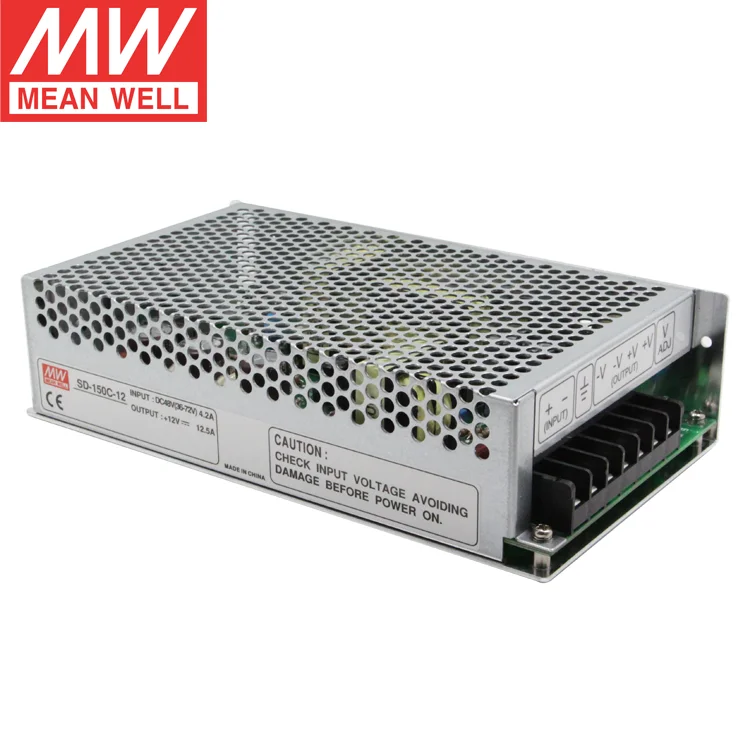

Meanwell SD-150C-12 48 В до В 12 В DC преобразователь
