ПЭ пленка термоусадочная упаковочная машина с термоусадочным туннелем/пластиковая бутылка для воды производственная линия

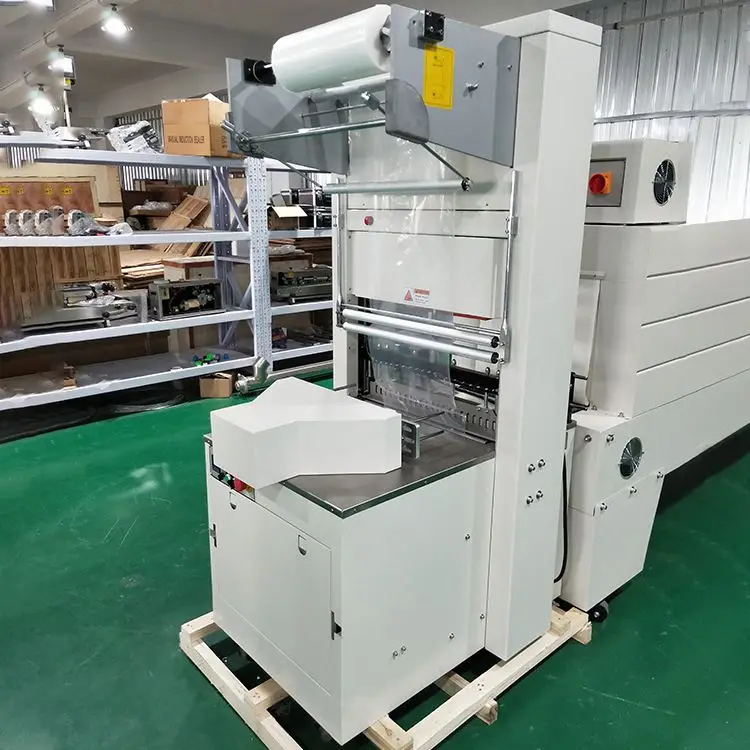

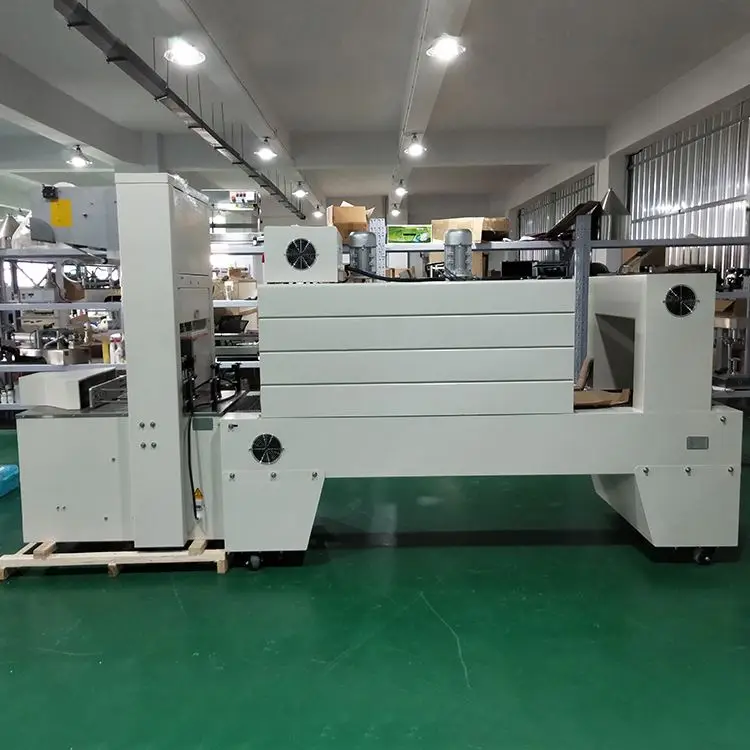

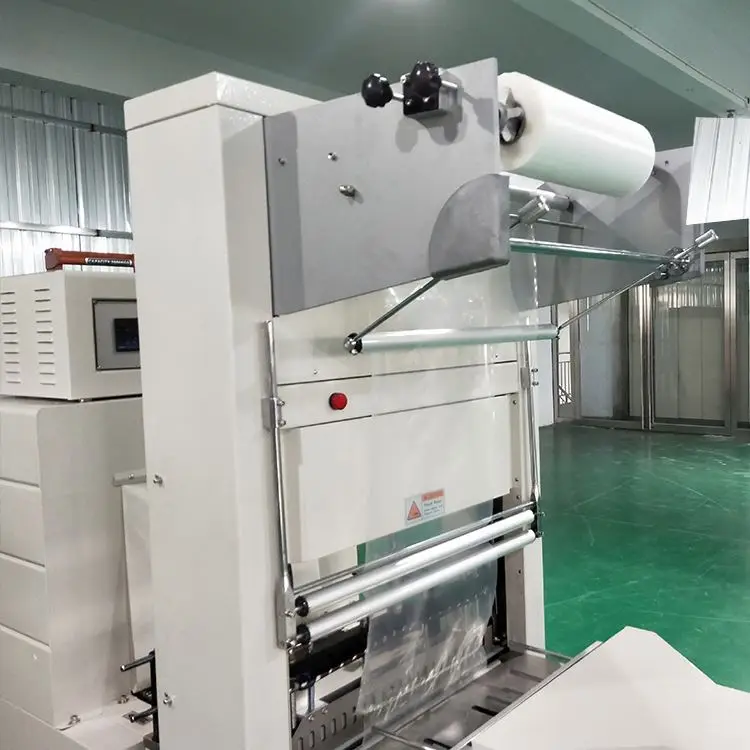

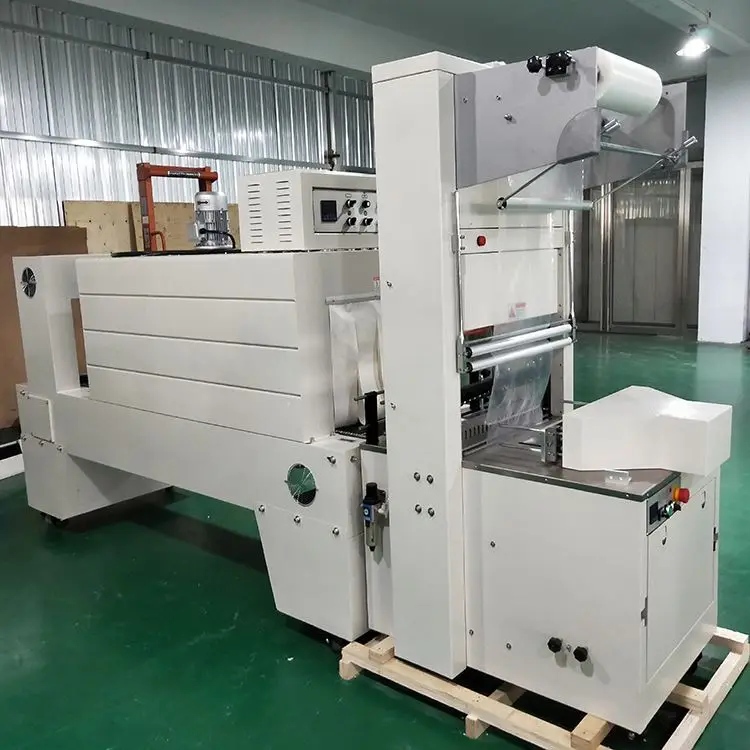

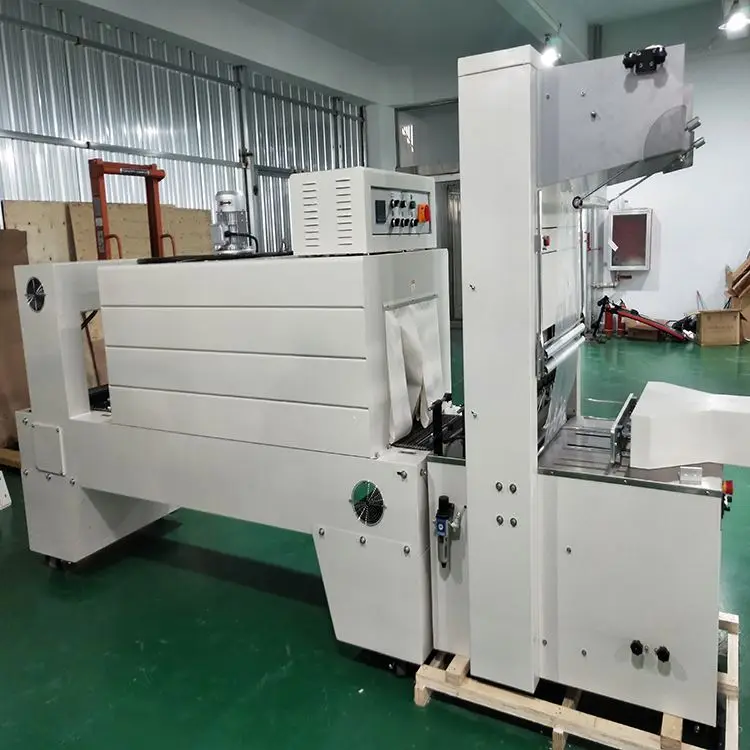

Automatic Film Shinking Machine is developed by the advantage of domestic and foreign similar type, it could automatically mantle films for the PET bottles, heat and shink, and shape by cooling process. The products after packaging are solid, neat,good looking and easy to open, it was widely applied in the industry of food, beverage

Features of heat shrink film wrapper for bottle

1. Automatic cover only artificial product plment film machine, the machine automatically push things, sealing, shrink packaging series of actions, greatly reduce labor intensity and improve work efficiency;
2. Mantle machine cutter with alloy blades, outside Teflon coated, non-stick knife, cut a good sealing effect;
3. Hot knife made of aluminum alloy and stainless steel heating plate, a longer life;
4. Film frame plus a tensioned membrane motors, avoiding the use of large volumes when PE membrane sealing problems;
5. PE film shrink packaging machine with chain mesh transmission, smooth operation;
6. Furn using a hundred impeller blades, good hot air circulation effect;
7. Adopt Germany advanced technology, its main parts are domestic famous brands;
8. Stable and machine performance, long service life.

Bottle shrink wrap machine/automatic heat shrink wrapping machine/Plastic bottle shrink package machine technical parameter of packing products:
The length of thermal sealing & cutting knife: 700mm
Thermal shrinkage temperature: 160-250 °C
Speed: 8-12 packages
Normal bottle quantities in one package(round shape or rectangle)
4 rows 4*6 4*5 4*4 applicable bottle dimension: Φ40-Φ73mm
3 rows 3*4 3*3 3*5 applicable bottle dimension: Φ73-Φ98mm
2 rows 2*3 2*4 applicable bottle dimension: Φ98-Φ140mm
1 row 1*2 applicable bottle dimension: Φ140-Φ300mm

Features of 450L full pack shrink packing machine:
450 L fully automatic sealing and cutting machine is to wrap shrinkable film on the outside of the product or package for sealing and cutting operation,improve the display of products increase the sense of beauty and value.At the same time,the packaged goods can be sealed, moisture proof, anti-pollution,and protect the goods form external impact, with a certain buffer, especially when packaging fragile goods t can prevent broken equipment flying.

In addition,it can reduce the possibility of products being dismantled and stolen.it is suitable for heat shrinkable packaging of glass bottles, plastic bottles, paper cups and other containers in food,beverage, cosmetics and other industries.

Semi Automatic L Bar Heat Film Shrink Tunnel Wrapper and Heat Shrink Wrapping Packing Machine

Features:

1. semi automatic shrink heat packaging machine including side sealer and heat shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food,  stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

2. This machine can pack long products. There is no limit of product length because of side sealing system.

3. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.

4. Side sealing line can be adjusted in the center of product or other desired position.

5. Film perforating wheels can be adjusted or removed easily.

6. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.

7. Operate easily and conveniently by moveable control panel.

8. Adopt Siemens PLC and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.

9. A pair of photoelectric switch in vertical for thin products.

10. Optional sensor for transparent products.
