Automatic Rock Mineral Wool Feeding System for Sandwich Panel Production
Product name | Auto Rock Wool Feeding System For Sandwich Panel Production Line |
Size | 1100*1300*1800mm |
Power | 20kw |
Maximum processing length | 3000mm |
Scope of application | Rock wool board, fiberglass cloth, gypsum board, aluminum honeycomb board, furniture board, particle board, Austrian pine board, density board, carbon board, aluminum board, galvanized board, steel board, color steel board |
In existing production lines, manual labor is primarily used for feeding materials without dedicated equipment, resulting in high labor intensity, harsh working conditions, and limited operational duration. Additionally, some expensive machines used for production have complex operations and poor synchronization, failing to meet the demand for large-scale automatic material feeding. To address these issues, we propose an intelligent automatic wool feeding machine.
Specification

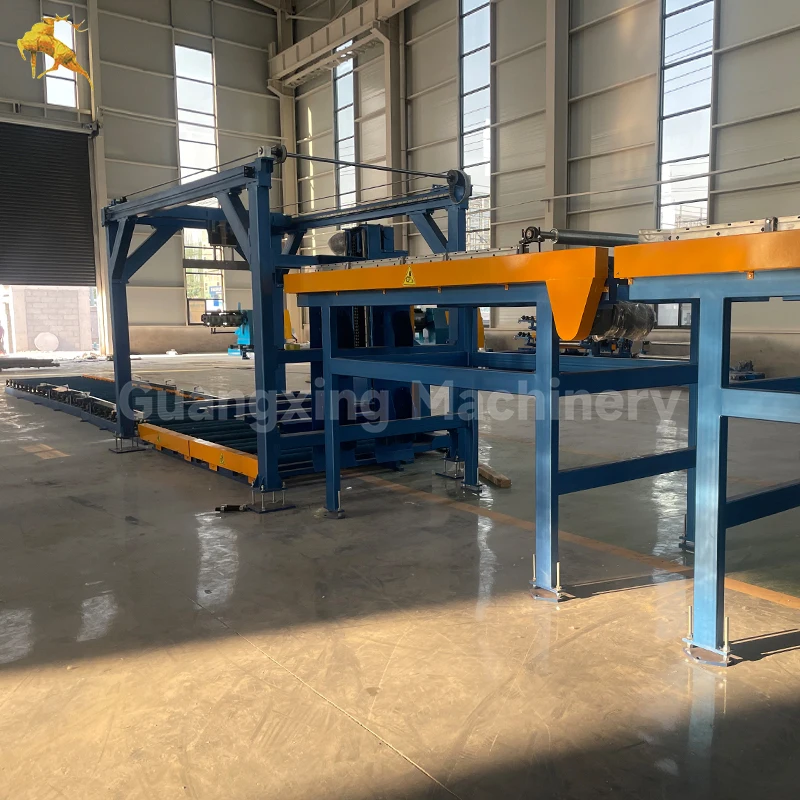

An intelligent automatic wool feeding machine comprises a support structure composed of columns and column square tubes. The top of the column square tube is equipped with a slide rail parallel to its side, with sliders fitted inside the slide rail. A slider mount is installed at the top of the slider, and a servo motor is mounted on the slider via a reducer. A drag chain is connected to the side of the slider, with the servo motor driving the drag chain pulley. Connection columns are set on the side of the column square tube, with a material grabbing mechanism connected to the bottom of the connection column. The material grabbing mechanism includes connecting rods and side plates connected at the head and tail, respectively. A connecting shaft is installed inside the side plate through bearings, with gripping hooks mounted on the connecting shaft. A material bin is set under the column square tube, and an electrical control box is located on the side of the column. The top of the slider is connected to a center slotted transfer plate, which con
Factory
Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China.
The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Advanced machinery and equipment
Our team
package
FAQ
Q: Where is the factory located?
A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there.
Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1Sets
