YOULI нержавеющая сталь отрицательного давления PN16 304 316L KF16 KF25 KF40 пневматический Трехходовой вакуумный шаровой клапан
6 072,42 ₽ - 6 506,16 ₽
3 шт. Электрический вакуумный клапан Sanlong высокого качества PTFE высокой герметизации полного литья из нержавеющей стали прямые продажи с завода
- Категория: >>>
- Поставщик: Wenzhou Rejia Valve Co. Ltd.
Сохранить в закладки 1601269531258:
Описание и отзывы
Характеристики
Product Overview
Vacuum valves are divided into manual vacuum valves, pneumatic vacuum valves, electric vacuum valves. The difference of vacuum valves and ordinary valves, that vacuum valve is used to isolate (cut off) the flow of air, regulate the flow and distribution of air. All kinds of vacuum devices (also known as vacuum engineering equipment) are inseparable from the vacuum system. Vacuum valves play an important role in simple or complex vacuum systems.
FEATURES AT A GLANCE

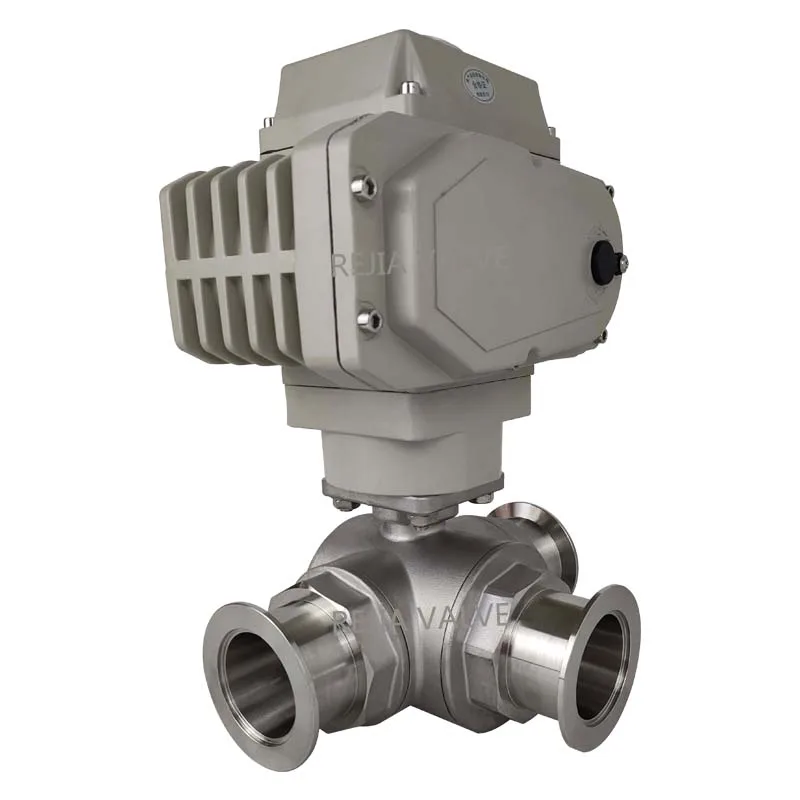

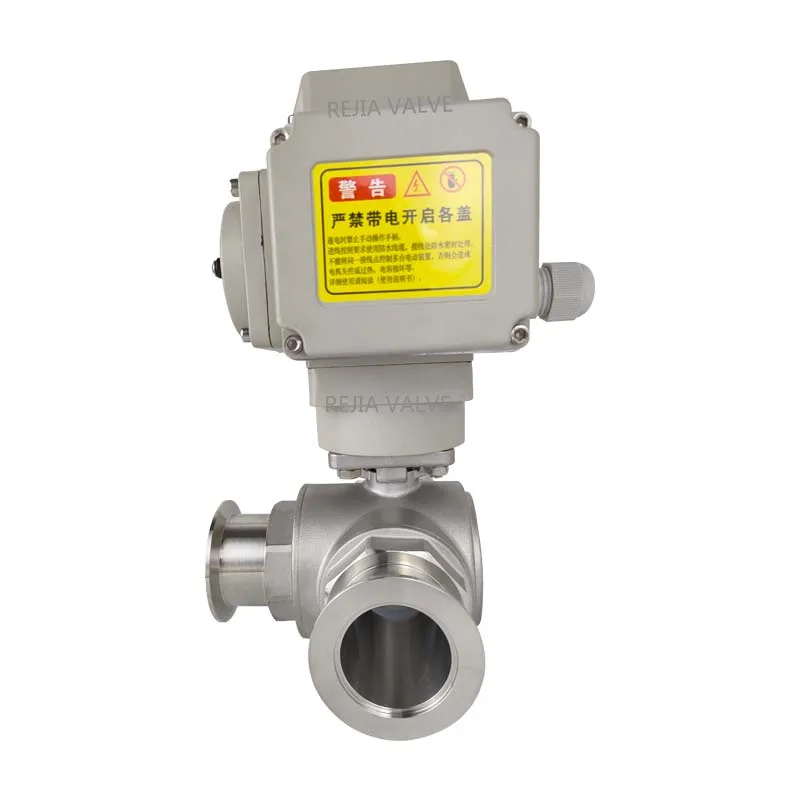

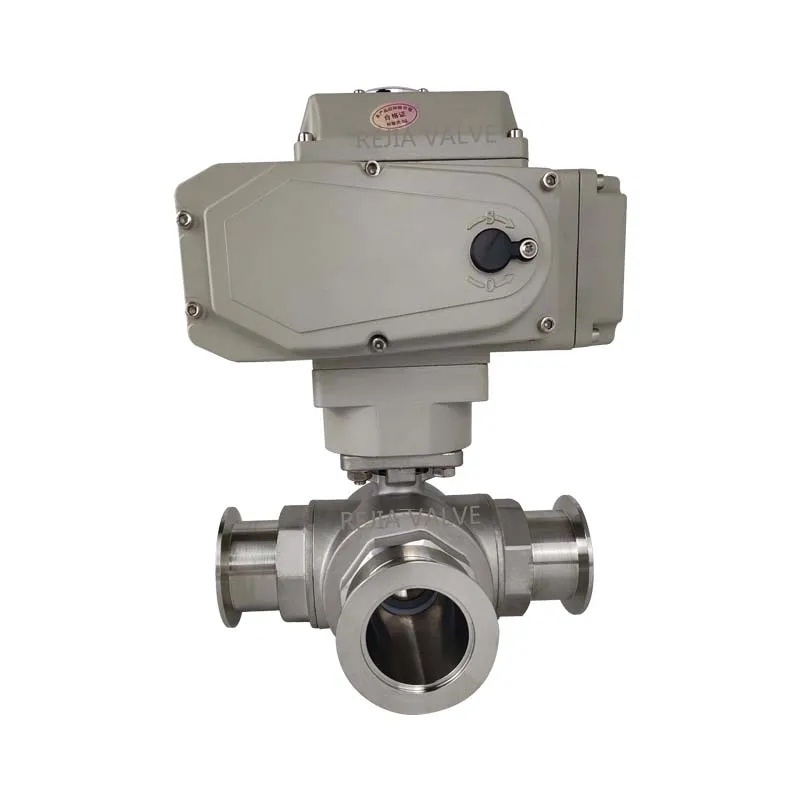

Electric Sanlong Vacuum Valve
Series: KF
Type: 3pcs
Vacuum Rage: 0.6*10~ 1.3*10pa
Temperature of Medium: -20°C to +140°C
Action: Manual/Pneumatic/Electric
Port Size: KF16-KF50
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
Left Angle
Front Angle
Right Angle
Dimension
Size | L | Dn | D1 | D | H | W |
KF16 | 93 | 15.8 | 17.2 | 30 | 60 | 95 |
KF25 | 110 | 22.1 | 26.2 | 40 | 65 | 125 |
KF40 | 139 | 34.8 | 41.2 | 55 | 85 | 160 |
KF50 | 147 | 47.5 | 52.2 | 75 | 95 | 160 |
SIMILAR PRODUCTS
GU Vacuum Ball Valve
Series: GU
Type: 3pcs
Vacuum Rage: 0.6*10~ 1.3*10pa
Temperature of Medium: -20°C to +140°C
Action: Manual/Pneumatic/Electric
Port Size: GU25-GU100
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
Action: Manual/Pneumatic/Electric
Port Size: GU25-GU100
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
2PCS ISO Vacuum Ball Valve
Series: ISO
Type: 2pcs
Vacuum Rage: 0.6*10~ 1.3*10pa
Temperature of Medium: -20°C to +140°C
Action: Manual/Pneumatic/Electric
Port Size: ISO63-ISO160
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
Action: Manual/Pneumatic/Electric
Port Size: ISO63-ISO160
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
Square Type Vacuum Ball Valve
Series: KF
Type: Sqaure
Vacuum Rage: 0.6*10~ 1.3*10pa
Temperature of Medium: -20°C to +140°C
Action: Manual/Pneumatic/Electric
Port Size: KF16-KF50
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
Action: Manual/Pneumatic/Electric
Port Size: KF16-KF50
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
KF Three-way Pneumatic Vacuum Ball Valve
Series: KF
Type: Three-way
Vacuum Rage: 0.6*10~ 1.3*10pa
Temperature of Medium: -20°C to +140°C
Action: Pneumatic/ Electric
Actuator: Aluminum/Electric
Port Size: KF40
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
Port Size: KF40
Material: SS304(1.4301)/ SS316L(1.4404)
Seal: PTFE
PTFE Seat: Full Cavity
Sample Time: 7 working day(standard item)
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
Laser Marking: Free
Sample Time: 2 working day(standard item)
Package: Carton Box/ Plywood wooden case
Related Products
QC
Hand Held Spectrometer
Test product raw material before lathe.
Pressure Testing Machine
Test each valve after assemble.
Vernier Caliper
Check Product dimension.
Hand Held Spectrometer
Test product material.
Helium Leak Detector
Test whether leak after assemble.
Surface Finish Indicator
Test product surface after CNC lathe.
Packaging
Plastic cover; Plastic bag;
Plastic cover; Bubble bag; Carton box;
Plywood wooden case.
Our Company
WENZHOU REJIA VALVE CO., LTD.
* Factory Square Meter: 2000 m³
* Number of employees: 50 workers* Helium Mass Spectrometer Leak Detector: 1 set
* Pressure Testing Machine: 2 sets
* Surface roughness device: 1 set
* Spectrometer Instrument Gun: 1 set
* CNC Lathe: 30 sets
* Automatic CNC center: 1 set
* Polish Machine: 5 sets
* Laser Marking Machine: 2 sets
* Automatic Welding Machine: 1 set
* Sand Blasting Machine: 1set
Office
Sales Team
Workshop
CNC Workshop
CNC Workshop
Finished Products Warehouse
Semi-finished products Warehouse
Raw Material Warehouse
REJIA Samples
* Vacuum Ball Valve
* High Vacuum Ball Valve
* Manual Vacuum Ball Valve
* Pneumatic Vacuum Ball Valve
* Three-way Vacuum Ball Valve
* Pneumatic Three-way Vacuum Ball Valve
* Pneumatic Vacuum Ball Valve
* Three-way Vacuum Ball Valve
* Pneumatic Three-way Vacuum Ball Valve
* Vacuum Fittings
* Vacuum Flange
* Double Ferrule Ball Valve
* Double Ferrule Check Valve
* 2PC Ball Valve
* 3PC Ball Valve
* Butterfly Valve
* Filter/ Strainer
* Pipe Fittings
* Double Ferrule Fittings
Exhibitions
Exhibition in Germany
Exhibition in Germany
Exhibition in Shanghai
FAQ
Q: Why would I choose you?
A: Rejia Valve Co., Ltd. is professional manufacturer for valves and fittigns since 2019. Outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solving rate after sales.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock;
Or it is 20-25 working days if the goods are out of stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=$1000, 100% in advance.
Payment>=$1000 30% T/T in advance, balance before shipment.
A: Rejia Valve Co., Ltd. is professional manufacturer for valves and fittigns since 2019. Outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solving rate after sales.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock;
Or it is 20-25 working days if the goods are out of stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=$1000, 100% in advance.
Payment>=$1000 30% T/T in advance, balance before shipment.
Successful Project
Colombia
Germany
Chile
Contact Us
