Китай производитель hdpe fusion machine 110 мм до 355 пластиковые трубы горячего расплава стыковой сварки машина
1 000,00-1 200,00 $
Горячая распродажа автоматические термоплавкие гидравлические машины для термоядерного синтеза из полиэтилена Hdpe
- Категория: >>>
- Поставщик: Jinan Bada Plastic Pipe Welding Equipment Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601269619283:
Описание и отзывы
Характеристики
High quality automatic hdpe pipe butt fusion welding machine for 90-250mm
butt fusion welding machine welding machine hdpe plastic automatic pe pipe automatic welding machine
Products Description
1. Welding record is immutable, and there is no posibility of articial modification of welding parameters.
2. This machine can store about 500 welding records. these welding records can be copy by connect the computer, or connected to the micro printer.
3. Retracing function: the data of welding position,pipe material, equipment manutacturers. date. operator and welding parameters can be retraced in time.
4. There are kinds of international standards like: ISO, UNI, DVS, WIS, TSG5. Heating plate can bounce in the way of swing armt.
2. This machine can store about 500 welding records. these welding records can be copy by connect the computer, or connected to the micro printer.
3. Retracing function: the data of welding position,pipe material, equipment manutacturers. date. operator and welding parameters can be retraced in time.
4. There are kinds of international standards like: ISO, UNI, DVS, WIS, TSG5. Heating plate can bounce in the way of swing armt.
Equipment Specifications | ABBD250V |
Welding range(mm) | 90-250mm |
Supply voltage | 220V 50HZ |

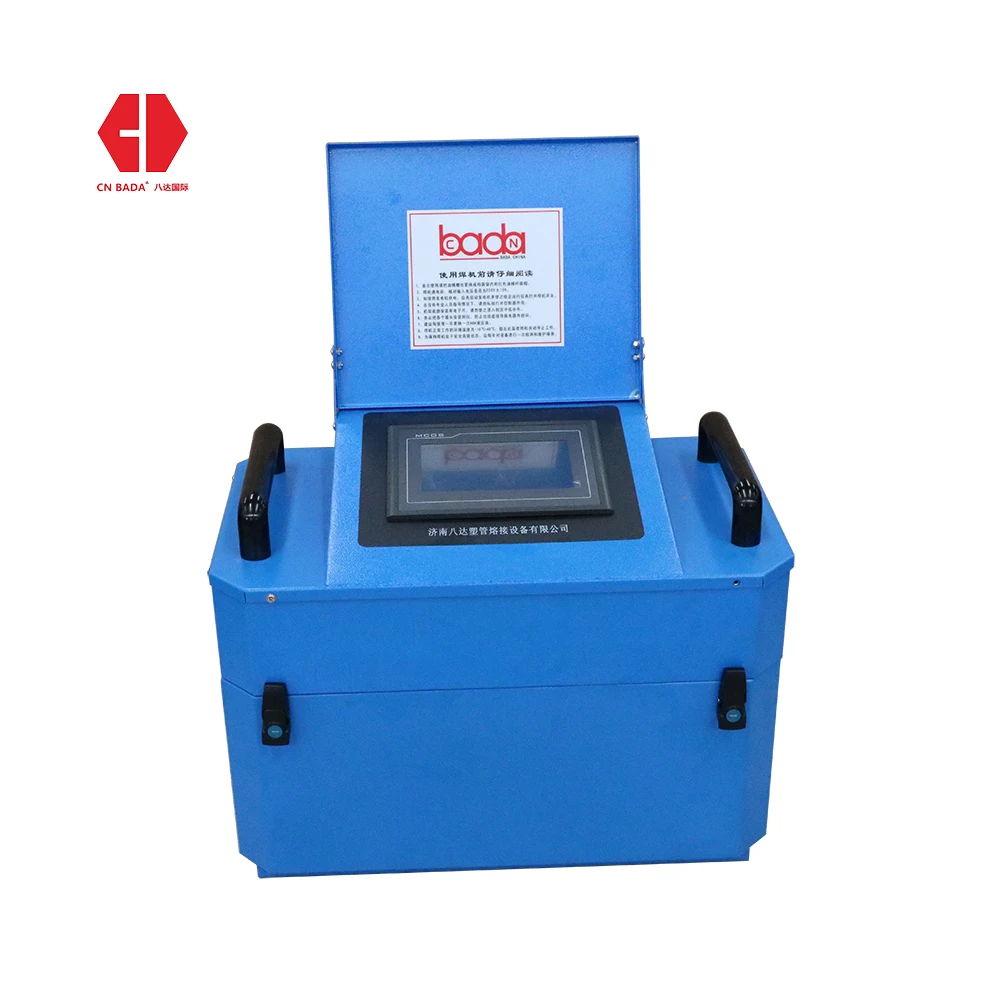

Control box power | 900w |
Milling Cutter Head Motor Power | 1360w |
Heating Plate Power | 2100W |
Total Welding Power | 4360W |
Ambient temperature | -10～+40° |
Working Pressure Range | ≥10Mpa |
Pressure Resolution | 0.01MPa |
Pressure Accuracy | 0.1MPa |
Time Resolution | 0.1S |
Time Accuracy | 0.1S |
Temperature Control Precision of Hot Plate | ±3℃ |
Cylinder Block Area | 11c㎡ |
Heating Plate Ejection Time | 1.5-3.5S |

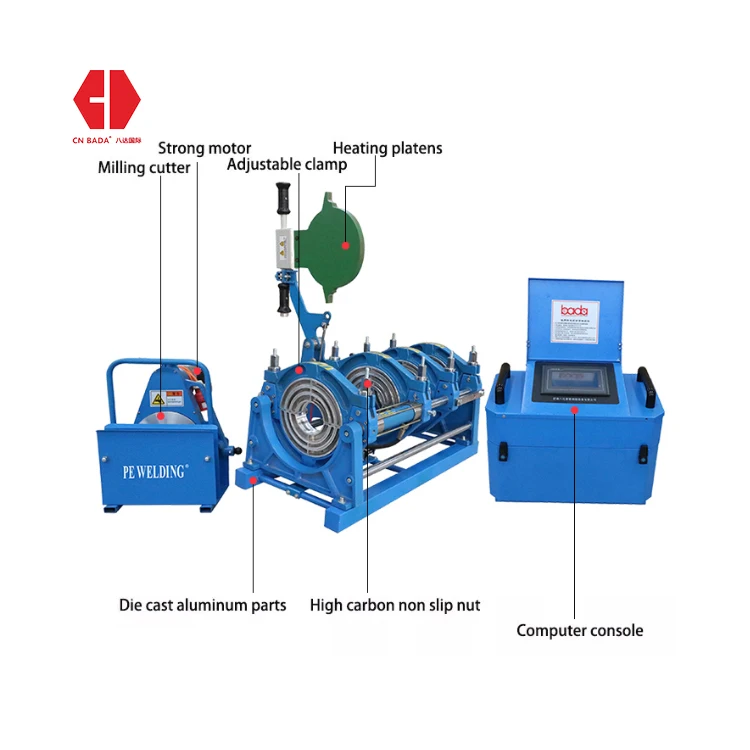

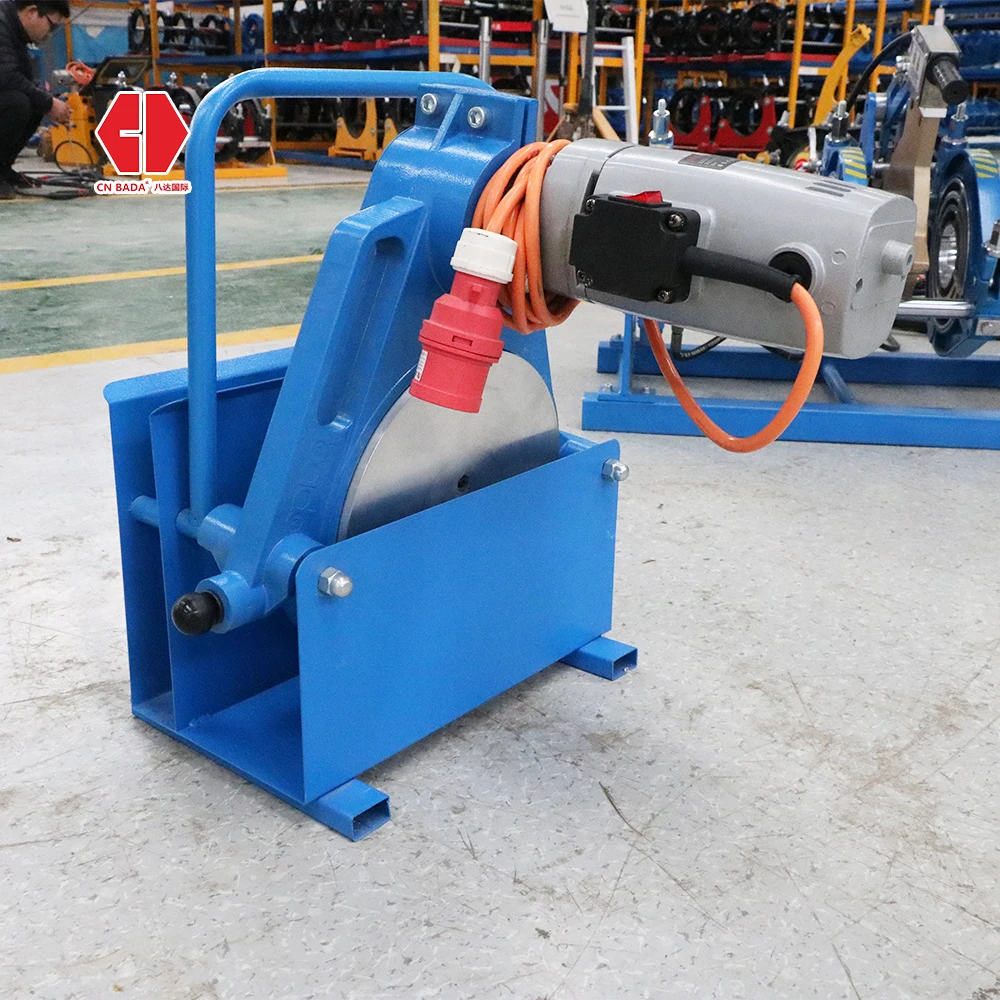

1. High power milling cutter, mirror cutter disk, strong motor, high concentricity, smooth milling.
2. High-power Bosch drill is adopted for milling motor, which is strong and strong without slipping
3. The milling cutter is equipped with a limited position switch, which can be rotated only when placed in the frame to prevent accidental injury
2. High-power Bosch drill is adopted for milling motor, which is strong and strong without slipping
3. The milling cutter is equipped with a limited position switch, which can be rotated only when placed in the frame to prevent accidental injury
Using Teflon coating material im-ported from Japanafter twice coating and three processes.the solid core of the Heating plate is thickened and non-stick tube The heat transfer is even.
Selection of YataiSchneider com-ponentsprofessional safety.
POWERFUL
After the violence testthe interface is intact without cracking
Our Advantages
1) Advanced laboratory
2) Mature fusion welding technology
3) Spare parts warehousing quality inspection, inspection during the production process, complete machine inspection and commissioning before delivery.
4) Cooperate with well-known universities, participate in the drafting of GB national standard, provide training for fusion welding technicians at home and abroad, and support free online video guidance.
5) Sufficient spare parts inventory, short delivery time, less than 50 sets, delivery time 7-10 working days, in line with ROHS 2.0 standard.
2) Mature fusion welding technology
3) Spare parts warehousing quality inspection, inspection during the production process, complete machine inspection and commissioning before delivery.
4) Cooperate with well-known universities, participate in the drafting of GB national standard, provide training for fusion welding technicians at home and abroad, and support free online video guidance.
5) Sufficient spare parts inventory, short delivery time, less than 50 sets, delivery time 7-10 working days, in line with ROHS 2.0 standard.
1.The shipping: 3 days after received payment
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
Certifications
Company Profile
Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd
Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is a 23 years factory in China on research develop and produce welding machine Jinan Bada's main products are:HDPE pipe butt fusion welding machineelectrofusion welding machine,automatic welding machine,multi-angle cutti-ng sawworkshop fitting welding equipment, gas and water polyethylene pipes and fittings. The products are widely used in municipalelectric power,petroleum and chemical industries. as well as mininanon-ferrous metal smeltina submarine water convevance and other special working conditions.
Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is a 23 years factory in China on research develop and produce welding machine Jinan Bada's main products are:HDPE pipe butt fusion welding machineelectrofusion welding machine,automatic welding machine,multi-angle cutti-ng sawworkshop fitting welding equipment, gas and water polyethylene pipes and fittings. The products are widely used in municipalelectric power,petroleum and chemical industries. as well as mininanon-ferrous metal smeltina submarine water convevance and other special working conditions.
1. Q: How could we get to your factory?
A: It is located at beautiful, historic and cultural city, Jinan city. And it's only 40 KM from Jinan Internationl Airport.You may also come to our factory by High Speed Railway train, we will go to train station to pick you up.
2. Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
3. Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
4.Q: What about your customs clearance?
A:The original B/L,invoice,packing list and all certification you need will be sent to you by TNT or DHL within 7 days.
5.Q: What is your MOQ?
A:As customer's request.
