PRODUCT OVERVIEW



XMG

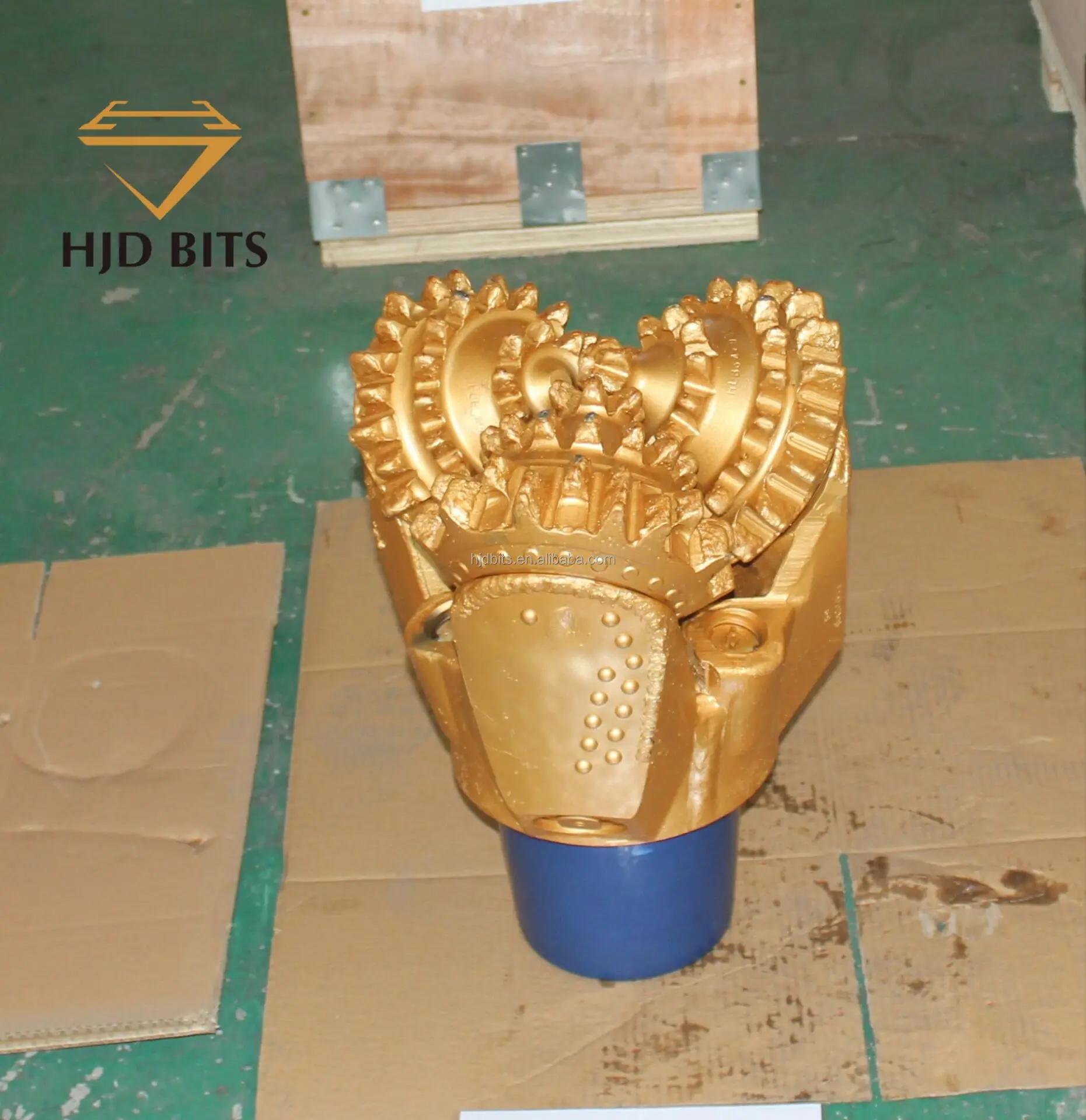

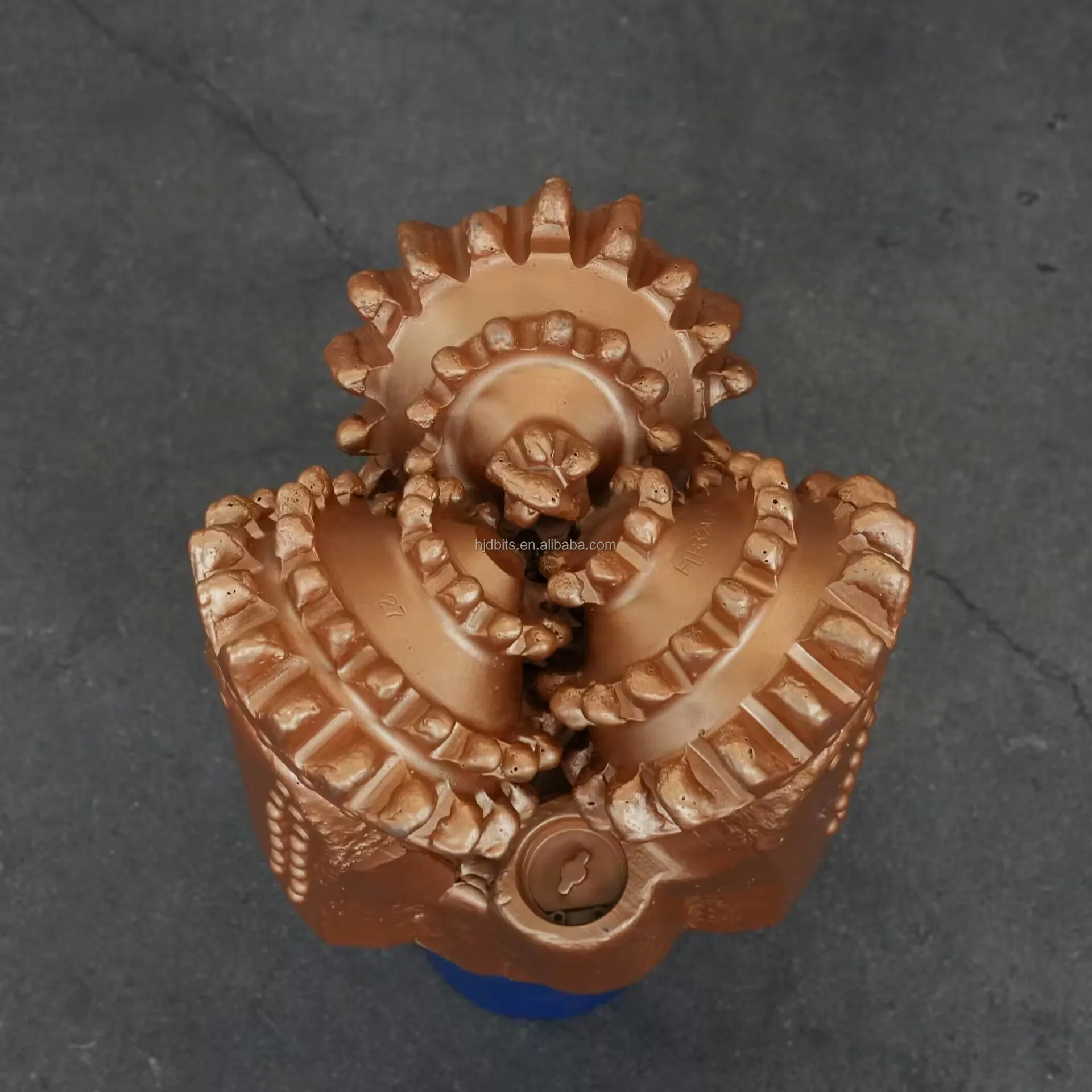

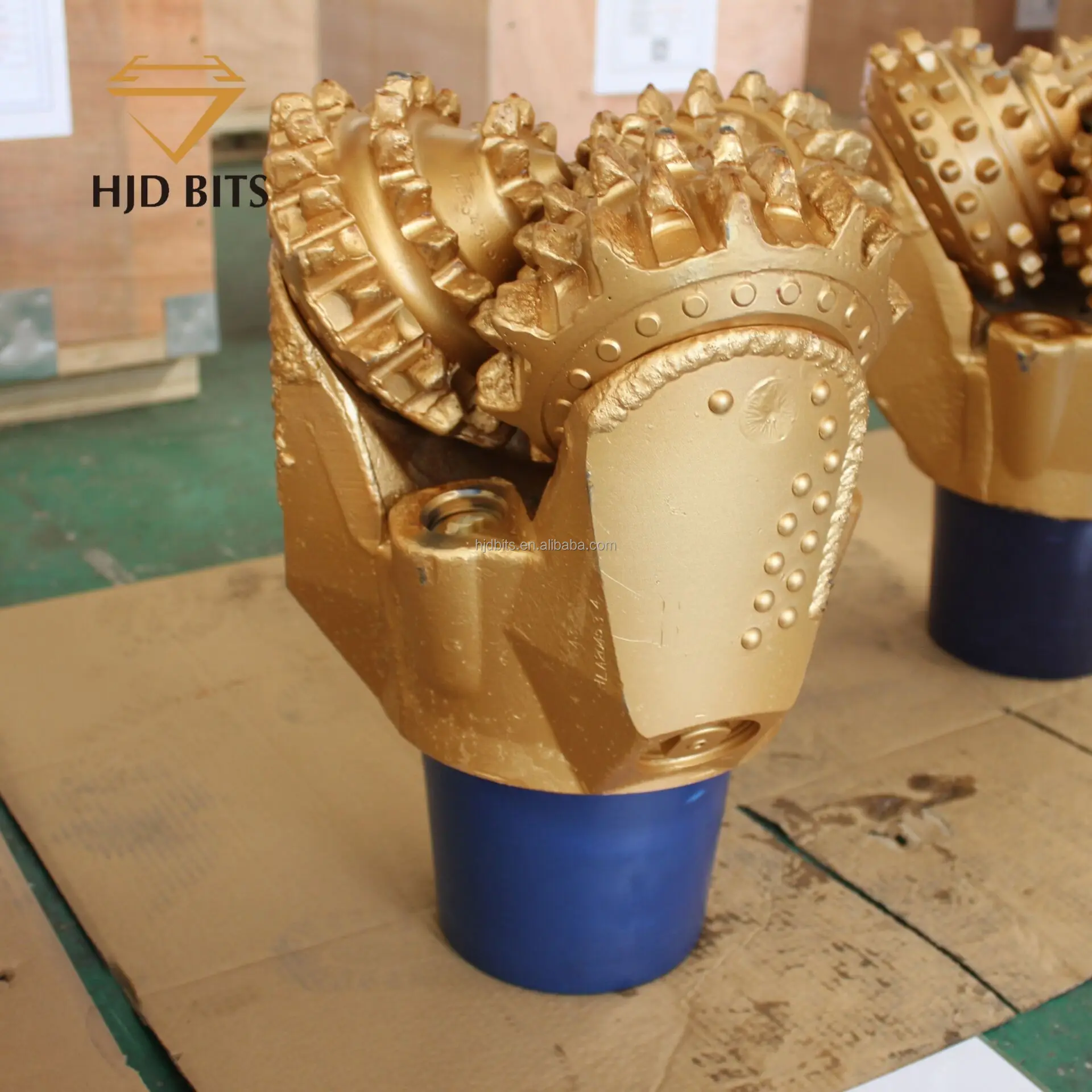

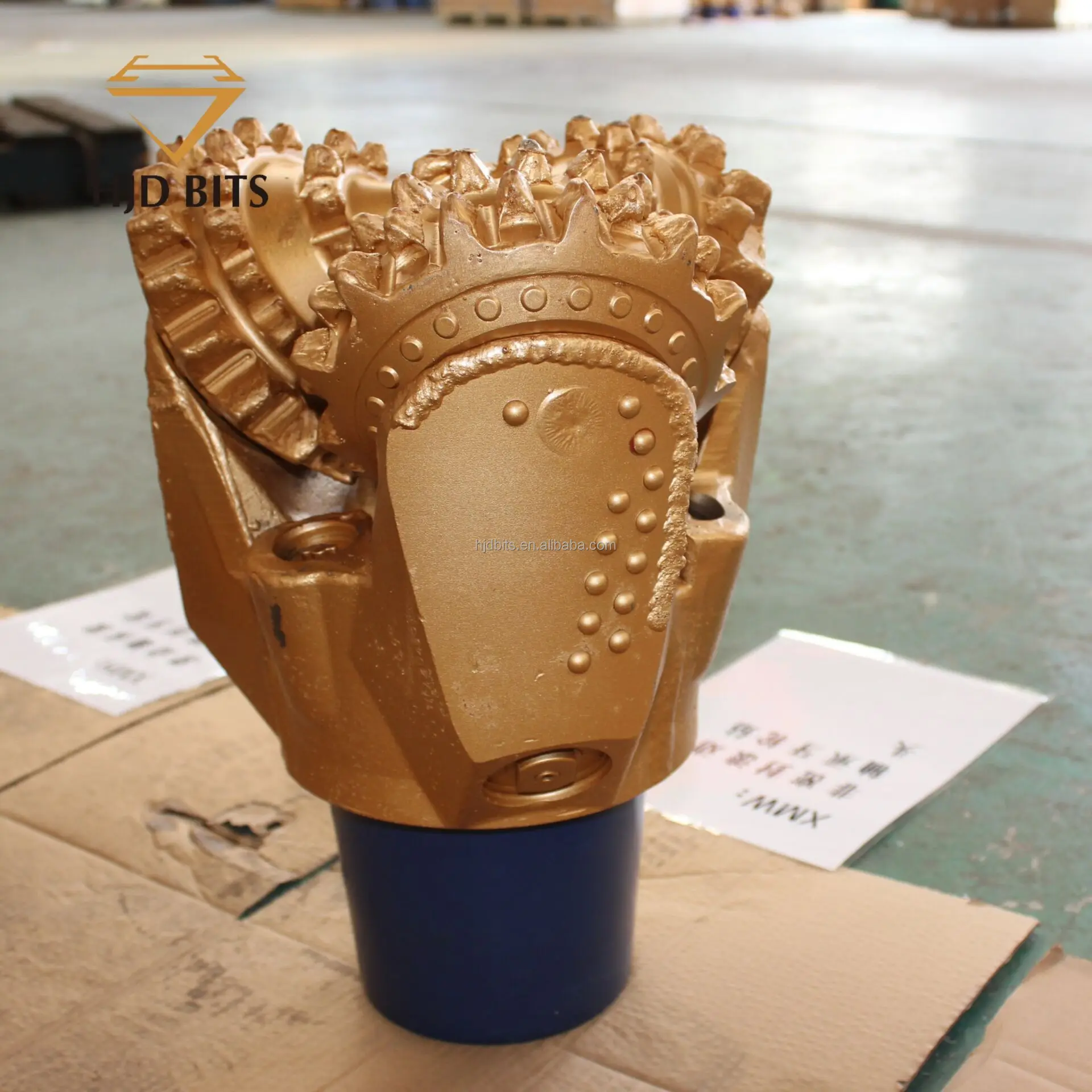

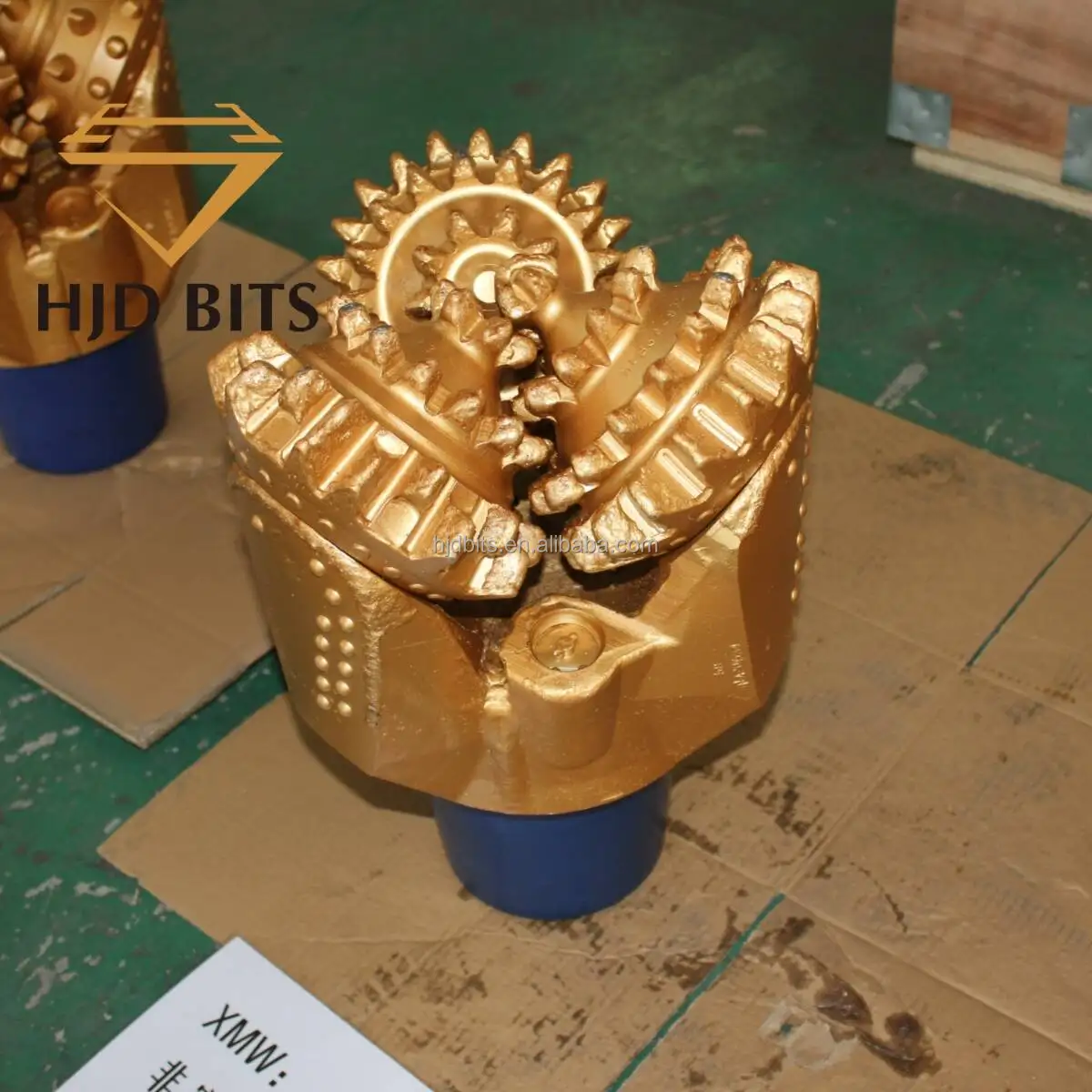

Roller Bearing Rubber Seal Roller Cone Bits

The XMG series bit is an O-ring rubber sealed roller bearing bit, which is an ideal and economical tool for high drilling speed drilling. The main structural features are:

1. The rolling seal bearing structure places the cylindrical roller element in the groove of the tooth wheel body, increasing the size of the journal, thus having the ability to withstand high drilling pressure and adapt to high rotational speeds;

2. The surface of the thrust bearing pair is subjected to wear reduction treatment and hardening treatment respectively, which improves the bearing capacity of the bit and the anti bite ability of the bearing;

3. The use of a new type of lubricating grease that can withstand high temperatures of 250 degrees and resist wear has improved the high-temperature resistance of the bit sealing lubrication system;

4. The inset bit adopts high-strength and high toughness hard alloy teeth, which improves the impact resistance of the teeth and reduces the rate of tooth breakage; Welding wear-resistant materials on the surface of steel tooth bits, optimizing the welding position and thickness of the bit teeth, and further improving the wear resistance of the bit;

5. The optimized design of the number of teeth, number of teeth, exposed tooth height, and unique alloy tooth shape fully utilizes the cutting ability and cutting speed of the bit.





PRODUCT SPECIFICATIONS


item
value
Condition
New
Warranty
Unavailable
Applicable Industries
Energy & Mining
Weight (KG)
52
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2023
Place of Origin
China
Place of delivery
Shandong
Brand Name
HJD BITS
Type
DRILL BIT
Machine Type
Drilling Tool
Material
Iron
Processing Type
Forging
Use
Oil Drilling
Name
XMG Roller Bearing Rubber Seal Roller Cone Bits
Brand
HJD BITS
Color
Golden
Size
15 1/2"
Key words
Drill Bit
Advantage
High-efficiency
Standard
ISO 9001
Transportation
By Sea
Type
Roller Cone Bit


Drill Bit Size
Item
Drill Bit Type
IN
MM
8 1/2
215.9
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG214、XMG215G、XMG234、XMG235G
9 1/2
241.3
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG214、XMG215G、XMG234、XMG235G
9 5/8
244.48
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG214、XMG215G、XMG234、XMG235G
9 7/8
250.83
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG214、XMG215G、XMG234、XMG235G
10 5/8
269.88
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG215G、XMG235G、XMG415G、XMG435G、XMG515G、XMG545G
11 5/8
295.28
XMG115G、XMG125G、XMG135G、XMG435G、XMG515G、XMG535G
12 1/4
311.15
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG215G、XMG235G、XMG415G、XMG435G、XMG515G、XMG545G
13 5/8
346.08
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G
13 3/4
349.25
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G
14 3/4
374.65
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
15 1/2
393.7
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
16
406.4
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
17 1/2
444.5
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG215G、XMG235G、XMG435G、XMG515G、XMG535G
18 7/8
479.43
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
19 1/3
490.54
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
20
508
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
22
558.8
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
24
609.6
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
26
660.4
XMG114、XMG115G、XMG124、XMG125G、XMG134、XMG135G、XMG435G、XMG515G、XMG535G
Note: The size and model of bits not shown in the table are designed according to user needs.


COMPANY FLEXIBLE PRODUCTION LINE




SIMILAR PRODUCTS




Company Profile




Haojiang Drilling Service Co., Ltd (referred to as HJD BITS) formerly known as Shanghai First Petroleum Machinery Factory, was established in 1956 and was the first enterprise in China to produce tricone bits. In 1993, it jointly established Baosheng Drilling Machinery Co., Ltd. with Hongkong Baoli International Group Corp. Limited. In 1999, Baosheng Drilling Machinery Co., Ltd. was acquired by Kingdream Public Limited Company a leading domestic manufacturer of tricone bits. In 2004, at the request of Kingdream Public Limited Company, Shanghai Haojiang Drilling Machinery Parts Co., Ltd. was established and became an important cooperative manufacturer of Kingdream Public Limited Company with its stable and reliable product quality. In 2014, the manufacturing base was built in Kunshan, Suzhou, and Kunshan Haojiang Drilling Tools Co., Ltd. was established. With the continuous development of the company, Kunshan Haojiang Drilling Tools Co., Ltd. and Sinotai Petroleum Equipment Co., Ltd jointly established Haojiang Drilling Service Co., Ltd.

HJD BITS is mainly engaged in the research, development, production, and sales of various series of oil Roller Cone Bits and mining drill bits, with product specifications covering 3 7/8"-26". Besides being used in the domestic market, HJD BITS' products also sell well in Japan, Southeast Asia and North America, receiving high praise and favor from domestic and foreign customers. With flexible market adaptation mechanism, HJD BITS can provide stable quality and reliable oil products to domestic and foreign customers in a timely manner, while also providing excellent pre-sales and after-sales services. HJD BITS has built a flexible production line of drill bits mainly with CNC machining center, established a perfect quality assurance system, established a comprehensive quality assurance system, and passed ISO9001 and API 7-1 certifications.

HJD BITS adheres to the corporate philosophy of "integrity, professionalism, responsibility, and innovation", insists on showcasing quality with leading design, promoting quality with advanced technology, ensuring quality with perfect management, continuously expanding domestic and international markets. HJD BITS will continuously strive to provide the best solutions for the oil drilling industry. Choose HJD BITS, choose the excellent fusion of quality and craftsmanship. Made in China, trusted by the Global.


CERTIFICATIONS




CUSTOMER PHOTOS


Project in Thailand
Project in India
Project in Russia


FAQ


1. Lead Time
Answer: We always have regular model stock, i.e. payment on delivery, which is our advantage. Batch production depends on the number of orders.

 2. Payment Terms
Answer: We accept all regular payment terms, including letters of credit, T/T, etc. 100% payment through Alibaba Trade. Please pay 30% T / T in advance for customization.

3. Packaging and Delivery
Answer: We use high quality export wooden boxes or you can customize.

4. Can we provide sample service?
Answer :We can provide sample service.

5.How do you guarantee your quality?
Answer: All of our production are in lines of ISO9001 and API 7-1 certifications, from signing contract , to raw materials, to each production processes, to product finish, to after-sale service, each processes and sections are in accordant with standard.
