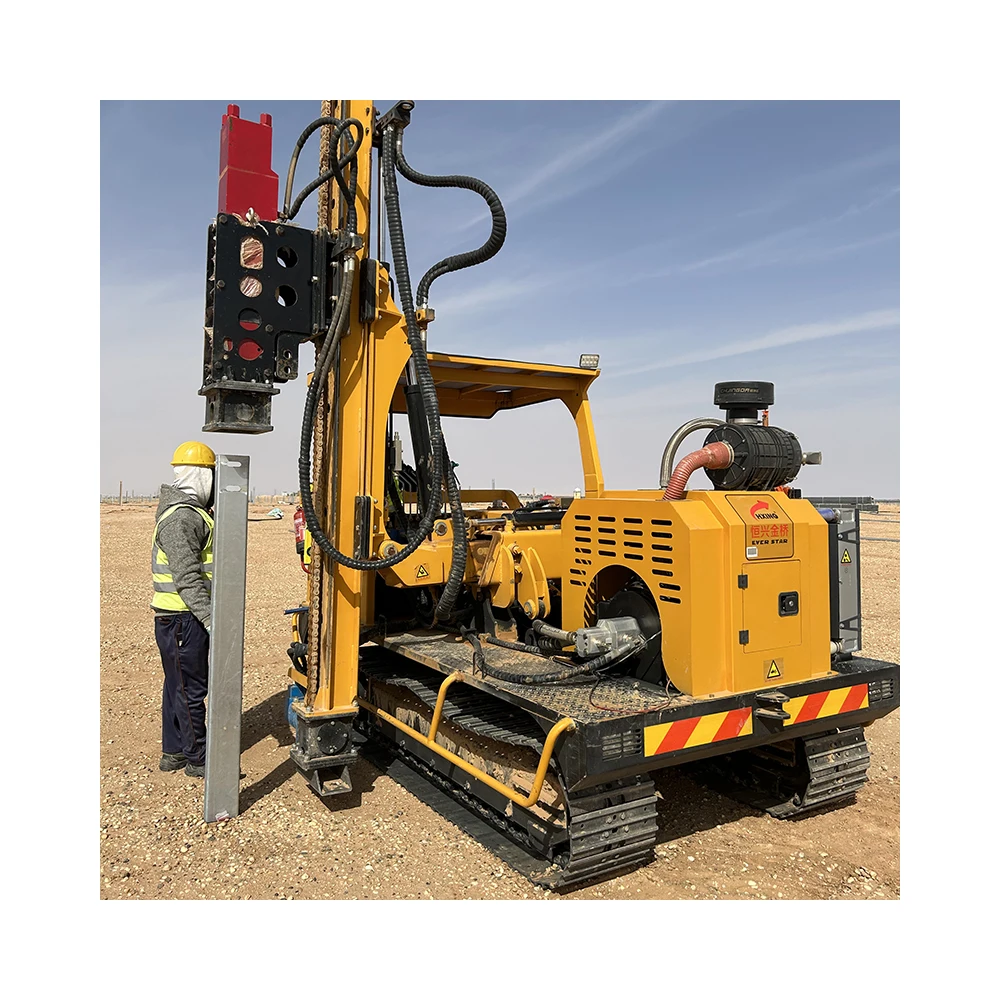

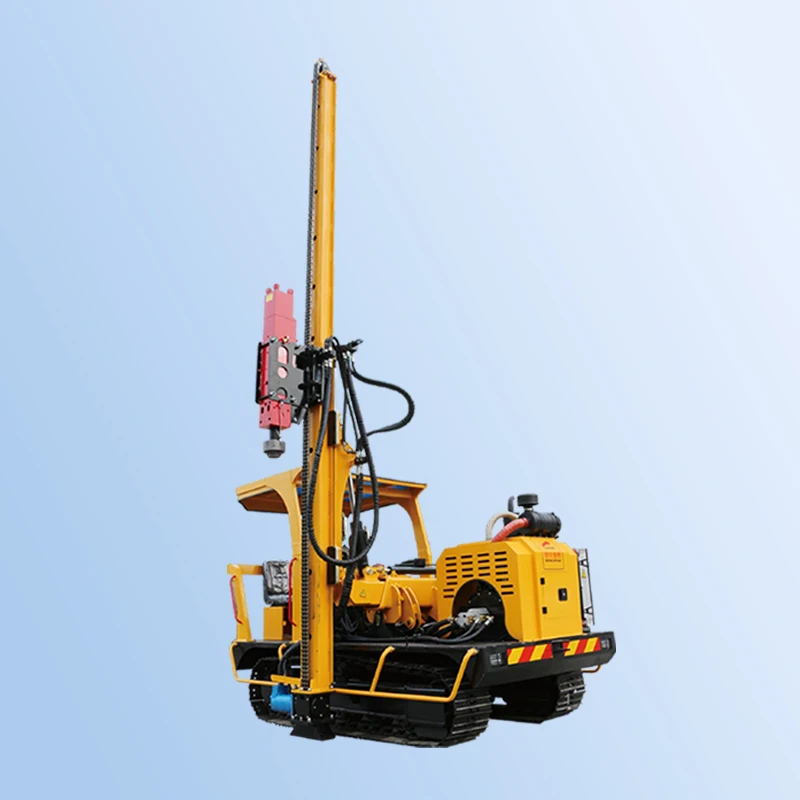

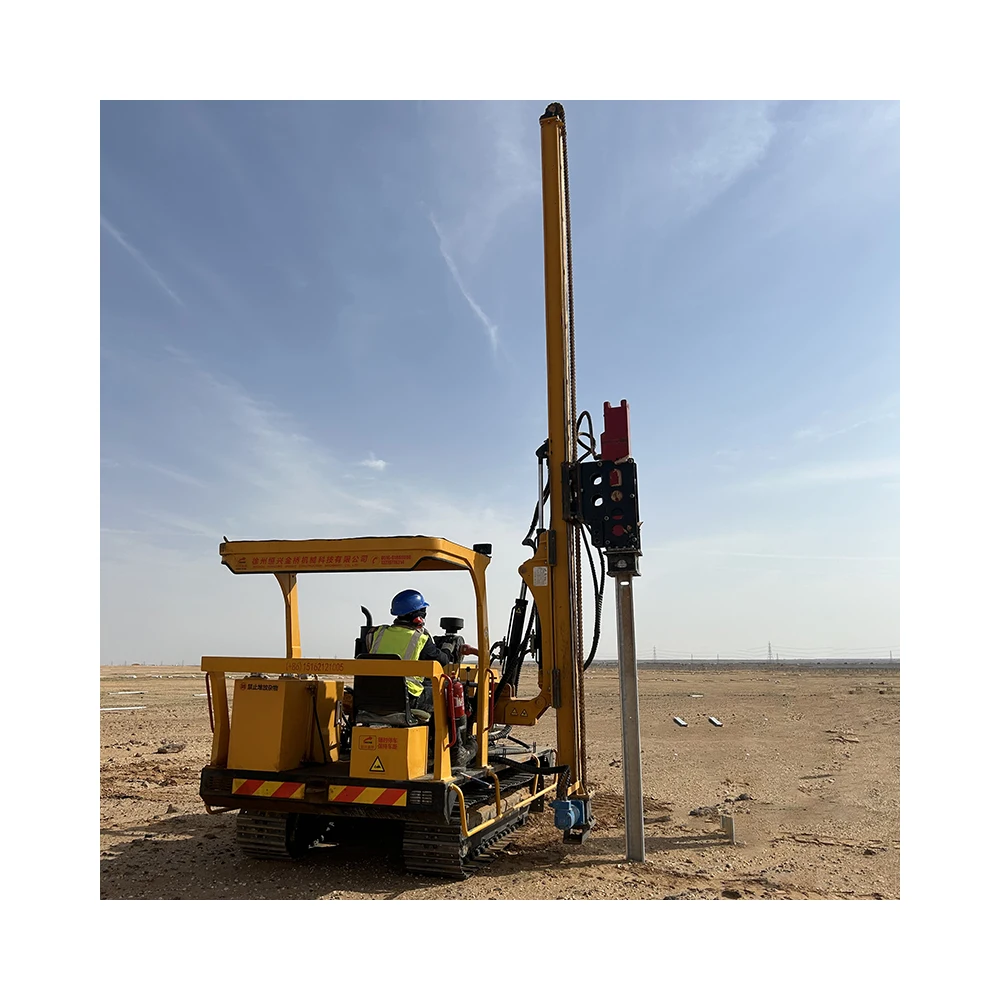

Лучшая Солнечная система управления сваями GPS 6 м гусеничная система дистанционного управления, новый заземляющий винтовой станок, выравнивающий ограждение, сердечник двигателя молотка
2 168 718,00 ₽ - 3 036 205,20 ₽
Сверхмощная сваебойная установка и роторная дрель для оборудования сваи
- Категория: >>>
- Поставщик: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.
Сохранить в закладки 1601269719807:
Описание и отзывы
Характеристики
Product Details
No. | Item | Unit | Value |
1 | Transportation size (L*W*H) | MM | 6500*2200*2700 |
2 | Working Size (L*W*H) | MM | 3500*2200*7500 |
3 | Crawler Size | MM | 2550*1700*530 |
4 | Vehicle Weight | KG | 4500-5200 |
5 | Diesel Engine Rated Power | KW | 70 |
6 | Flow Rate of Hydraulic System | L/Min | 113.4 |
7 | Hydraulic Pressure(Max) | Mpa | 20 |
8 | Mast Strok | mm | 200-5500 |
9 | Hydraulic Hammer | / | YC360 (85MM borehole rod) |
10 | Piling efficiency | MM/Min | 3200 |
11 | Drilling Depth | MM | 3500 (Max) |
12 | Borehole Diameter | MM | 50-300 |
13 | Climbing Ability(Max) | Angle | 30 |
14 | Speed | KM/H | 3.8 |
15 | Left/Right Sliding Stroke | MM | 500(Max) |
16 | Max Inclination Angle of Sliding Guide Frame | Angle | Left 30/Right 8 |
17 | Front / Rear Adjusting angle of frame | Angle | Front 75/ Rear 15 |
18 | Min Ground Clearance | MM | 230 |
19 | Capacity of Hydraulic Oil Tank | L | 80 |
20 | Capacity of Diesel Tank | L | 80 |
WHY CHOOSE US
1.Surpass the research and development capabilities of peers
2.Surpass the peer after-sales speed
3.Professional services beyond our peers
Customer feedback
Please contact me
Then I'll give you everything you want
Company Profile
About Us
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
we has always followed our survival principle that “strives for the survival by quality, development through reputation”, and our service tenet “your demand is our demand”. Through continuous technological innovation we try to build our global brand.
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!

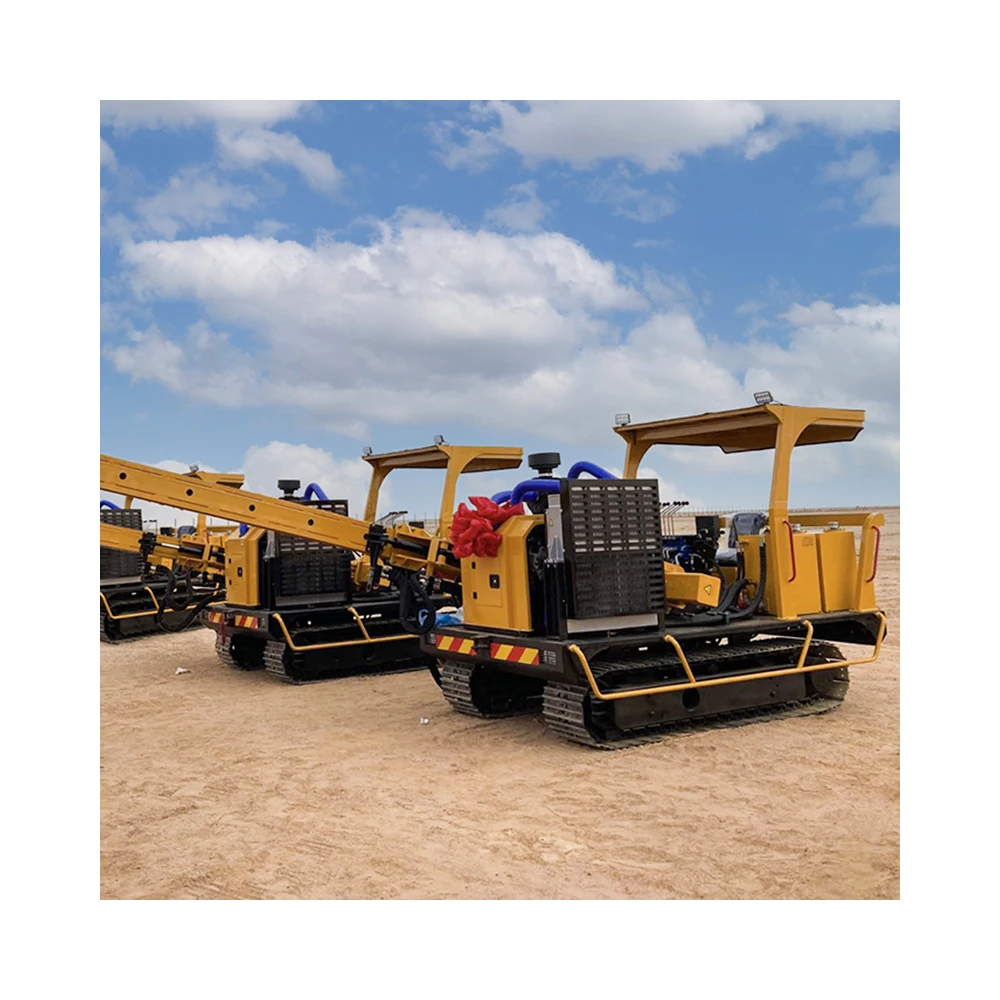

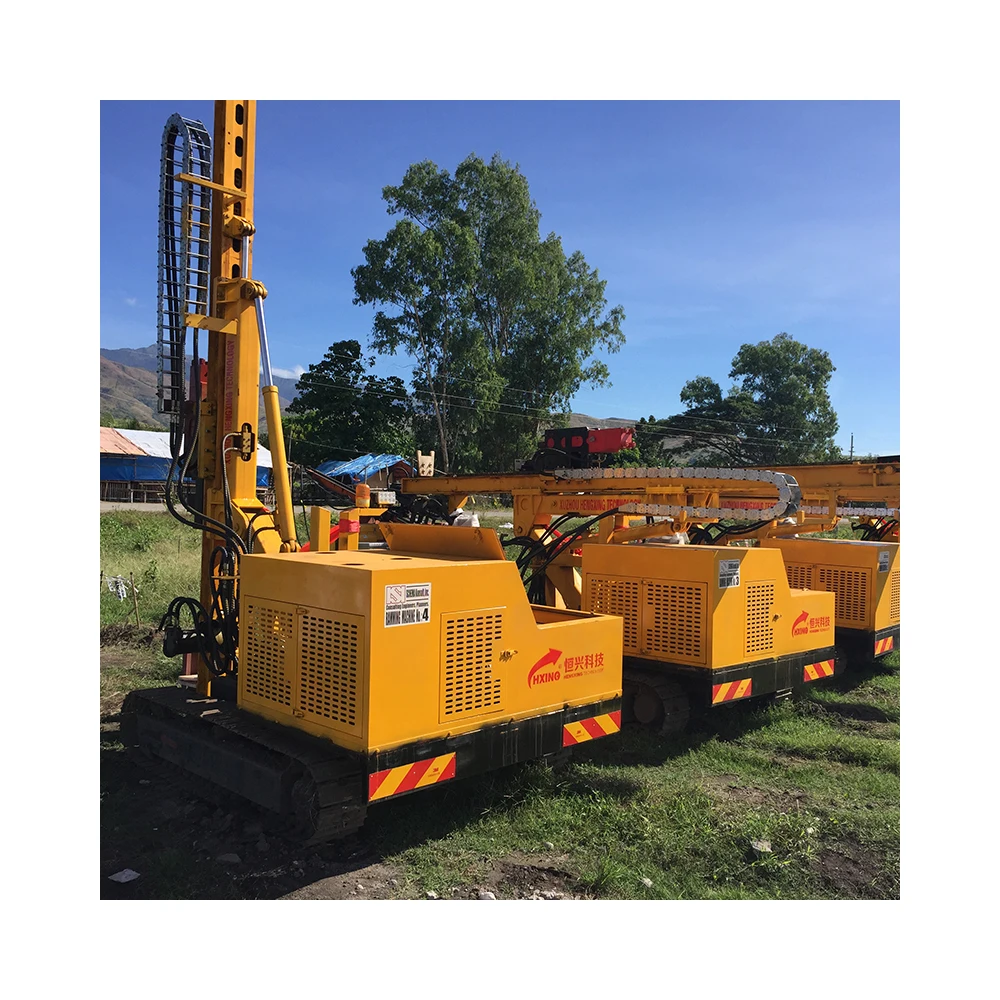

Factory Show
FAQ
1.What is the main function of our pile driver?
Ans.: It has different models used for all kinds of PV post install, it is the best choice for solar power station construction.
2.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer),during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
3.What is the lead time and shipping method?
Ans.:Usually the lead time is 3 days, and we send the machine by sea.
4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...
