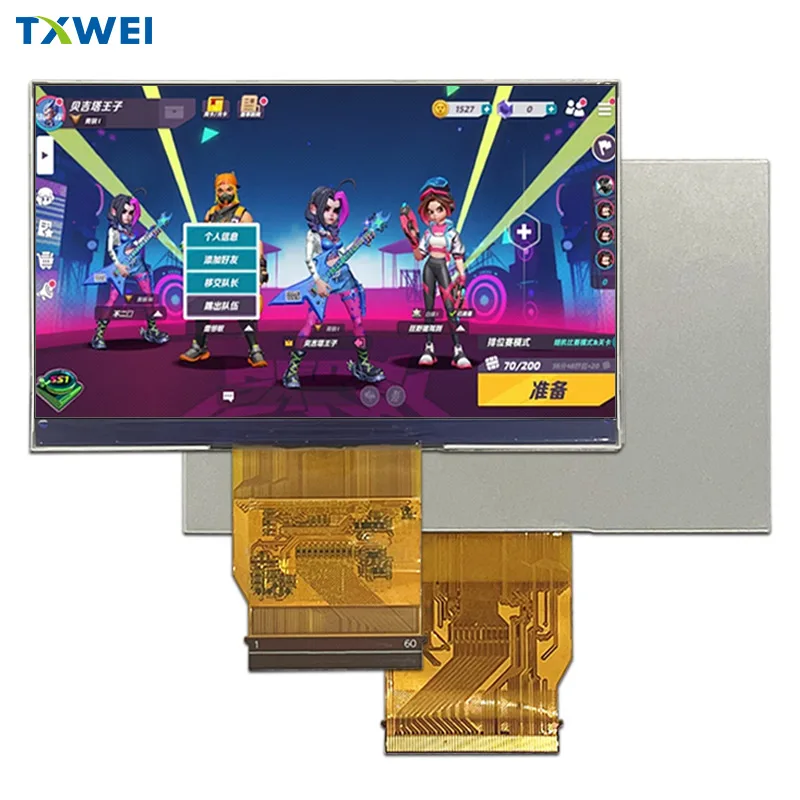

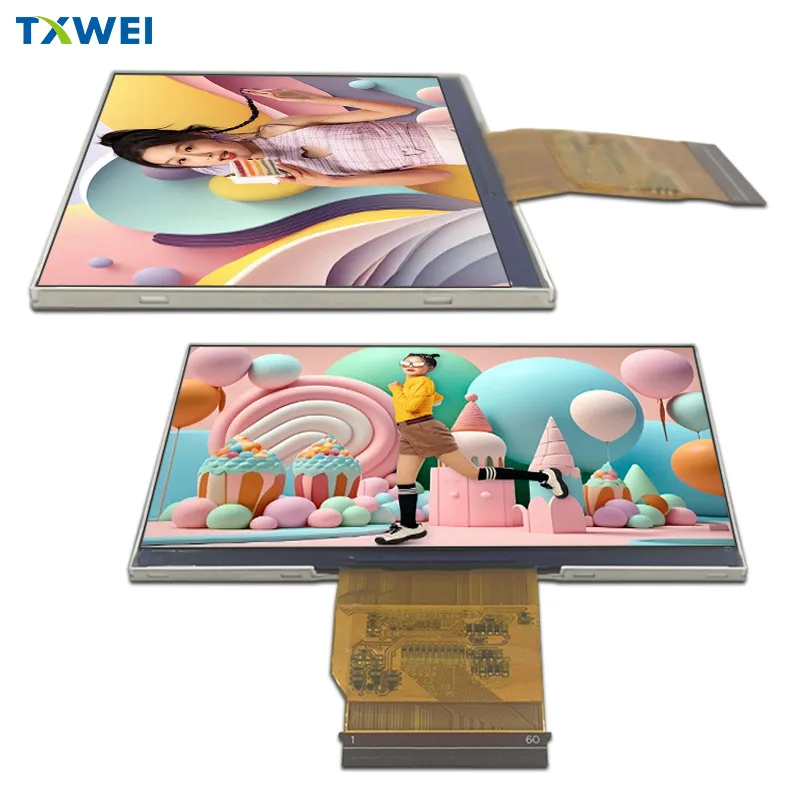

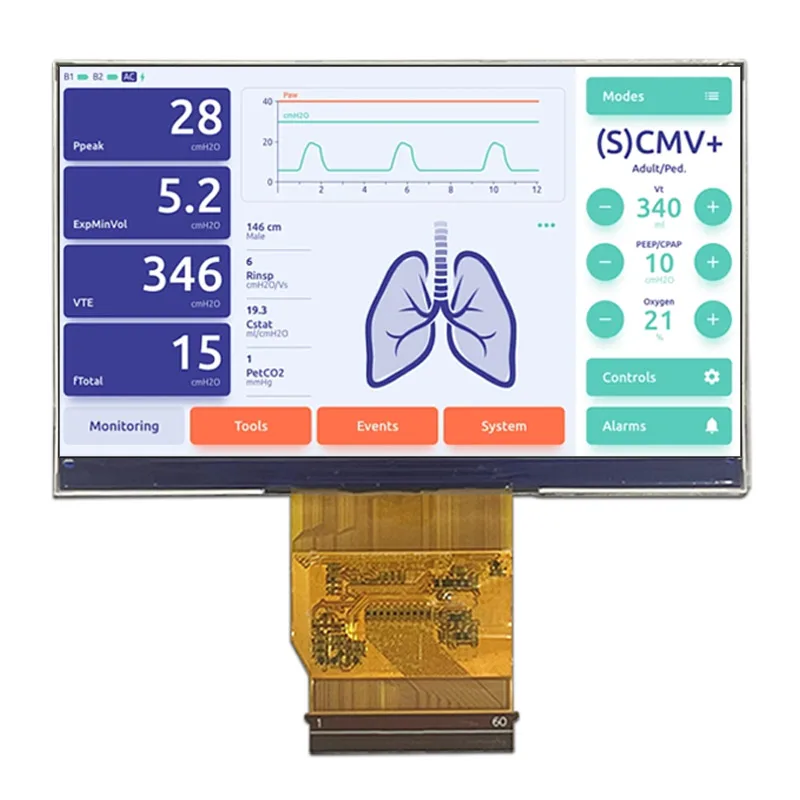

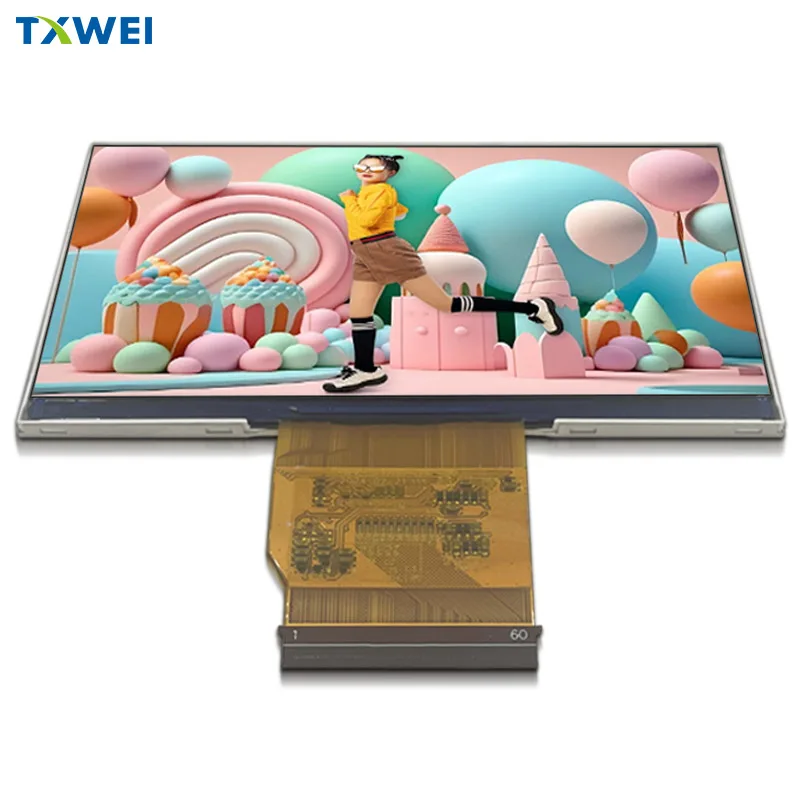

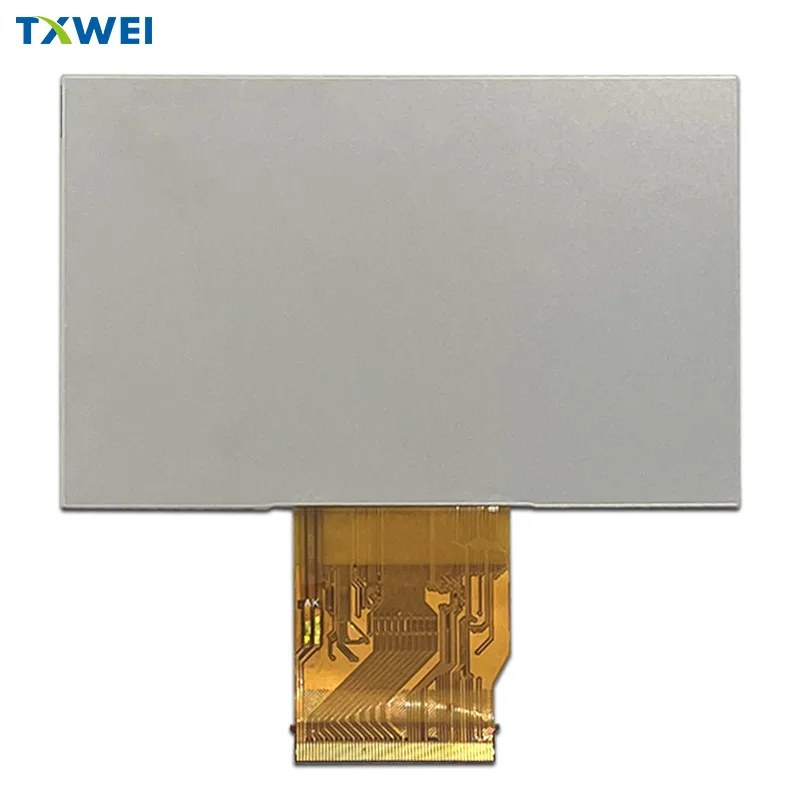

4.5-inch1920*1080 ЖК-дисплей 1200nits EK79303 широкоугольный экран LVDS игровой консоли
1 537,55 ₽ - 1 618,47 ₽
4 5 малогабаритная панель с пейзажем IPS 1920*1080 Разрешение LVDS интерфейс 1200 монитора
- Категория: >>>
- Поставщик: Shenzhen Tianxianwei Technology Co. Ltd.
Сохранить в закладки 1601269760621:
Описание и отзывы
Характеристики
Products Description
Model Number : TXW450035B0
：4.5-inch square scale full-color TFT LCM
：Brightness up to 1200cd/m²
：Resolution is 1920*1080
：High-definition and highlight display effect
：Good quality, long-term supply
：IPS full viewing angle
：Brightness up to 1200cd/m²
：Resolution is 1920*1080
：High-definition and highlight display effect
：Good quality, long-term supply
ITEM | Standard value | Unit |
Model Number | TXW450035B0 | |
size | 4.5 | Inch |
LCD Type | Normally black | -- |
Drive Element | TFT active matrix | -- |
Number of Pixels | 1920*3RGB(H)X1080(V) | Dots |
Pixel Arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.0513*0.0513 | mm |
Active Area | 98.5(H) * 55.4(V) | mm |
LCM Mechanical Outline Size(W*H*T) | 103.5*65.3*2.5 | mm |
Viewing Direction | ALL O’CLOCK | - |
LCM Driver IC | EK79303 | - |
LCM Interface | LVDS 8 Bit Interface | - |
LCM Pin Count | 60 | |
Backlight LED | 18 | pcs |
Backlight Current | 60 | ma |
Backlight Voltage | 16.8-19.2 | v |
Operating Temperature | -20+70 | ℃ |
Storage Temperature | -30+80 | ℃ |
Luminance | 1200 | Cd/㎡ |
Products Overview
1.Relevant information: If the above product parameters are not enough, please contact us to provide you with specific product data-sheet and Software display debugging parameter.
2.Supply quality assurance: Our product supply cycle commitment is not less than 5 years,and can be replaced with product quality and no damage within 30 days from delivery.
3.Wide range of applications：This product is widely used in scooter meters, electric vehicle meters, bicycle meters, outdoor handheld PDAs, medical equipment, electronic cigarettes, automotive electronics and other products.
4.Guaranteed after sale: We have an excellent after-sales service team,they will be professional,technical,and can quickly and effectively,solve all the product quality and after-sales problems that plague you.
5.Reply quickly: We can accept any feedback from customers.If you have any questions or concerns about our transactions,please contact us by e-mail or online.We will reply quickly within 24 hours.
3.Wide range of applications：This product is widely used in scooter meters, electric vehicle meters, bicycle meters, outdoor handheld PDAs, medical equipment, electronic cigarettes, automotive electronics and other products.
4.Guaranteed after sale: We have an excellent after-sales service team,they will be professional,technical,and can quickly and effectively,solve all the product quality and after-sales problems that plague you.
5.Reply quickly: We can accept any feedback from customers.If you have any questions or concerns about our transactions,please contact us by e-mail or online.We will reply quickly within 24 hours.
Product List
TFT LCD screen-Series | ||||||||
Inch | Resolution | Display perspective | Interface | Brightness | ||||
1.54 | 240*240 | IPS | SPI 4 BIT | 1100cd/m2 | ||||
2.4 | 240*320 | IPS | RGB 18 BIT | 350-800cd/m2 | ||||
2.7 | 960*240 | IPS | RGB 8 BIT | 350cd/m2 | ||||
2.8 | 240*320 | IPS | RGB 16 BIT | 400cd/m2 | ||||
3 | 240*400 | TN | MCU 16 BIT | 350cd/m2 | ||||
3.2 | 240*320 | TN | MCU16Bit | 250cd/m2 | ||||
3.5 | 320*240 | IPS | RGB 24 BIT | 400cd/m2 | ||||
4.0 | 480*480 | IPS | RGB 18 BIT+I2C | 450cd/m2 | ||||
4.3 | 800*480 | IPS | RGB 24 BIT | 500cd/m2 | ||||
4.5 | 480*854 | IPS | MCU 16 BIT | 400cd/m2 | ||||
4.7 | 780*1280 | IPS | MIPI | 400cd/m2 | ||||
5.0 | 720*1280 | IPS | MIPI | 350cd/m2 | ||||
5.5 | 1080*1920 | IPS | MIPI | 400cd/m2 | ||||
6.0 | 720*1280 | IPS | MIPI | 500cd/m2 | ||||
7.0 | 1024*600 | IPS | RGB 24 Bit | 1000cd/m2 | ||||
8.0 | 800*1280 | IPS | MIPI | 500cd/m2 | ||||
9.7 | 1024*768 | IPS | LVDS | 350cd/m2 | ||||
10.1 | 1280*800 | IPS | LVDS | 1000cd/m2 | ||||
10.4 | 1024*768 | IPS | LVDS | 400cd/m2 | ||||
11.6 | 1920*1080 | IPS | EDP | 250cd/m2 | ||||
13.3 | 1920*1080 | IPS | EDP | 300cd/m2 | ||||
15.6 | 1920*1081 | IPS | EDP | 300cd/m2 | ||||
21.5 | 1920*1080 | IPS | EDP | 250cd/m2 | ||||
We have more size LCD. If it doesn't appear in the product list, you can contact us. | ||||||||
Certifications
Company Profile
Packing & Delivery
FAQ
1. Is it possible to have product sample order?
Yes, sample orders are available, please consult our foreign trade manager Rose
2. How long is the lead time for samples?
Our sample lead time is 15-20 days
3. How long is the batch delivery time?
Our products are classified differently, and the delivery time is different. For example, the delivery time for the first mass production is 20-25 days for 0.96-3.0 size without touch screen, 30-40 days for display screen larger than 3.0 inches, and 50 days for touch screen. Time available to meet customer requirements.
4. Product minimum order MOQ?
The MOQ of our products is 1K. There are exceptions in special cases. For details, please consult our foreign trade sales Shellki
5. What is the warranty period of the product?
Our products are guaranteed for 12 months after sales, 36 months after sales, and more than 5 years for special products
6. How is the product packaged?
The packaging of the product is customized according to the needs of customers to meet the packaging needs of customers.
7. Can you provide sufficient technical support for your product?
There is no problem with this at all. I have a professional technical and after-sales team, which can provide customers with a full range of technical support, including pre-production design, R&D (hardware design and software debugging), in-production improvement and technical services, post-production quality follow-up and after-sales processing.
Yes, sample orders are available, please consult our foreign trade manager Rose
2. How long is the lead time for samples?
Our sample lead time is 15-20 days
3. How long is the batch delivery time?
Our products are classified differently, and the delivery time is different. For example, the delivery time for the first mass production is 20-25 days for 0.96-3.0 size without touch screen, 30-40 days for display screen larger than 3.0 inches, and 50 days for touch screen. Time available to meet customer requirements.
4. Product minimum order MOQ?
The MOQ of our products is 1K. There are exceptions in special cases. For details, please consult our foreign trade sales Shellki
5. What is the warranty period of the product?
Our products are guaranteed for 12 months after sales, 36 months after sales, and more than 5 years for special products
6. How is the product packaged?
The packaging of the product is customized according to the needs of customers to meet the packaging needs of customers.
7. Can you provide sufficient technical support for your product?
There is no problem with this at all. I have a professional technical and after-sales team, which can provide customers with a full range of technical support, including pre-production design, R&D (hardware design and software debugging), in-production improvement and technical services, post-production quality follow-up and after-sales processing.
8.How to order?
(1)Tell me the product model and the quantity you want to order.
(2)The proforma invoice together with the freight will be sent to you.
(3)Confirm PI and arrange payment.
(4)Receive payment and arrange production.
(5)Ship and send the tracking number,or bill of lading.
(6)Customer feedback.
9.How to customization?
(1)Tell me what your needs,we will help you to design.
(2)Confirm the drawing.
(3)Arrange proofing
(4)Sample verification.
(5)Trial production test.
(6)Sign the sample.
(1)Tell me the product model and the quantity you want to order.
(2)The proforma invoice together with the freight will be sent to you.
(3)Confirm PI and arrange payment.
(4)Receive payment and arrange production.
(5)Ship and send the tracking number,or bill of lading.
(6)Customer feedback.
9.How to customization?
(1)Tell me what your needs,we will help you to design.
(2)Confirm the drawing.
(3)Arrange proofing
(4)Sample verification.
(5)Trial production test.
(6)Sign the sample.
