Электропечь для индукционной плавки

Электропечь для индукционной плавки

Категория: >>>
Поставщик: Dongguan Tes Machinery Co . Ltd.

Цена:366 744,63 ₽ - 399 113,97 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

TES industrial electric aluminum melting furnace supply Medium frequency power supply Induction Melting Furnace Casting electric


Key attributes

Other attributes

Place of Origin

Guangdong, China

Condition

New

Type

Induction Furnace

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

Hot Product 2024

Warranty of core components

1 Year

Core Components

PLC

Weight (T)

0.05 T

Power (kW)

100

Warranty

1 Year

Key Selling Points

Low Noise Level

Applicable Industries

Manufacturing Plant, Energy & Mining

Showroom Location

None

Usage

Melting Furnace

Brand Name

TES

Voltage

380V

Dimension(L*W*H)

2300mm*2200mm*2350mm

Product Name

50kg industrial electric aluminum melting furnace

IF Frequency

100-1000Hz

DC Current

200A

IF Voltage

2200V

DC Voltage

500V

MOQ

1sets

Use

Melting metal

Application

Melting Metal

Feature

Energy-saving

Duty cycle

100%

Packaging and delivery

Packaging Details

Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.

Port

Shenzhen Tianjin Shanghai Qingdao

Supply Ability

100 Set/Sets per Month

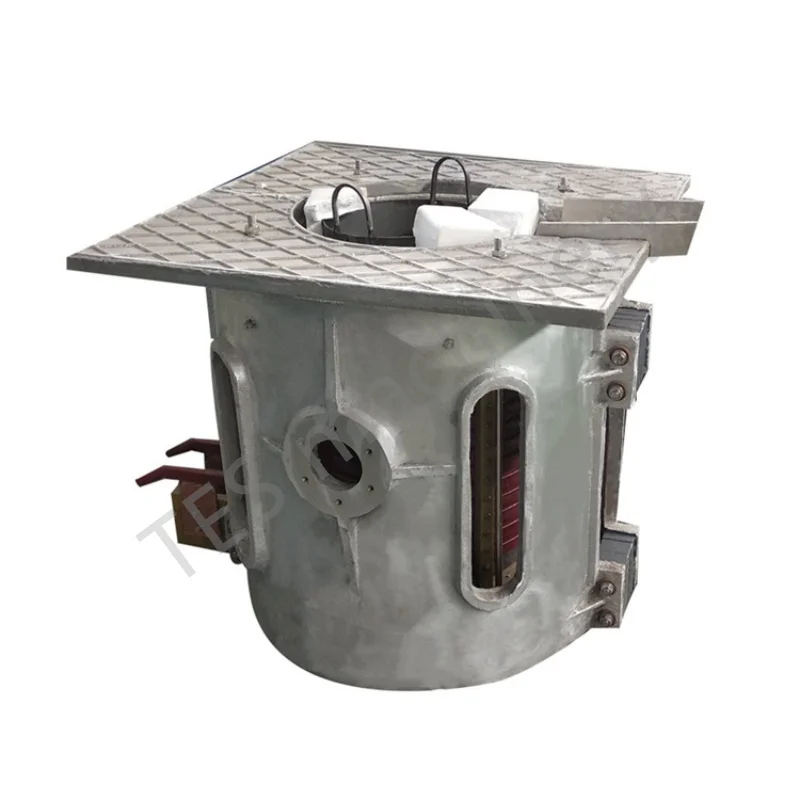

Aluminum Shell Melting Furnace(Reducer Tilting)

Technical Advantages of KGPS MF Melting FurnaceEquipment cost is low. Equipment structure is relatively simple, cost is low.Mature technology. After more than ten years continuously improve,the technical has already very mature.Well-adapted. Low requirement to environment and durable.Simple Maintenance. Because of it’s simple circuit and the low cost component, so the maintenance is simple and cost is low.

Power supply:

Medium Frequency Power Supply improves circuit technology, develops and becomes newest medium frequency power supply in China, with configuration of 8th digitization circuit board. This power supply has wide frequency scope, constant capacity control, scan automatically zero-pressure start, double voltage and currency closed loop feedback system.And with rigorous protections of overcurrency, overvoltage, undercurrency, undervoltage, lack of water, defaut phase, gives equipment high stability and self automatically control and adjustment.

Product Features:1. Various capacity 0.1T -20T, fast melting speed, 40-60 minutes /pot.

2. Have self-test function, real-time supervise.

3. Have leaking alarm device, PLC control, easy to operate.

4. The control cabinet is standard of the automobile line, easy to maintain.

5. The water way uses carbon-free hose , water separetors and clips use 304 stainless steel.

6. Can meet 24 hours continuous work.

7. High efficiency , low cost , easy to maintain, energy saving ,safe and stability.

Enclosed type Water Cooling System

The materials of coil group is high quality of T2 depickling copper tube or stainless steel pipe .Set water tank
and the tower body is made of aluminum zinc steel plate plate and the service life is over 15years.

Spay system with collection device, absorb water, collect mist, lower consumption. With professional full closed low speed low-power motor, low noise, low power consumption. Use distilled water circulating cooling, isolating from the air, water does not scale. Low operating costs, low maintenance costs. No need of water pool, occupies small area, and moves easily.

Product Paramenters

Details Images

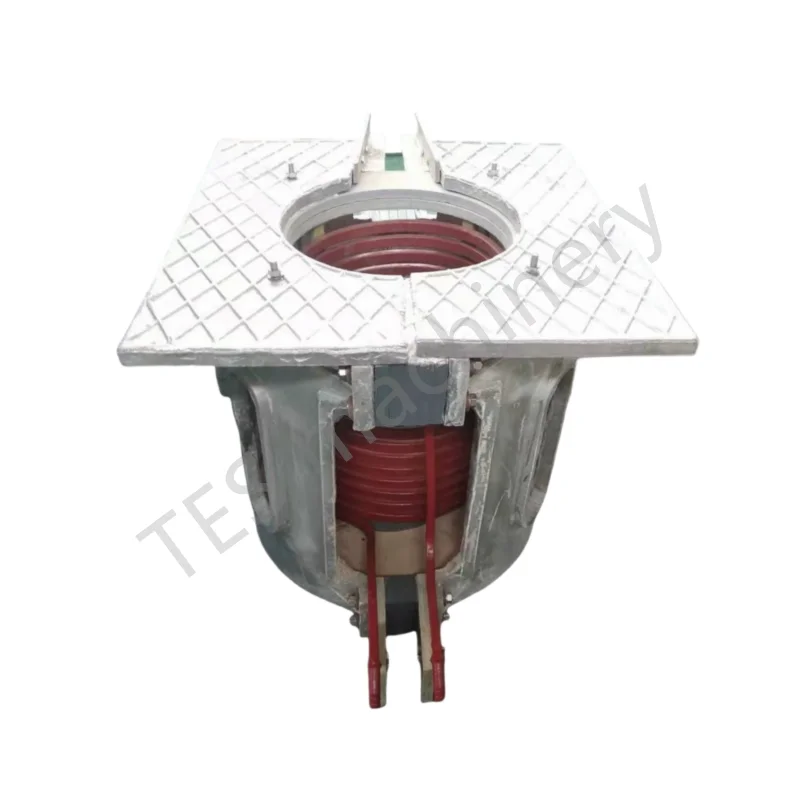

Furnace Parts:

1.Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts. 2.Furnace Ports: Furnace port including furnace shell, induction coil etc. 3.Furnace Shell Furnace shell made of cast aluminum furnace shell halves connected together, with good rigidity, compact structure, easy maintenance, etc., the rotary bearing hole once processed, to ensure concentricity of the furnace shell and rotary bearing tilting furnace process will not be deformed due to misalignment.
