NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Products Description
Equipment Type | Automatic |
Bottle Type | PET round or square bottle Volume 200 - 2500ml Bottle diameter 50-115mm Bottle height 160-350mm |
Output | up to 24,000 bph |
Your product | Carbonated Soft Drink |
Turnkey Solution Complete Automatic PET Bottled Carbonated Soft Drinks Production Line
Success in Carbonated Soft Drinks (CSD) beverage production requires focus on flexibility and overall efficiency, with
cost-effective resource management and branding opportunities that deliver optimal results across your supply chain. Our unmatched expertise and technical knowledge of PET packaging helps you achieve more.
With over 340 years of experience in designing and implementing customised complete PET line solutions for carbonated soft drinks,we can help you expand your line's production capabilities. Over the years, we have significantly reduced the weight of CSD bottles while retaining bottle resistance and expanding design opportunities.
cost-effective resource management and branding opportunities that deliver optimal results across your supply chain. Our unmatched expertise and technical knowledge of PET packaging helps you achieve more.
With over 340 years of experience in designing and implementing customised complete PET line solutions for carbonated soft drinks,we can help you expand your line's production capabilities. Over the years, we have significantly reduced the weight of CSD bottles while retaining bottle resistance and expanding design opportunities.
One partner for all your needs.
A complete CSD line solution from NAVAN takes into account every step of your PET carbonated soft drink process, from minimising resource waste to determining your bottle's ideal look and weight. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment,fast ramp-up and beyond.
Enhancing flexibility and consistency , NAVAN Carbonated Soft Drinks Lines provide:
NAVAN carbonated soft drinks lines provide:
1 - Faster speeds and smaller footprint
2 - Improved hygiene and product quality
3 - More flexibility with quick changeovers
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
Details Images
1-NAVAN Machine RO Water Treatment System
* Raw water tank + Raw water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump
1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame
2 - Carbonated Drink Pre-processing and Mixing system.
1 - High-shear emulsifying tank + Plate heat exchanger
2 - Mixing tank
3 - UHT sterilizer + homogenizer machine + Buffer tank
4 - Hot water system + Hot water tank
5 - CIP cleaning system
2 - Mixing tank
3 - UHT sterilizer + homogenizer machine + Buffer tank
4 - Hot water system + Hot water tank
5 - CIP cleaning system
3 - NAVAN Machine PET Bottle Stretch Blow Moulding Machine.
1 / Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air

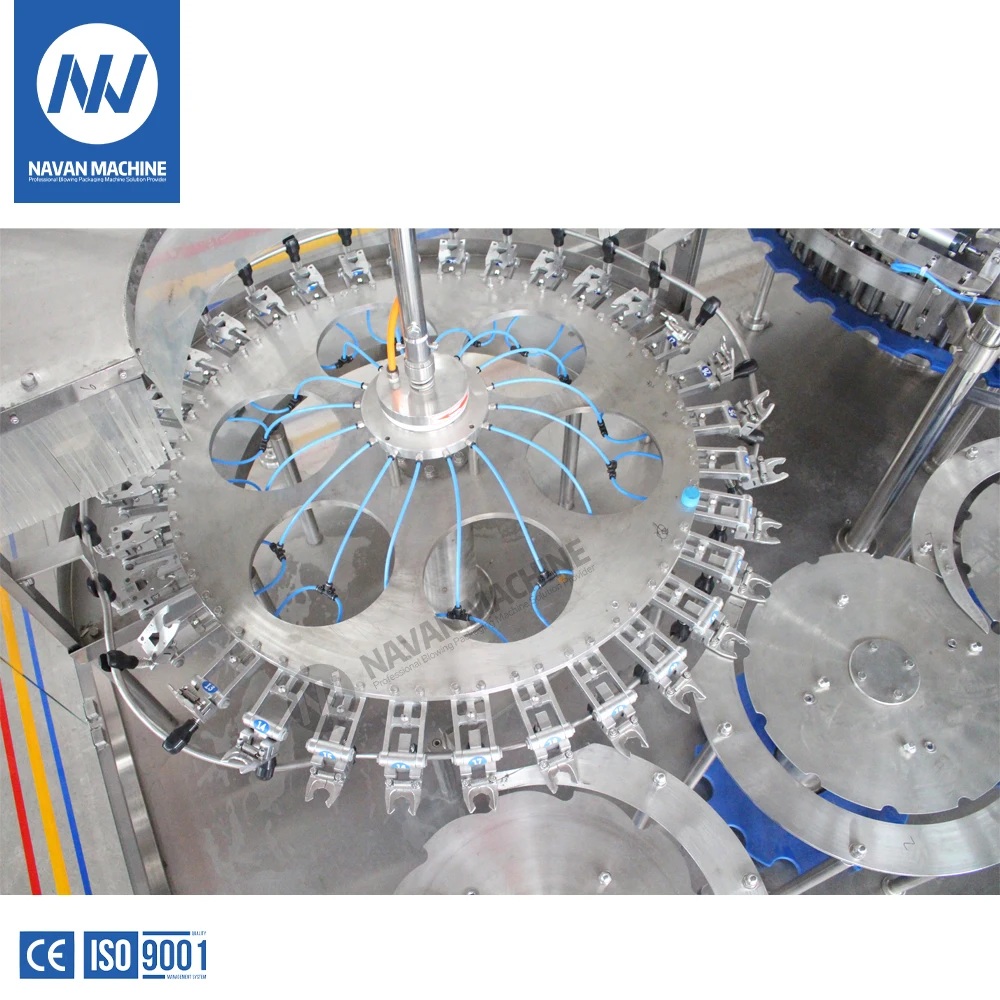

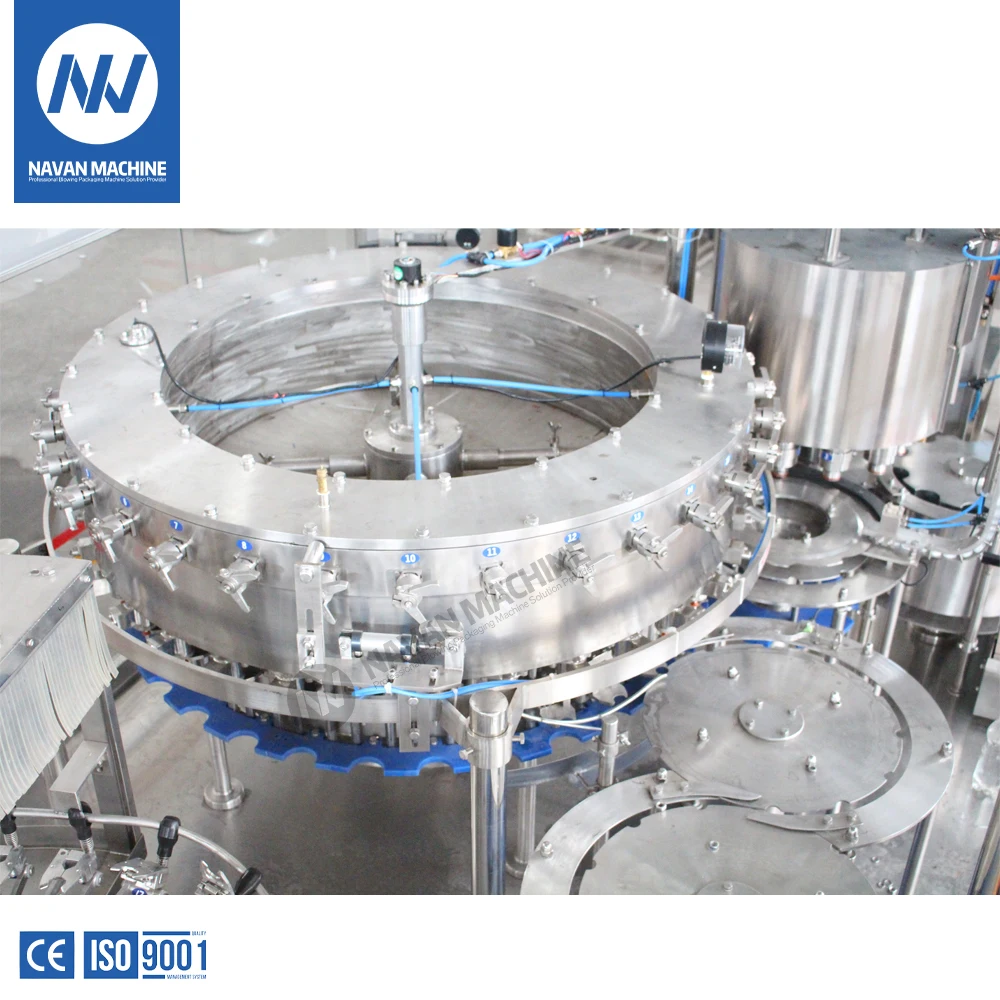

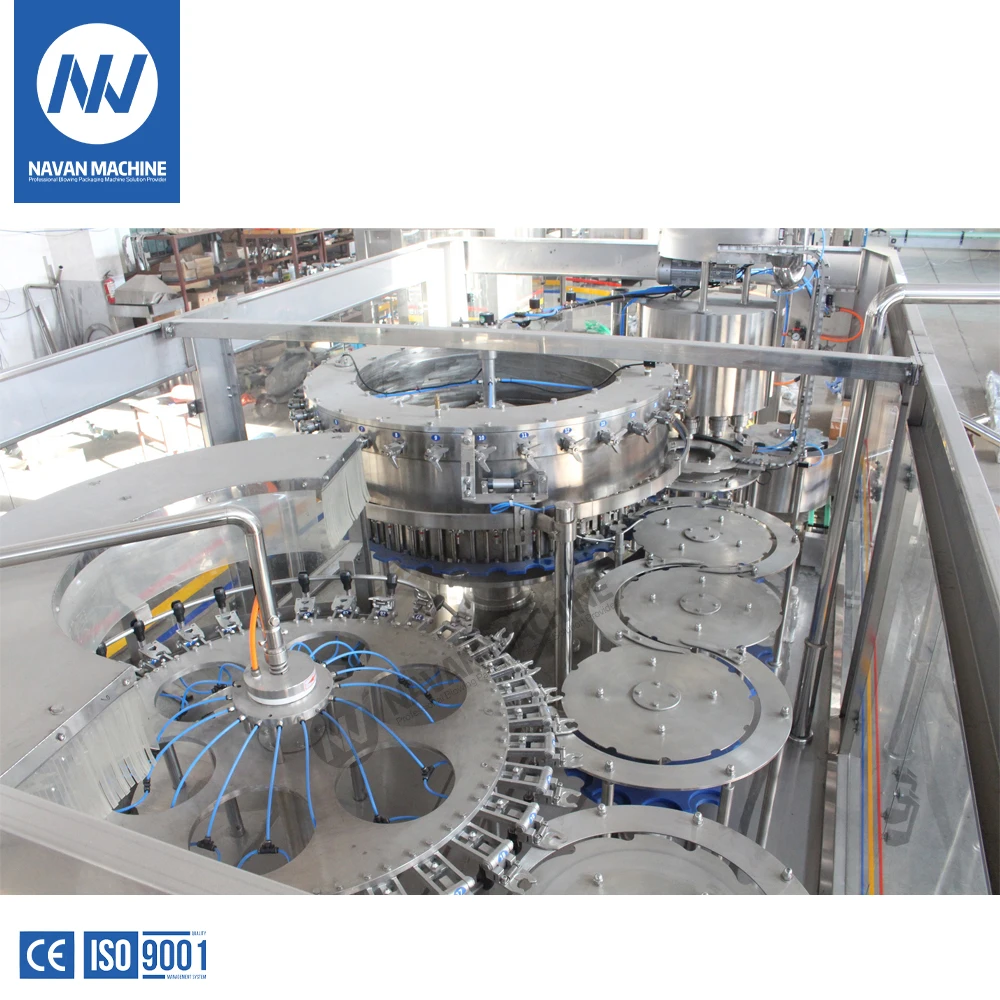

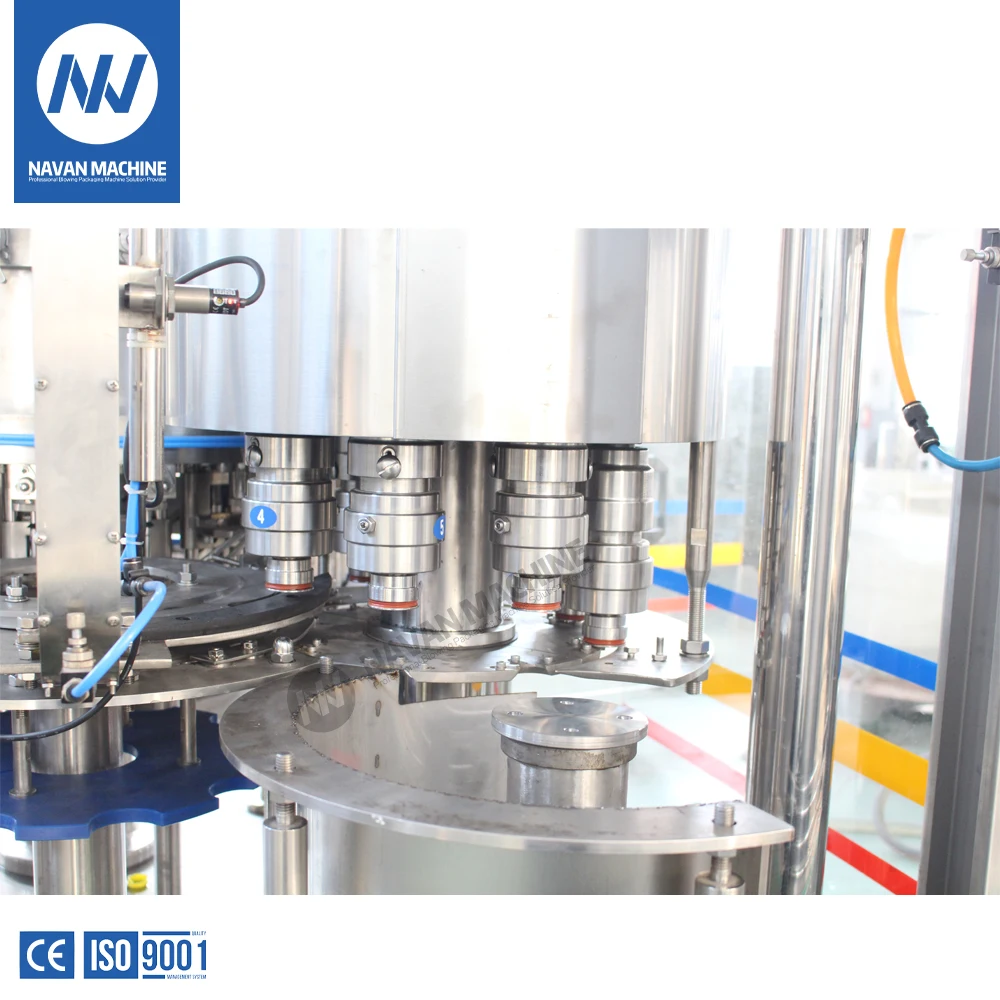

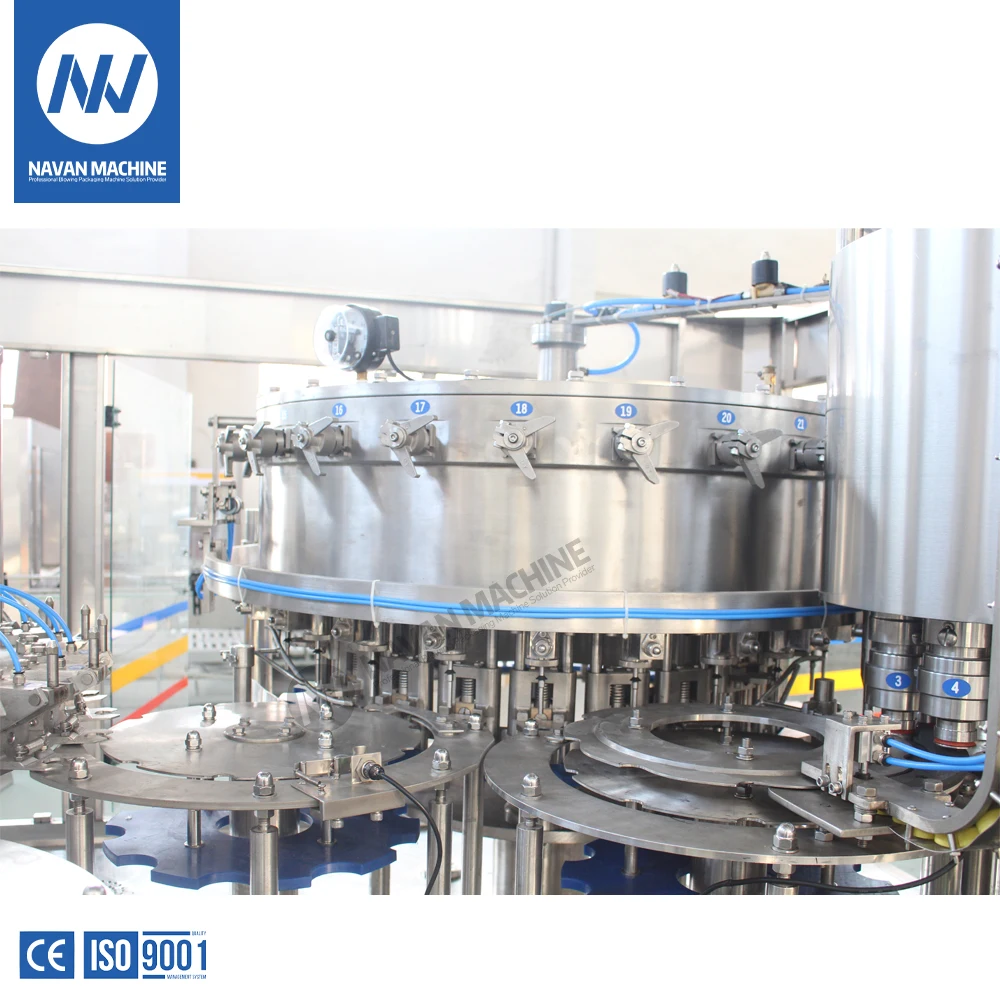

4-NAVAN CGFD Carbonated Drink Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
5 - NAVAN Bottle Warmer and Pasteurization System
- Mainly for warming and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
OPP Rotary Labeling Machine
Shrink Sleeve Labeling Machine
Adhesive Labeling Machine
6- NAVAN Machine Bottle Labeling Machine.
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000
containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
finished product display
Automatic Carton Packing Machine with hot melting glue
L Type Filmg Wrapping Packing Machine
Linear Type Film Wrapping Packing Machine
7- NAVAN Machine Bottle Packing Machine.
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
finished product display
NAVAN Hot Fill Lines Solution for Juice Sports Drinks and Tea PET 200-2000ml Bottle
Product Paramenters
Model | CGFD8-8-8-3/4 | CGFD12-12-5/6 | CGFD18-18-6 | CGFD24-24-8 | ||||
Application | Carbonated drink /aerated drink / Sparkling Drink drink and so on | |||||||
No. of Rinsing/Filling/Capping | 8-8-3/4 | 12-12-5/6 | 18-18-6 | 24-24-8 | ||||
Production Capacity(500ml) | 800~1000BPH | 2000~2500BPH | 4000-5000BPH | 7000~8000BPH | ||||
Filling precision | ≤±5mm(liquid level) | |||||||
User Ambient Conditions | Temperature:10~40℃; Humidity: No dew | |||||||
Suitable bottle specification | Volume=100-2000ml Diameter φ=50-100mm Bottle height H=150 ~340mm | Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm | ||||||
Bottle type | Plastic bottle / PET Bottle | |||||||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm | |||||||
Machine material | Food stage SS304 OR SS316 | |||||||
Air source pressure | 0.5~0.6Mpa | |||||||
Filling way/principle | Isobar filling method | |||||||
Control system | SIMENS PLC+ TOUCH SCREEN | |||||||
Features | No Bottle No Filling No Bottle No Capping | |||||||
Main Power | 1.9kw | 3.5kw | 4.0kw | 4.8kw | ||||
Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement | |||||||
Overall dimensions (mm) | 1900*1420*2000 | 2050*1800*2400 | 2580*2100*2200 | 2780*2200*2200 | ||||
Weight (kg) | 1500 | 2500 | 3500 | 4500 | ||||
All machines could be customized , we could design design and produce machines according to your request. | ||||||||
Model | CGFD32-32-10 | CGFD40-40-10/12 | CGFD50-50-12/15 | CGFD60-60-15 | ||||
Application | Carbonated drink /aerated drink / Sparkling Drink drink and so on | |||||||
No. of Rinsing/Filling/Capping | 32-32-10 | 40-40-10/12 | 50-50-12/15 | 60-60-15 | ||||
Production Capacity(500ml) | 9000-10000BPH | 15000-16000BPH | 19000-20000BPH | 22000~24000BPH | ||||
Filling precision | ≤±5mm(liquid level) | |||||||
User Ambient Conditions | Temperature:10~40℃; Humidity: No dew | |||||||
Suitable bottle specification | Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm | |||||||
Bottle type | Plastic bottle / PET Bottle | |||||||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm | |||||||
Machine material | Food stage SS304 OR SS316 | |||||||
Air source pressure | 0.5~0.6Mpa | |||||||
Filling way/principle | Isobar filling method | |||||||
Control system | SIMENS PLC+ TOUCH SCREEN | |||||||
Features | No Bottle No Filling No Bottle No Capping | |||||||
Main Power | 5.5kw | 7.5kw | 11kw | 15kw | ||||
Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement | |||||||
Overall dimensions (mm) | 3800*2800*2600 | 4600*2800*2600 | 5450*3300*2600 | 6500*4500*2600 | ||||
Weight (kg) | 6500 | 8500 | 9800 | 12800 | ||||
All machines could be customized , we could design design and produce machines according to your request. | ||||||||
