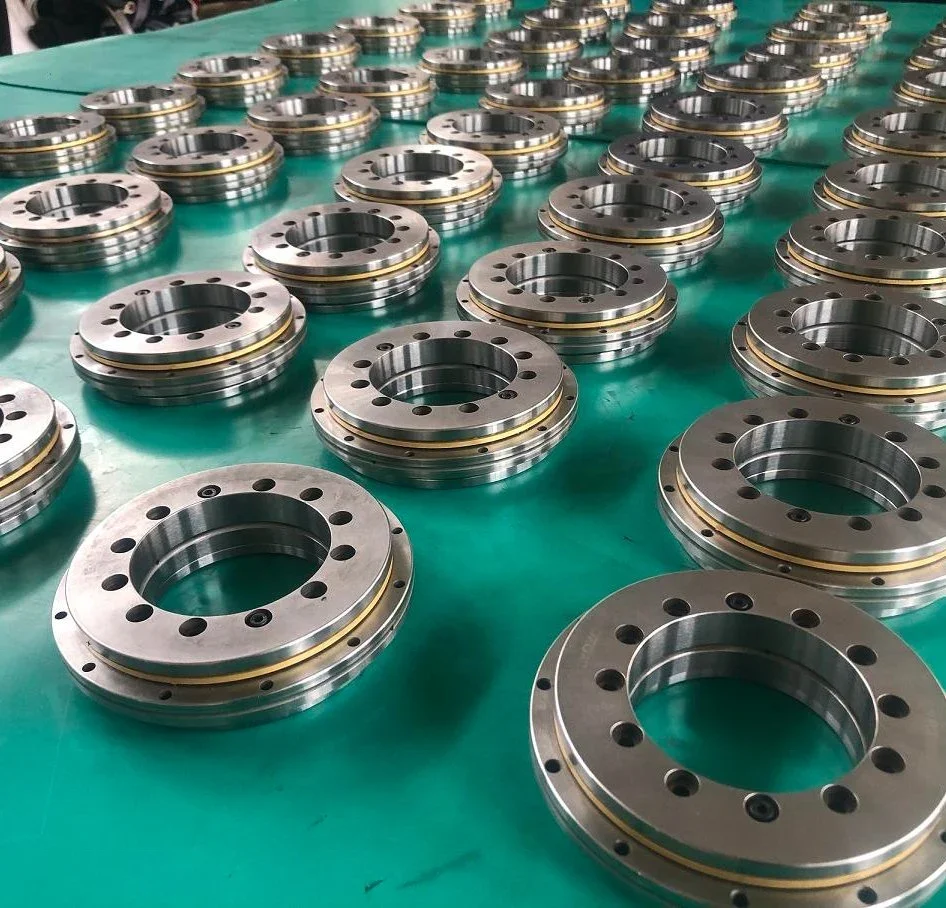

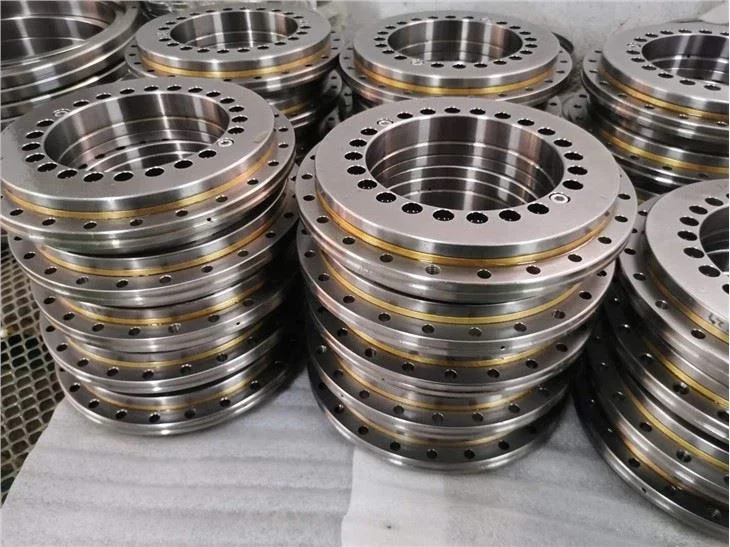

Подшипники поворотного стола высокого качества YRT460 Поворотный роликовый подшипник для станка
- Категория: >>>
- Поставщик: Kenworth Machinery Equipment (Shandong) Co. Ltd.
Сохранить в закладки 1601270107525:
Описание и отзывы
Характеристики
Product Description
Product Name | Rotary table bearing YRT260 |
Inner (d) MM | 460 |
Outer (D) MM | 600 |
Width (B) MM | 70 |
Weight (kg): | 45 |
Rotary table bearing
The YRT120 turntable bearing consists of a thrust/center seat, a thrust/center shaft ring, a thrust washer, two needle roller cage assemblies and a set of centripetal cylindrical rollers. The seat ring and shaft ring have uniform mounting screw holes. This type of bearing has high axial and radial load carrying capacity. High tilt stiffness and extremely high accuracy. Suitable for rotary table, chucks and iron heads as well as bearing arrangements for measurement and experimentation. This type of bearing also has high requirements for the matching equipment parts. When installing, it is necessary to control the tightening torque of the mounting screws.
YRT Series Combined Bearing Catalog
Application
YRT Series bearings
YRT Series bearings for automa- tion system
YRT Series bearings
YRT Series bearings for scientific instrument
YRT Series bearings
YRT Series bearings for CNC machines
YRT Slewing Bearings
YRT Series bearings for Robotics
Rotary Table Bearings
YRT Series bearings for milling machines
Axial/radial bearings YRT
YRT Series bearings for machine tools
Bearing Number
Bearing Number | inner diameter | outer diameter | high |
mm | mm | mm | |
YRT50 | 50 | 126 | 30 |
YRT80 | 80 | 146 | 35 |
YRT100 | 100 | 185 | 38 |
YRT120 | 120 | 210 | 40 |
YRT150 | 150 | 240 | 40 |
YRT180 | 182 | 280 | 43 |
YRT200 | 200 | 300 | 45 |
YRT260 | 260 | 385 | 55 |
YRT325 | 325 | 450 | 60 |
YRT395 | 395 | 525 | 65 |
YRT460 | 460 | 600 | 70 |
YRT580 | 580 | 750 | 90 |
YRT650 | 650 | 870 | 122 |
YRT850 | 850 | 1095 | 124 |
YRT950 | 950 | 1200 | 132 |
YRT1030 | 1030 | 1300 | 145 |
YRT1200 | 1200 | 1490 | 164 |

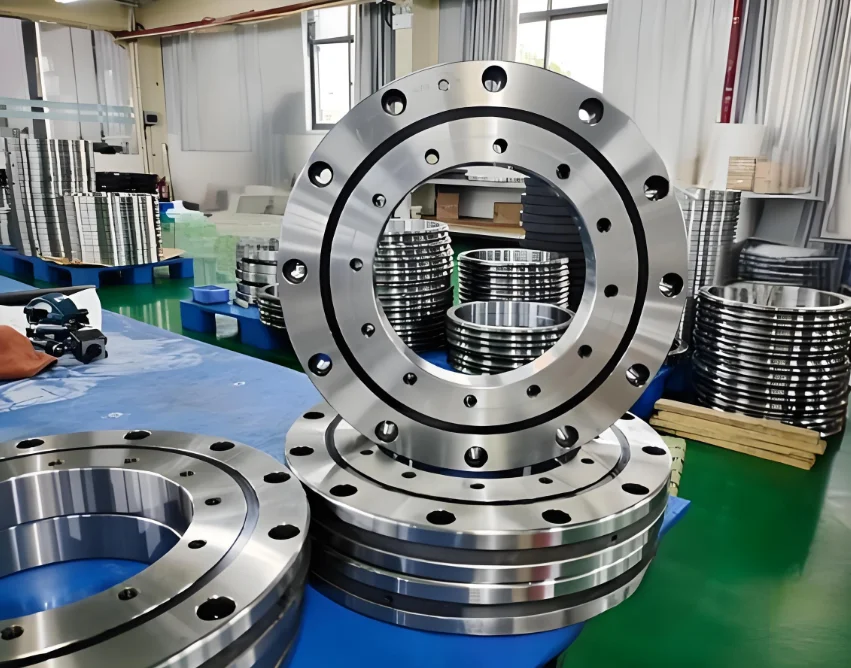

Product Display

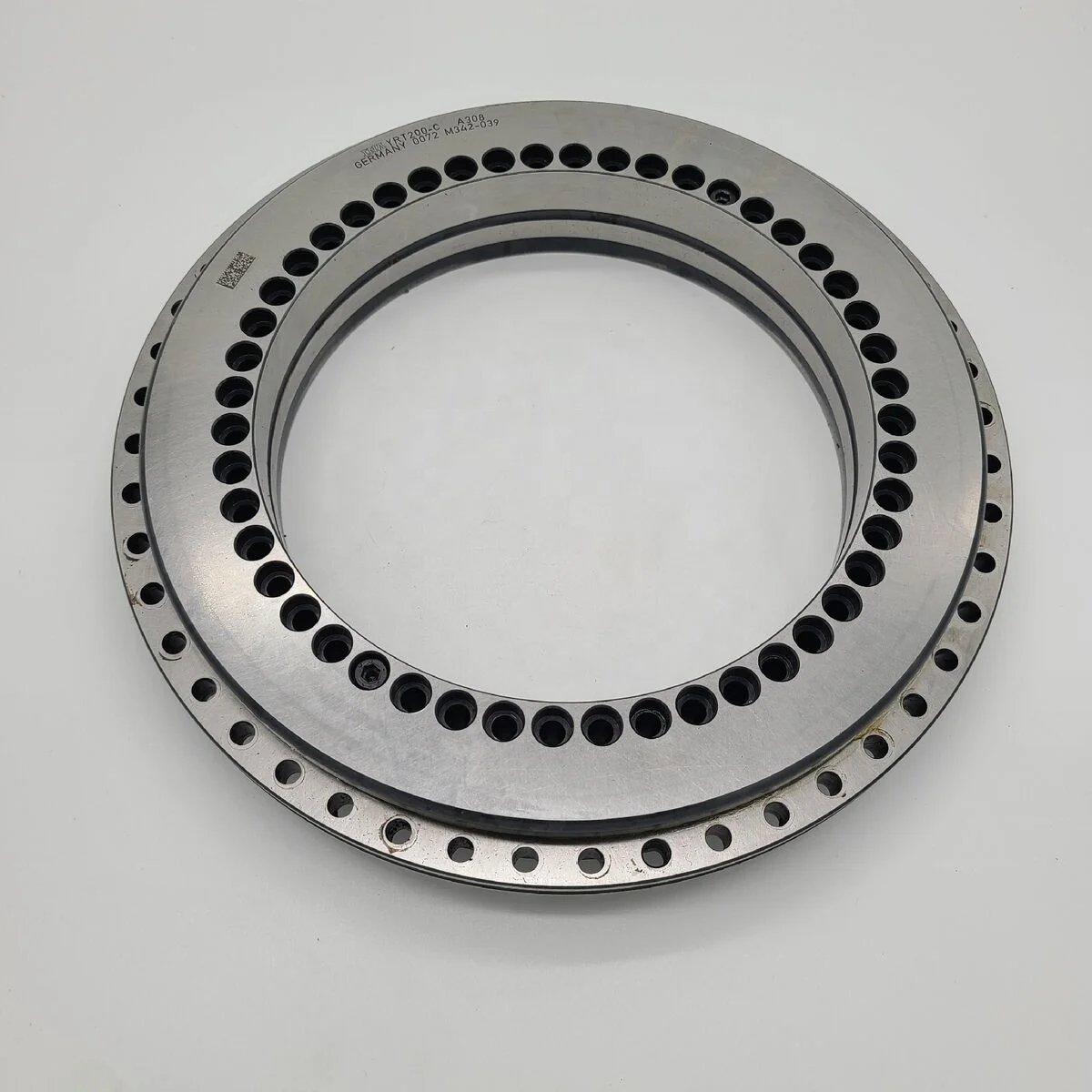

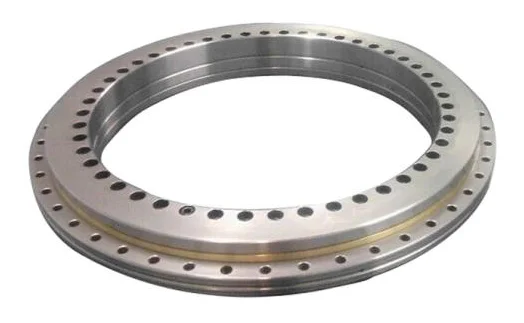

Rotary Table Bearing YRT460

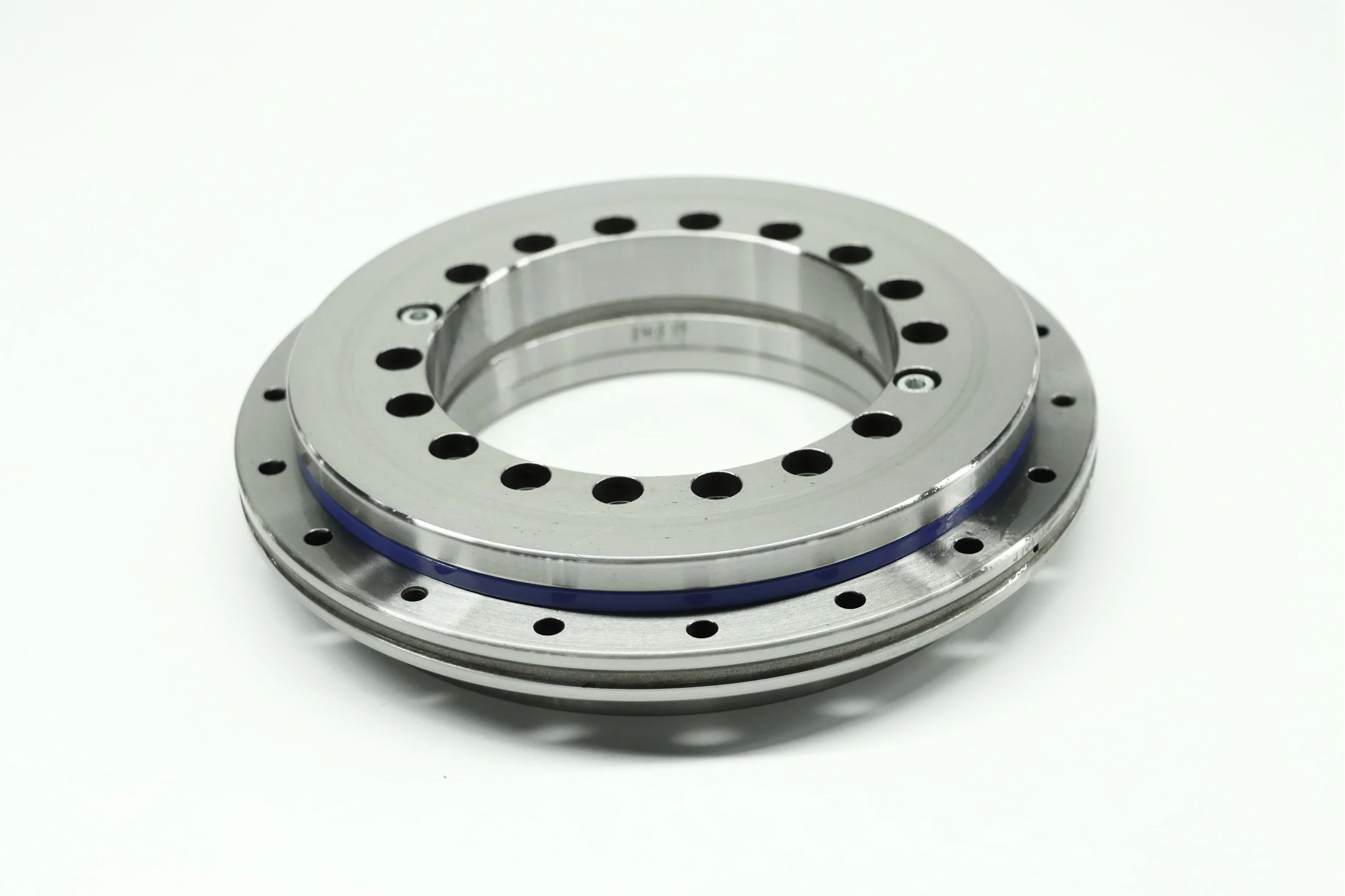

Good Quality Rotary Table Bearing
Rotary table bearing
rotary table slew drive bearing

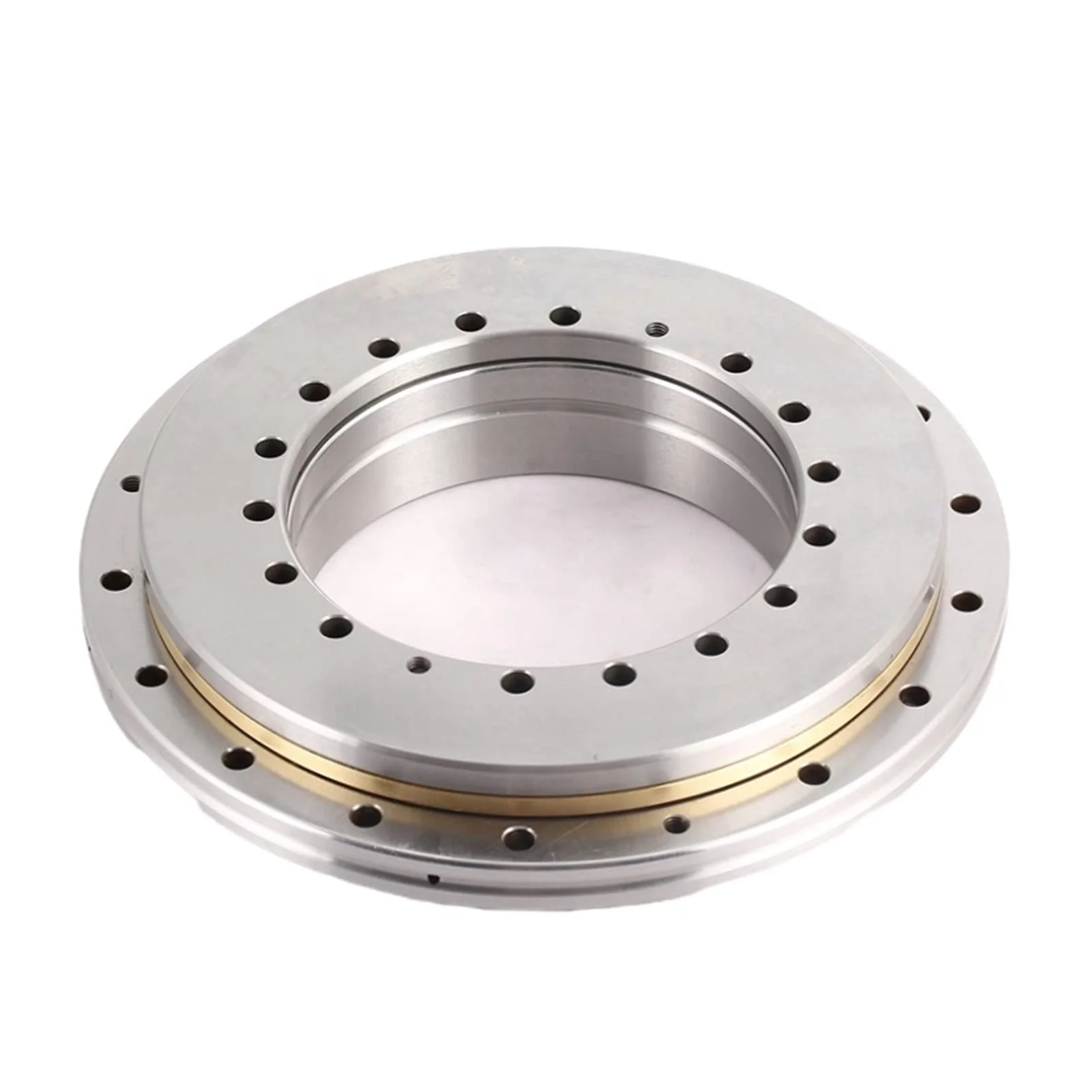

axial radial rotary table bearings
80mm 120mm 150mm 200mm 180mm 400mm 650mm 850mm rotary table bearing
Slewing Bearing

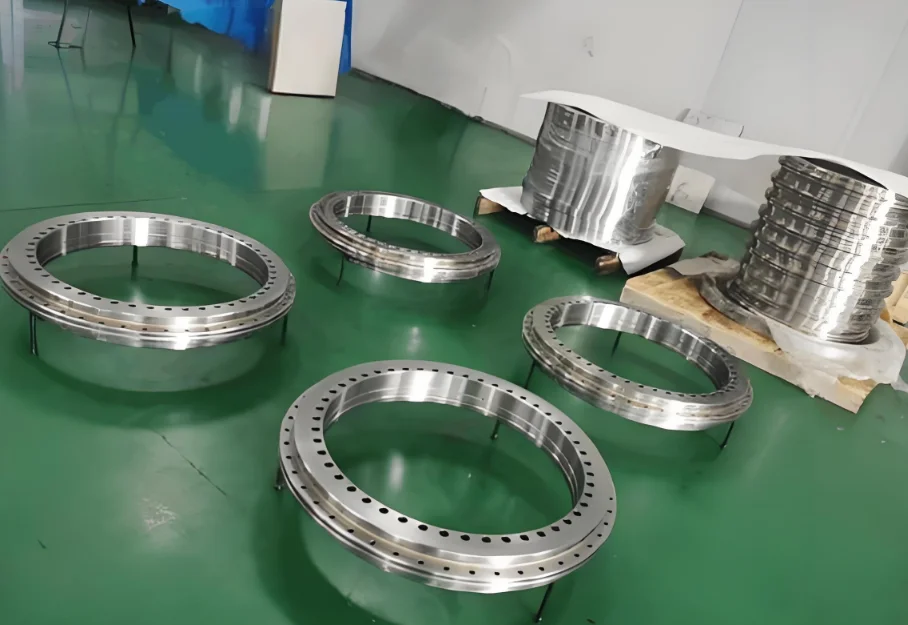

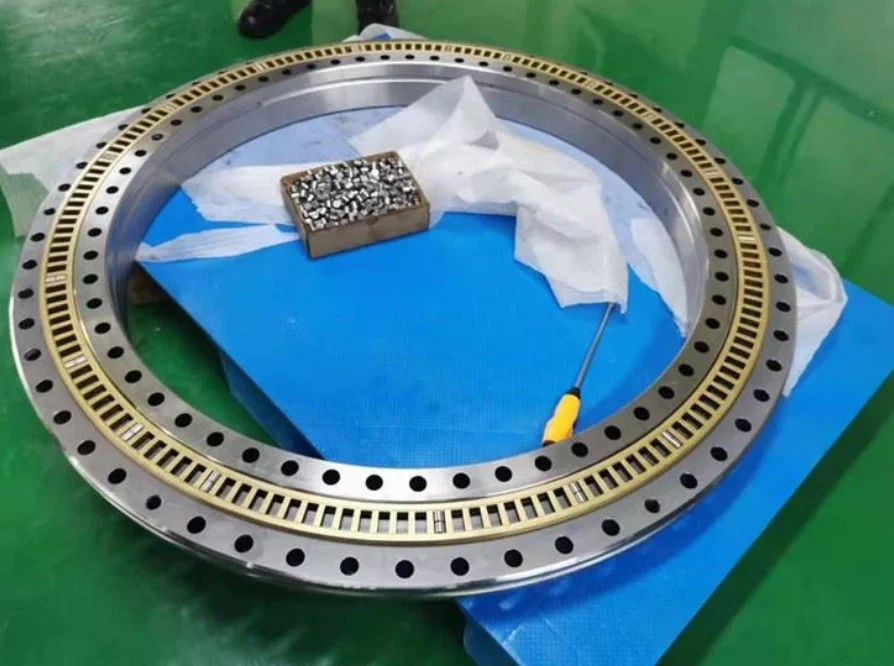

Large slewing bearing
Customer feedback

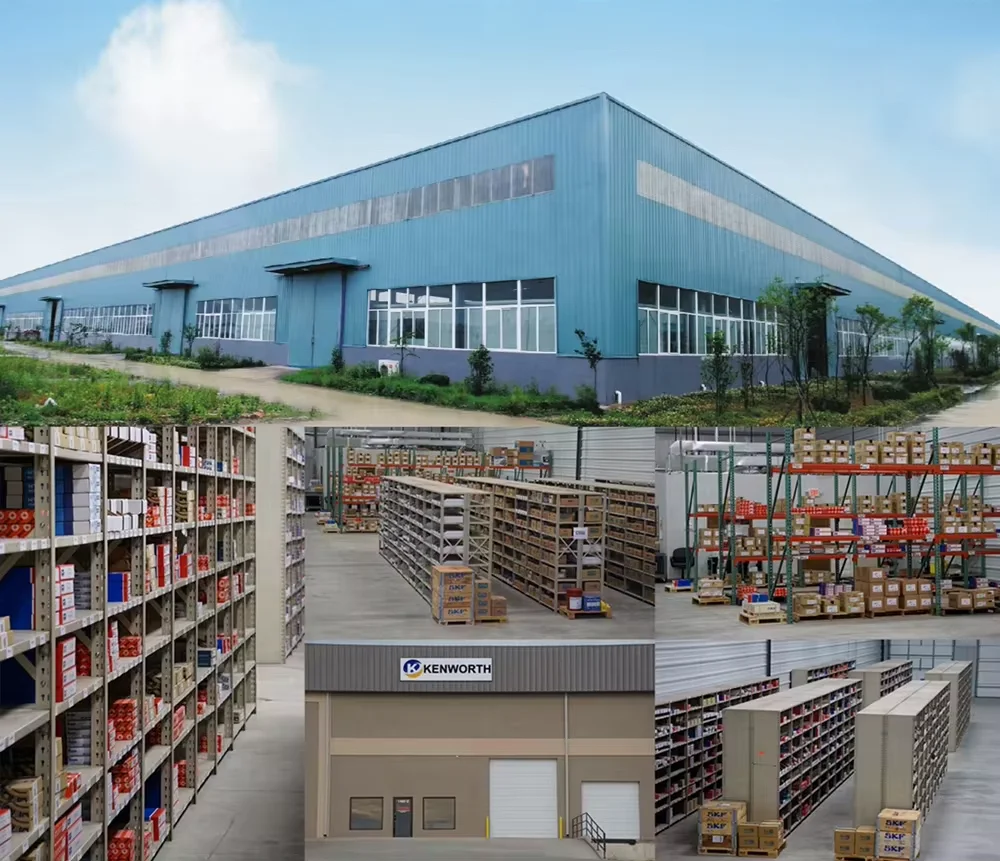

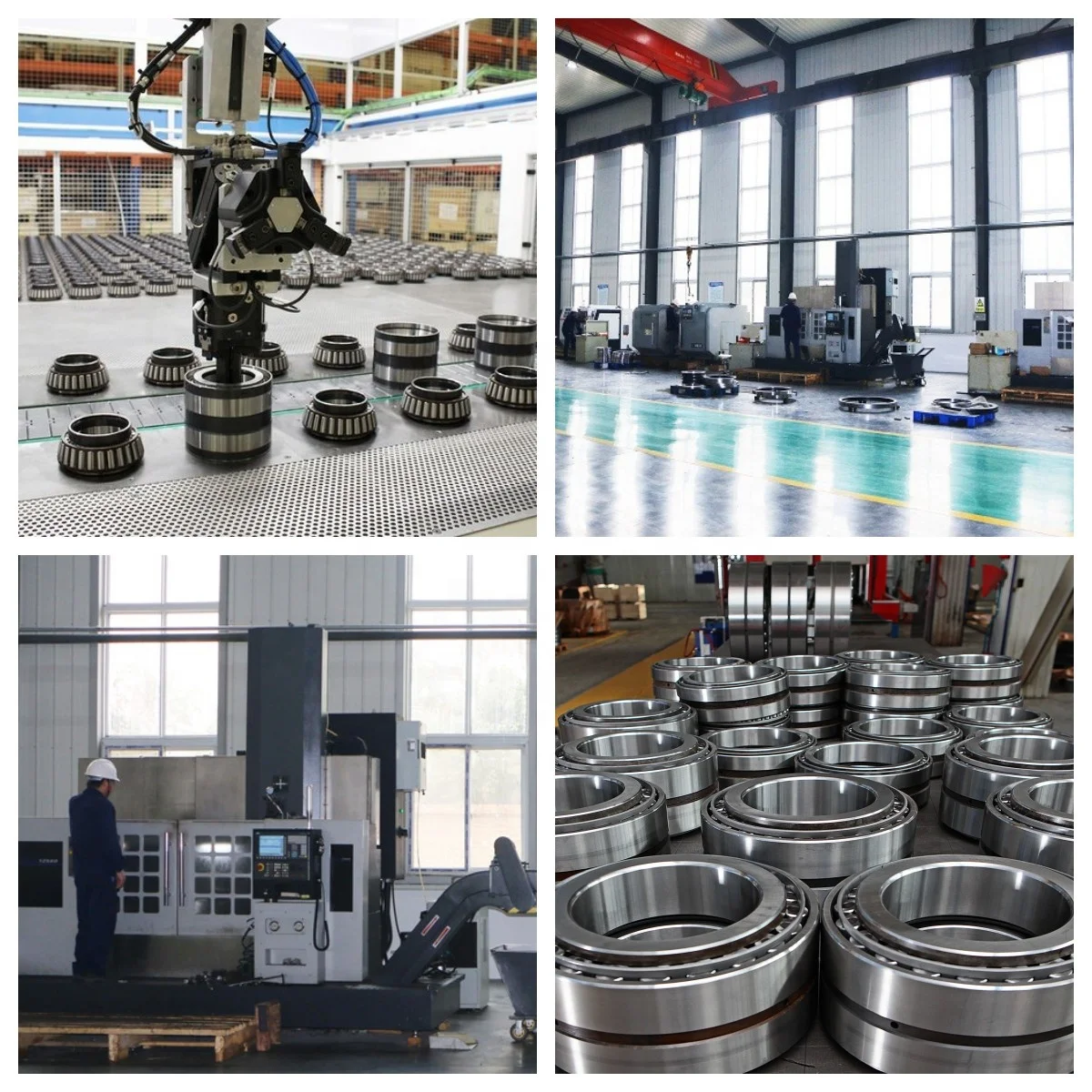

Company Profile
Kenworth is now a leading bearing supplier in China for a series of original worldwide famous brands of bearings.
Having extensive inventory of various bearings and quick delivery. Also we have great advantage over any other sources in supplying the above bearings With perfect products,professional services,competitive prices and fast delivery promotes our sales network to be bigger and bigger in the world.It would be our great honor to develop business relationships with esteemed companies all over the world.
Having extensive inventory of various bearings and quick delivery. Also we have great advantage over any other sources in supplying the above bearings With perfect products,professional services,competitive prices and fast delivery promotes our sales network to be bigger and bigger in the world.It would be our great honor to develop business relationships with esteemed companies all over the world.
Q1: Are you a Manufacturer or trading company?
A: We are professional manufactuer of bearings
Q2: Can I get a sample to check out the quality?
A: Sure, free samples are available for stock products if you can pay for the shipping cost.
Q3: Can you do OEM to print my logo/brand on the products?
A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like.We can also make custom package to your request.
Q4: How soon can I expect my order to be finished?
A: We have regular stock for standard bearings that can be shipped right after your payment. It will take 15-60 days for new production order,which depends on your order quantity.
A: We are professional manufactuer of bearings
Q2: Can I get a sample to check out the quality?
A: Sure, free samples are available for stock products if you can pay for the shipping cost.
Q3: Can you do OEM to print my logo/brand on the products?
A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like.We can also make custom package to your request.
Q4: How soon can I expect my order to be finished?
A: We have regular stock for standard bearings that can be shipped right after your payment. It will take 15-60 days for new production order,which depends on your order quantity.
