16 32 мм 20 63 жесткая машина для дренажа воды из ПВХ

16 32 мм 20 63 жесткая машина для дренажа воды из ПВХ

Категория: >>>
Поставщик: Qingdao Fullwin Plastic Machinery Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Production Description

Building conduit pipe water pipes Plastic UPVC CPVC PVC Pipe Making Machine

16-32mm 20-63mm Rigid PVC water drainage pipe machine plastic conduit tube duct production line PVC pipe plastic machinery

PVC pipe equipment production line can produce PVC CPVC UPVC pipe products, PVC pipe products are usually used for building water supply and drainage, agricultural water supply pipe, as well as automobile and building laying building materials threading pipe and other fields.

Because of its characteristics,CPVC pipe is widely used in oil field crude oil gathering and transportation,chemical corrosion resistant pipe line,hot water supply pipes. etc.

PVC pipe plants are available in one out of one production line, one out of two production lines and one out of four production lines to meet the requirements of different customers for different outputs.

Processing flow of plastic pvc pipe making machine extrusion line:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack

Machine Details

NO.	Name	QTY
1	Vacuum feeder with hopper dryer	1
2	Double screw extruder(conical screw)	1
3	Die head mould	1
4	Mouth mould and core bar	1
5	Vaccum Spraying water tank	1
6	Haul off	1
7	Planetary Cutter	1
8	Staker	1

1. Conical double screw extruder 65/132 with Spring feeder

Screw barrel design:Surface nitriding，nitriding thickness 0.4mm-0.7mm, hardneed≥940HV,Nitriding is a chemical heat treatment
process in which nitrogen atoms seep into the working surface at a certain temperature in a medium.

After Nitriding,the product have excellent wear resistance, fatigue resistance, corrosion resistance and hightemperature resistance,and more longer working life.
Barrel heater (new design,save about 30% electric)

2. New design die head

The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is
wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.

It can be customized for Double cavity or Four cavity for high output.

Copper sizing sleeves

According customer requirements to change mould quantity.
The sizing mould is Copper sleeve materials with polishing treatment

3. Vacuum Spraying cooling water tank

The calibrating and cooling tank can calibrate and cool the pvc pipe from mould

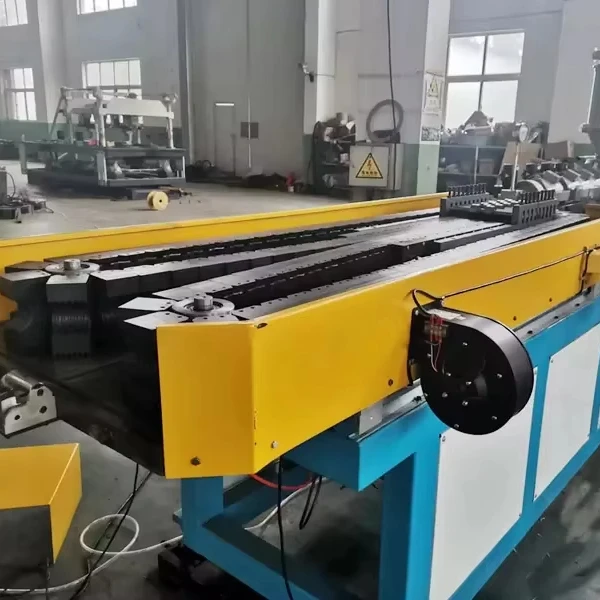

4. Haul off for double PVC pipe manufacture

The length can be set online according to customer requirements.

5. Planetary Cutting machine for double pipe

Cutting method:planetary cutting

6. Stacker

Mode:Pneumatic （Pneumatic transmission） *Length:6000mm *Adjustable limit switch number:2 pcs

Final products

FULLWIN Main product

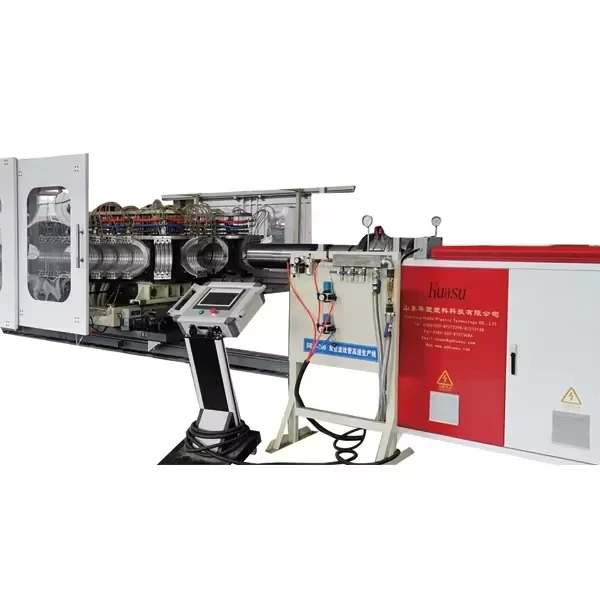

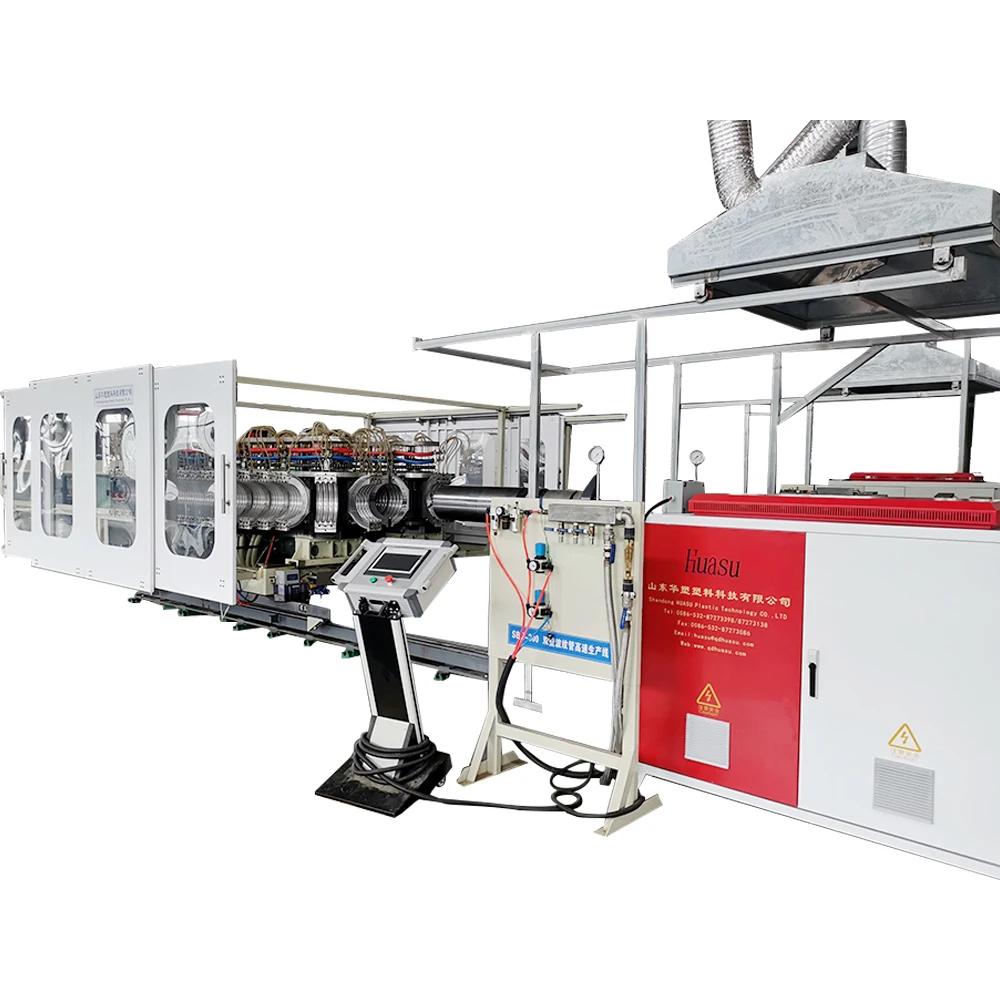

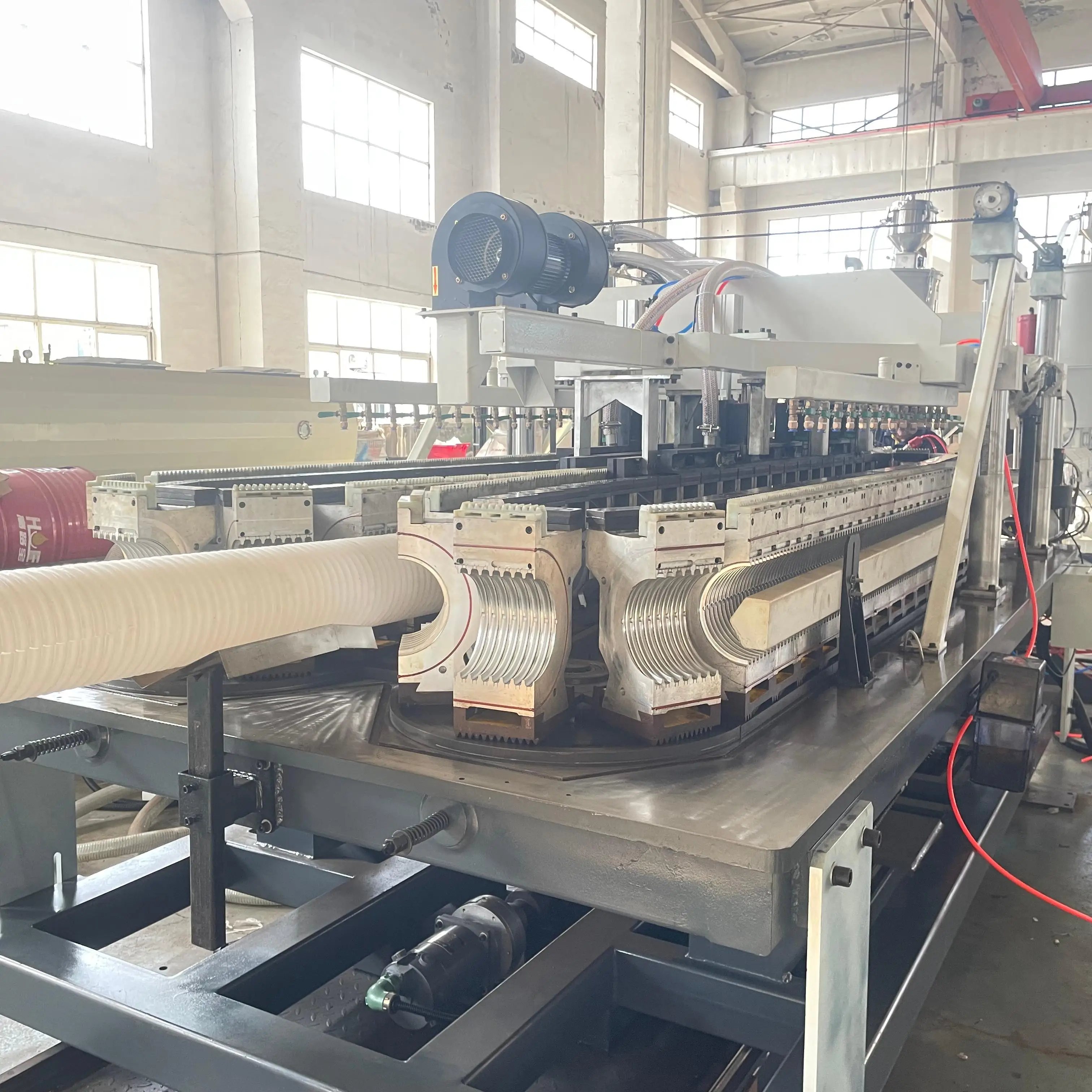

Single Wall Corrugated Pipe Machine

Production speed :20-35m/min Pipe Diameter :12-50mm Application :
shisha hookah pipe,electric conduit pipe, construction material etc

with FULLWIN Unique design and high output

PVC PP PE PPR HDPE Pipe Machine

Diameter : 20-110mm, 125-250mm,315-630mm 630-1200mm
Can be used to produce PPR hot and cold water pipes,PP/PE/HDPE pipes, silicon core tubes.

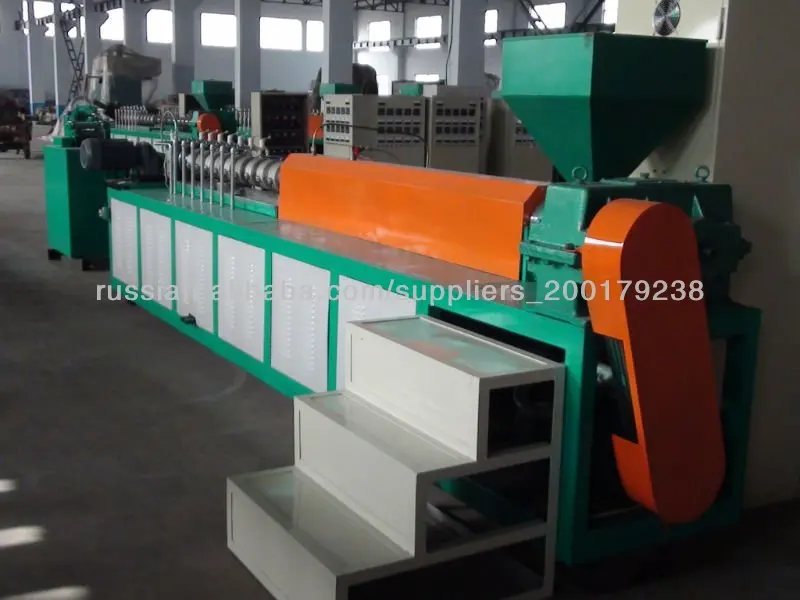

Plastic PVC Profile Machine

Mainly used for window profiles, electric trunking, grating panels,wall panel and ceiling panel etc decoration material.Customized
according to different profile sections and molds

PE WPC Profiles extrusion machine

The material is the WPC PE, can be molded products have a wood-like look and feel. Widely used in outdoor decking floor,railings,walking trails, outdoor tables
and chairs, benches and pallets.

PP Hollowness corrugated sheet line

Thickness: 1.6mm-18mm.Width:

915-1800mm.
The size error is small, can nail, can gouge, corrosion resistance, flame retardant strong and many other advantages.

PVC marble sheet production machine

With the conical twin screw extruder, with the PVC power material feeding.

The PVC marble sheet widely used for the interior decorate like the home TV walls,hotels,hall decoration, etc

Packing and delivery

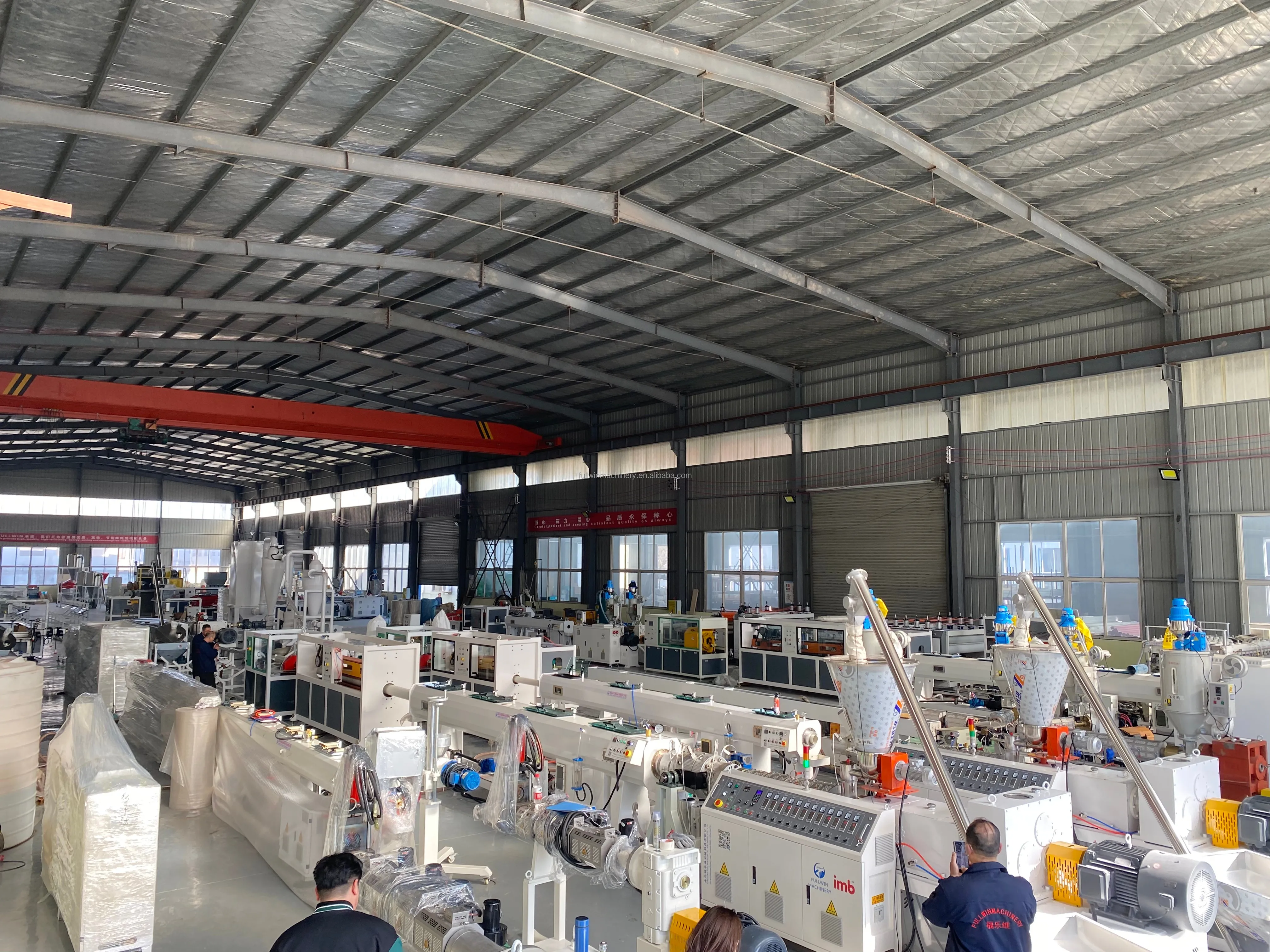

FULLWIN Factory

20000 m2 Workshop

Welcome To Inquire, Visit ！！
