600*900 мм козловая лазерная XY движущаяся маркировочная машина для большого формата металлическая табличка элеватор алюминиевая гравировка из нержавеющей стали
540 031,00 ₽ - 648 037,20 ₽
Станок для лазерной резки окон
- Категория: >>>
- Поставщик: Wuhan Sunic Photoelectricity Equipment Manufacture Co. Ltd.
Сохранить в закладки 1601270130981:
Описание и отзывы
Характеристики
Laser technology offers a range of applications in the flexible packaging industry, providing precise and efficient solutions.Some key uses of lasers in flexible packaging include:
2. Scoring and Cutting
Lasers are effective in scoring and cutting flexible packaging materials with high precision. This is particularly beneficial for creating easy-open features on packaging or for intricate designs, ensuring clean and accurate cuts without damaging the material.
3. Window opening
1. Perforation
Laser technology can be employed for creating micro-perforations in flexible packaging materials. This is useful for controlled
gas and moisture exchange, extending the shelf life of packaged products like fresh produce or snacks.
Laser technology can be employed for creating micro-perforations in flexible packaging materials. This is useful for controlled
gas and moisture exchange, extending the shelf life of packaged products like fresh produce or snacks.
2. Scoring and Cutting
Lasers are effective in scoring and cutting flexible packaging materials with high precision. This is particularly beneficial for creating easy-open features on packaging or for intricate designs, ensuring clean and accurate cuts without damaging the material.
3. Window opening
Laser technology can be used to create precise and customizable openings or transparent windows in flexible packaging materials.
Easy opening
Breathing holes
Window opening
The CO2 Laser Scoring and Perforation System is widely used in the PVC、PE、PET、AOPP、MOPP and composite package materials, shrink sleeve, shrink label easy tearing line high speed laser scoring perforating and some soft packing air permeable hole laser perforating.

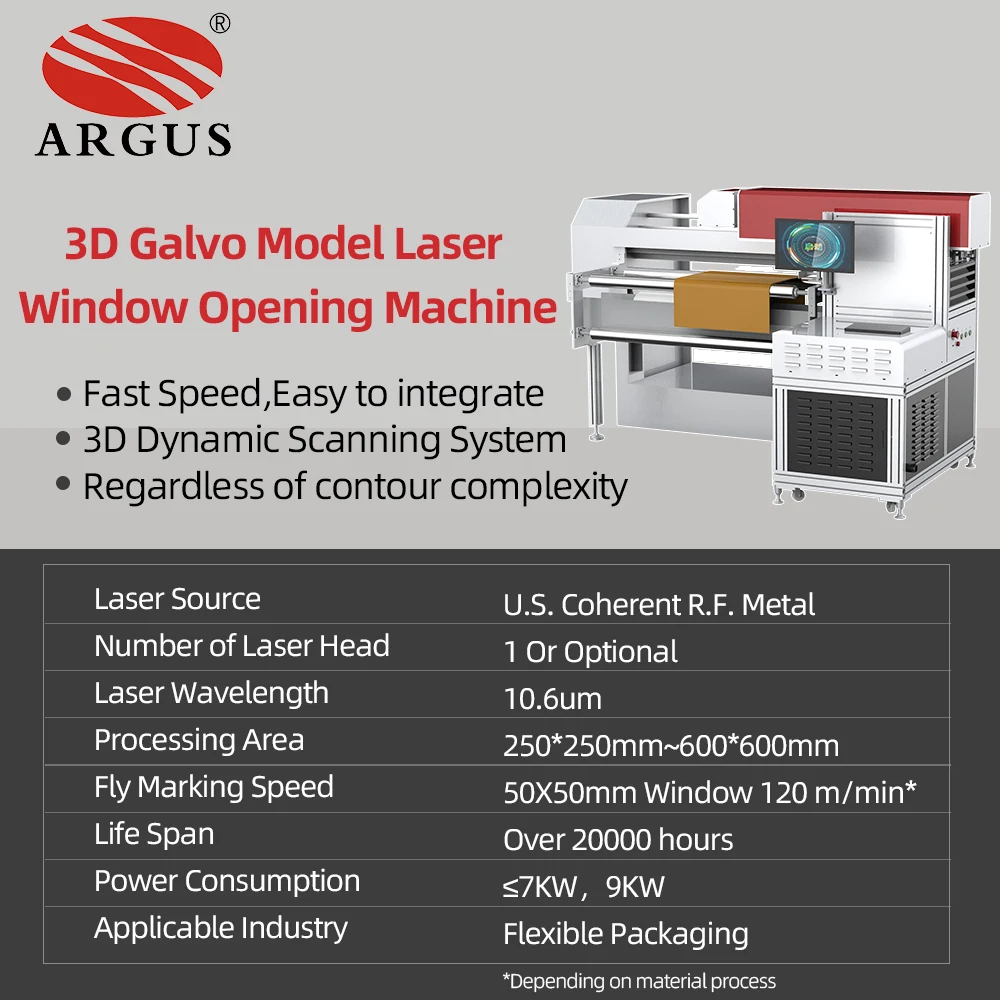

3D Galvo Head Model
Laser scoring in Cross web-direction Small hole cutting Window opening Multi-head available Laser power: 250W Working area:
250x250mm~600x600mm
Model | SCM2000 |
Laser Wavelength | 10.6μm |

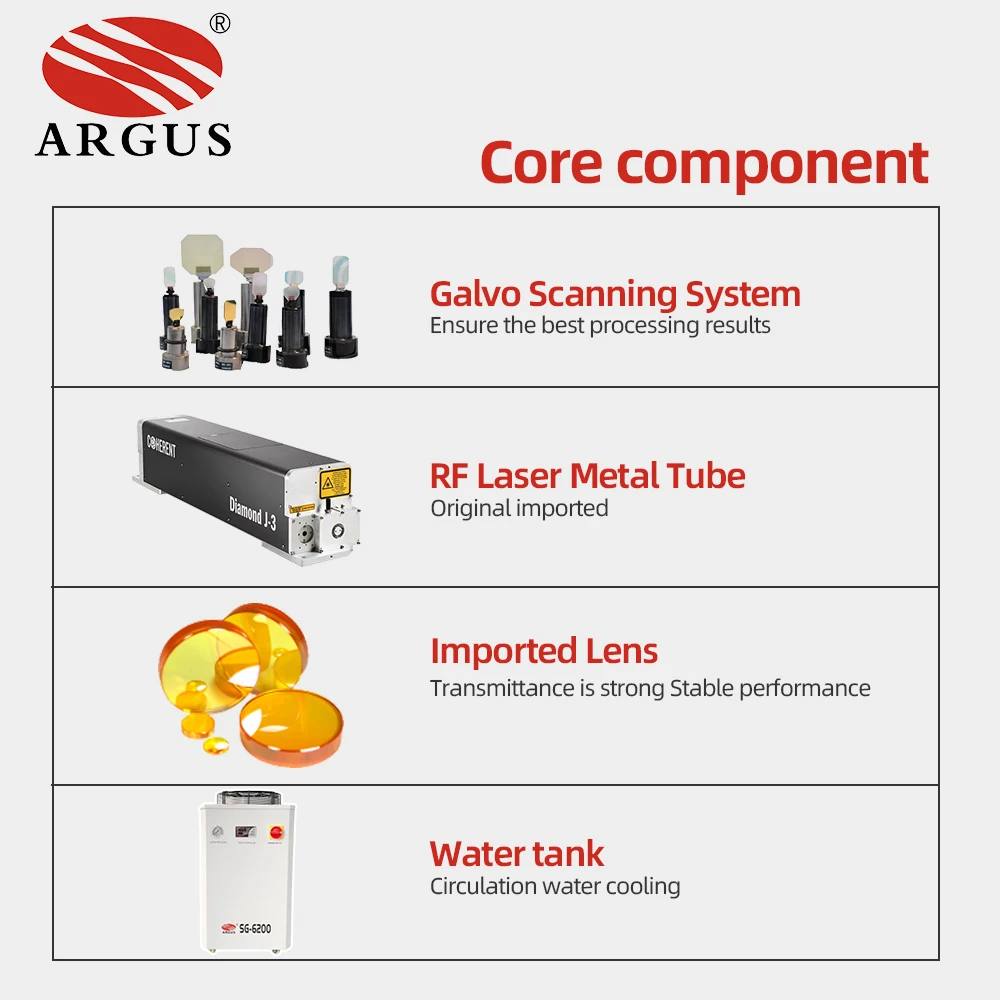

Laser Source | Coherent J2 R.F. metal laser source |
Output Power | 230~250W |
Laser Repetition Frequency | 1Khz~100Khz |
Galvo Head | High speed 3D galvo scanner |
Max Marking Area | 250mm*250mm ~600mm*600mm |
Marking Speed | ≤ 7000mm/s |
Repeat Accuracy | ±0.01 mm |
Fly Marking Speed | 50X50mm window 120 m/min( depending on material process) |
High Precision Positioning Sensor | 1RGB sensor (imported from Japan) response time 50 us digital encoder |
Cooling Mode | Circulating water cooling |
Working Power | AC220V/AC380V 50HZ/60HZ |
Average Power Consumption | 7KW |
Multi-head | Avaible according to the request |
Laser perforation advantage:
1) Using fast laser perforating, holes are protective due to the round shape burning melt, not easy break.
2) High-speed detection, uniform hole size, adjustable hole spacing, any direction.
3) Circulating water cooling of the galvanometer control board, continuous high-speed (50-280m/min) operation, low failure rate.
Laser Perforation | Mechanical gear punching | |
Perforation Direction | Any direction | One direction |
Error Accuracy in high speed | < 0.1-0.5mm | < 1-1.5mm |
Perforation speed | 50-280meters/min | 100-180meters/min |
Hole diameter | Same size, min 0.1-0.3mm | not uniform |
Holes distance | Always keep same distance(min 0.3mm) | not uniform |
All Holes quality | Very uniform | Easy change shape during highspeed working, not uniform |
Consumables part | No consumption parts | Change gears always |
Application | Cut holes, lines and so on . | Just can cut holes |
What kind of laser machine and model should I choose?
You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need.
What kind of materials does the laser machine can process?
We have different laser machines, such as Fiber laser, CO2 Laser, UV Las- er Green Laser. Normally Fiber laser can process metal and plastic. CO2 laser is for processing non metallic materials, such as Acrylic, PMMA,Wood, Glass, Leather, Jeans, Paper,Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass,crystal and some special processing job.
Is it easy to operate?
We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software. Or we can talk by phone email or other contact ways.
What s your guarantee. in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
