Контроллер заряда smpt 30A 50A 60A 80A 100A 120A Солнечный контроллер 12v/24v/48v PV напряжение макс 200V вход
- Категория: >>>
- Поставщик: Shenzhen Yonghui Fashion Co. Ltd.
Сохранить в закладки 1601270139397:
Описание и отзывы
Характеристики
Products Description
Description:
【Technical parameters】 Y&H 60A solar charge controller can automatically detect system voltage.12V battery:PV max 720W;24V battery:PV max 1440W;36V battery:PV max 2160W;48V battery:PV max 2880W;60V battery:PV max 3600W;72V battery:PV max 4320W;84V battery:PV max 5040W;96V battery:PV max 5760W;PV input voltage (VOC) up to 200V.
【Compatible with a variety of batteries】The solar controller is compatible with 12V/24V/36V 48V/60V/72V/84V/96V lithium-ion and lead-acid batteries, including GEL, LiFePO4, Li-ion;Wide coverage of battery voltage, whether it is as low as 12V or as high as 96V battery type, can be perfectly adapted. Extremely versatile, it can realize multi-purpose use and fully meet the requirements of different stages and various scenarios.
【Multi-protection charging protection with lithium battery activation function】Solar voltage regulator has overcharge protection, overcurrent protection, overheating protection, short circuit protection.Lithium battery activation can effectively activate lithium batteries that may be in a low-activity state and restore them to a good working condition, thus extending the service life of lithium batteries.
【Application Communication】 Equipped with RS485 communication interface, you can carry out multi-machine communication and realize seamless interaction between multiple devices. This interface allows you to easily access and monitor various controller operating parameters. Although the WIFI accessory needs to be purchased separately, it further enhances the convenience of checking and analyzing these parameters.
【Advantages】 Y&H MPPT controller is equipped with full power input function to provide stable and sufficient power for the equipment, which has obvious advantages in high-power and complex power demand scenarios. It is also upgraded to a dual cooling fan design, compared with similar products cooling more efficient, can prevent overheating caused by equipment failure or performance degradation, to ensure the stability and reliability of the equipment for a long time continuous work.
Descriptive:

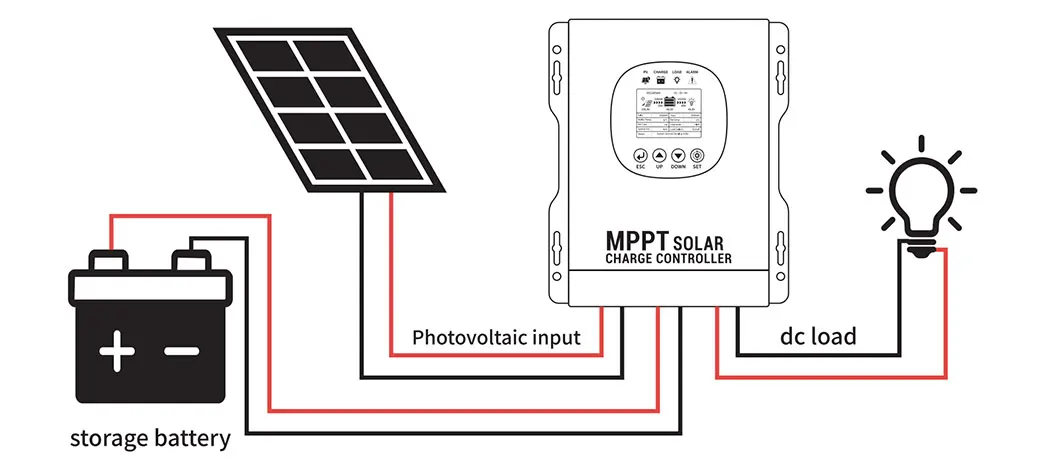

This controller is used in solar off-grid power gener-ation systems to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell compo-nents and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the bat-tery from over-discharging and causing damage. The battery charging process of the MPPT con-troller is optimized to extend battery life and improve system performance. Its comprehensive self-test func-tion and electronic protection function can avoid damage caused by installation errors and system fail-ures.
Features:
1.Multiple battery type settings: Lead Acid.Gel.LifePo4.L-ion.USER.
2. Battery voltage available:12V/24V/36V 48V/60V/72V/84V/96V
3.Charging current (A) is adjustable.
4.Automatic regulation of battery charging and discharging.
5. Maximum power point tracking technology, can significantly improve the energy utilization of solar energy system, conversion efficiency of up to 97%.
6.Battery Low Voltage Disconnect (LVD) function, which can prevent the battery from over-discharging and causing damage.
7. The MPPT controller has a lithium battery activation function, which can extend the battery life and improve the system
performance.
8. Its comprehensive self-test function and protection function can avoid damage caused by installation error and system failure.
9. Wide range of high voltage: the same type of 60A controller can withstand up to 150V, while the 12V battery can withstand up to 45V, Y&H controller 12V battery system can withstand up to 200V, the advantage is obvious.
10. Controller can be full power input, compared with similar products in high-power scenarios such as better, to meet the high demand for power supply. Its dual-fan design effectively dissipates heat and stabilizes work.
11.PV minimum input is calculated as about 1.5-2 times the battery voltage. (Example: 12V battery, minimum input voltage is 18V-24V (voc) )
【Compatible with a variety of batteries】The solar controller is compatible with 12V/24V/36V 48V/60V/72V/84V/96V lithium-ion and lead-acid batteries, including GEL, LiFePO4, Li-ion;Wide coverage of battery voltage, whether it is as low as 12V or as high as 96V battery type, can be perfectly adapted. Extremely versatile, it can realize multi-purpose use and fully meet the requirements of different stages and various scenarios.
【Multi-protection charging protection with lithium battery activation function】Solar voltage regulator has overcharge protection, overcurrent protection, overheating protection, short circuit protection.Lithium battery activation can effectively activate lithium batteries that may be in a low-activity state and restore them to a good working condition, thus extending the service life of lithium batteries.
【Application Communication】 Equipped with RS485 communication interface, you can carry out multi-machine communication and realize seamless interaction between multiple devices. This interface allows you to easily access and monitor various controller operating parameters. Although the WIFI accessory needs to be purchased separately, it further enhances the convenience of checking and analyzing these parameters.
【Advantages】 Y&H MPPT controller is equipped with full power input function to provide stable and sufficient power for the equipment, which has obvious advantages in high-power and complex power demand scenarios. It is also upgraded to a dual cooling fan design, compared with similar products cooling more efficient, can prevent overheating caused by equipment failure or performance degradation, to ensure the stability and reliability of the equipment for a long time continuous work.
Descriptive:
This controller is used in solar off-grid power gener-ation systems to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell compo-nents and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the bat-tery from over-discharging and causing damage. The battery charging process of the MPPT con-troller is optimized to extend battery life and improve system performance. Its comprehensive self-test func-tion and electronic protection function can avoid damage caused by installation errors and system fail-ures.
Features:
1.Multiple battery type settings: Lead Acid.Gel.LifePo4.L-ion.USER.
2. Battery voltage available:12V/24V/36V 48V/60V/72V/84V/96V
3.Charging current (A) is adjustable.
4.Automatic regulation of battery charging and discharging.
5. Maximum power point tracking technology, can significantly improve the energy utilization of solar energy system, conversion efficiency of up to 97%.
6.Battery Low Voltage Disconnect (LVD) function, which can prevent the battery from over-discharging and causing damage.
7. The MPPT controller has a lithium battery activation function, which can extend the battery life and improve the system
performance.
8. Its comprehensive self-test function and protection function can avoid damage caused by installation error and system failure.
9. Wide range of high voltage: the same type of 60A controller can withstand up to 150V, while the 12V battery can withstand up to 45V, Y&H controller 12V battery system can withstand up to 200V, the advantage is obvious.
10. Controller can be full power input, compared with similar products in high-power scenarios such as better, to meet the high demand for power supply. Its dual-fan design effectively dissipates heat and stabilizes work.
11.PV minimum input is calculated as about 1.5-2 times the battery voltage. (Example: 12V battery, minimum input voltage is 18V-24V (voc) )
Echnical Data | ||||||
Model | 60A | 80A | ||||
Charging Mode | MPPT automatic maximum power tracking | |||||
Charging Method | MPPT tracks maximum power,fast charge balanced charge,and float charge. | |||||
Battery Type | Lead Acid | (12V/24V/36V/48V/96V Auto + 12V/24V/36V/48V/60V/72V/84V/96V Adjustable) | ||||
Gel | 12V/24V/36V/48V/60V/72V/84V/96V | |||||
LifePo 4 | Single voltage 3.2*number of strings (2 strings -45 strings adjustable) | |||||
Li-ion | Single voltage 3.7*number of strings (2 strings -45 strings adjustable) | |||||
USER | Adjustable limit voltage for equal charge, float charge and DC discharge:8V-170V | |||||
With lithium battery activation function | With photovoltaic input,there is charging voltage (activate lithium battery),can be used without battery DC output | |||||
PV maximum open circuit input voltage | 0--200V | |||||
The charging current is adjustable | 0-60A | 0-80A | ||||
Start charging | PV voltage is greater than +3V of battery voltage (low current charging on rainy days) | |||||
Direct charging current out put function | DC continuous output 60A | |||||
Temperature compensation | According to the temperature of the battery,the charging voltage and current are automatically compensated to prolong the battery life | |||||

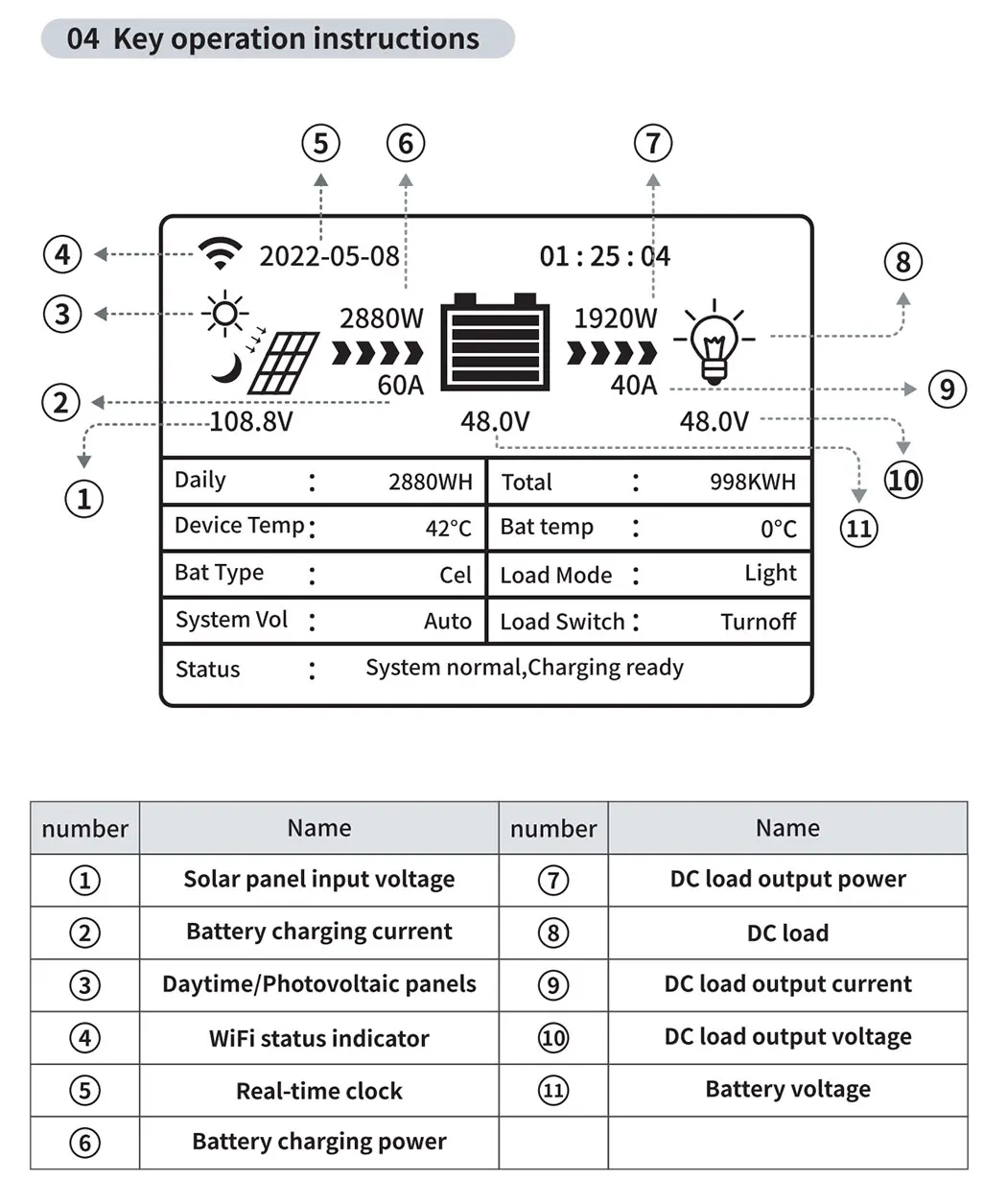

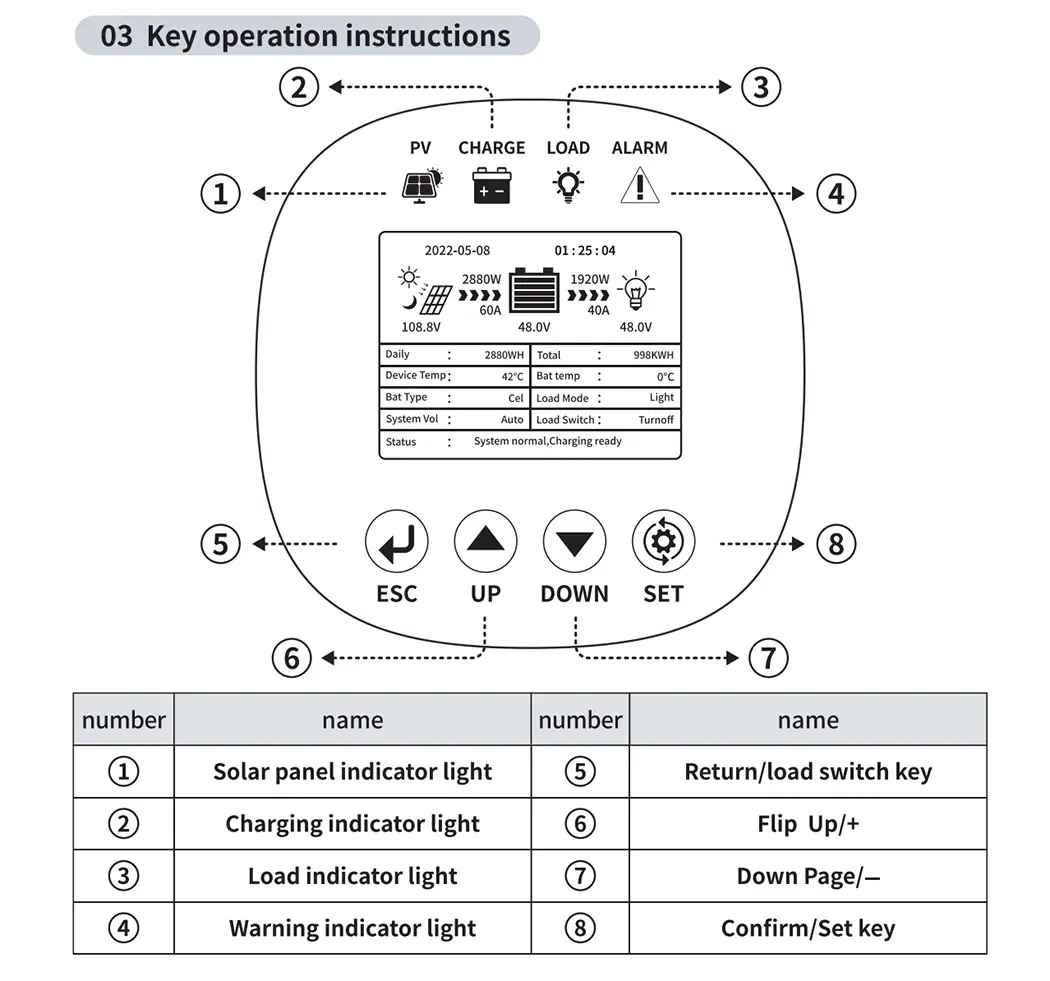

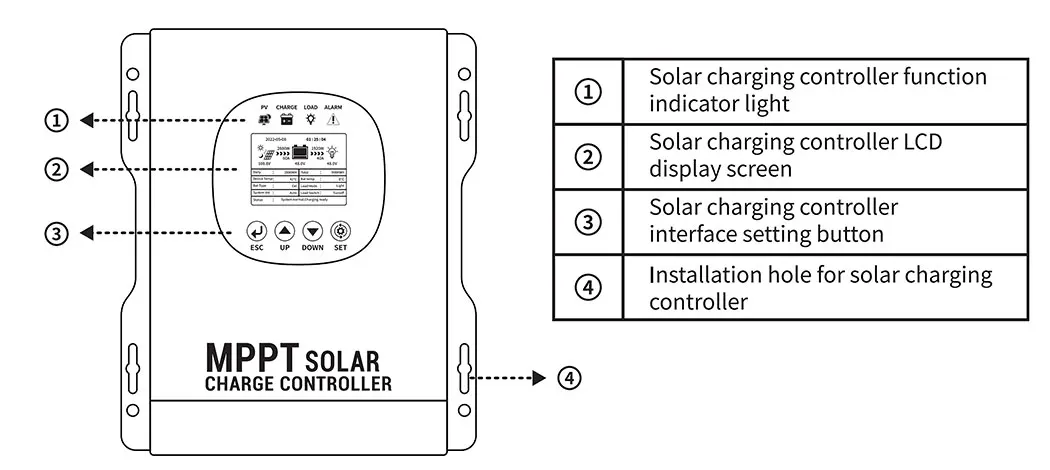

Display communi- cation | LCD display with touch button:(generating capacity /photovoltaic voltage /battery voltage /charging current/power/operation status) Chinese and English display Settings:(battery type,charging current,return to factory) | |||||
8-pin RS485 communication interface (operation status and setting can be queried) | ||||||
Working environment temperature | -20℃~40℃ | |||||
Protection level | IP 21 | |||||
Altitude | 0～3000m | |||||
Product size | 320x210x11mm | |||||

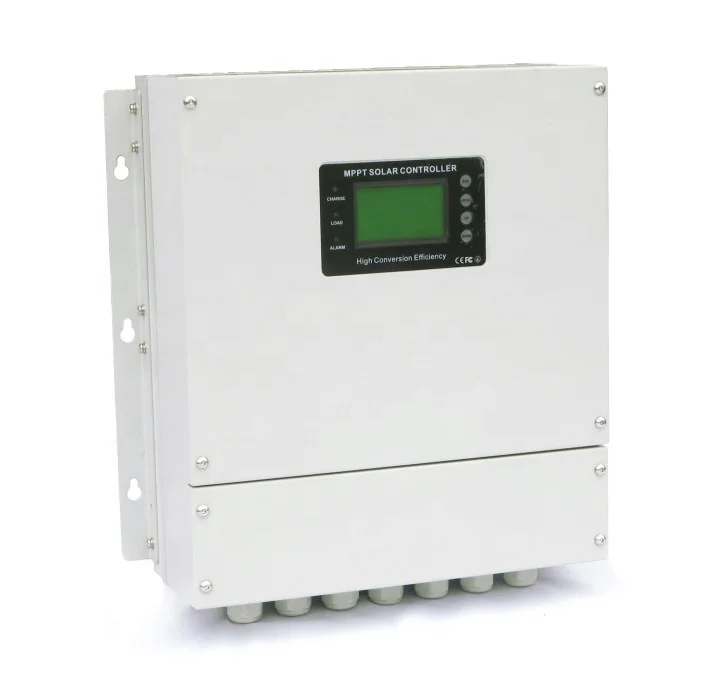

Product Show
Company Profile
"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
Product packaging and shipping
Certifications
FAQ
FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
