Products Description

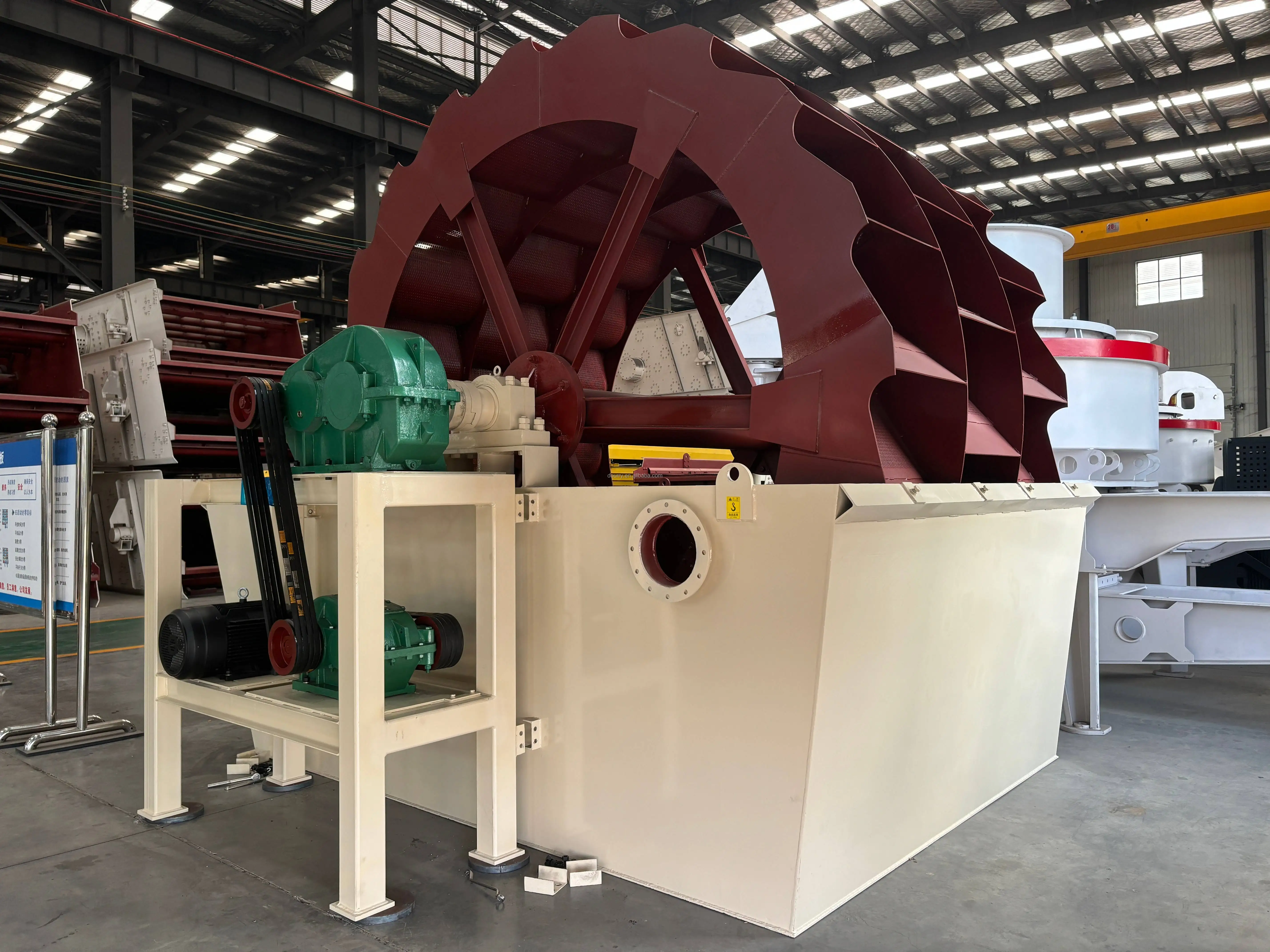

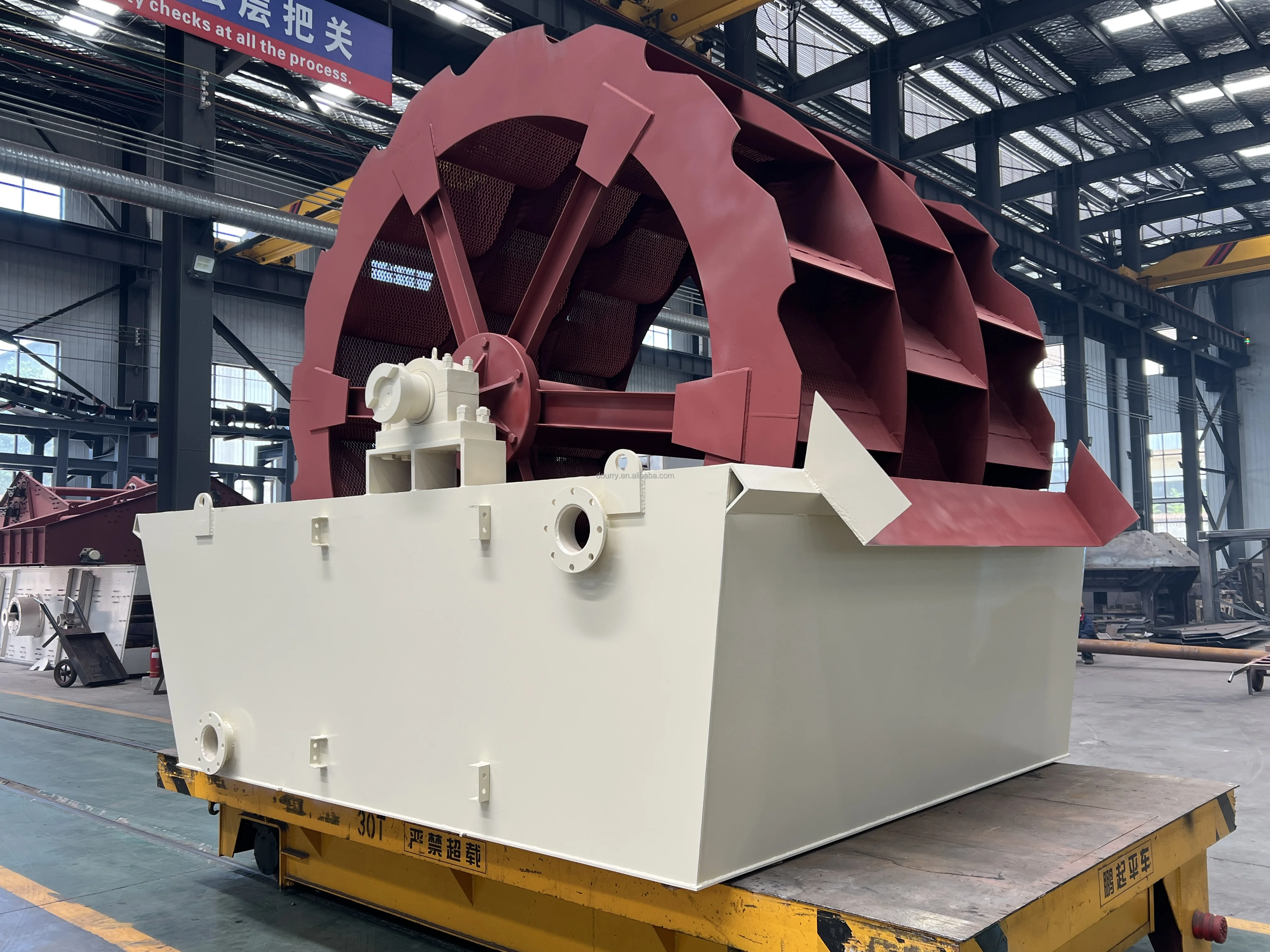

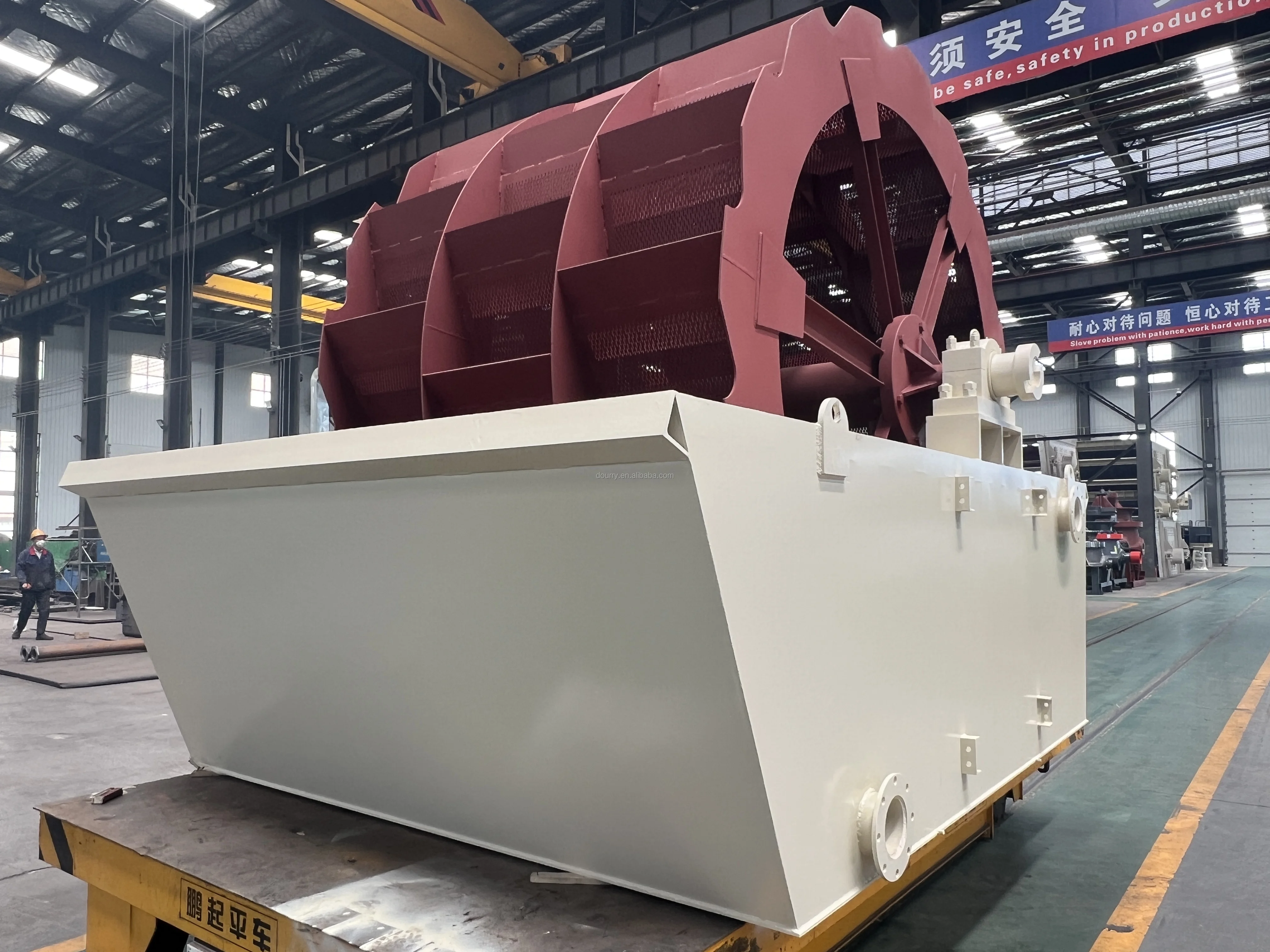

What is a wheel sand washer?
Wheel sand washer is a mechanical device specially used for cleaning sand and gravel. It mainly removes dirt, dust, and other impurities in sand and gravel through the combined action of mechanical force (such as impeller rotation) and water flow, thereby improving the cleanliness and quality of sand and gravel..
Advantages of wheel sand washer
High cleaning degree, large processing capacity, low power consumption, low failure rate, etc. It is widely used in construction, roads, railways, water conservancy, concrete mixing stations, and other industries, providing these industries with high-quality sand and gravel raw materials.
High cleaning degree, large processing capacity, low power consumption, low failure rate, etc. It is widely used in construction, roads, railways, water conservancy, concrete mixing stations, and other industries, providing these industries with high-quality sand and gravel raw materials.
Environmental protection of wheel sand washer
The wheel sand washer also has certain environmental protection performance. During the cleaning process, it can effectively reduce the emission of dust and wastewater and reduce pollution to the environment. At the same time, through reasonable equipment design and operation management, it can also realize the recycling of water resources and improve resource utilization efficiency.
Maintenance of wheel sand washer
In order to keep the wheel bucket sand washer in good operating condition, regular maintenance and maintenance are required. It mainly includes checking the wear of the bearings, cleaning the debris inside the equipment, and replacing severely worn parts. At the same time, attention should also be paid to the lubrication and sealing of the equipment to ensure efficient and stable operation of the equipment.
What Is The Working Principle Of The Wheel Sand Washing Machine?
When the wheel-type sand washing machine is working, the motor drives the impeller to rotate slowly after being decelerated by the V-belt, the reducer, and the gear. At the same time, add water to form a strong water flow, take away impurities and foreign matter with a small specific gravity in time, and discharge them from the washing tank at the overflow port to complete the cleaning function. The clean gravel is taken away by the blades and poured into the discharge chute from the rotating impeller to complete the cleaning of the gravel.
Product Paramenters
Model | Size of impeller(mm) | Speed(r/min) | Capacity(t/h) | Sand return amount(t/h) | Power(kW) |
XS2610 | 2600 | 2.5 | 20-70 | 5-20 | 5.5 |
2XS2612 | 2600 | 2.5 | 30-90 | 8-30 | 7.5 |
2XS2812 | 2800 | 1.2 | 60-150 | 20-50 | 7.5 |
2XS2816 | 2800 | 1.2 | 160-250 | 50-120 | 11 |
2XS3016 | 3000 | 1.2 | 200-280 | 80-130 | 11 |
2XS3216 | 3200 | 1.2 | 240-300 | 100-150 | 11 |
2XS3620 | 3600 | 1 | 280-400 | 140-200 | 15 |

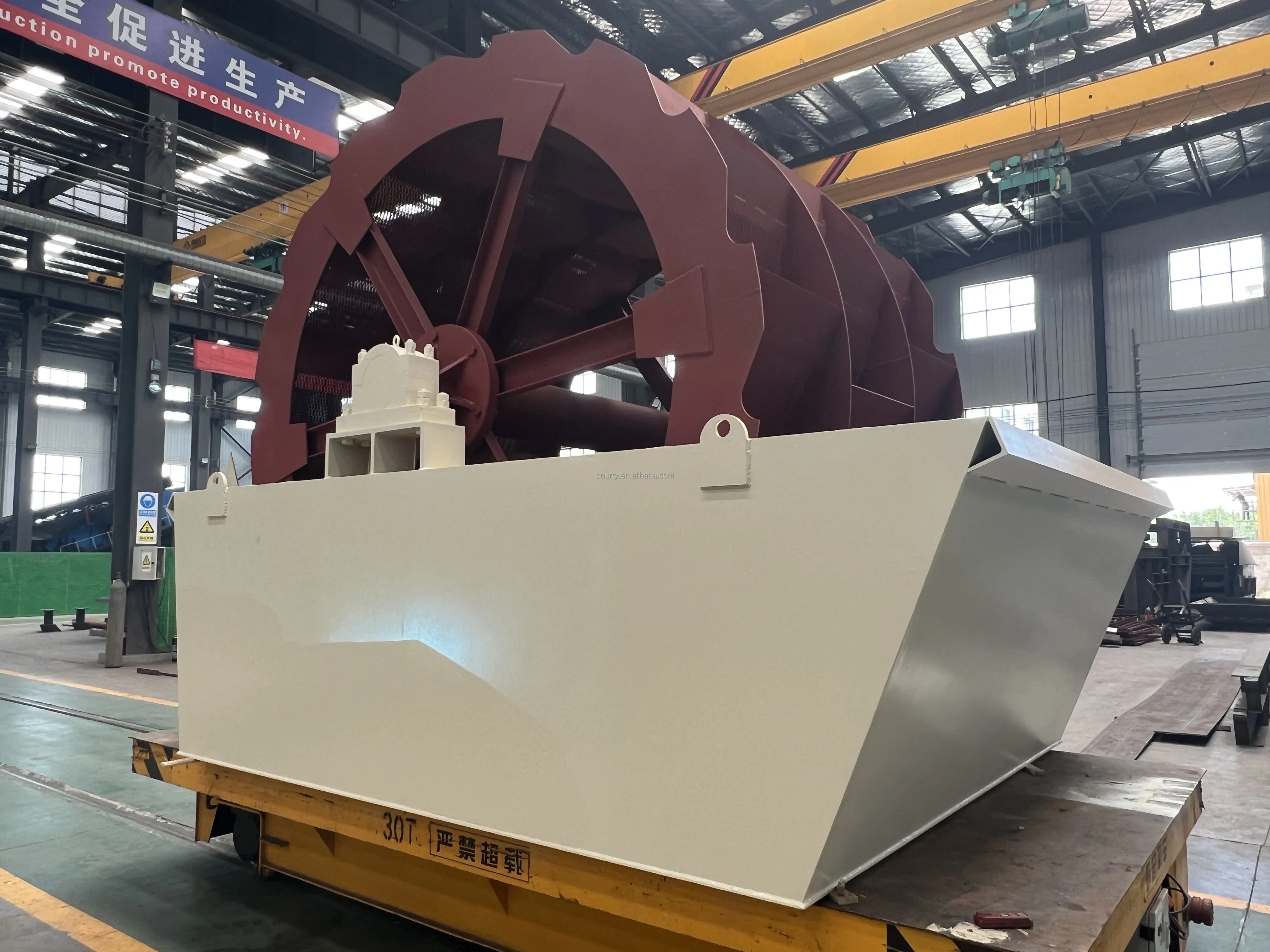

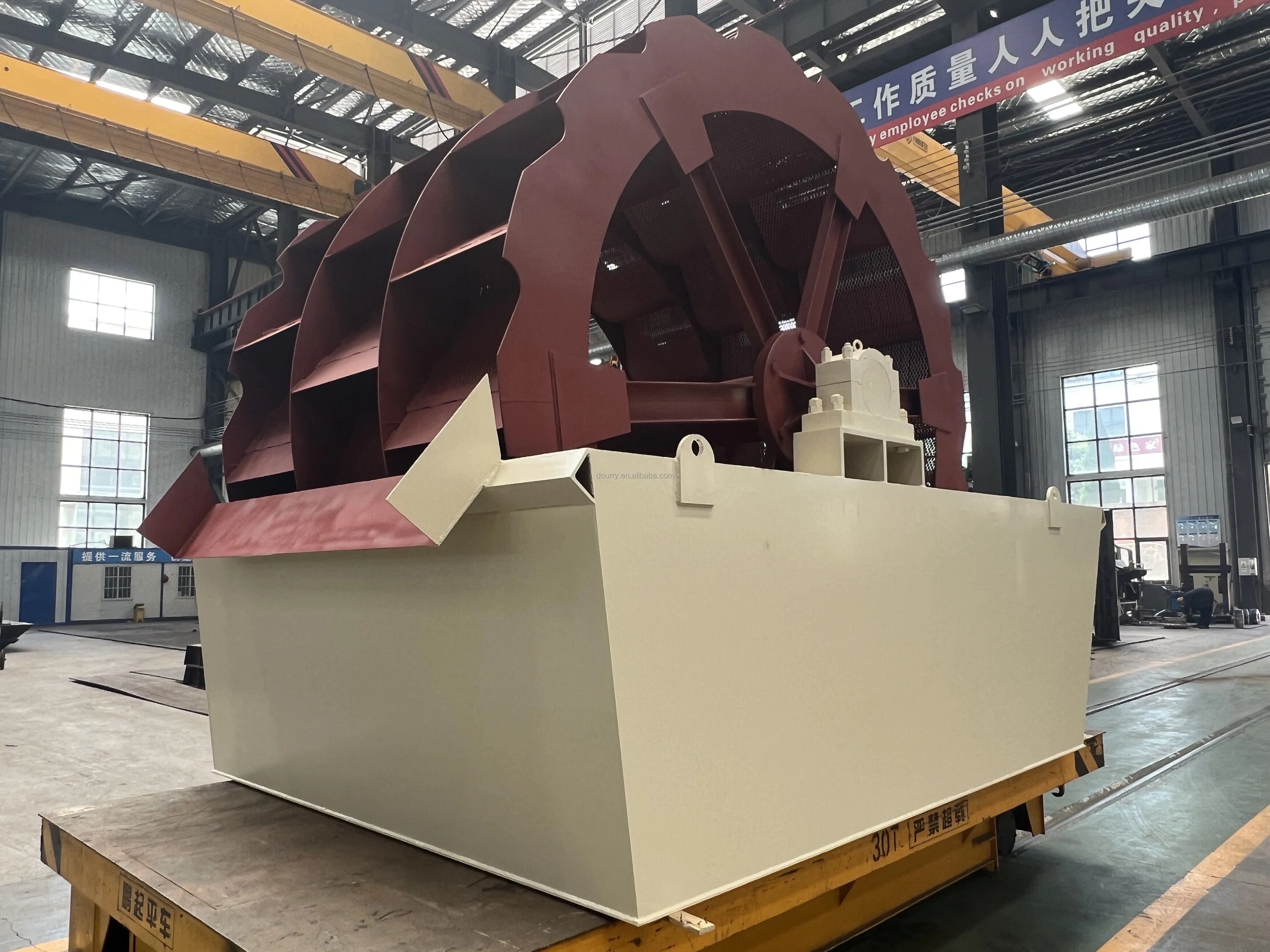

Details Images

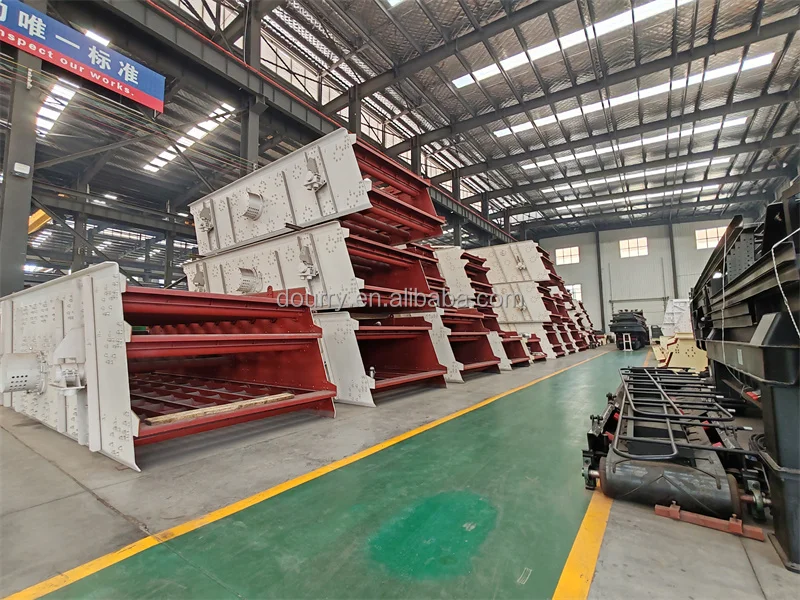

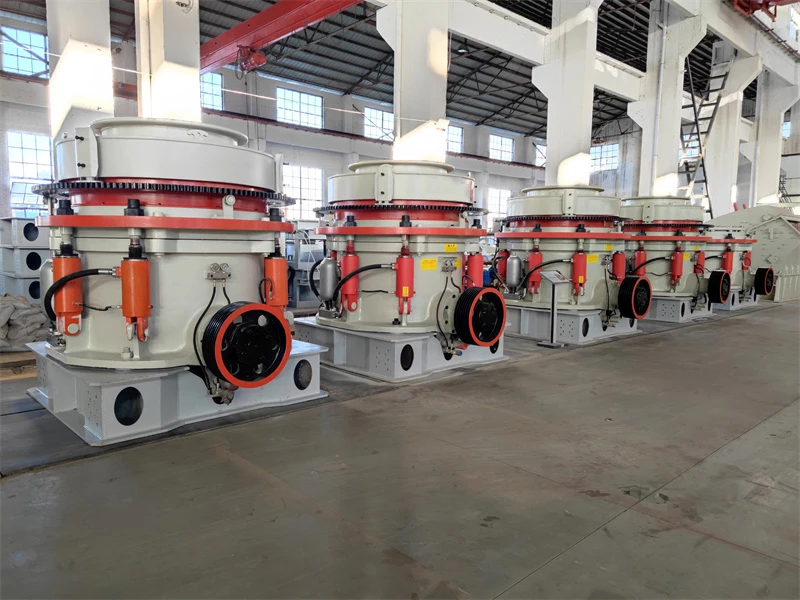

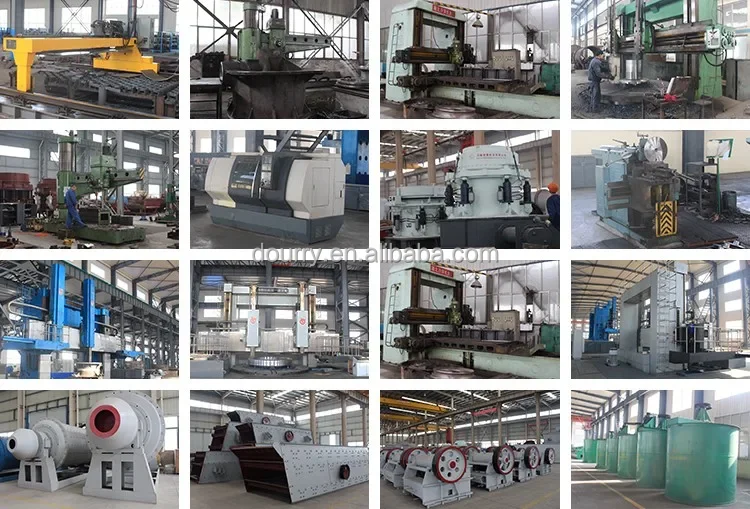

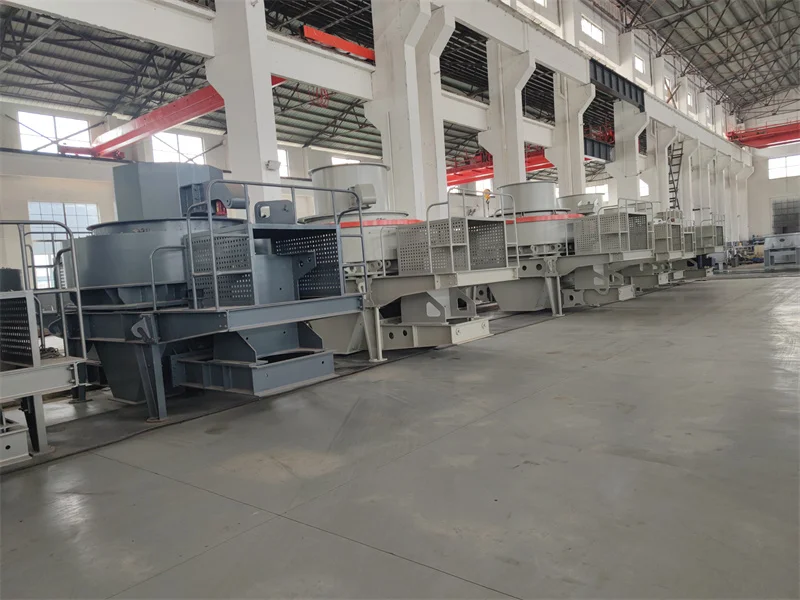

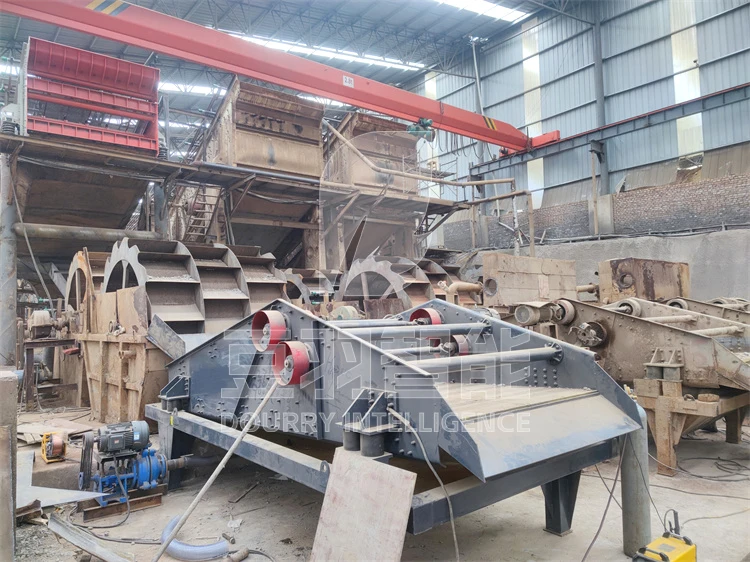

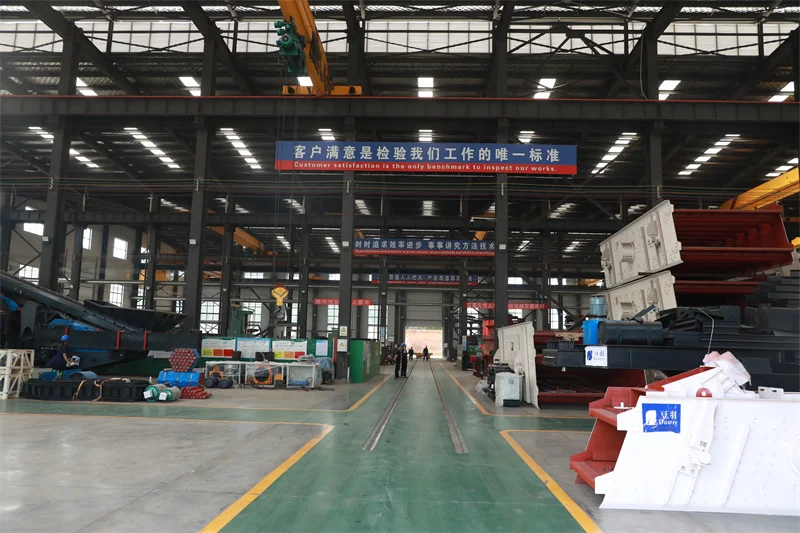

Produce Flow
Each sand making machine is made by ourself, when you have time, you can also come for visit for us.
All made by ourself which ensure the whole quality and have more price control.
In your side, if you have any special demands, you can also share with us freely.

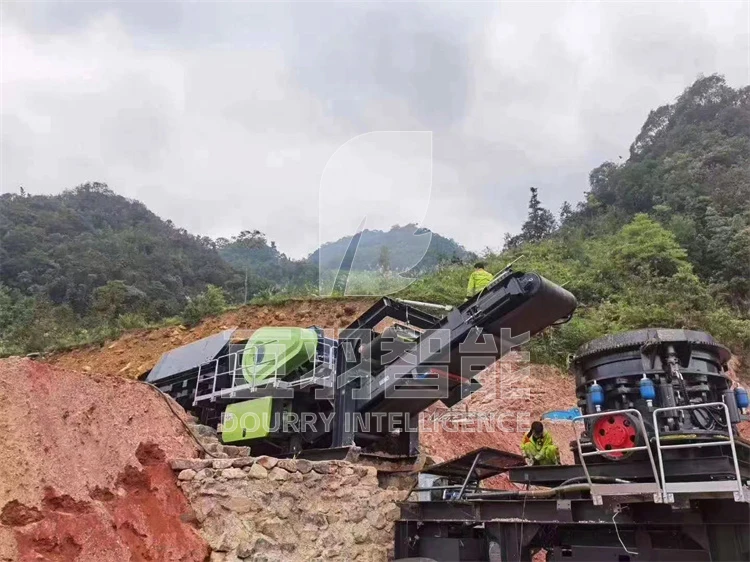

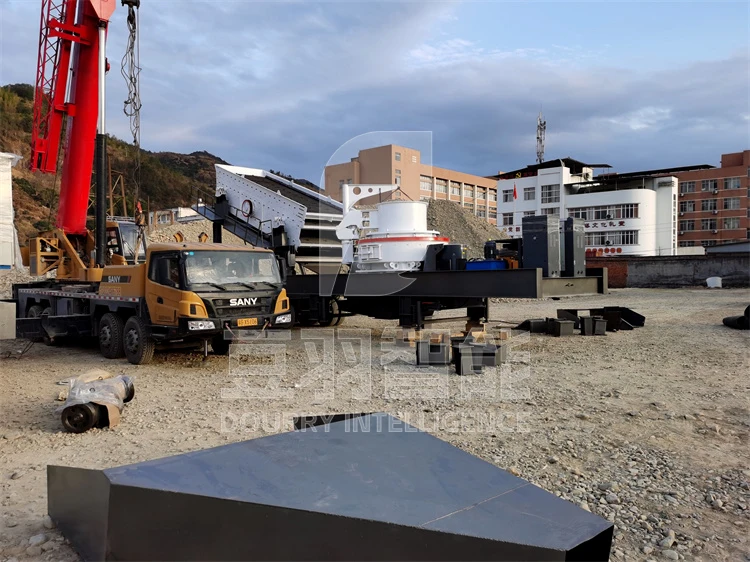

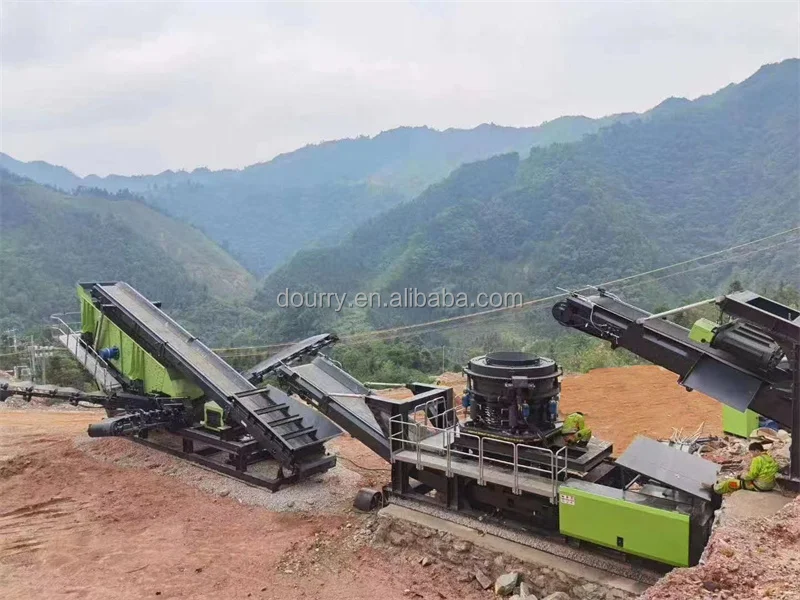

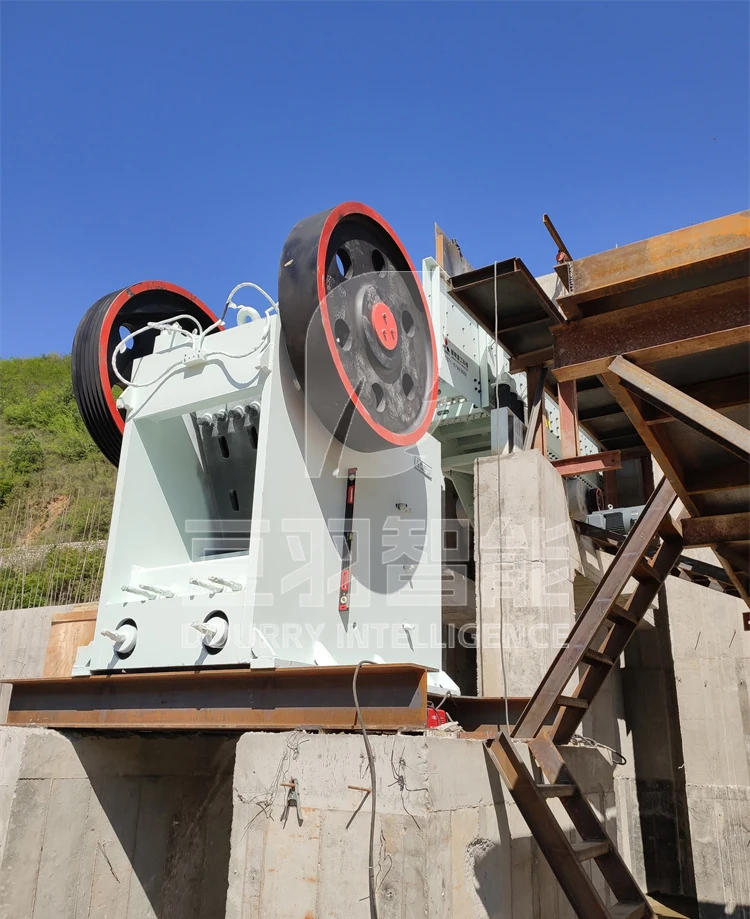

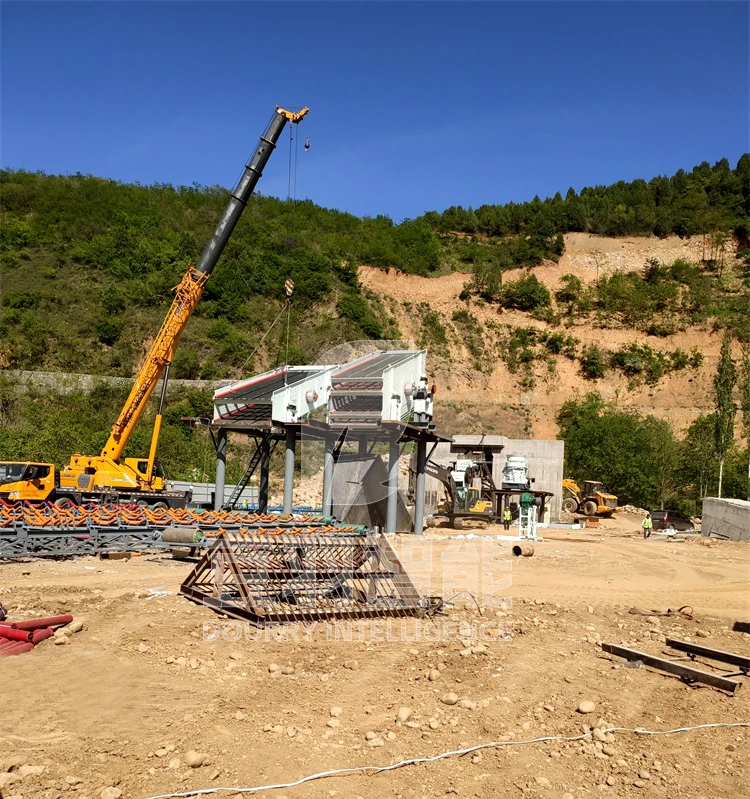

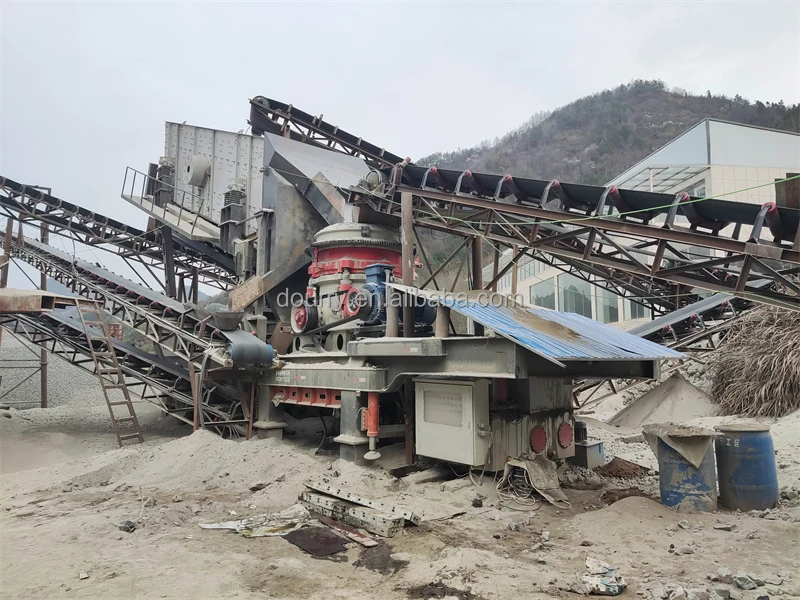

Customer Photos

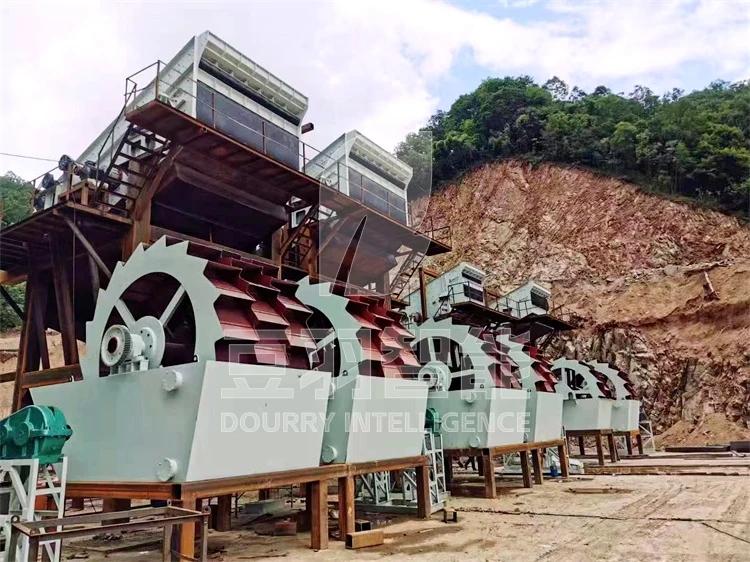

Bucket wheel sand washing machine application scenarios
Gravel material washing: Bucket wheel sand washing machine plays an important role in the gravel field. It is used to clean and separate the mined gravel, remove impurities such as soil and stone powder on the surface, and improve the quality of gravel.
Improve the value of gravel: Through cleaning, gravel can be made cleaner, meeting the demand for high-quality gravel in industries such as construction and road paving, thereby improving the market value of gravel.
Gravel material washing: Bucket wheel sand washing machine plays an important role in the gravel field. It is used to clean and separate the mined gravel, remove impurities such as soil and stone powder on the surface, and improve the quality of gravel.
Improve the value of gravel: Through cleaning, gravel can be made cleaner, meeting the demand for high-quality gravel in industries such as construction and road paving, thereby improving the market value of gravel.
What is the processing capacity of a Wheel sand washer?
The production capacity of a wheel sand washer is roughly between 20-250 tons/hour. Of course, the actual processing capacity is also affected by the following factors:
1. Equipment model and specifications: Different models of bucket wheel sand washers have different power, speed, impeller diameter, tank size, etc., which directly affect the processing capacity of the equipment. Generally speaking, large wheel sand washers have relatively large processing capacity.
2. Raw material characteristics: The particle size, humidity, mud content, and other characteristics of the raw materials will also affect the processing capacity of the wheel sand washer. For example, raw materials with small particle sizes, high humidity, and high mud content may reduce the processing efficiency of the equipment.
3. Working time: Under the same conditions, the longer the working time, the greater the processing capacity of the wheel sand washer. However, it should be noted that long-term continuous work will cause certain wear and tear on the equipment, so it is necessary to arrange the working time and equipment maintenance plan reasonably.
The production capacity of a wheel sand washer is roughly between 20-250 tons/hour. Of course, the actual processing capacity is also affected by the following factors:
1. Equipment model and specifications: Different models of bucket wheel sand washers have different power, speed, impeller diameter, tank size, etc., which directly affect the processing capacity of the equipment. Generally speaking, large wheel sand washers have relatively large processing capacity.
2. Raw material characteristics: The particle size, humidity, mud content, and other characteristics of the raw materials will also affect the processing capacity of the wheel sand washer. For example, raw materials with small particle sizes, high humidity, and high mud content may reduce the processing efficiency of the equipment.
3. Working time: Under the same conditions, the longer the working time, the greater the processing capacity of the wheel sand washer. However, it should be noted that long-term continuous work will cause certain wear and tear on the equipment, so it is necessary to arrange the working time and equipment maintenance plan reasonably.
Recommend Products
Customer Photos
All over of the world customer has coming to our factory have one whole visit, and make order from our side.
In your side, if you need stone cone crusher machine, freely contact us.
Welcome to our factory to visit!!!
Company Profile
HENAN DOURRY INTELLIGENCE EQUIPMENT CO., LTD.
Henan Dourry Intelligence Equipment Co., Ltd.the overall solution provider for new environmental protection equipment and complete intelligent mine crushing equipment production line, engaged in research and development for the machine, pre- sales service, after-sales service and import and export of crushing, sand making, shaping and screening series equipment.
Henan Dourry established in 2001, with 20 years’ experience in the mining crushing industry, we now have quality and mature production and processing technology, experienced technical research and development personnel, scientific and rigorous quality inspection, strict management system, and a serious and responsible after-sales service team. Gaining praise and trust from more and more customers. Over the years, the products have been exported to more than ten countries and regions such as the United States, Russia, South Korea, North Korea, the Philippines, Vietnam, Mexico, Guatemala, Bolivia, Libya, Ghana, Ethiopia, and Nigeria.
FAQ
Q1: Are you mining machinery manufacturer?
A: Yes, our company warmly welcome clients to visit our plant at any time. We can also provide samples test, mine design,
equipment manufacture, after-sale service, etc.
Q2: Which country have your products been exported?
A: We have been exported business for 10 years and we have lots of customers and agents in the world. such as MiddleEast. Malaysia. South Africa. Canada. America etc.
Q3: How to get the free solution and quotation ?
A: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours
Q4: How long about the delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q5: What payment terms do you provide?
A: Accepted Payment Type: T/T L/C, Western Union. Cash after sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery
Q6: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.
Q7: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need.We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.
Q7: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need.We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
