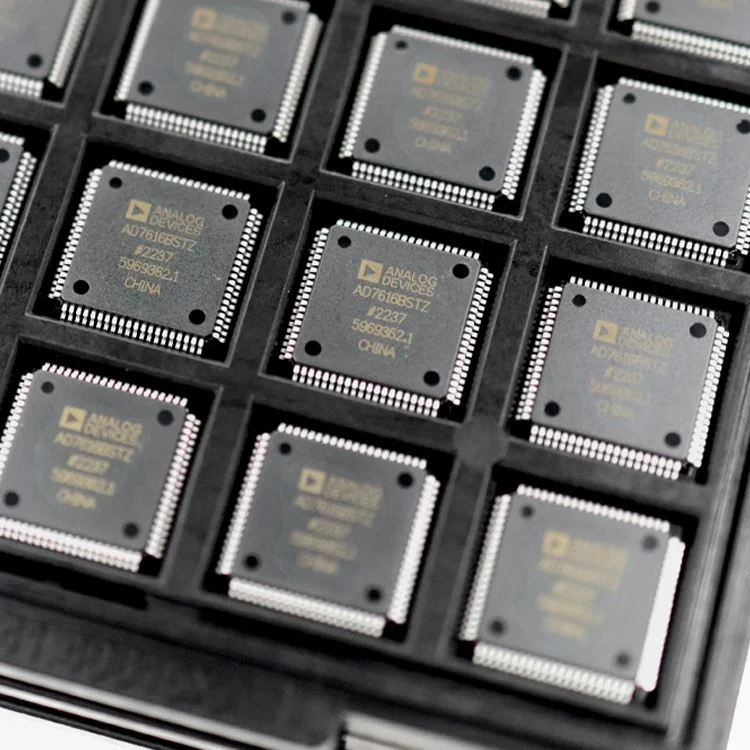

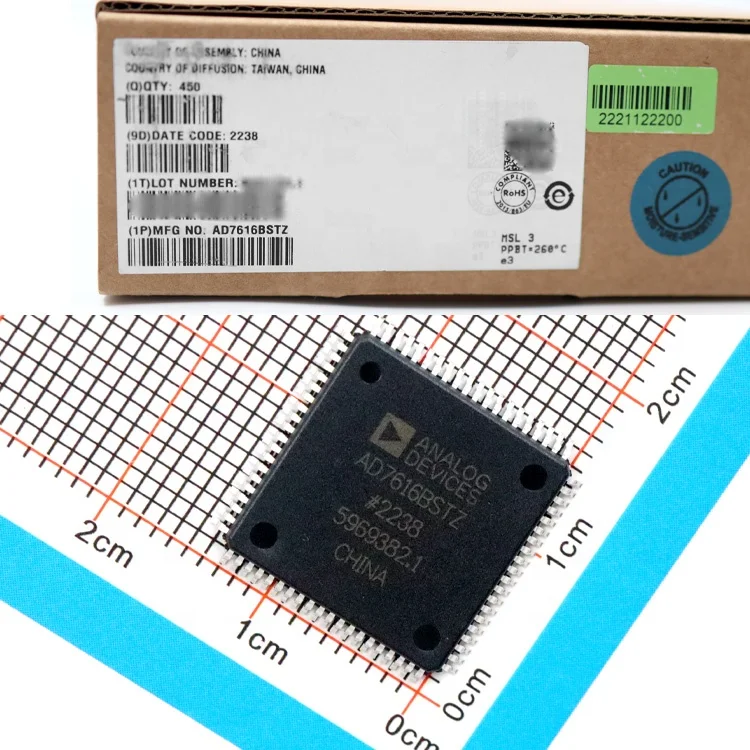

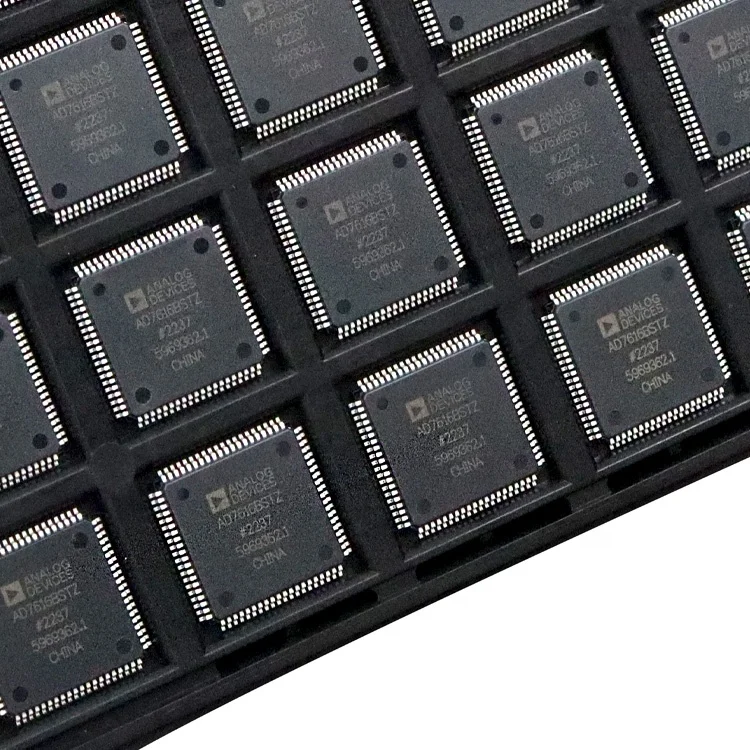

Аналоговые устройства интегральные схемы AD7616BSTZ 16 бит DAS с аналогово цифровым преобразователем IC вход 2 SAR 80 LQFP (14x14)
- Категория: >>>
- Поставщик: Nanjing HSER Electronic Technology Co. Ltd
Сохранить в закладки 1601270187380:
Описание и отзывы
Характеристики
Tips
Dear Customer!
1. Because of the frequent fluctuation of original factory prices and the exchange rate, prices on this page may differ from those shown on the website. Please consult sales for final transaction price before payment.
Best regards
Nanjing HSER Electronic Technology Co., LTD
Product Description
16-Channel DAS with 16-Bit, Bipolar Input, Dual Simultaneous Sampling ADC AD7616
The AD7616 is a 16-bit, DAS that supports dual simultaneous sampling of 16 channels.
Features
► 16-channel, dual, simultaneously sampled inputs
► 16-channel, dual, simultaneously sampled inputs
► Independently selectable channel input ranges
True bipolar: ±10 V, ±5 V, ±2.5 V
► Single 5 V analog supply and 2.3 V to 3.6 V VDRIVE supply
► Single 5 V analog supply and 2.3 V to 3.6 V VDRIVE supply
► Fully integrated data acquisition solution
Analog input clamp protection
Input buffer with 1 MΩ analog input impedance
Input buffer with 1 MΩ analog input impedance
First-order antialiasing analog filter
On-chip accurate reference and reference buffer
Dual 16-bit successive approximation register (SAR) ADC
Throughput rate: 2 × 1 MSPS
Oversampling capability with digital filter
Flexible sequencer with burst mode
► Flexible parallel/serial interface
SPI/QSPI/MICROWIRE/DSP compatible
Optional cyclic redundancy check (CRC) error checking
► Hardware/software configuration
► Performance
92 dB SNR at 500 kSPS (2× oversampling)
90.5 dB SNR at 1 MSPS
−103 dB THD
±1 LSB INL (typical), ±0.99 LSB DNL (maximum)
8 kV ESD rating on analog input channels
► On-chip self detect function

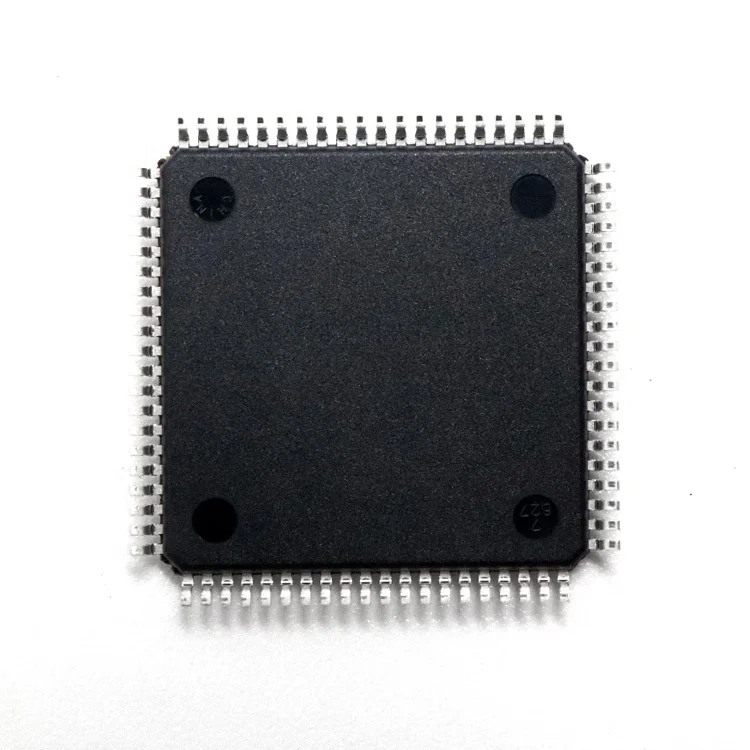

► 80-lead LQFP package
Applications
► Power line monitoring
► Protective relays
► Multiphase motor control
► Instrumentation and control systems
► Data acquisition systems (DASs)
For more specifications, please take datasheet for reference.
Specification
Manufacturer Product Number (Mfr) | AD7616BSTZ | |
Category | Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC) | |
Manufacturer | Analog Devices Inc. | |
Series | AD7616BSTZ | |
Packaging | Tray | |
Part Status | Active | |
Part Status | Active | |
Number of Bits | 16 | |
Sampling Rate (Per Second) | 1M | |
Number of Inputs | 16 | |
Input Type | Single Ended | |
Data Interface | DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™ | |
Configuration | MUX-ADC | |
Ratio - S/H:ADC | - | |
Number of A/D Converters | 2 | |
Architecture | SAR | |
Reference Type | External, Internal | |
Voltage - Supply, Analog | 4.75V ~ 5.25V | |
Voltage - Supply, Digital | 2.3V ~ 3.6V | |
Features | Simultaneous Sampling | |
Operating Temperature | -40°C ~ 125°C | |
Supplier Device Package | 80-LQFP (14x14) | |
Mounting Type | Surface Mount | |
Base Product Number | AD7616 | |
Please contact our sales for more information, such as Date Code, MPQ, Samples, Datasheet,etc. | ||
