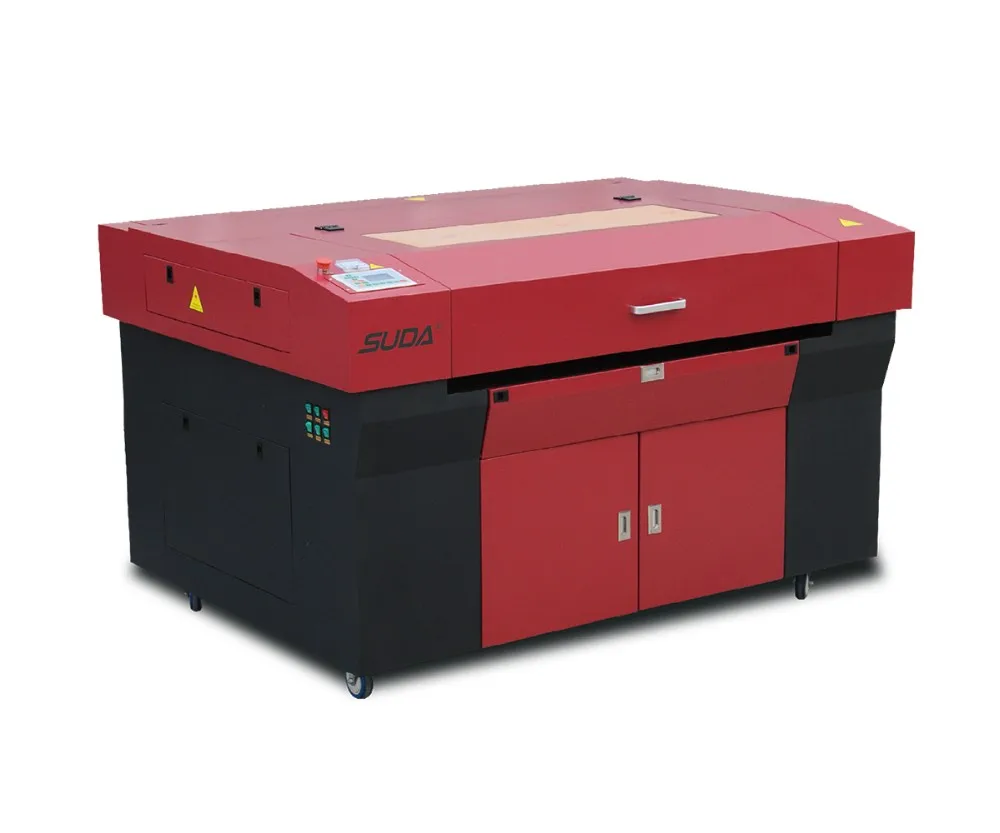

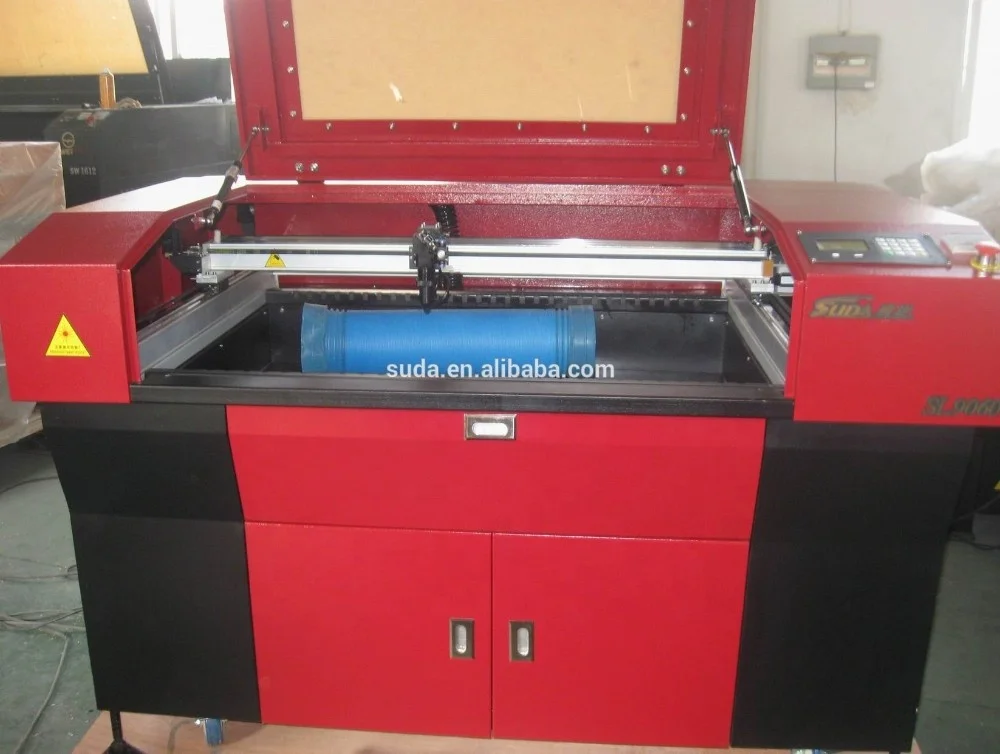

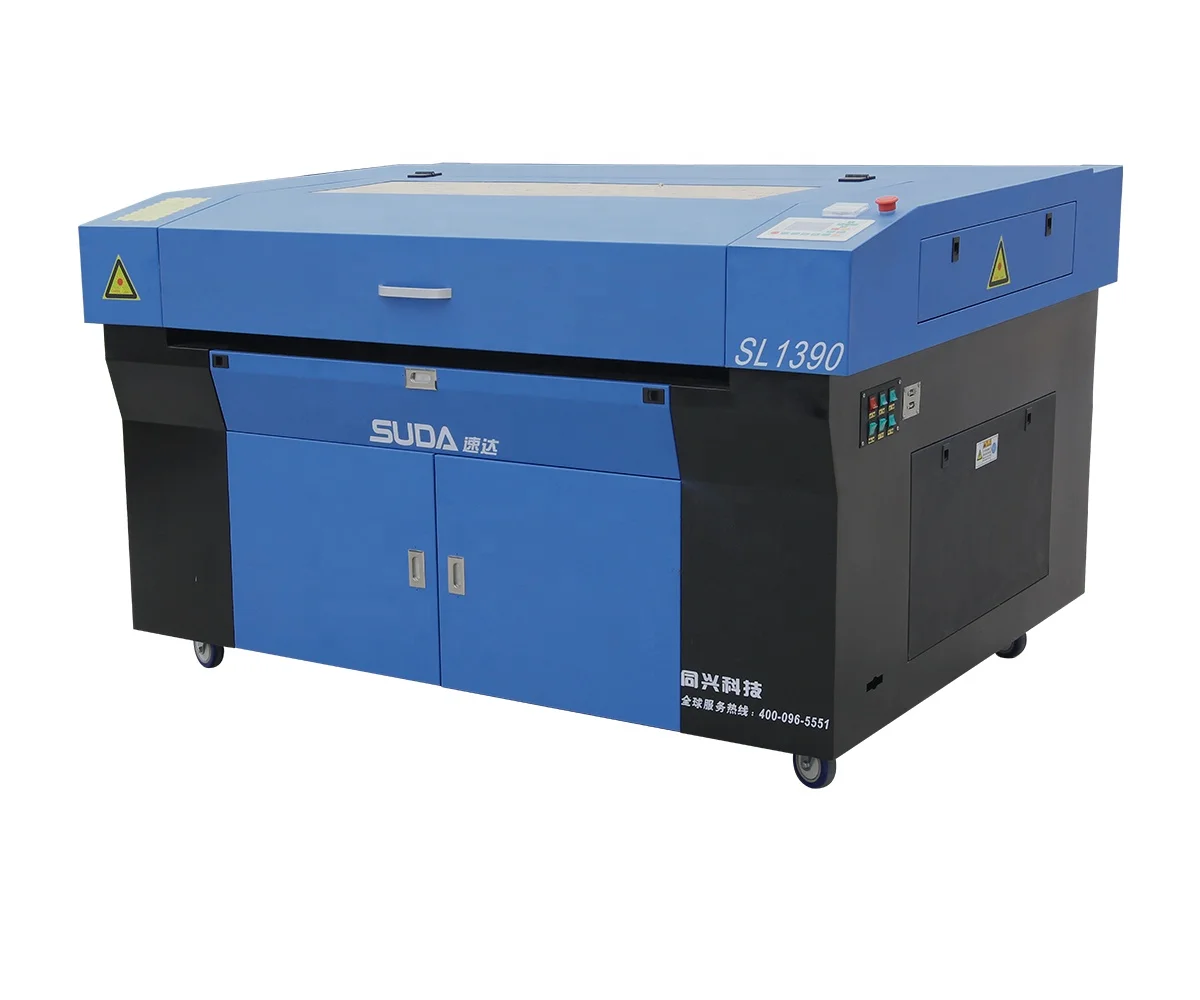

SUDA SL1390 высокое качество 1390 CO2 лазерная гравировальная машина для резки RECI CDWG трубка

Сохранить в закладки 1601270195314:


Цена:321 858,48 ₽ - 337 951,40 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product description

Product Application
SL1390 series has strong function with good performance, easy to use, solid and durable. It is applied extensively in advertising, acrylic, brass, wood, plastic, aluminium, engraving board, fomex,engineering plastics, marble, acrylic, perspex, PVC, composite panel, copper, alloys, MDF, etc.

1. Applied to materials

Acrylic, PVC board, Woody products, Bamboo ware, Crystal, Rubber, Plastic products, Double plate, PCB board, Paper&Leather, Tiles, etc.

2. Applied to industries
Applied to Advertising, Decoration&Furnishings, Costume, Fur&Leather Industry, Model Industry (construction model, navigation models), and Electronic&electrical Apparatus industries etc.

3.Typical Application
Signs plates, Acrylic products, Stamps, Costume design draft, Printing. Construction models making etc.

Technical data
\t
Laser power
\t
80W Standard, 100-120w optional
\t
Laser type
\t
SL1390
\t
Power supply
\t
AC220V±10%,50HZ
\t
Working area
\t
1300*900mm
\t
Max cutting speed
\t
200mm/sec
\t
Max engraving speed
\t
2000mm/sec
\t
Worktable
\t
Lifting platform (optional )
\t
Motor
\t
CHUANGWEI stepper
\t
Locating precision
\t
0.1mm
\t
Min shaping character
\t
Engraving 0.8mm, cutting 2mm
\t
Operating temperature
\t
0°c-45°c
\t
Work degree of humidity
\t
5-95%(have no Ning water)
\t
Resolution ratio
\t
<0.025mm
\t
Control configuration
\t
RD CONTROL SYSTEM
\t
Data transfer interface
\t
USB flash disk / directly from computer
\t
System environment
\t
Above Window 2000, window XP
\t
Cooling way
\t
Water cooling ,we present the chilling machine for each laser machine
\t
Graphic format supported
\t
BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF, etc.
\t
Compatible software
\t
Transmit files directly form Coreldraw, AutoCAD, etc.
\t
Cutting thickness
\t
20mm
\t
Sloping engraving
\t
90°--180°
\t
Cuts off the water supply the protection
\t
yes
\t
Gross weight
\t
530kg
\t
Optional Device
\t
Red Point, Lifting Platform, Rotary Device, Honey Table

Main Features

1.Optimization of mechanical and electrical design, processing speed can be up to 200mm/s;
2.Configured high power laser tube,can cut Acrylic of 20mm thickness in one step;
3.With multi-function,FPGA controlling system can effectively engrave on plane,gradient engraving by 360,cutting and drilling holes,etc.Support output of USB flash disk and work off-line of the computer;
4.Restoring from power-off,continuation on break point;
5.Transmit files directly in CorelDraw,AutoCAD etc;
6.Configured laser lens from America,can ensure the cutting effect perfect;
7.Adopt international advanced linear rail for X.Y axis,more precision;
8.Standard configuration of chilling machine.

Detail images




Name: RD6442 Control System
Brand: RuiDa
Original: China
Function:The controller has better resistance to high voltage and antistatic ability.






Name: Stepper motor
Brand: CHUANGWEI
Original: China
Function:To ensure the transmission strong and efficient.






 Name: CO2 Laser Tube

 Brand: WEIJU
 Original: China



Name: Chiller CW-3000
Brand: S&A
Original: China
Function: Cool the laser tube.Stable cooling performance,easy to use and provides good protection to the equipment.




Name: Linear Rail
Brand: LAPPING
Original: TAIWAN
Function: Equipped square rail with high accuracy helical gear and rack transmitting, more stable and precisive.




Name: Honey Table(Optional)
Function: Adopt honeycomb structure principle, high strength is not easy to deform, high stability, sound absorption and heat insulation. It is suitable for processing small handicraft products.






Name: Red Dot Pointer(Optional)
Function: For tracing the laser point for safety during working.






Name: Lifting Platform(Optional)

Function:120~130mm up down size can process different thickness material smoothly

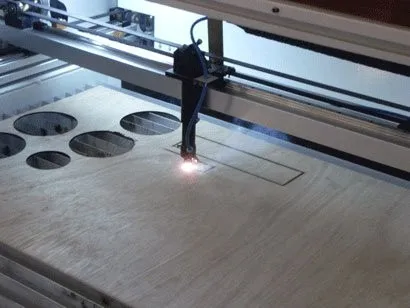

\t\t\t\t\t\t\t\t\tSample \t\t\t\t\t\t\t
Our Company
Company
Factory

TONGXING Technology Development Co.,Ltd established in 1992,lies in HEFEl --One of Chinese scientific and technology cities.It has been working on researching and manufacturing CNC machinery in field of woodworking,stone engraving,metal processing,glass cutting and advertising etc. over 20 years. The main products: Heavy moving column CNC machining center,Heavy static column CNC machining center, High accuracy metal cutting machine, High precision fiber laser machine,Vanguard series CNC engraver, Multistage CNC machine center,SUDA high accuracy CNC engraver, SUDA laser cutting machine,fiber cutting machine,totally 23 series ,more than 100 models. The sales net not only covers all Chinese provinces and municipalities,including HongKong, Taiwan&Macao,also the products are exported to more than 120 countries and regions such as Europe,America,Middle-east,South-east Asia etc.

Certificate

Joint with global core suppliers

Our Service

Pre-Sales Service
1. We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.

After-Sales Service
1. Training how to instal the machine, training how to use the machine online.
2. Engineers available to clients' factory for training.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.

We know for enterprises, quality is the life, so we have put the quality control into each link as products development, design, purchasing, processing, assembling and testing etc. Everybody in the company are participated into the quality management to prevent any unqualified products from being sent out.

Before delivery, each machine has been inspected through following steps:
1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and electrical performing before delivery;
2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;
We always pursue the service philosophy of "ALL FOR CUSTOMERS". The Advanced management system and perfect service system ensure that we can provide timely and efficient services and ensure product's stability in great extent, which supply a effective guarantee for the system normal operation.

Packing & Delivery
FAQ

Q1. how to get the most suitable machine and best price?

Please tell me

what's material you want to cutting or engraving ?

what's MAX size of carved material ?

Then I will recommend the most suitable model and the best price for you


Q2. In case of failure,how to do?

Call us----our engineers are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us

The CD and operation manual----It show the most common failure in working processing and how to solve this problems.


Q3. What is the type of shipping and producing time?

we offer EXW, FOB and CIF which you can choose as you like.

when you pay for the pre-payment, we wil arrange producing which about 7--15 days.


If you have any doubt, ples contact with me, l will reply for you in time.
