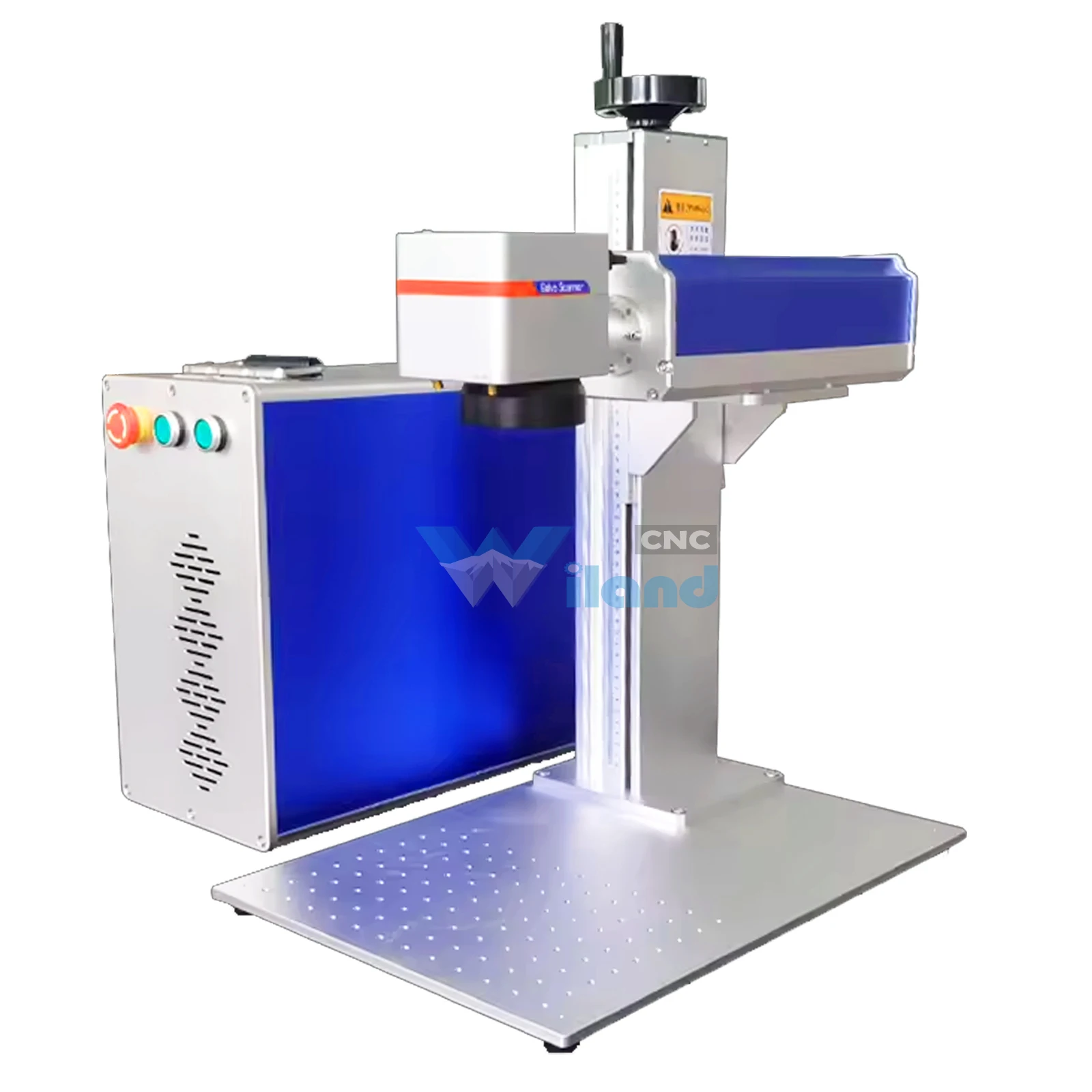

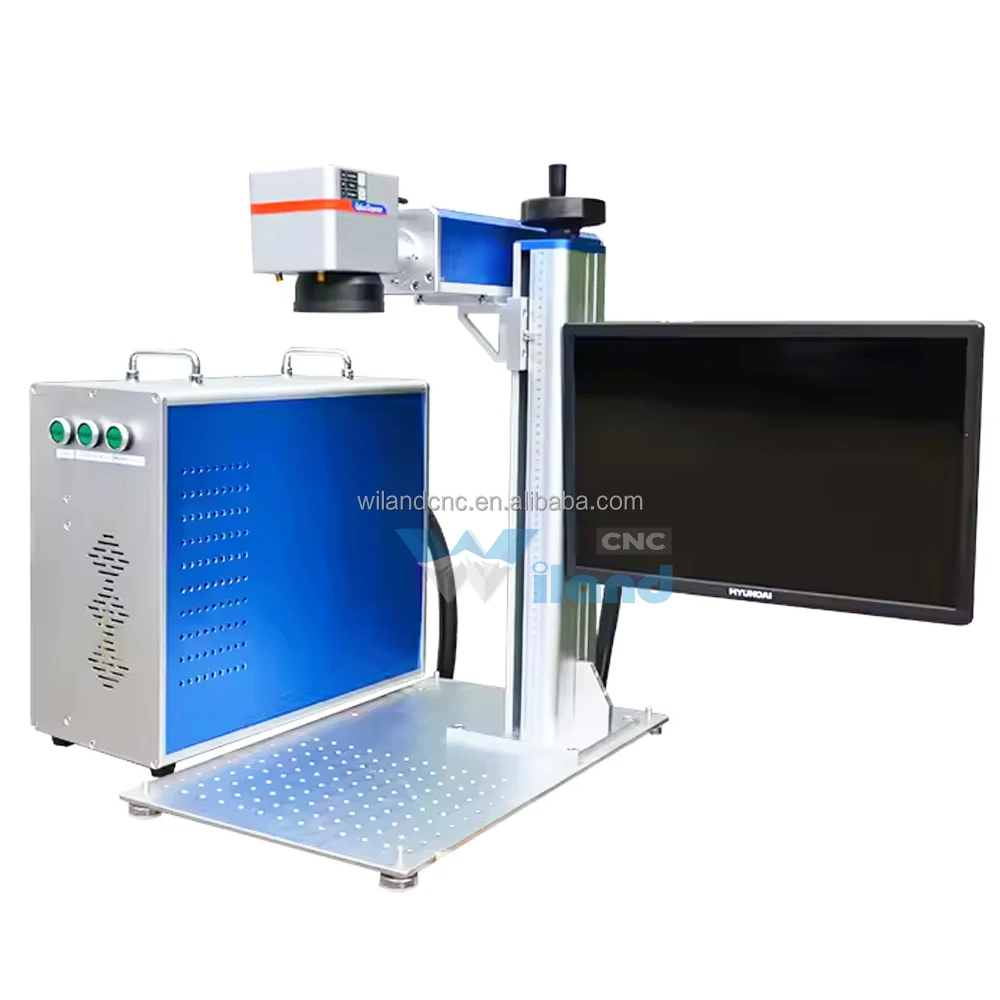

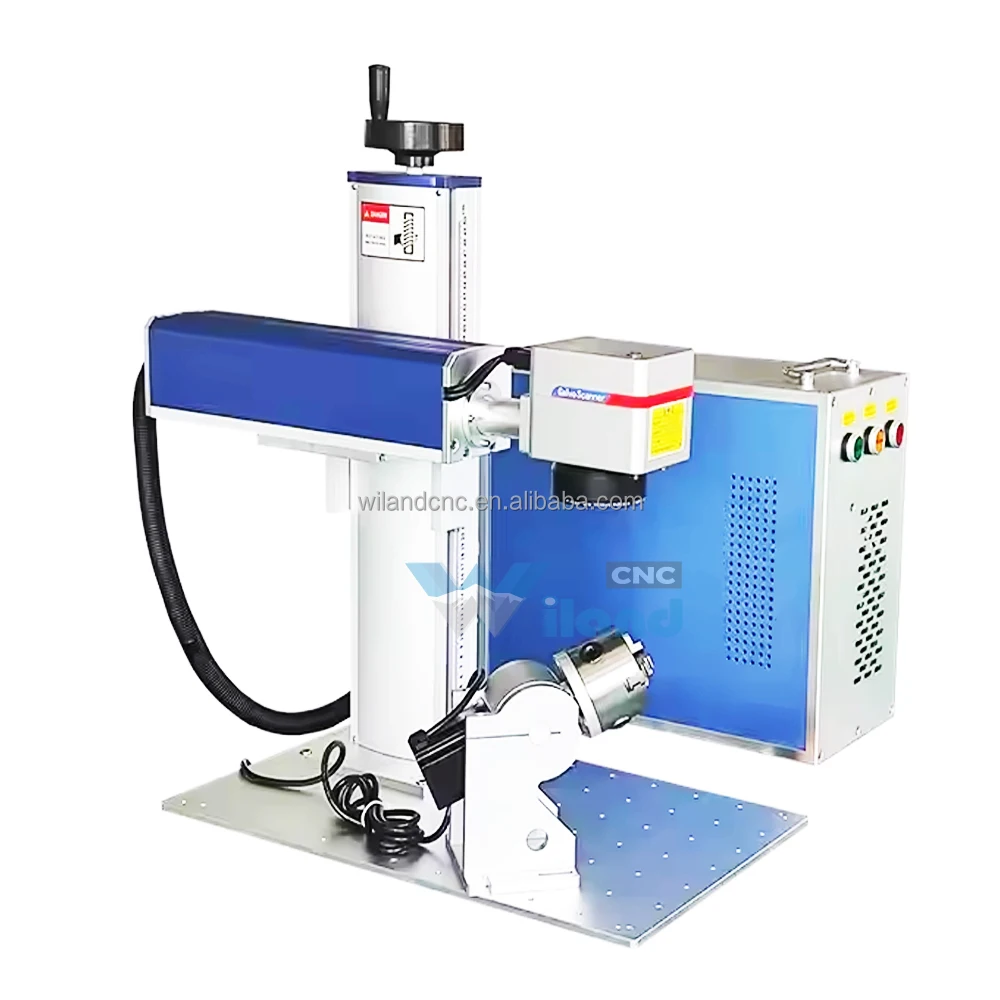

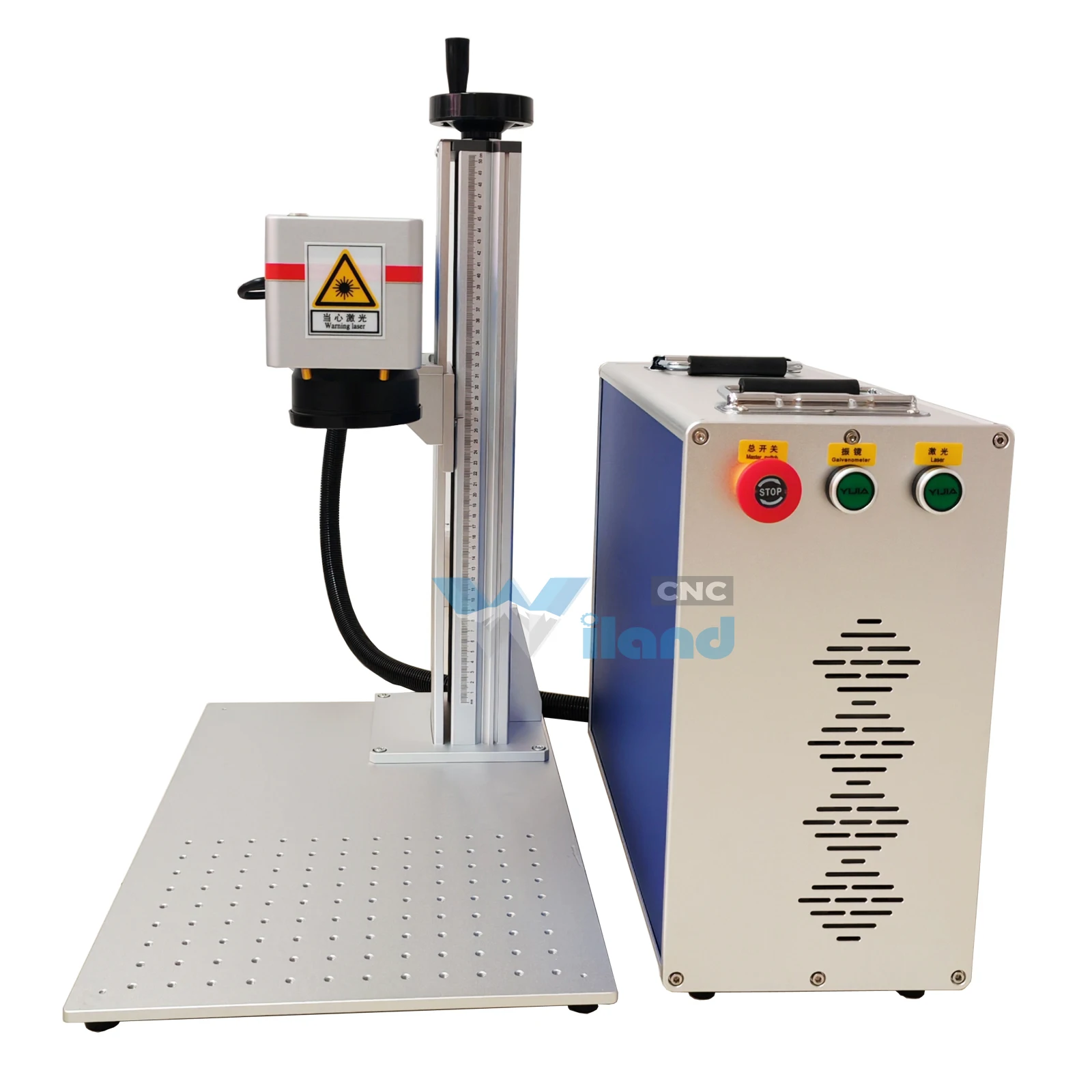

Удобная мини волоконно лазерная маркировочная машина 20 Вт 30 50 лазерный принтер ручной гравировальный станок по металлу
- Категория: >>>
- Поставщик: Jinan Wiland Cnc Equipment Co. Ltd.
Сохранить в закладки 1601270212652:
Описание и отзывы
Характеристики
Product Description
30% Discount! 2 Years Warranty Fiber Laser Marker Machine Metal Low Price Fiber Laser Marking Machine For Sale
Laser marking is a marking method that uses a high energy density laser to irradiate the workpiece, vaporize the surface materialor react with color changes, thus leaving a permanent mark. Principle of laser marking color development:
1. Formation of colored oxides
2. A colorless transparent oxide film is formed, resulting in interference and color
3. At the same time, colored oxide and colorless oxide film are formed
1. Formation of colored oxides
2. A colorless transparent oxide film is formed, resulting in interference and color
3. At the same time, colored oxide and colorless oxide film are formed
Specification
Model | SP-20W | SP-30W | SP-50W | SP-100W | |||
Power | 20W | 30W | 50W | 100W | |||
Laser Type | Fiber Laser for all metals and hard plastic | ||||||
Marking area(logo size) | 110*110/150*150/175*175/200*200/300*300 optional one, but smaller, finer. | ||||||
Marking line width | 0.01~0.1mm | ||||||
Marking depth | 0.01~2mm(depend on material) | ||||||
Marking speed | ≤7000mm/s | ||||||
Voltage | 220V/50Hz/800W (110V/60Hz optional) | ||||||
Cooling method | Air cooling | ||||||
Package type | Paper box for air shipping & wooden box for sea shipping | ||||||
Package size | 86*50*52CM | ||||||
Gross weight | 45kg for paper box, 60kg for wooden box | ||||||
Wavelength | 1064nm | ||||||
Main Parts
LASER SOURCE optional
JPT LP series are fiber lasers that use direct electrical modulation semiconductor lasers as the seed source (MOPA) solution, withhigh-quality laser characteristics and good pulse shape control capabilities. Compared with Q-switched fiber lasers, LP serieslasers have greater flexibility, can achieve a larger range of frequency adjustment, higher control accuracy, and better first pulse performance.
JPT LP series are fiber lasers that use direct electrical modulation semiconductor lasers as the seed source (MOPA) solution, withhigh-quality laser characteristics and good pulse shape control capabilities. Compared with Q-switched fiber lasers, LP serieslasers have greater flexibility, can achieve a larger range of frequency adjustment, higher control accuracy, and better first pulse performance.
Samples
1. Can be suitable for a variety of materials: steel, aluminum, silver, gold, silicon etc.
2. Suitable for various industries:
* Electronic components industry
* Medical device industry
* Glasses, watch and clock industry
* IC card industry
* Jewelry industry
2. Suitable for various industries:
* Electronic components industry
* Medical device industry
* Glasses, watch and clock industry
* IC card industry
* Jewelry industry
Applicable Materials:
All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, HSS steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decompositionNon-metallic: non-metallic coating materials, industrial plastics, hard plastics, like ABS, PVC, and carbon fiber.
Applicable Industries
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knife, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines. Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, cosmetics packaging, car decoration, logos, characters, serial number, bar code, pipeline, advertising logo and other non-metallic industries.
1. 1 years guarantee for main machine (Artificial damage are charged).
2. Life time technical support by e-mail, call and video.
3. Maintenance and spare parts supply.
4. Free training installation and operation for the staffs.
Company Profile
Packing & Delivery
We have 3 layers package.
1.For the outside, we adopt plywood case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by the waterproof plastic bag.
Delivery Time: Within 7 working days after receiving the payment.
1.For the outside, we adopt plywood case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by the waterproof plastic bag.
Delivery Time: Within 7 working days after receiving the payment.
Our Certificate
Absolute genuine guarantee, comprehensive after-sales service, and experienced technical team!!
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Solve basic problem within 24 hours⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Solve basic problem within 24 hours⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐
FAQ
1. Hou do I choose the machine?
You can tell us you material, detail of marking so that we can judge which one suits you.
2. Howlong its life time?
Our machine can be used for five years, if you take care of it.
3. How long is the delivery time?
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client’s specific requirements, it would be 15 to 30 days.
4. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
5.What can you buy from us?
Laser marking machine,Laser cutting machine,Laser welding machine,Laser engraving machine,Plasma cutting machine
6. why should you buy from us not from other suppliers?
Our company has a number of patent certificates. The product has beautiful appearance, high stability and independent research and development ability. We can produce customized non-standard models according to customer requirements.
7. what services can we provide?
Accepted Delivery Terms: null； Accepted Payment Currency:USD,EUR,JPY,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese,Spanish,Japanese
