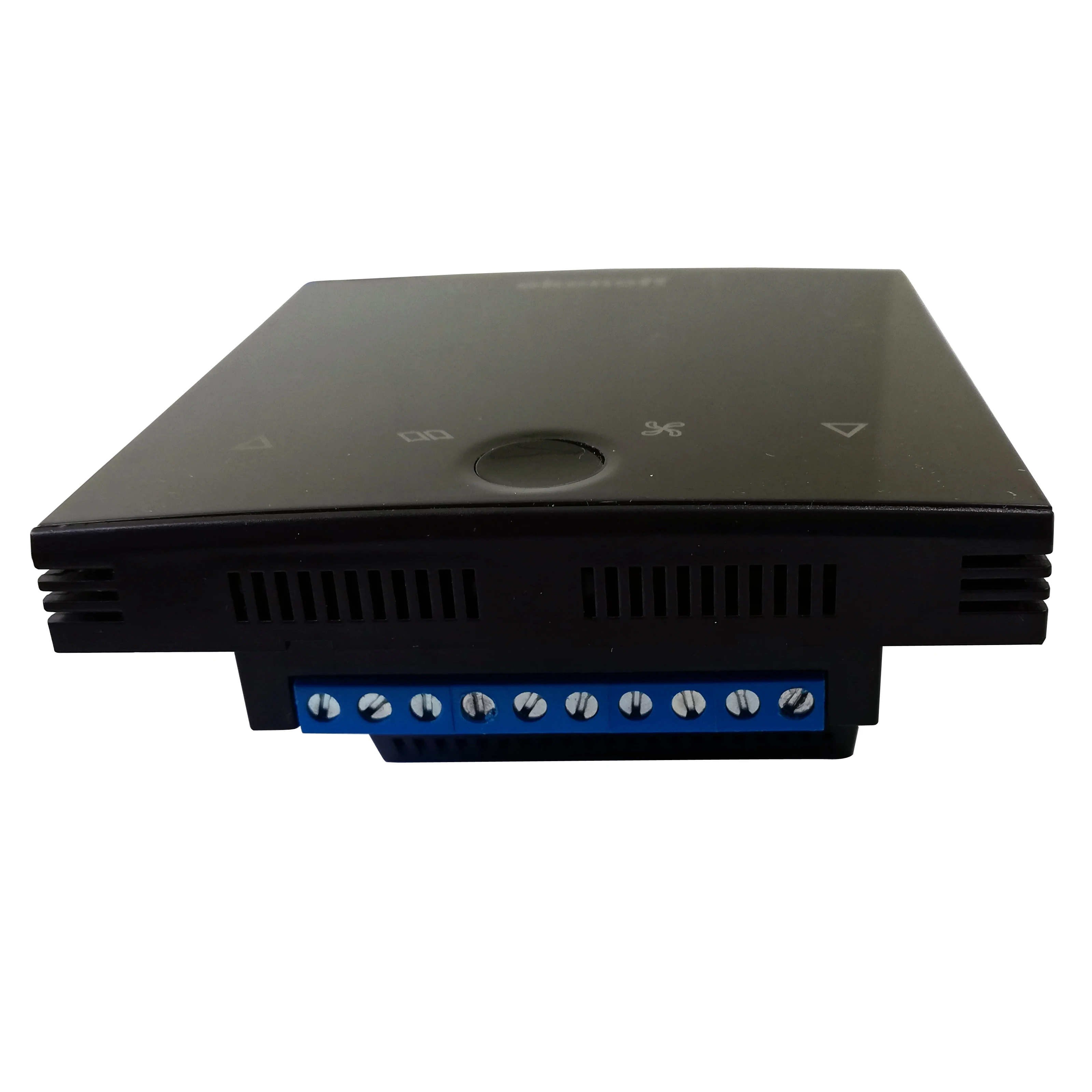

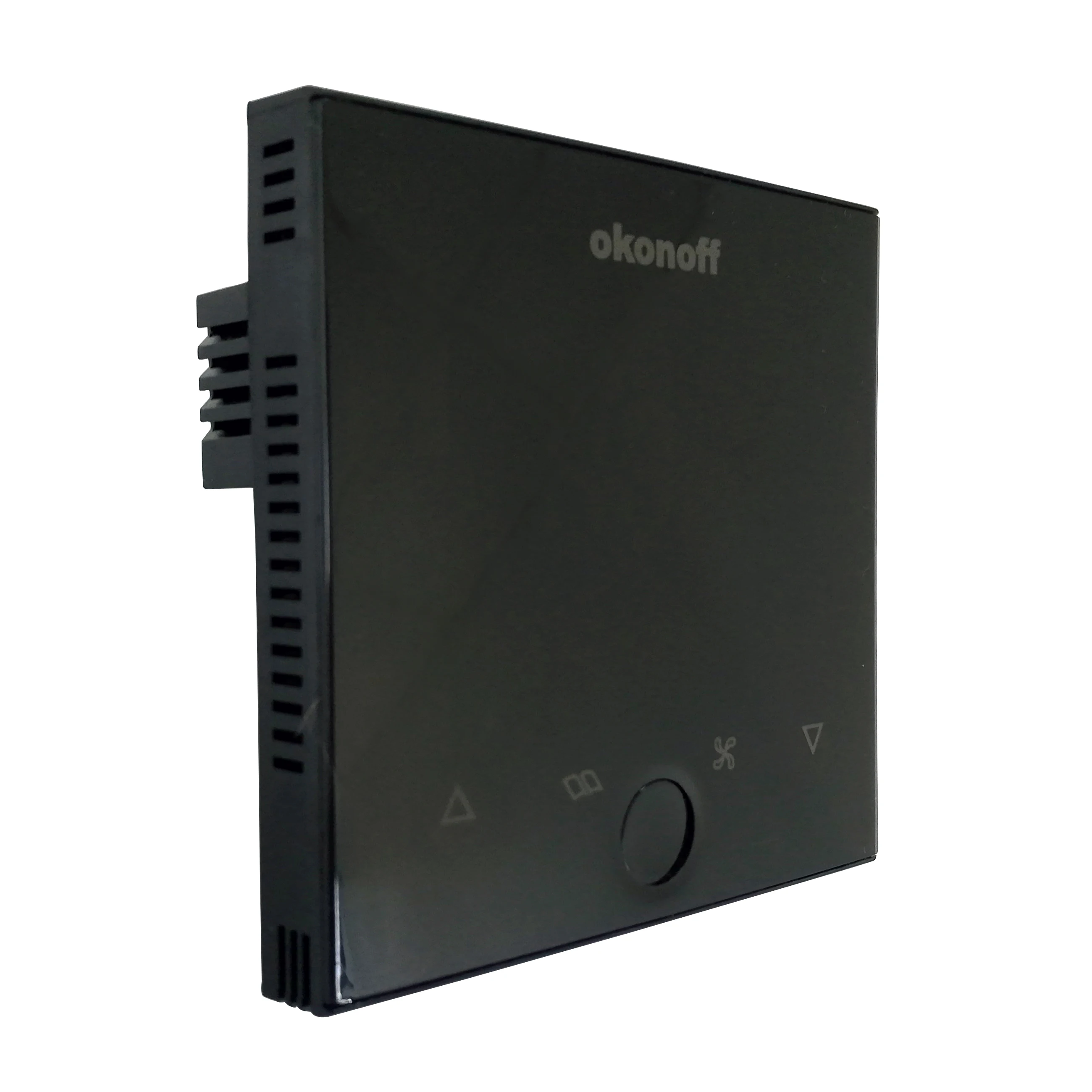

![]() | X7 series heating room thermostats are applied to control the electrical load or electrical valves in the electrical heating or water heating system. Available color: black / light gray |
black desplay screen |
Feature:
1. With capacitive touch technology, gently touch function can be realized.

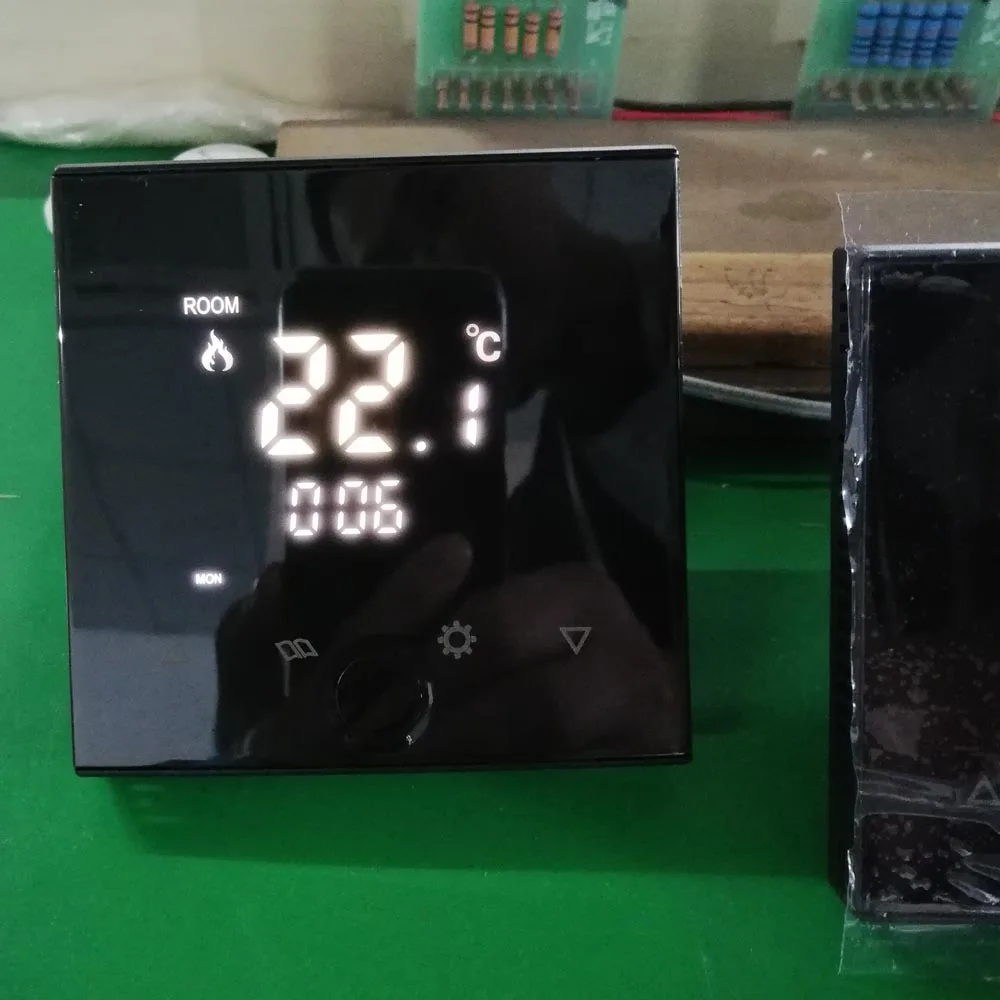

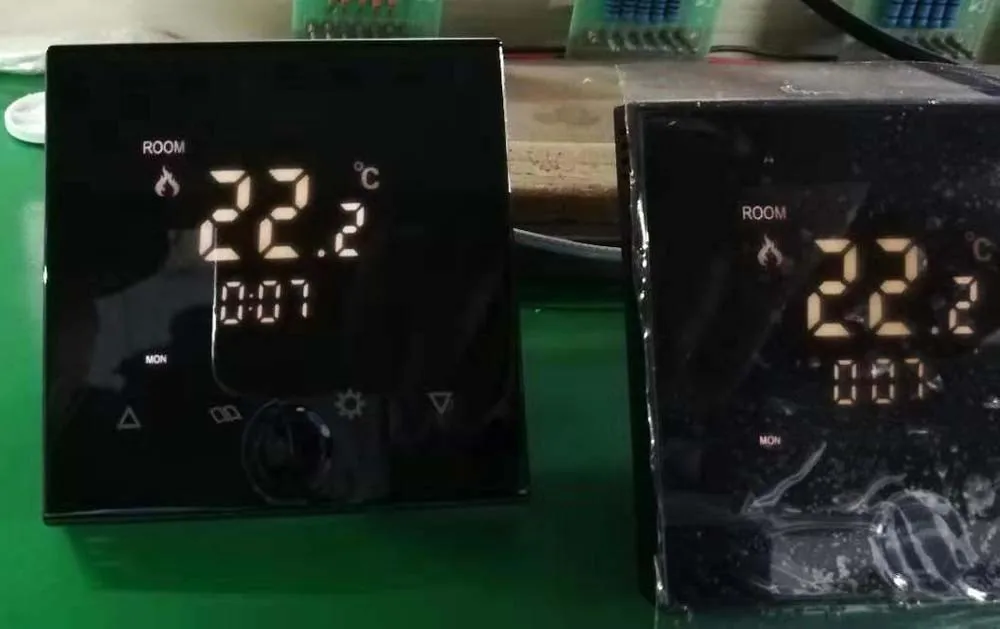

2. LCD display, high light, long life.
3. Integrated designed, easy to install, high reliability.
4. Week programmable, four periods for setting the time and temperature.
5. 24 hours timer function, the adjustable step is an hour.
Technical parameter:
Working Voltage: 220VAC±10%, 50HZ
Working Environment: 0℃~45℃
Storing Environment Temperature: -10℃~50℃
Temperature Control Range: 5℃~45℃
Temperature Control Precision: 0/ -1℃
Grade of protection: IP40
Output current: Electrical heating≤ 16A (resistive load) Water heating≤3A (resistive load)
Installation: 86 type standard box
Model Spec.:
Model | Time period programmable | Signal linkage | External sensor | With 485 communication | Current load |
√ |
| √ |
| ≤16A(resistive load) | |
X7–PW | √ |
| ≤3A(resistive load) | ||
X7–PWH | √ | √ |
|
| ≤3A(resistive load) |
X7–S-PE | √ |
| √ | √ | ≤16A(resistive load) |
X7-S–PW | √ |
|
| √ | ≤3A(resistive load) |
X7–S-PWH | √ | √ |
| √ | ≤3A(resistive load) |
X7-PWH touch screen room thermostat for water circulation underfloor heating system.
