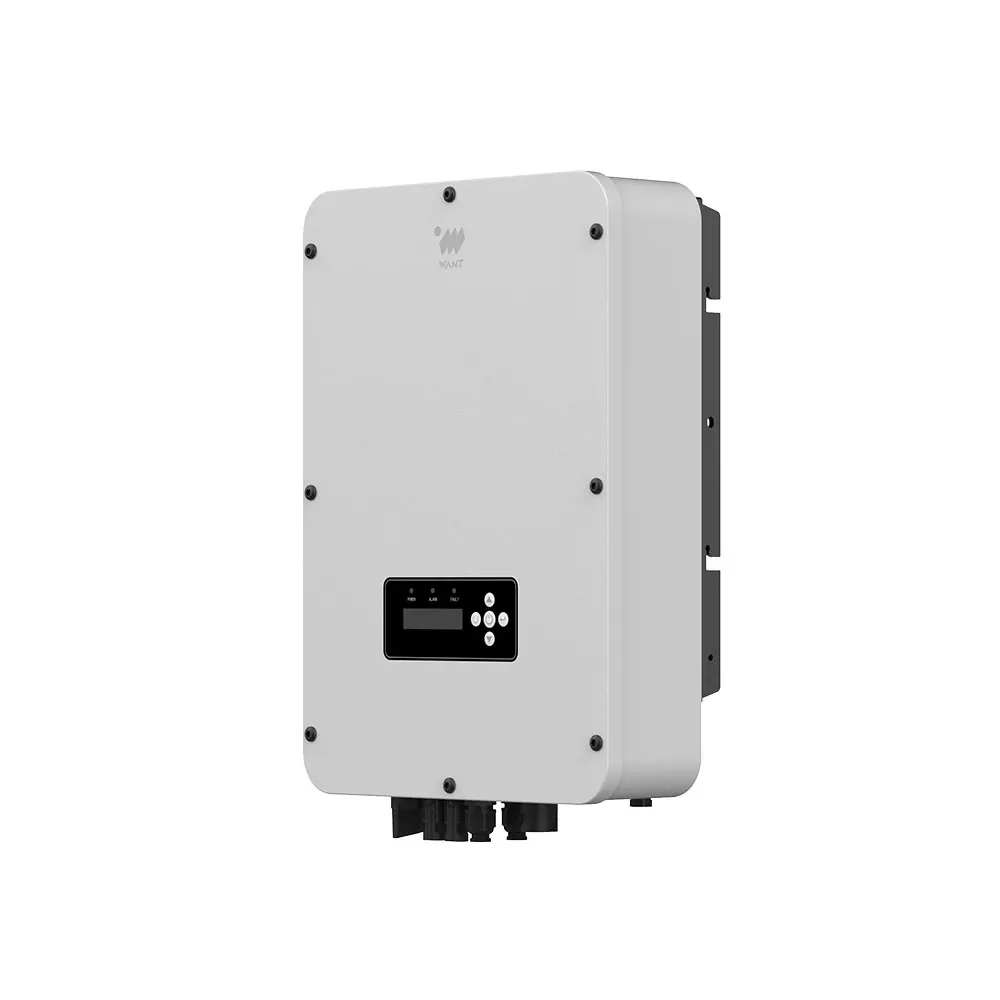

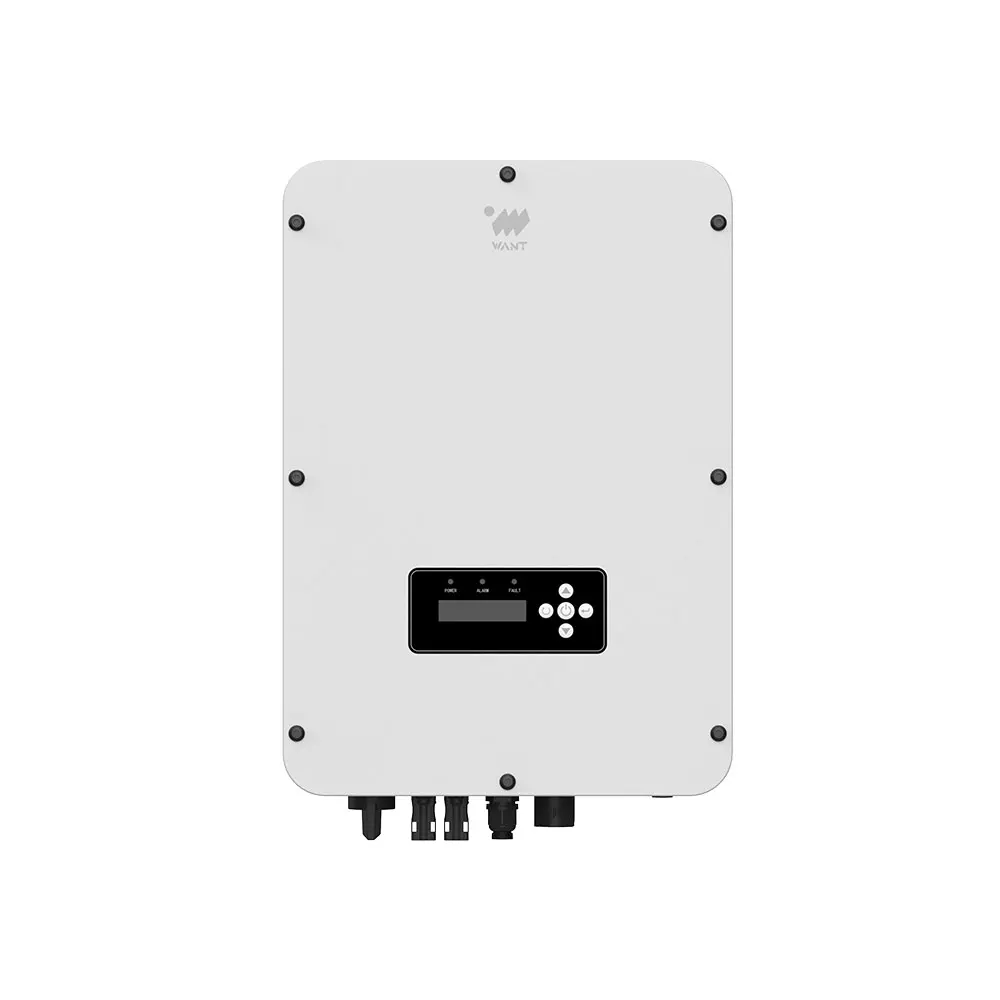

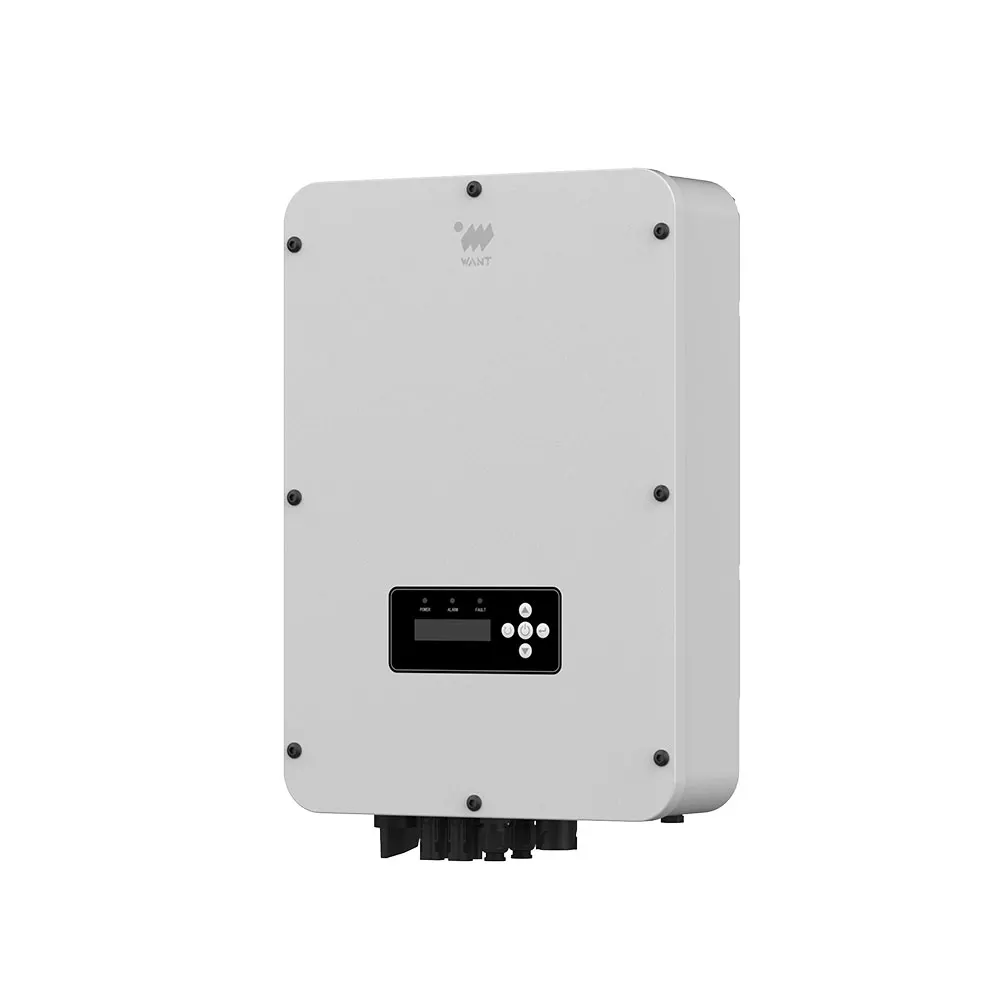

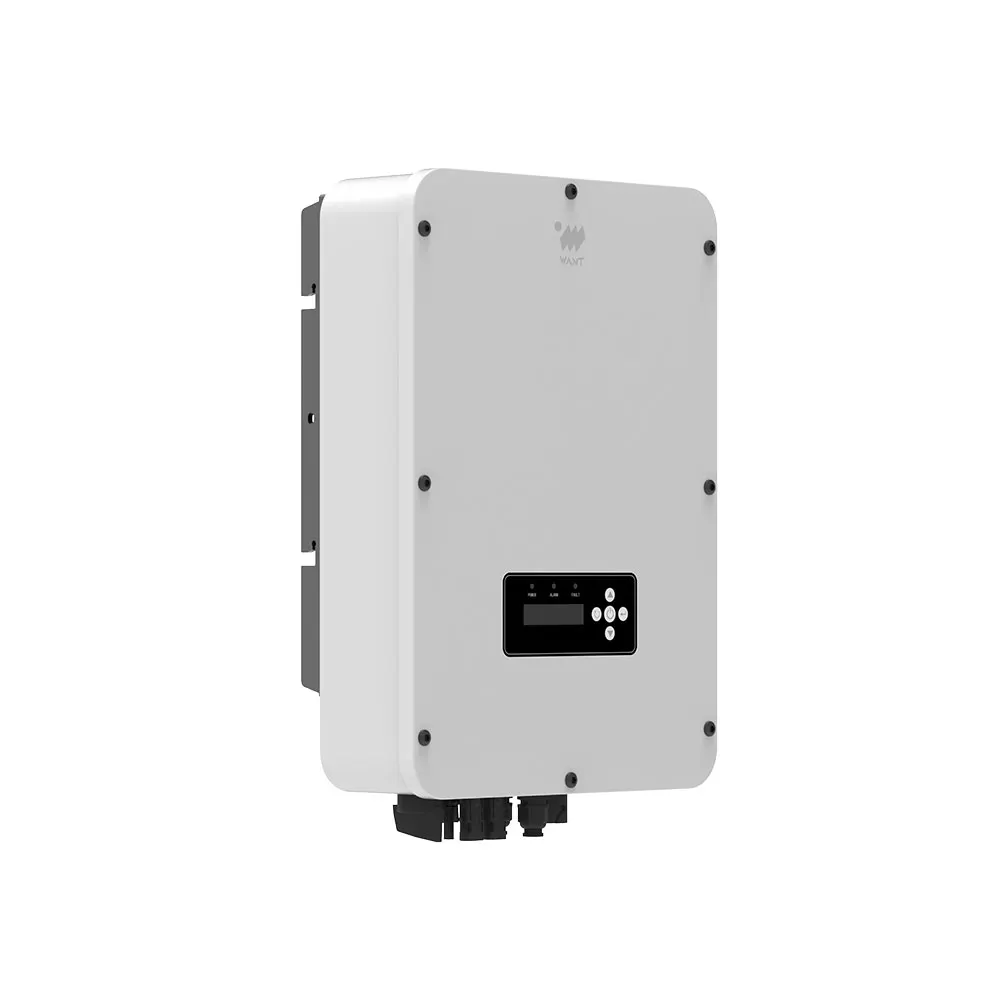

Инверторы водяного насоса Wantpower 15 кВт 3 фазы 380 В
- Категория: >>>
- Поставщик: Shenzhen Wantpower Technology Co. Ltd.
Сохранить в закладки 1601270391291:
Описание и отзывы
Характеристики
Product Description
FEATURES | ||
Wide power range of 3kW to 22kW | ||
Built in MPPT solar charger | ||
Full feature system protection and self-diagnosis | ||
Soft start feature available | ||
Large LCD / LED display | ||
IP65 protection design | ||
(optional) Remote monitoring through GPRS /WIFI | ||
NOTE:

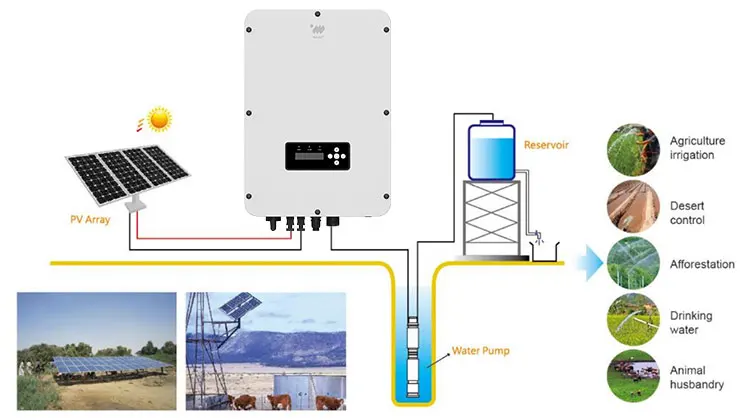

1: The connected PV array is recommended to be 1.5 times the rated power of the solar pump inverter.
2: The pump inverter power must be greater than water pump power.
Product Paramenters
PD-3P3K-G1 | PD-3P4K-G1 | PD-3P5.5K-G1 | PD-3P7.5K-G1 | PD-3P9.2K-G1 | ||||||
OUTPUT POWER | ||||||||||
Rated power | 3kW | 4kW | 5.5kW | 7.5kW | 9.2kW | |||||
Maximum current | 8A | 10A | 13A | 18A | 21A | |||||
Rated voltage | 380V (3 phase) | |||||||||
Frequency range | 0 to 50 / 60Hz | |||||||||
Motor type | Three-phase asynchronous engine | |||||||||
DC INPUT | ||||||||||
PV input ports | 2 | 3 | ||||||||
MPPT voltage range | 500V to 680V | |||||||||
Maximum DC input voltage | 900V | |||||||||
Starting voltage | 250V | |||||||||
GENERAL DATA | ||||||||||
Dimensions (W / H / D) | 340mm / 480mm / 171.2mm | 370mm / 530mm / 181mm | ||||||||
Weight | 13.8 kg | 18.3 kg | ||||||||
IP rating | IP65 | |||||||||
PD-3P11K-G1 | PD-3P13K-G1 | PD-3P15K-G1 | PD-3P18.5K-G1 | PD-3P22K-G1 | ||||||
OUTPUT POWER | ||||||||||
Rated power | 11kW | 13kW | 15kW | 18.5kW | 22kW | |||||
Maximum current | 24A | 28A | 30A | 38A | 45A | |||||
Rated voltage | 380V (3 phase) | |||||||||
Frequency range | 0 to 50 / 60Hz | |||||||||
Motor type | Three-phase asynchronous engine | |||||||||
DC INPUT | ||||||||||
PV input ports | 3 | 5 | ||||||||
MPPT voltage range | 500V to 680V | |||||||||
Maximum DC input voltage | 900V | |||||||||
Starting voltage | 250V | |||||||||
GENERAL DATA | ||||||||||
Dimensions (W / H / D) | 370mm / 530mm / 165mm | 410mm / 570mm / 178mm | ||||||||
Weight | 18.3 kg | 23.8 kg | ||||||||
IP rating | IP65 | |||||||||
