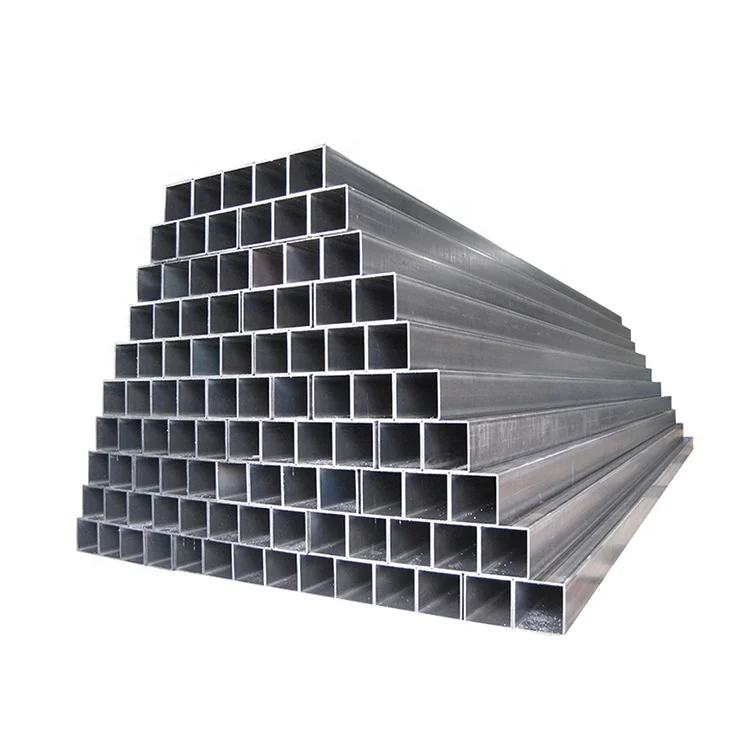

Hot Dipped Rhs Gi Galvanized Square Tubings Rectangular Round Carbon Steel Tube
51 196,12 ₽ - 57 650,33 ₽
Горячая оцинкованная черная полая секция прямоугольная труба из углеродистой стали квадратная стальная и профиль трубы для строительства
- Категория: >>>
- Поставщик: Shandong Hongcheng Steel Co. Ltd.
Сохранить в закладки 1601270420162:
Описание и отзывы
Характеристики
Please contact me for more product details and the latest prices.
Products Description
Hot-dip galvanized pipe is to pickle the steel pipe first to remove iron oxide on the surface of the steel pipe. Then, it is cleaned in the mixed aqueous solution tank of ammonium chloride and zinc chloride, and then sent to the hot dip plating tank. The steel tube substrate undergoes complex physical and chemical reactions with the molten plating solution to form a corrosion-resistant zinc-iron alloy layer with a compact structure. The alloy layer is integrated with the pure zinc layer and the steel tube substrate. Therefore, it has strong corrosion resistance.
Galvanized has stronger protective effect and strong corrosion resistance. The whole structure is made of zinc, forming a dense quaternary crystal, which forms a barrier on the steel plate, thus effectively preventing the penetration of corrosion factors.
Specification
Product Name: | Hot Dip Galvanized Square And Rectangular Tube | ||
Size: | OD | 15x15mm-600x600mm / 20x30mm-600x800mm | |
Wall Thickness | 0.7mm-20mm SCH30,SCH40,STD,XS,SCH80,SCH160,XXS etc. | ||
Length | Less Than 12m | ||
Steel material | Q195 → Grade B, SS330,SPHC, S185 Q215 → Grade C,CS Type B,SS330, SPHC Q235 → Grade D,SS400,S235JR,S235JO,S235J2 | ||
Standard | BS EN10296,BS EN10025,BS EN10297,BS6323, BSEN10219,BSEN10217,GB/T13793-1992,GB/T14291-2006, GB/T3091-1993,GB/T3092-1993,GB3640-88 | ||
Usage | Used For Structure, Accessorize And Construction | ||
Ends | 1) Plain 2) Beveled 3) Thread with Coupling or cap | ||
End protector | 1) Plastic pipe cap 2) Iron protector | ||
Surface Treatment | 1) Bared 2) Black Painted (varnish coating) 3) Galvanized 4) With Oiled 5) 3 PE, FBE, corrosion resistant coating | ||
Technique | Electronic Resistance Welded (ERW ) Electronic Fusion Welded (EFW) Double Submerged Arc Welded (DSAW) | ||
Inspection | With Hydraulic Testing, Eddy Current , Infrared Test | ||
Package | 1) Bundle 2) In Bulk 3) Bags 4) Clients' Requirements | ||
Delivery | 1) Container 2) Bulk carrier | ||
Others | Fitting as screws and flange also can be supplied. | ||
Please contact me for more product details and the latest prices.
Pre galvanized Hollow Section (Zinc coat:30-270g/m2) Square and rectangular steel pipe | ||||||||||||
Standard | Side Length(mm) | Common Tube(mm) | ||||||||||
Q195 Q215 Q235 | DN | Side Length Tolerance | Thickness | Length | Length Tolerance | |||||||
16 | 16 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
19 | 19 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
20 | 20 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
20 | 40 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
25 | 25 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
25 | 50 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
25 | 75 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
30 | 30 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
30 | 40 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
30 | 50 | +0.4, -0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
32 | 32 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
35 | 35 | ±0.5 | 0.7-2.2 | 3000-12000 | +20, -0 | |||||||
37 | 57 | +0.4, -0.5 | 0.8-2.3 | 3000-12000 | +20, -0 | |||||||
37 | 77 | ±0.5 | 0.8-2.3 | 3000-12000 | +20, -0 | |||||||
38 | 38 | +0.4, -0.5 | 0.8-2.3 | 3000-12000 | +20, -0 | |||||||
38 | 75 | +0.5, -0.6 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
50 | 75 | +0.5, -0.6 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
40 | 40 | +0.4, -0.5 | 0.8-2.3 | 3000-12000 | +20, -0 | |||||||
40 | 60 | ±0.5 | 0.8-2.3 | 3000-12000 | +20, -0 | |||||||
50 | 50 | ±0.5 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
40 | 80 | +0.5, -0.6 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
50 | 75 | +0.5, -0.6 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
60 | 60 | +0.5, -0.6 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
50 | 100 | ±0.7 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
50 | 150 | ±0.8 | 1.0-2.3 | 3000-12000 | +20, -0 | |||||||
Please contact me for more product details and the latest prices.

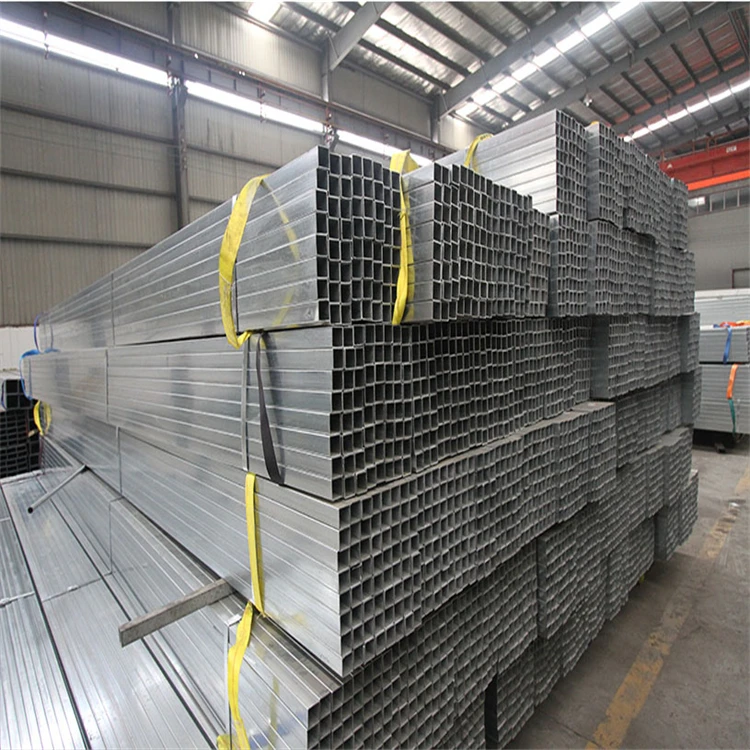

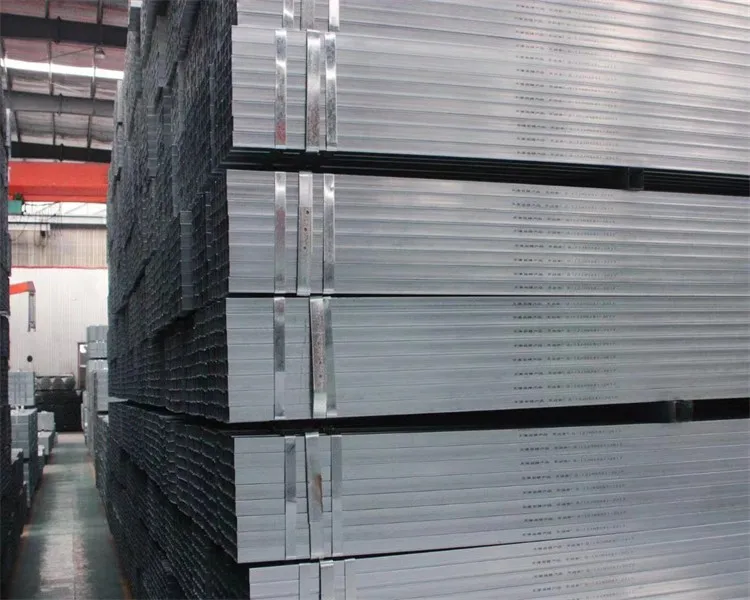

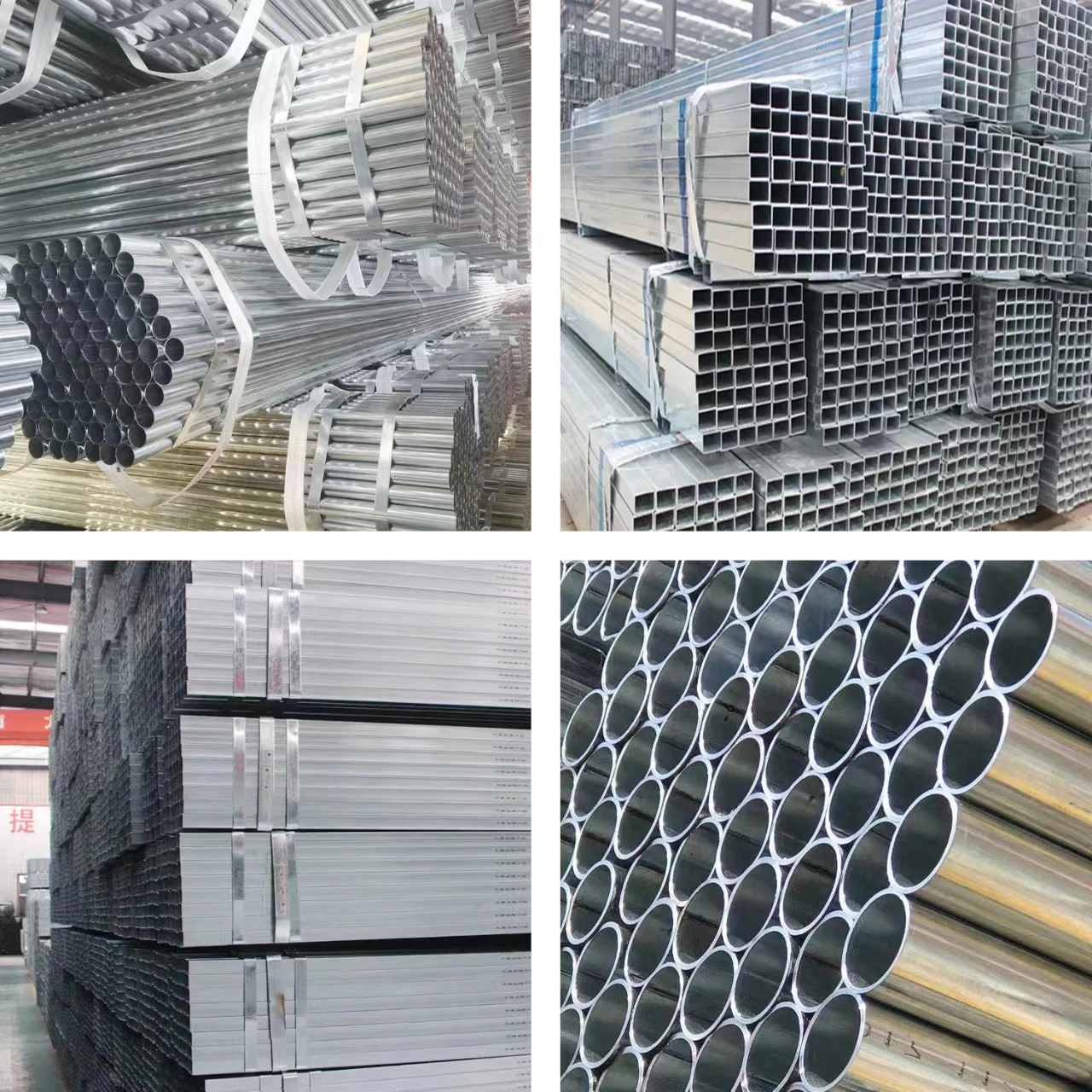

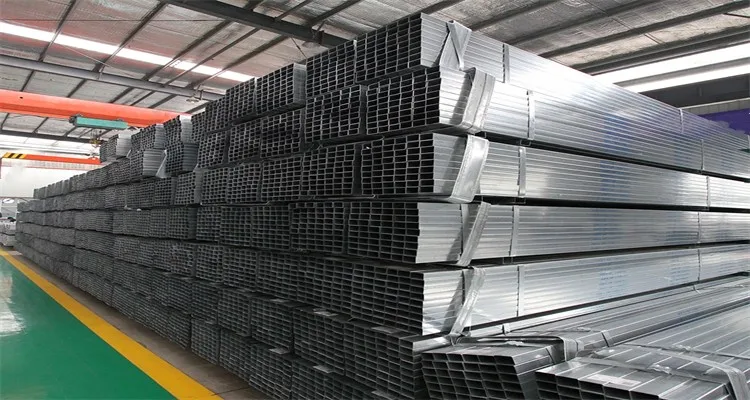

Production workshop

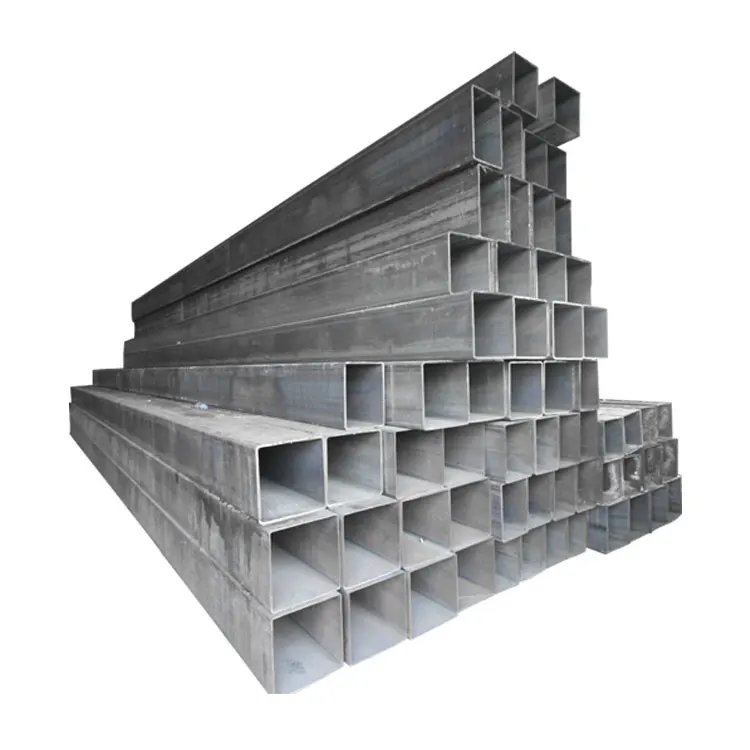

Hot-dip galvanized square tube: It is a square tube made of steel plate or steel strip after crimping and welding. A square tube formed.
Galvanized pipe advantages:
1. Low processing cost of hot-dip galvanized square pipe: The cost of anti-rust of hot-dip galvanized is lower than that of other paint coatings.2. The galvanized square pipe is durable: in the suburban environment, the standard hot-dip galvanized anti-rust thickness can be maintained for more than 50 years without repairing; in urban or offshore areas, the standard galvanized anti-rust layer can be maintained for 20 years years without having to repair.
3. Good reliability of the galvanized square tube: the combination between the galvanized layer and the steel is a metallurgical combination, so that the zinc becomes a part of the steel surface, so the durability of the coating is better.
4. The toughness of the coating of the galvanized square tube is strong: the galvanized layer forms a special metallurgical structure, which can withstand mechanical damage during transportation and use.
Please contact me for more product details and the latest prices.

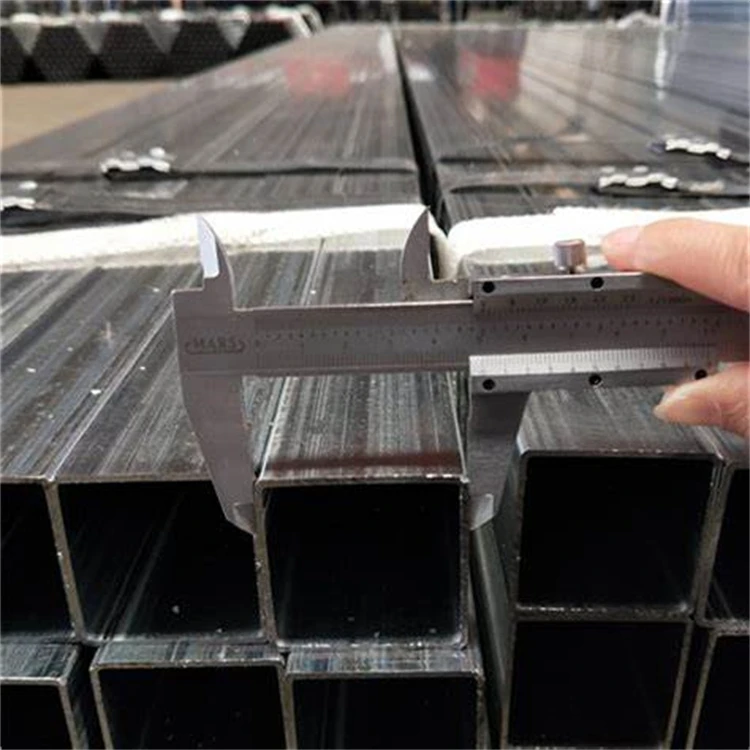

Product quality testing
1.) Visual inspection
Visually inspect all galvanized parts, and their main surfaces should be smooth, free of drips, roughness and zinc thorns, no peeling, no missing plating, and no residual solvent slag, in parts that may affect the use or corrosion resistance of galvanized workpieces There should be no zinc nodules and zinc dust.
2.) Thickness inspection
When the size of the article allows, the thickness measurement of the coating shall not be carried out in the area less than 10mm from the edge, the flame cut surface or the corner. The coating thickness is defined by the minimum value of each local coating thickness measured.
Visually inspect all galvanized parts, and their main surfaces should be smooth, free of drips, roughness and zinc thorns, no peeling, no missing plating, and no residual solvent slag, in parts that may affect the use or corrosion resistance of galvanized workpieces There should be no zinc nodules and zinc dust.
2.) Thickness inspection
When the size of the article allows, the thickness measurement of the coating shall not be carried out in the area less than 10mm from the edge, the flame cut surface or the corner. The coating thickness is defined by the minimum value of each local coating thickness measured.
3.) Thickness measurement position
The local thickness of the coating shall be measured at the point where the coating thickness is at its thinnest possible.
4.) Leak plating and repair
Leakage plating The total area of the leakage surface of galvanized parts should not exceed 0.5% of the total production area. The area of each leakage plating surface should not exceed 10cm2.
The local thickness of the coating shall be measured at the point where the coating thickness is at its thinnest possible.
4.) Leak plating and repair
Leakage plating The total area of the leakage surface of galvanized parts should not exceed 0.5% of the total production area. The area of each leakage plating surface should not exceed 10cm2.
Please contact me for more product details and the latest prices.

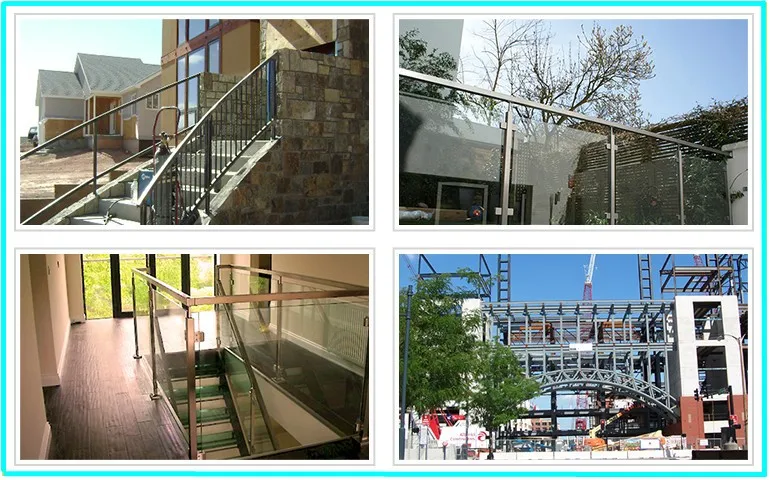

Product Application
Galvanized steel pipe application:
Galvanized square pipe is mainly used for curtain wall, construction, machinery manufacturing, steel construction projects,shipbuilding, solar power brackets, steel structure engineering, power engineering, power plants, agricultural and chemical machinery, glass curtain walls, automobile chassis, airports, etc.
Galvanized square pipe is mainly used for curtain wall, construction, machinery manufacturing, steel construction projects,shipbuilding, solar power brackets, steel structure engineering, power engineering, power plants, agricultural and chemical machinery, glass curtain walls, automobile chassis, airports, etc.

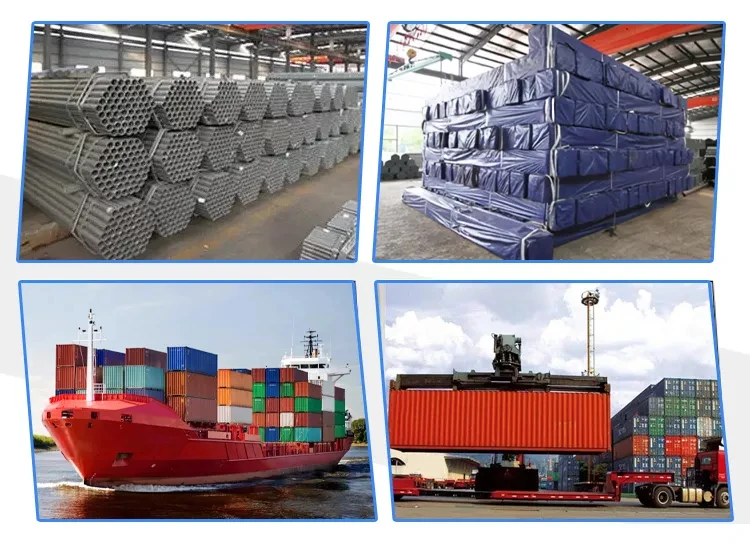

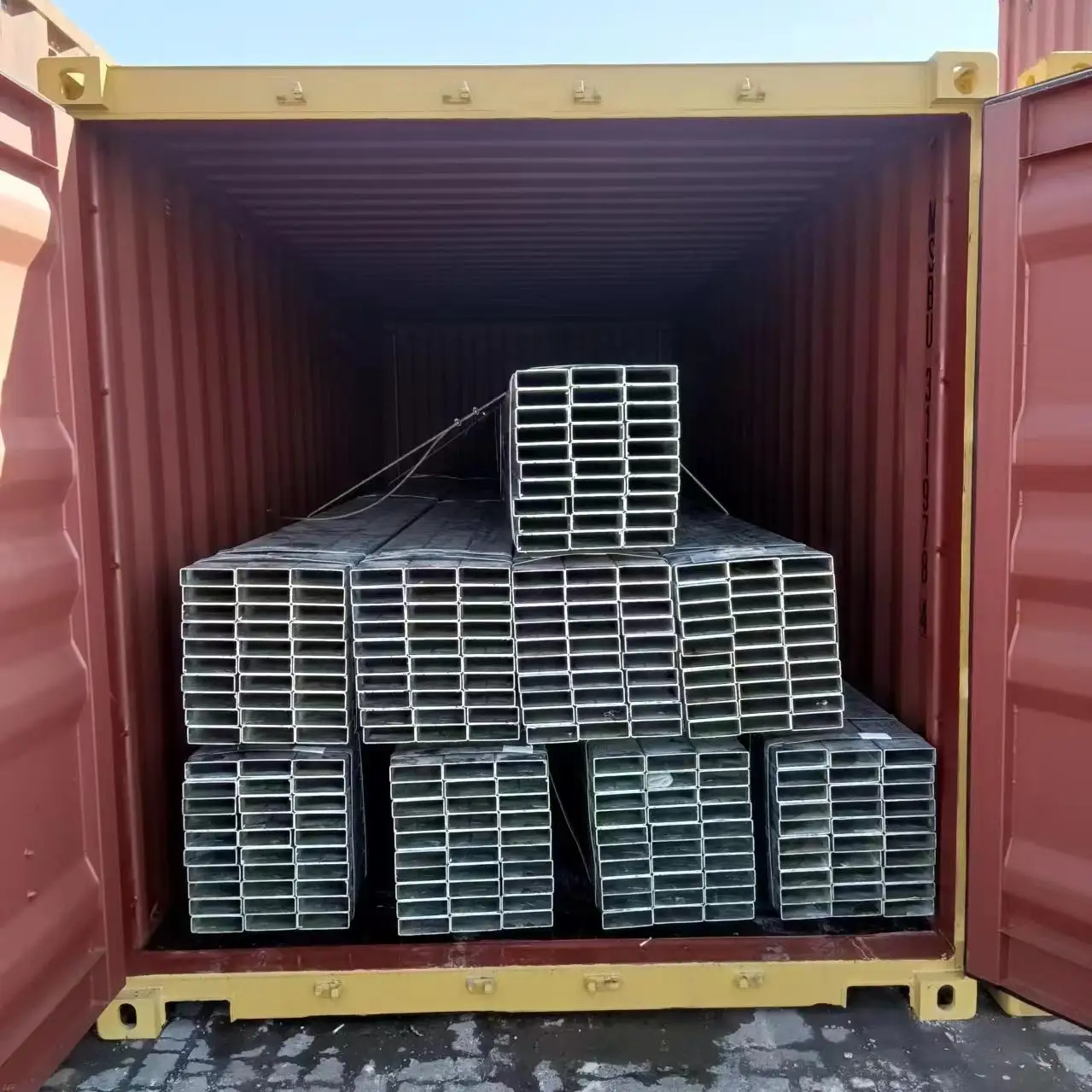

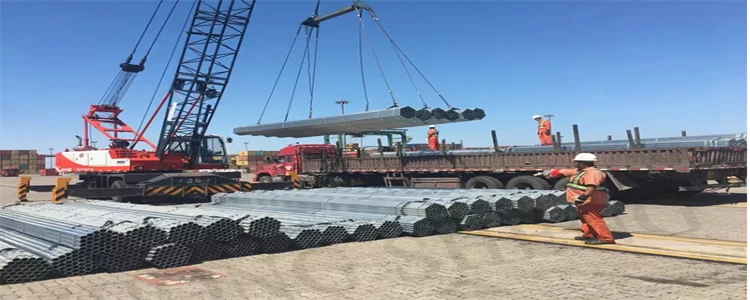

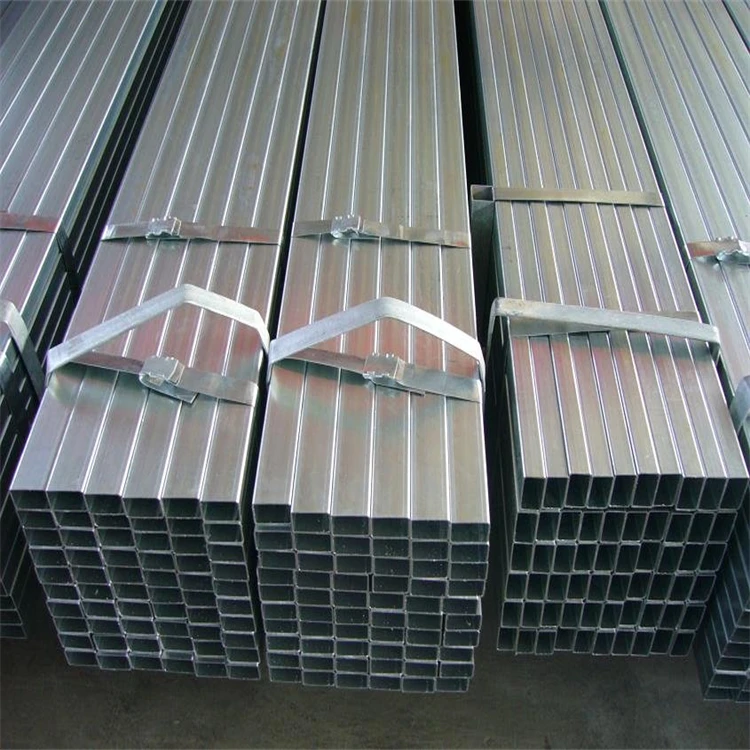

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Delivery Details : 7-15 days after receiving your deposit .
Depends on your order quantity.Seaworthy Package.Suit for all kinds of transport,or as required
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
20feet container load 25tons coils whose length is under 5.8m
40feet container load 25tons coils whose length is under 11.8m
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
20feet container load 25tons coils whose length is under 5.8m
40feet container load 25tons coils whose length is under 11.8m
Please contact me for more product details and the latest prices.
Company Profile
Shandong Hongcheng Steel Co., Ltd.
Our vision: To be a professional, reliable and outstanding world-class steel supplier.
Our company is located in Jinan City, Shandong Province, with a registered capital of RMB 50 million. We are a professional steel sales company integrating domestic and foreign trade.
Our company's main products are stainless steel sheet/coil/tube/rod, carbon steel sheet/coil/tube/rod, galvanized sheet/coil/tube, PPGI and PPGL, H-beam, I-beam, angle steel, channel steel, steel plate pile.
Our company has successfully exported to more than 70 countries in Europe, the Middle East, Africa, Southeast Asia, South America, etc.
Adhering to the win-win concept and customer-centric belief, we look forward to becoming your trusted quality partner.
Our vision: To be a professional, reliable and outstanding world-class steel supplier.
Our company is located in Jinan City, Shandong Province, with a registered capital of RMB 50 million. We are a professional steel sales company integrating domestic and foreign trade.
Our company's main products are stainless steel sheet/coil/tube/rod, carbon steel sheet/coil/tube/rod, galvanized sheet/coil/tube, PPGI and PPGL, H-beam, I-beam, angle steel, channel steel, steel plate pile.
Our company has successfully exported to more than 70 countries in Europe, the Middle East, Africa, Southeast Asia, South America, etc.
Adhering to the win-win concept and customer-centric belief, we look forward to becoming your trusted quality partner.
Please contact me for more product details and the latest prices.
FAQ
Q: Are you a manufacturer?
A: Yes , we are a manufacturer,Shandong hongcheng is a famous company that started earlier in China's steel industry, with annual sales of more than 10 million tons.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
A: Yes , we are a manufacturer,Shandong hongcheng is a famous company that started earlier in China's steel industry, with annual sales of more than 10 million tons.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
CONTACT US
Thanks for your attention!
If you need additional information, please feel free to contact us.
Welcome your inquiry about more information!
