Солнечный инвертор Sunark для домашнего использования, 10 кВт, 120 В переменного тока, 240 В переменного тока, гибридный Mppt инвертор для солнечной панели
190 090,92 ₽ - 227 893,09 ₽
Синусоидальный однофазный инвертор Sunark 10 кВт 220 В переменного тока 240 гибридный солнечный для солнечных панелей
- Категория: >>>
- Поставщик: Sunevo Solar Co. Ltd.
Сохранить в закладки 1601270433093:
Описание и отзывы
Характеристики
Product Description
Input Data (DC) | Sunteny S10000H-48 | |
Max. recommended PV power (for module STC) | 15000W | |
Max. DC voltage | 525V | |
Start voltage | 150V | |
MPPT voltage range | 150V~450V/370V | |
No.of MPP trackers | 3 | |
No.of PV string sper MPP tracker | 2 | |
Max.input current per MPP tracker | 22A | |
Max.short-circuit current per MPP tracker | 27A | |
Output Data (AC) | ||
AC nominal power | 10000W | |
Max. AC apparent power | 10000VA | |
Nominal AC voltage ( range* ) | 230V | |
AC grid frequency ( range* ) | 50Hz/60Hz | |
Max. output current | 50A | |
Adjustable power factor | 0.8leading...0.8lagging | |
THD | <3% | |
AC grid connection type | Single | |
Battery Data (DC) | ||
Battery voltage range | 40~60V | |
Max charging and discharging current | 200A | |
Continuous charging and discharging power | 10000W | |
Type of battery | Lithium/Lead-acid | |
Backup Power(AC) | ||
AC nominal output power | 10000W | |
Nominal AC output voltage | 230V | |
Nominal AC output frequency | 50/60Hz | |
Switch time | <10ms | |
Efficiency | ||
Max. efficiency | 98.10% | |
European efficiency | 97.60% | |
MPPT efficiency | 99.9% | |
Protection Devices | ||
PV Switch | Yes | |
AC over current protection | Yes | |
AC over voltage protection | Yes | |
Ground fault monitoring | Yes | |
Grid monitoring | Yes | |
Anti-islanding protection | Yes | |
Residual-current monitoring unit | Yes | |
Insulation resistance monitoring | Yes | |
AFCI Protection | Yes | |
Surge protection | DC Type II / AC Type II | |
General Data | ||
Dimensions (W / H/ D) | 830*440*255mm | |
Weight | 36kg | |
Operating temperature range | -25°C ~ +60°C (-13 ~ +140°F)with derating above 45°C/113°F | |
Noise emission (typical) | ≤30 dB(A) | |
Self-Consumption < | <60W | |
Topology | transformer-base | |
Cooling | Smart cooling | |
Protection degree | IP65/NEMA4 | |
Relative humidity | 0~100% | |
Altitude | 2000m | |
DC connection | Quick Connector | |
Display | LCD | |
interface: RS485/CAN/USB | Yes | |
Mointor: RF / WiFi / GPRS | Opt | |
Warranty | 5 Years | |

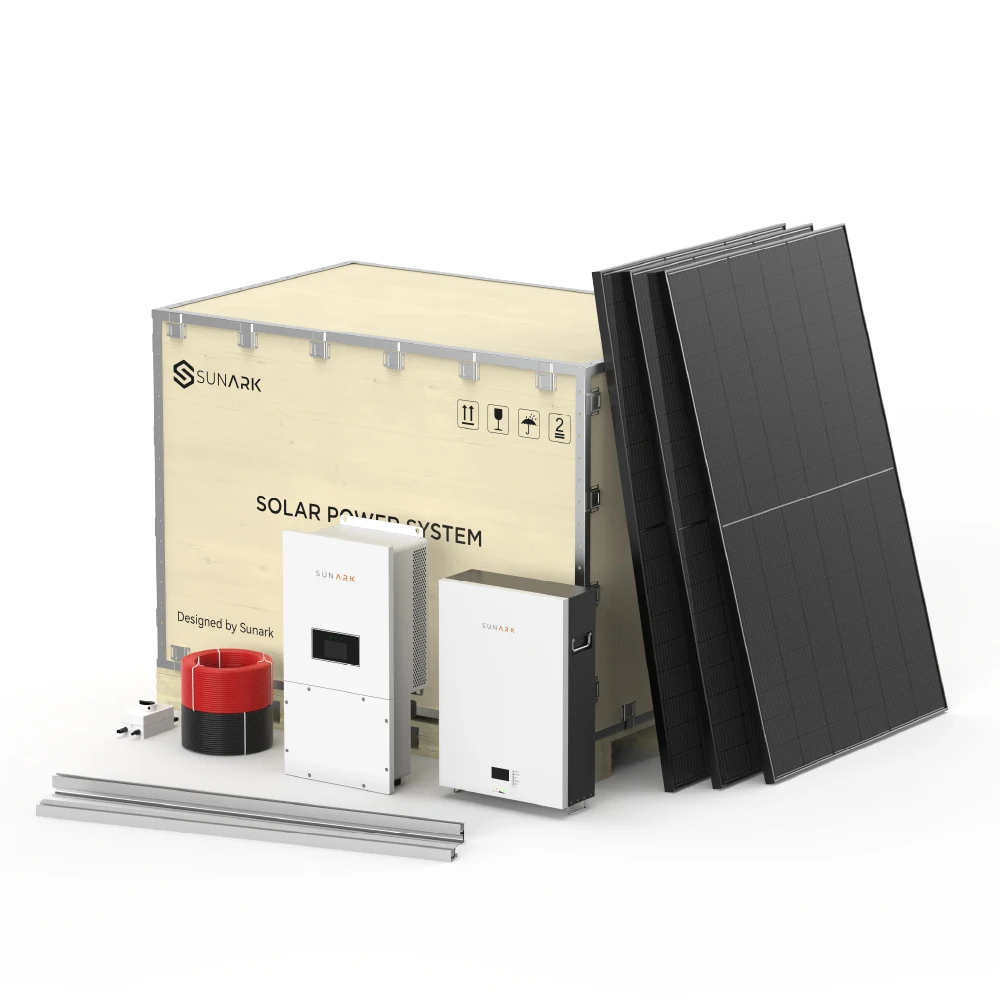

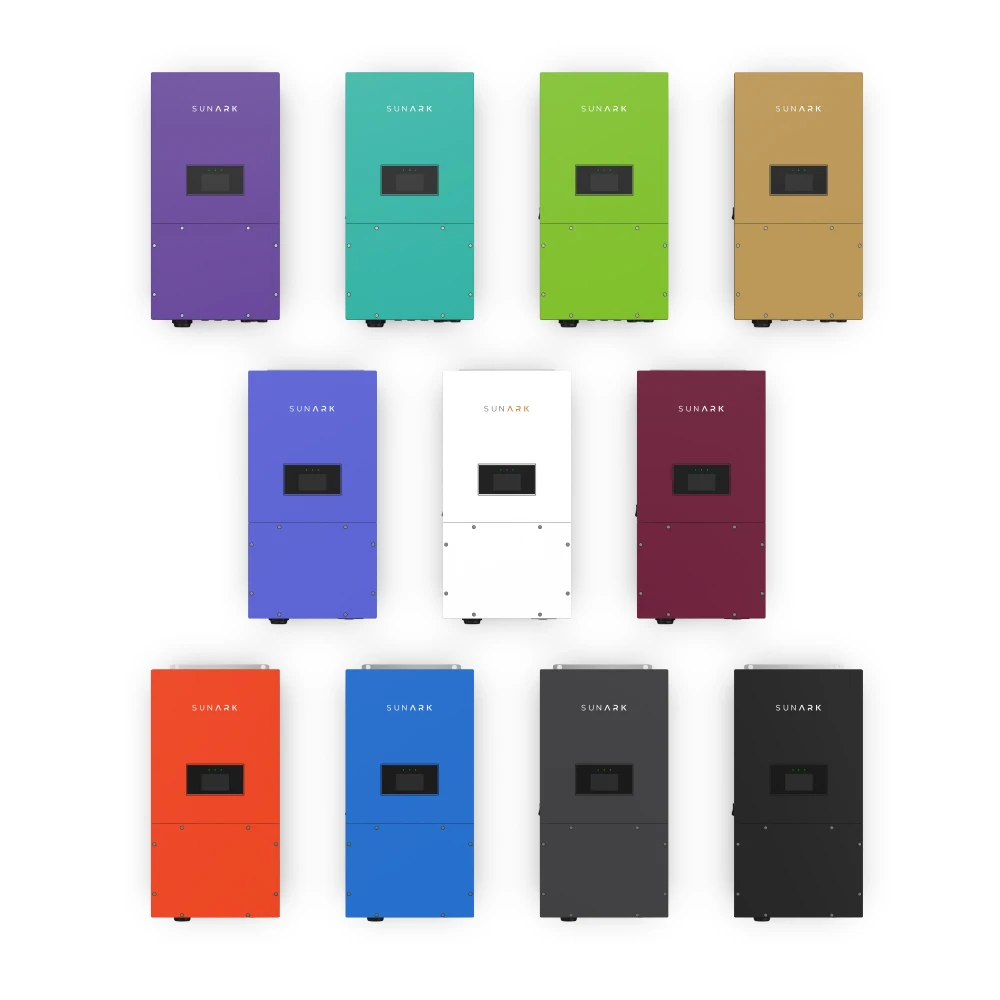

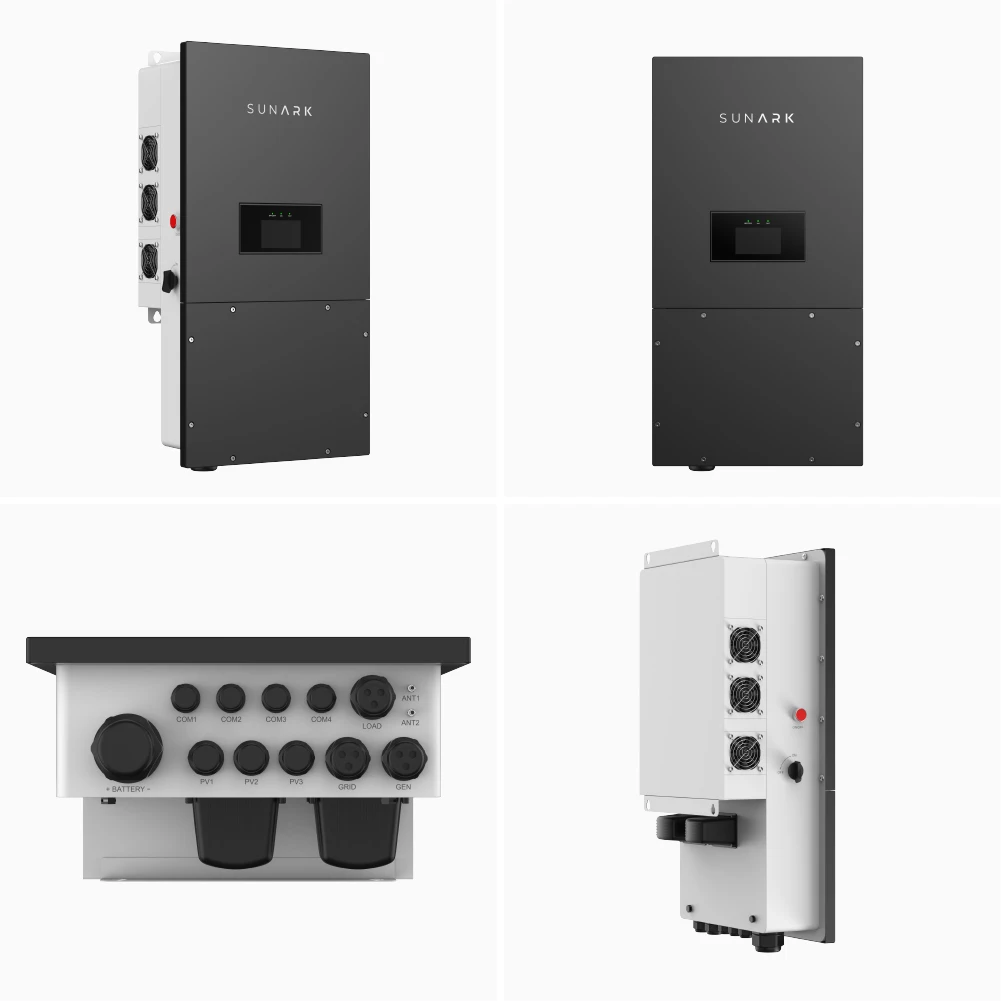

Pictures and Packages

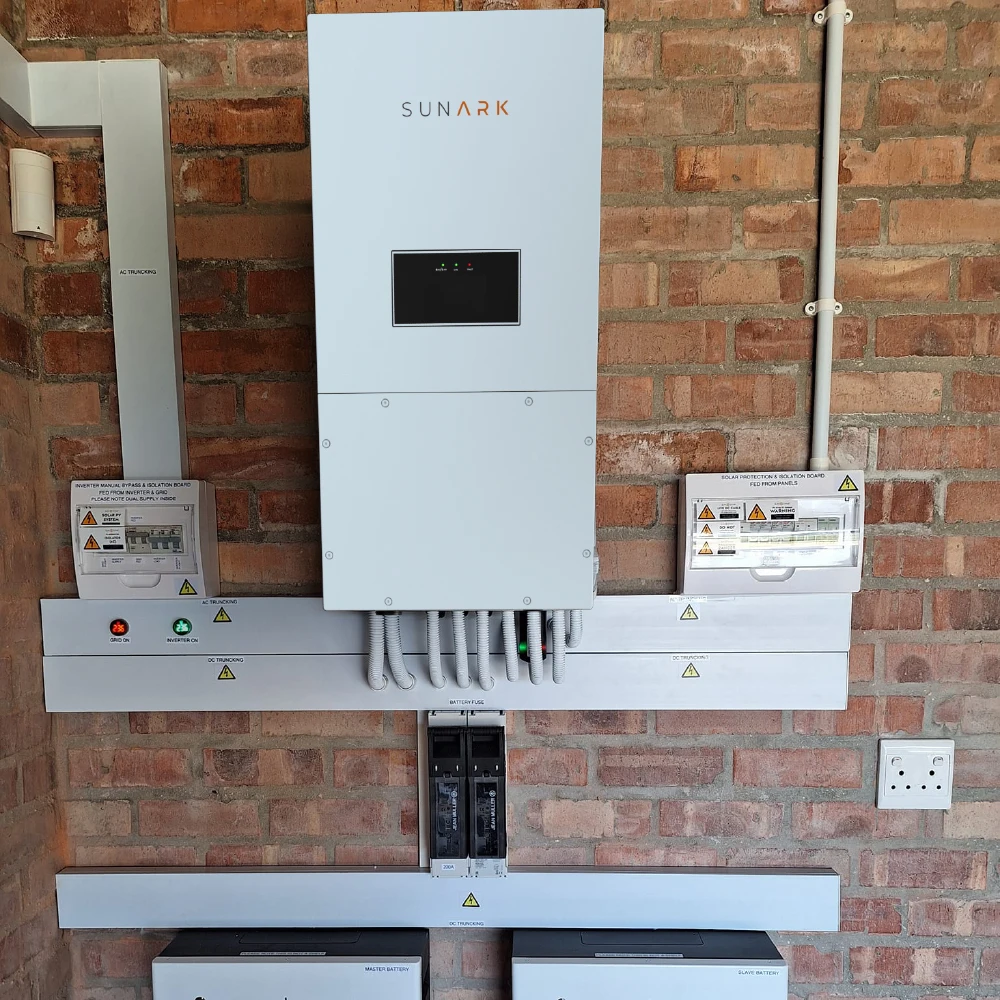

Applications

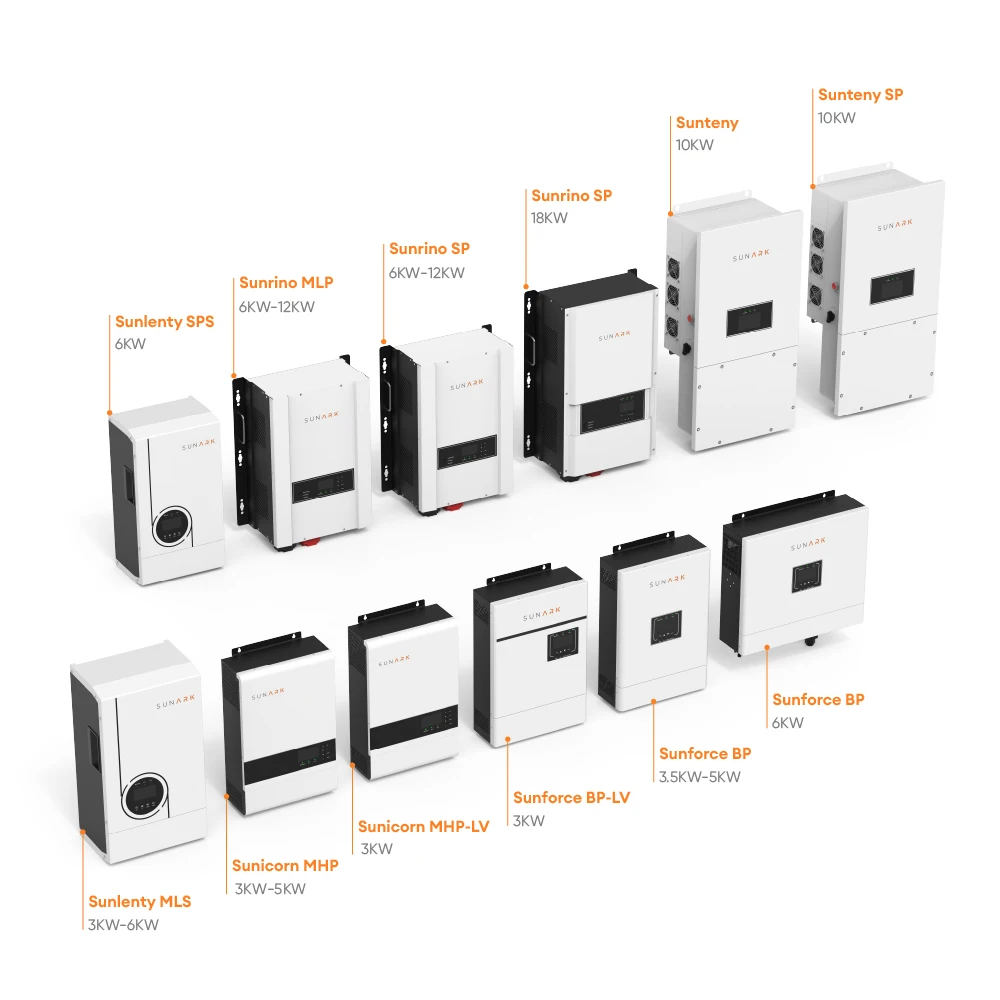

Products Series
Sunrino MLP 6KW-12KW
Output Power: 6KW-12KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunteny SP 10KW
Output Power: 10KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunicorn MHP-LV 3KW
Output Power: 10KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunforce BP 3-5KW
Output Power: 3.5KW-5KW EU Single Phase
Output Voltage: 220/230/240VAC Battery Voltage: 48VDC
Sunlenty MLS 3-6KW
Output Power: 3KW-6KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunicorn MHP-C 5KW
Output Power: 5KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 48VDC
Sunrino SP 18KW
Output Power: 18KW Split Phase Output Voltage: 120/240VAC Battery Voltage: 48VDC
Sunforce BP-LV 3KW
Output Power: 3KW US Single Phase Output Voltage: 100/110/120VAC Battery Voltage: 48VDC
Sunicorn MHP 3KW-5KW
Output Power: 3KW-5KW EU Single Phase Output Voltage: 220-240VAC Battery Voltage: 24/48VDC
Our Factory
SunArk factory is located in Shenzhen City, China. With more than 30,000 m2 area, our factory is equipped with advanced
manufacturing facilities and adheres to the highest quality standards, ensuring the production of reliable and high-performance inverters. At our inverter factory, we prioritize innovation and technological advancements. We employ a team of skilled engineers and technicians who are dedicated to developing and improving our inverter products. We closely monitor market trends and customer feedback to ensure that our inverters meet the ever-changing demands of the industry.
manufacturing facilities and adheres to the highest quality standards, ensuring the production of reliable and high-performance inverters. At our inverter factory, we prioritize innovation and technological advancements. We employ a team of skilled engineers and technicians who are dedicated to developing and improving our inverter products. We closely monitor market trends and customer feedback to ensure that our inverters meet the ever-changing demands of the industry.
Company Profile
Our Factory
SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
