3 палубы, вибрационный экран, качающийся просеиватель для зерна и порошка
151 810,26 ₽ - 162 653,85 ₽
Высокоэффективный линейный вибрационный экран для обезвоживания песка новое состояние применения руды машина просеивания продажа
- Категория: >>>
- Поставщик: Xinxiang City Zhouchi Machinery Equipment Co. Ltd.
Сохранить в закладки 1601270543196:
Описание и отзывы
Характеристики
Product Description

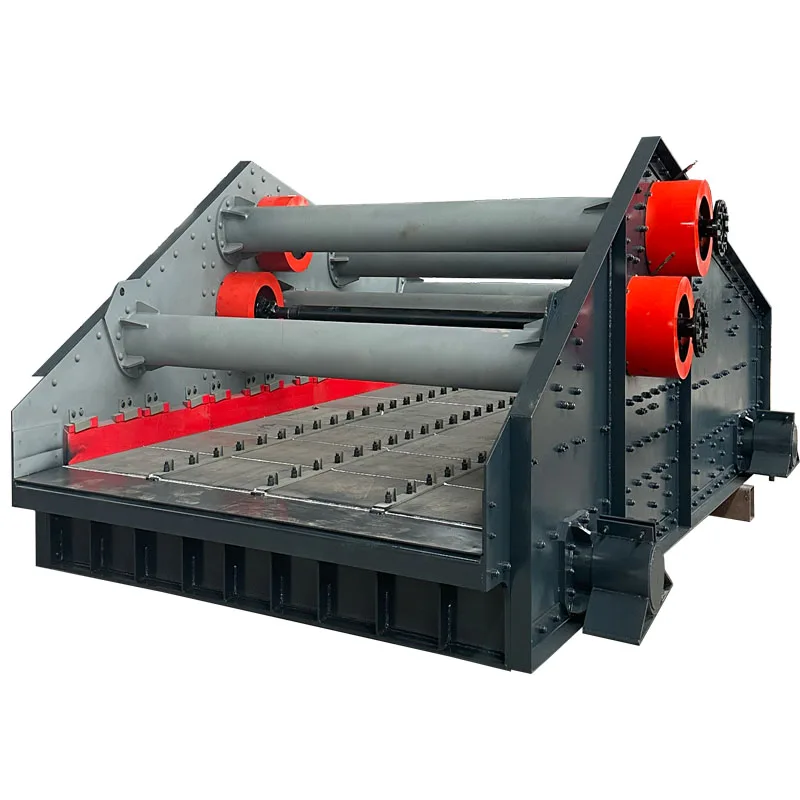

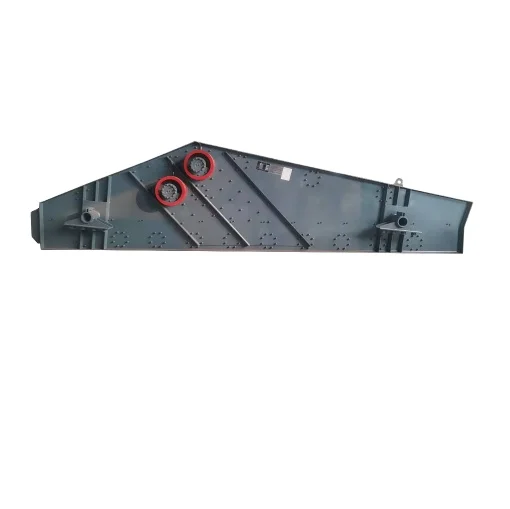

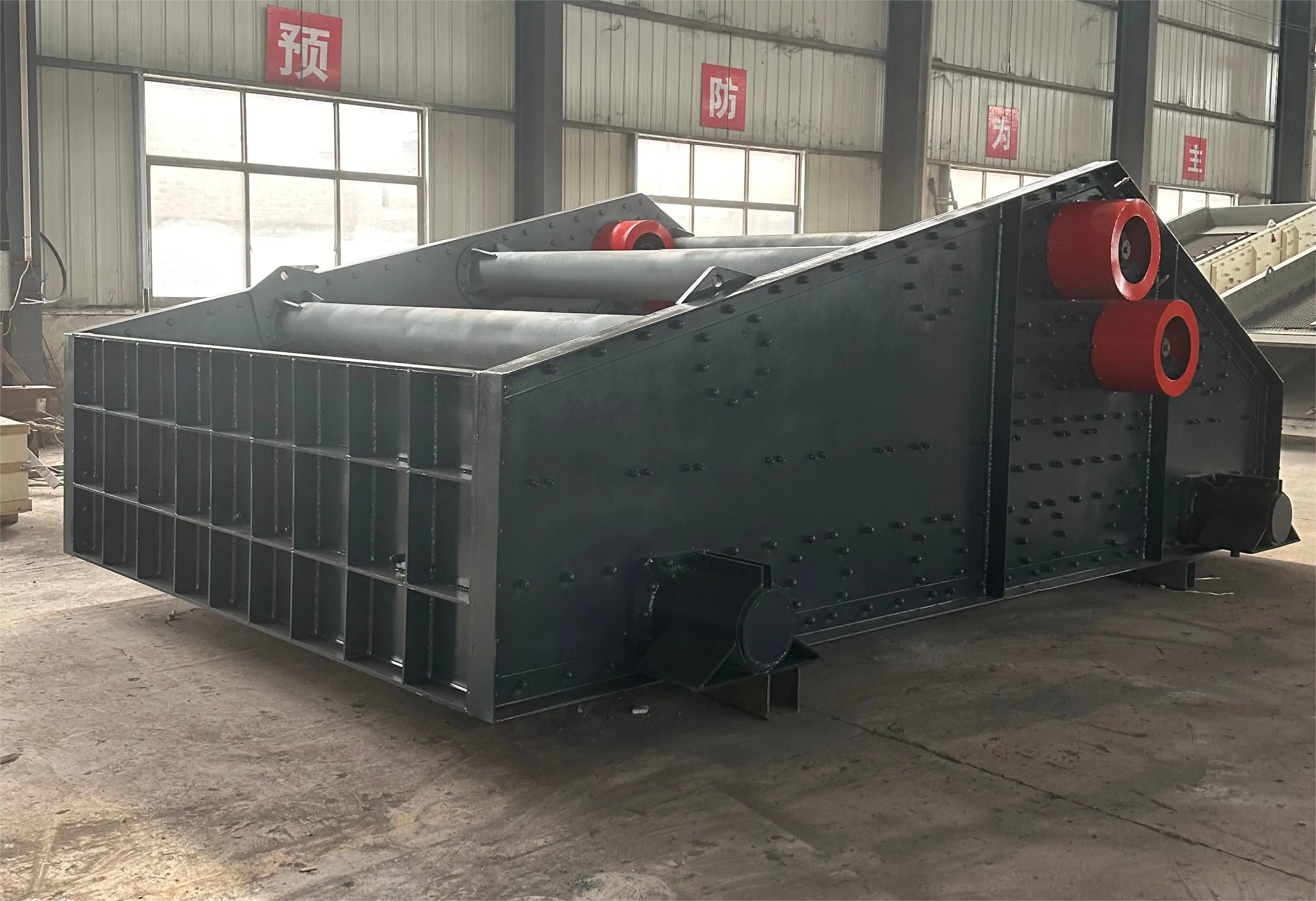

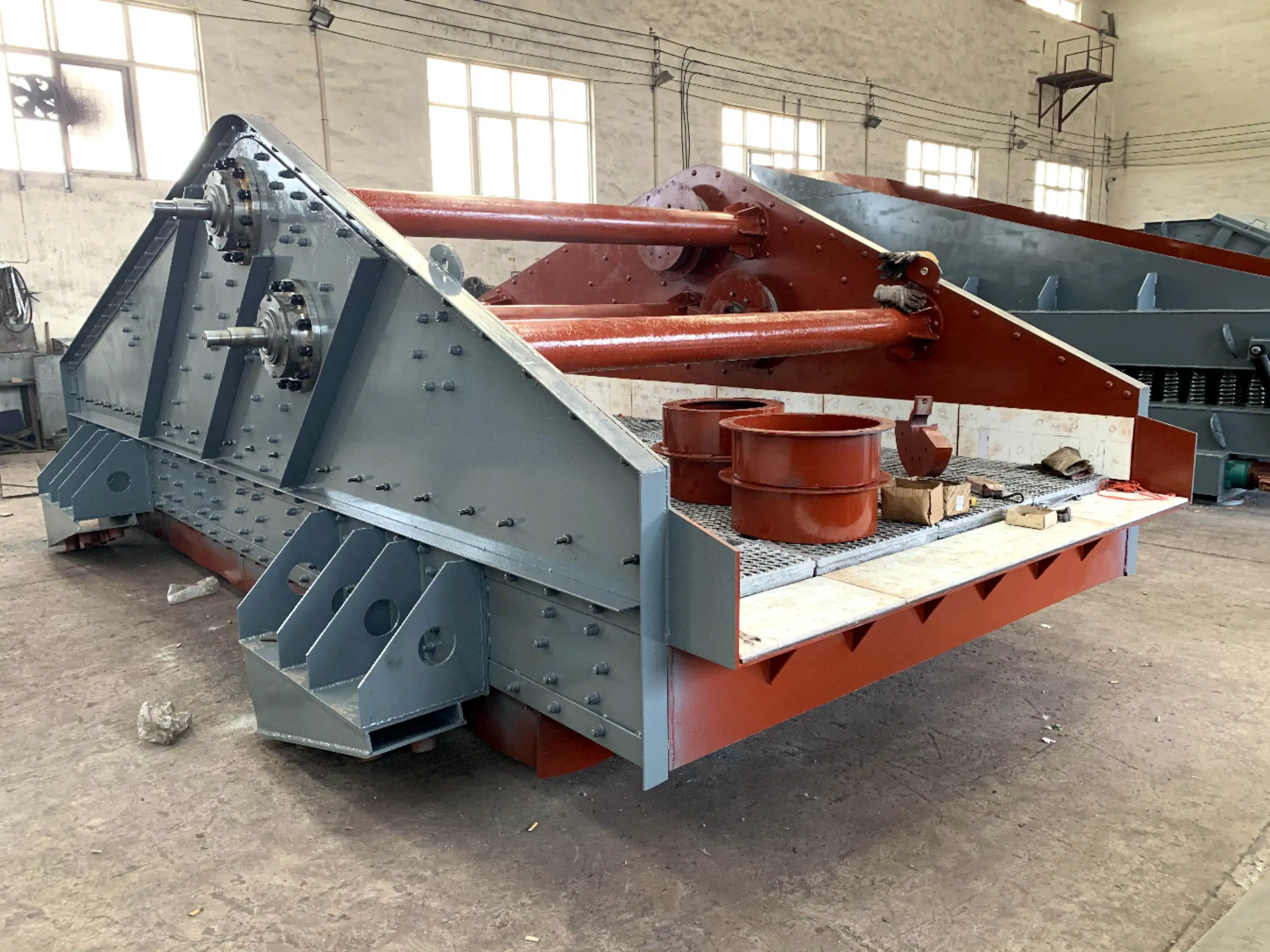

ZSK-2460 coal washing and cleaning dewatering screen linear dewatering screen
1. Introduction
ZSK-2460 cleaned coal descaling screen, the main function is dehydration, descaling, descaling, used for coal industry
intermediary coal washing plant cleaned coal, medium coal, coal slime, coal gangue and other materials classification dehydration,can also be used for sand, ore classification and dehydration.
ZSK-2460 cleaned coal descaling screen, the main function is dehydration, descaling, descaling, used for coal industry
intermediary coal washing plant cleaned coal, medium coal, coal slime, coal gangue and other materials classification dehydration,can also be used for sand, ore classification and dehydration.
2.Working principle
Using double motor drive self-synchronization technology, shaker through the winding coupling drag, two groups of shaker
synchronous reverse rotation, the eccentric block generated vibration force in parallel to the motor axis in the direction of each other offset, in the direction perpendicular to the motor shaft stacked as a resultant force, thus forming a single vibration along the direction of the vibration force, the two axis relative to the screen surface has a dip Angle, Under the action of vibration force, the screen box does reciprocating linear motion, the material on the screen surface is thrown up jumping forward for linear motion, so clean coal demesing screen is also called linear dehydration screen.
3.Product feature
1. Using block eccentric or thin oil vibrator as vibration force, strong vibration force, maintenance-free;
2. Screen beam and screen box adopt riveting process, no welding;
3. The whole machine has high structural strength, high screening efficiency, large processing capacity and long life;
4. Adopt coupling, flexible connection, smooth running;
5.NG bearing, machine bending, boring, heat treatment;
6. High wear-resistant screen plate, 304 stainless steel screen plate long service life, modular assembly design, easy to replace.
2. Screen beam and screen box adopt riveting process, no welding;
3. The whole machine has high structural strength, high screening efficiency, large processing capacity and long life;
4. Adopt coupling, flexible connection, smooth running;
5.NG bearing, machine bending, boring, heat treatment;
6. High wear-resistant screen plate, 304 stainless steel screen plate long service life, modular assembly design, easy to replace.
7, the design of frequency, amplitude, low power source, suitable for a variety of dehydration needs 24 hours continuous dry discharge operation.
Through many years of production practice, it has been proved that this series of screening machine has a large capacity,
reasonable technical parameters, high structural strength, stiffness, serialization, universality, high degree of standardization,stable and reliable operation, low noise, convenient maintenance and repair and a series of advantages.
Through many years of production practice, it has been proved that this series of screening machine has a large capacity,
reasonable technical parameters, high structural strength, stiffness, serialization, universality, high degree of standardization,stable and reliable operation, low noise, convenient maintenance and repair and a series of advantages.
Attribute name | Attribute data | Attribute name | Attribute data |
Place of origin | Xinxiang, Henan | Model | ZSK-2460 |
Material | Q235/304 | Screen size | 0.5mm |
Application | Grading/filtering/impurity removal / descaling/descaling/dehydration | Number of screen layers | 2 layers |
Feed size | 0-50mm | Screen/screen plate | Seam/polyurethane/stainless steel/rail seat/punching |
Processing capacity (t/h) | 0-300 | Application area | Chemical industry, metallurgy, petroleum, coal, mineral processing, electricity, heavy medium coal washing, sand and stone industries, etc |
Recommend Products
Company Profile
Certifications
Exhibition
Customer Photos

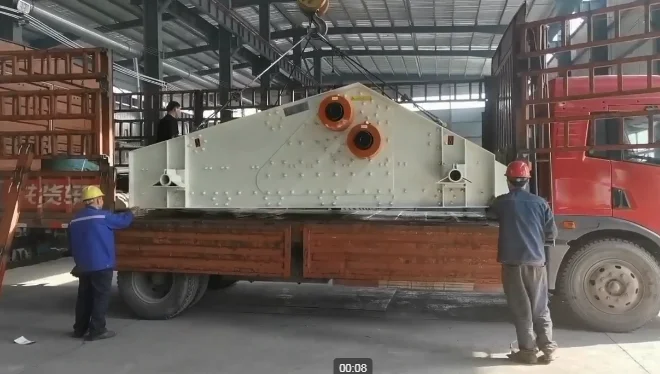

Product packaging
