Переключатель с 2 скоростями
3 172,41 ₽ - 5 360,28 ₽
Перекрестный переключатель положения головки
- Категория: >>>
- Поставщик: Toptech Machinery Wuxi Co. Ltd.
Сохранить в закладки 1601270579941:
Описание и отзывы
Характеристики
Product Description
The new position limit switch designed for controlling the movement of overhead travelling cranes, hoists and complex machine tools. Sturdy and reliable, it is particularly suitable for use in harsh operating conditions. This crossed rods limit switch triggers a slowing of the machines before the stop. This smooth braking sensibly reduce the risk of crashing due to sudden halts.
They are fitted with 4 micro switches .and It functions both clockwise and counter clockwise.
They are fitted with 4 micro switches .and It functions both clockwise and counter clockwise.
Rotary Limit Switch Features:
1. Sturdy design Long life
2. Requires less maintenance
3. High cost performance and reliable
1. Sturdy design Long life
2. Requires less maintenance
3. High cost performance and reliable
Technical Parameter

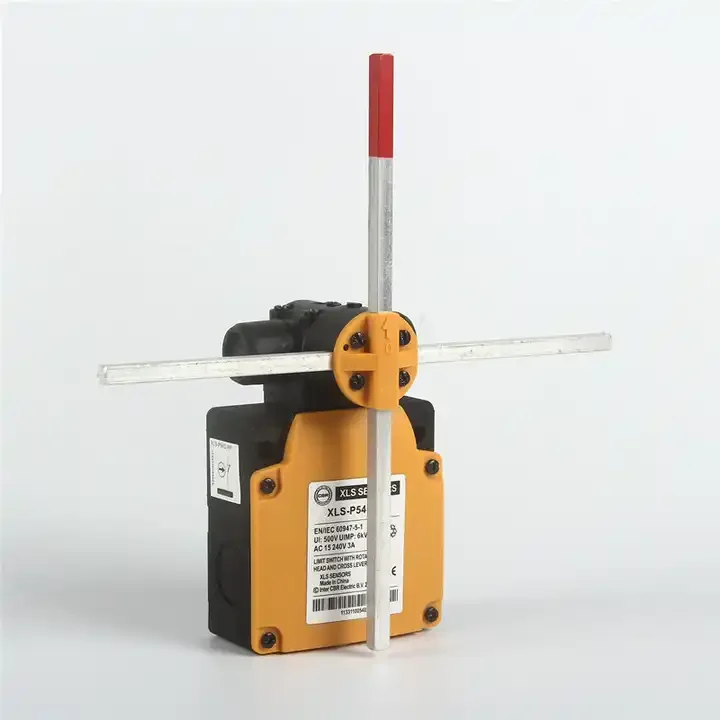

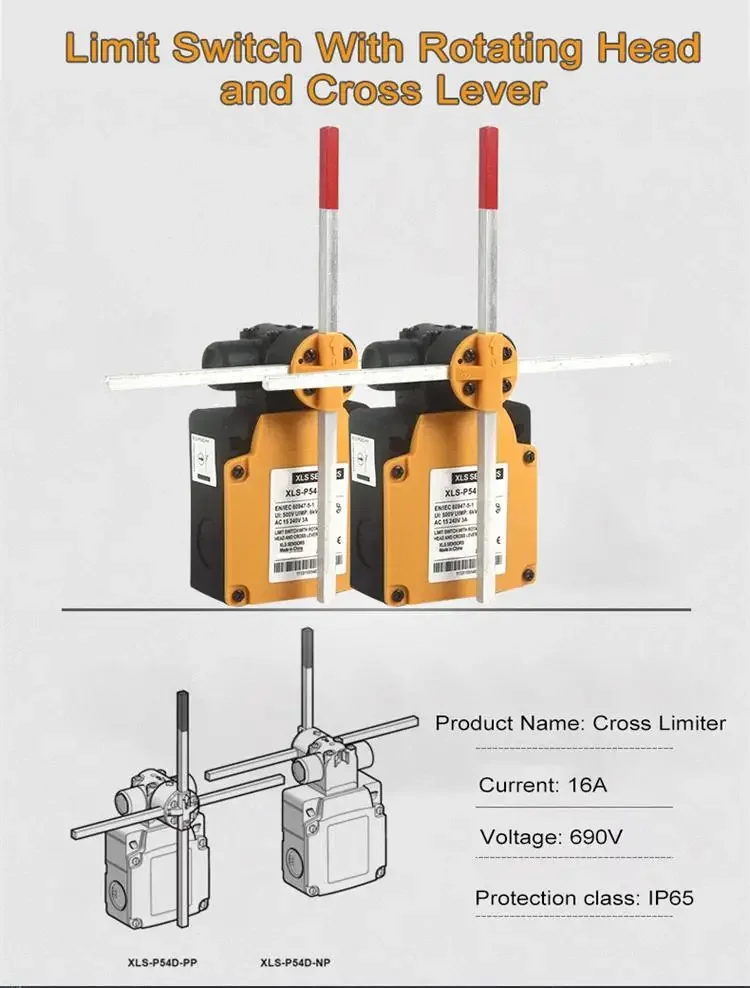

Produce Name | Crane Cross Limit Switch |
Model | XLS-P54D-PP/XLS-P54D-NP |
Case | Glass fiber reinforced,thermoplastic |
Actuator Type | Crossed Rods Lever |
Movement of operating head | Rotary |
Type of operator | Stainless steel |

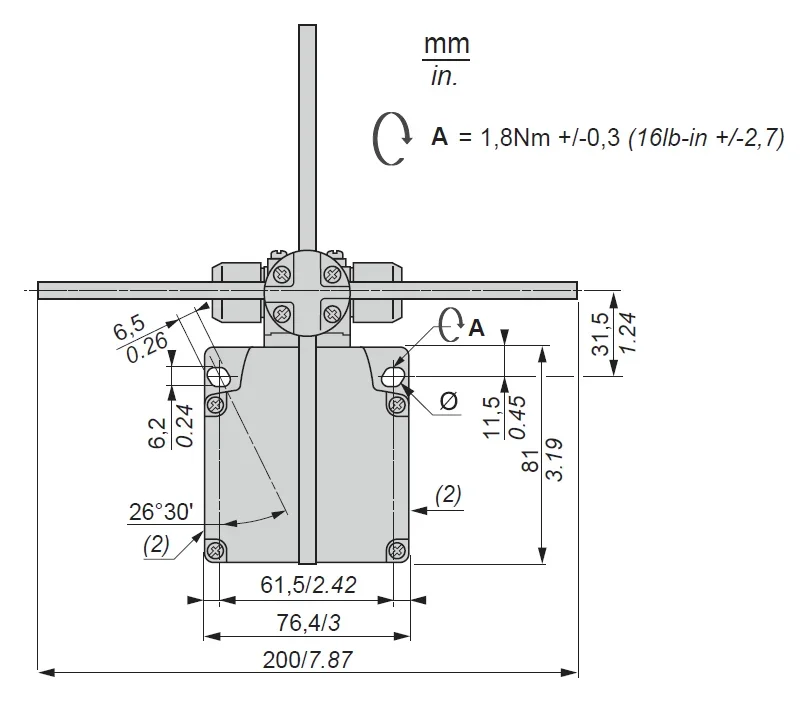

Fixing type | Stay put crossed rods lever metal (square rod 6 mm, L = 200 mm) |
Type of approach | Lateral approach 2 directions |
Number of poles | 4 |
Contact operation | Slow-break, staggered |
Contact Type & Operation | 2 x (2 NC) |
Cable entry | Cable clamp M20 |
Markings and homologations | CE |
Conformity to Standards | EN 60947-5-1 |
Rated insulation voltage | 500 V AC |
Utilisation category | AC 15 |
Rated operational voltage | 250 V AC |
Rated impulse withstand voltage | 6 kV |

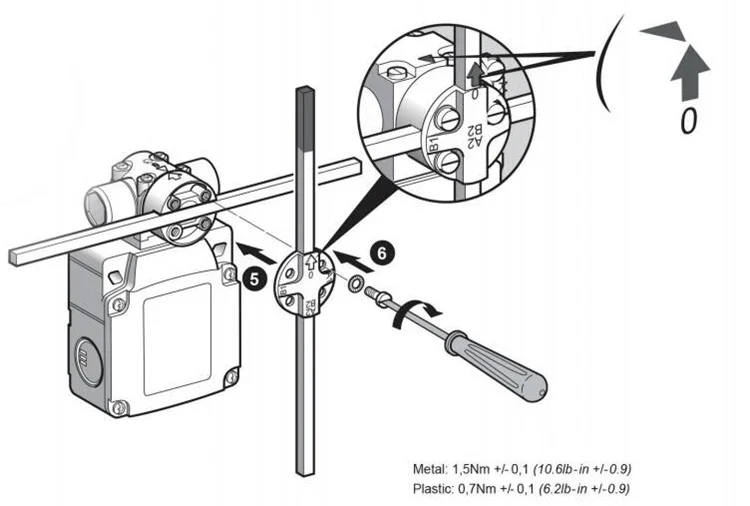

Product Installation

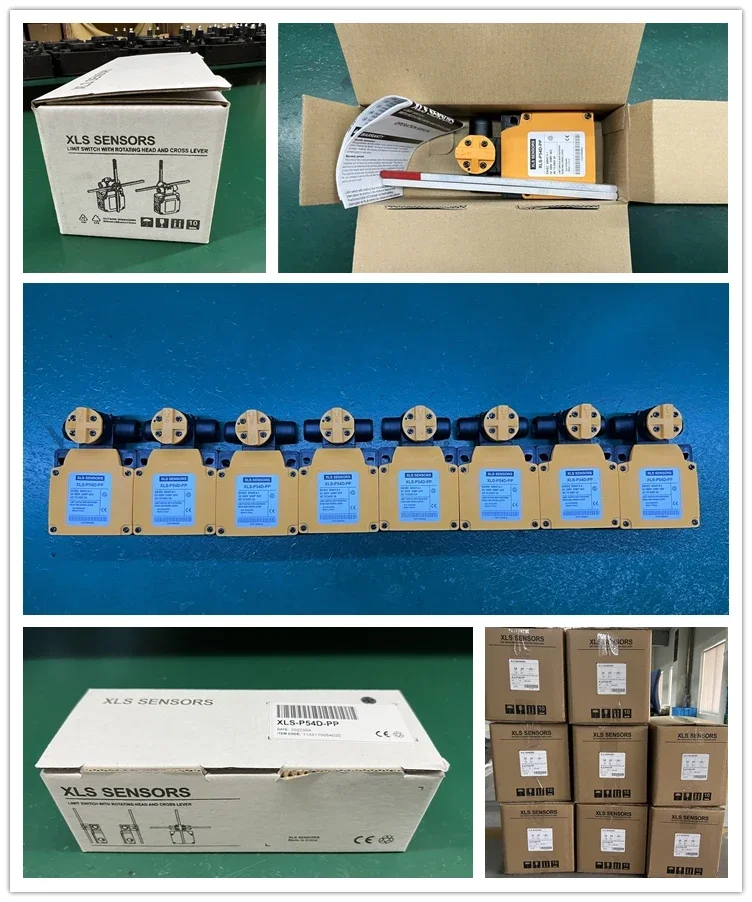

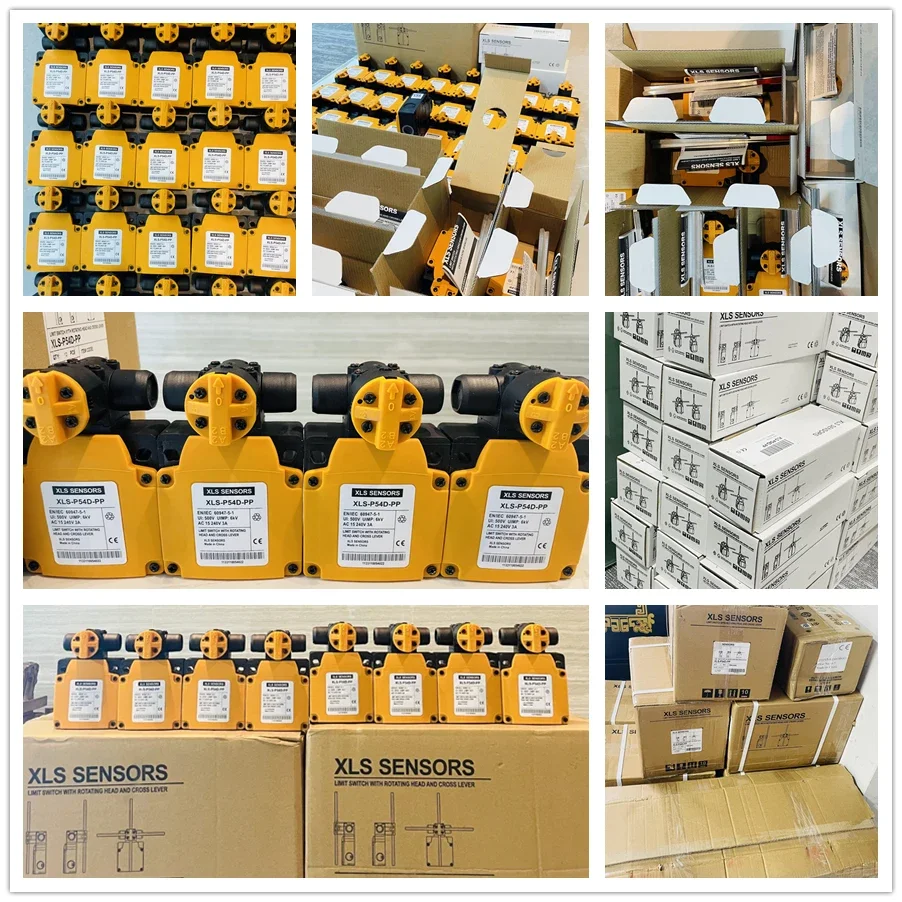

Packaging & Delivery
Company Profile
TOPTECH MACHINERY WUXI CO., LTD is a comprehensive enterprise in lifting equipment industry. We are
specialized in various electric hoist, electric overhead crane, crane component and other related
products.
The electric crane & hoist produced by our company have the advantages of low noise, light weight,
compact structure, superior performance, safe and simple operation, easy installation and maintenance,
and etc.
Our products are widely used in material handling, machining, mold development, industrial automation
assembly line, product assembly, wind power generation and other industries.
We keep learning new design concept and the advanced product development of the world crane
industry, and always focus on the benefit of our clients.
Our mission is to provide the most suitable material handling equipment for our clients, to lift up
business value of partners.
Our core values are Reliability and safety. Safety is key to performance. Protecting your staff and
equipment is part of our dedication to zero harm.
specialized in various electric hoist, electric overhead crane, crane component and other related
products.
The electric crane & hoist produced by our company have the advantages of low noise, light weight,
compact structure, superior performance, safe and simple operation, easy installation and maintenance,
and etc.
Our products are widely used in material handling, machining, mold development, industrial automation
assembly line, product assembly, wind power generation and other industries.
We keep learning new design concept and the advanced product development of the world crane
industry, and always focus on the benefit of our clients.
Our mission is to provide the most suitable material handling equipment for our clients, to lift up
business value of partners.
Our core values are Reliability and safety. Safety is key to performance. Protecting your staff and
equipment is part of our dedication to zero harm.
FAQ
Q. What's the information should I provide when inquiry on Electric crane and electric hoist?
More parameters, more better.
Lift capacity ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
Plesee provide us the rquest lifting capacity, lifting height, span, power supply, building dimesnsion etc.
And if you can give us your design drawing, that will be very helpful.
Q.Which kind crane can you provide?
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
Contact information
Contact us
Olivia Wu
TEL:+86-0510-66651066
Mobile:13357907067
Wechat:13357907067
Email :info@toptechoist.com toptechoist@hotmail.com
TEL:+86-0510-66651066
Mobile:13357907067
Wechat:13357907067
Email :info@toptechoist.com toptechoist@hotmail.com
Похожие товары
Переключатель с 2 скоростями
3 172,41 ₽ - 5 360,28 ₽
Новый 2-ступенчатый походный поперечный стержень с поворотным переключателем положения головки для движения крана для производственных предприятий
3 172,41 ₽ - 5 360,28 ₽

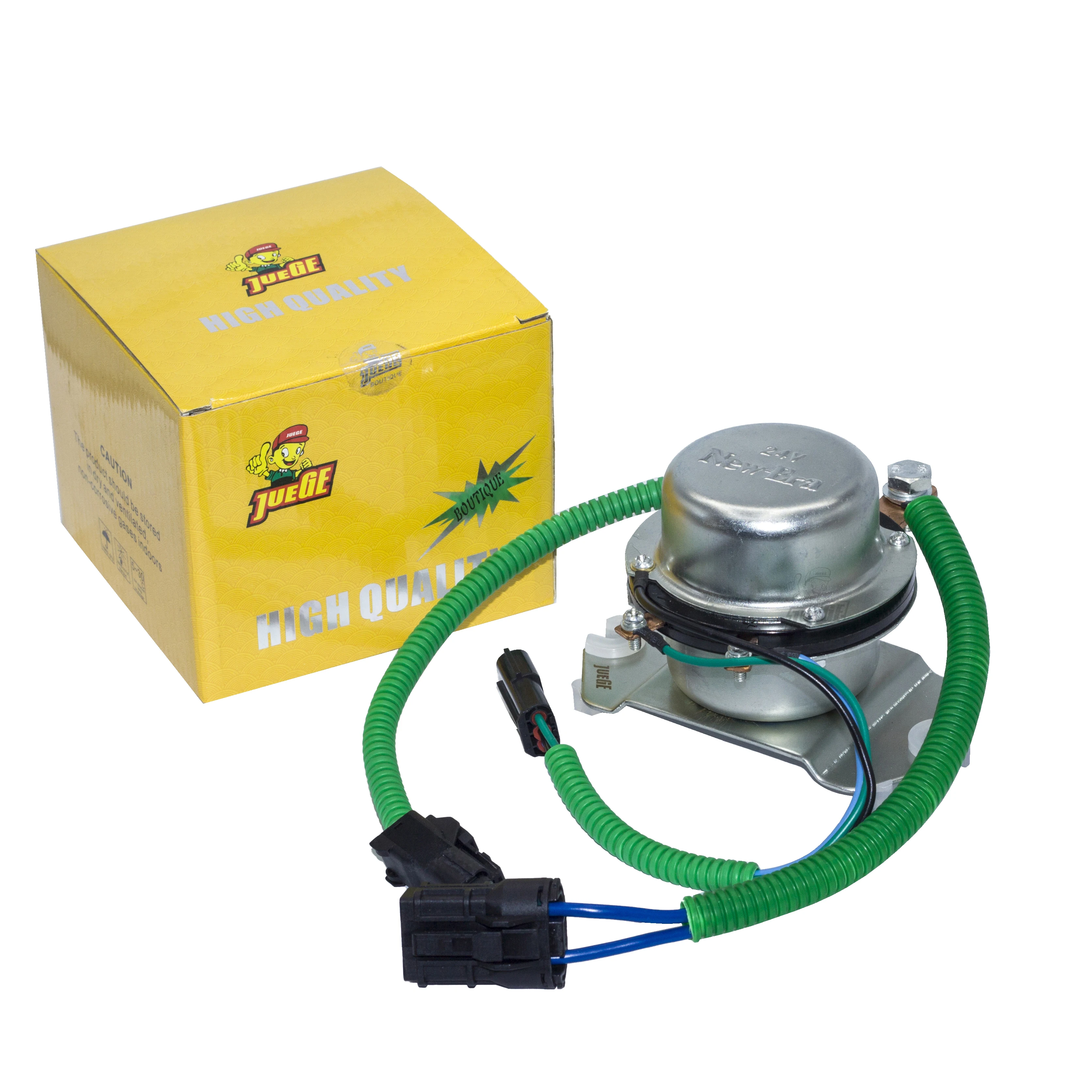

Реле аккумуляторной батареи для экскаватора YN24S00008F1, реле стартера с положительным полюсом 24 В для SK200-8, SK350-8 реле аккумуляторной батареи
Новые Двухступенчатая походная поперечная тяга с поворотным переключателем положения головки для движения крана для производственных предприятий
3 172,41 ₽ - 5 360,28 ₽

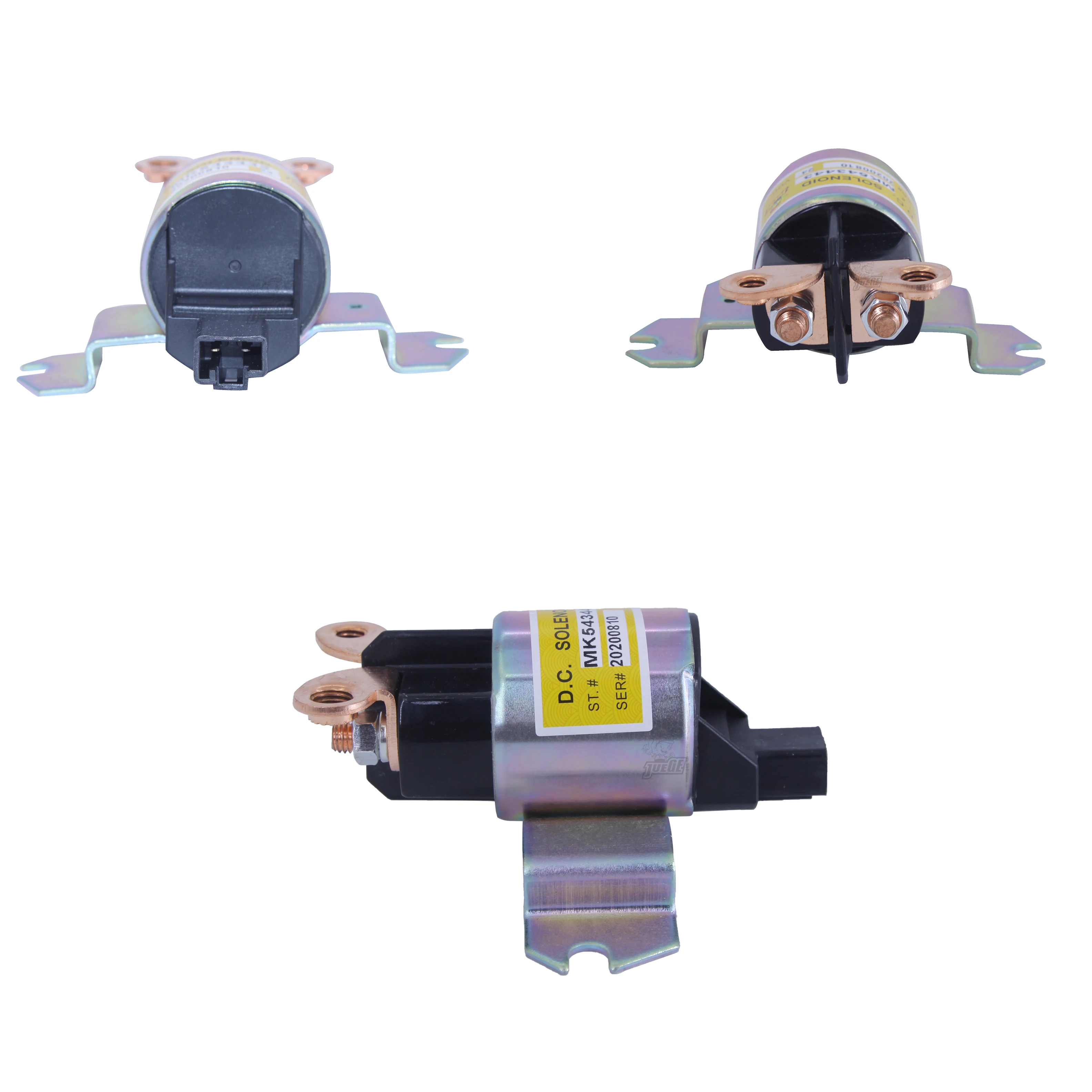

MK543443, реле экскаватора, переключатель батареи, 543443, реле стартера JUEGE
E320 монитор экскаватора 7 y-5500 7Y5500 1100-ks8000 111-4748
49 262,04 ₽ - 53 084,25 ₽

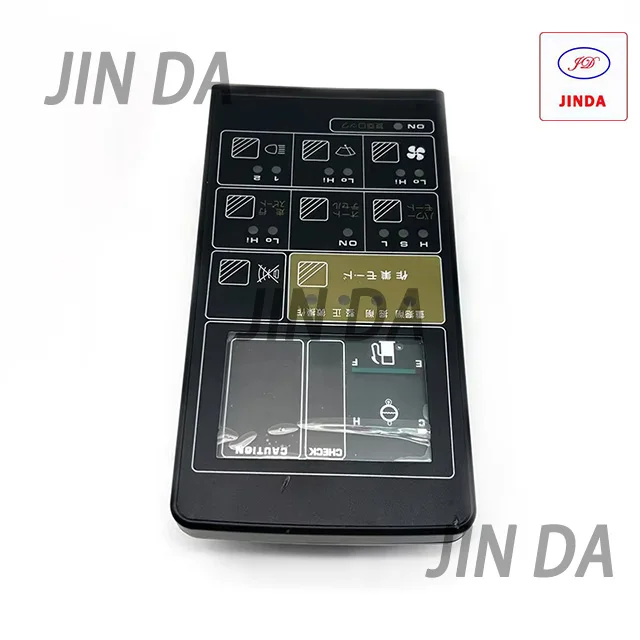

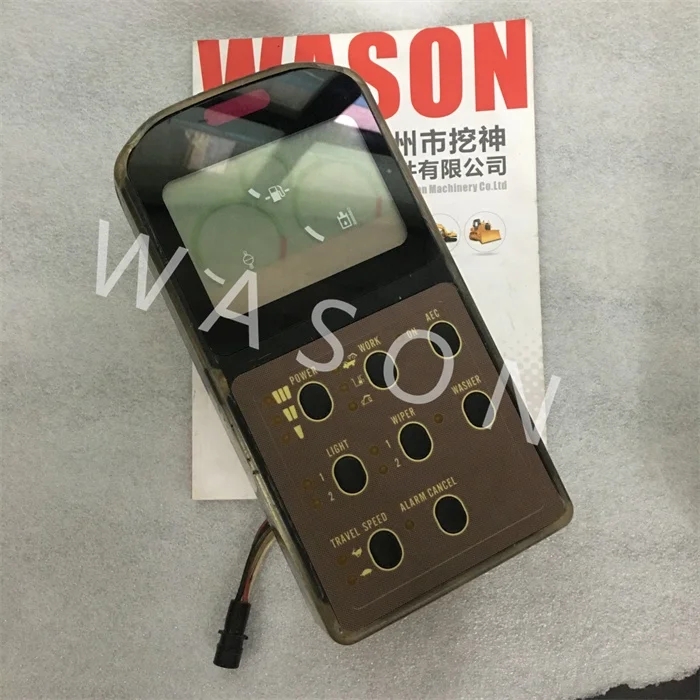

Komatsu экскаватор монитор PC-5 PC-6 PC-7 PC-8 ЖК-дисплей экран управления приборной панелью Pc400-7 Pc200-7 Pc220-7 Pc300-7
