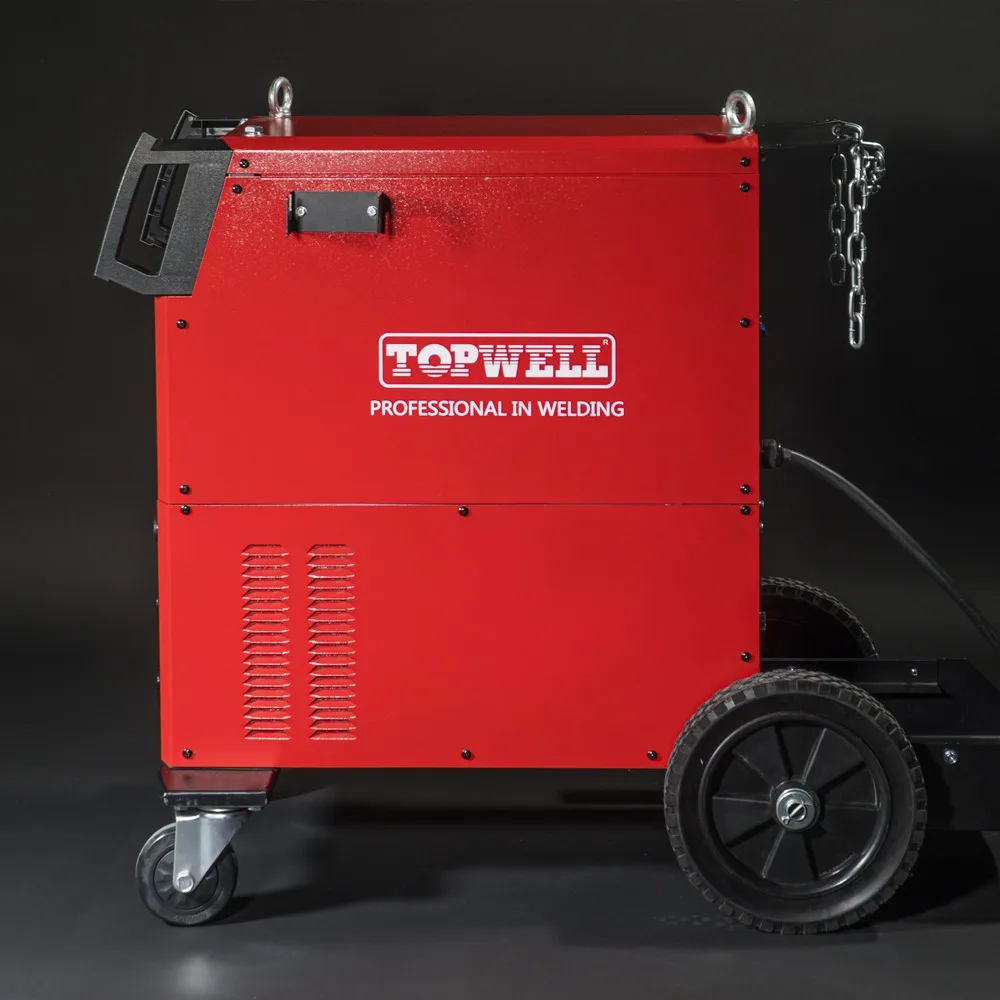

HITBOX сверхмощный сварочный аппарат CO2 NBC350
48 644,01-52 037,78 ₽
Двойной Импульсный сварочный аппарат 380 В цифровой алюминиевый спиральный дуговой трансформатор Mig с движущимися колесами 360
- Категория: >>>
- Поставщик: Hangzhou Topwell Technology Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601270837361:
Описание и отзывы
Характеристики
PROMIG 360XP
Advanced Features
*Excellent Arc Performance - By the Advanced Wave Control system, the PROMIG 360XP optimized the maximum performance with the most common filler metals, wire diameters and gas mixtures for: - M.S.:0.8~1.2mm - S.S.: 0.8~1.2mm - AL.: 0.8~1.2mm
*High Speed Pulse MIG (HSP) -Specifically designed for demanding workshop use, the deposition rate can increase 25~48 % for mild steels by comparing with MAG process.
*Vertical-up Welding Process - Makes the vertical-up welding simpler and easier for everyone.
*Superior aluminum performance - The upgraded pulse MIG has higher peak current and larger energy reserve. The perfect waveform achieves the heat control for aluminum welding, and virtually eliminates burn-through and warping issues on thinner materials. With double pulse, no need to swing, get better weld quality and appearance.
*Synergic Control - Set weld procedures with one control. Just easily takes 3 Steps to achieve weld perfection.
*Improves Operation Process & Controls - Initial Arc control, Burn Back control, Arc Length control, Dynamic control, these make an easier operation and handling for welding.
* Optional: Advanced Stainless Steel package for TIG-like welding performance

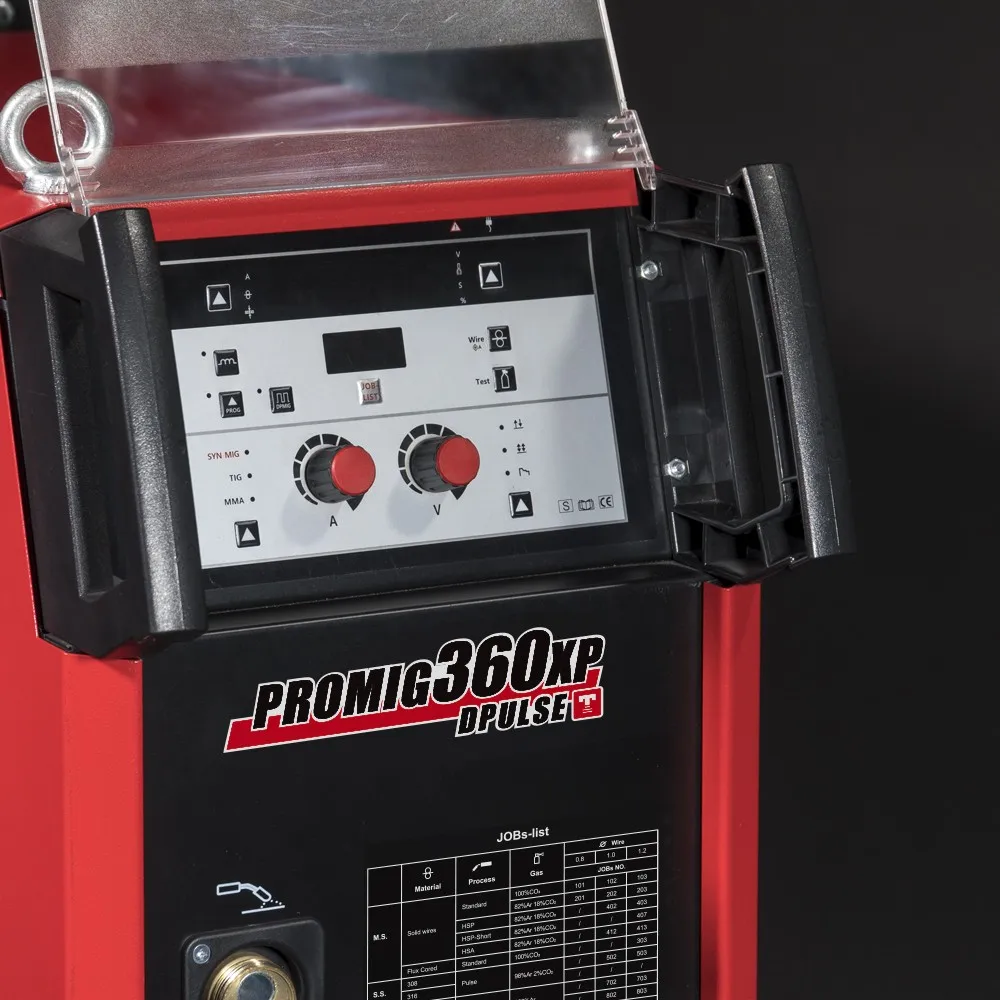

Simple Operation
3 Steps to achieve weld perfection
1. Select operation mode.
2. Select Job-list No.
3. Adjust welding current.
2. Select Job-list No.
3. Adjust welding current.
Always the perfect setting by the synergic
function using the material thickness.
Separated wire feeder & remote control, robotic ready (as optional)
Robotic with advanced MIG process package, achieve ultra-high efficient welding with perfect welding performance. Optional package for robot interface by Analog connectors or Digital ports including EtherNetlP, DeviceNet, CAN, CANOPEN, RJ485 etc.
Better Aluminum Welding Process
• Pulse MIG with larger current difference
The PROMIG 360XP is an upgraded module and machine that is compatible with more advanced pulse processes. The PROMIG 360XP improves on the standard pulsing process to provide a higher peak current and a larger current difference that is more suitable for aluminum alloy welding. As wire speed increases/decreases, the pulse or MIG parameters also increase/ decrease to match the right amount of power needed to achieve a more perfect welding curve.
• Double Pulse MIG
The double pulse is a combination of the Pulse MIG process and the variation of the high and low currents, with the low pulse section providing cooling time to the melt pool while simulating the oscillation so that the melt pool oscillates. So no need to swing, You can easily get a cosmetically pleasing weld seam, with significantly lower and more controller heat input into the workpiece. It results in much lower distortion and less rework for Aluminum sheets.
By Double Pulse process, the heat input of arc is alternating, effectively reducing the heat input of base metal. It reduces the occurrence of welding defects such as crack. Welding quality is comparable to TIG process.
Advanced Technologies for Higher Efficiency
• HSP - High Speed Pulse
①Specifically designed for demanding workshop use,the deposition rate can increase 25~48 % for various materials, whether used in manufacturing thick materials or sheet metal.
②The High-Speed Pulse(HSP) process enables you to save time, money, and energy compared to traditional pulse welding. This process is ready to raise pulse welding to a whole new level!
③In general, One pulse melt one droplet, but we increase the submission of these droplets by TOPWELL’ s New High-Speed pulse process.The transition will be faster, narrower HAZ zone and deeper penetration!
Get better welding seam
Less heat input, less spatters, less rework
Get higher welding strength
Deeper penetration, no undercut defects, higher strength.
• HSA - High Speed Spray Arc
The perfect combination of a highly concentrated and extremely stable arc with high density. HSA delivers deeper penetration, narrower heating zone, allows smaller opening angles for multi-layer welding, significantly improves the welding speed up to 30% faster than conventional MIG-MAG welding. It makes welding more efficient and more economical.
Smaller opening angle
Deeper penetration
More material saving
Higher welding efficiency
• ULS - Ultra Low Spatters
The ULS process is a modified short-arc transfer arc, it controls the volatility during the change of state between short and arc to control the amount and size of the spatter generated. Even in CO2 and MAG welding, it can minimize the spatters, which means less rework, fewer rejects, less cleaning required and savings on wearing parts.
• HSS - High Speed Spot Technology
HSS is the high speed spot welding, which is perfectly combining the welding process, arc physics, high dynamic power response and powerful motor control technology, short in arc ignition time and arc ending time, a welding spool can be formed swiftly. A spot welding cycle is quickly completed, cycle over and over, by adjusting the time gap with the robot to get the fish scale you wish, weld seam is clear and beautiful.
*Tack welding: by robot
*Widely applied on the thin (≤2mm thickness) pipes or frame/structure welding jobs.
• HPC - Hybrid Pulse Control
The key is synergetic waveform controlled welding process control variants applied in MIG welding which are Pulse (spray arc) and
short-circuit transfer types in one duty cycle. It delivers exceptional directional stability, deep penetration and free-spatters.
short-circuit transfer types in one duty cycle. It delivers exceptional directional stability, deep penetration and free-spatters.
• HPC-Vertical-up Welding Process
The secret is the combination of two processes: one is the high energy phase to heat up the material quickly. Topwell's control
technology ensures a perfect transition to the rapidly reduced energy phase. It ensures reliable penetration, precisely sized weld
filling and a near- optimal throat thickness.Vertical-up welding with Topwell's HPC process is significantly much faster and
simpler than classical "X-Mas tree".
technology ensures a perfect transition to the rapidly reduced energy phase. It ensures reliable penetration, precisely sized weld
filling and a near- optimal throat thickness.Vertical-up welding with Topwell's HPC process is significantly much faster and
simpler than classical "X-Mas tree".
• MDP - Micro Double Process
MDP is Micro Double Process, ultra-precise on the synergy Pulse wave-form controlled process-control, freely adjust the weld seam chevrons from coarse to fine. The key is that when the high and low pulses alternate, there is no droplet formation in the low pulse phase. The advantage of MDP are precise energy input, low distortion, perfect TIG-like welding appearance easily produced by anyone, and the welding productivity can up to twice as quick as the conventional TIG. MDP is particularly suitable for thin to medium-walled (1-8mm) Aluminum, Steel, and CrNi applications, like frames, tables, beds, and furniture structures.
Technical specifications
Item No | PROMIG 360XP |
Mains voltage(V) | 1PH ~ 230V ±15%/3PH ~ 400V ±15% |
Max.Load Power Capacity | 19.35KVA |
Rated Duty Cycle(40℃) 60% | MIG: 320A/30V |
MMA: 320A/32.8V | |
100% | MIG: 250A/26.5V |
MMA: 250A/30V | |
Welding Current/Voltage Range | MIG: 10A/14.5V ~360A/32V |
MMA: 20A/20.8V~360A/34.4V | |
Open Circuit Voltage | 70V~80V |
Power Factor | 0.8 |
Efficiency | 80% |
Pre-Gas Time | 0.1-10s |
Flow-Gas Time | 0.1-10s |

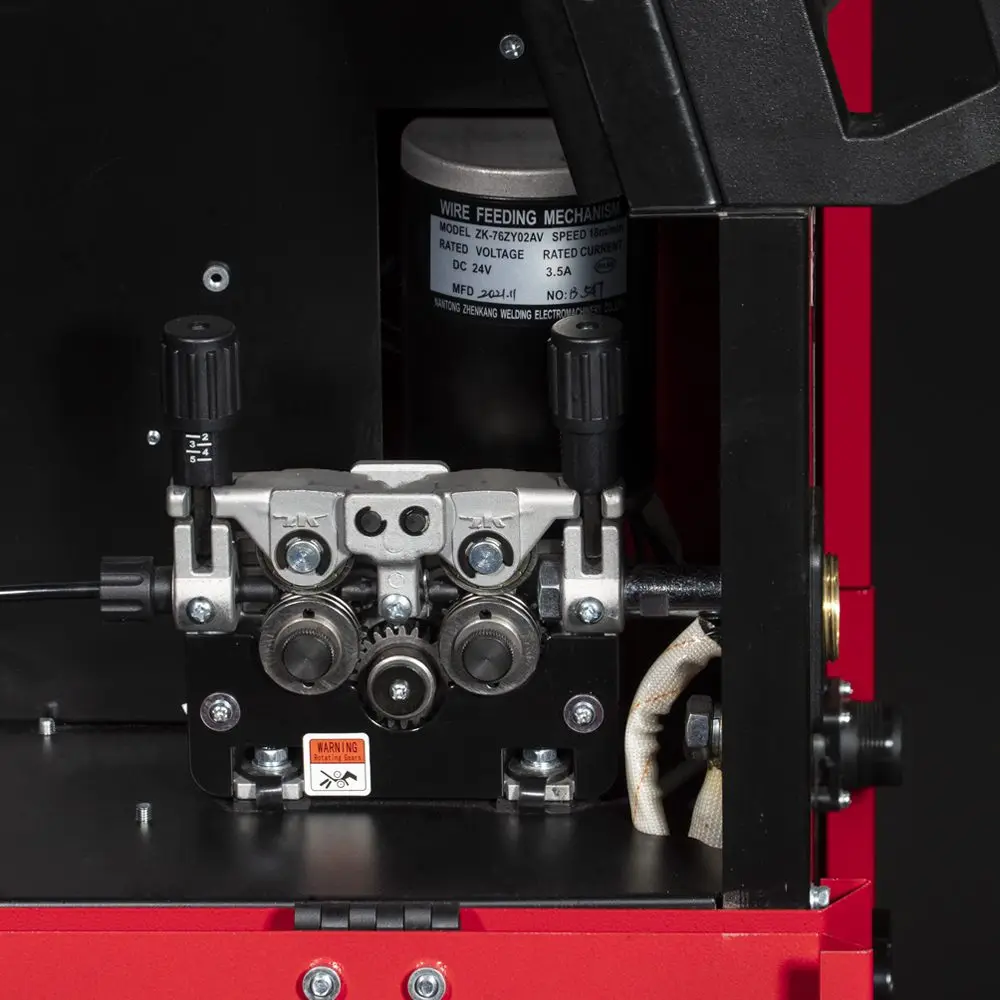

Wire-feed Mechanism | 4 rollers |
Wire-feed Speed Range | 0~25m/min |
Wire Spool Capacity | 300mm (15kg) |
Filler Wires (mm) for Fe | 0.8~1.2mm |
For Stainless steel | 0.8~1.2mm |
For Aluminum | 0.8~1.2mm |
Standard | EN 60974-1 |
Designation | CE,ROHS |
Dimension | 790x250x650mm |
Weight | 73kg |
SGB 380A
Air-Cooled Mig Welding Torch
Technical data: | ||
Rating: | 350A CO2 | |
320A mixed gas | ||
EN60974-7 | ||
Duty cycle: | 60% | |
Wire size: | Φ1.0-1.6mm | |
