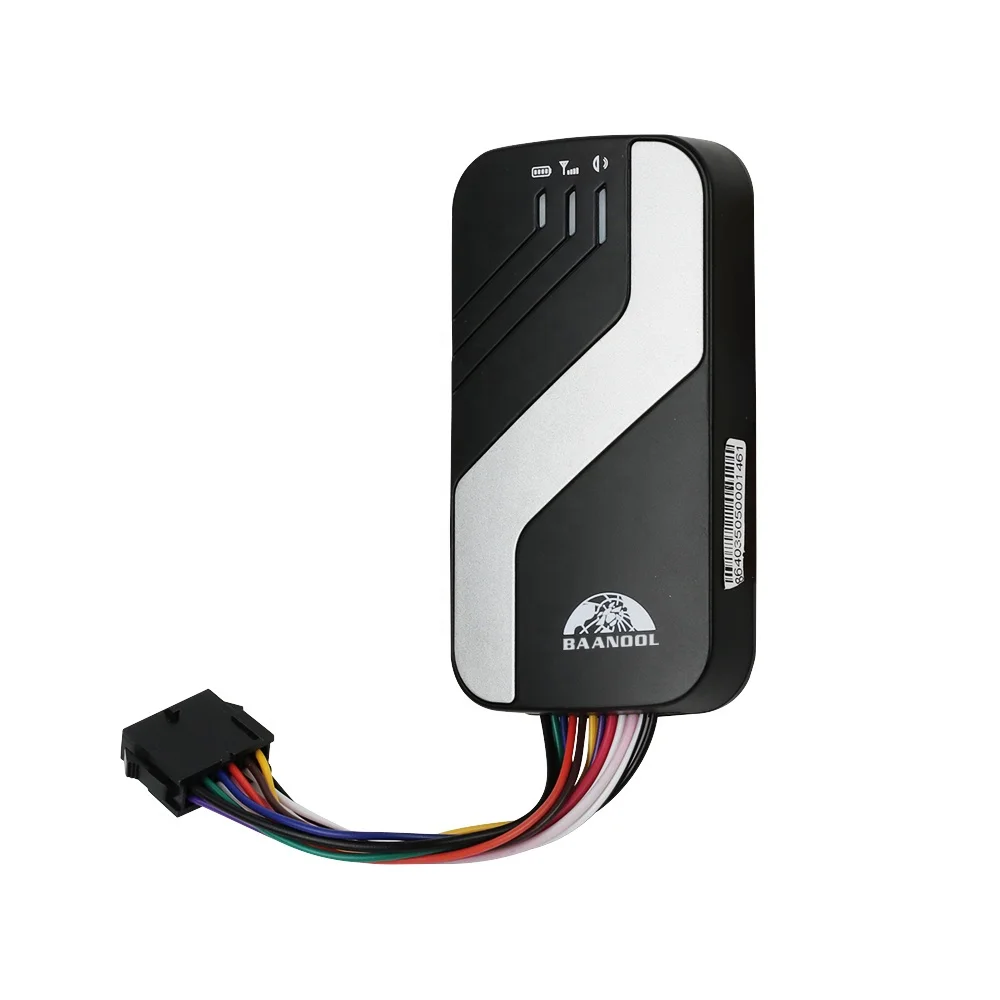

Автомобильный GPS трекер 4G LTE

Описание и отзывы

Характеристики

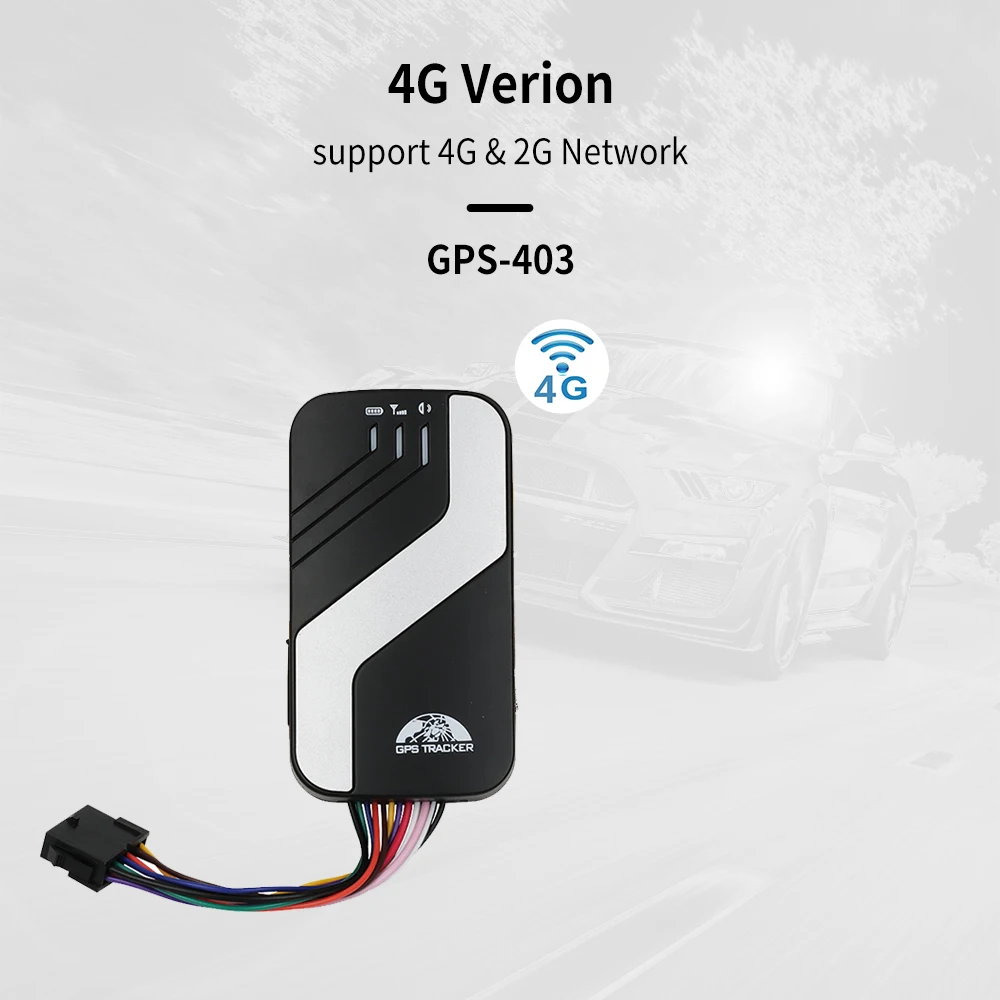

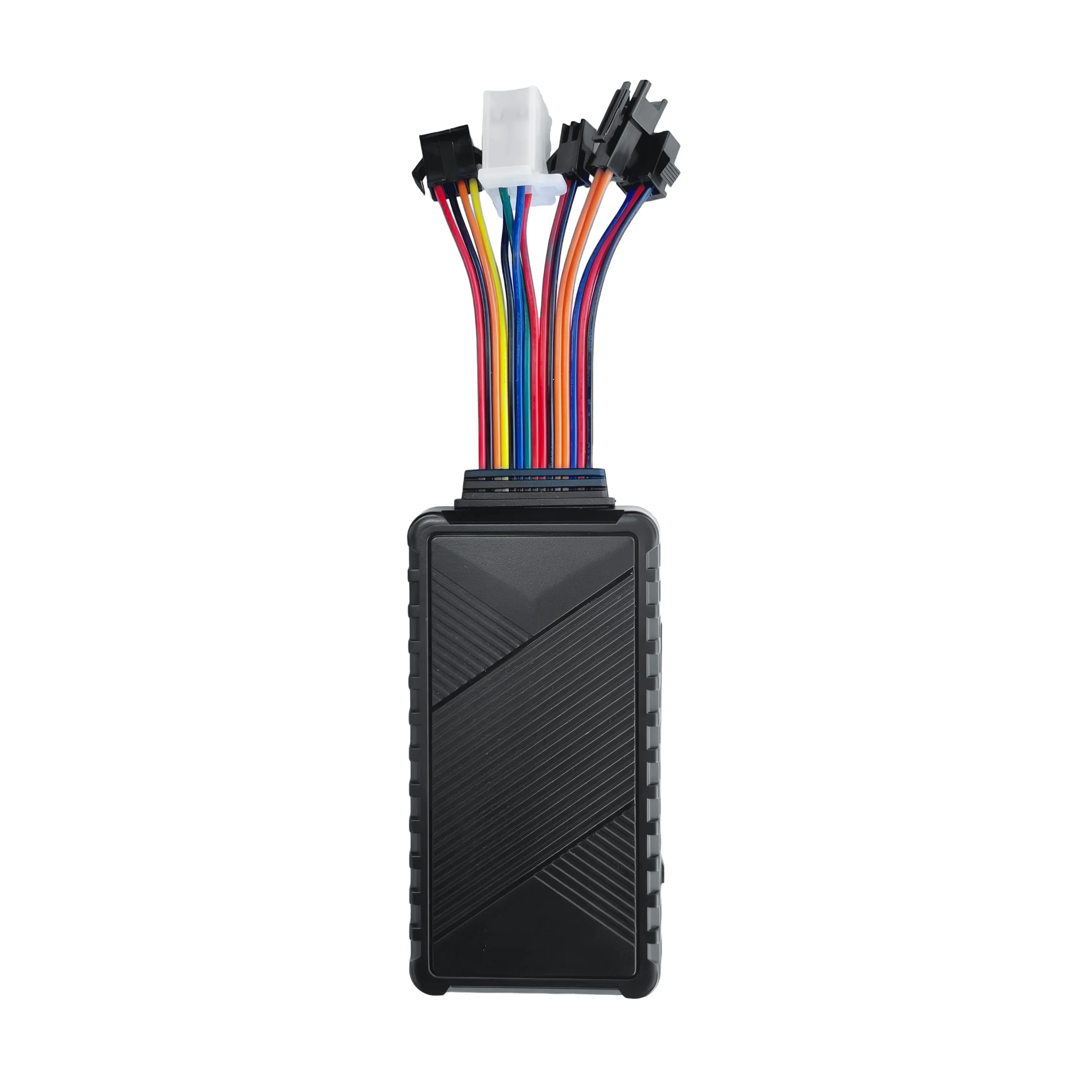

4G LTE  GPS manufacturercar COBAN  factory Car monitor support platform 403A car GPS tracker Real Time Tracking for vehicle

GPS Tracker TK403C and TK403D :

Technology parameter:
*Network: GSM/GPRS
*Band: 2G (850/900/1800/1900Mhz)\\4G (B1/B2/B3/B4/B5/B7/B8/B28/B40)
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s

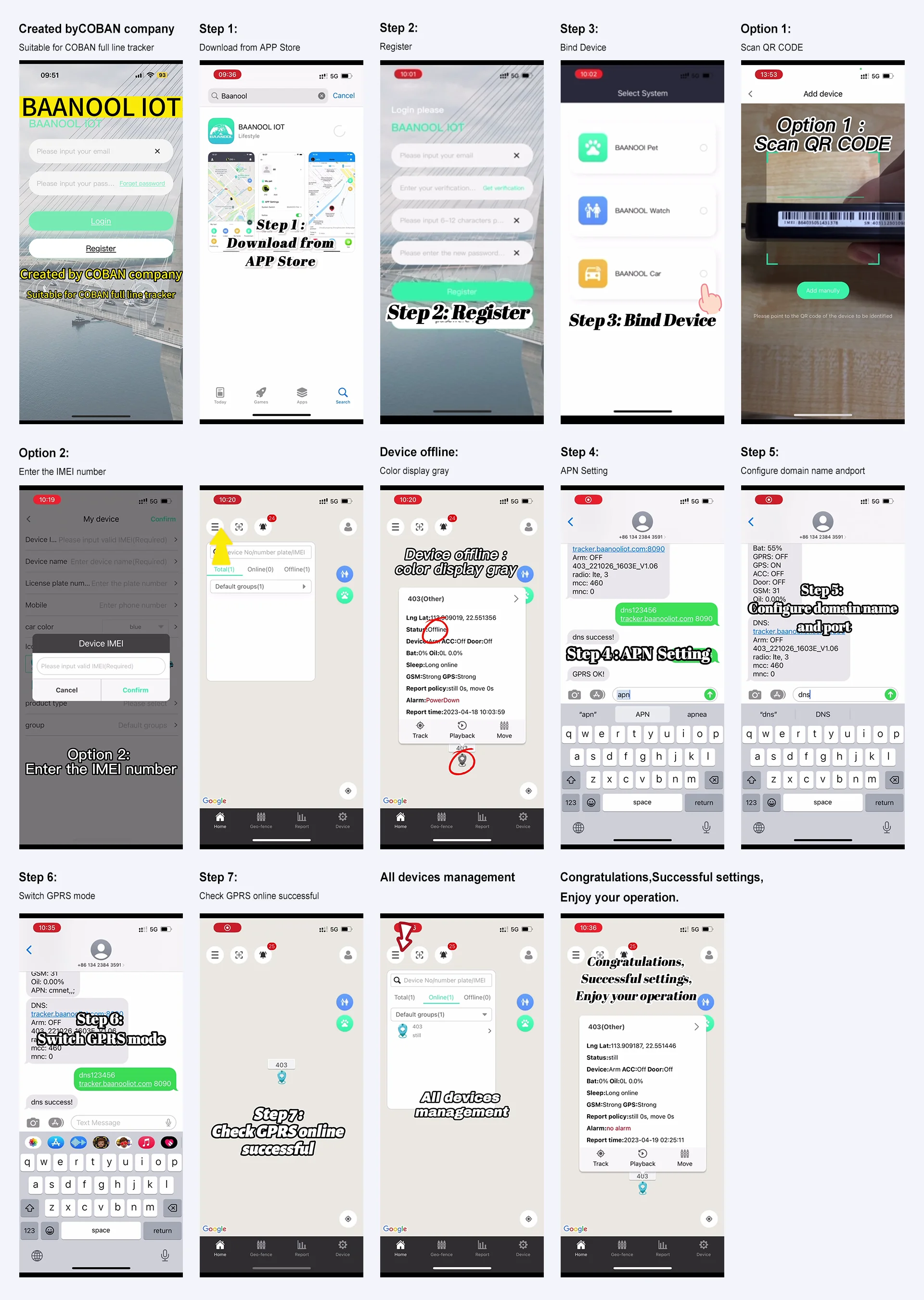

 Real time track via Android IOS APP:

*Web based online tracking on PC at our server www.baanooliot.com

 Summary

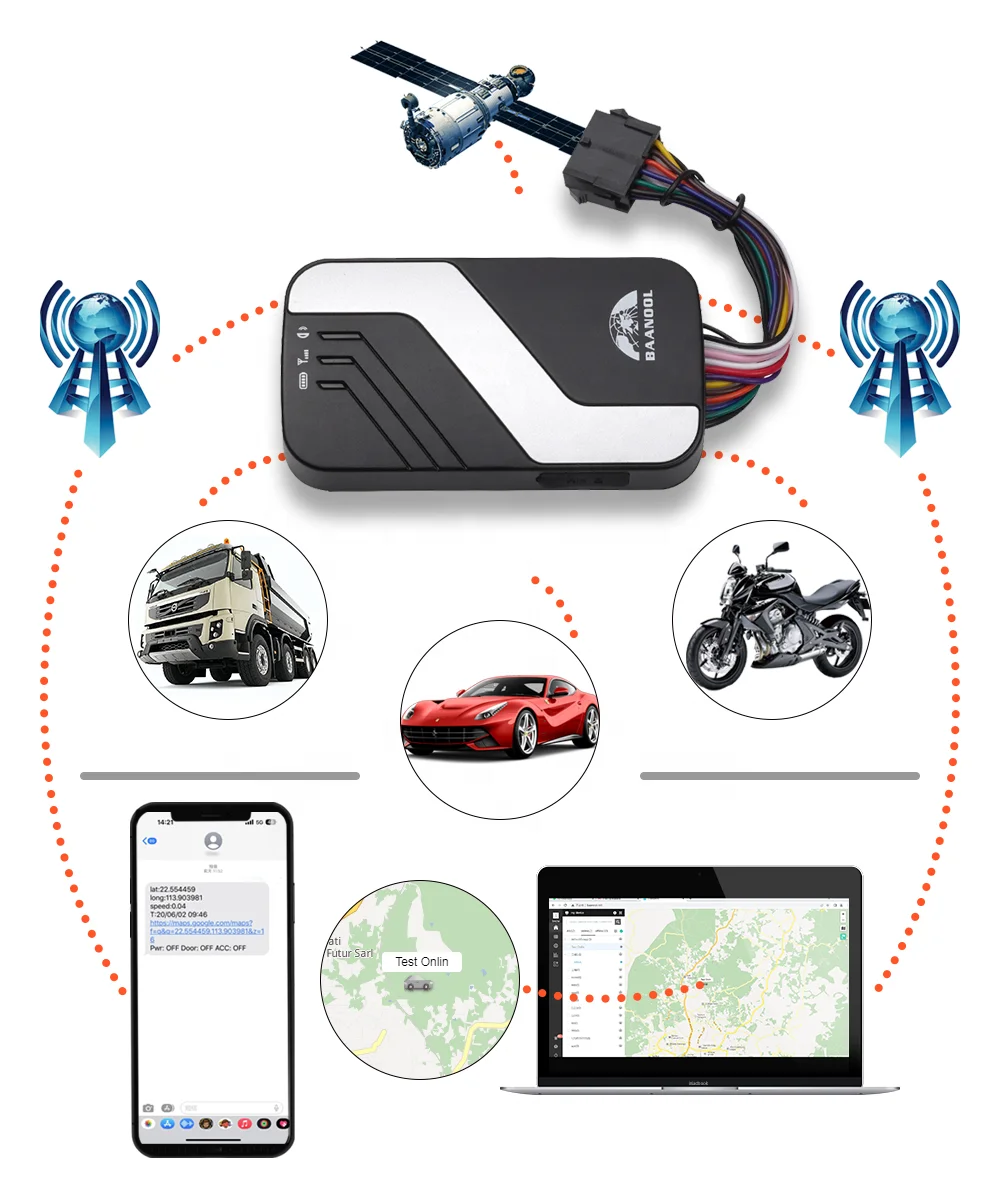

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

 Features

4g gps tracker tk403 harness diagram :

Ø Please ask a qualified engineer to install it.

Ø The installation environment should not exceed the GSM performance index.

Ø Please do not install it in a dusty and humid environment.

Ø Find the 12PIN wiring harness provided with the product, insert it into the corresponding wiring hole of the product, and connect to the original car circuit as shown in the following figure:

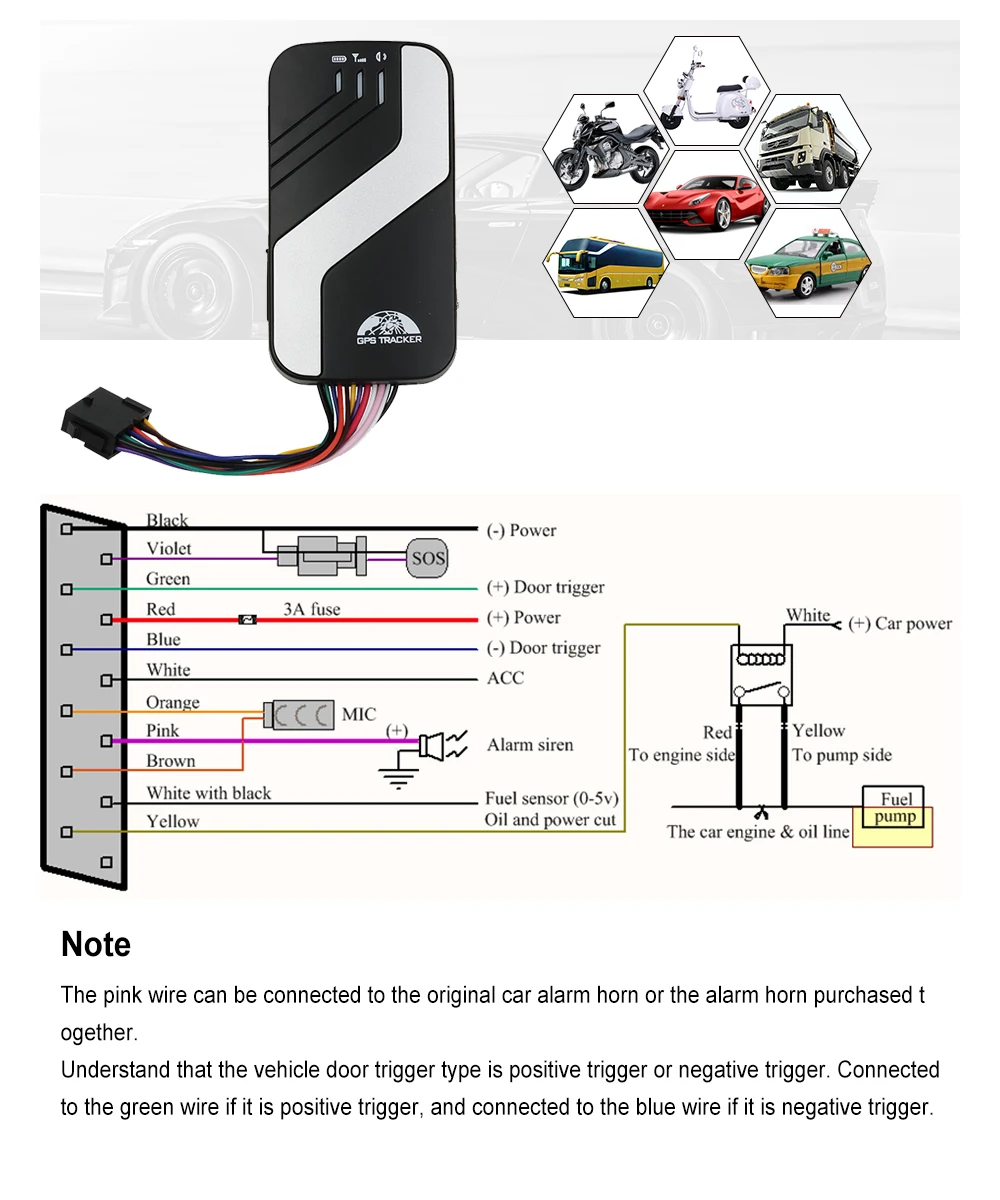

Wiring Diagram

Ø The pink wire can be connected to the original car alarm horn or the alarm horn purchased together.

Ø Understand that the vehicle door trigger type is positive trigger or negative trigger. Connected to the green wire if it is positive trigger, and connected to the blue wire if it is negative trigger.

Ø Please install the SOS button where the driver can touch it.

vehicle gps tracker tk403 functions showing below :

 1.Changing password
2.Authorization
3.Single tracking
4.Continuous interval tracking

5.Limited times tracking at a time interval
6.Unlimited times tracking at a time interval
7.Unlimited times tracking at a distance interval
8.Smart tracking at both time and distance interval
9.Cancel interval tracking
10.Smart angle updating
11.GPS drift suppression
12.Exact street address
13.Location based service (LBS) / Cell-ID tracking
14.Auto answer

15.Forwarding incoming SMS messages
16.SIM Card Balance Enquiry
17.ACC ON/OFF Alert
18.Remote immobilizing
19.Fuel sensor calibrating
20.Configure times of alarm SMS

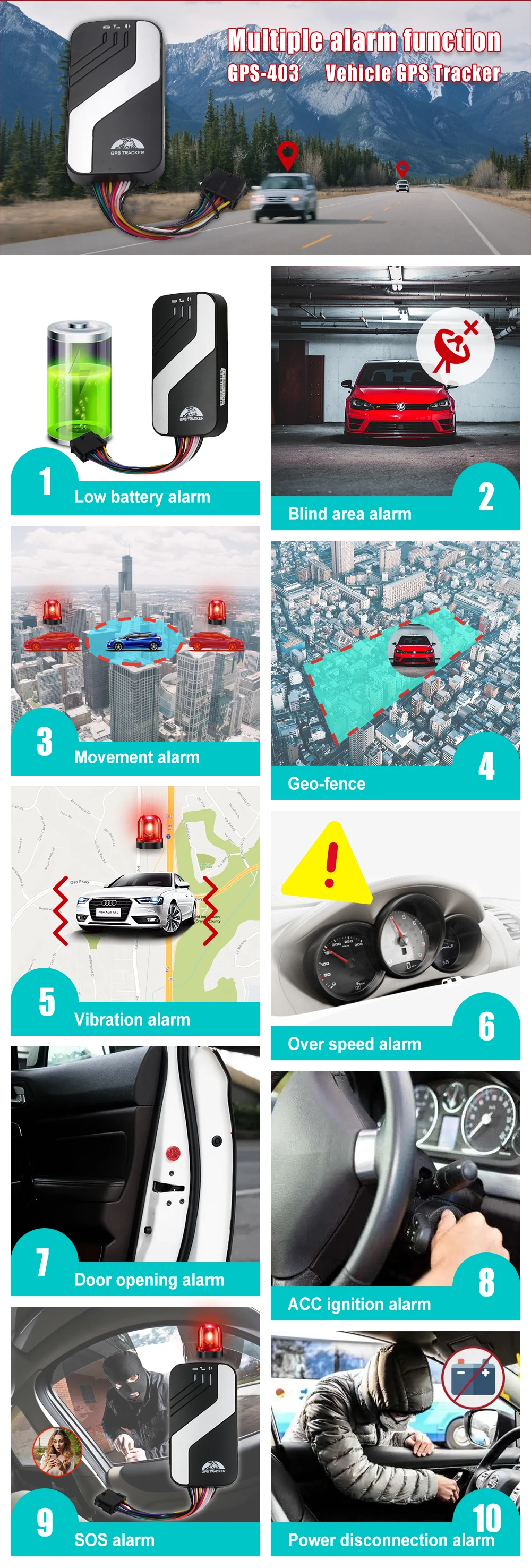

21.Alarms
21.1Low battery alarm
21.2Power disconnection alarm
21.3Blind area alarm
21.4SOS alarm
21.5Geo-fence
21.6Movement alarm
21.7Over speed alarm
21.8Fuel alarm
21.9Remote control function (For B model)
22.Arming
23.Silent Arming
24.Disarming
25.Alarm function in arming state
25.1Door opening alarm
25.2ACC (Ignition / voltage) alarm
25.3Acceleration Sensor Alarm
25.4No GSM network alarm
26.Sleep
27.Check Status
28.Check IMEI
29.Local time setting
30.Reset Hardware
31.GPRS configuration for live real-time tracking
32.Configure APN, GPRS login user name and password
33.Configure domain name and port.
34.GPRS / SMS mode switch
35.Activate Fuel value in GPRS data
36.Configure SMS management center number
37.Configure heartbeat package interval
38.Initialization

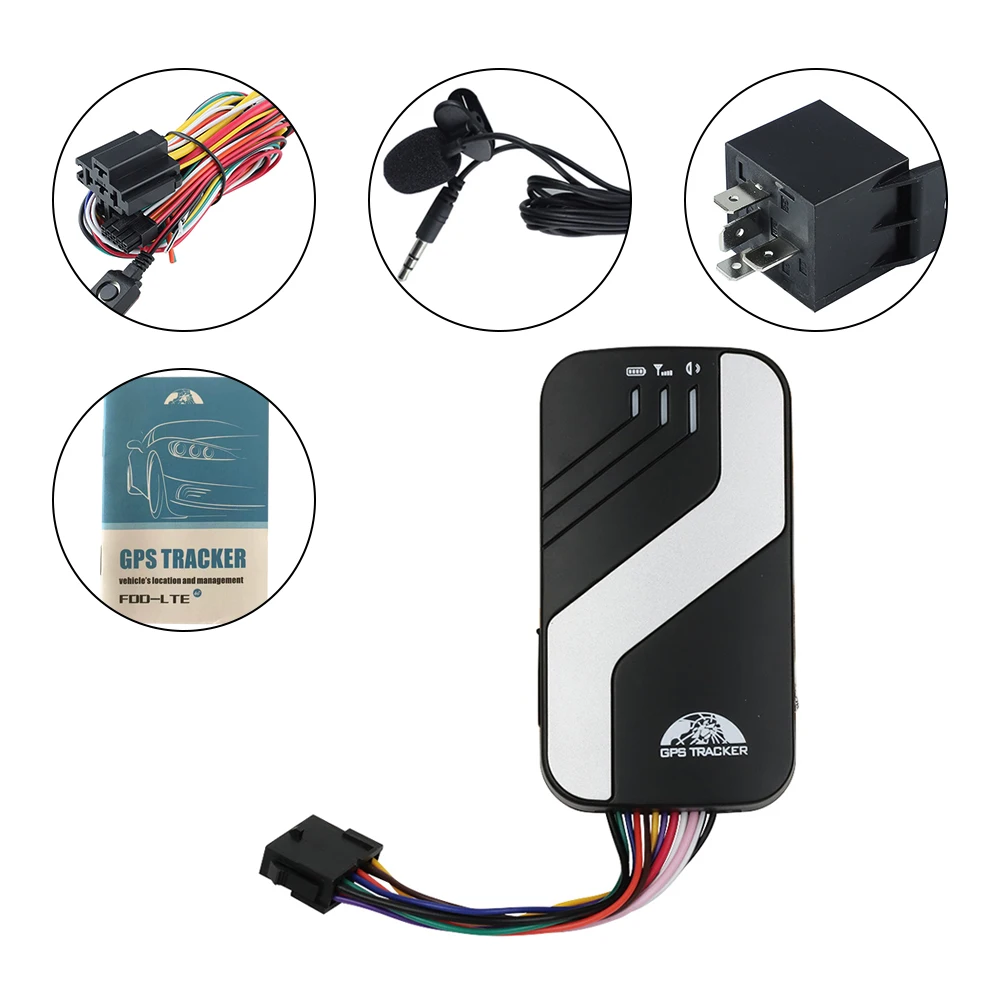

gps vehicle tracker tk403C and 403D accessories :

1. Giftbox

2. Harness

3. Manual

4. Relay

5.Srewer

6.Microphone

7.GPS Unit

8.Remote Control ( Option )

 About gps tracking device 403C and 403D custom made :

1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order ( More Than 1000 pcs )
