Product Description
Full CNC Servo System Bottle UV Screen Printing Machine with CCD image positioning

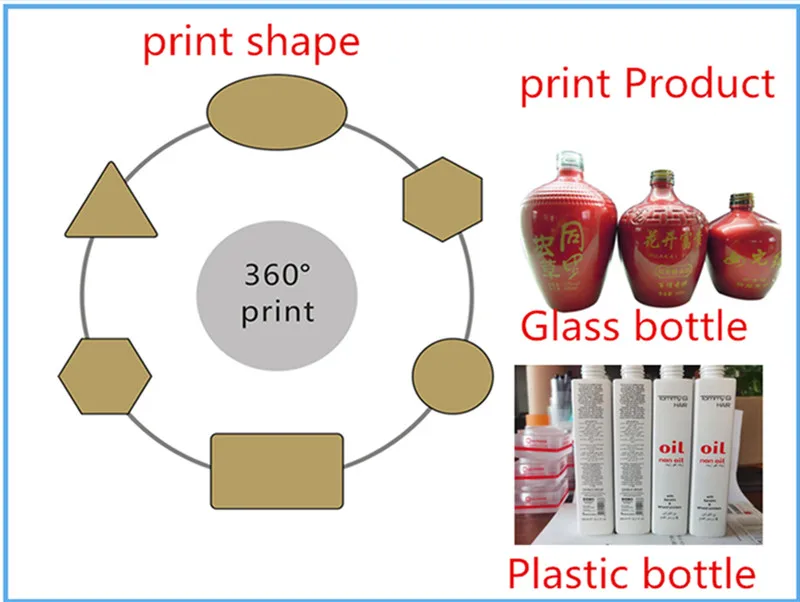

This full automatic screen printer is suitable for round/flat/oval/square and other specail shape glass/pastic bottles, jars, cups, cans, tubes.
It is a fully automatic screen printing machine, suitable for cylindrical, square and special-shaped products. The printing ink can be selected from high temperature ordinary ink, UV ink and ordinary ink.Adopt high-precision divider, full mechanical transmission system, mechanical pre-positioning system, fast printing speed, stable and reliable quality, convenient and quick debugging.
Machine advantage
1. All structures of the equipment are designed with reference to international mechanical standards, and are integrated into the design concept of European and American automatic mechanical equipment
2. Using advanced programmable controller and touch screen operation display control system, debugging is convenient and flexible, the degree of automation is high, the parameter setting is simple and fast, and it is easy to realize man-machine dialogue.
3. The machine is combined with mechanical transmission and pneumatic, and adopts photoelectric sensor for sensing limit control, which is stable and reliable in operation, ensuring printing accuracy and high-quality printing effect;
4. It has automatic detection functions such as no part and no printing, no material alarm, low air pressure alarm, overload and loading and unloading fault alarm to ensure the continuity and stability of the whole machine.
5. The design of the host part absorbs the workpiece transmission and driving methods of European and American imported machines, which ensures the stability of the workpiece transmission and the accuracy of the position when the equipment is working.
6. The pneumatic components and electrical components used in the equipment are all well-known brands such as SMC, Panasonic, Schneider and Omron to optimize the quality assurance performance
7. The upper and lower bottle movement adopts screw drive (servo motor, screw made in Taiwan) with a 10-year warranty
8. The movement of the upper and lower bottle clamps adopts servo motor, and the warranty is 10 years..
2. Using advanced programmable controller and touch screen operation display control system, debugging is convenient and flexible, the degree of automation is high, the parameter setting is simple and fast, and it is easy to realize man-machine dialogue.
3. The machine is combined with mechanical transmission and pneumatic, and adopts photoelectric sensor for sensing limit control, which is stable and reliable in operation, ensuring printing accuracy and high-quality printing effect;
4. It has automatic detection functions such as no part and no printing, no material alarm, low air pressure alarm, overload and loading and unloading fault alarm to ensure the continuity and stability of the whole machine.
5. The design of the host part absorbs the workpiece transmission and driving methods of European and American imported machines, which ensures the stability of the workpiece transmission and the accuracy of the position when the equipment is working.
6. The pneumatic components and electrical components used in the equipment are all well-known brands such as SMC, Panasonic, Schneider and Omron to optimize the quality assurance performance
7. The upper and lower bottle movement adopts screw drive (servo motor, screw made in Taiwan) with a 10-year warranty
8. The movement of the upper and lower bottle clamps adopts servo motor, and the warranty is 10 years..

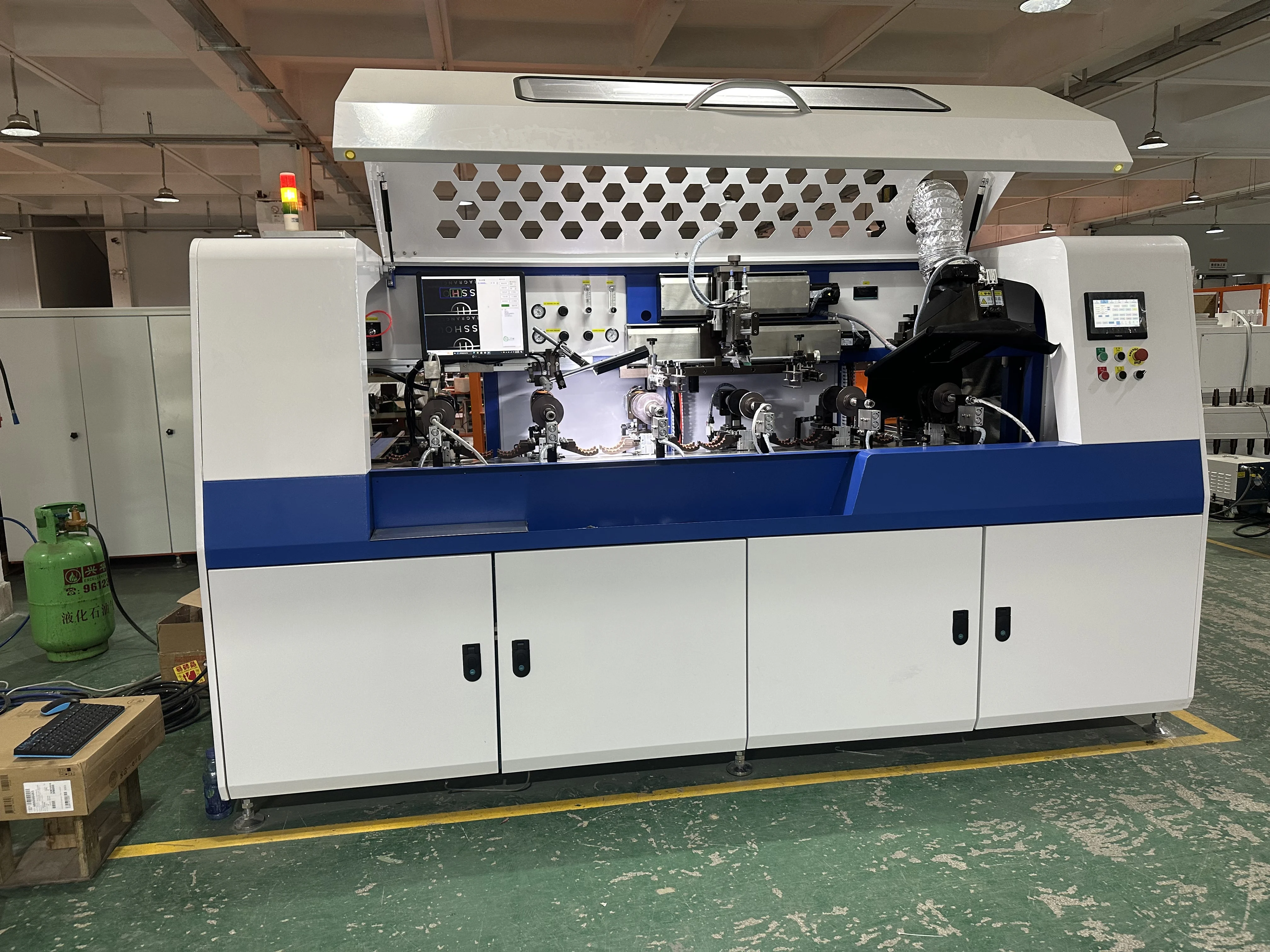

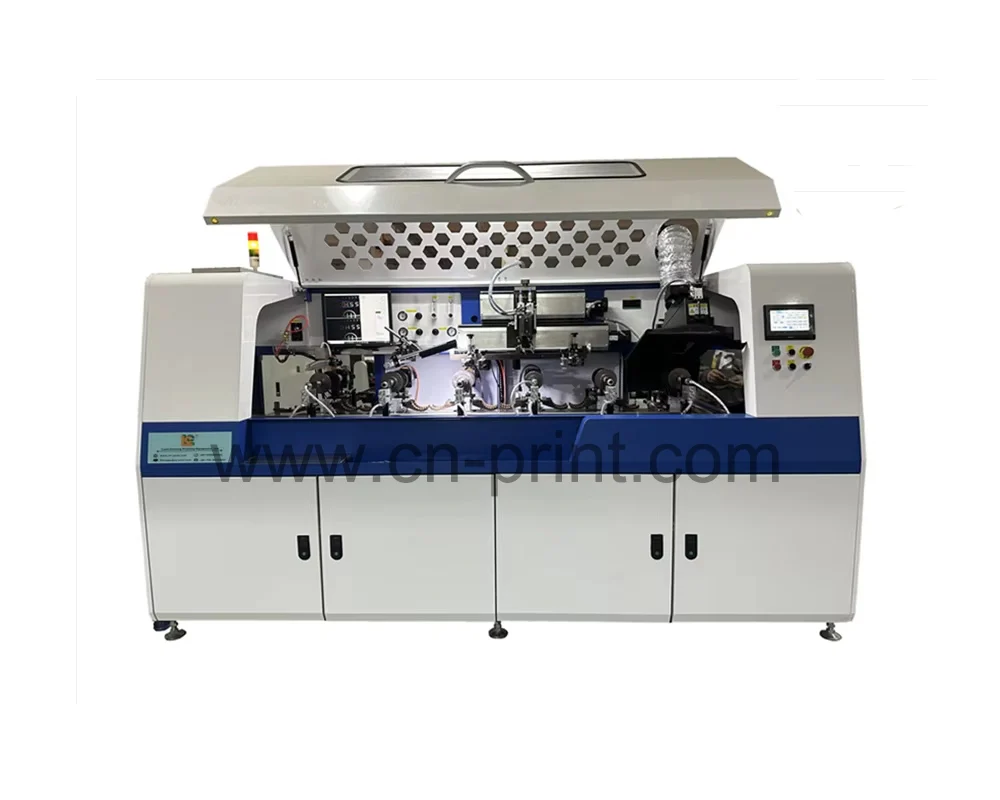

Machine details
Specification
item | value |
Plate Type | Screen Printer |
Applicable Industries | Printing Shops, Other, bottle printing |
Condition | New |
Place of Origin | Guangdong |
Brand Name | LC |
Usage | Bottle printing |
Automatic Grade | Automatic |
Color & Page | Multicolor |
Voltage | 380V |
Dimensions(L*W*H) | L2700*W2000*H1700mm |
Weight | 1700KG |
Certification | CE |
Warranty | 1 Year |
Online support | |
Key Selling Points | Automatic |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, PLC |
Printing accuracy | ±0.02mm |
Printing speed | 2000-3000pcs/h |
Operation | Full CNC Servo |
Compressed air | 0.6MPa |
Printing color | 1 color( Can print multi colors by multi times |
Diameter of circular printing | 15mm~100mm |
Circular printing height | 20mm~270mm |
Flat printing diameter | R20mm~R180mm |
Flat printing height | 20mm~270mm |
Air pressure requirement | 5~8bar |
Printing Sample
