Индивидуальные 20*8*8 футов холодная комнатная морозильная камера комната в США

Индивидуальные 2088 футов холодная комнатная морозильная камера комната в США

Категория: >>>
Поставщик: OnlyKem (Jinan) Technology Co. Ltd.

Цена:306 301,52 ₽ - 461 640,15 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Walk In Cooler Chambre Froide Freezer Room Cold Chamber Refrigerator Cool Room

Product Description

Introduction of Chambre Froide:
Chambre Froide is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and the thickness of the material according to the requirements of panel products.
Chambre Froide Features:
1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
2.Size: Customization.
3. Function: preservation, freezing, quick freezing.
4. Good performance, low noise and high reliability.

Product Details

PUR/PIR Panel

Thickness	75mm 100mm 120mm 150mm 200mm
Width	Standard: 960mm Customization Available
Length	Maximum 11.8m without connection
PU Parameters	Density ≥ 42kg/m³ Flame Retardent Time ≤ 5s Hook Distance = 900mm
Plate	Color Steel	0.326mm 0.376mm 0.426mm 0.476mm
		Stainless Steel	0.4mm 0.5mm
		Embossed Aluminium	0.7mm 0.8mm

Condensing Unit

Condensing Unit

•Compressor Optional:Original German Bitzer Brand

•Condenser:Air cooled or Water cooled(for higher ambient temperature)

•Frame:can be stell shell with spray painting or open type on stell frame
•Voltage:

220V/1PH/50HZ or 60HZ 380V-415V/3Ph/50HZ or 60HZ 220V~415V/3PH/60HZ

•Refrigerant:R22/R404a/R410a •Capacity:Singe compressor 2HP-50HP

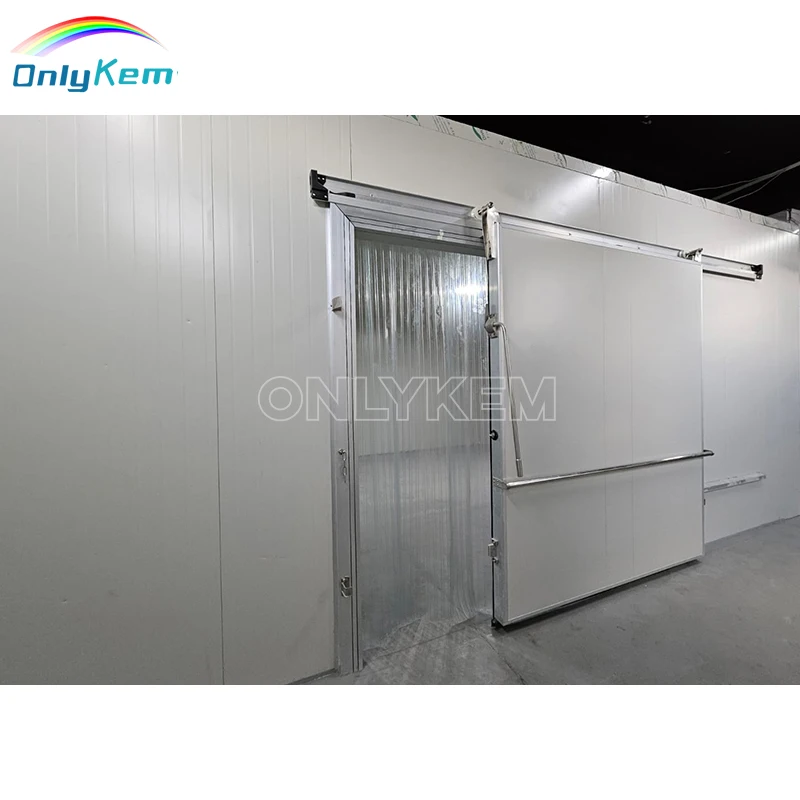

Cold Room Door

Hinged door: the standard size is 0.8 m wide and 1.8 m high, we accept customization, but its width should not exceed 1.2 m.

Sliding door: the standard size is 1.5 m in width and 2 m in height, very convenient for trolley get in and out. It is often used
in larger freezer, such as 6 m in length and 5 m width.

Double swing door: if the width exceeds 1.2 m, we recommend double swing door. It can even the weight of hinge and extend service
life.

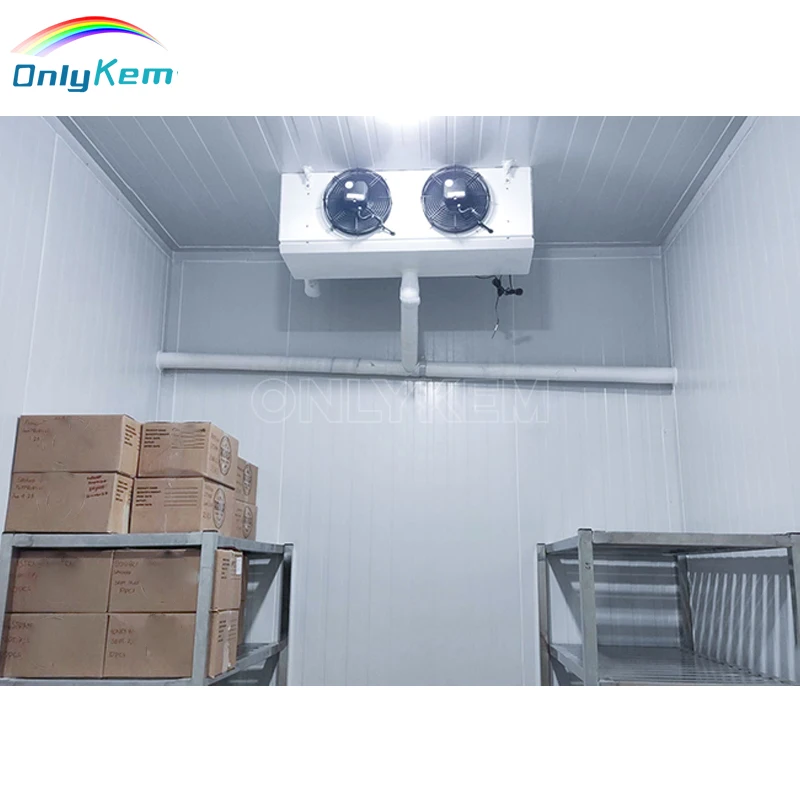

Unit Cooler

Evaporator

• Shell: Steel with spraying,Aluminum,SS304•Temperature:DL -5~5℃(fin space 4.5mm)
DD -15~-20℃(fin space 6.0mm) DJ -25℃(fin space 9.0mm)

•Defrosting:Hot Gas,Electric Heater

•Capacity:
DL 2.2-122KW
DD1.4-88KW
DJ:1.7-58KW

•Fins:Blue fins,better heat exchane effects
•Water Receiver:Double

Customer Feedback

Customized Service

In order to offer you the exactly product and price, pls let me know these information as follows :
1. What is the cold room dimensions ?
2. What kind of food to store ?
3. Which country to use the cold room ?
4. EXW/FOB/CIF price ?

Product packaging

The protective packaging of the Smart Packaged Unit:
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
