Ligong высокомощный рельсовый подъемник для обработки толстой стали и металла выключатель 20-30-тонного экскаватора
2 071 972,44 ₽

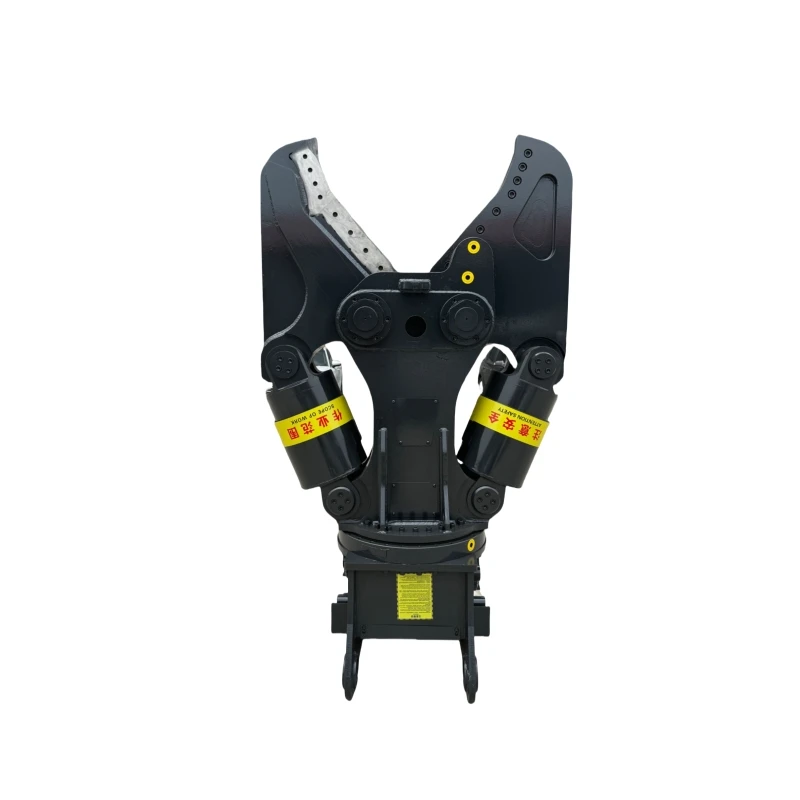

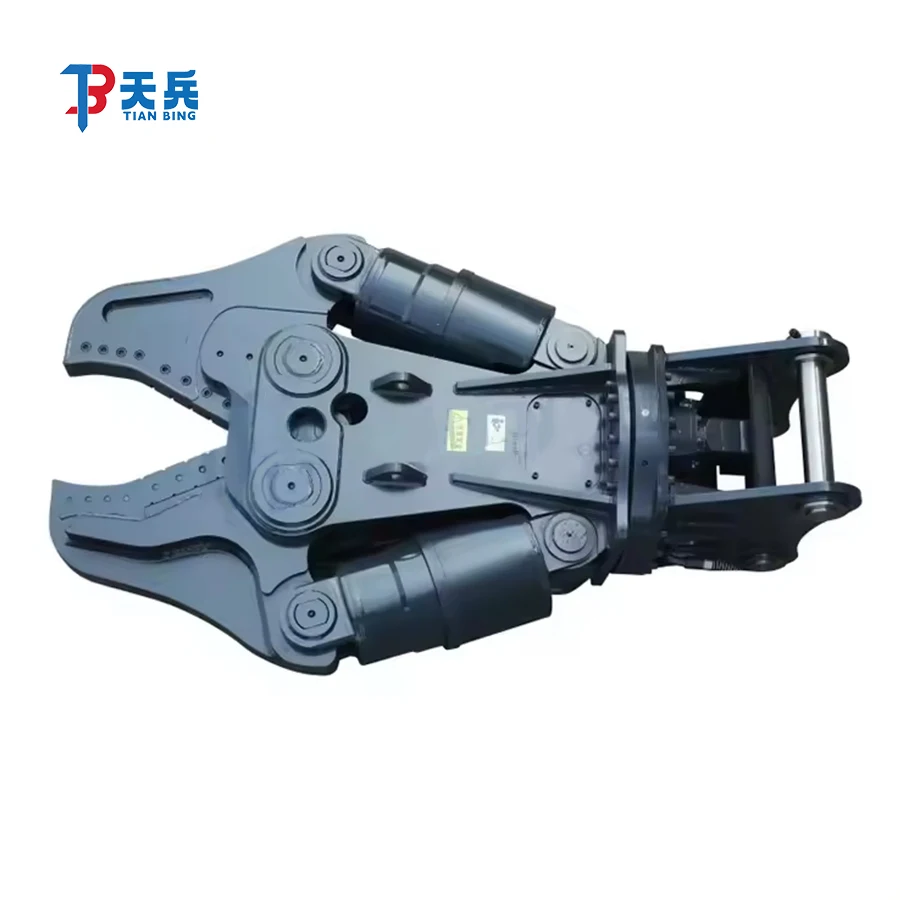

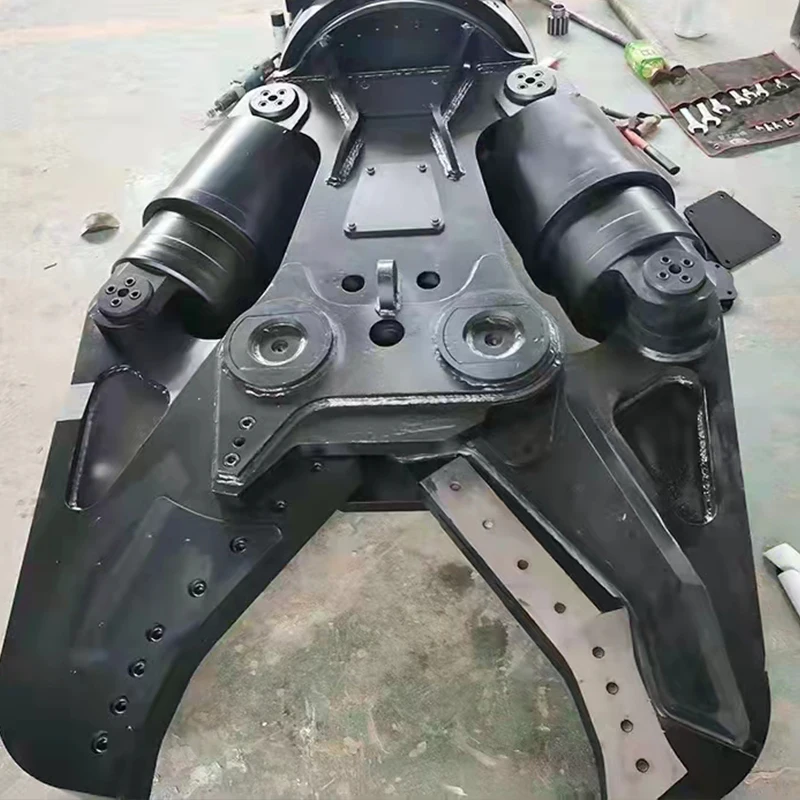

Мощные двухцилиндровые гидравлические ножницы для крепления экскаватора
- Категория: >>>
- Поставщик: Yantai Tianbing Construction Machinery Co. Ltd.
Сохранить в закладки 1601271142599:
Описание и отзывы
Характеристики
Suitable for cutting and processing scrap steel bars, dismantling scrapped cars, and processing scrap steel, it can achieve efficient steel frame structure and cutting machine crushing of car beams. Safe and reliable operation, flexible use.
Item/Mode1 | Unit | TB280 |
Overall Length | Mm | 2360 |
Maximum incision | Mm | 750 |
Blade length | Mm | 350+260 |
Rotating flow | L/min | 50-60 |
Rotating pressure | Mpa | 12-15 |
Working flow | L/min | 220-280 |
Working pressure | Mpa | 28-32 |
Weight | Kg | 2850 |
Head shear force | Kn | 1180 |

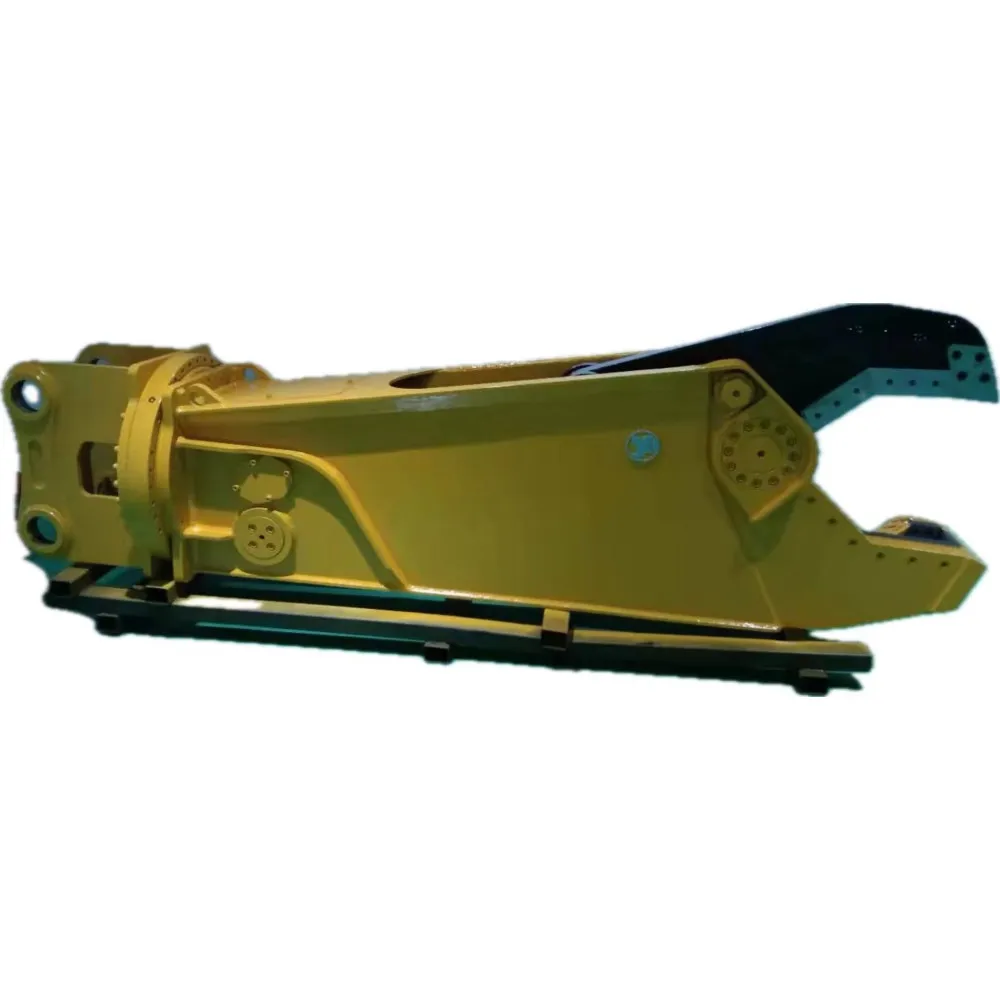

Suitable for the demolition and crushing of all concrete and brick structures. The root is equipped with special steel blades, which are beneficial for cutting and recycling steel bars. Widely used in municipal construction, demolition and other fields.
Item/Model | Unit | TB150JQ-2 | TB200JQ-2 | TB300JQ-2 | TB350JQ |
Overall Length | mm | 2050 | 2350 | 2350 | 2590 |
Maximum opening | mm | 740 | 900 | 910 | 1100 |
Blade length | mm | 160 | 180 | 180 | 180 |
Rotating flow | L/min | 30-50 | 40-60 | 40-60 | 40-60 |
Rotating pressure | Kg/cm² | 100-130 | 110-130 | 110-150 | 110-150 |
Working flow | L/min | 150-180 | 160-200 | 160-200 | 180-260 |
Working pressure | Kg/cm² | 220-250 | 280-320 | 280-320 | 280-350 |
Weight | kg | 1310 | 2200 | 2300 | 2800 |
Head shear force | ton | 55 | 72 | 72 | 90 |
Middle shear force | ton | 85 | 116 | 116 | 152 |
Root shear force | ton | 160 | 268 | 268 | 288 |
Suitable Excavator | ton | 12-18 | 18-24 | 24-36 | 36-40 |

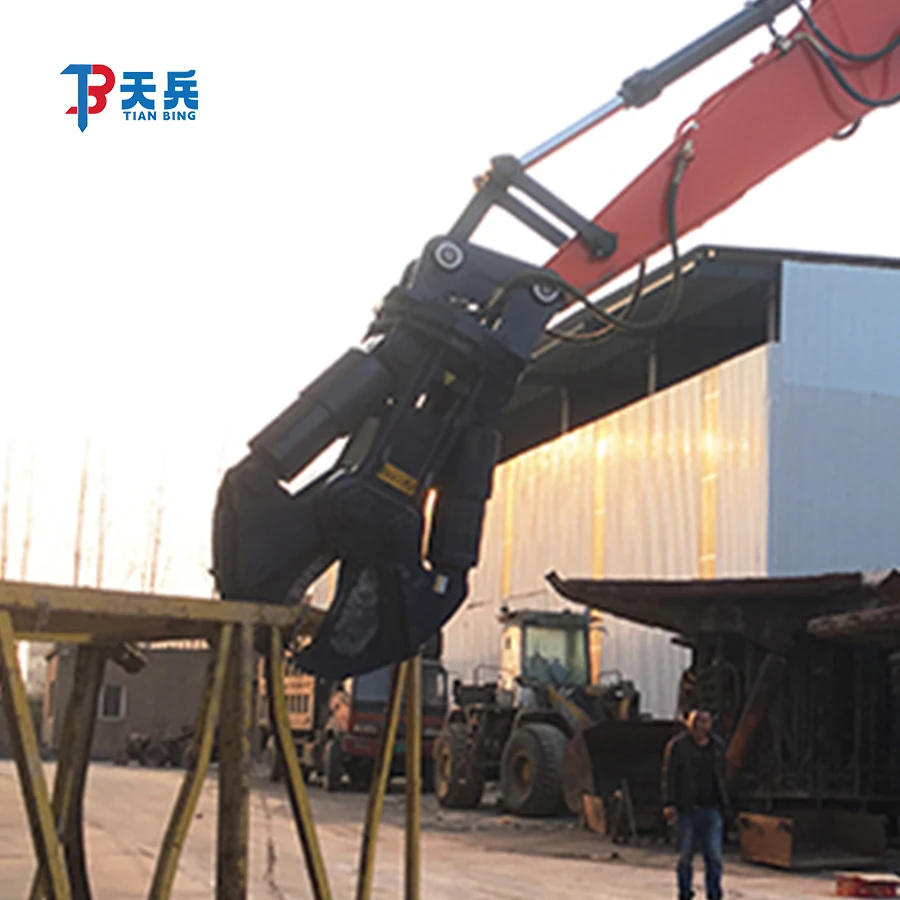

Suitable for emergency rescue, dismantling of doors and windows, wall breaking, dismantling and tearing of scrapped cars, agricultural machinery, etc., tearing and sorting of parts, dismantling and recycling of car beams (H, I beams), widely used in dismantling scrapped cars and agricultural vehicles.
Model | Unit | TB60JC | TB150JC | TB200JC-2 | TB300JC |
Total Length A | mm | 1660 | 1950 | 2680 | 2680 |
Overall Width | mm | 440 | 543 | 730 | 730 |
Maximum Opening B | mm | 520 | 605 | 740 | 730 |
Blade Length C | mm | 330 | 330 | 480 | 480 |
Rotating Flow Rate | L/min | 30-40 | 30-40 | 40-50 | 30-40 |
Rotating Pressure | Kg/cm² | 100-130 | 100-130 | 110-130 | 100-130 |
Opening And Closing Flow Rate | L/min | 70-100 | 120-160 | 160-220 | 160-200 |
Opening And Closing Pressure | Kg/cm² | 180-240 | 220-280 | 280-320 | 280-320 |
Weight | kg | 630 | 980 | 1760 | 1700 |
Head Shear Force | ton | 32 | 40 | 70 | 70 |
Central Shear Force | ton | 65 | 80 | 135 | 135 |
Root Shear Force | ton | 120 | 150 | 260 | 260 |
Applicable Models | ton | 6-8 | 12-18 | 22-35 | 25-36 |
Advantages
HOW TO CUSTOMIZE YOUR PRODUCT
Company Profile
A1. Are you a manufacturer?
Yes, our factory was established in 2004
A2. How about delivery time?
5-25 work days after the payment, depend on your quantity
A3.Can l customize my product?
Yes, OEM order is available for us.
Yes, OEM order is available for us.
A4. What is your payment terms?
We provide flexible payment terms based on your credit, including T/T, L/C, D/P, etc
We provide flexible payment terms based on your credit, including T/T, L/C, D/P, etc
A5.What is included in the price of TB breakers?
For each set of hydraulic breaker, we supply: 2 chisels, 2 oil hoses, 1 tool box, 1 nitrogen gas cylinder and 1 manual
A6.1 would like to know your technology?

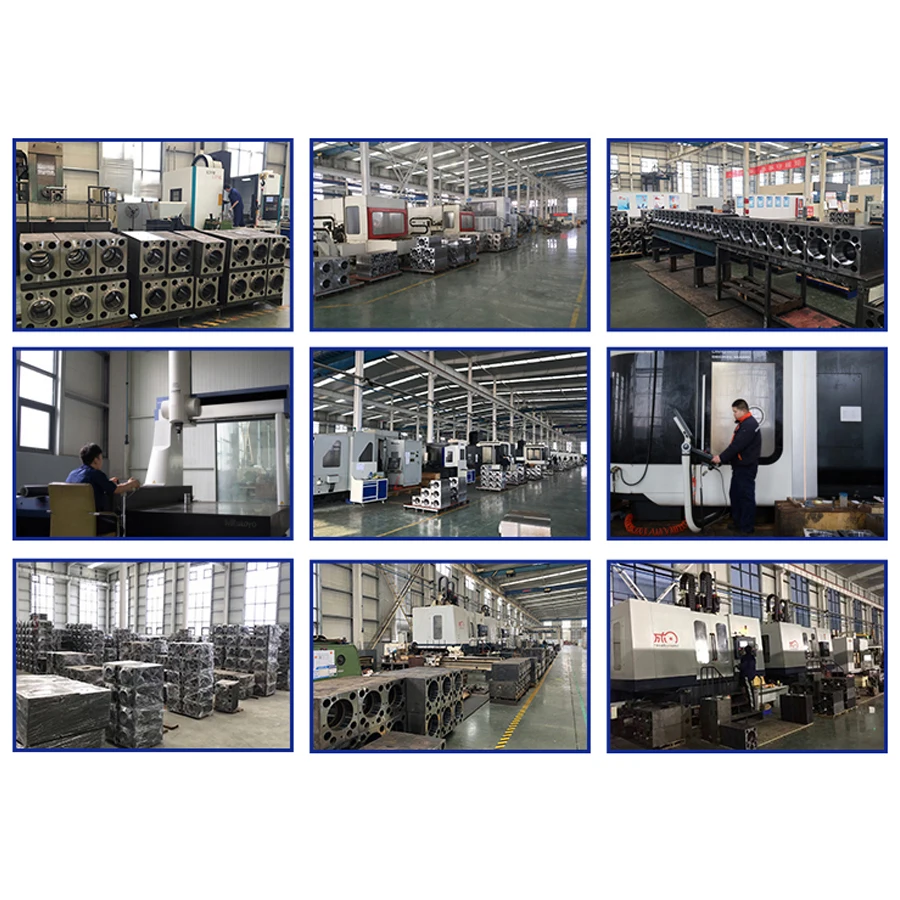

State-of-the-art technology and processing equipment. We use the most advanced technology and CNC machining centers. We do have the industry's most modern production workshop.Equipped with over 120 processing equipment, including horizontal CNC boring and miling center, vertical CNC grinding center which are imported from Germany, Japan and South Korea.
A7.Do you have quality inspections?
Strict quality standards and high precision testing equipment. We have introduced intemational advanced quality testing equipment and implemented a strict and complete quality control system. All the raw material and finished products have to go through multi-level inspection and testing
A8.What kind of delivery do you have?
On-time delivery. We genuinely understand the value of time in business, so we respect your time and ensure that the order are delivered to you by the promised deadline. in the rare event that we cannot keep our promise, we will refund 3% of the fee for the delay
A9.How is your team doing?
Professional and experienced after-sales team. We own a professional after-sales team with over decade's experiences in hydraulic breakers, which can answer any question in the shortest time. Any claims will be solved within 24 hours.
