Большой емкости вращающийся барабанный просеиватель компостное сито Trommel Screen/Барабанный Сепаратор с дизельным приводом
- Категория: >>>
- Поставщик: Henan Gaoda Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601271145180:
Описание и отзывы
Характеристики
Trommel screen product introduction:
Trommel screen product introduction:

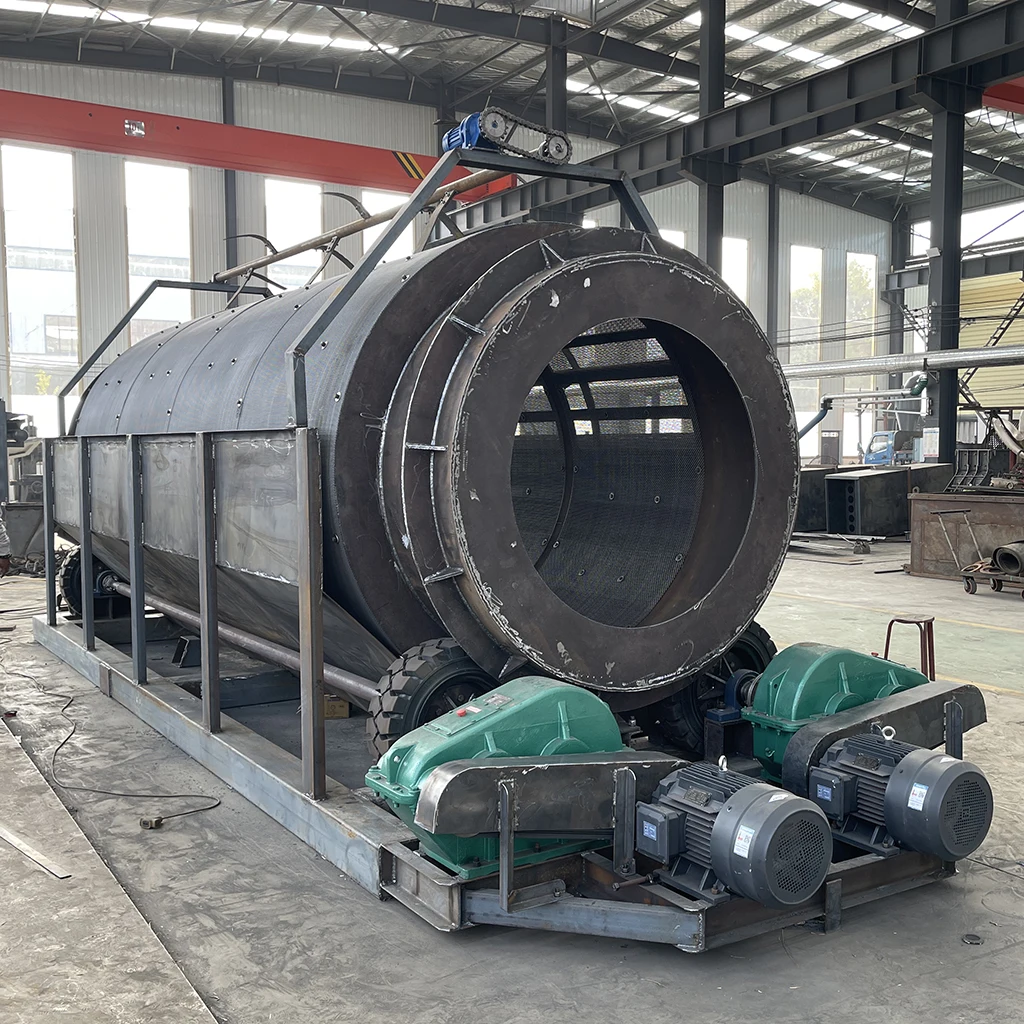

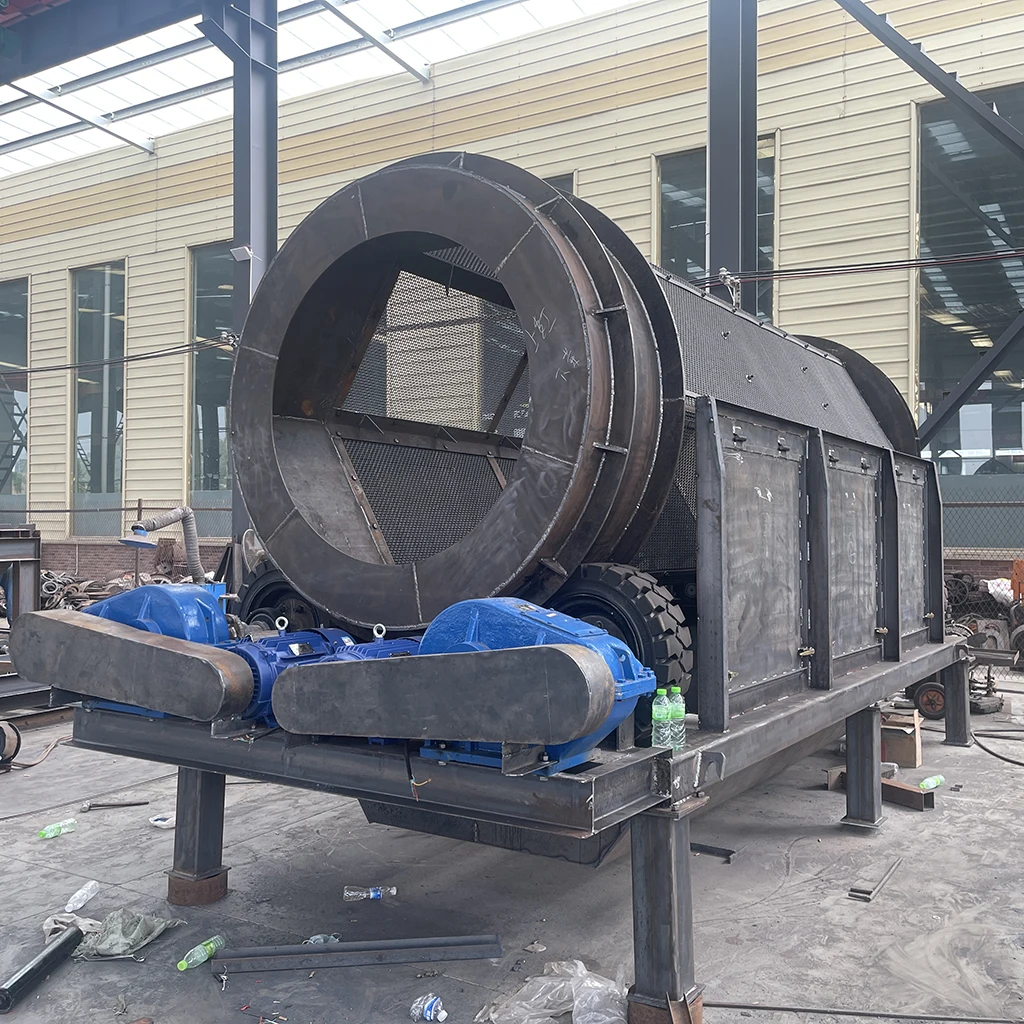

Trommel screen is a very widely used machinery in sorting technology, which controls garbage sorting by particle size, and has high sorting accuracy. The cylinder of the trommel screen is generally divided into several sections, depending on the specific situation, the sieve holes are arranged from small to large, and the sieve pore diameter on each section is the same.

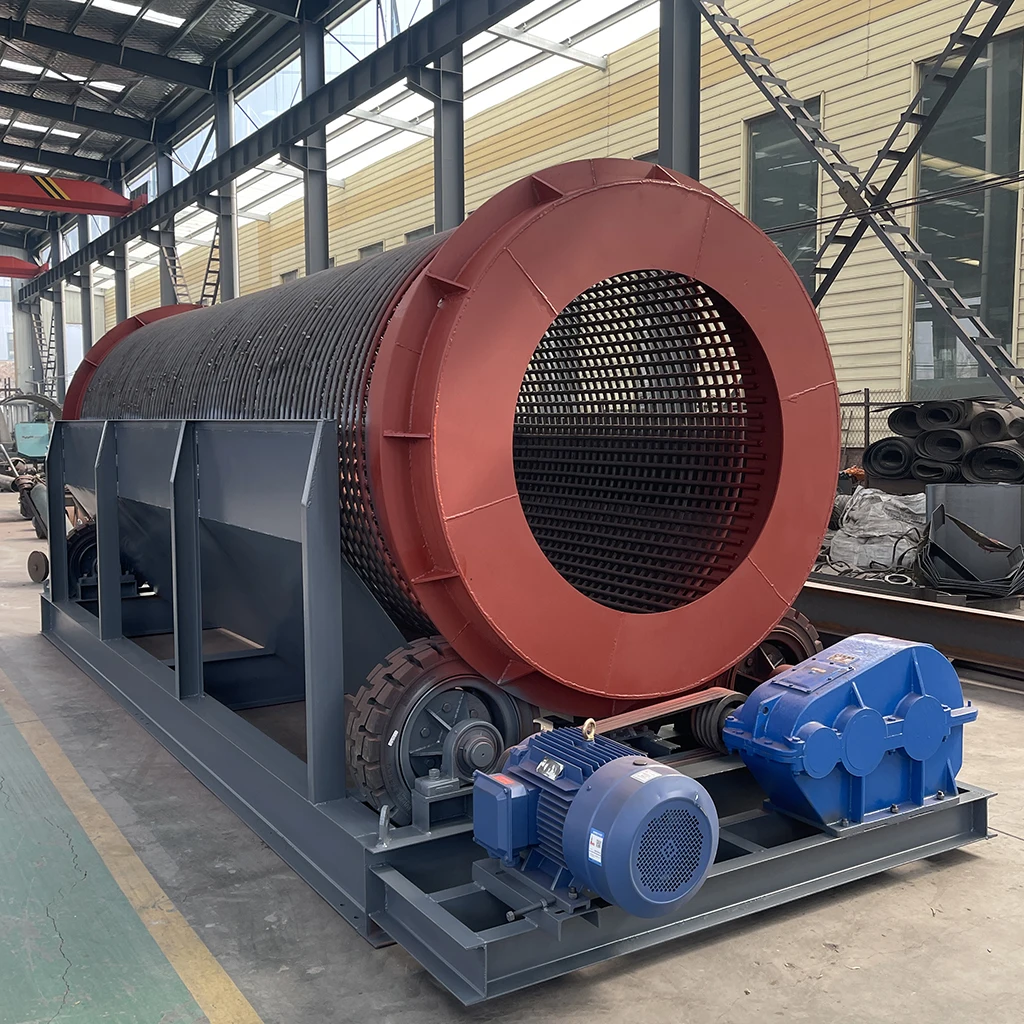

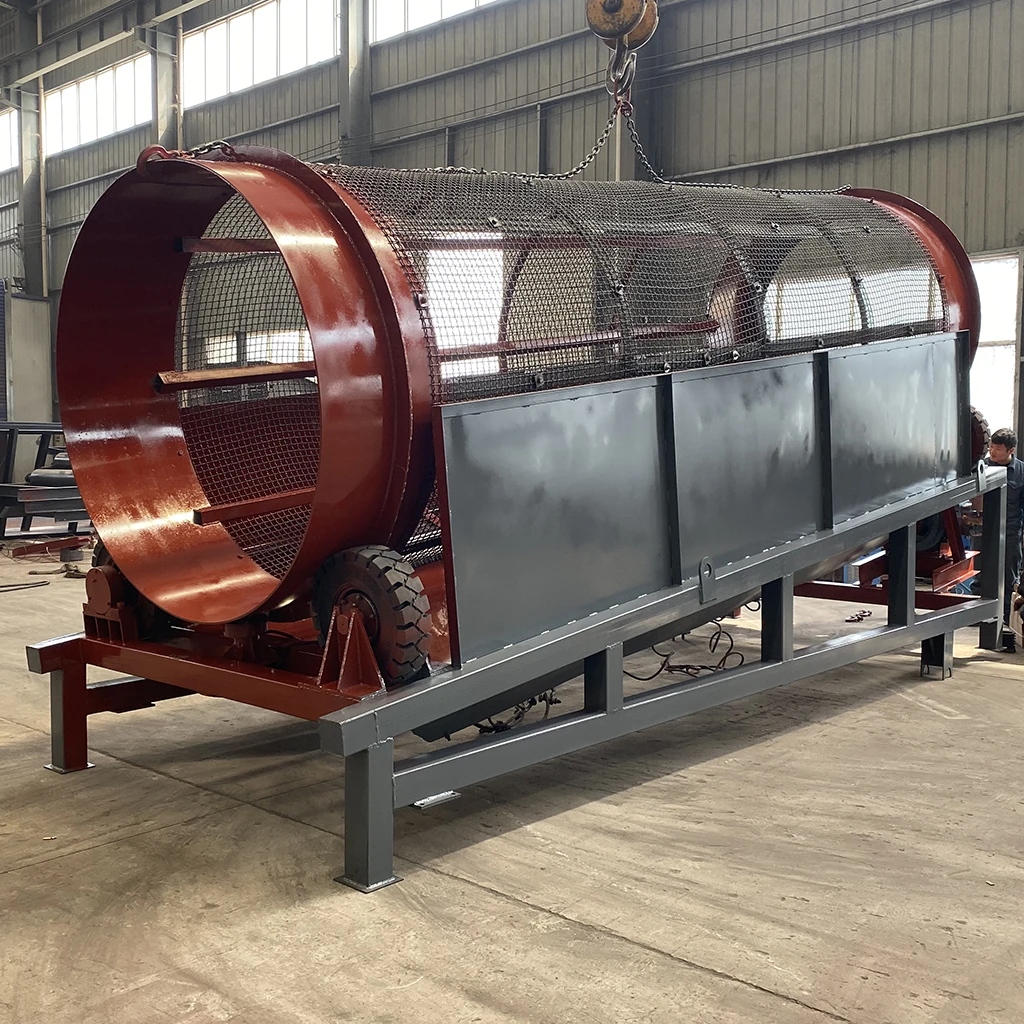

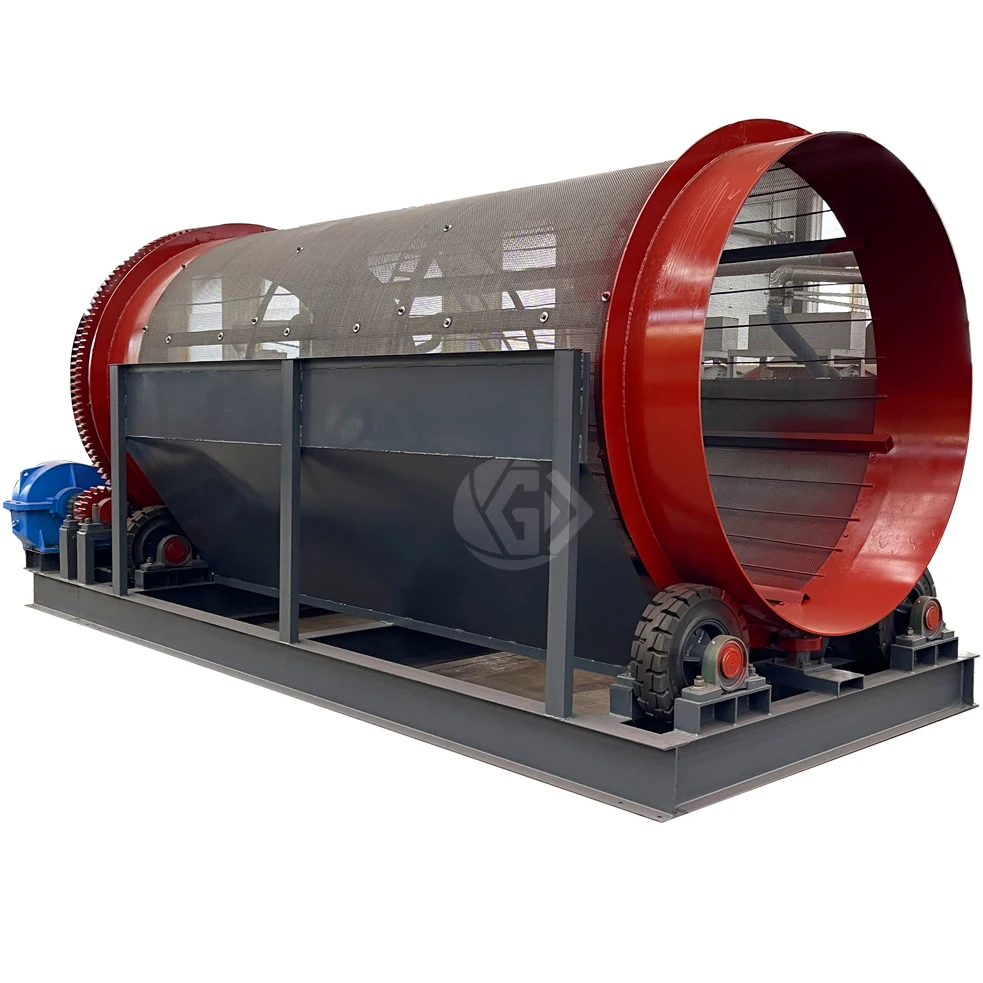

The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, a sealing cover, and an inlet and outlet.
Trommel screen is a very widely used machinery in sorting technology, which controls garbage sorting by particle size, and has high sorting accuracy. The cylinder of the trommel screen is generally divided into several sections, depending on the specific situation, the sieve holes are arranged from small to large, and the sieve pore diameter on each section is the same.
The trommel screen is mainly composed of a motor, a reducer, a drum device, a frame, a sealing cover, and an inlet and outlet.
Working principle of trommel screen:
The drum unit is mounted on the frame at an angle. The motor is connected with the drum device through the reducer through a coupling, and the drum device is driven to rotate around its axis. When the material enters the drum device, due to the tilt and rotation of the drum device, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (the product on the screen) is discharged through the discharge port at the tail of the drum. Due to the flipping and rolling of the material in the drum, the material stuck in the sieve hole can be ejected to prevent the sieve hole from being blocked. The principle and structure of the trommel sand screening machine, the drum screening machine and the trommel screen are almost the same, but there are differences in people's understanding and name.
Advantages of trommel screen:
Advantages of trommel screen:
1. The sieve hole is not easy to block.
2. Smooth operation and low noise.
3. Simple structure and easy maintenance.
4. The screening drum can be closed, which is easy to seal and collect dust.
5. The reliability of the whole machine is high, and the one-time investment is less.
6. The special screen is adopted, which has high screening efficiency and long service life.
1. The sieve hole is not easy to block.
2. Smooth operation and low noise.
3. Simple structure and easy maintenance.
4. The screening drum can be closed, which is easy to seal and collect dust.
5. The reliability of the whole machine is high, and the one-time investment is less.
6. The special screen is adopted, which has high screening efficiency and long service life.
Technical Parameters:
(shall prevail over the real thing)
Model | Size(m) | Inclination | Revolutions （R/MIN） | Sieve(mm) | capacity(m3/h) | Motor (kw) | ||
GTS820 | Φ0.8X2 | 6 | 32 | 2-20 | 15 | 7.5 | ||
GTS830 | Φ0.8X3 | 6 | 32 | 2-20 | 18 | 7.5 | ||
GTS1030 | Φ1X3 | 6 | 25 | 2-20 | 20 | 11 | ||
GTS1040 | Φ1X4 | 6 | 25 | 2-20 | 25 | 11 | ||
GTS1230 | Φ1.2X3 | 6 | 20 | 2-20 | 30 | 11 | ||
GTS1240 | Φ1.2X4 | 6 | 20 | 2-20 | 40 | 15 | ||
GTS1250 | Φ1.2X5 | 6 | 20 | 2-20 | 60 | 15 | ||
GTS1530 | Φ1.5X3 | 6 | 17 | 2-20 | 80 | 15 | ||
GTS1540 | Φ1.5X4 | 6 | 17 | 2-20 | 100 | 18.5 | ||
GTS1550 | Φ1.5X5 | 6 | 17 | 2-20 | 120 | 18.5 | ||
GTS1560 | Φ1.5X6 | 6 | 17 | 2-20 | 150 | 22 | ||
Guangxi Liuzhou Powder Production Line
African gold mine washing project
Indonesian tailings washing complete process
Q: How long is your delivery time?
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
Company Information
Henan Gaoda Mechanical Manufacturing Co., Ltd. is located on the Central West Road of Gongyi City, Henan Province. It is a professional manufacturer of mining equipment and environmental protection equipment, with many years of technical strength and experience. The main products developed and produced are: crushing equipment, sand making equipment, screening and washing equipment, mobile crushers, mobile screening equipment, sand washing and recovery equipment, dehydration screens, vibrating screen separators, etc. 5 major series and nearly 50 products, which are widely sold to various parts of China as well as Indonesia, Iran, Russia, Pakistan, India, South Africa and other 10 countries.
Похожие товары

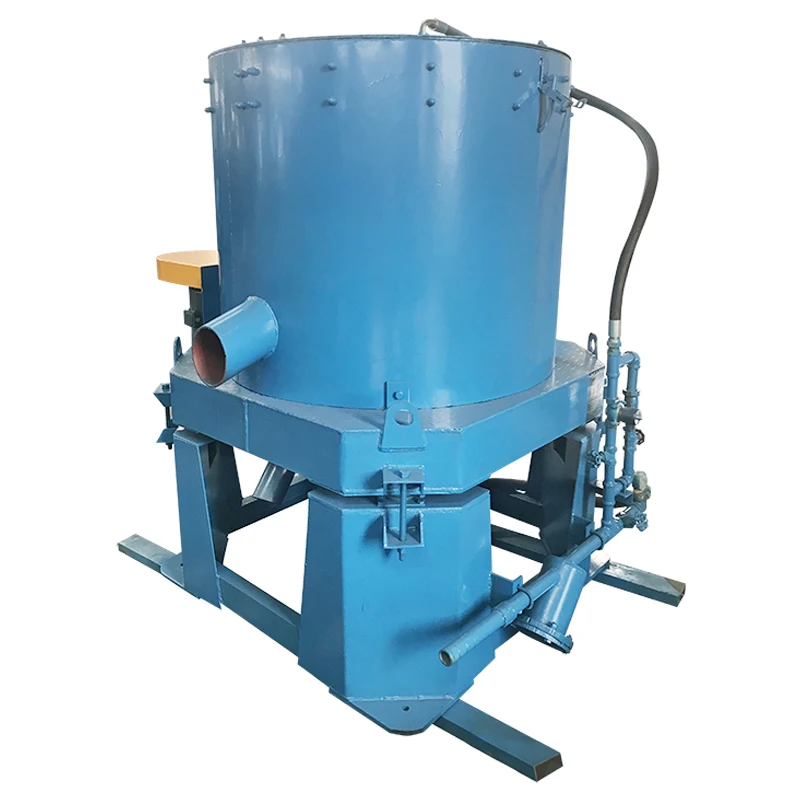

Золотоперерабатывающая машина Knelson centrigufal концентратор Золотая центрифуга сепаратор
Заводская центрифуга для извлечения золота центробежный сепаратор Knelson
220 416,80 ₽ - 242 458,48 ₽

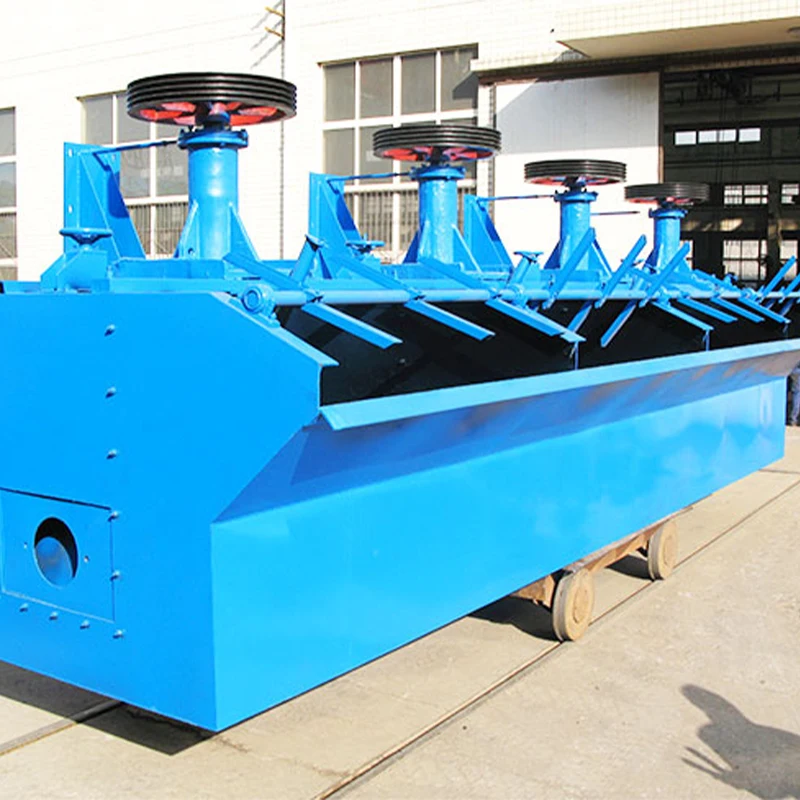

Флотационная машина для концентратора Золотой медной руды XJ/SF
529 000,32 ₽ - 551 042,00 ₽
Горный гравитационный сепаратор Eqipment Knelson Золотой центробежный концентратор
606 146,20 ₽
Высокопроизводительный центробежный концентратор Knelson Золотой
484 916,96 ₽ - 506 958,64 ₽
Горный концентратор гравитационное оборудование для обработки Золотой Руды Центробежный сепаратор
385 729,40 ₽ - 551 042,00 ₽

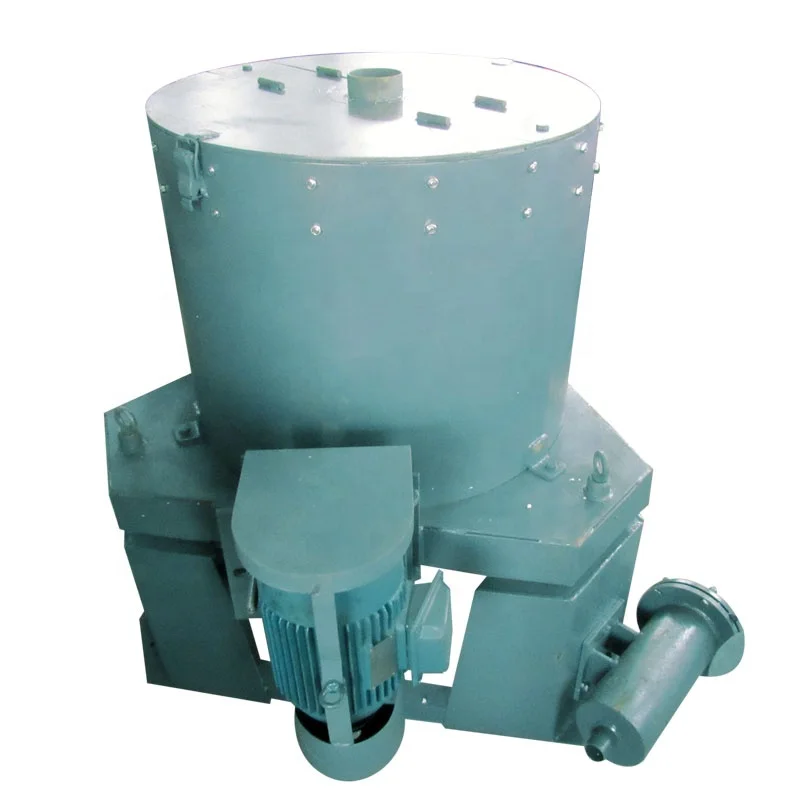

Небольшое оборудование для добычи золота мини центробежный концентратор
