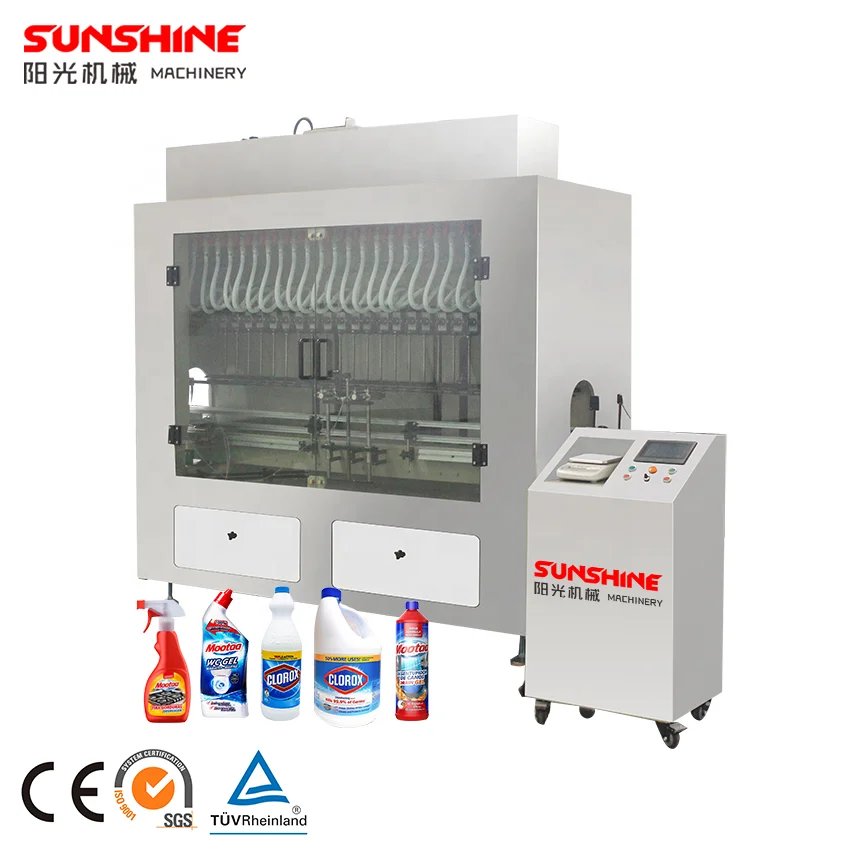

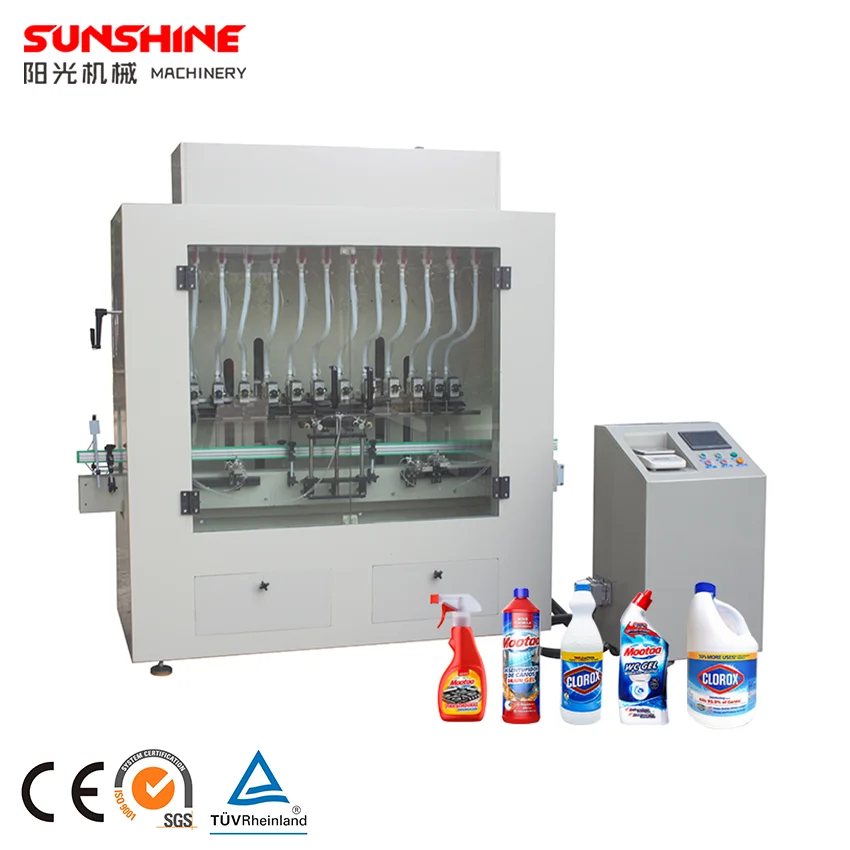

Автоматическая машина для розлива антикоррозионных растворителей 5 л 10 15
- Категория: >>>
- Поставщик: Changzhou Sunshine Packing Machinery Co. Ltd.
Сохранить в закладки 1601271146539:
Описание и отзывы
Характеристики

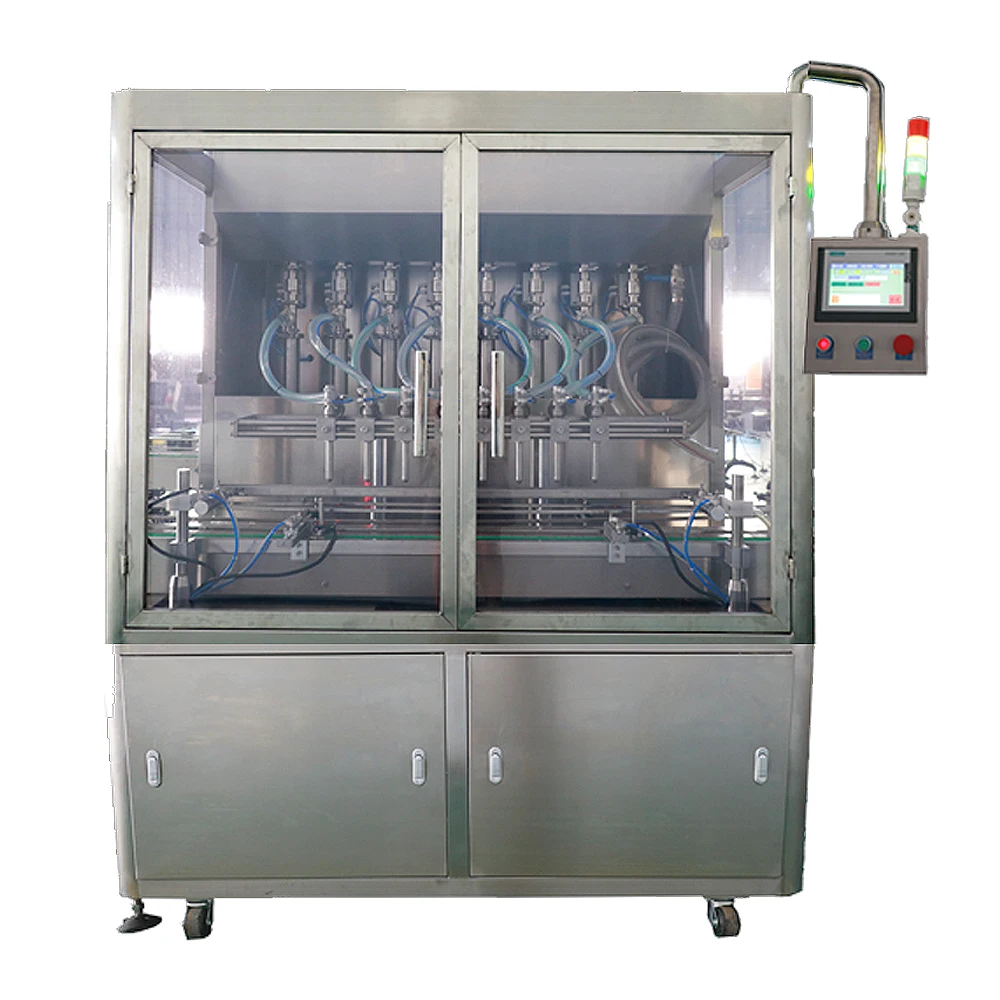

This is our new servo piston filling machine.It has reached the international advanced level ,partial has exceeded the similar product.It is also suitable for the filling of daily chemicals,oil liquid,sauce,getergent liquid,cosmetics,medicinel liquid and flammable and explosive liquid . It adopts PLC and touch screen control panel for control material. It is characterized by accurate measuring ,advanced structure ,stable operating ,low noise ,large adjusting range ,fast filling speed. Operators adjust and meter figure in the touch screen control panel , also can adjust metering of each filling head . The external surface of this machine is made of excellent stainless steel . Good appearance , applied to GMP standard.
Type | Head | Suitable bottles | Speed | Precise | Machine Size | Power | Power Supply | Air |
YG-20S | 20 | Customized | 500ml≤5000BPH | ≤0.1% | 2800*1300*2350 | 3.5KW | 0.6-0.8Mpa | |
YG-16S | 16 | 500ml≤4000BPH | 2800*1300*2350 | 3.5KW | ||||
YG-12S | 12 | 500ml≤3000BPH | 2400*1300*2350 | 3KW | ||||
YG-8S | 8 | 500ml≤2500BPH | 2000*1300*2350 | 3KW | ||||
YG-6S | 6 | 500ml≤1600BPH | 2000*1300*2350 | 3KW |
NO.1
The filling nozzles adopt servo motor lifting function,it can realize the lifting while filling.Effective for the production of foamy liquid.
All pipe joints are quickly connections to ensure that the machine is beautiful and easy to disassemble and clean.
All pipe joints are quickly connections to ensure that the machine is beautiful and easy to disassemble and clean.
NO.2
The filling nozzles and three-way valves are adopt ESG brand,the filling accuracy is high and without residue after clean.
The cylinder piston have fall off function,One click to clean residual material on piston and cylinder,it is fast to change filling materials in production.
The cylinder piston have fall off function,One click to clean residual material on piston and cylinder,it is fast to change filling materials in production.
NO.3
Double stainless steel chain drive, compared with the traditional belt drive, less noise, more durable.
Double lead screw matched with Panasonic high power servo motor drive,stable operation and high precision.
Double lead screw matched with Panasonic high power servo motor drive,stable operation and high precision.
NO.4

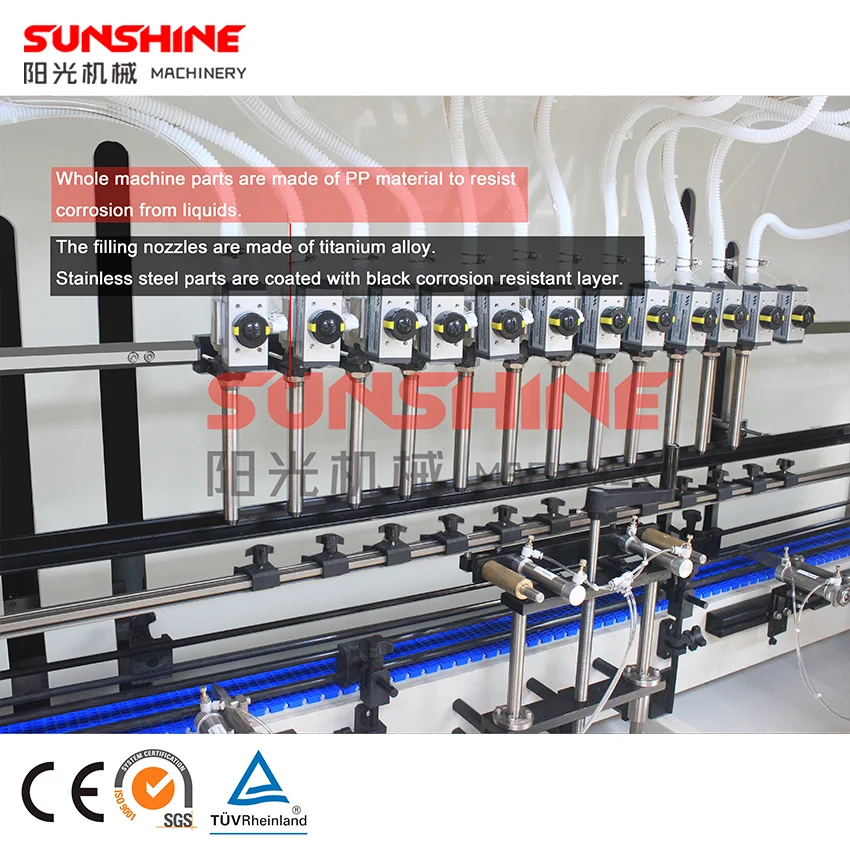

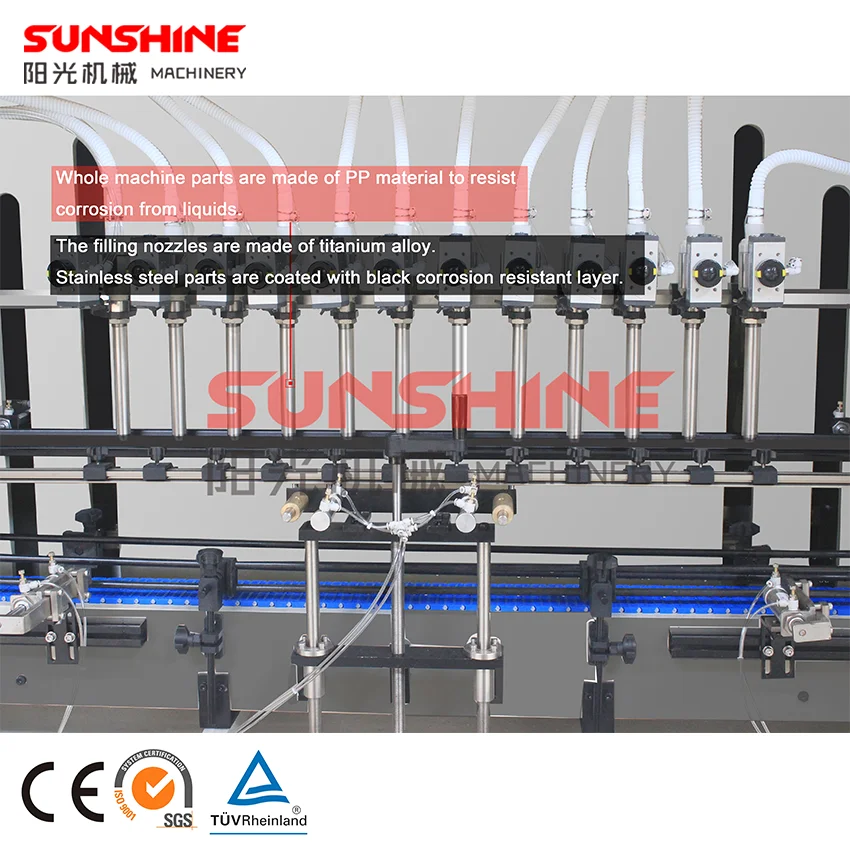

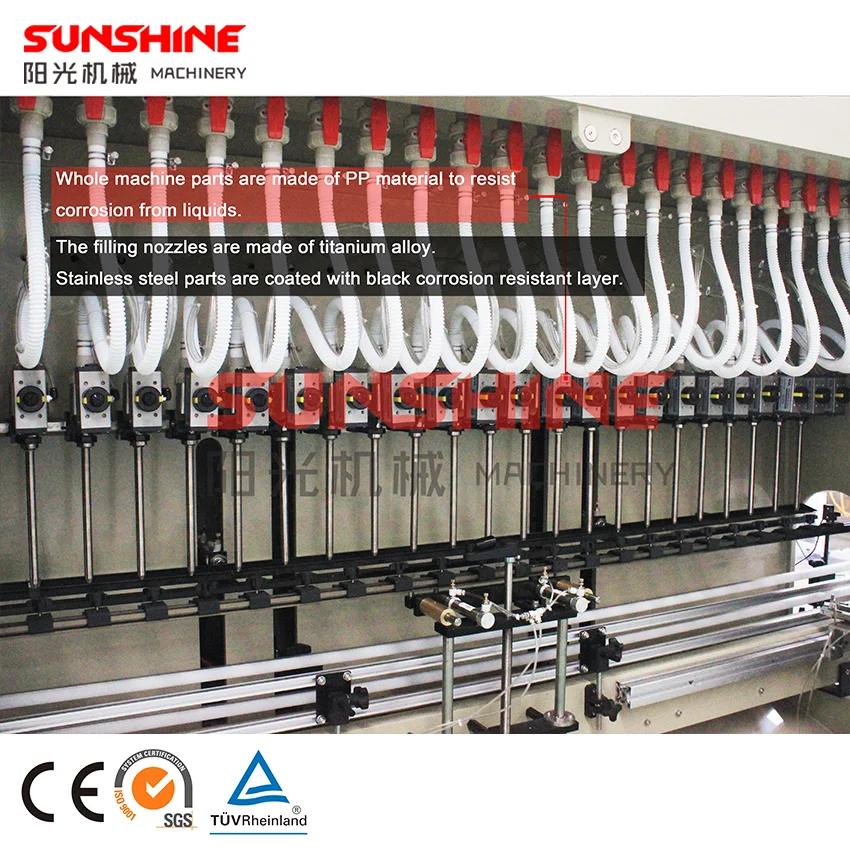

Choose different matericals for different liquid filling.(SUS304,SUS316,PP or Titanium alloy)
The length and diameter of the filling nozzles can be customized by the bottles and filling materials.
You can click and view the video on the computer
Jintan Sunshine Machinery Co., LTD was founded in 2001, which has more than 15 years experience in machinery manufacturing. It is located in West zone, No.33 building, FENGHUANGCHENG Industrial Park, Jintan District, Changzhou City, Jiangsu Province,China.We devote ourselves to the development, research and production of pesticide, chemical , Food, daily chemical packaging machinery. Our main products including: full automatic and semi automatic bottle unscrambler, filling, capping, and labeling machine, we also provide solution of whole production line for customer.All our products are sold well in more than 20 provinces and cities in china, we also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Welcome to visit Sunshine Machinery, thank you!
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, thetechnician of buyer could master the operation and maintenance, could adjustthe process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.Contact our sales people you can get video of our reference running machine
Q2: Do you provide customized service
A2: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q3: What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Похожие товары

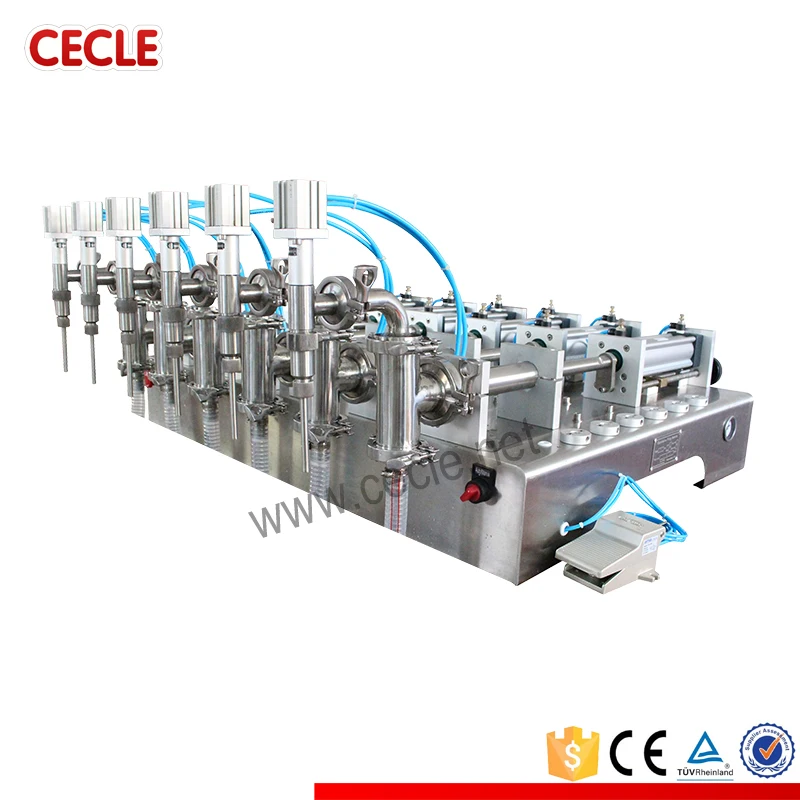

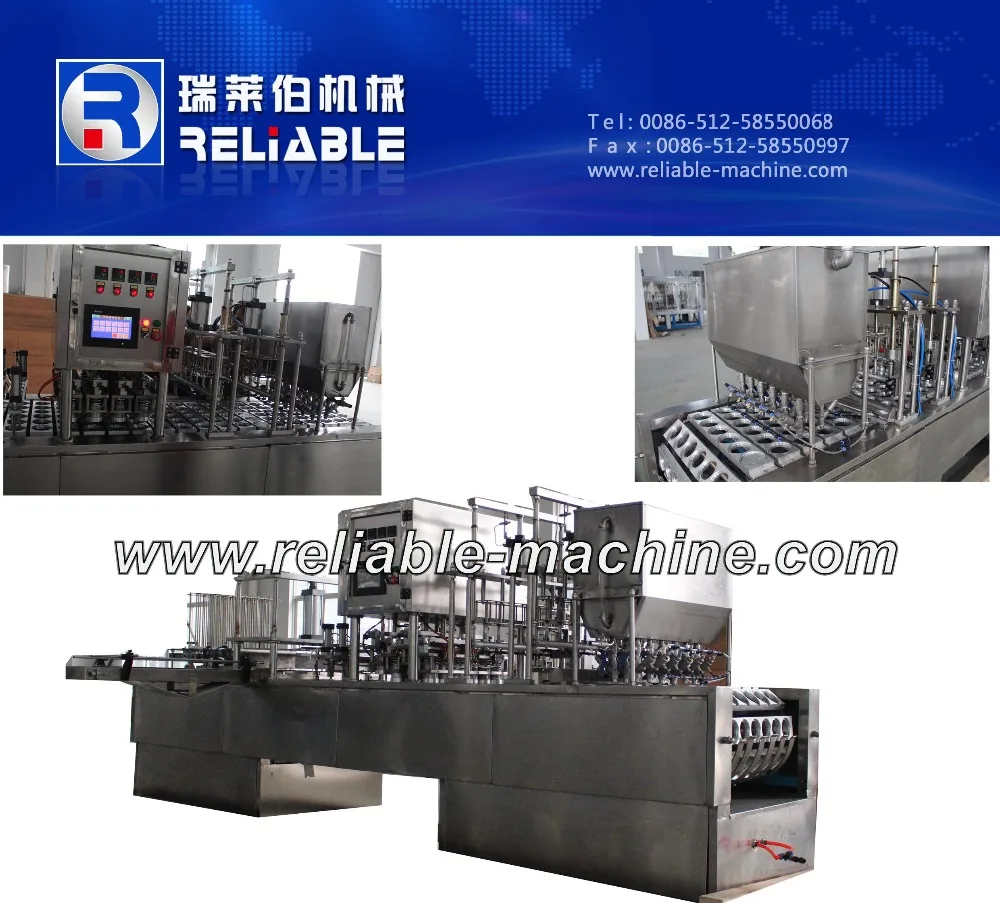

6 главы пластиковые чашки наполнения и запайки
6F6-150 6 глава разливочная машина для продажи
Автоматическая 6 глава оливковое масло машина для кокосового масла смазочного масла

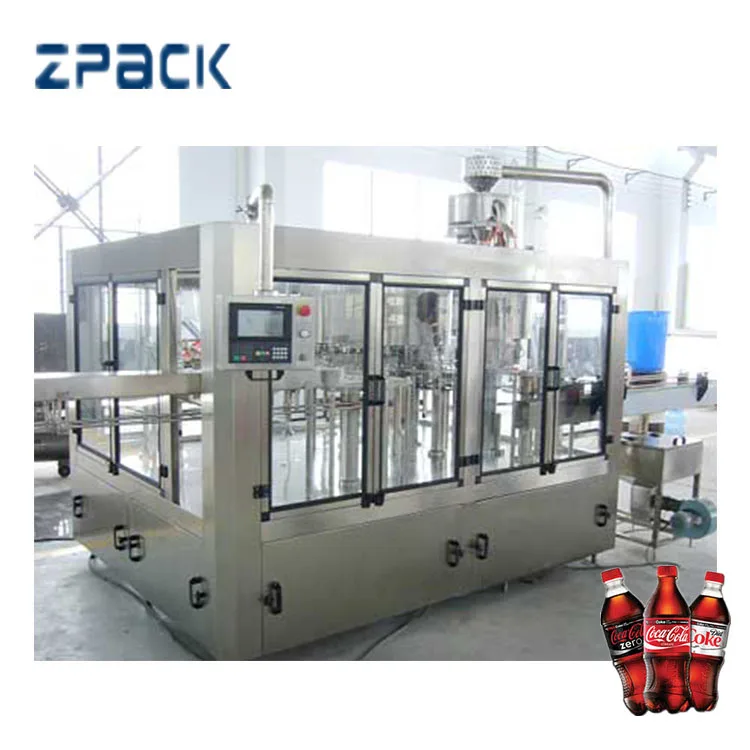

Автоматическая 12 головок газированной воды, машины розлива, Малый газированных напитков завод розлива
Фабрика низкая цена легко работать 6 глава туалет очистки жидкого наполнения машины

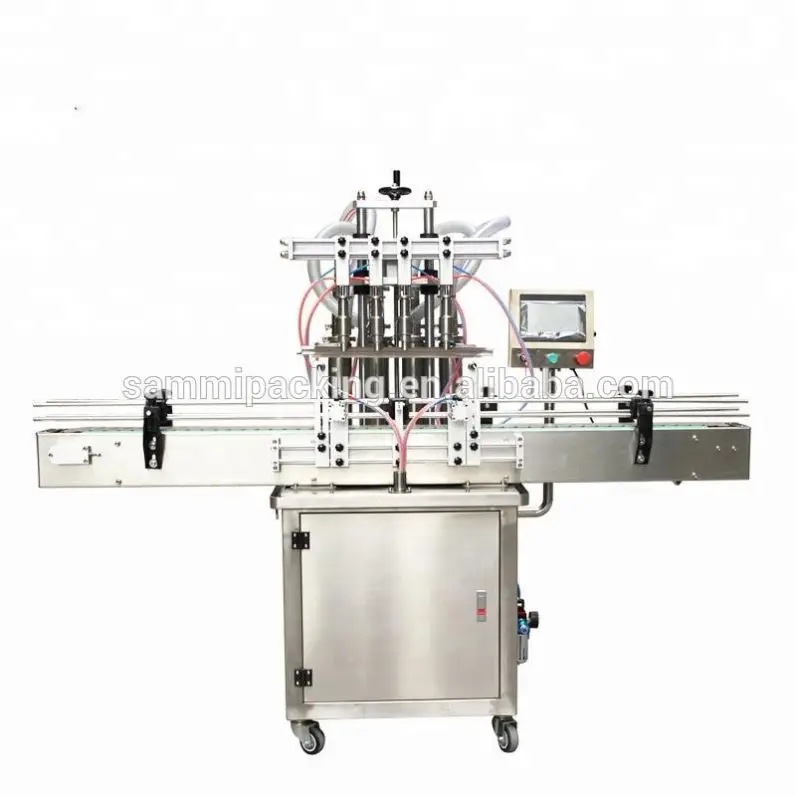

Автоматическая машина для розлива косметических жидкостей с 4 головками
