Оборудование для скрининга сломанной руды из углеродного песка
1 102 084,00 ₽
Квадратный вращающийся вибрационный сито
- Категория: >>>
- Поставщик: Xinxiang Sanyuantang Machine Co. Ltd
Сохранить в закладки 1601271157696:
Описание и отзывы
Характеристики
Product Overview
Mining Silica Sand Sieve Machine Activated Carbon Gyratory Screen Plastic Powder Sifter Machine
Gyratory sieve sifter machine is a high-efficiency screening equipment specially designed for high precision and large capacity output.It is widely used in sand, mining, chemical, non-ferrous metals, food, quartz sand, abrasive and other industry and fields . The screen mesh frame and bouncing balls installation method adopt quick open design and easy to install, so the installation is very convenient. Usually two feed inlet channels available.

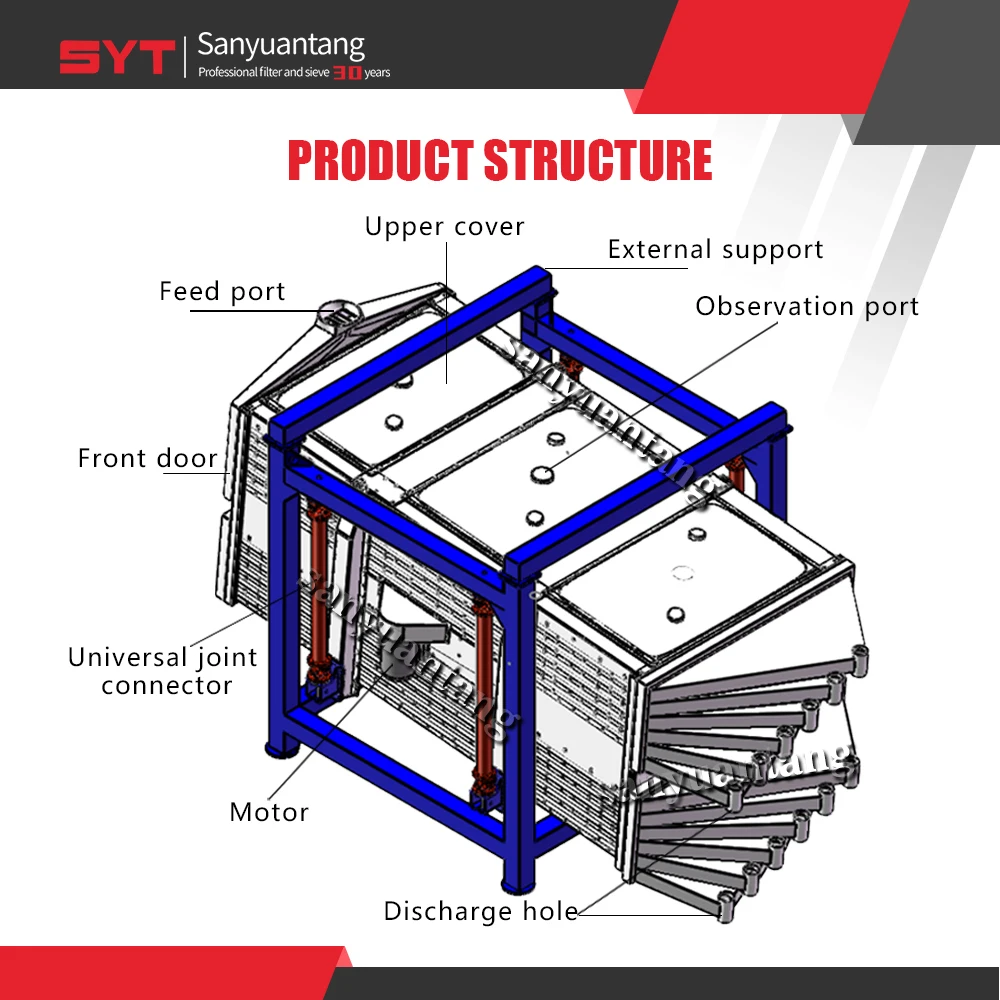

The whole sieve box of the vibrating separator is connected by the universal axis, when the sieve machine does the rocking movement, the universal axis also follows the rotation, plays the role of buffering to the rotating power, damping, so that the whole sieve machine runs more smoothly.
The whole sieve box of the vibrating separator is connected by the universal axis, when the sieve machine does the rocking movement, the universal axis also follows the rotation, plays the role of buffering to the rotating power, damping, so that the whole sieve machine runs more smoothly.
FEATURES AT A GLANCE

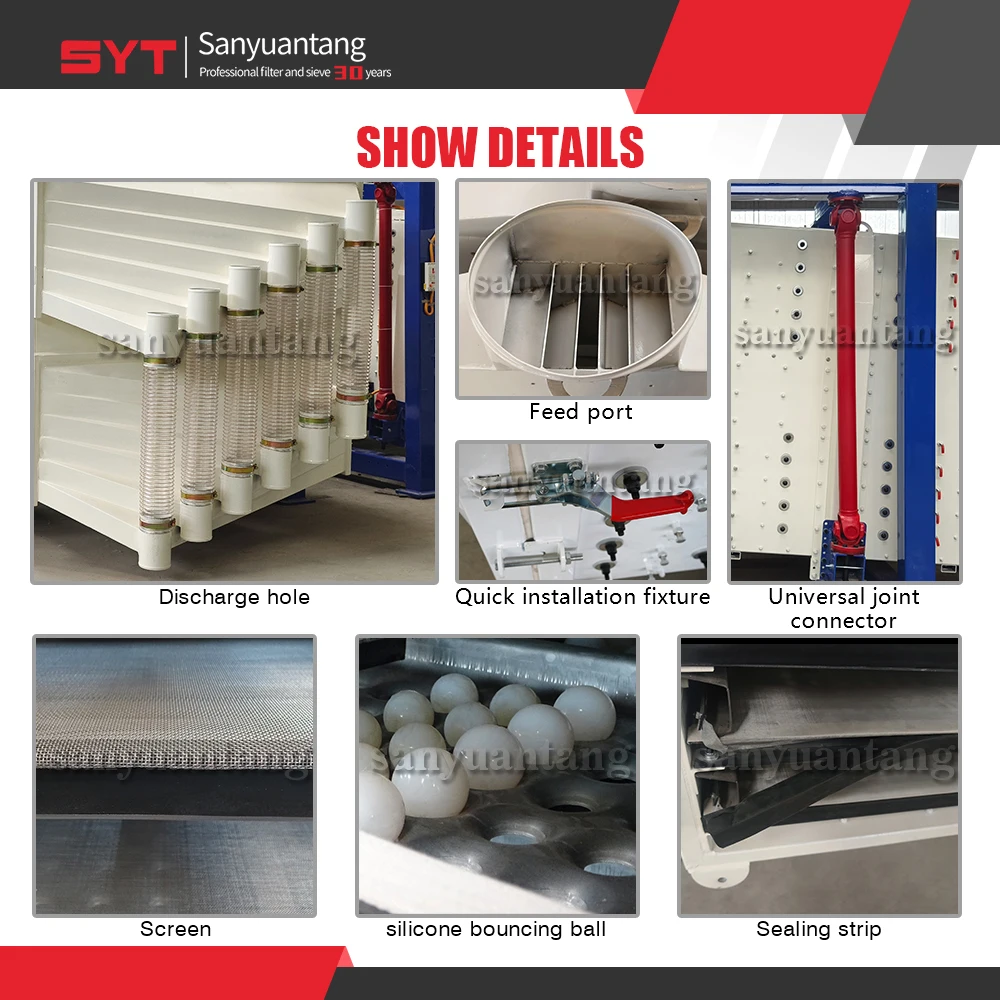

1, The screen mesh frame and the screen mesh and bouncing balls installation method adopt quick open design and easy to install,5-10 minutes to replace the screen mesh, can be performed from the feed of the machine. Reducing equipment downtime, Increasing production capacity.
2, Diameter 40 mm bouncing balls to clean sieve mesh .
3, Discharge port: The height can be customized .The color is optional.
2, Diameter 40 mm bouncing balls to clean sieve mesh .
3, Discharge port: The height can be customized .The color is optional.
PRODUCT SPECIFICATIONS
Model | Screen size | Screening area | Screen inclination | Layers | Power | Number of turns | Case travel |
FYBS1536 | 1.5*3.5m | 4.5-9 m2 | 5-8 | 1-10 | 5.5 KW | 180-260 | 25-60 mm |
FYBS2040 | 2.0*4.0m | 8-9 m2 | 5-8 | 1-10 | 7.5 KW | 180-260 | 25-60 mm |

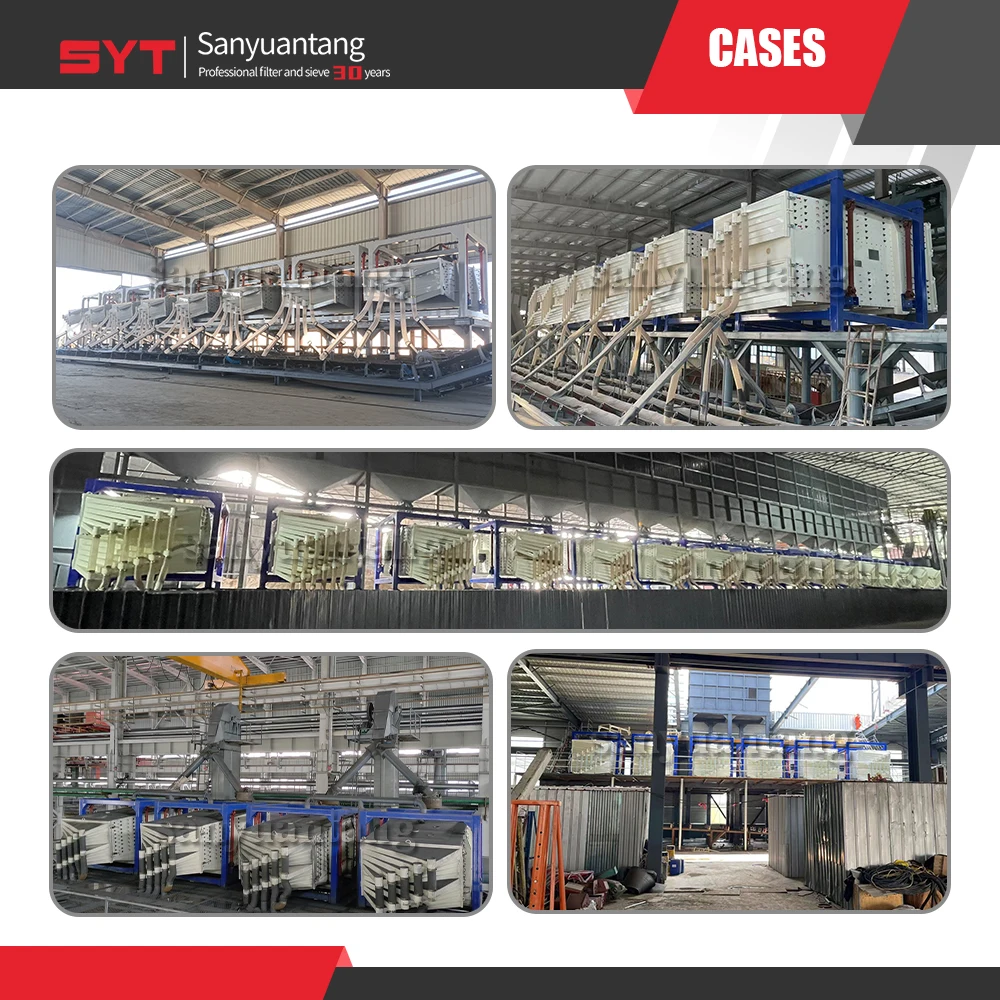

Successful Project
SIMILAR PRODUCTS
Company Profile
Xinxiang Sanyuantang Machine Co., Ltd. is located in Xinxiang High-tech Industrial Zone. It is a large-scale vibration equipment enterprise integrating scientific research, production and sales. In 2016, it passed the ISO9001 international quality management system certification. The company is committed to the production and sales of vibrating screen equipment, conveying and lifting equipment. Our products mainly include gyratory sieve , circular tumbler screen, rotary vibrating screen, ultrasonic vibrating screen, linear vibrating screen, filter sieve, air flow sieve,lab test sieve shaker, and a series of products such as conveying and lifting equipment.
FAQ
The proper selection of the vibrating screen depends on the material, number of layers, every mesh size, capacity, material,moisture, viscous and corrosive etc:
1. Screening material : _____
2. How many layer(s):_______
3. Mesh size of every layer:_______
4. Capacity: :________kg/ hour
5. Moisture, viscous, corrosive ________
6. Voltage:______V, Frequency:______HZ, 3 phase
Can your engineer come to the construction site to guide the installation?
>>A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/visa/ local accommodation/ local traffic is in charge of customer.
1. Screening material : _____
2. How many layer(s):_______
3. Mesh size of every layer:_______
4. Capacity: :________kg/ hour
5. Moisture, viscous, corrosive ________
6. Voltage:______V, Frequency:______HZ, 3 phase
Can your engineer come to the construction site to guide the installation?
>>A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/visa/ local accommodation/ local traffic is in charge of customer.
How long can the goods be delivered?
>>A:We have ample accessories and inventory and can guarantee delivery within 20days.
Can you communicate quickly?
>>A:Our customer service staff is online 24 hours and multiple chat methods such as whatsapp/Skype/WeChat.
What is the function of the vibrating screen?
>>A:Whether you are using grading sieves simply to remove fines and/or oversize contamination or looking for a range of highly accurate product fractions, we have the perfect solution for you.
>>A:We have ample accessories and inventory and can guarantee delivery within 20days.
Can you communicate quickly?
>>A:Our customer service staff is online 24 hours and multiple chat methods such as whatsapp/Skype/WeChat.
What is the function of the vibrating screen?
>>A:Whether you are using grading sieves simply to remove fines and/or oversize contamination or looking for a range of highly accurate product fractions, we have the perfect solution for you.
Please contact me to get an offer !!
