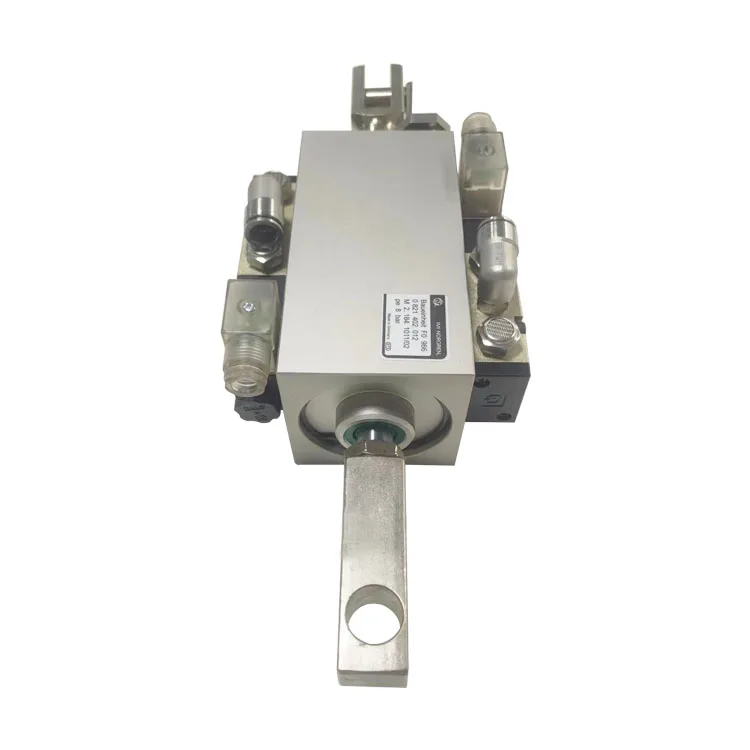

Комбинированный цилиндр давления M2.184.1011 для печатной машины Heidelberg
23 603,10-26 686,92 ₽
Веб контроллер сервопривод автоматическая система управления положением края CCD датчик изображения SG300E
- Категория: >>>
- Поставщик: Wuxi Galy Co. Ltd.Wuxi Ltd.
Сохранить в закладки 1601271253234:
Описание и отзывы
Характеристики
Product Overview
Servo Brushless Web guide system GL-3000E - CCD image sensor
Include :
1pc Controller
1pc CCD image Sensor
1pc Actuator

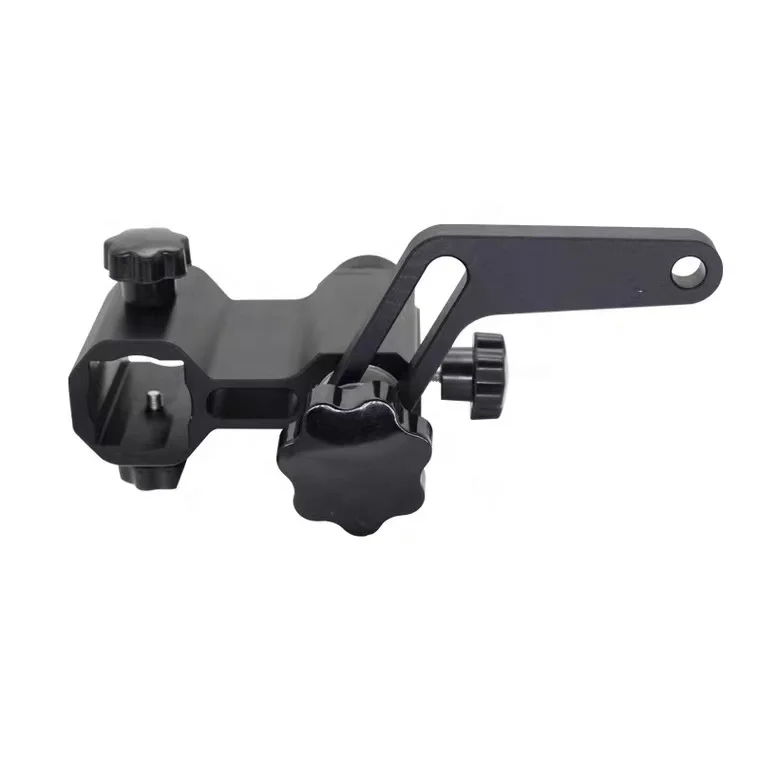

1pc Support

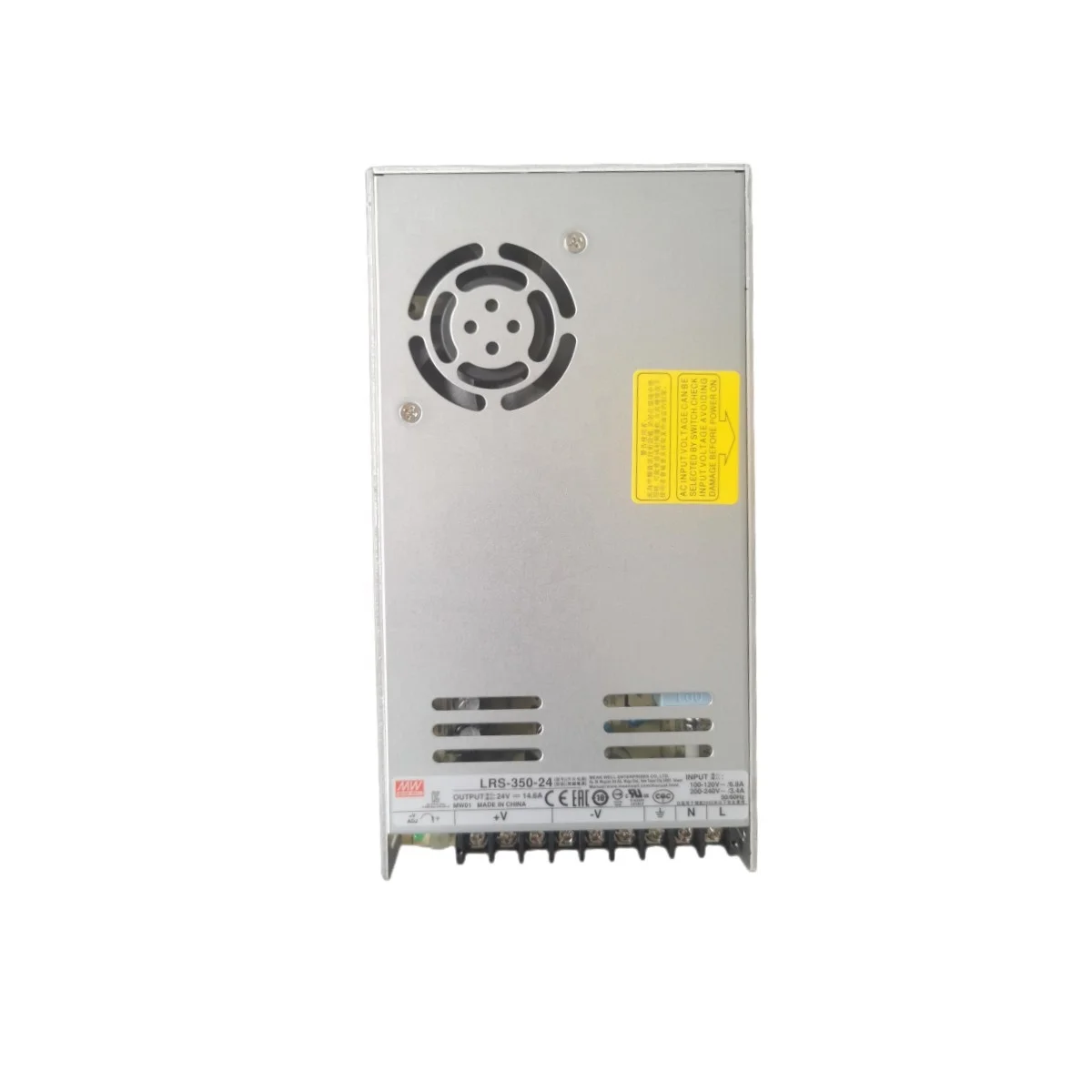

1pc Switching Power Supply
2pc Wires
Web Guide Controller
Features :
◎Reaction time 2ms, high precision;
◎System control accuracy 0.1mm;
◎ Can drive various drives;
◎It can be connected to various rectification sensors, which can realize rectification functions such as edge tracking, dual sensor centering, and line tracking;
◎Using OLED high-resolution display screen to fully control the real-time status of the system;
◎Real-time display of material deviation, driver position current, temperature;
◎Screen sleep energy saving and screen lock protection;
◎Automatic running state can quickly modify system parameters online;
◎Abundant rectification functions: serpentine oscillation rectification, multi-layer rectification, material fault tolerance, etc.
◎System control accuracy 0.1mm;
◎ Can drive various drives;
◎It can be connected to various rectification sensors, which can realize rectification functions such as edge tracking, dual sensor centering, and line tracking;
◎Using OLED high-resolution display screen to fully control the real-time status of the system;
◎Real-time display of material deviation, driver position current, temperature;
◎Screen sleep energy saving and screen lock protection;
◎Automatic running state can quickly modify system parameters online;
◎Abundant rectification functions: serpentine oscillation rectification, multi-layer rectification, material fault tolerance, etc.
Parameters :
1. Processor (CPU): 32-bit high-performance microprocessor, the highest frequency is 48MHz;
2. Sensor interface: dual analog input;
3. Driver interface: support DC brushless motor driver, the maximum driving power is 240W;
4.1/0 interface: six-channel programmable remote control digital I/O;
5. Communication interface: RS485 (support Modbus-RTU protocol), which can be used for remote control;
6. Working environment: working temperature 0~-50*C; maximum humidity 5~9096, no condensation;
7. Power supply: 24V DC;
8. Protection circuit: support overcurrent, overvoltage, overload. Short circuit and power reverse connection protection:
9. Support limit alarm, fault alarm. Fault self-diagnosis.
2. Sensor interface: dual analog input;
3. Driver interface: support DC brushless motor driver, the maximum driving power is 240W;
4.1/0 interface: six-channel programmable remote control digital I/O;
5. Communication interface: RS485 (support Modbus-RTU protocol), which can be used for remote control;
6. Working environment: working temperature 0~-50*C; maximum humidity 5~9096, no condensation;
7. Power supply: 24V DC;
8. Protection circuit: support overcurrent, overvoltage, overload. Short circuit and power reverse connection protection:
9. Support limit alarm, fault alarm. Fault self-diagnosis.

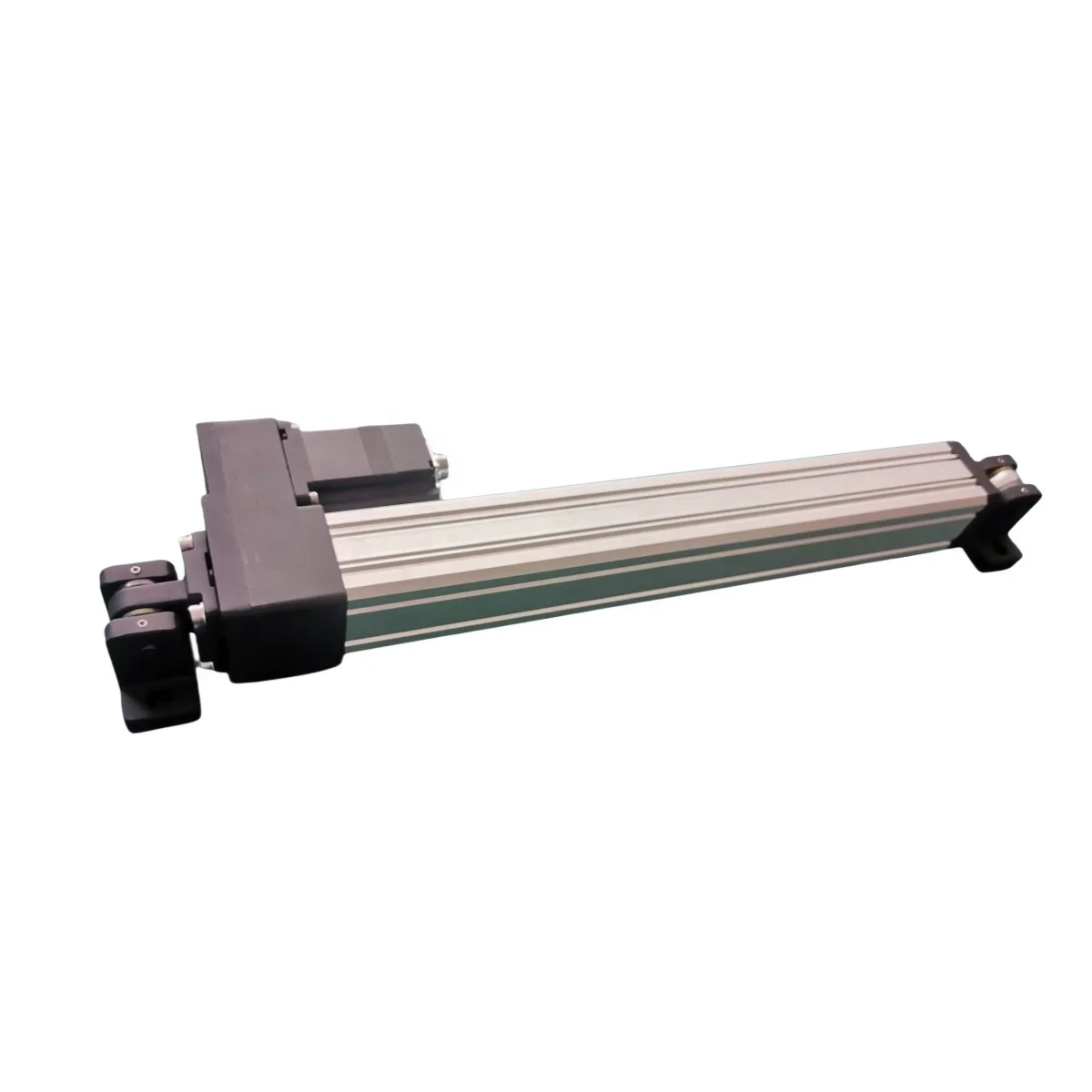

Web Guide Actuator
Servo Brushless Web Guide Actuator SL-150E
Parameters:
⊙Brushless DC motor, fast response, super long and durable;
⊙ Built-in electronic brake to ensure accurate positioning;
⊙ Built-in position feedback function, real-time accurate display of travel position;
⊙The limit and center can be set to any position through parameters;
⊙ Real-time display of drive module temperature and motor current;
⊙ Built-in electronic brake to ensure accurate positioning;
⊙ Built-in position feedback function, real-time accurate display of travel position;
⊙The limit and center can be set to any position through parameters;
⊙ Real-time display of drive module temperature and motor current;
Model | Rated thrust(N) | Stroke(mm/s) | Speed(mm/s) | Motor |
SL-50E | 3000 | ±25(50mm) | 40 | |
SL-100E | 3000 | ±50(100mm) | 40 | Servo built-in encoder |
SL-150E | 3000 | ±75(150mm) | 40 | |
SL-200E | 3000 | ±100(200mm) | 40 | |
SL-300E | 3000 | ±150(300mm) | 40 |
Web Guide Sensor
Optional Sensors
CCD image sensor SG-300E
Ultrasonic sensor SG-200E
Infrared sensor SG-100E

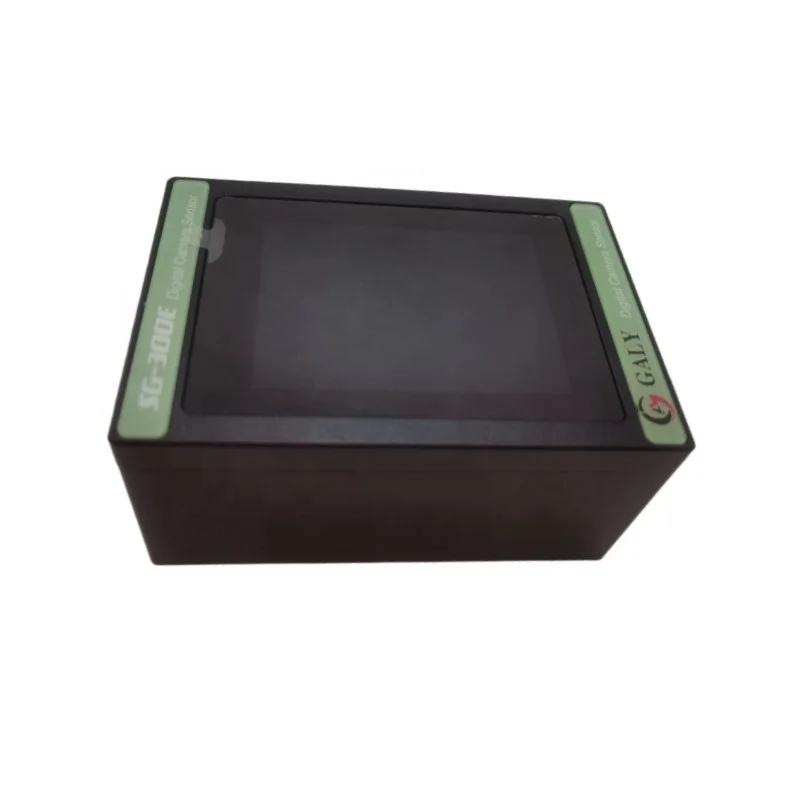

CCD image sensor SG-300E
Features:
This image sensor scans the material surface light contrast in real time through linear array CCD image sensing, which can realize non-contact scanning of materials .
1. Use high-speed linear array CCD image sensor elements to accurately track printing lines, printing edges or material edges;
1. Use high-speed linear array CCD image sensor elements to accurately track printing lines, printing edges or material edges;
2. Use full-color light-emitting diodes as background lighting sources. Different colors of lighting sources can be selected according to the reflective properties of the material surface to achieve the optimal lighting effect;
3. Adopt fully laminated glass capacitive touch panel, IPS high-bright color screen, menu-based operation interface, simple and intuitive;
4. Laser line-assisted positioning;
5. Configure USB storage interface to facilitate on-site tracking algorithm firmware upgrade;
6. Equipped with two output interfaces, analog and CAN communication, to facilitate integration into different correction systems;
5. Configure USB storage interface to facilitate on-site tracking algorithm firmware upgrade;
6. Equipped with two output interfaces, analog and CAN communication, to facilitate integration into different correction systems;
Technical Parameters:
1. Power supply voltage: 12~30Vdc
2. Current consumption: 120mA/24Vdc
3. Output interface: analog (2~8mA) or CAN bus (system configurable)
3. Ambient temperature: 0~50°C
4. Measuring range: ±10mm
5. Resolution: 0.05mm
6. Focus distance/format spacing: 25~30mm
7. Scan rate: 500~2000Hz
8. Protection level: IP54
9. Dimensions (length x width x height): 100x68x49mm
1. Power supply voltage: 12~30Vdc
2. Current consumption: 120mA/24Vdc
3. Output interface: analog (2~8mA) or CAN bus (system configurable)
3. Ambient temperature: 0~50°C
4. Measuring range: ±10mm
5. Resolution: 0.05mm
6. Focus distance/format spacing: 25~30mm
7. Scan rate: 500~2000Hz
8. Protection level: IP54
9. Dimensions (length x width x height): 100x68x49mm
Features :
⊙ It can track the edges of various materials;
⊙High-precision detection, fast response
⊙Strong anti-interference ability design;
⊙ Different opening sizes and detection ranges can be customized
⊙High-precision detection, fast response
⊙Strong anti-interference ability design;
⊙ Different opening sizes and detection ranges can be customized
Parameters
⊙ Detection accuracy 0.01mm
⊙ Detection range 7mm
⊙Response time 2ms
⊙Anti-light interference (infrared) sunlight 10000Lu×, fluorescent lamp/3000Lus
⊙ Opening size 40mm
⊙ 24V input
⊙ Detection range 7mm
⊙Response time 2ms
⊙Anti-light interference (infrared) sunlight 10000Lu×, fluorescent lamp/3000Lus
⊙ Opening size 40mm
⊙ 24V input
How to choose sensor ?
Coiled Material | Ultrasonic Sensor | Photosensor / Infrared Sensor |
Transparent film | ok | Transparence less than 90% |
Untransparent film | ok | ok |
Paper | ok | ok |
Chaff | ok | ok |
Metal sheet | ok | ok |
Cloth | ok | |
Cloth/permeability materials | ok |
