Хорошее послепродажное обслуживание SMT машина для выбора и размещения машины smd производитель
12 799 027,80 ₽ - 13 236 601,40 ₽

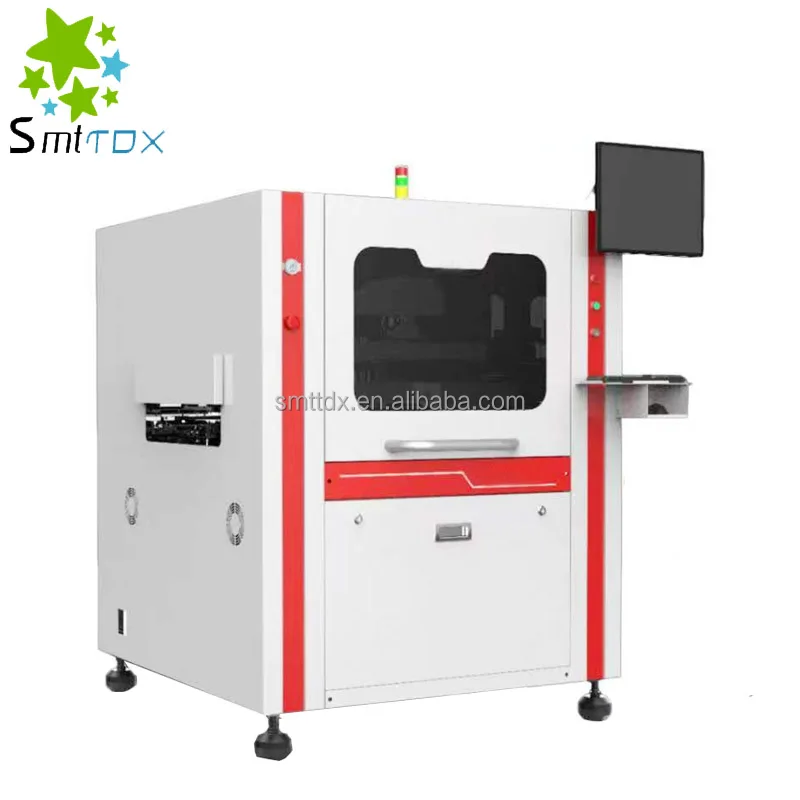

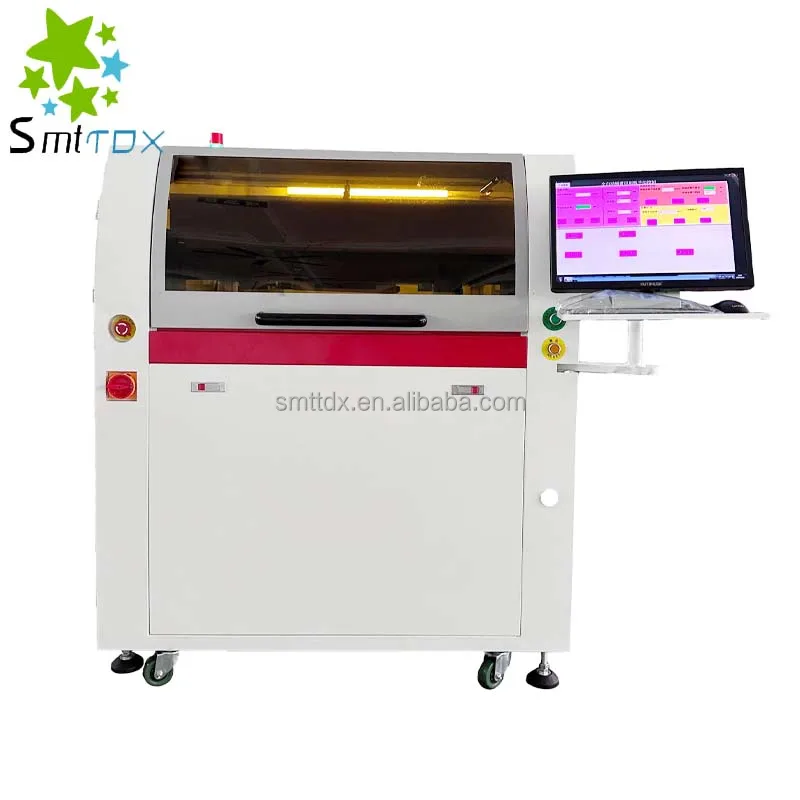

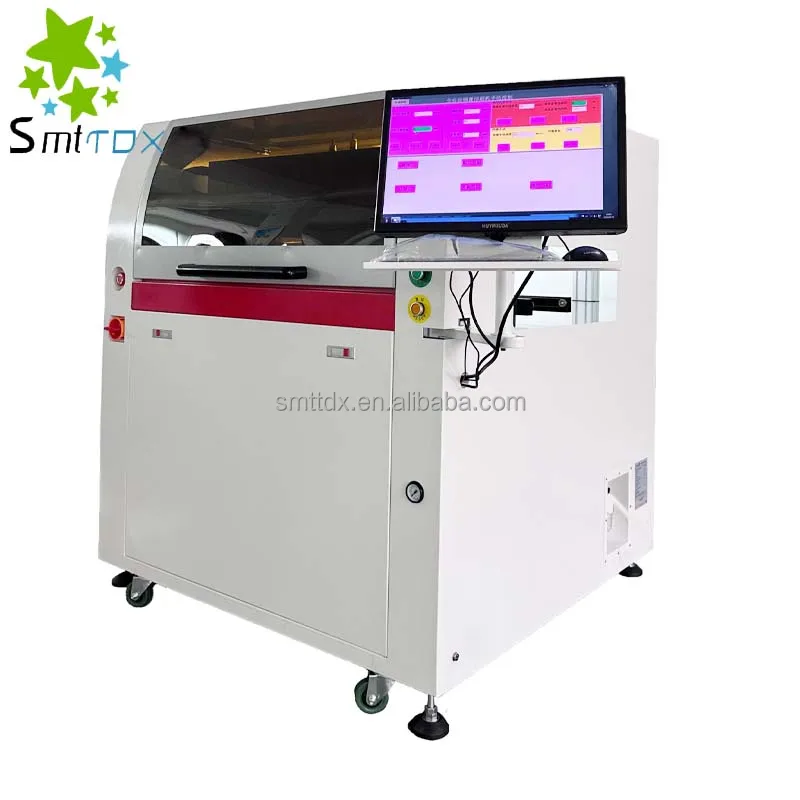

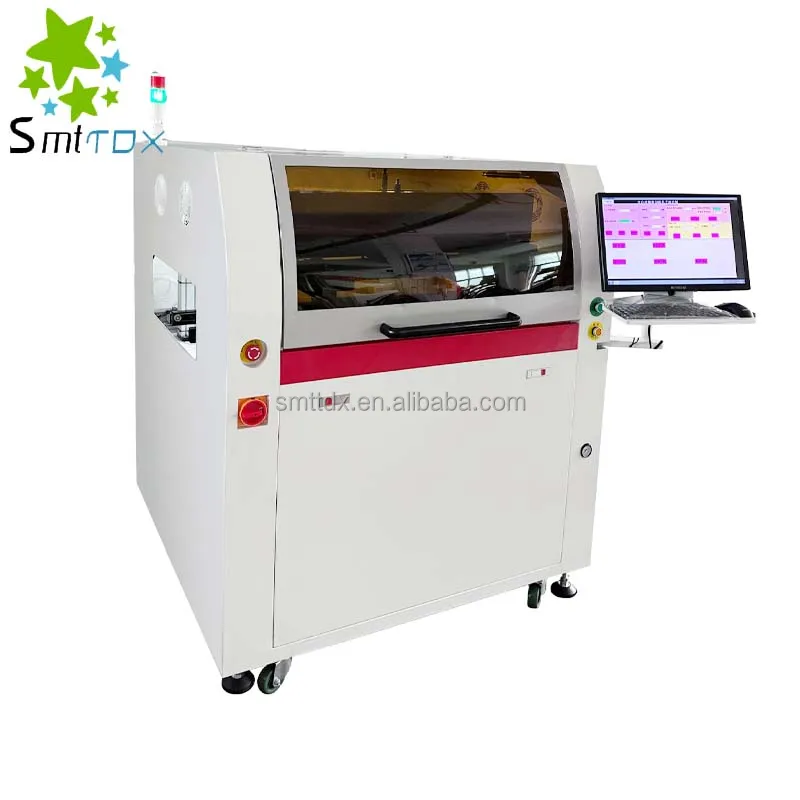

Автоматическая печатная машина SMT для паяльной пасты PCB Трафаретный принтер
- Категория: >>>
- Поставщик: Shenzhen TDX Electromechanical Equipment Co. Ltd.
Сохранить в закладки 1601271284275:
Описание и отзывы
Характеристики
Product Description
lmaging and Optical Path System
1. Accurate alignment:Use cameras and optical systems to achieve high-precision alignment of PcB and steel mesh,ensuring the accuracy of solder paste printing.
2.Automatic detection:Perform automatic inspection(AOl)on printing results to detect the quality of solder paste printing,such as thick- ness,position,and shape.
3.Real time adiustment:Based on detected data,adjust printing parame-ters in real timeto ensure continuous high-quality printing.
Intelligent Squeegee /Stencil Holder
1.You can evenly scrape the solder paste over the steel mesh and accurately printer the solder paste onto the PCB pads,
2.Theangle and pressure of the scraper can be adjusted to meet different high precision printing requirements.
3.the movement speed of the scraper can be adjusted to ensure even distribution of solder parste.
4 .Tnesreef mesh braket is used to fix and support the steel mesh ensuring its stability and stability during the printing
process.
5. there is a fine-tuning mechanism on the bracket,allowing foprecise adustment of the positian of the steel mesh.
6. the design considers the need for quick replacement of steel mesh to reduce down-time.
1. Accurate alignment:Use cameras and optical systems to achieve high-precision alignment of PcB and steel mesh,ensuring the accuracy of solder paste printing.
2.Automatic detection:Perform automatic inspection(AOl)on printing results to detect the quality of solder paste printing,such as thick- ness,position,and shape.
3.Real time adiustment:Based on detected data,adjust printing parame-ters in real timeto ensure continuous high-quality printing.
Intelligent Squeegee /Stencil Holder
1.You can evenly scrape the solder paste over the steel mesh and accurately printer the solder paste onto the PCB pads,
2.Theangle and pressure of the scraper can be adjusted to meet different high precision printing requirements.
3.the movement speed of the scraper can be adjusted to ensure even distribution of solder parste.
4 .Tnesreef mesh braket is used to fix and support the steel mesh ensuring its stability and stability during the printing
process.
5. there is a fine-tuning mechanism on the bracket,allowing foprecise adustment of the positian of the steel mesh.
6. the design considers the need for quick replacement of steel mesh to reduce down-time.
K6 printer Technical Parameter Specifications | ||
operating system | Windows7 | |
Vision system | High frame rate CCD image processing system | |
model | WZK6-20241017 | |
Stencil size | 470*370mm~800*800mm | |
Substrate printing size | 50*50mm~450*350mm,(可扩600*400mm选配项)(can be expanded 600*400mm optional) | |
PCB board thickness | 0.4-6mm | |
Conveyor system | One section transport guide rail | |
Teleportation direction | (Left-Right, Right-Left, Left-Left, Right-Right) software control | |
Platform correction range | X:+3mm Y:+7.5mm 9:+2 | |
Rail transport height | 900+40mm | |
Printing cycle | Fastest <10s/p(excluding printing and cleaning time) | |
Repeatability accuracy | +0.02mm | |
Repeatability of printing | +0.025mm | |
Support method | Magnetic ejector pin, magnetic ejector block (manually adjustedjacking platform) | |
Sandwich method | Motor splint(manual telescopic upper compression) | |
Scraper pressure | 0.5-10kg | |
Scraper angle | Standard type45°,55°,60° | |
Demoulding speed | 0-10mm/s adjustable | |
Wipe the net | Automatic cleaning, dry wipe, wet wipe, vacuum wipe | |
Cleaning location | Post-cleaning, post-cleaning liquid spraying | |
lmage method | Single photo, double photo, foolproof (camera can be turned offcompletely) | |
Locate the type of identification | Such as: round, square, diamond, text, pad and special-shaped | |
Changeover time | <5min | |
Device weight | Approximately 800kg | |
Inlet pressure | 4~6kgf/cm2 | |
Main power supply | AC 220V 50/60HZ单相2KWAC 220V 50/60HZ single phase 2KW | |
Dimensions | L1200*W1300*H1400mm | |
Specification
Weight (KG) | 690 |
Showroom Location | United States |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Motor |
Place of Origin | China |
Guangdong | |
Warranty | 1 Year |
Condition | New |
Brand Name | TDX |
Model Number | TDX-GC-K6 |
Product name | SMT solder paste printing machine |
Model | TDX-GC-K6 |
Condition | New |
Brand | TDX |
Platform correction range | X:+3mm Y:+7.5mm 9:+2 |
Rail transport height | 900+40mm |
Repeatability of printing | +0.025mm |
Scraper pressure | 0.5-10kg |
Demoulding speed | 0-10mm/s adjustable |
Dimensions | L1200*W1300*H1400mm |
