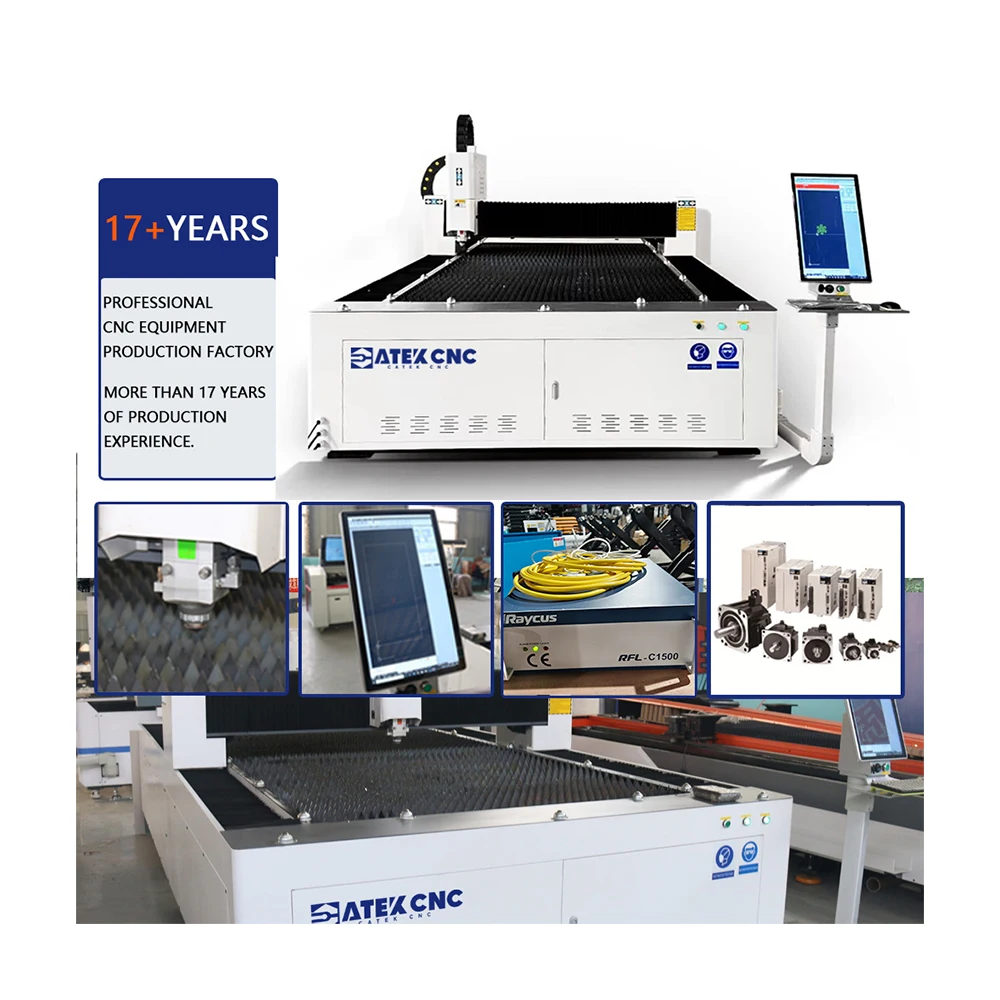

1000 Вт 2000 3000 волоконно многофункциональные лазерные режущие машины промышленное лазерное оборудование для металлического процесса
- Категория: >>>
- Поставщик: Jinan Catek CNC Machinery Co. Ltd
Сохранить в закладки 1601271320372:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
Laser machine cutting area | 1500mm*3000mm |
Bed frame/Gantry | high strength Heavy duty bed frame,aviation grade Aluminum alloy Gantry |
Laser generator | Raycus CE |
Laser head | Raytools |
Fiber laser power | 1500W/2000W/3000W etc. |
Cooling | S&A Special water chiller for fiber laser generator |
Drive system | YASKAWA servo motor*4 |
Transmission mode | Taiwan HIWIN high precision linear square rail,Taiwan HIWIN slider |
Reducer | Japan Shimpo reducer |
Device cable | pure copper high soft cable |
Electrical parts | Schneider Electric parts |
Control system | FSCUT laser dedicated system |
Lubrication system | Electric lubrication and Oil filling and maintenance system |
X.Y axis max moving speed | 100mm/min |
Compatible software | Artcam, type3, CAD drawing, CDR,AI etc. |
maximum accelerate speed | 1.0G |
Security system | All photoelectric limits of XYZ three-axis |
Locating Accuracy | ±0.02mm/1000mm |
Machine weight | 4000kg |
Machine expansion size | 4200*2250*2150mm |

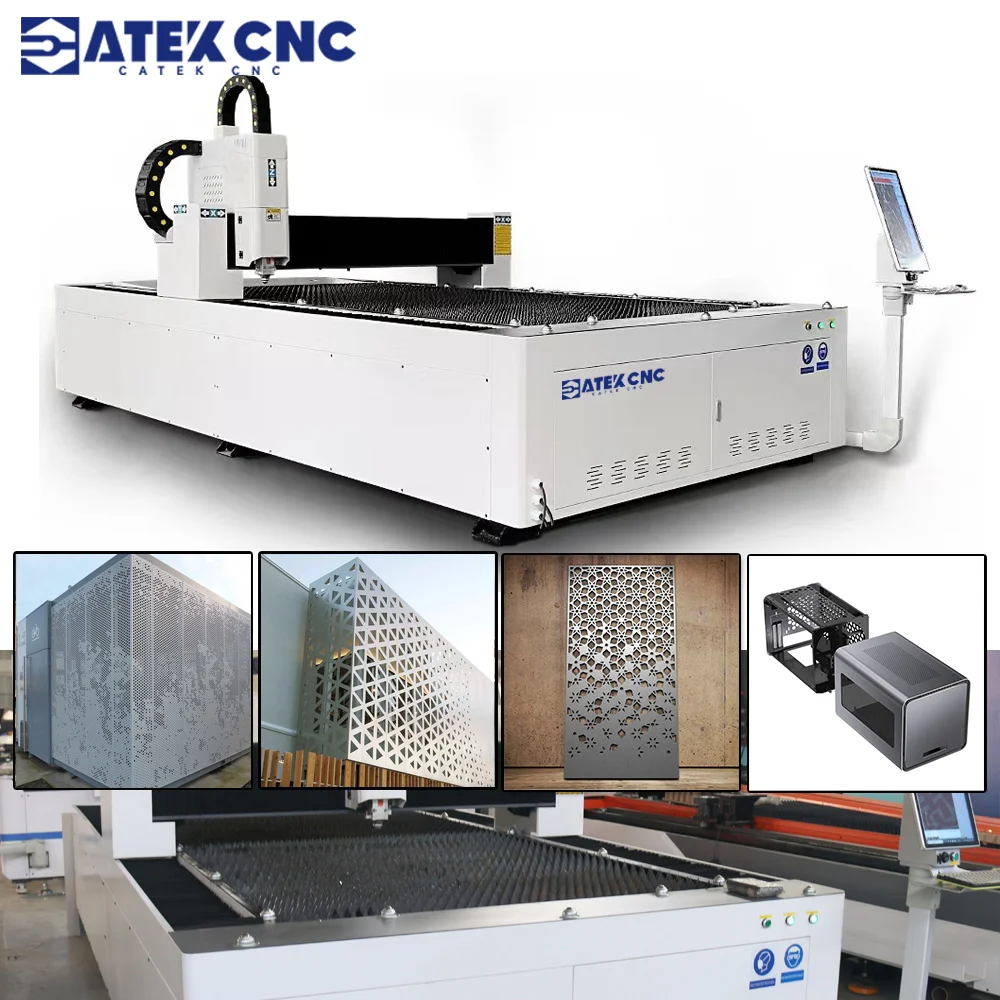

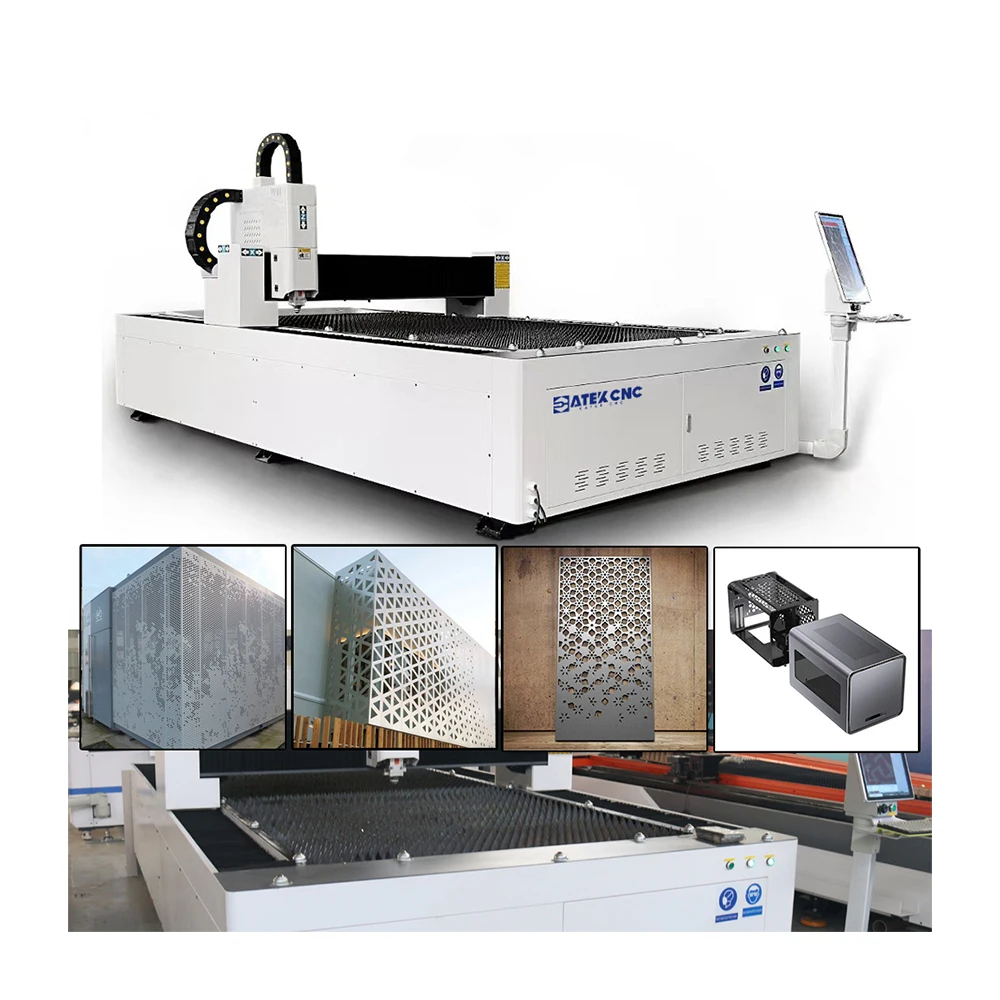

Sample display
The Fiber laser cutting machine are good at processing common metal items in daily life such as advertising metal characters, kitchen utensils, sheet metal decoration, metal plates, etc., The Fiber laser cutting machine are widely used in electronics, electrical, mechanical hardware, new energy, packaging, solar energy, LED, automobile and other industries and also Widely used in cutting stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel, nickel titanium alloy, Inconel, titanium alloy and other metal materials.
Recommend Products
Details Images
RAYTOOLS laser cutting head can quickly perforate metal materials and cutting
Cypcut FSCUT2000C controller system supports automatic focus control and Advanced features such as break point positioning
The Japan YASKAWA servo motor are low heat low noise high speed and high precision
Imported HIWIN high-precision slider guide rail and TBI ball screw
Using Japanese Shimpo reducer can make the torque larger the movement speed faster and more precise
Raycus laser generator has higher electro optical conversion efficiency and higher and more Stable optical quality
Our Advantages
Raytools laser cutting head is an automatic focusing laser cutting head which can complete Rapid punching of thick plates and automatic cutting of plates of different thicknesses and materials
Ordinary laser heads are slow speed low efficiency and the lens are more easily contaminated
Heavy-duty bed frame and the best bed in the industry with weighing 3500kg,it can be used for 40 years without deformation
Ordinary iron square tube welded bed has low strength, light weight and easy deformation
The aviation aluminum alloy gantry are manufactured to aerospace standards and extruded using 4,300-ton press. After aging treatment its strength can reach 6061 T6 which is the strongest among all gantry frames
Ordinary simple gantry bracket has low strength and low precision
The whole machine uses a heavy-duty bed and aviation-grade aluminum alloy gantry, which is more convenient to control and Easier to use
Simple gantry small cutting machine with low efficiency slow speed and low precision
Company Profile
Jinan Catek CNC Machinery Co., Ltd
Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.
The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry.
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.
Customer Photos
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee.
or if you have other payment methods, we can also consider them
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee.
or if you have other payment methods, we can also consider them
Похожие товары

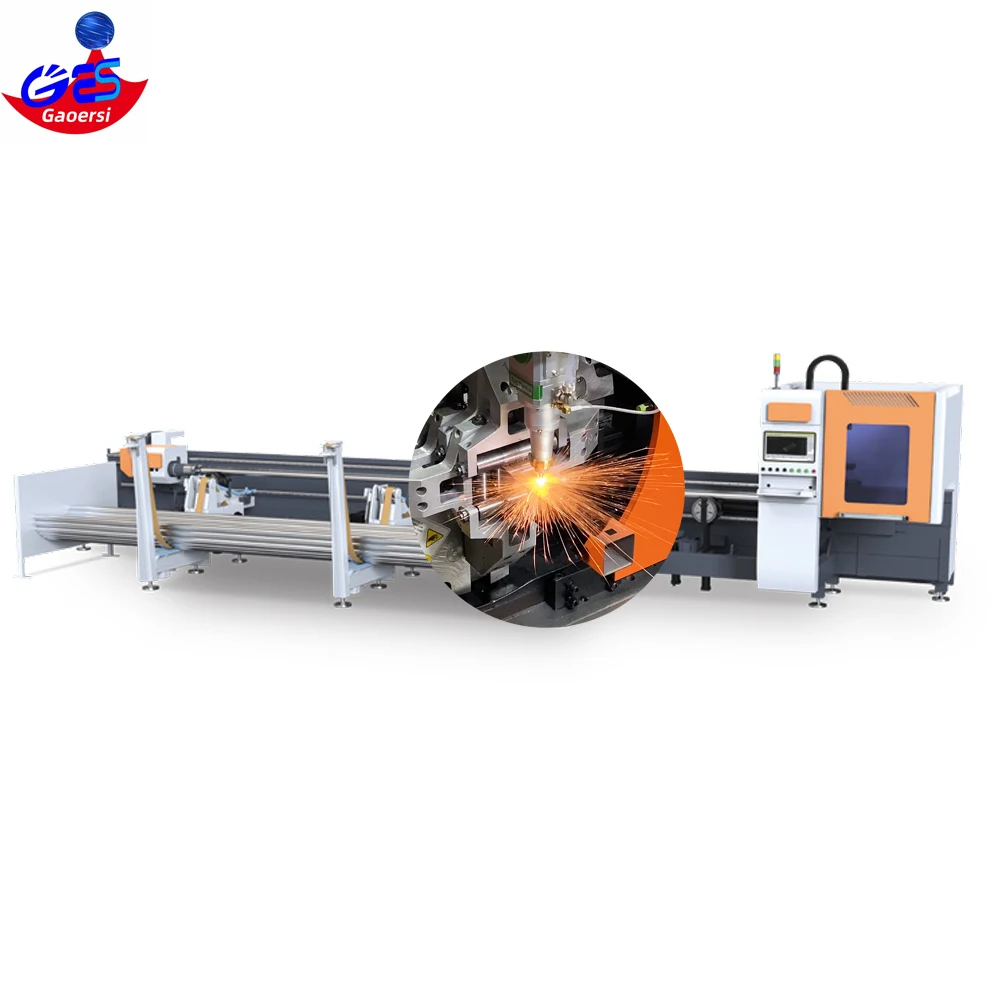

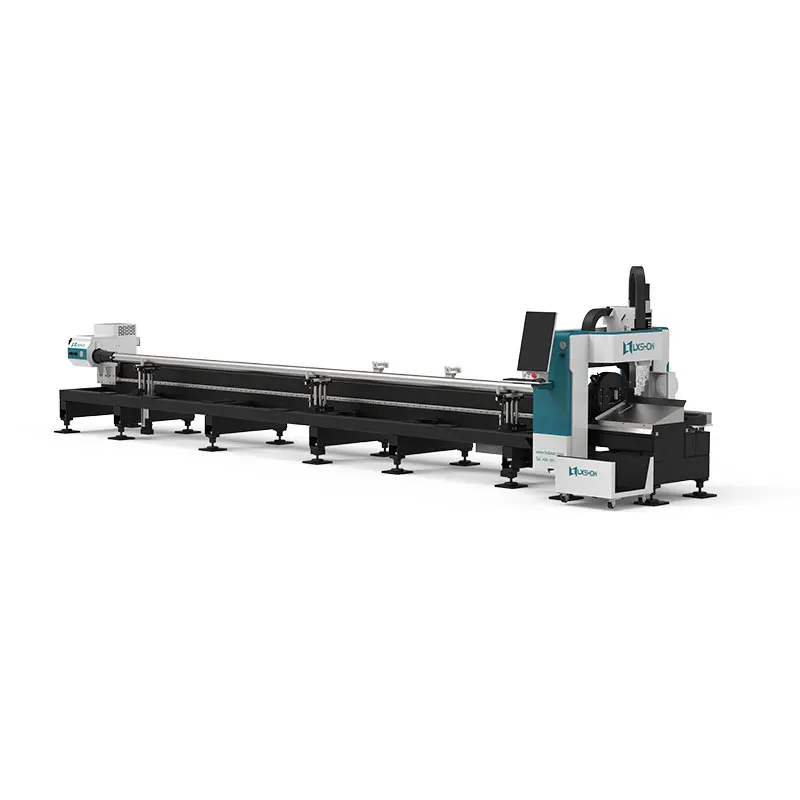

Lx лазерная резка алюминиевой трубы 2 кВт, высокая точность, 6 кВт, волоконная резка, вращающаяся лазерная машина для резки труб
2 484 142,60 ₽ - 2 970 170,50 ₽
Производство Китай прямые поставки 6025 Нержавеющей Стали конический 12 кВт волоконно-лазерный станок для резки металла

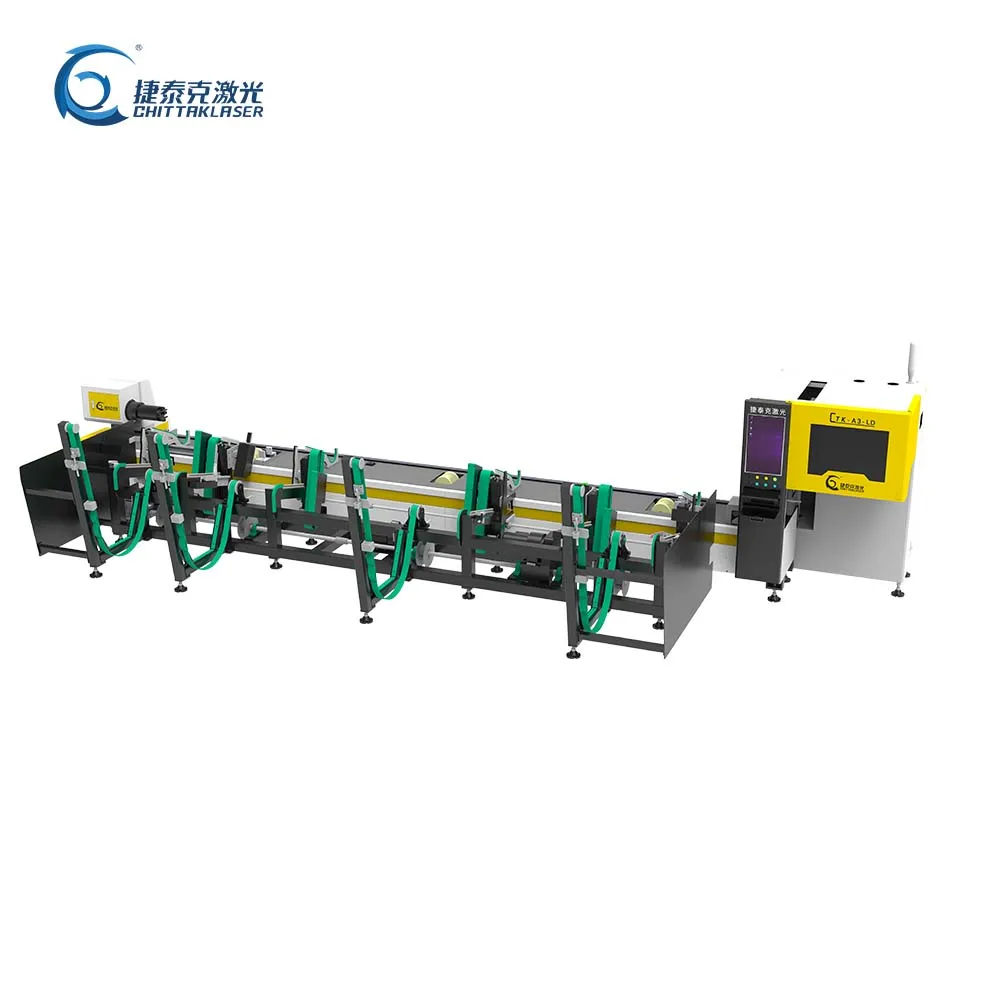

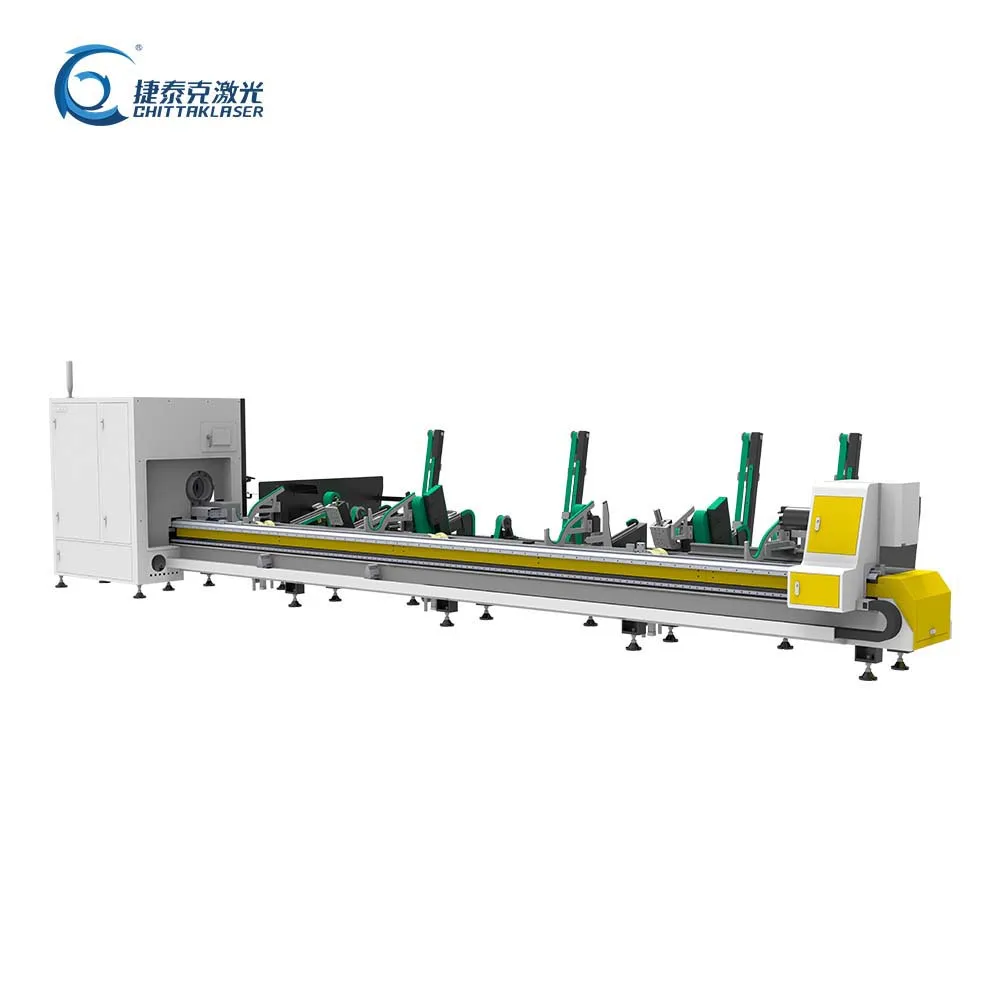

CTK-A3-LD точный 160 мм патрон полностью автоматическая система подачи круглый волоконно-лазерный станок для резки
5 718 296,46 ₽ - 5 760 483,68 ₽

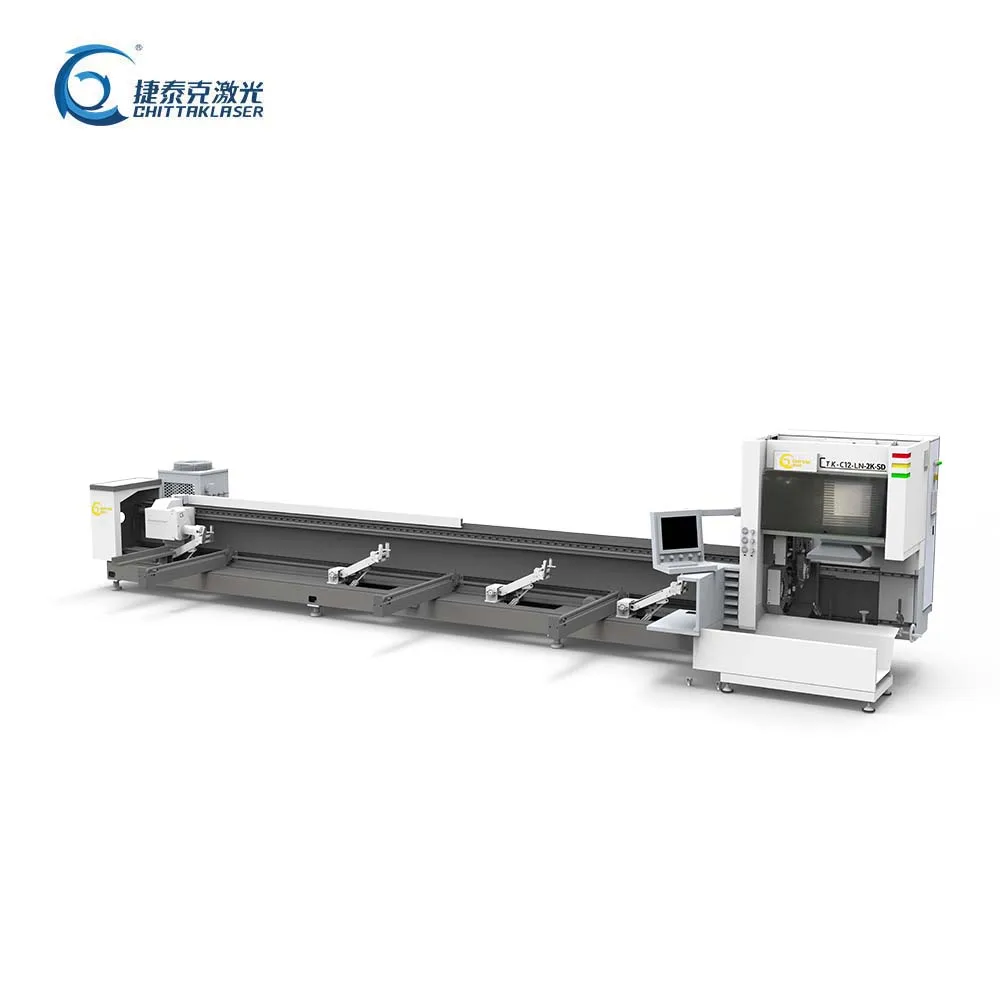

Станок для лазерной резки труб A3-E-LD быстрой скорости резки с полностью автоматической системой подачи 150 мм станок для лазерной резки металлических труб
Круглая квадратная металлическая труба из нержавеющей стали, 2000 Вт, волоконно-лазерная резка, машина для лазерной резки труб
4 026 255,13 ₽ - 4 058 781,20 ₽

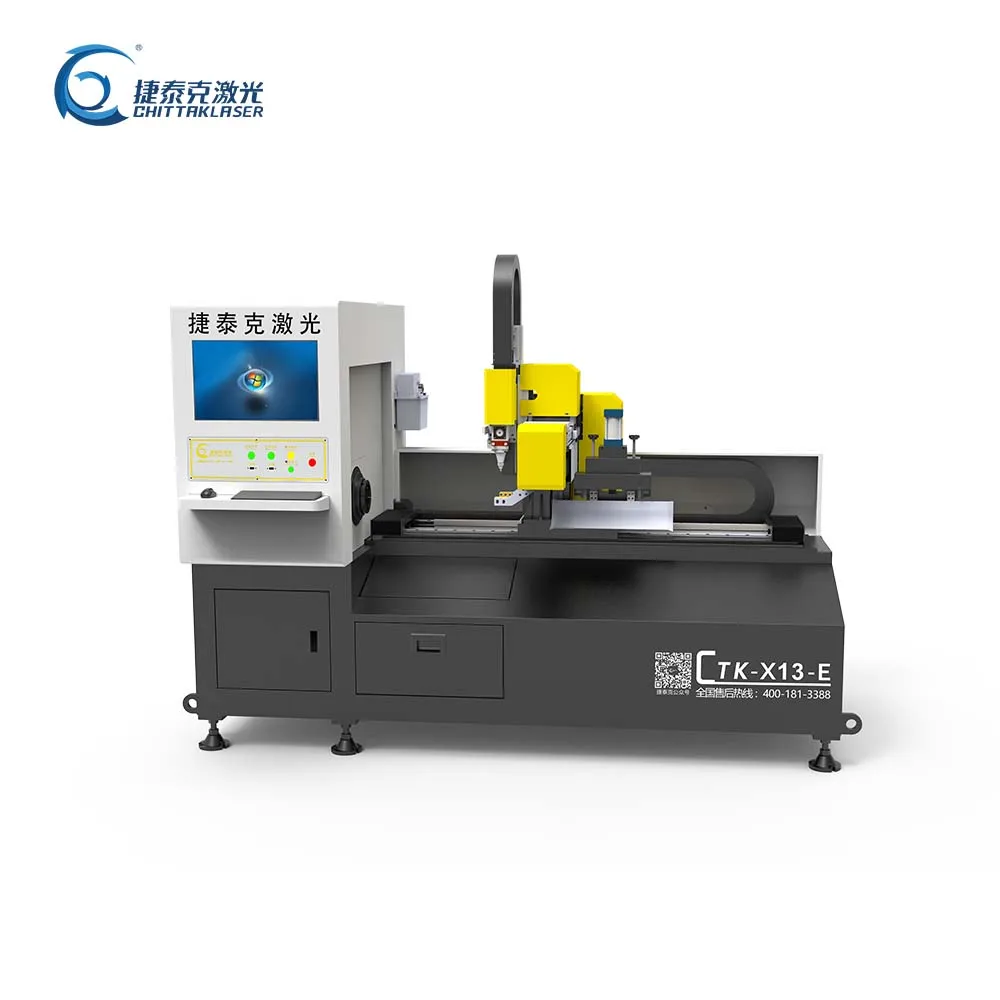

Высокопроизводительная волоконно-лазерная резка X13-E 6000 Вт плоская полуавтоматическая машина для лазерной резки листового металла
