Звуковая система популярный активный китайский большой Стерео полный диапазон оптовая продажа лучшая низкая цена рекламный рог лидер продаж мини-динамик по дереву
607,29-665,84 ₽
Высокое качество прочный с использованием различных надежных звуковых динамиков
- Категория: >>>
- Поставщик: Yongkang Yue Shang Intelligent Technology Co. Ltd.Yongkang Ltd.
Сохранить в закладки 1601271370090:
Описание и отзывы
Характеристики
M-F3A PRO

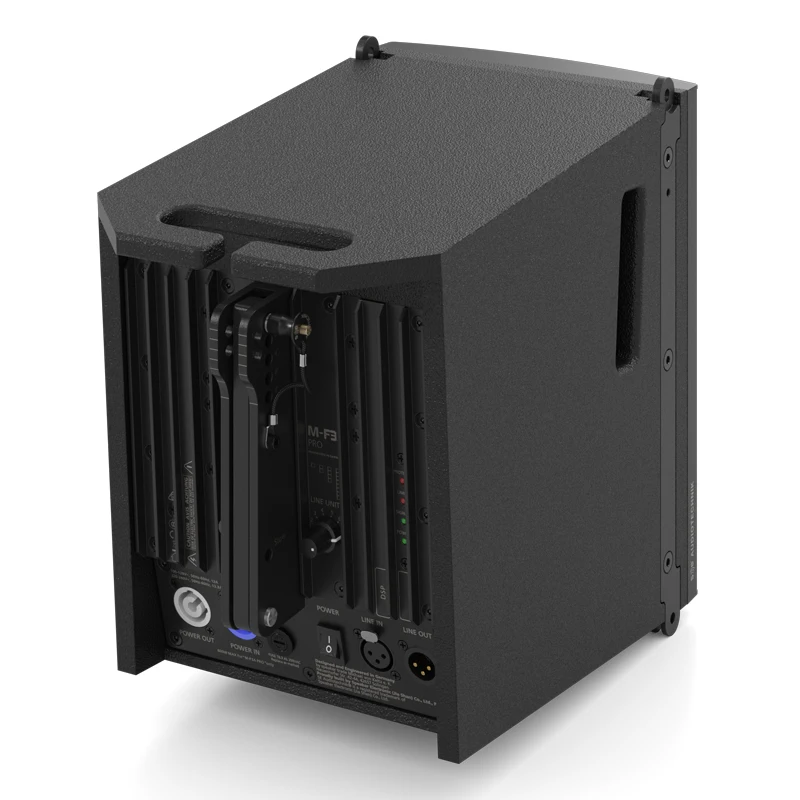

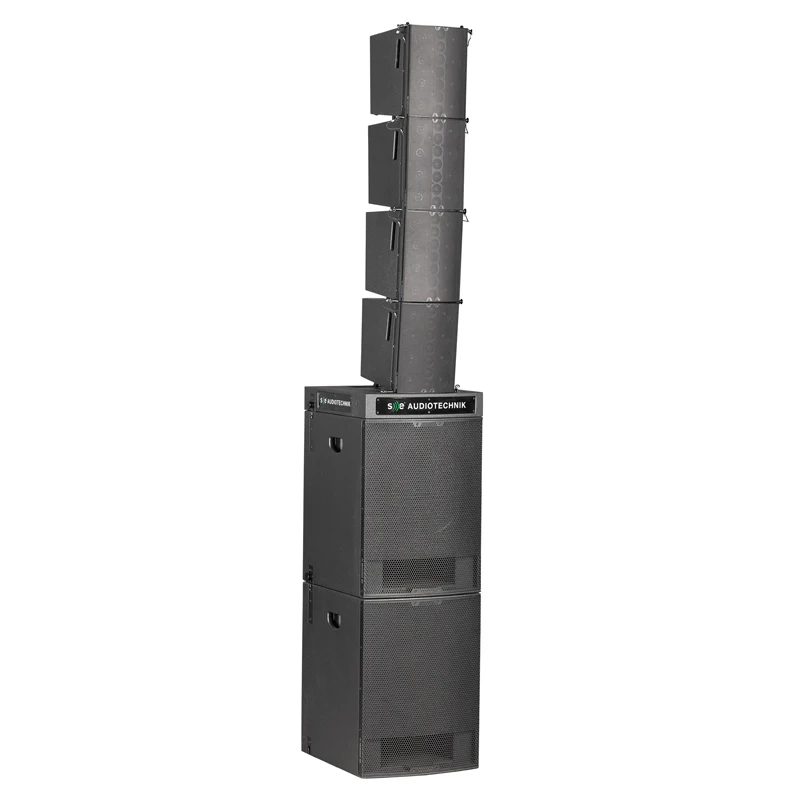

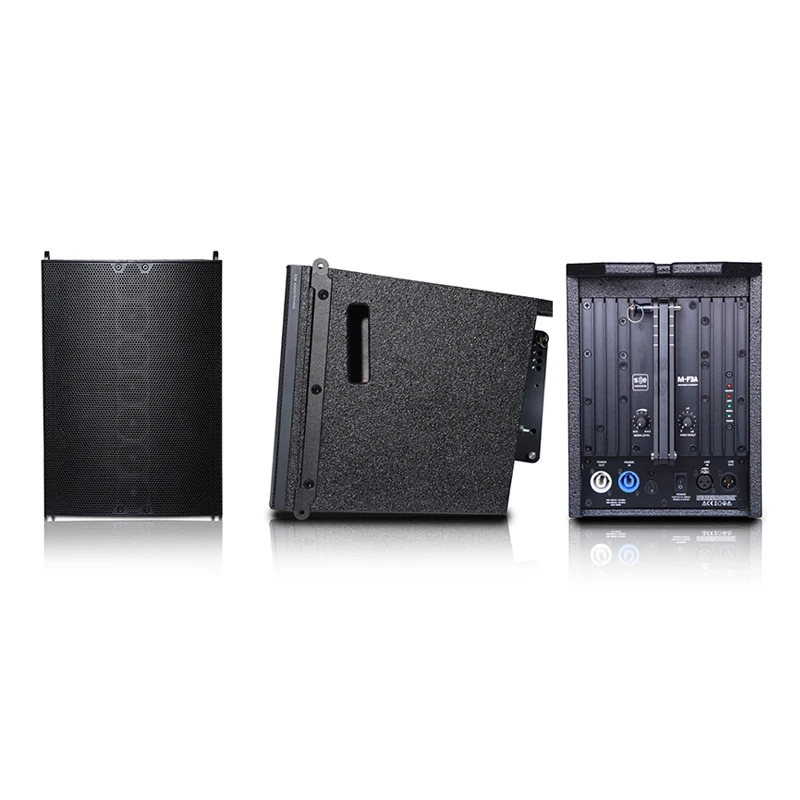

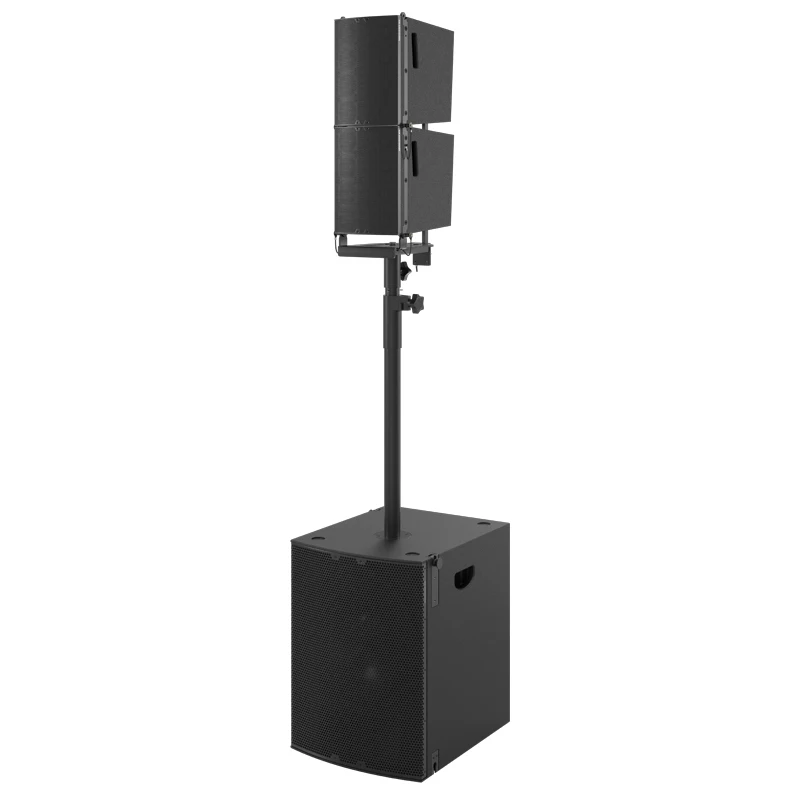

Our M-F3A PRO is an ultra-compact active line array system that offers crystal-clear sound reproduction with punchy studio-quality mids and highs due to its hornless design.
The unique PA sound is achieved by integrating 8 high efficiency 2.8″ neodymium midrange drivers and 7 x 1″ dome tweeters with direct unit dispersion. All these drivers are designed for high efficiency and extended LF bandwidth. This lowers the low-mid cut-off frequency, giving voices an exceptionally rich and natural sound.
All drivers are mounted on an A4 sized front surface. Each unit reaches up to 129 dB peak SPL and weighs only 8 KG, including amplification and DSP. The distinctive sound of the M-F3A PRO is achieved by a 2-channel Class D 600 W power amplifier, delivering 2x 300 W RMS to the tweeters and midrange drivers.

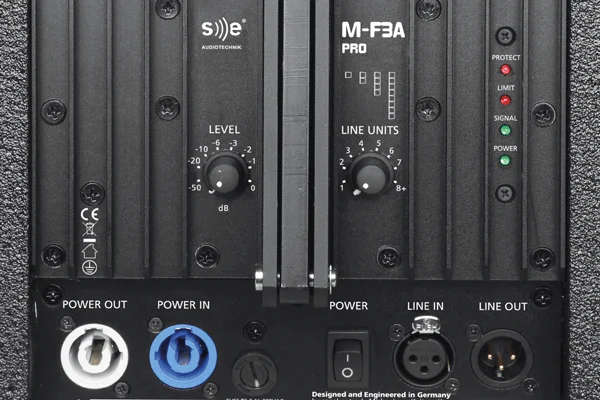

Two controls, the level and line unit selector, provide precise adjustment of key system parameters, such as attenuation and timbre, depending on the number of units in the array.
Features
Dome tweeter
In a footprint the size of an A4 sheet of paper, there are 8 highly efficient 2.8-inch neodymium midrange drivers and 7 1-inch dome tweeters. That’s why the M-F3A PRO delivers its characteristic, impressively direct dispersion and its clear, full and rich sound even over long distances.
Integrated DSP
Each M-F3A PRO is equipped with a 600W (300W HF and 300W MF) Class-D power amplifier with switching power supply for minimum weight and maximum flexibility anywhere in the world. In addition, our built-in 24-bit/48 kHz DSP processor provides signal filtering and ensures maximum driver protection with minimum error rate.

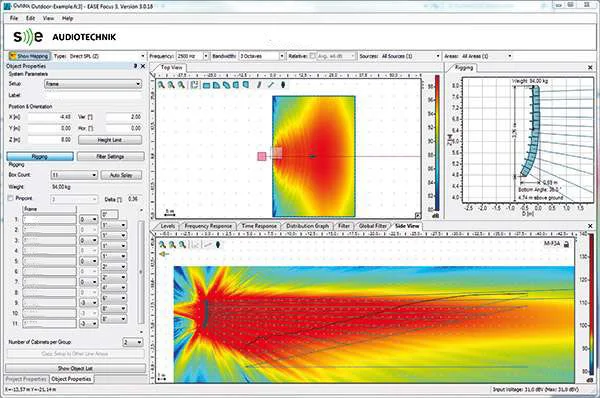

EASE®
AFMG® EASE® and EASE® Focus 3 GLL files are available for the entire M-F3A PRO family. This allows users to simulate and calculate various parameters such as range, sound pressure level, frequency response, spread angle, delay times and more. The corresponding files are available in the Downloads section.
EASE® and AFMG® are registered trademarks of AFMG Technologies GmbH.
EASE® and AFMG® are registered trademarks of AFMG Technologies GmbH.
Specification
Model: M-F3A PRO | ||
ACOUSTICAL | AMPLIFICATION | |
Frequency range (-3 dB): 140 Hz – 20 kHz Frequency range (-10 dB): 100 Hz – 20 kHz Coverage angles (-6dB) [H x V]: 120° x 16° Maximum Peak SPL *: 129 dB System type: 2-way active Crossover frequency: 1.9 kHz Transducers: MF: 8 x 2.8″ drivers HF: 7 x 1″ dome tweeters Enclosure type: Vented box | Type: 2 channel, class-D with SMPS Total Power **: 600 W Output power per channel: MF: 300 W HF: 300 W Protection: Short circuit, overheating, overcurrent Connectors: Input signal: balanced XLR 3-pin female Link output: balanced XLR 3-pin male Power input: powerCON® 20A Power link output: powerCON® 20A Wiring: Pin N: Neutral Pin L: Conductor Pin E: Ground Input sensitivity: 0 dBu DSP: 48 kHz/24 bit with extended dynamics Processing latency: 1.1 ms Processing: Level, factory EQ presets User controls: Power: On/Off switch Level: 8-position rotary knob (-50, -20, -10, -6, -3, -2, -1, 0) Line units: 8-position rotary knob (1 – 8+) | |
MECHANICAL | ACCESSORIES | |

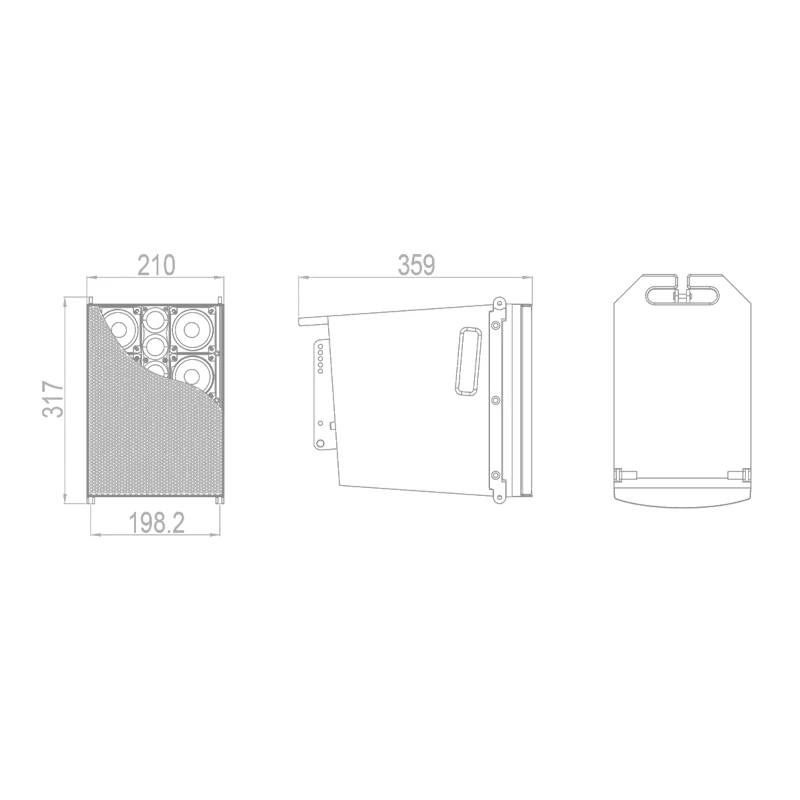

Product dimensions [H x W x D] (Including rigging): 317 x 265 x 359 mm Net weight: 8.3 kg Packaging dimensions [H x W x D]: 388 x 290 x 440 mm Total weight: 9.5 kg Cabinet: 12 mm plywood Cabinet finishing: Black or white polyurea coating Grille: Powder coated perforated steel Hardware: Rear handle in 12 mm plywood plus side grips embedded in cabinet Rigging: Three-point rigging system, 3 x SE Audiotechnik® 6 mm locking pins Splay angles: 0º, 1º, 2º, 3º, 4º, 6º, 8º | Bumper frame: M-F3A BF U-bracket: M-F3A UB Flight case (4 units): M-F3A FC Carry-on bag (1 unit): M-F3A CTB Transport kart (up to 4×4 units): M-F3A PRO TK44 Line rain cover (8, 12 or 18 units): M-F3A PRO FRC 8 / 12 / 18 | |
A) What is the ordering process?
1. Quotation - Provide us with all clear requirements (total quantity and packaging details)
2. Quotation - formal quotation from our professional team with all clear specifications
3.Marked samples to confirm all quote details and final samples
4. Production - mass production
5. Transportation - by sea or by air
B) What is your payment method?
As for the payment terms, it depends on the total amount.
C) How do you ship?
Sea freight, air freight, express, TNT, DHL, FedEx, UPS, etc. It depends on you.
D) What is the average delivery time?
Samples usually take 10-15 days depending on product type. Bulk orders usually take about 30 days.
E) How can I get the wholesaler's price list?
Please send us an email or Whatsapp-us, tell us your site area and the minimum MOQ for each order. We will send you a competitive price list as soon as possible.
1. Quotation - Provide us with all clear requirements (total quantity and packaging details)
2. Quotation - formal quotation from our professional team with all clear specifications
3.Marked samples to confirm all quote details and final samples
4. Production - mass production
5. Transportation - by sea or by air
B) What is your payment method?
As for the payment terms, it depends on the total amount.
C) How do you ship?
Sea freight, air freight, express, TNT, DHL, FedEx, UPS, etc. It depends on you.
D) What is the average delivery time?
Samples usually take 10-15 days depending on product type. Bulk orders usually take about 30 days.
E) How can I get the wholesaler's price list?
Please send us an email or Whatsapp-us, tell us your site area and the minimum MOQ for each order. We will send you a competitive price list as soon as possible.
