Полностью Автоматическая флексографская картонная печатная машина для изготовления гофрированных коробок
10 939 340,00 ₽
Флексографическая машина для изготовления картонных коробок
- Категория: >>>
- Поставщик: Cangzhou Jialong Packaging Machinery Co. Ltd.
Сохранить в закладки 1601271648465:
Описание и отзывы
Характеристики

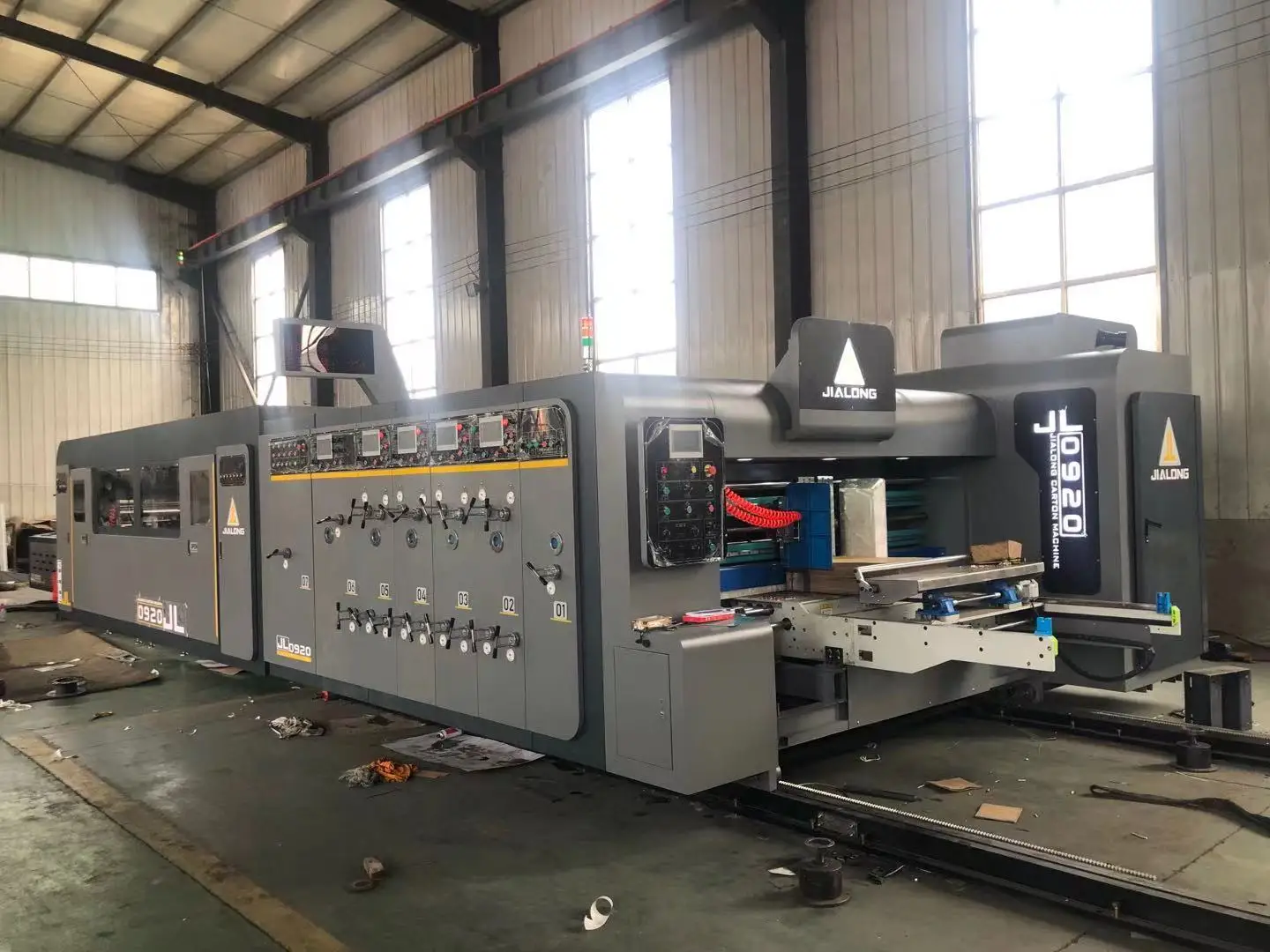

Full Automatic high speed flexo printing slotting die cutting machine with folder gluer machine in line
Products Description
Feeding department:
1. adopt sun feeder,wind absorbing auxiliary paperboard feeding,can make the cardboard feed adoringly. The volume of the wind can
be adjusted accord the camber of the paperboard.
Start protecting device of the main motor, when the machine platform not been locked, the main motor can not running.
2. Continuous and skip cardboard feeding, counting device is install.
3. Double rubber roller for feeding, the rubber roller have slot for prevent the overlarge pressure.
be adjusted accord the camber of the paperboard.
Start protecting device of the main motor, when the machine platform not been locked, the main motor can not running.
2. Continuous and skip cardboard feeding, counting device is install.
3. Double rubber roller for feeding, the rubber roller have slot for prevent the overlarge pressure.

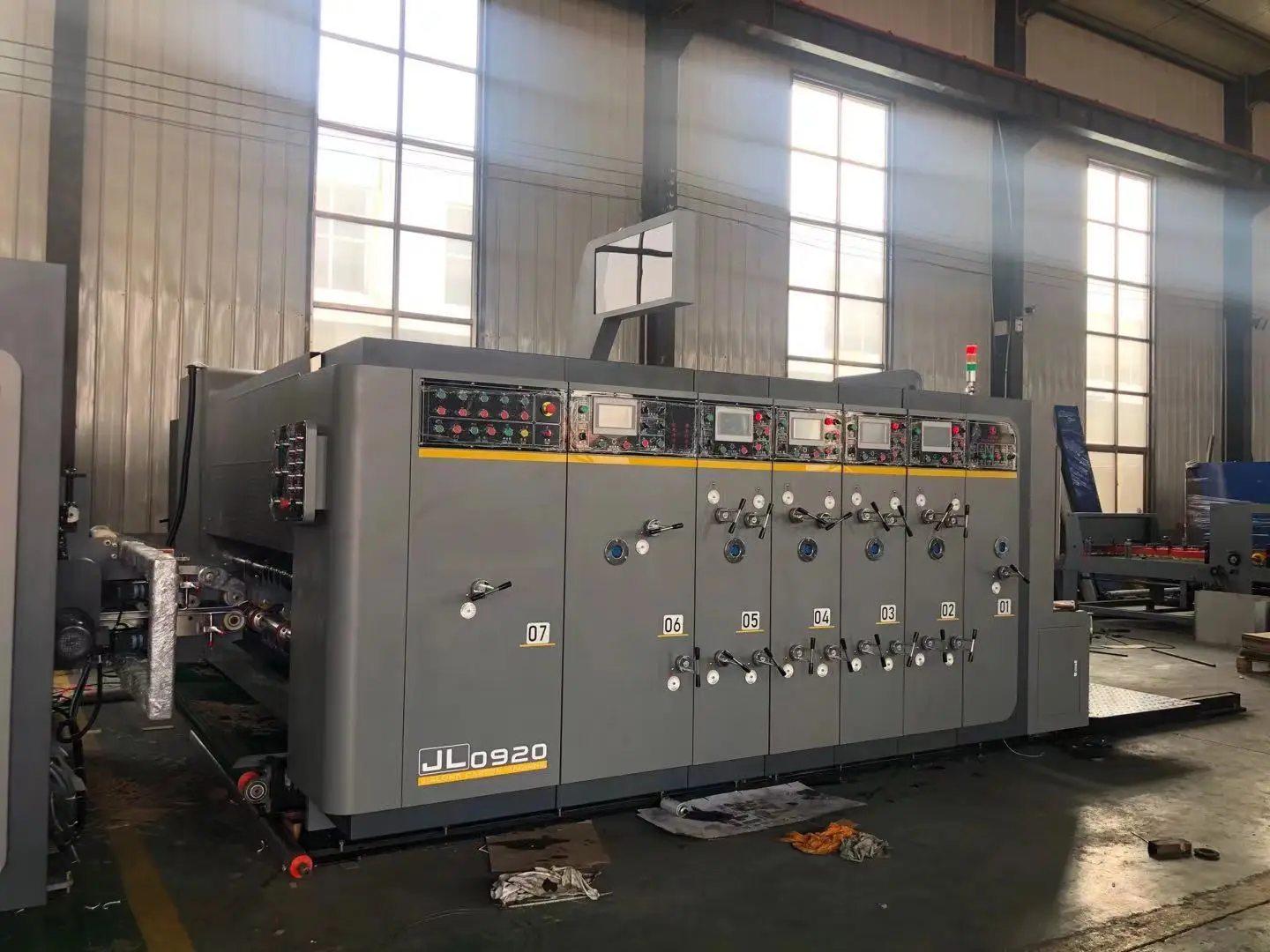

Printing department:
1. The printing roller adopt without gap roller, surface is treated by lapping finish,after balance correct and hard chrome plating,smooth is operation.
2. Quickly change printing plate device, foot switch for electric control the printing roller's clockwise and anticlockwise
running.
3. The feed roller,press roller, rubber roller and anilox roller space adjustment all adopt self-locking structure.
4. The phase of the printing roller adopt PLC and electric 360°adjust,accord the error to input ter with double knives slotting,
the height of the carton adopt PLC and electric input data adjustment(PLC with touch screen adjustment as an option)
2. Quickly change printing plate device, foot switch for electric control the printing roller's clockwise and anticlockwise
running.
3. The feed roller,press roller, rubber roller and anilox roller space adjustment all adopt self-locking structure.
4. The phase of the printing roller adopt PLC and electric 360°adjust,accord the error to input ter with double knives slotting,
the height of the carton adopt PLC and electric input data adjustment(PLC with touch screen adjustment as an option)

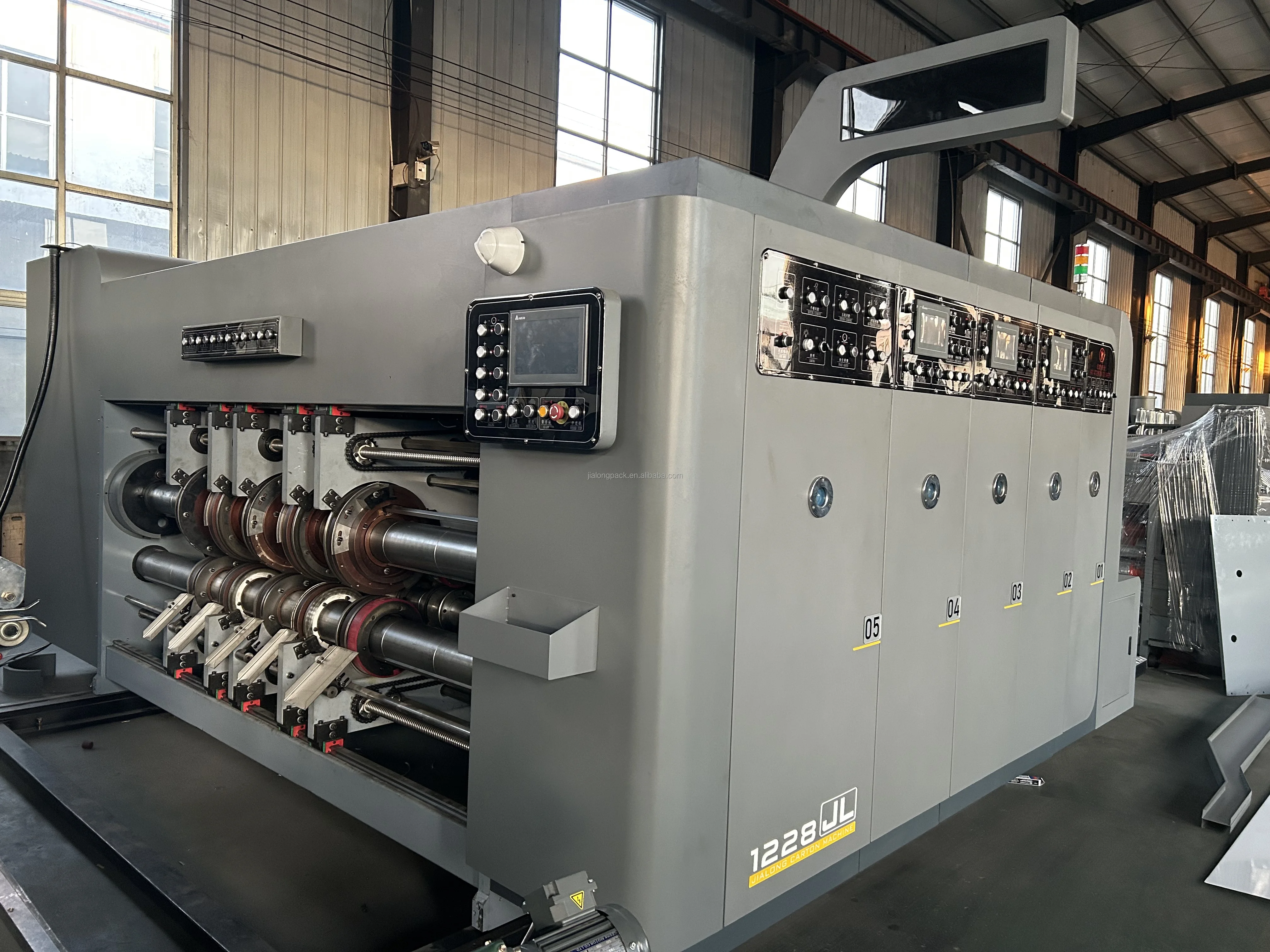

Slotting department:
1.The phase of the slotting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data,can be adjusted while
the machine running or stop. (PLC with touch screen adjustment as an option)
2.The slotting knives and the creasing wheels horizontal moving adopt electric synchronous adjustment.
3. Creasing space and knife roller space adjustment adopt self-locking structure.
4. The carton height adjustment have a anticollision device for the slotting knives, will not destroy the machine.
the machine running or stop. (PLC with touch screen adjustment as an option)
2.The slotting knives and the creasing wheels horizontal moving adopt electric synchronous adjustment.
3. Creasing space and knife roller space adjustment adopt self-locking structure.
4. The carton height adjustment have a anticollision device for the slotting knives, will not destroy the machine.
Die-cutting department:
1. The rubber roller adopt mechanical control the position move left and right the movement distance is 40mm.
2. The phase of the die-cutting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data, can be adjusted
while the machine running or stop(PLC with touch screen adjustment as an option)
3. The horizontal direction moving of the printing roller adopt PLC and electric adjustment, input the adjust data accord the
error, adjustment distance is 10mm(PLC with touch screen adjustment as an option)
4. The space adjustment between rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust,
decrease the rubber wear, increase the rubber life.
5. The space adjustment between the feed roller adopt self-locking structure.
2. The phase of the die-cutting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data, can be adjusted
while the machine running or stop(PLC with touch screen adjustment as an option)
3. The horizontal direction moving of the printing roller adopt PLC and electric adjustment, input the adjust data accord the
error, adjustment distance is 10mm(PLC with touch screen adjustment as an option)
4. The space adjustment between rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust,
decrease the rubber wear, increase the rubber life.
5. The space adjustment between the feed roller adopt self-locking structure.

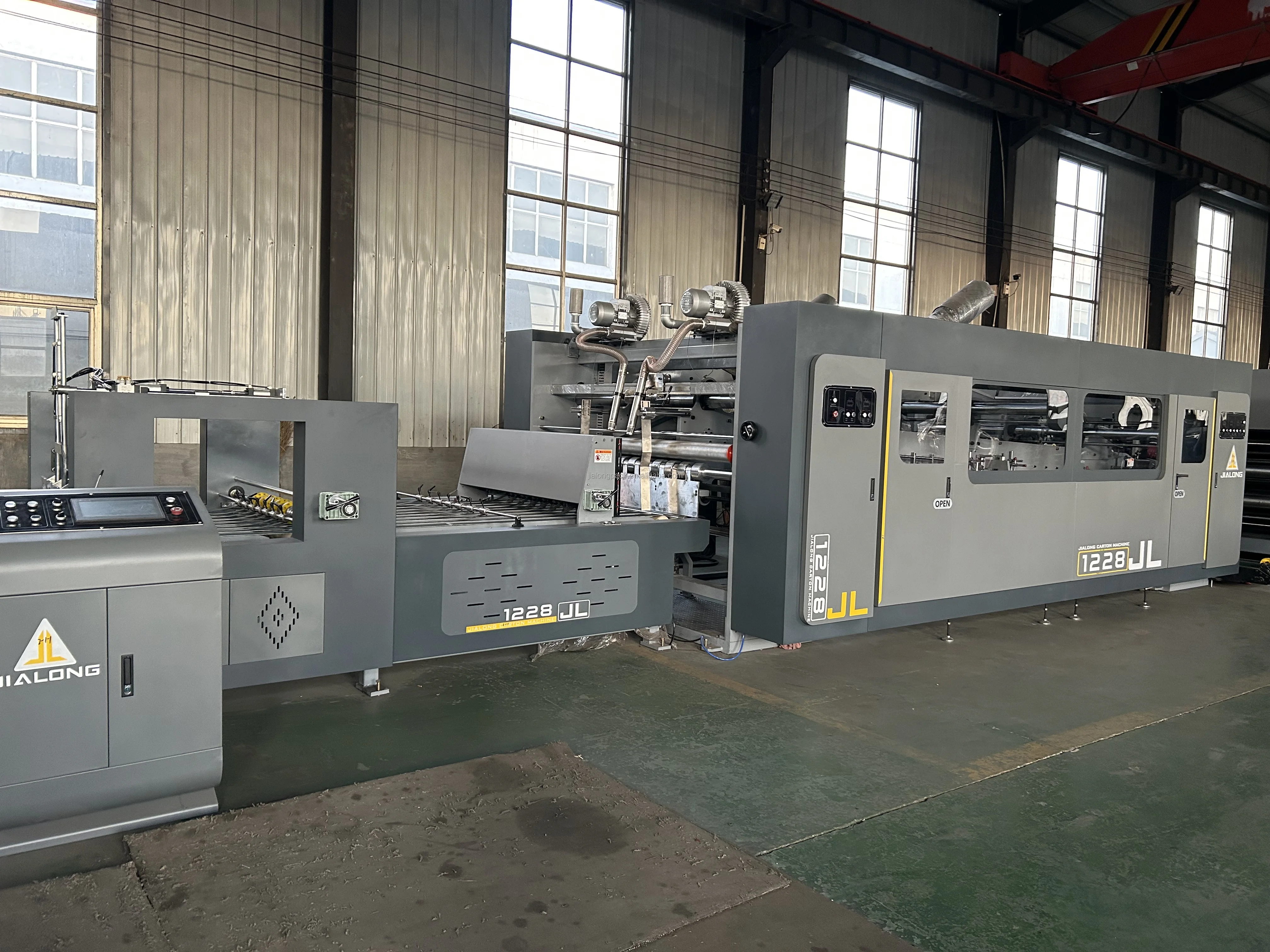

folder gluer departments:
Constant temperature gluing system with big gluing wheel, reticulation gluing, motorized control glue wheel position.
◆ High rigid folding beam, ensure folding precision and high speed stability.
◆ Guide-way linear movement, high rigid beam fixed on the ground.
◆ Elastic wheel, motorized pneumatic adjust gap, smooth transfer.
◆ Folding finalize wheel correct fish tail, gap motorized control.
◆ Folding belt motorized driven, correct folding difference.
◆ High rigid folding beam, ensure folding precision and high speed stability.
◆ Guide-way linear movement, high rigid beam fixed on the ground.
◆ Elastic wheel, motorized pneumatic adjust gap, smooth transfer.
◆ Folding finalize wheel correct fish tail, gap motorized control.
◆ Folding belt motorized driven, correct folding difference.
Parameter | Unit | Model | ||||||||
JLA950 1800 | JLA950 2000 | JLA950 2200 | JLA1224 2200 | JLA1226 2400 | ||||||
Max. machinery speed | pcs/min | 150 | 150 | 150 | 150 | 150 | ||||
Economic printing speed | pcs/min | 120 | 120 | 120 | 120 | 120 | ||||
Max. size of paperboard | mm | 950×2000 | 950×2200 | 950×2400 | 1270×2400 | 1270×2600 | ||||
Min. size of paperboard | mm | 260×500 | 260×500 | 260×500 | 350×800 | 350×800 | ||||
Min. space of slotting (Obverse knife) | mm | 140×140×140×140 | 150×150×150×150 | |||||||
Min. space of slotting (Reverse knife) | mm | 260×60×260×60 | 280×60×280×60 | |||||||
Max. depth of slot | mm | 240 | 240 | 240 | 300 | 300 | ||||
Skip feed size | mm | 1200×2000 | 1200×2200 | 1200×2400 | 1500×2400 | 1500×2600 | ||||
Max. printing area | mm2 | 950×1800 | 950×2000 | 950×2200 | 1300×2200 | 1300×2400 | ||||
Thickness of standard printing plate | mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | ||||
Company Profile
Customer Photos
Certifications
Product packaging
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kind of carton equipments.(with export license)
2.Q: Where is your factory located? How can I visit here?
A: Our factory is located in Dongguang Town Cangzhou City Hebei Provience China. We can pick you up if you need, welcome to visit our factory.
3.Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer rotary die cutter and other corrugated cardboard production equipments.
4.Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end .
a.All raw material we used are environmental-friendly
b.skillful workers care every details in handling the producing and packing process
c.uality control department specially responsible for quality in each process.
5.Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia,
EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
A: We are a manufacture which is specialized in the production of various kind of carton equipments.(with export license)
2.Q: Where is your factory located? How can I visit here?
A: Our factory is located in Dongguang Town Cangzhou City Hebei Provience China. We can pick you up if you need, welcome to visit our factory.
3.Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer rotary die cutter and other corrugated cardboard production equipments.
4.Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end .
a.All raw material we used are environmental-friendly
b.skillful workers care every details in handling the producing and packing process
c.uality control department specially responsible for quality in each process.
5.Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia,
EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
