Оборудование для технического обслуживания автомобилей TFAUTENF/машина выпрямления автомобильных вмятин/машина шасси
306 599,77 ₽
Оборудование для ремонта автомобильных кузовов/машина выпрямления вмятин из листового металла/машина коррекции стальной балки шасси автомобиля
- Категория: >>>
- Поставщик: Yantai Baiwo Electromechanical Equipment Co. Ltd.
Сохранить в закладки 1601271669216:
Описание и отзывы
Характеристики
Product Description

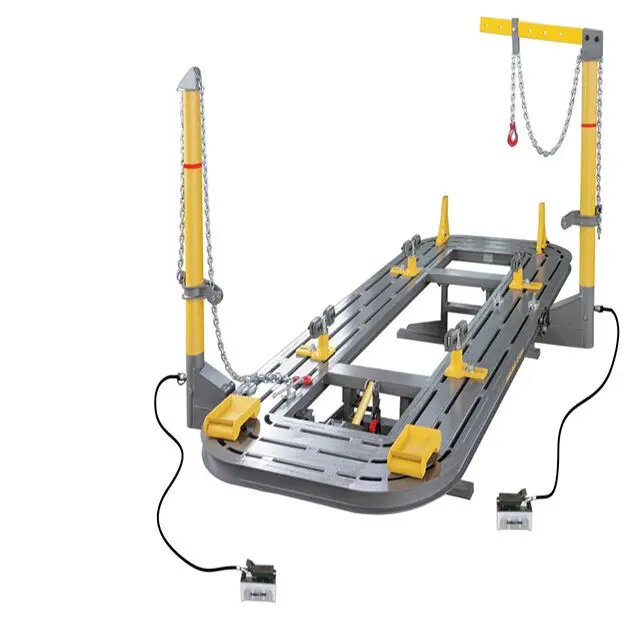

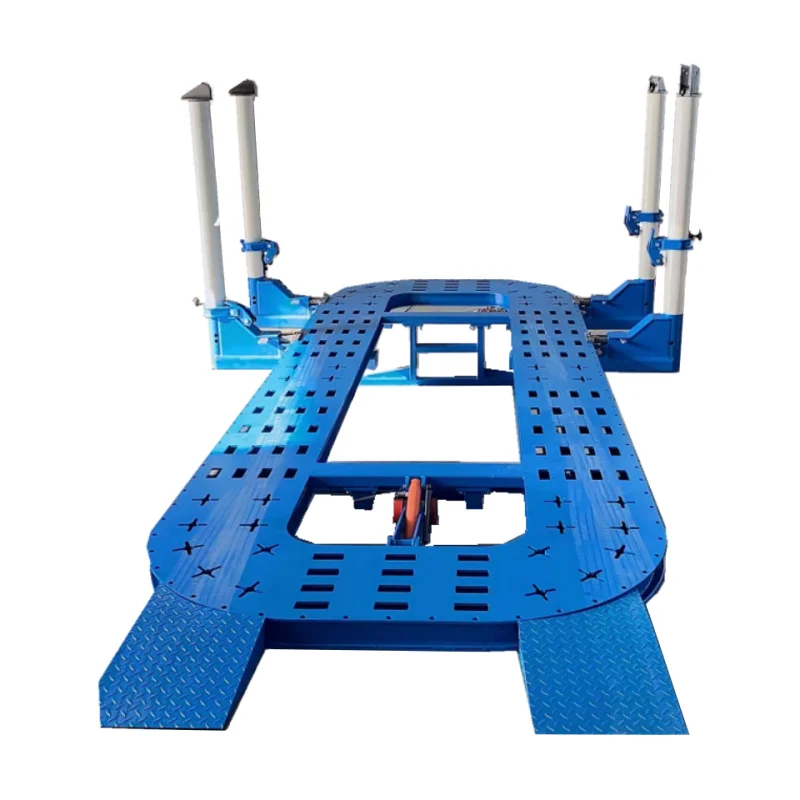

CE approved chassis straightening machine auto frame machine for vehicle body frame repair
Specification
Name | Car bench frame machine |
Model | M-5 |
Platform length | 5600*2200*560mm |
Materials | Manganese steel plate |
Max. lifting capacity | 4000kg |
Pulling towers | 4+1, Customized as request |
Pulling capacity of tower | 100KN |
Pulling tower working range | 360 degree |
Air supply required | 0.8Mpa |
Hydraulic power | 70Mpa |
Color | Customized as request |
Surface treatment | Powder coated |
Voltage | 3ph/ 380v/415v/220v |
Tooling cart | Included |
Weight | 2900kgs |
Packing size | 5600*2130*350mm 750*750*1000mm 2150*1360*750mm 6cbm |
Function | Chassis straightening machine |
Certification | CE approved |
Application | 4S Station/ Garage store/ Auto body repair shop/ according |
Feature
(1) Manganese plate entirety lifting platform, high strength reinforcement plate, lifting smoothly and operating safely.
(2) The platform is board with its panel formed by the large-scale Laser cutting machine. The notch is smooth with no heat deformation.
(3) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. Lifting frame has double security of hydraulic and mechanism. The lifting range is 560mm in which can be adjusted.
(5) Pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.
(2) The platform is board with its panel formed by the large-scale Laser cutting machine. The notch is smooth with no heat deformation.
(3) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. Lifting frame has double security of hydraulic and mechanism. The lifting range is 560mm in which can be adjusted.
(5) Pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.

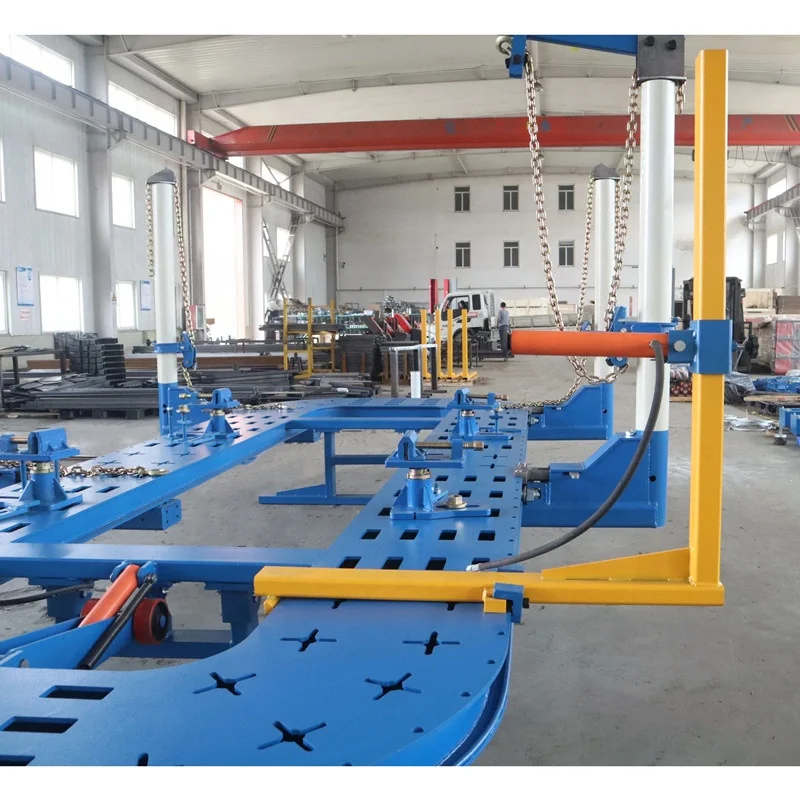

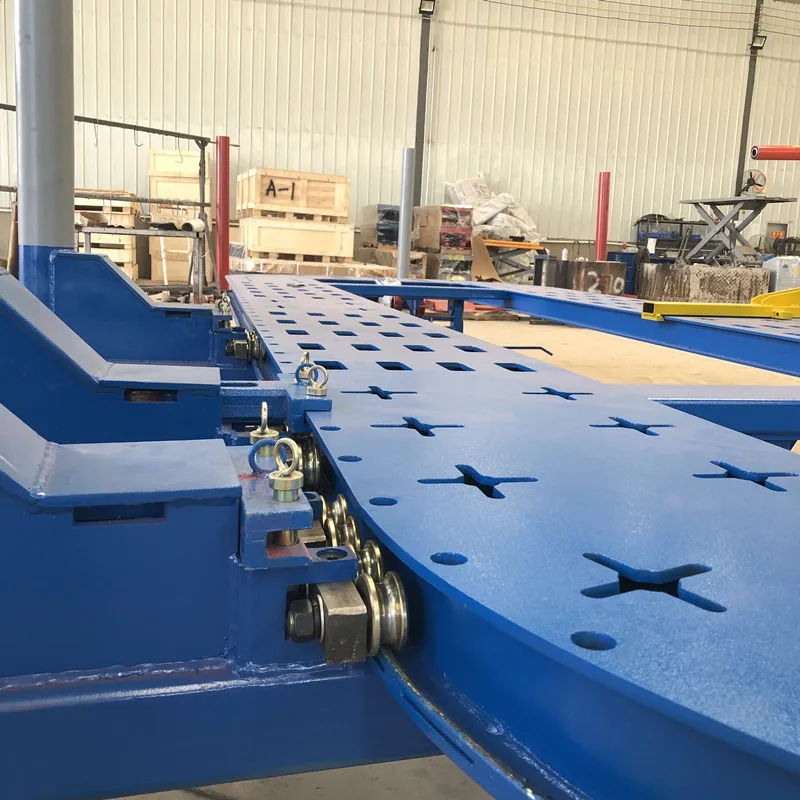

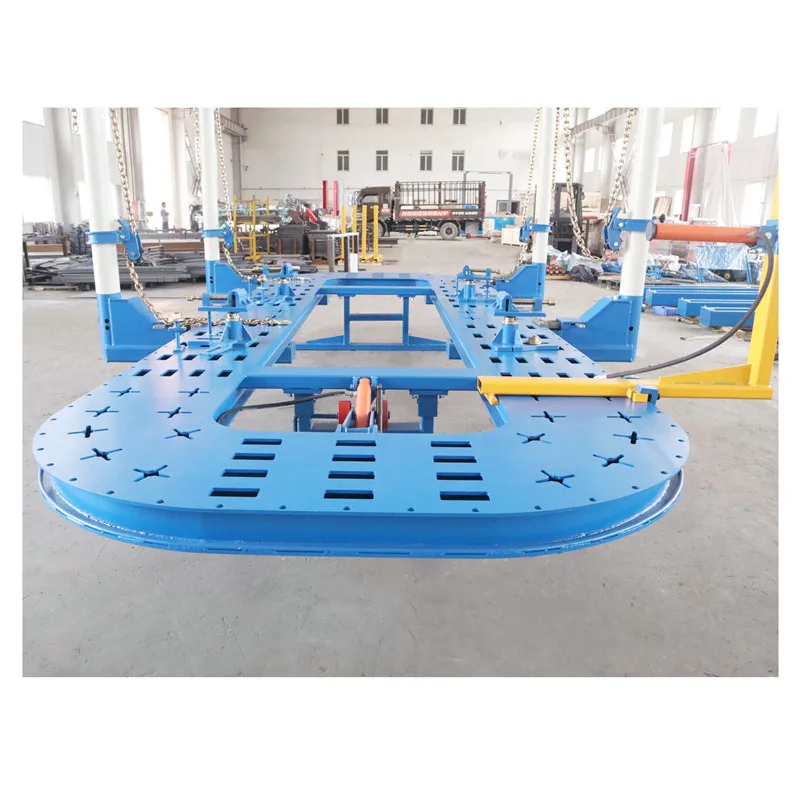

Product details
Customer Photos
Certifications
Packing & Delivery
Standard export packing for car repair bench
Company Profile
FAQ
Q: How do you ganrantee the production quality?
A: We have an independent team. Our teams do sample inspection, part inspection during production and 100% final inspection before
the shipment.
Q: Have you exported to our country?
A: From now on, we have did business with foreign friends from 128 countries, such as USA, Canada, UK, Italy, South Africa......
Q: May I know the Lead time?
A:The lead time of our machine is 7-10 days. When you order more, we need to check the production schedule.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
Q: Can I have a visit to your company?
A: Sure, welcome to visit us. Our factories are located in Yantai of Shandong Province.es.
A: We have an independent team. Our teams do sample inspection, part inspection during production and 100% final inspection before
the shipment.
Q: Have you exported to our country?
A: From now on, we have did business with foreign friends from 128 countries, such as USA, Canada, UK, Italy, South Africa......
Q: May I know the Lead time?
A:The lead time of our machine is 7-10 days. When you order more, we need to check the production schedule.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
Q: Can I have a visit to your company?
A: Sure, welcome to visit us. Our factories are located in Yantai of Shandong Province.es.
Recommend Products
Похожие товары
Полнопластинчатый автомобильный стенд с 18-футовой платформой и быстрозапирающимися башнями для выпрямления ремонта рамы кузова
437 527,35 ₽
Автомобильная рама AT-8 Autenf автомобильная автоскамья
93 677,14 ₽
ZT-850 Высококачественная выпрямляющая машина для удаления вмятин/машина рамы кузова автомобиля
330 625,20 ₽ - 347 156,46 ₽
Станок для выпрямления рамы
347 156,46 ₽ - 363 687,72 ₽

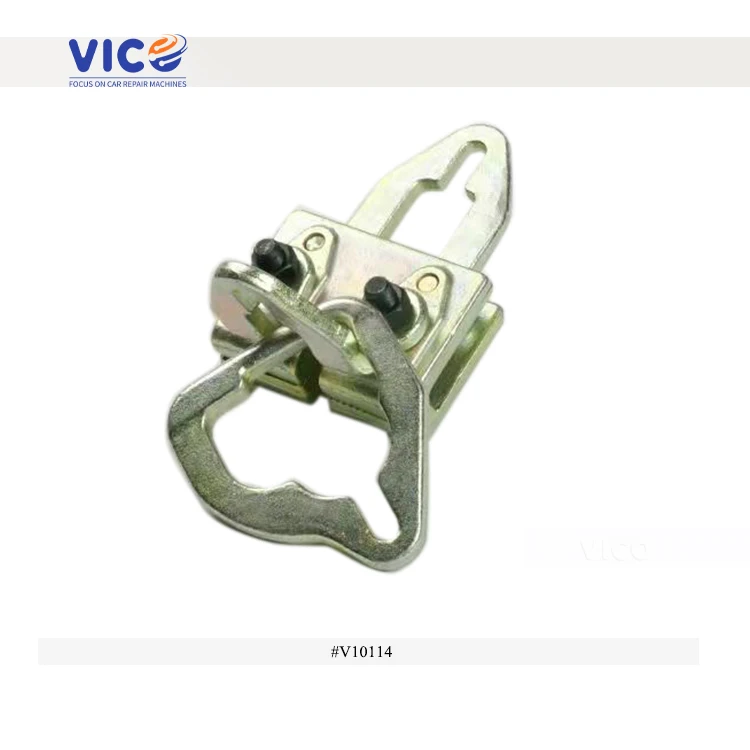

Листовой металлический зажим для ремонта автомобилей
