1 в 2 Rj45 разветвитель кабеля Ethernet 10 100 Мбит/с Ieee802 3af с переключателем Poe на расширитель для Ip камеры

Сохранить в закладки 1601271695121:


Цена:499,93 ₽ - 562,29 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики












Product description

korvre Support IP66 Waterproof: Tight waterproofing with glue injection holes Normal use when submerged in water,Good waterproof effect Supports 8-Pole 1 in 2 Data Transmission: Network cable access, One in two data output, Can transmit multiple devices/save costs Can be Matched With Waterproof Cap With anti-Stretch Cord: Avoid pulling cable, Effective waterproof Moisture-proof; Prevents aging Oxidation, Make the signal transmission stable

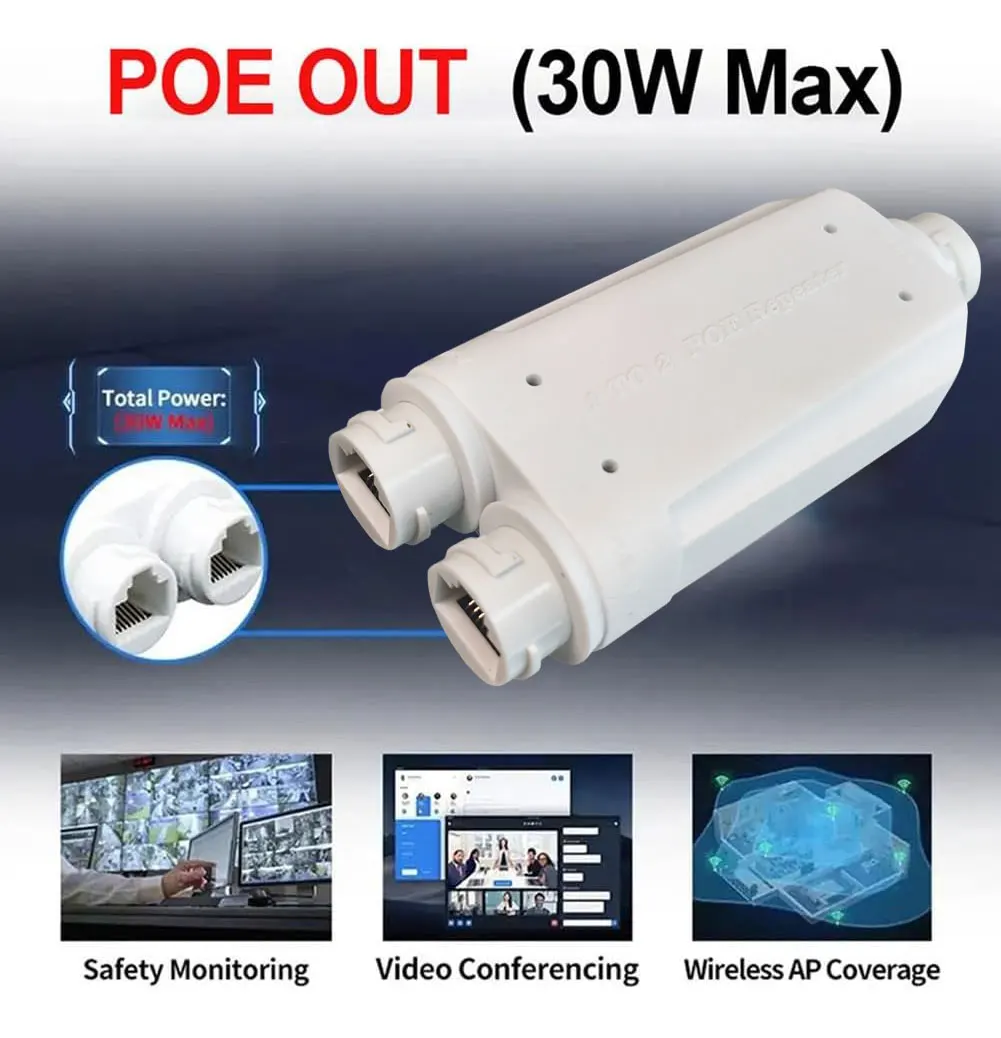

POE Out(30W Max): Supports IEEE802.3af/at PoE standard Maximum output power up to 30w (Total Power Output of 2 Ports), Hot swappable, Easy installation Low Cost, High Efficiency: POE Repeater Low Cost,POE Switch Port expansion Good partner, A Good solution to the Problem of Monitoring expansion

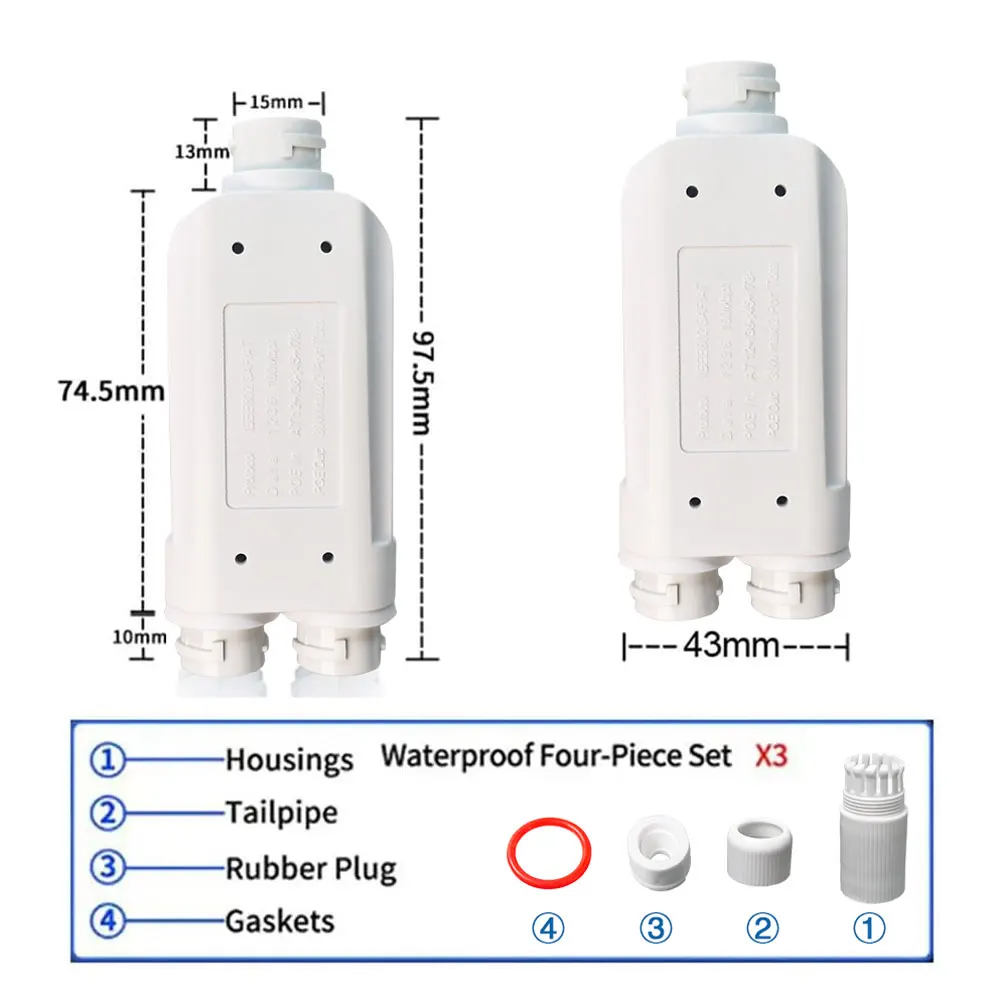

Mini Size, Save Room:This product adopts(Total length x Width x Height)97.5x43x22mm Mini body design, The size is similar to a bank card,Saves every inch of space

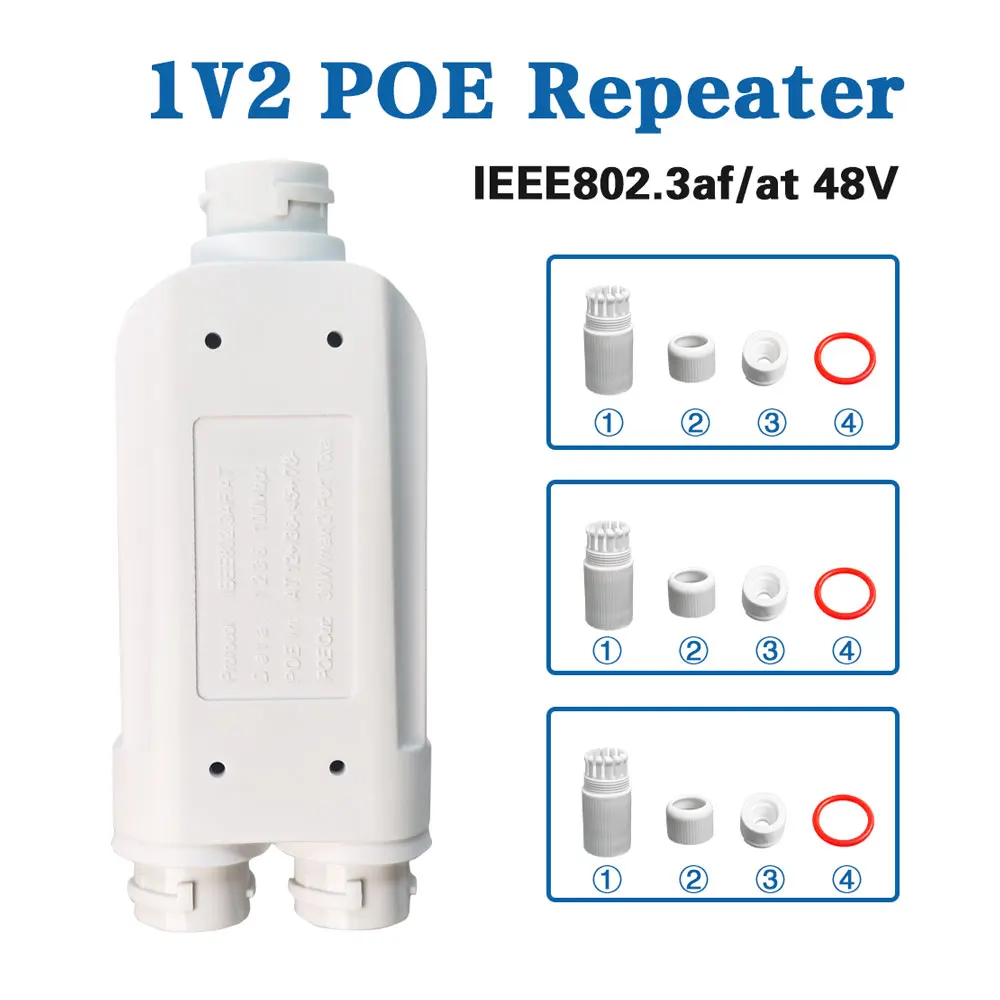

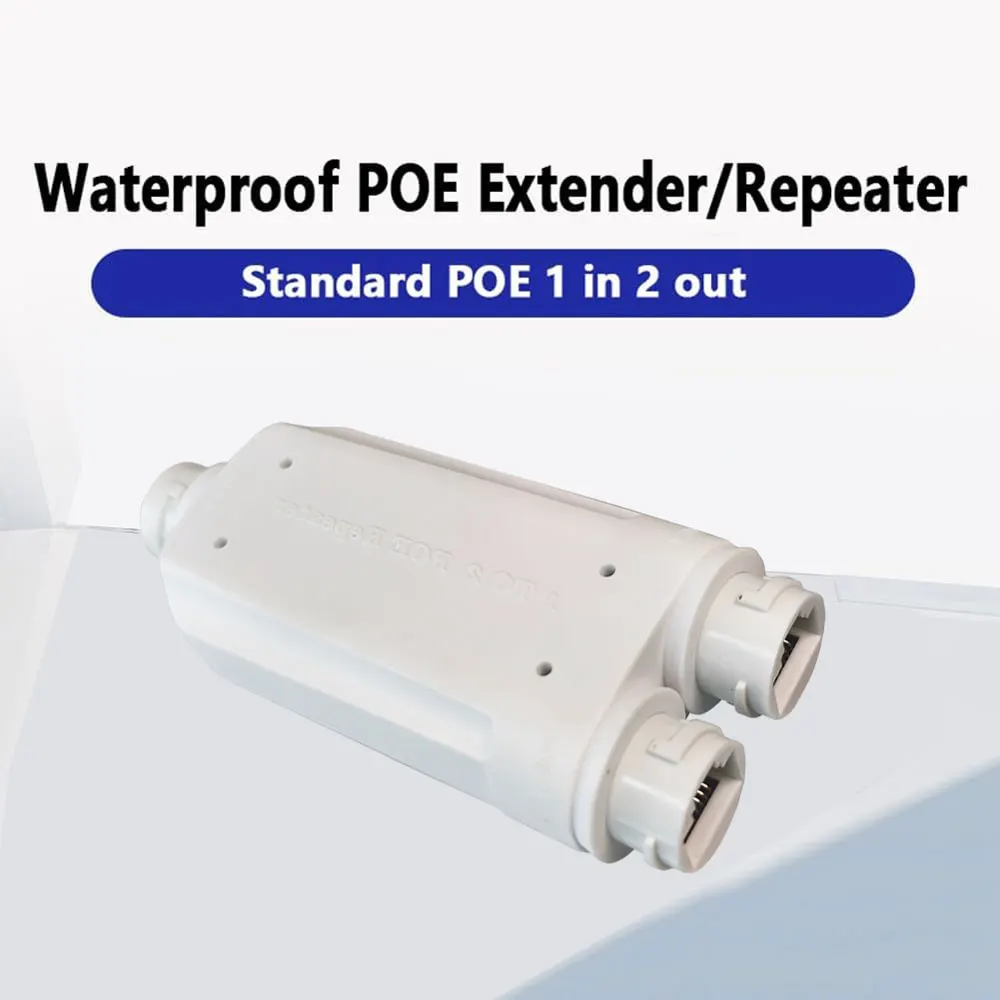

Product Name:One Input Two Output Waterproof POE Repeater
POE Protocol:Supports IEEE802.3af/at
Transmission Distance:
Front end MAX:100 Metres
Rear end MAX:100 Metres
POE In:
AT 12+/36-
45+/78-
Transfer Rate:10/100 Mbps
POE Out:30W Max (2 Ports Total Power)
Product Weight:76.2g
Colour:White
Material:Plastic
Size:97.5mm x 43mm x 22mm

Package Contents:
1 * PoE Extender

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real
thing. The measurement allowed error is +/- 1-3cm.





Product information


Model
IPOE-E302
Hardware Specifications
NetworkConnector
PoE in Port 1x 10/100/1000BASE-T Ethernet with 802.3btPoE++“Data + DC” in-Auto MDI/MDI-X, auto-negotiation R]45 connector
SwitchArchitecture
Store-and-Forward switch architecture
MAC Address Table
2K MAC address table with auto learning function
Data Buffer
1Mbit
Switch Fabric
6Gbps
Switch Throughput
4.46Mpps @ 64Bytes
Flow Control
IEEE 802.3x pause frame for full duplexBack pressure for half duplex
Jumbo Frame
9Kbytes
ESD Protection
Air 8KV DC, Contact 6KV DC
Surge Protection
6KV
Enclosure
IP67-rated and IK10 aluminum case
Installation
Wall-mount ear
LED Display
Link/ACT LED x 3
Dimensions(W xD xH)
150x43.8x72.94 mm(WxDxH)169.85 x43.8 x72.94 mm(W x D x H),
with cable gland
Weight
339g /372g(with three waterproof cable glands)
Power
97 watts/331.6BTU(Full loading with PoE function)
Consumption
97 watts/331.6BTU(Full loading with PoE function)
Power over Ethernet
PoEStandard
-IEEE 802.3bt PoE++ Type 4 standard PDPoH(Power over HDBASE-T)IEEE 802.3at PoE+ end-span/mid-span PD
Per PoE out PortIEEE 802.3bt PoE++ end-span/mid-span PSE
PoE Power
PoE in Port50~55V DC,max.95 watts44~50V DC, max.30 wattsPer PoE out Port48~55V DC, max.60 watts
Power PinAssignment
PoE in Port
1/2(-),3/6(+),4/5(+),7/8(-)or 1/2(+),3/6(-),4/5(+),7/8(-)Per PoE out Port 1/2(-),3/6(+),4/5(+),7/8(-)or
1/2(+),3/6(-),4/5(+),7/8(-)
PoE Power Budget
95 watts(max.)@ 802.3bt PoE++ Type 4 input60 watts(max.)@ PoH input30 watts(max.)@ IEEE 802.3at PoE+ inputIEEE 802.3af PoE input
not supported
Standards Conformance
RegulatoryCompliance
FCC Part 15 Class ACE
