Perfect laser 20w 30w Fiber Laser Marking Machine drawing on all kinds of metals and plastic with rotary
(Model:PEDB-400B)
Contact: Emma Email: sales020(@)perfectlaser.net whatsapp: +86 138 86034275


Product Description



Jpt M7 IpgRaycus Laser Source For Stainless Logo Portrait Engraving Laser Marking Machine is a new generation laser Jewelry Engraving machine developed with the world's most advanced laser . It uses fiber laser source and the high-speed scanning galvanometer system to realize the marking function. Jewelry laser marking electromechanical light conversion efficiency is extremely high with high reliability. Cooled by air cooling. The laser ring engraving machine`s overall size is small.

When it comes to rings and jewelry, there is no doubt that they are an indisputable part of our daily lives. They are becoming more and more popular not only because they make us feel stylish and beautiful, but also because it is a promise or symbol of love for couples. Different people have different preferences for rings and jewelry. Couples like to mark lover's names or special dates on rings and jewelry.

People pursuing fashion may like to mark special letters or patterns. As a result, laser marking machines are increasingly used for the marking of rings and jewelry. Laser ring engraving machine is not only practical but also meets the needs of the times and people.







Product advantages
1. Laser ring engraving machinecan work continuously for 24 hours without consumables.More than 10,000 hours service time can meet long-term and stable work requirements. The laser ring engraving machine `s laser beam is stable.
2. Gold laser marking machineequipped with special rotary system to support mark on ring. You can finish marking inside or outside to keep your perpetual signs.
3. Laser ring engraving machinepowerful software compatible with Coreldraw, AutoCAD, Photoshop and other software files which can support PLT, PCX, DXF, BMP, etc., can use SHX, TTF font directly;
4. The gold laser marking machine structure has been greatly improved: the optical system adopts a fully sealed structure with a red light preview function, a more beautiful appearance and a more convenient operation.
5. The photoelectric conversion efficiency is high, the beam quality is good, the lines are fine, the spot is small, and the laser has long service life, the laser ring engraving is specially suitable for jewery marking.
6. Thelaser ring engraving is equipped with the latest precision constant temperature chiller, low operating noise, high temperature adjustment accuracy, and provides a reliable guarantee for the continuous operation of the machine for a long time.
7. Jewellery laser marking machinehigh-speed scanning galvanometer, suitable for industrial mass production. No mechanical stress, small thermal stress, no damage to the processed material, no deformation. To maintain your best jewery effect.

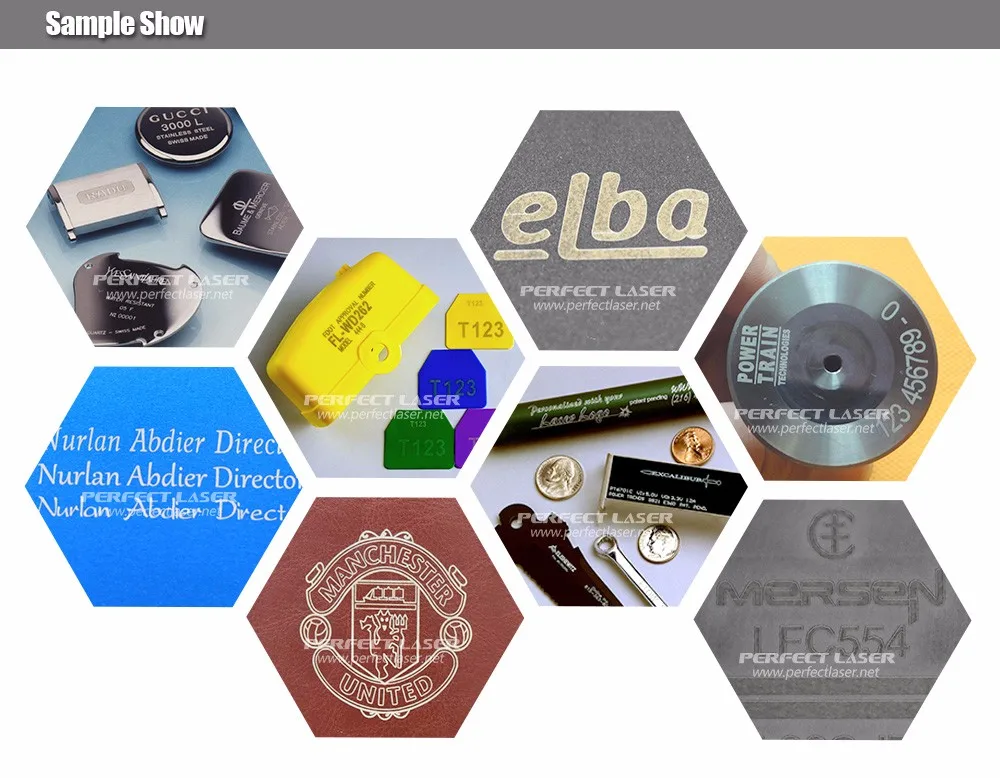

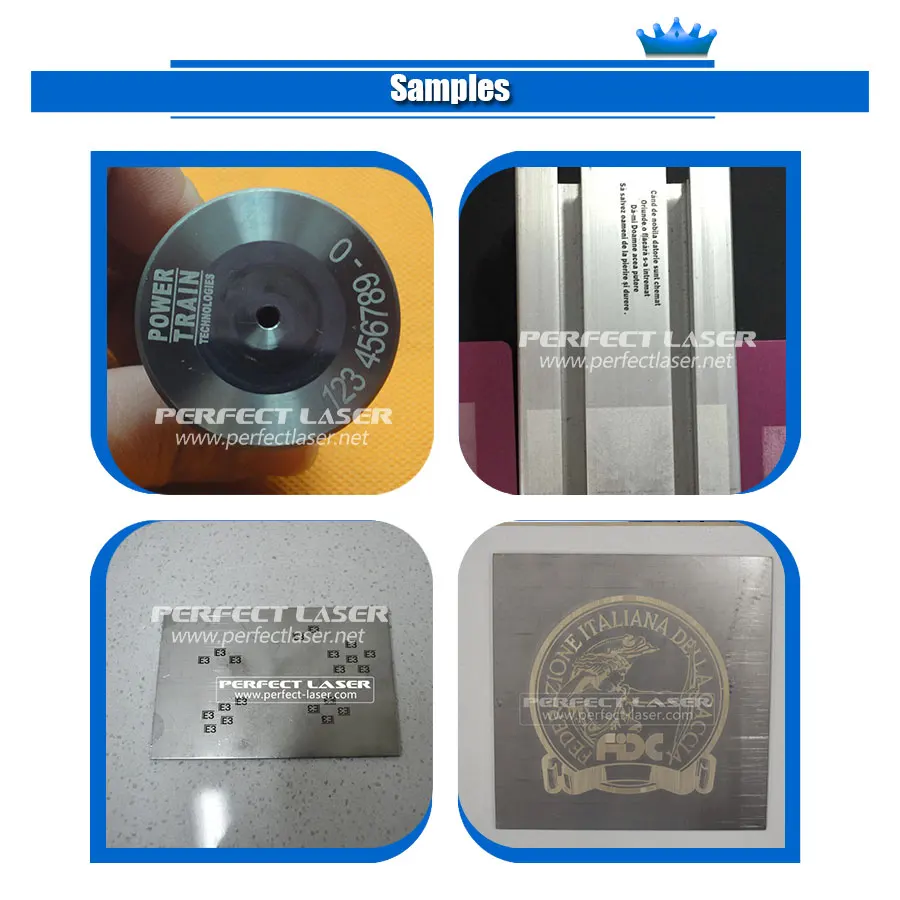

Samples


Application :

20w fiber laser engraving machine color marking is widely for stainless steel coding, carbon steel coding, iron making, aluminum coding, copper coding, anodized and coated material materials coding, and not-metallic such as nylon coding, ABS/PVC/PC board, hard plastic coding, rubber coding, resin coding, ceramic coding, animal ear tags, etc., Chinese Top Selling portable laser marking machine can apply to industries of electronic and communication products, IC products, electric lines, cable computer computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.

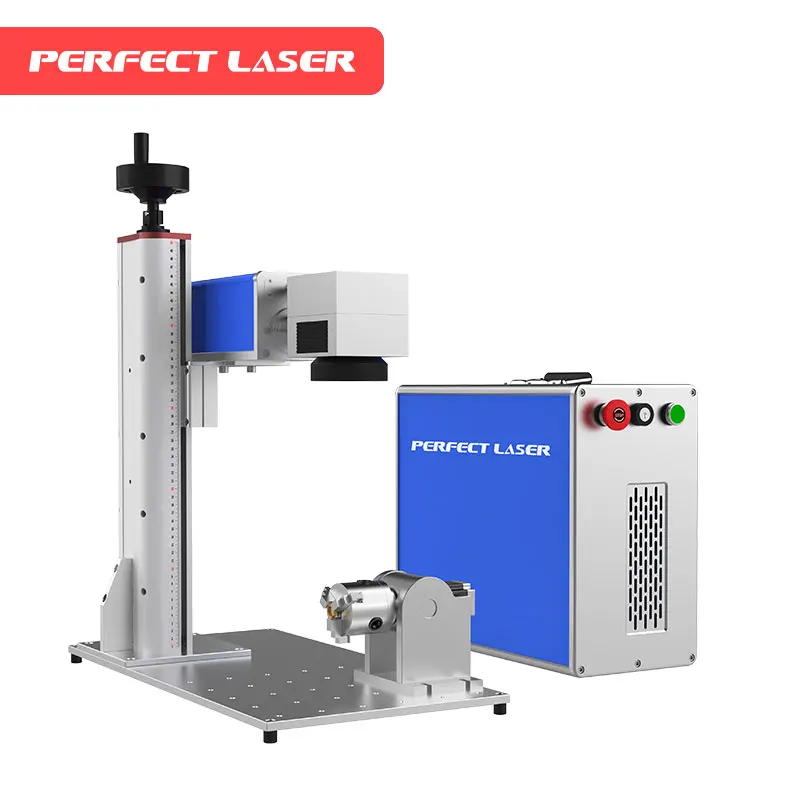

Detailed Images












Technical Parameters


Model No.
PEDB-400A
PEDB-400B
PEDB-400C
PEDB-400D
Type
Portable
Desktop
Colorful
Floor Stand
PC includes or not
Not includes PC
Includes PC
Laser Source
IPG Series
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Pulsed
Polarization
random
Nominal average output power
10W  20W 30W 50W 60W 100W
Central emission wavelength
1060-1070 nm ,Q-switched operation
Emission Bandwidth (FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80   kHz
Energy per pulse (PRR = 20 kHz)
0.95 mJ
Typical beam quality, M2
<1.8
Output fiber delivery length
3m
Operating voltage
110V/220V/380V
Max. Power consumption
600W
Net Dimensions
70*20*50cm
58*22*50cm  80*38*72cm
70*20*50cm
143*62*101cm
Net Weight
44 kgs
53 kgs
44 kgs
130 kgs
Gross Weight
60 kgs
70 kgs
60 kgs
150 kgs
Laser system
Scanning Speed
0-7000mm/s
Marking Speed
0-5000mm/s
Marking size
110mm×110mm (F-theta 160)
Spot size
≤ 40 micron   (F-theta 160)
Cooling unit
Air   cooled
Pilot laser
650nm diode laser, visible red light for marking   guide


Packing & Delivery




Packaging Details
1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof. 2. Air-Worthy Packing or Sea Packing which comply with international standard.


Certifications


As ISO9001: 2000 certified laser machinery manufacturer, Perfect Laser is committed to providing customers with high-quality, reliable laser machines.

As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Perfect Laser also has got ISO certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.





Our service


1. Whole machine with one year warranty, within one year, if there has parts broken, you can send back to us, then we'll send a new one to you.
2. Free training course at our plant or on line.
3. After the warranty period, we'll provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Before machine delivery, we'll install all parts and test machine for you. We'll take machine's working video and machine photos for you for checking, if confirmed there're no problem, then we'll delivery machine. And if dont dismantle the gantry (if working area more than 1325, then need dismantle machine gantry for putting it into container), after machine arrived, you just
need connect plasma power supply, software etc, it's more easily for you. If you're worried, we can take a teaching video for you at that time. By the way, during the production of machine, we also can share the process with you.
6. As for training, firstly we'll take more teaching video for you, and we also can remote control, most important, if you need, we can provide our technicians for on-site training and on-site teaching. And if you wanna, welcome to visit us, you can operate and learn your machine by yourself.
7. After machine shipped, I'll prepare some documents, like B/L, Packing List, Commerical Invoice, Commerical Contract, CE certificate for helping you pick up your machine.

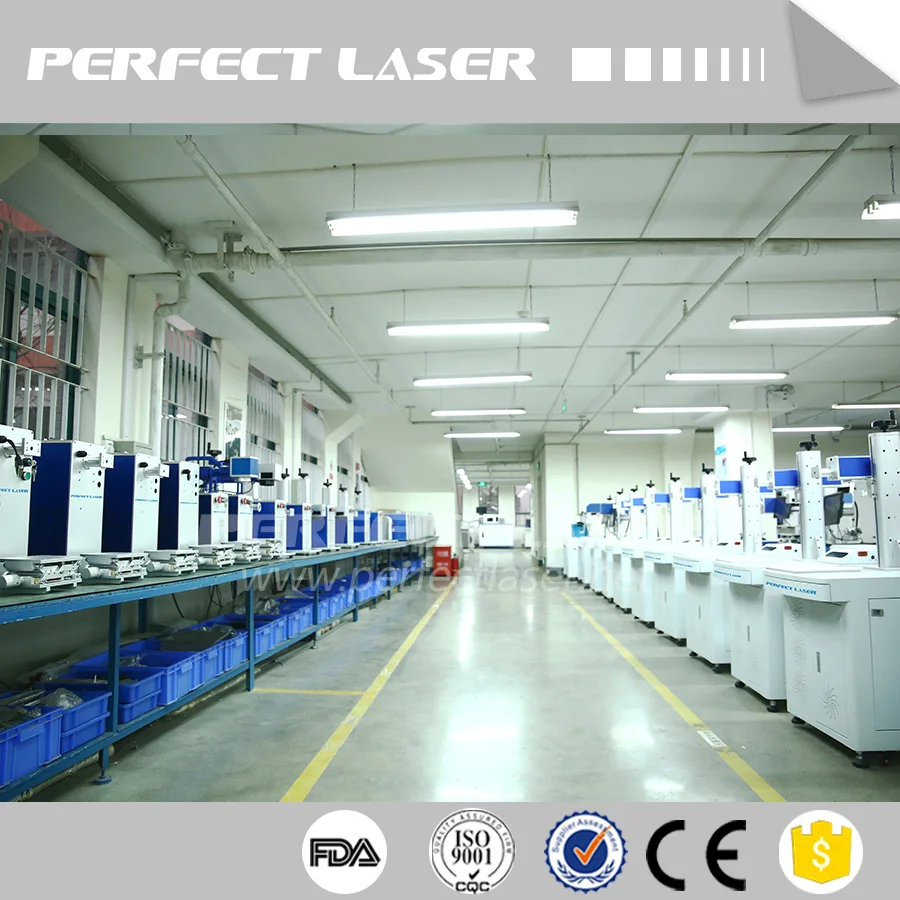

Our Company


Perfect Laser

Perfect laser is a world famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.



Talented Team

Perfect Laser brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel.

Perfect Laser eatalished 2 R&D center in Changchun and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad, work closely with national 63 patents, a number of the core technological achievements and technical indicators at the international advanced level.





Contact Info


Perfect Laser Co., Ltd (China)
Contact: Ms.Emma / Sales Manager
MP/WhatsApp/Wechat: +86 138 8603 4275
Skype: perfectlaser020_1
QQ: 2674617275
Tel: 0086-27-86791986
Fax: 0086-27-86783982
E-mail: sales020(@)perfectlaser.net
Add: No.13 YangQiaoHu Road,East Lake High-tech Development Zone,Optics Valley,Hubei,China
