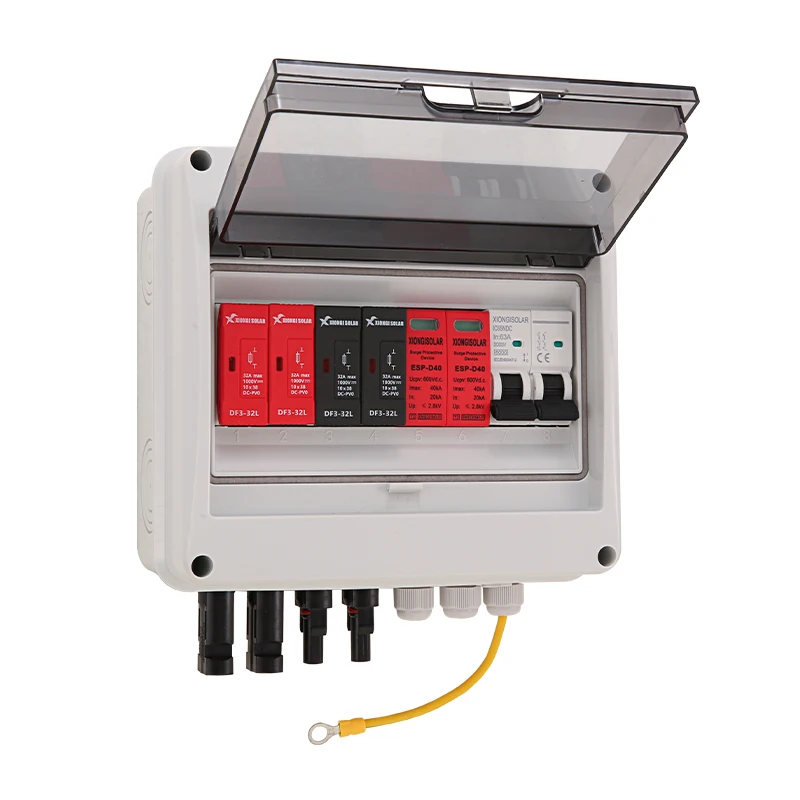

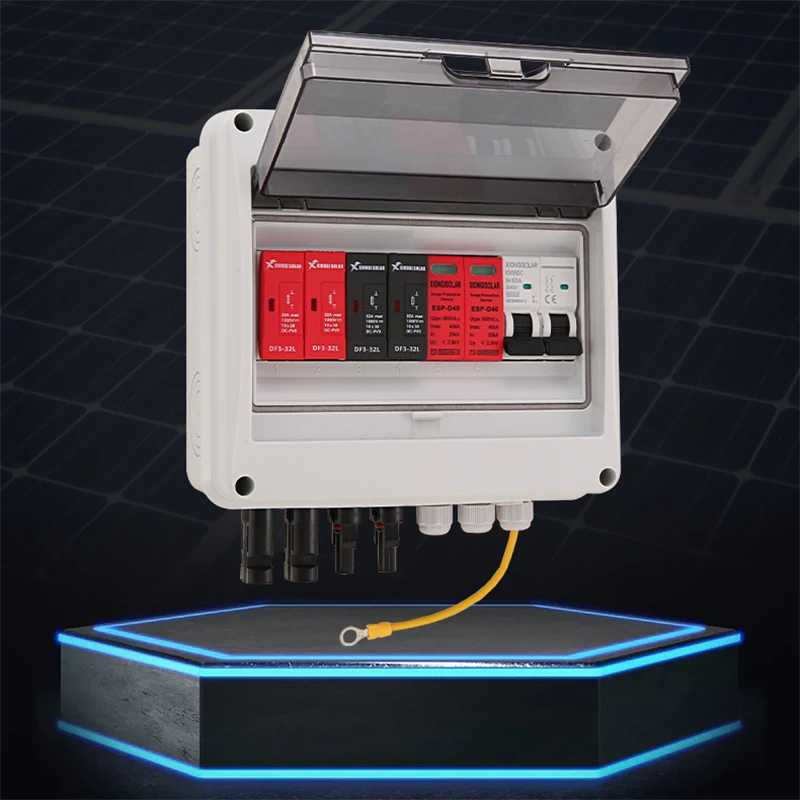

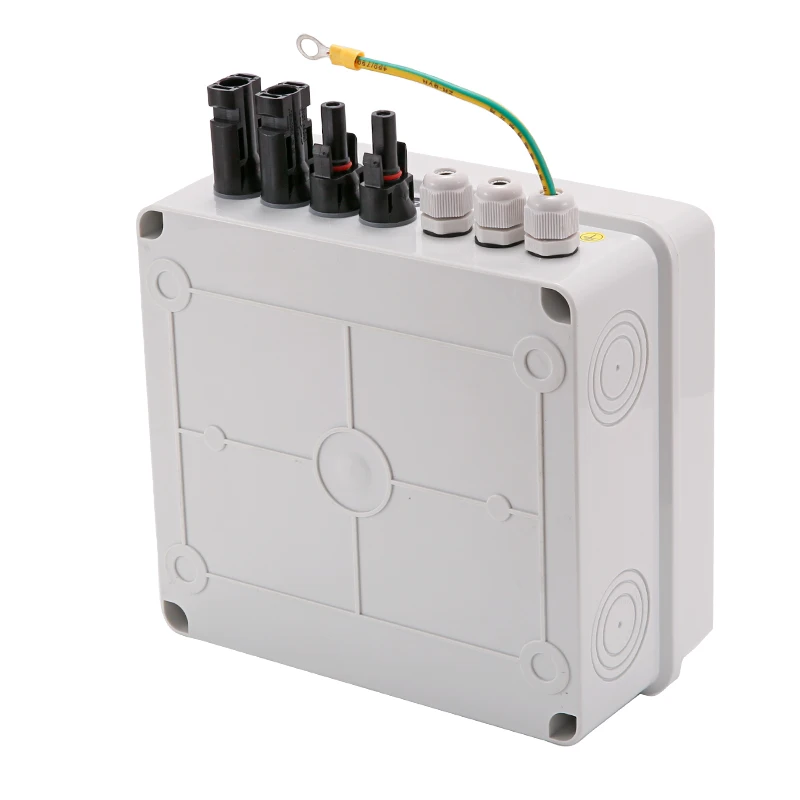

XIONGISOLAR IP65 водонепроницаемый уличный 600 В ABS Солнечный объединитель 2 входа 1 выход Молниезащита DC PV коробка

Сохранить в закладки 1601271816050:


Цена:2 488,77-2 941,27 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


SOLAR BOX Application

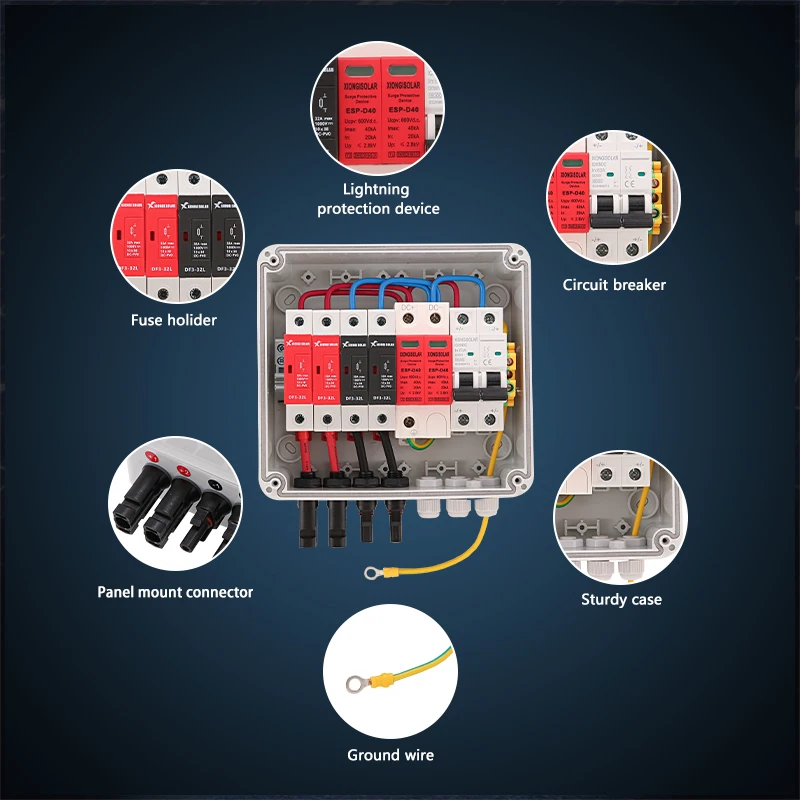

Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.





Product features




1.Very high impact resistance

2.Easy machining with normal tools

3.IP65

4.Wide operation temperature range

5.Non-conductive

6.Good resistance to chemical corrosion

7.Light weight

8.Excellent insulating properties

9.Cost-effective material for harsh environments









Product functions




1.Simplify the physical between solar panel and inverter

2.Fault current protection for each String

3.Fault alarm

4.Easy installation and maintenance

































































































olar PV DC Combiner Box2 in 1 out
Rated voltage of photovoltaic systemDC 600V
Max input amp for each string15A
Input strings2
Number of output strings1
Waterproof grade ip65/ Lighting protection
Category of testII grade protection
Nominal discharge amp20KA
Max discharge amp40KA
Volt protection level2.8KV
SPD Max operation voltageDC 600V
Poles2P
Structure characteristicPlug push module
System
Protection gradeIP65
Output switch2P DC circuit breaker
63A
Solar connectorStandard
Box materialPVC
Installation methodWall mounting type
Operating temperature-25℃-+60℃
Installation: indoors/outdoorsYes
Mechanical parameter

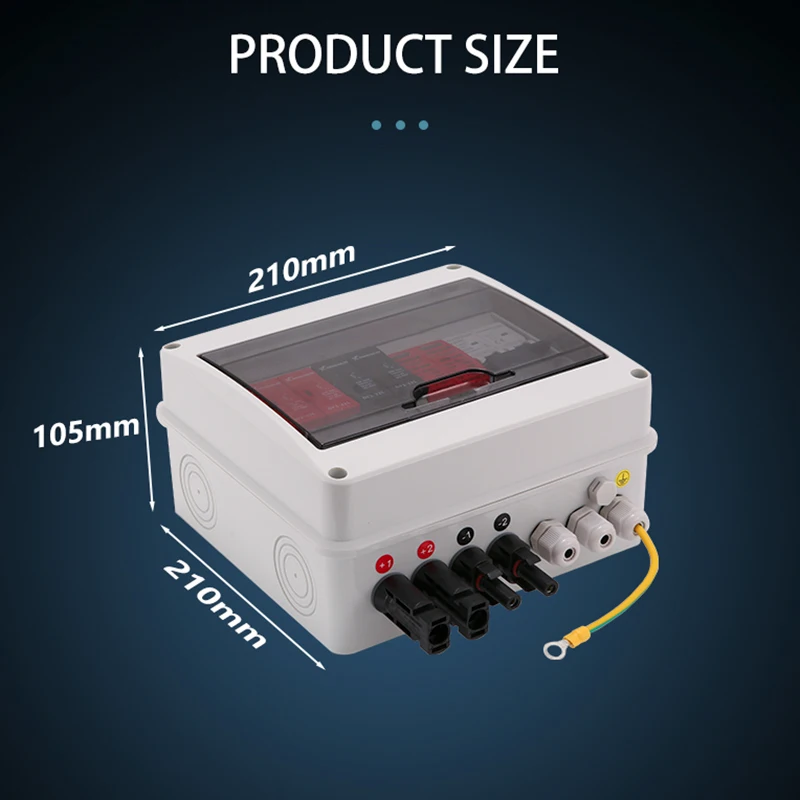

Widh*high*Depth(mm)23*14*24CM


 _01.jpg_02.jpg_03.jpg_04.jpg_05.jpg_06.jpg_07.jpg_08.jpg_09.jpg_10.jpg_11.jpg_13.jpg_14.jpg_16.jpg_17.jpg_18.jpg_19.jpg_20.jpg_21.jpg_22.jpg














Selling Point


1.The XIONGISOLAR 1 in 1 out 600V PV Solar DC Combiner Box Combination Box features a 1 in 1 out design, making it suitable for various applications and easy to install.


2.Brand Name: XIONGISOLAR, a trusted name in the solar industry, guarantees high-quality products that meet international standards.


3.The product hails from Zhejiang, known for its expertise in manufacturing electric components, providing assurance of excellence in craftsmanship and materials.


4.Voltage compatibility up to 600V makes the DC Combiner Box suitable for connecting multiple solar modules in a solar system.


5.With a current rating of 32A, the box is capable of efficiently managing and combining the power output from solar panels for safe and reliable power distribution.
6. Made from robust materials, the DC Combiner Box is designed to withstand harsh environmental conditions, ensuring a long-lasting and dependable solution for solar panel installations.
7. The product's 220V voltage compatible with a 32A current rating allows for efficient power conversion and distribution in solar systems, maximizing energy output and supporting optimal performance.
8. 600V voltage compatibility meets the demanding requirements of large-scale solar installations, making the combination box ideal for a wide range of residential and commercial projects.
9. With its intelligent design, the DC Combiner Box makes it easy to scale and maintain solar energy systems, reducing installation time and offering flexible expansion options for future growth.
10. The XIONGISOLAR 1 in 1 out 600V PV Solar DC Combiner Box is a versatile, durable, and efficient solution for solar energy systems, providing a strong return on investment and helping customers transition to clean, renewable energy.





Company Introduction


Established over a decade ago, our esteemed enterprise has been dedicated to the realm of solar photovoltaics. Our primary focus lies in the diligent production and innovative research and development of photovoltaic accessories, continually striving for excellence in the industry.


We are based in Zhejiang, China, start from 2017,sell to North America(30.00%),Western Europe(20.00%),South America(20.00%),Eastern Europe(10.00%),Southern Europe(10.00%),Eastern Asia(5.00%),Domestic Market(4.00%),Central America(1.00%). There are total about 11-50 people in our office.-_01-_04-_05-_02-_06-_07-_03-_08
