Автоматический небольшой ремонт сварочный аппарат экскаватор скучный портативный провод
- Категория: >>>
- Поставщик: Shenzhen Shuxiao Machinery Equipment Co. Ltd.
Сохранить в закладки 1601271859647:
Описание и отзывы
Характеристики
| Product Features | |
| Dimension(L*W*H) | other |
| Warranty of core components | 1 year |
| Max. Table Load(kg) | other |
| Key Selling Points | High precision |
| CNC or Not | CNC |
| Voltage | other |
| Machinery Test Report | Can provide |
| Spindle Motor Power(kW) | other |
| Condition | New |
| Place of Origin | China |
| Warranty | 1 year |
| Positioning Accuracy (Z axis) mm | other |
| No. of Spindles | 3 |
| Showroom Location | None |
| Material | 304 stainless steel |
| MOQ | 1 Set |
| Brand Name | other |
| Table Size (mm) | 1500 |
| Video outgoing-inspection | Can provide |
| Type | Horizontal model |
| Marketing Type | Top sellers of 2019 |
| Core Components | other |
| Applicable Industries | Building materials store production workshop |
| Number of Axes | 3 |
| Production Capacity | other |
| Positioning Accuracy (Y axis) mm | other |
| Machine feature | high efficiency simple operation |
| Product Features | |
| Video factory inspection | Can provide |
| Core component warranty period | 1 year |
| Table stroke (Z) (mm) | 1500 mm |
| status | New |
| W axis travel (X) (mm) | 1500 mm |
| Table travel (X) (mm) | 1500 mm |
| Core component | other |
| Applicable industry | Building materials store, production workshop |
| Material | 304 stainless steel |
| Country of origin | China |
| Table size (mm) | 1500 |
| Table stroke (Y) (mm) | 1500 mm |
| Number of axes | 3 |
| MOQ | 1 Set |
| Spindle speed range (RPM) | 350 r.p.m |
| Weight (tons) | 0.13 T |
| Marketing type | Top sellers of 2019 |
| Warranty period | 1 year |
| Core selling point | High precision |
| Showroom location (which overseas countries have sample rooms) | None |
| type | Horizontal model |
| Machine feature | high efficiency, simple operation |
Product Description

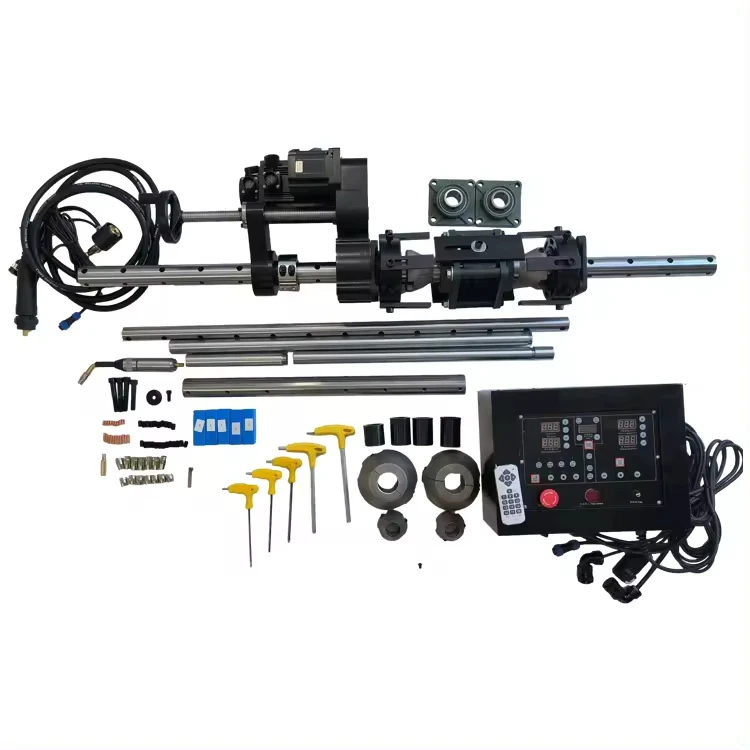

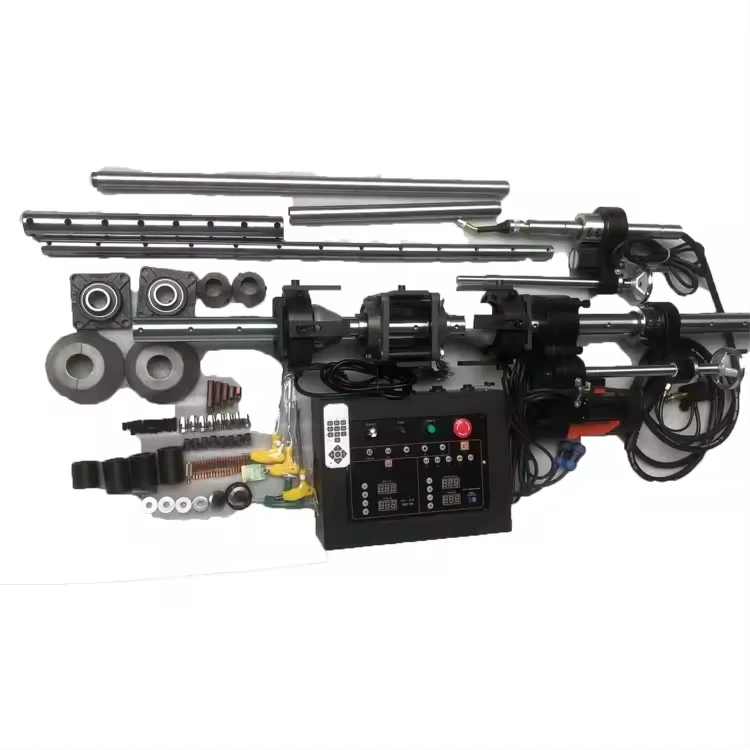

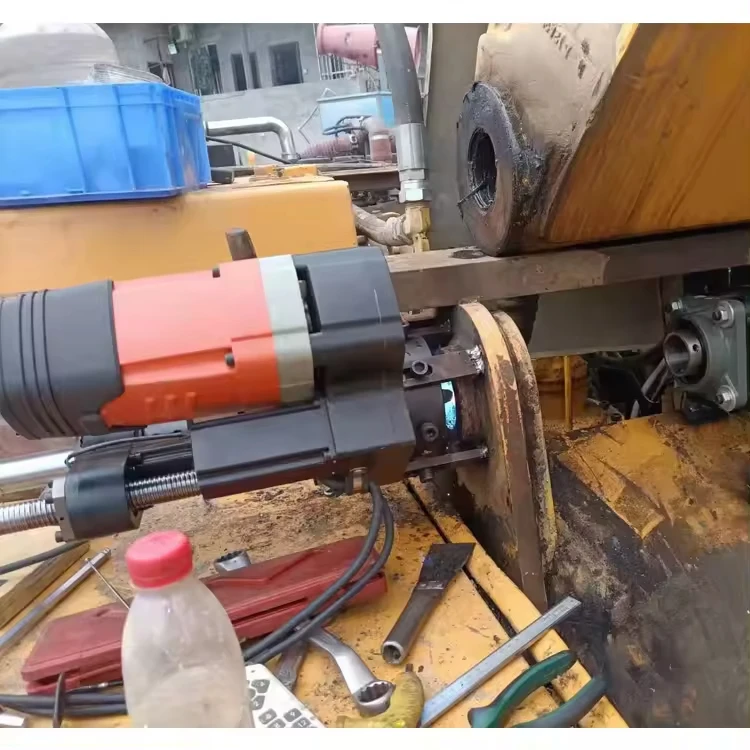

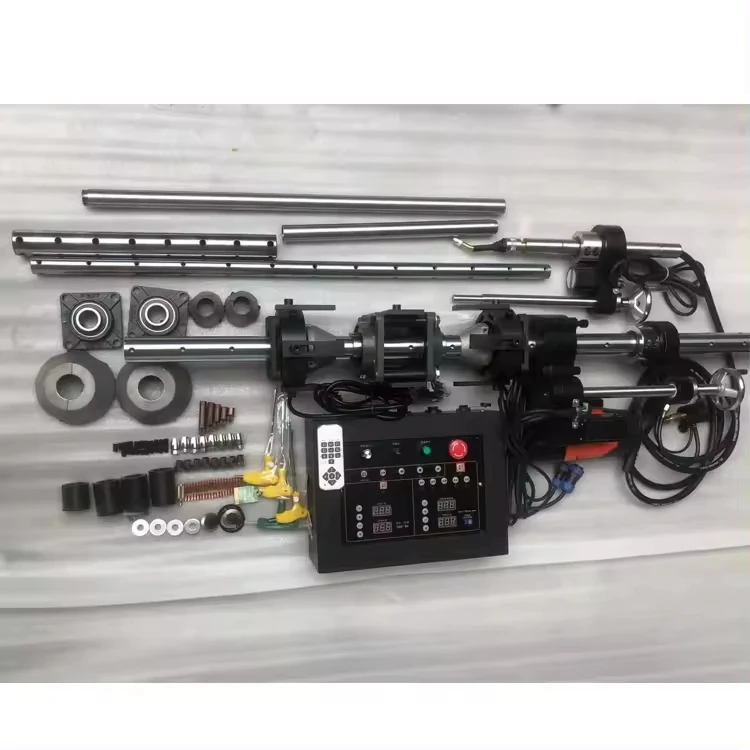

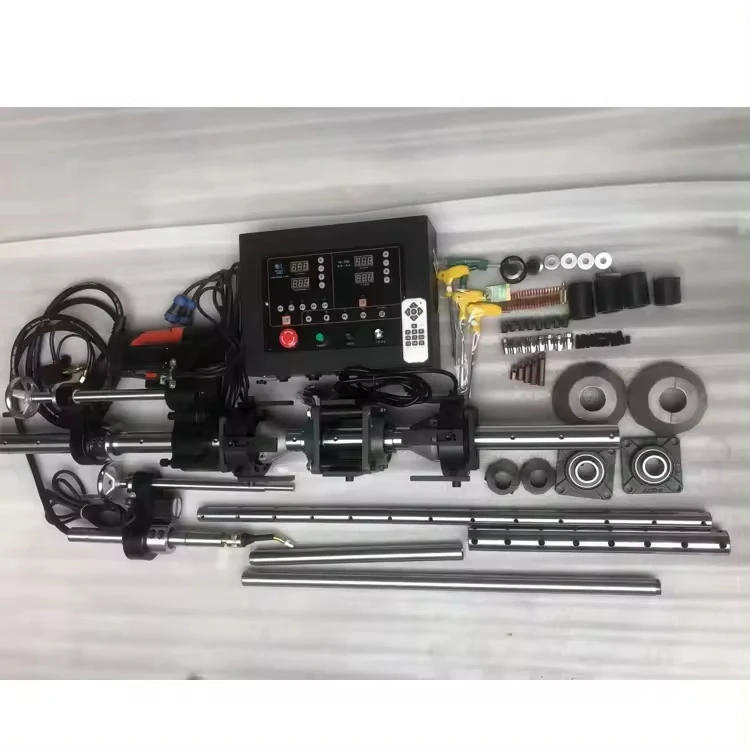

Product Description: HL-350 Line Boring Machine is an automatic boring and welding integrated machine maintenance tool .It can repair and process the shaft holes and seat holes on the large and small arms of excavators. Features: Light weight, Fast boring, Strong power, Easy to operate, High efficience, Universal fit for welder, Easy to fit in small working room, Cheap in price. The two processes of repair welding and hole repair can work alternately, just by replacing the boring bar and welding gun. This product has high processing accuracy, a tolerance of up to 0.01mm, and a diameter range of 37 to 150 for repair welding and boring.
Machine Parameter
Name | HL-350 Boring and Welding Machine |
Main motor rated output power | 3.8kw |
Voltage | 220v |
Feed motor rated output power | 0.4kw |
Rotation speed | 50-350rpm |
Speed mode | Stepless speed |
Axial feeding mode | Auto/Manual |
Axial feed single stroke | 300MM |
Boring bar diameter | 35mm 50mm |
Boring bar length | 35*1100mm x 1pcs 50*1500mm x 1pcs 50*500mm x 1pcs |
Cutting thickness | 0.02-8mm |
Ovality tolerance | ±0.02mm |
Taper tolerance | ±0.01mm |
Welding bar diameter | 35mm |
Welding thickness | 3-4mm |
Welding bar length | 35*400mm x 1pcs 35*600mm x 1pcs 50*900mm x 1pcs |
Welding bar assembly total length | 1900mm |
Applicable MIG welding machine | 200-500 type |
Applicable welding wire diameter | 0.8mm/1.0mm/1.2mm |
Welding function | Spiral Welding, Sector Welding, Jump Welding |
Dimension(L*W*H) | 90*43*22cm 152*23*24cm |
Weight | 0.13 T |
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
Company Profile
Shenzhen Strong Machine Co., Ltd. has been committed to R&D, production and sales of the packing machine field ever since its establishment in 1995.
We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 15 years.
We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.
We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 15 years.
We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.
Certificates
Since its inception, STRONG MACHINE has been devoted to optimization and integration of developing, producing, sealing,
andapplication of technology of ultrasonic machinery. After almost twenty years of unremitting efforts, STRONG MACHINE with highquality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.
andapplication of technology of ultrasonic machinery. After almost twenty years of unremitting efforts, STRONG MACHINE with highquality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: Can you guarantee your quality?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q:What should I do if we are not able to operate the machine when we receive it?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How could I get the spares on machines?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: Is there any installation direction after we received the machine?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba
tradeassurance. The machine will have two years warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
tradeassurance. The machine will have two years warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
