Оборудование для обработки риса новая машина удаления камня с классификацией пропорций зерна

Оборудование для обработки риса новая машина удаления камня с классификацией пропорций зерна

Категория: >>>
Поставщик: Tengzhou Xinhao Grain And Oil Machinery Co. Ltd.

Цена:183 610,54 ₽ - 203 051,66 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Company Profile

1.Xinhao Grain and Oil Machinery Co., Ltd. has 20 years of professional manufacturing experience, is a professional production of rice milling machine, flour machine, corn milling machine, oil press, grain stone machine, bucket elevator and other products supplier.
2.We have exported more than 100countries like Zimbabwe, Zambia, Uganda, Tunisia, Togo, Tanzania, Chad, Central Africa, Cameroon, Burundi.
3.The company mainly produces grain processing equipment, which is convenient for users to carry out grain, cleaning, screening, grinding, grits, grinding, oil pressing and other processing forms. The operation of the equipment is simple and the processing effect is good.

TQSF series specific gravity stone removal machine has the characteristics of simple structure, small size, light weight, stable operation, low noise, low energy consumption, good sealing, easy operation and maintenance, etc., is the ideal cleaning and cleaning equipment. It can help to remove light impurities, so that the equipment works in a negative pressure state, no dust overflow.

No	Item	Data
1	Power	0.25*2KW
2	Operating weight	300KG
3	machine size	13092180
4	Processing capacity	3-4 T/H

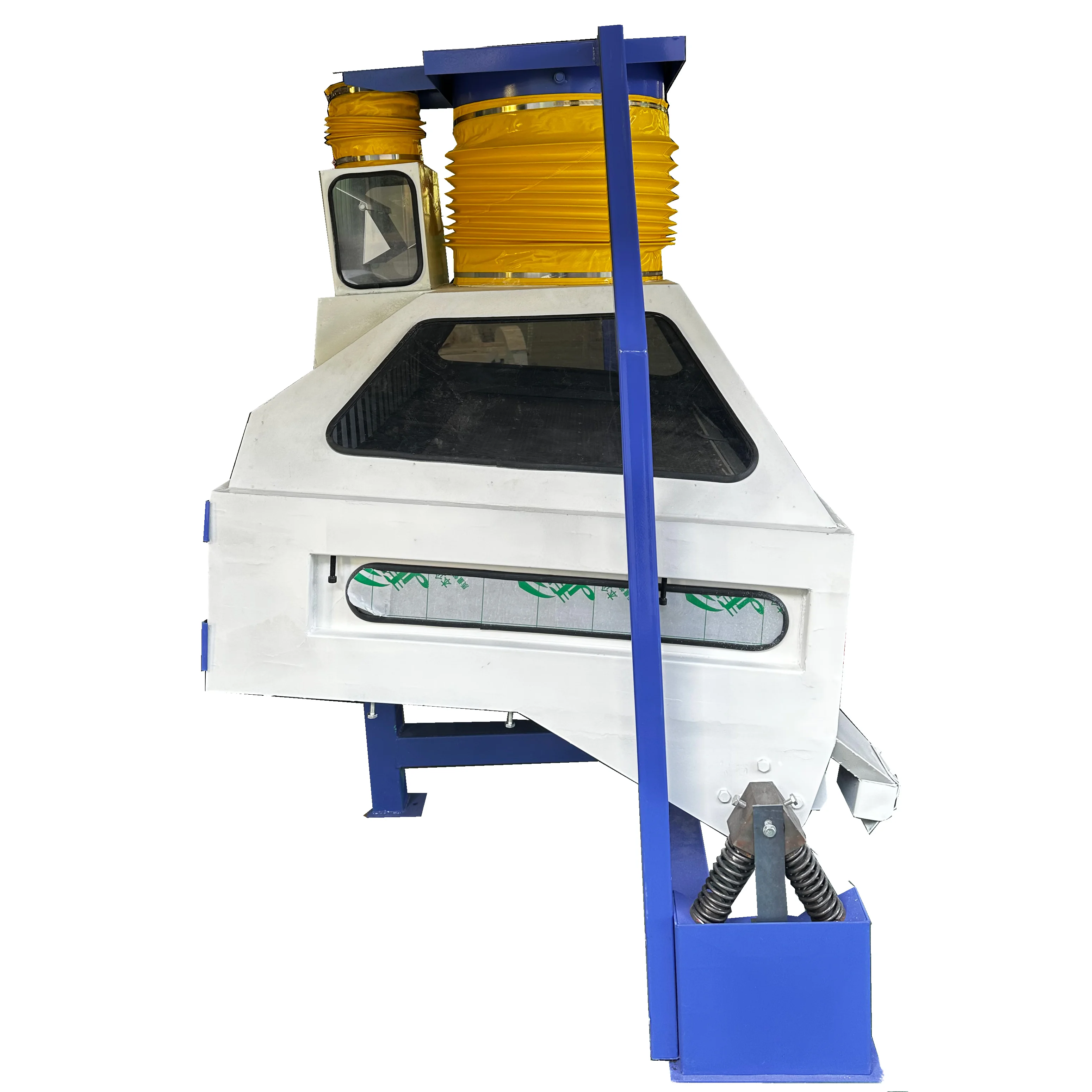

Right elevation

Left elevation

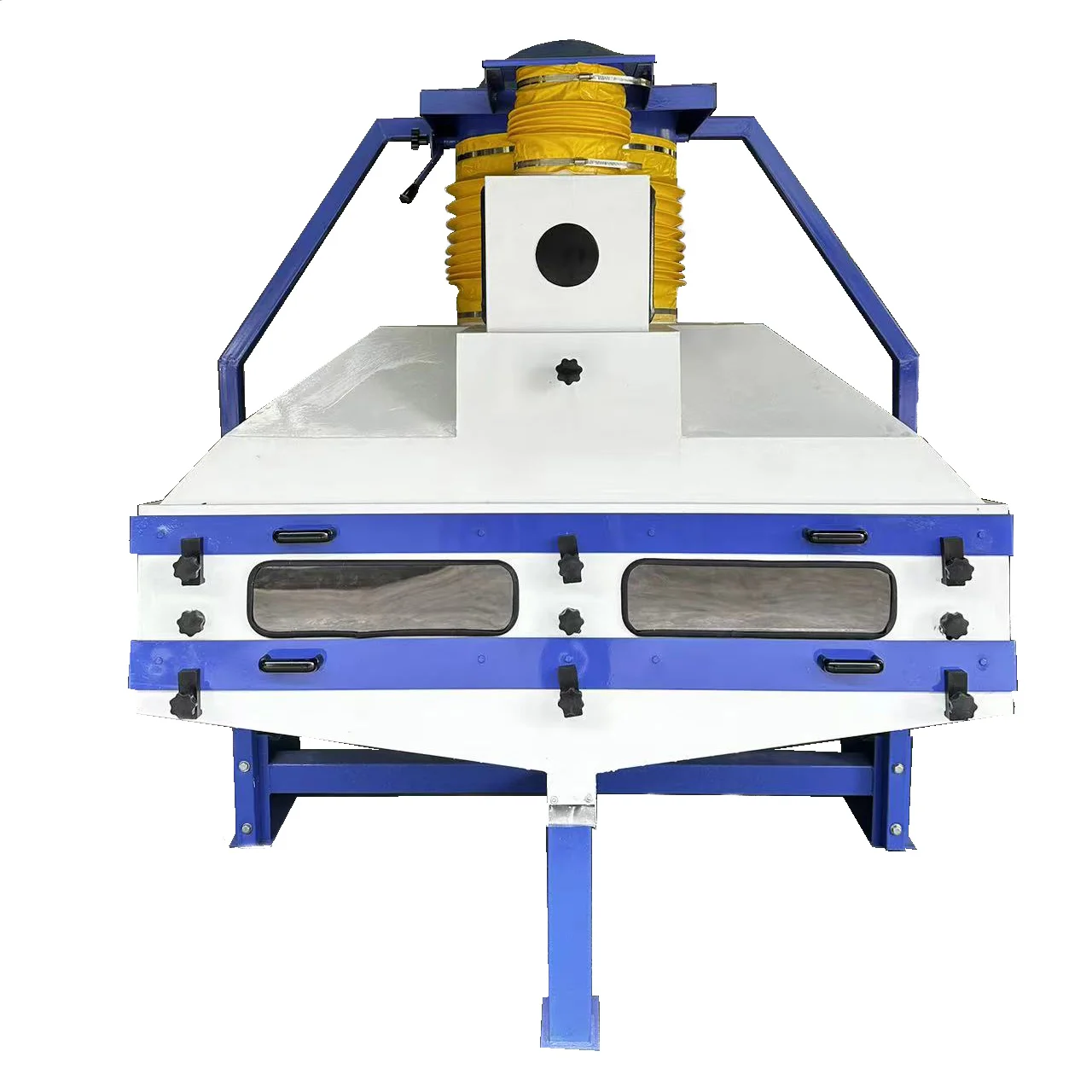

Front elevation

When the specific gravity stone machine works, the material continues to enter the middle of the stone screen surface, due to the different density and aerodynamic characteristics of the components of the material, under the appropriate vibration and air flow, the less dense material floats on the upper layer, and the larger density stone sinks into the bottom and contacts with the screen surface, forming an automatic stratification. Due to the bottom-up flow through the material, the porosity between the materials increases, the positive pressure and friction between the material layers are reduced, and the material is in a fluid state, which promotes the automatic stratification of the material. Therefore, the front of the stone screen is slightly inclined, the upper material is under the action of gravity, inertial force and continuous feed thrust, and the following layer of material is a sliding surface, which slides down to the net material outlet relative to the stone screen surface. At the same time, gravel and other debris gradually separated from the material into the lower layer. The lower stone and the non-suspended heavy material slide back along the screen face under the action of vibration and screen surface structure and air flow, the upper material is getting thinner and thinner, the pressure is reduced, the lower material continues to enter the upper layer, when the end of the screen surface is reached, the normal material in the lower stone has very little. Under the action of reverse blowing air, a small amount of normal materials are blown back, and heavy objects such as stones are discharged from the stone discharge port.
