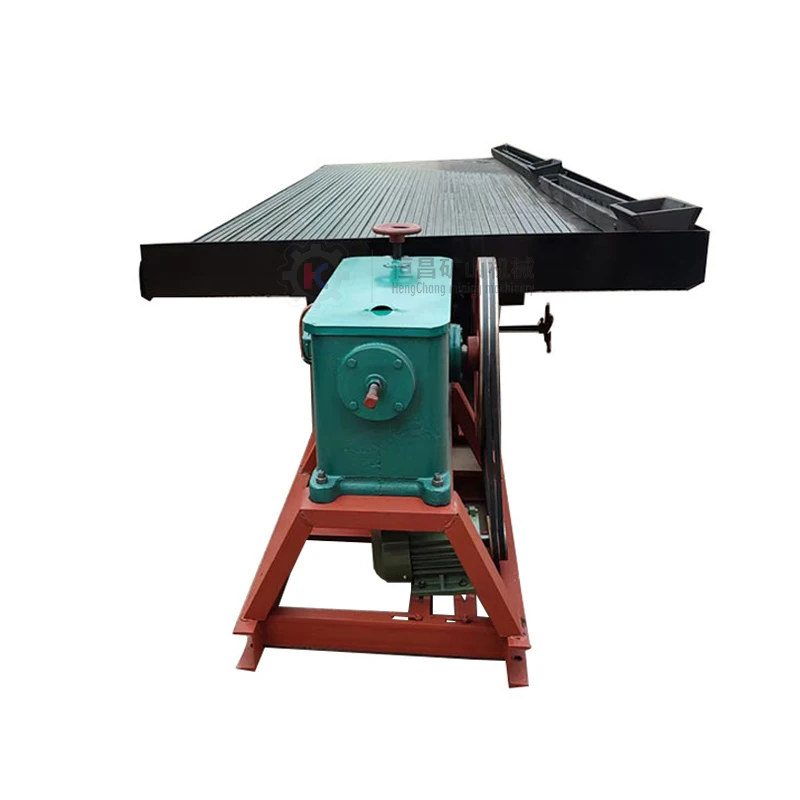

Стол для горного оборудования встряхивальный стол золотомойки аллювиальный обработки золота
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601272036144:
Описание и отзывы
Характеристики

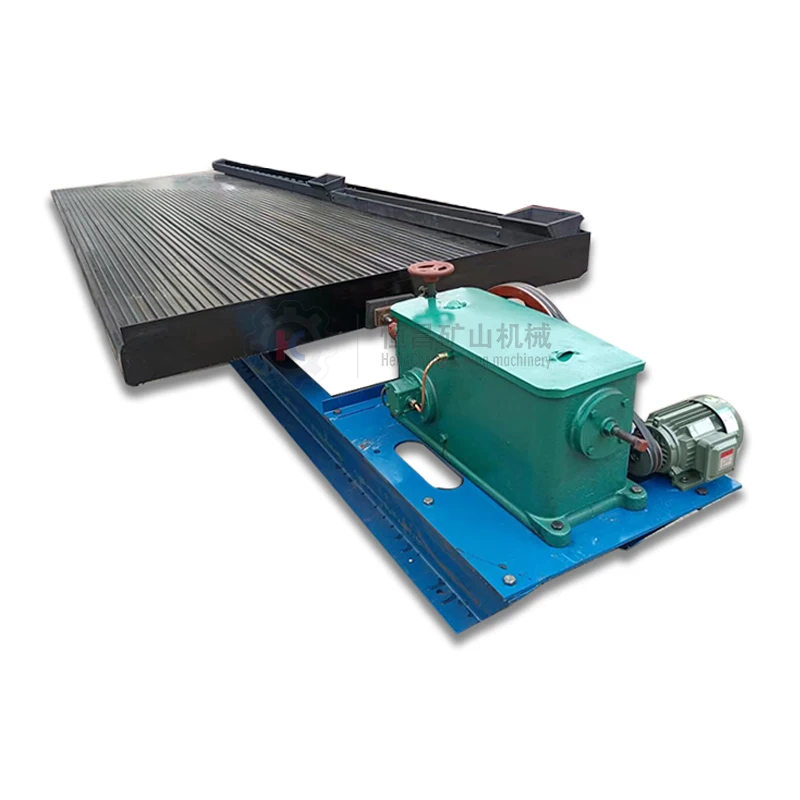

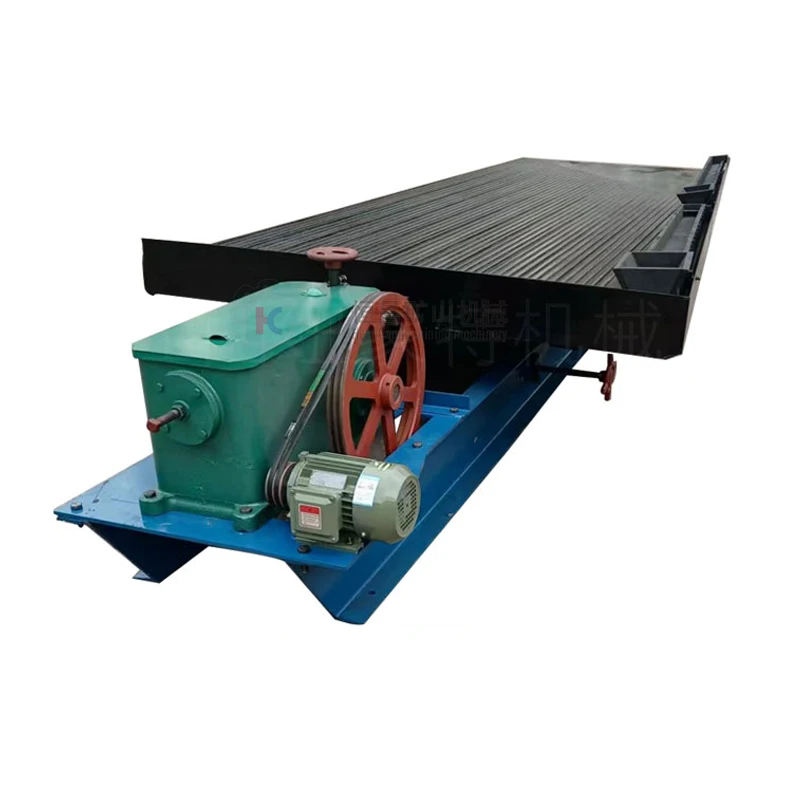

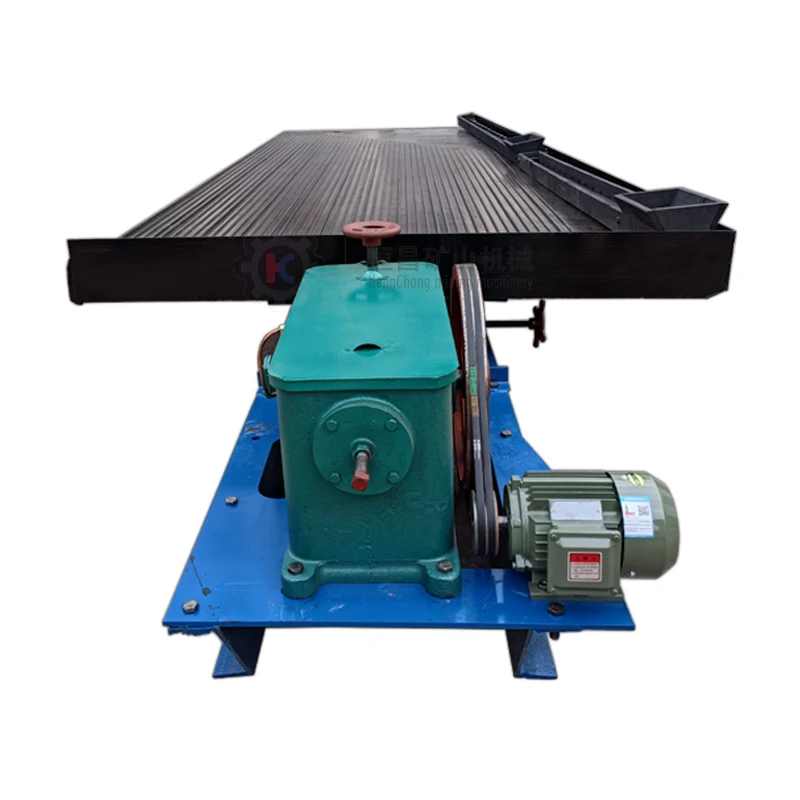

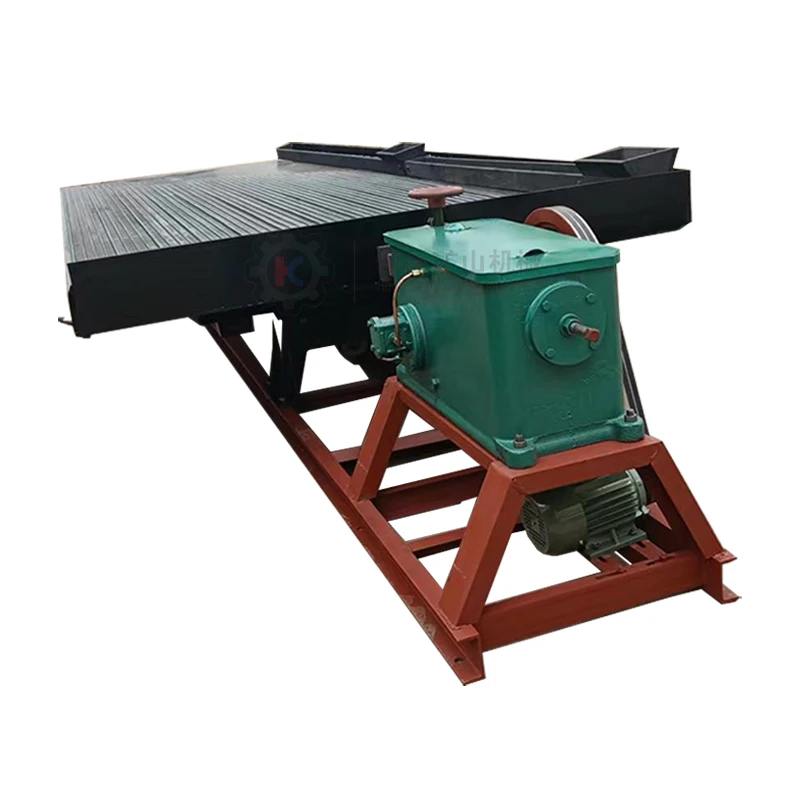

mining machinery shaking table for gold wash plant alluvial shaking table for gold processing
Gravity Separator Equipment shaking table is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
mining machinery shaking table for gold wash plant alluvial shaking table for gold processing Introduction:
Gravity Separator Equipment is widely used for sorting minerals. Its main function is sorting the rough and concentrate mixture after minerals gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm. The separating effect is especially for minerals with a variety of sulfide minerals. It has the following advantages compared with the gold table: it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.
Gravity Separator Equipment is widely used for sorting minerals. Its main function is sorting the rough and concentrate mixture after minerals gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm. The separating effect is especially for minerals with a variety of sulfide minerals. It has the following advantages compared with the gold table: it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.
mining machinery shaking table for gold wash plant alluvial shaking table for gold processing Working Principle:
The working principle of Mineral Separation Equipment is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
This machine is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Shaking table for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
This machine is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Shaking table for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
Table
Steel Support
Table Head
Table Support
Model | 6S4450x1855x1546 | LY3000x1620x1360 | LY2100*1050*850 | LY1100*500*430 |
Storke (mm) | 8-22 | 6-30 | 12-38 | 9-17 |
Times of Stroke r(t/min) | 210-350 | 210-320 | 250-460 | 280-460 |
Cross Slope (°) | 1-4 | 0-10 | 0-8 | 0-10 |
Feed Size (mm) | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 |
Feed Density (%) | 15-30 | 10-30 | 10-30 | 10-30 |
Water Consumption (t/h) | 0.5-6 | 0.3-1.5 | 0.2-1.0 | 0.1-0.5 |
Capacity (t/h) | 0.6-2.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 |
Power (kw) | 1.1 | 1.1 | 1.1 | 0.55 |
Weight (kg) | 800 | 500 | 350 | 150 |
Gravity Separator Equipment In India
used in gold separator processing plant
Gravity Separator Equipment In Australia
used in alluvial gold concentration
Gravity Separator Equipment in Morocco
used in zinc and chrome separation
Gravity Separator Equipment In Malaysia
used in copper separation and concentrator
Gravity Separator Equipment in Vietnam
used in river gold recovery
Gravity Separator Equipment in Indonesia
Used in rock gold concentration
Gravity Separator Equipment In Nigeria
used in tungsten ore separation
Gravity Separator Equipment In Tanzania
used in diamond and gold separator
Похожие товары

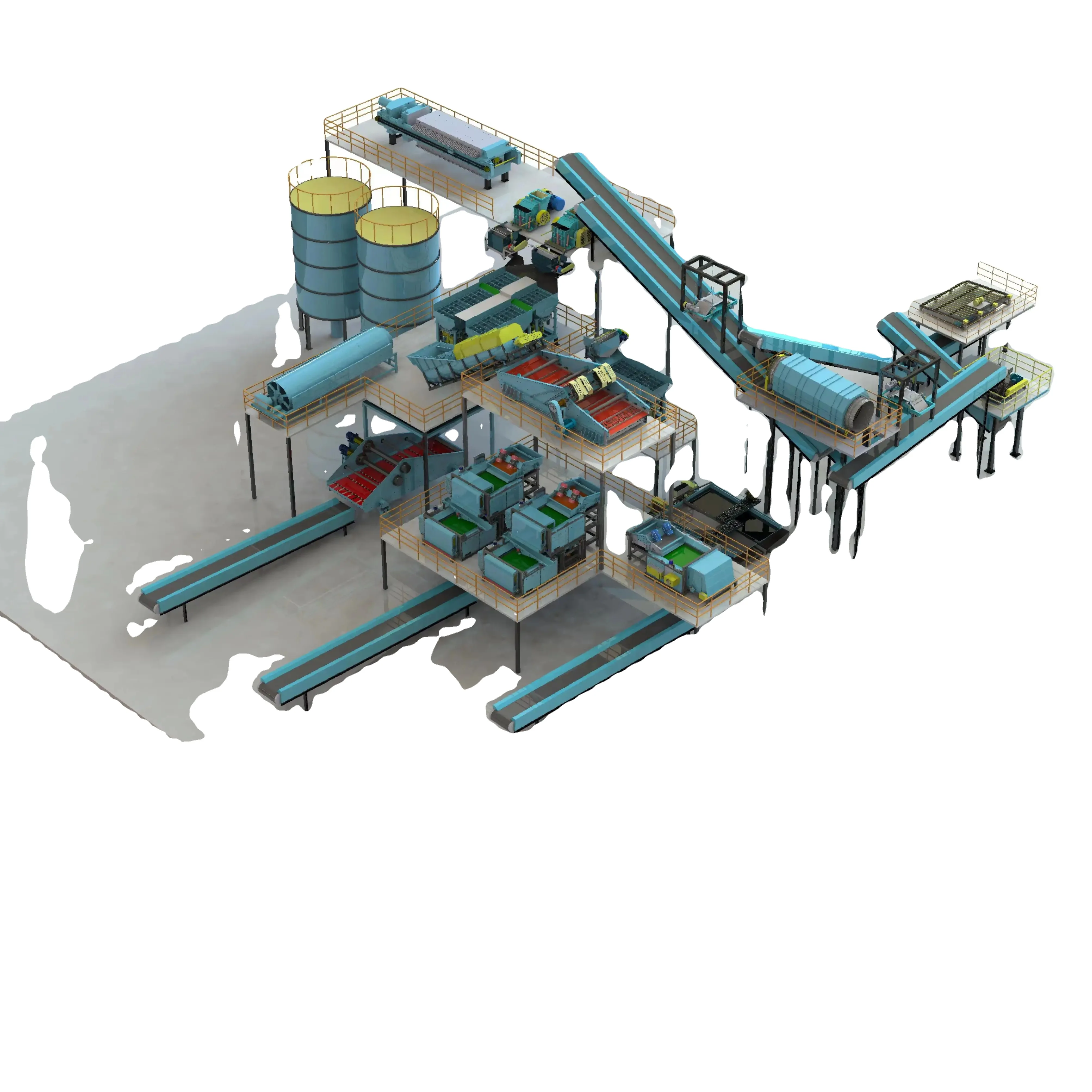

Промышленное оборудование для рекуперации металла, завод по переработке стального шлака
1 084 359,00 ₽ - 3 253 077,00 ₽

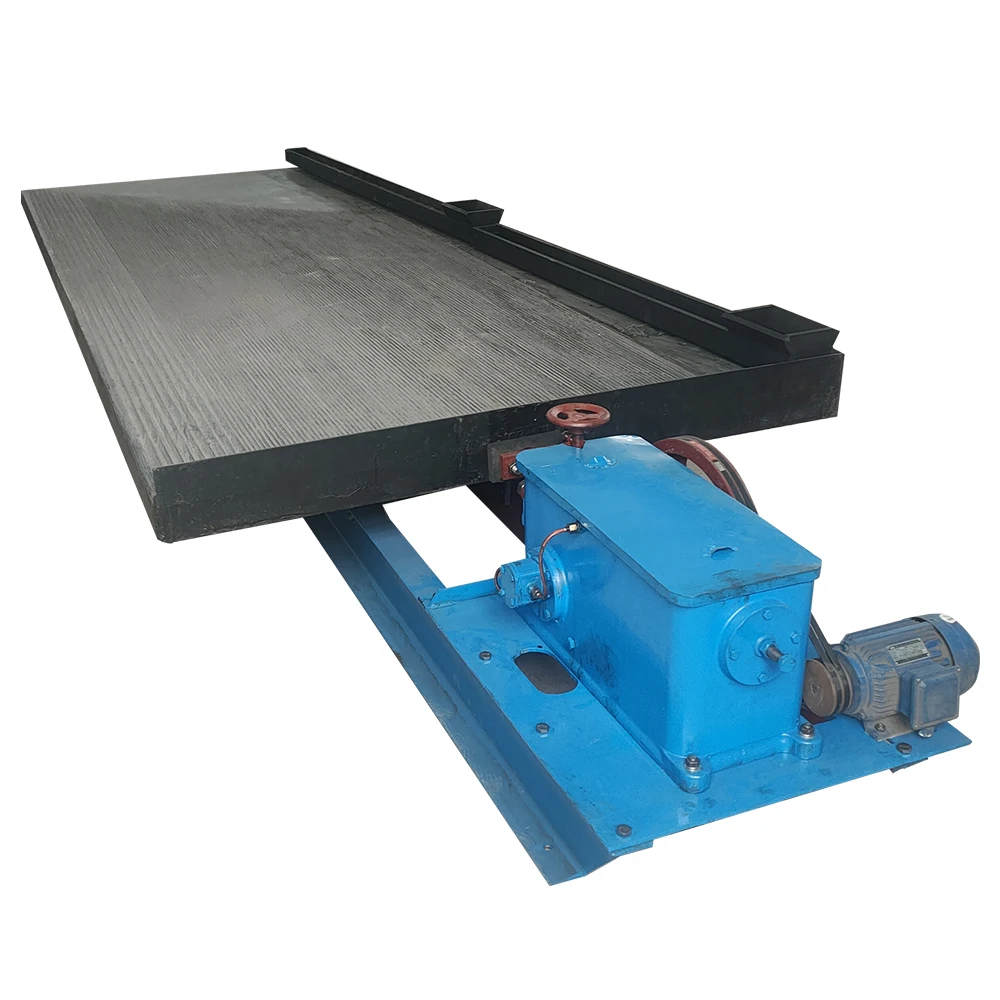

Небольшой стол для обработки золота LY2100 Золотой встряхивая стол для добычи золота
140 966,67 ₽ - 146 388,47 ₽
Производители оборудования для обработки оловянной руды, дизайн процесса оловянной руды.
39 лет завод медный шлак шлифовальная линия Бесплатная медная Флотационная установка
227 715,39 ₽ - 357 838,47 ₽

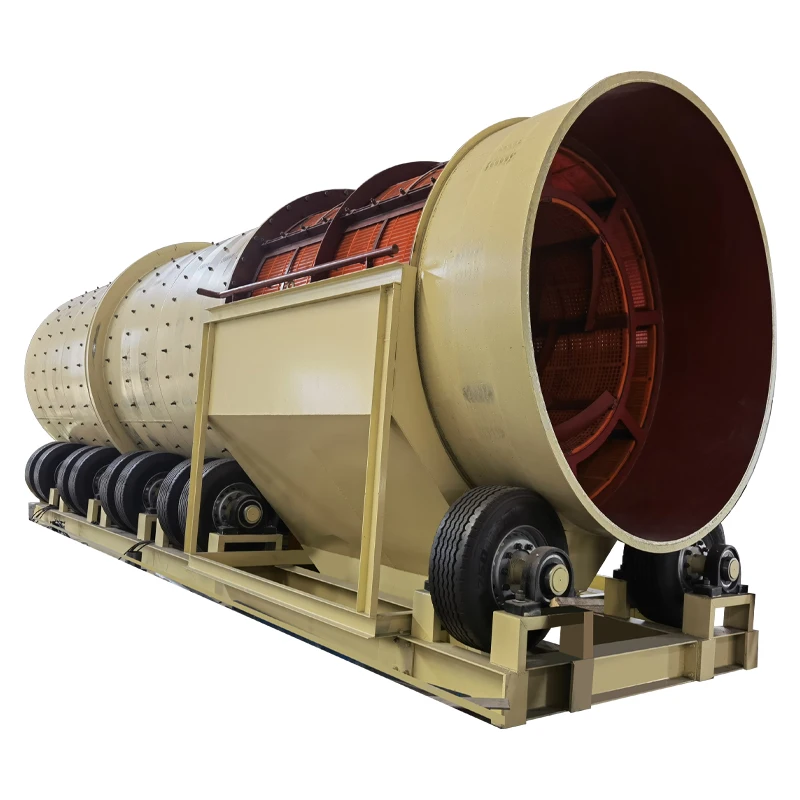

Скруббер trommel машина для добычи Аллювиального золота
5 421 795,00 ₽
Машина для переработки отходов стекла, сепаратор цветных металлов, лучший Вихретоковый сепаратор для сортировки отходов алюминия
867 487,20 ₽ - 2 710 897,50 ₽

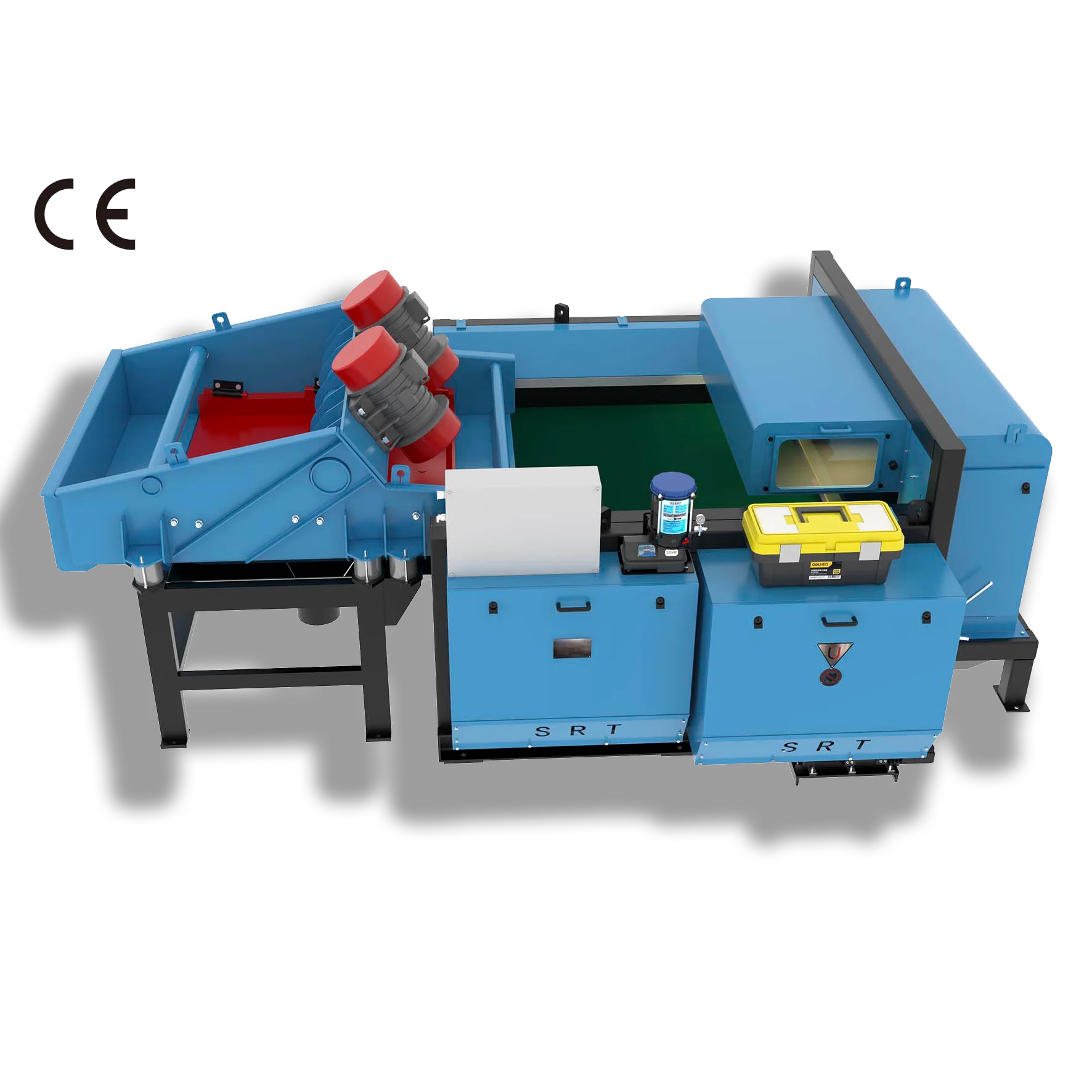

Лидер продаж, сепаратор вихревых токов, надежный поставщик, сортировка твердых бытовых отходов мусора, переработка, сепаратор, рекуперация
