Вертикальная спиральная роликовая мельница серии VTM широко используемая Золотая молибденовая никелевая руда башня фрезерная подшипник
- Категория: >>>
- Поставщик: Shanghai Yingyong Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601272052863:
Описание и отзывы
Характеристики
VTM series vertical spiral stirring mill widely used in gold ore silver ore molybdenum ore nickel tower mill
VTM series vertical spiral stirring mill (also known as tower mill) is an efficient ultra-fine grinding equipment, has been widely used in gold ore, silver ore, molybdenum ore, lead and zinc ore, manganese ore, iron ore and nickel ore mill fine grinding or regrinding operations, has played a good effect.
The vertical spiral stirring mill can be used for grinding and leaching at the same time.
Suitable for the second stage grinding, sulphide ore fine grinding and tailings utilization, can be economically grinding ore to -400 mesh more than 90%-95% can be fine grinding ore, ore can be grinding to -10 micron or less.
Suitable for the second stage grinding, sulphide ore fine grinding and tailings utilization, can be economically grinding ore to -400 mesh more than 90%-95% can be fine grinding ore, ore can be grinding to -10 micron or less.
Unit Sizes | Unit Sizes from 15 to 3000 HP |
Feed Size | Feed Size from 6 mm |
Product Sizes | Product Sizes to sub 20 microns |
High Density media | steel or ceramic |
Media Sizes | 38 – 5 mm |
Technical advantages
1. Strong fine grinding ability can grind materials to 1 micron or finer;
2. High efficiency and energy saving, more than 50% energy saving compared with horizontal ball mill;
3, the efficiency is more than 10 times of horizontal ball mill;
4. Product granularity can be adjusted, intermittent, circular and continuous production;
5, low noise, small vibration, noise is less than 85 db;
6. Simple structure, convenient operation and maintenance, small area, basic cost less than 1% of the equipment cost.
2. High efficiency and energy saving, more than 50% energy saving compared with horizontal ball mill;
3, the efficiency is more than 10 times of horizontal ball mill;
4. Product granularity can be adjusted, intermittent, circular and continuous production;
5, low noise, small vibration, noise is less than 85 db;
6. Simple structure, convenient operation and maintenance, small area, basic cost less than 1% of the equipment cost.
Process

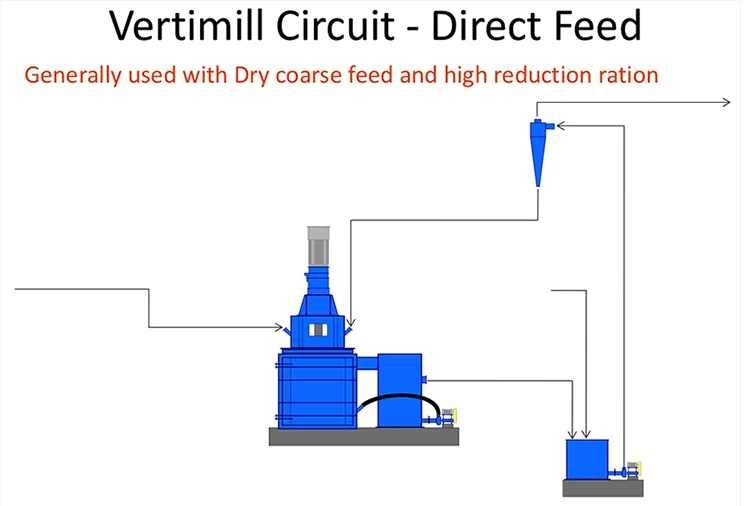

Closed or Open Circuit
Pre-classified / Scalped or Fresh feed directly into the mill
Top Fed or Bottom Fed
Separating Tank and Recycle Pump
Allows for control of uprising velocity in VTM
Prevents over-grinding for coarser product applications
Allows VTM to start-up more readily after a power outage or improper shutdown
Can Bottom Feed with Recycle Pump
Pre-classified / Scalped or Fresh feed directly into the mill
Top Fed or Bottom Fed
Separating Tank and Recycle Pump
Allows for control of uprising velocity in VTM
Prevents over-grinding for coarser product applications
Allows VTM to start-up more readily after a power outage or improper shutdown
Can Bottom Feed with Recycle Pump
Closed or Open Circuit
Pre-classified / Scalped or Fresh feed directly into the mill
Top Fed or Bottom Fed
Separating Tank and Recycle Pump
Allows for control of uprising velocity in VTM
Prevents over-grinding for coarser product applications
Allows VTM to start-up more readily after a power outage or improper shutdown
Can Bottom Feed with Recycle Pump
Pre-classified / Scalped or Fresh feed directly into the mill
Top Fed or Bottom Fed
Separating Tank and Recycle Pump
Allows for control of uprising velocity in VTM
Prevents over-grinding for coarser product applications
Allows VTM to start-up more readily after a power outage or improper shutdown
Can Bottom Feed with Recycle Pump

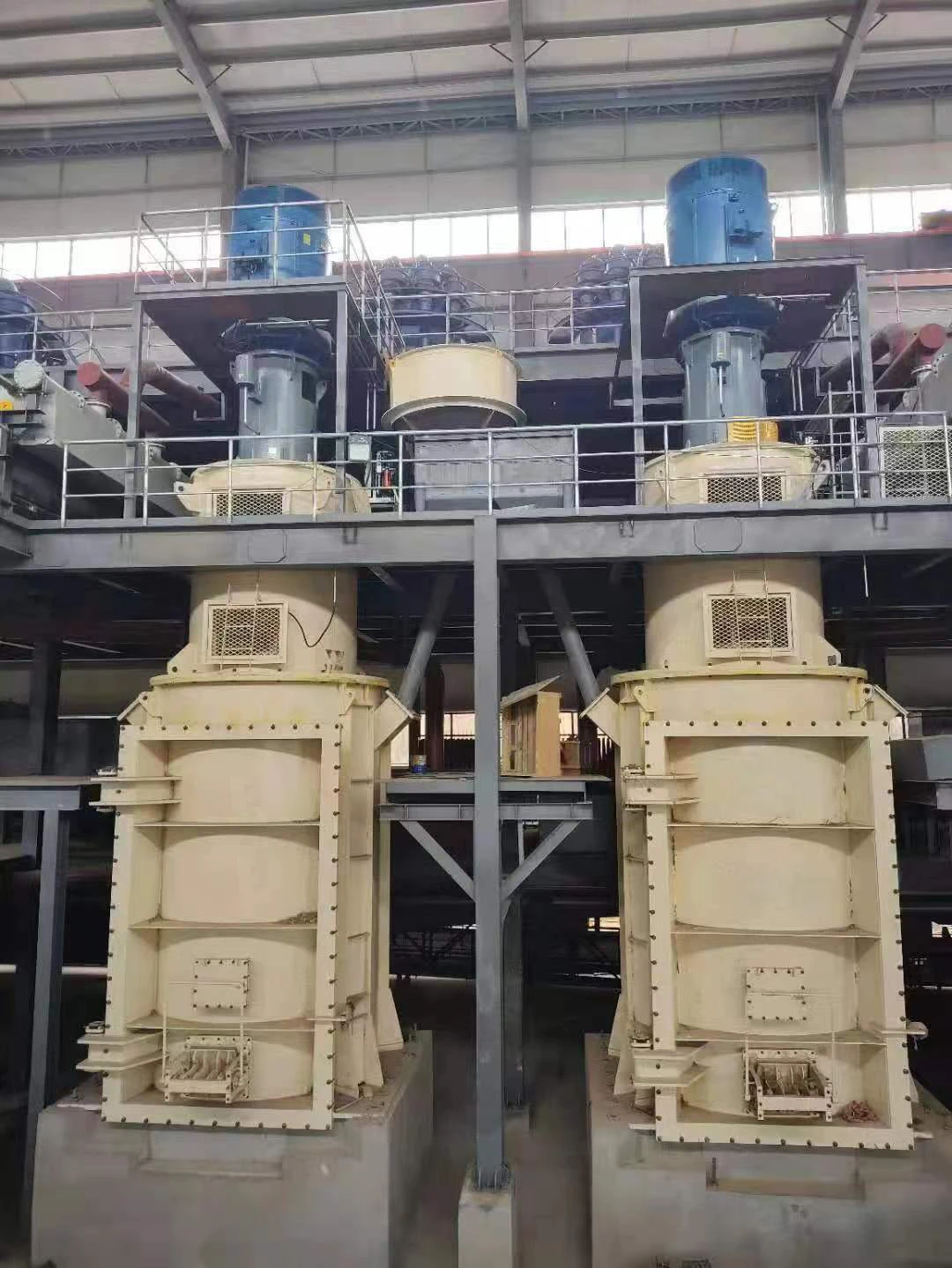

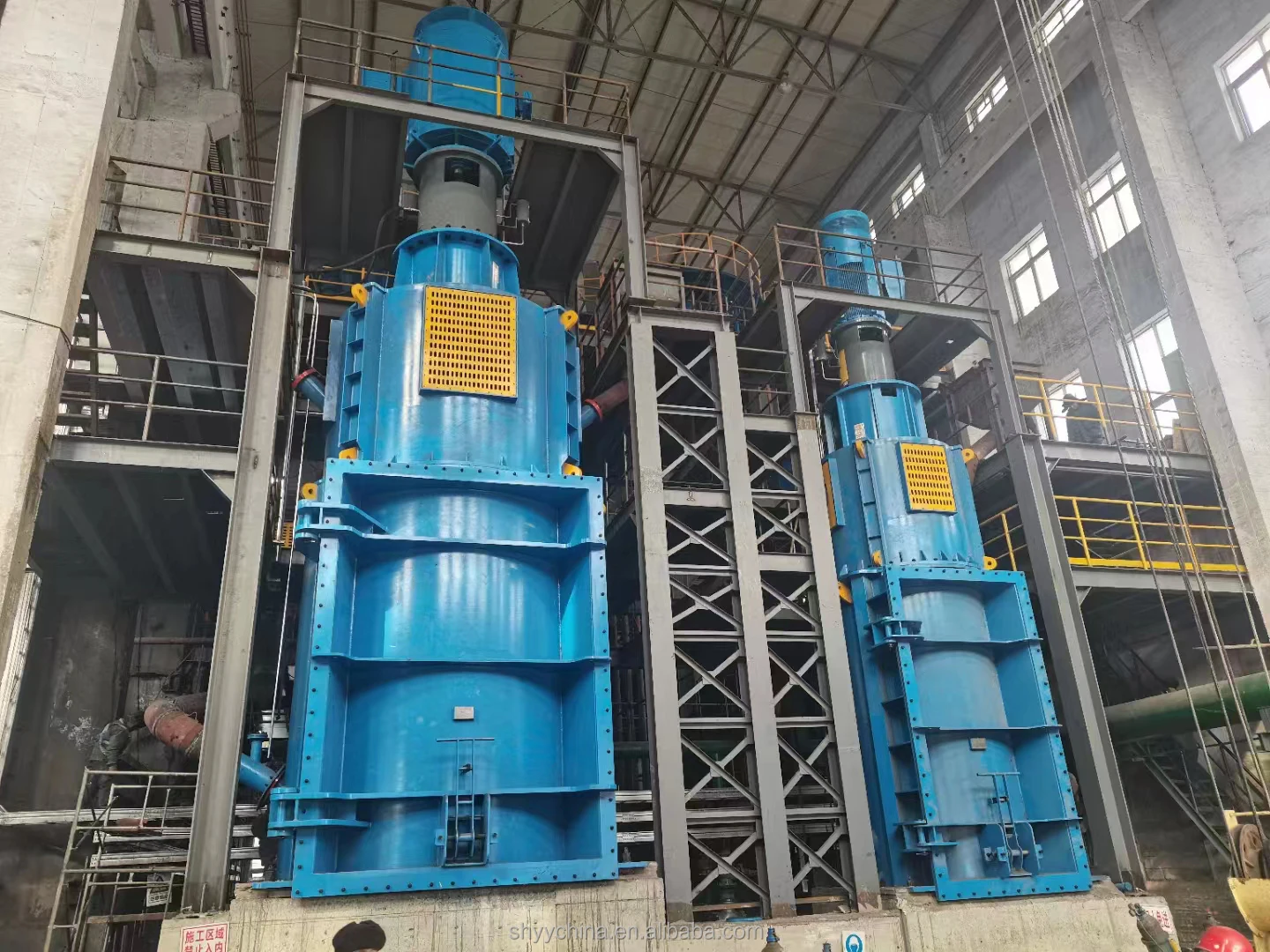

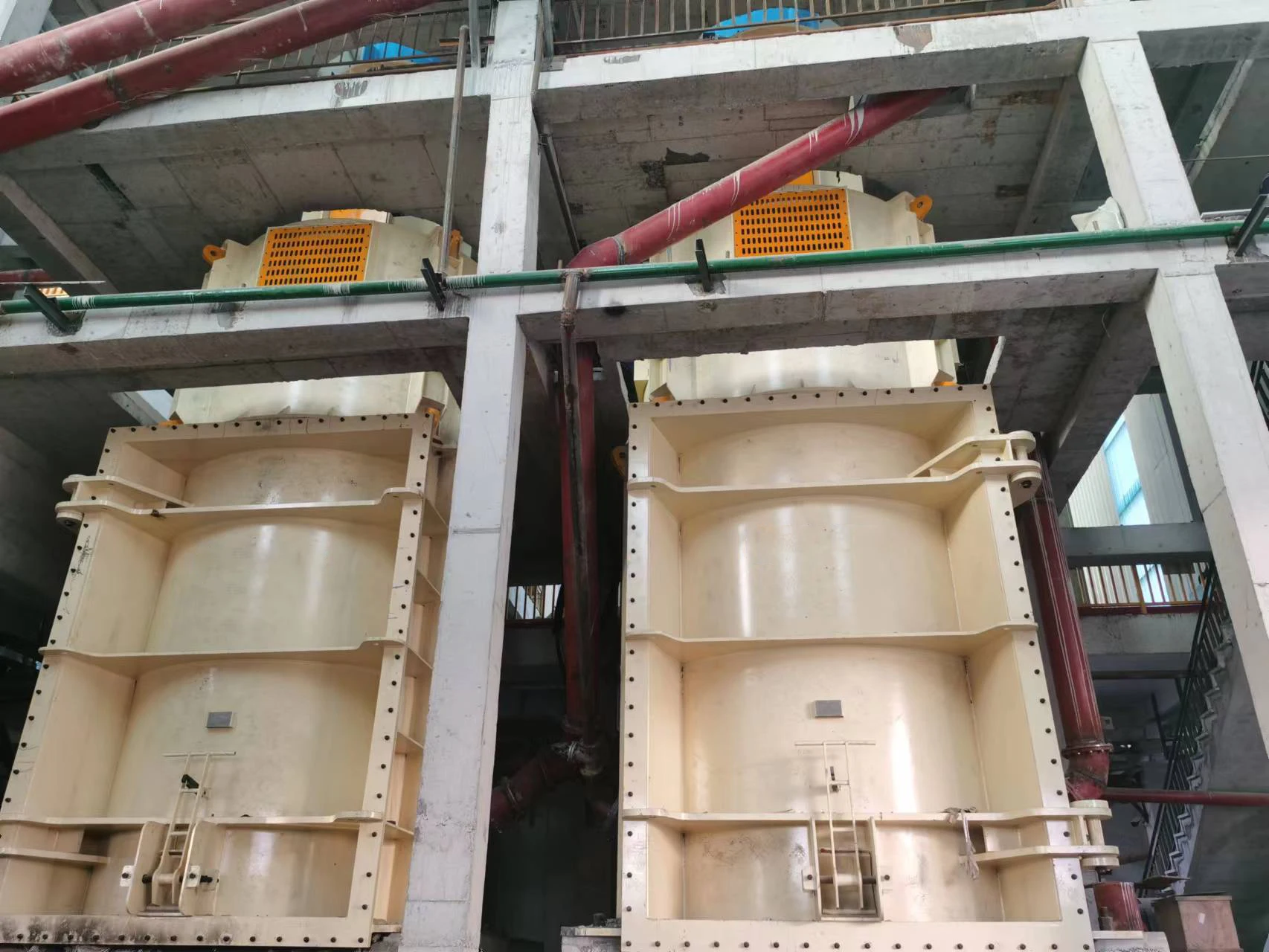

A presentation of our client's case

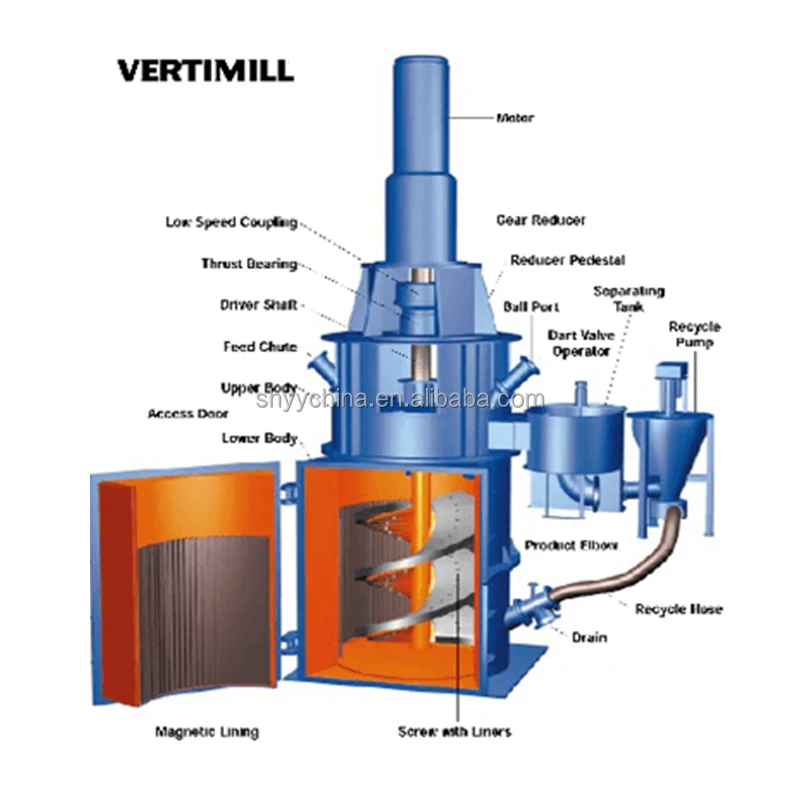

The screw blade rotates at a low speed, which agitates the raw materials, grinding balls and water inside the tower mill. Under the impact of centrifugal force, gravity force and friction force, the grinding media and raw materials form an orderly movement cycle. On the macro level, all the forces that impact on the raw materials are equal. The raw materials go upward when moving inside the screw blade, and fall downward when moving outside the screw blade. On the micro level, the force differential of raw materials causes motion speed difference; under the impact of breaking force and micro cutting force, the raw materials extrude and grind each other strongly. In the end, qualified materials are being classified inside the mill body, go upward by conveying media, and at last, being discharged from the upper body of tower mill.
Our company
Welcome to Shanghai Yingyong Machinery Co.,Ltd，Our company is located in Shanghai, China.We are specializing in the production of all kinds of cement machinery, metallurgical machinery, power equipment, mining machinery .We have the strength of design, research and development, manufacturing, installation and commissioning, and after-sales service. We can provide you with high-quality products and one-stop solutions.We have completed many EPC plant projects for international
customers,We have won high praise from customers Our factory has strong casting, forging, welding, processing, assembly ,testing capacity . Our inspection includes MT magnetic particle flaw detection, UT ultrasonic flaw detection, PT penetrant flaw detection, RT radiographic flaw detection and other inspection technologies. Our strict QCP plan makes every product high quality.
Our products are passed the CE, ISO，We can provide OEM products for you and accepted the inspection of SGS, TUV, BV and other international well-known testing companies.
customers,We have won high praise from customers Our factory has strong casting, forging, welding, processing, assembly ,testing capacity . Our inspection includes MT magnetic particle flaw detection, UT ultrasonic flaw detection, PT penetrant flaw detection, RT radiographic flaw detection and other inspection technologies. Our strict QCP plan makes every product high quality.
Our products are passed the CE, ISO，We can provide OEM products for you and accepted the inspection of SGS, TUV, BV and other international well-known testing companies.
Project discussion
Our products have been exported to more than 100 countries, including the United States, Russia, Spain, Italy, Saudi Arabia, Finland, Australia, Indonesia, Brazil, Chile, Pakistan, Egypt, Iran, Mexico, Kazakhstan，etc.
Our other main products
Our main products incloud: Ball Mill, Vertical Roller Mill, Rotary Kiln, Crusher, Roller Press, Apron Feeder, Cooler, Stacker and Reclaimer, Separator,NPK fertilizer Production Line。
Some hot questions answered
1. Can I visit your factory?
Yes! Every client of Yingyong is welcomed to visit our factory in any time, it will be a big pleasure for us!
2. In which countries do your products have been sold?
Our spare part markets including southeast Asia, western Asia, Africa, Europe, Middle East, etc. So far, we are still in cooperating.
3. How is the quality of your products? (mining equipment/machine)?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
4. How about price?
For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
5. Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
Yes! Every client of Yingyong is welcomed to visit our factory in any time, it will be a big pleasure for us!
2. In which countries do your products have been sold?
Our spare part markets including southeast Asia, western Asia, Africa, Europe, Middle East, etc. So far, we are still in cooperating.
3. How is the quality of your products? (mining equipment/machine)?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
4. How about price?
For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
5. Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
Похожие товары

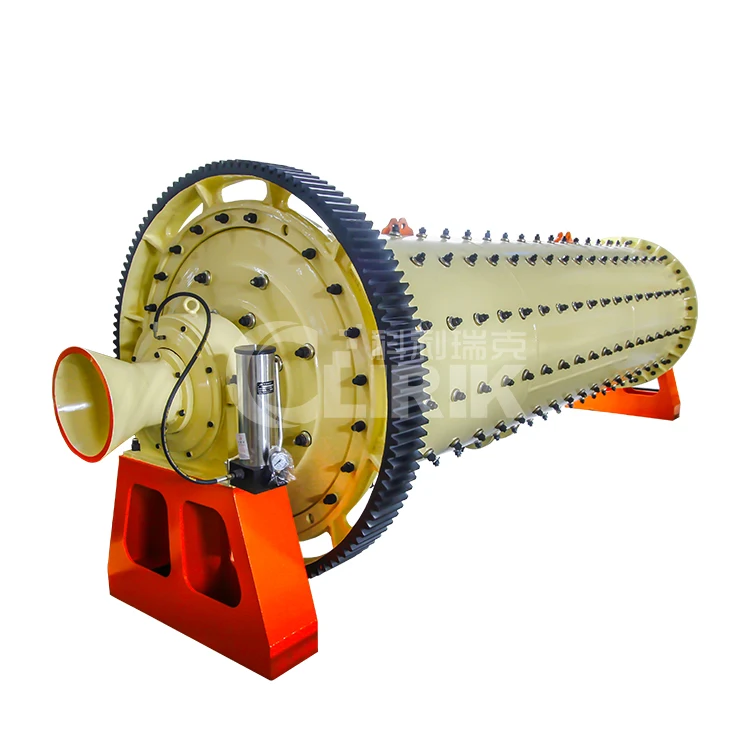

Китай глина измельчить и кварцевый песок шлифовальный шарик мельница
14 800,00 $
Низкая стоимость хорошего качества цементный порошок сверхмощные мельницы Lm вертикальный роликовый шлифовальный станок
46 800,00 $

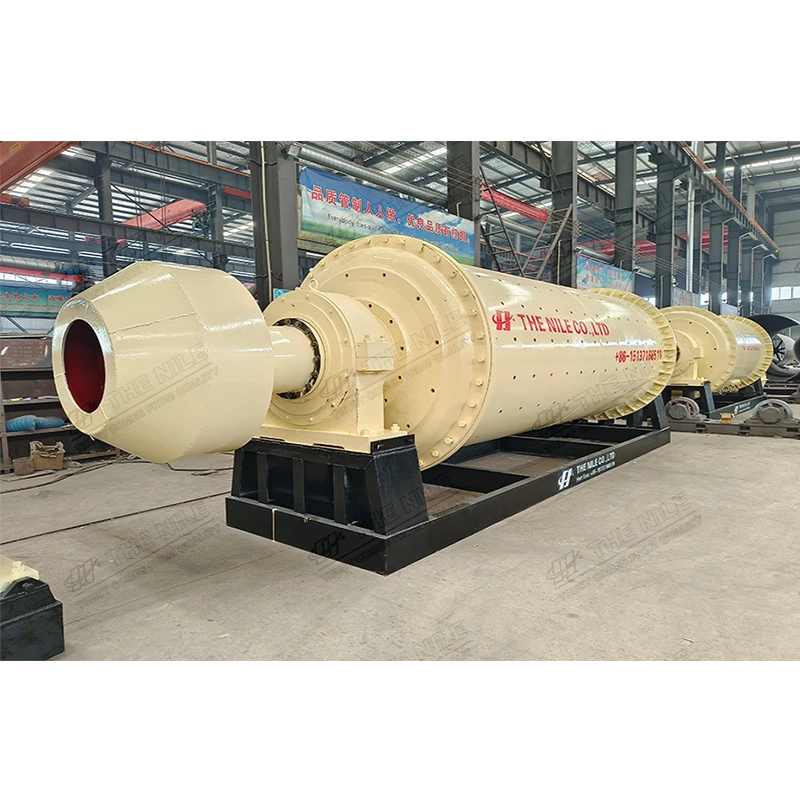

Мелкозернистый известняк CaCo3 углеродный черный тальк гипсовый шаровой мельница большой емкости
9 250,00-10 258,00 $

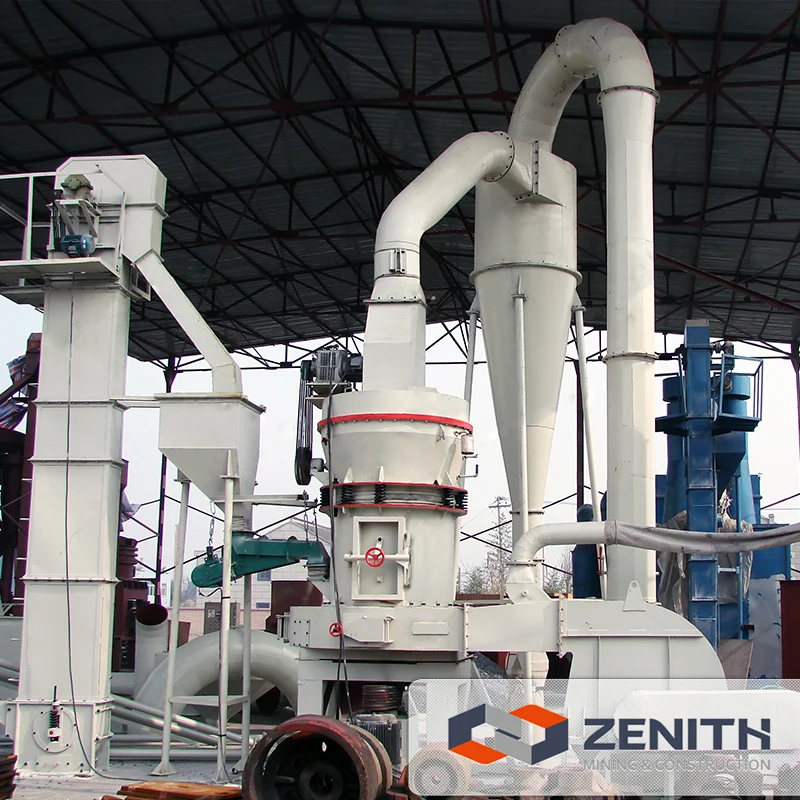

3R1510 мощность 0 3-1 2 TPH Известняковая мельница Raymond роликовая
4 800,00-5 000,00 $
Известняк бентонит доломит барит гипс каолин полевой шпат кальцит тальк мельница для продажи
29 000,00 $
Шахтная Мельница для каолина от производителя

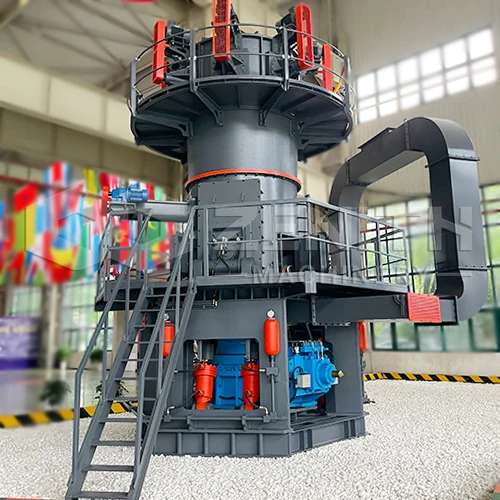

Горячая Распродажа хорошая цена известняк порошок вертикальная мельница машина
