Коммерческий магазин прозрачные прочные ПВХ панели индивидуальные пластиковые раздвижные складные двери аккордеон
7 935,22 ₽ - 16 862,33 ₽
Fastlink современные секционные двери с дистанционным управлением быстро автоматические роликовые
- Категория: >>>
- Поставщик: Shanghai Fastlink Door Co. Ltd.
Сохранить в закладки 1601272053708:
Описание и отзывы
Характеристики
Important attributes | |
Country of Origin | China |
Brand | Shanghai Fastlink Door Company |
Industry attributes | Industrial Door |
Product | 65mm cold storage Insulated Sectional Door |
Product model | SSD-CAV |
Material | Steel/Aluminum alloy |
Features | Insulation, wind resistance, anti-theft, sealing, security, intelligent control |
Application scenarios | Industrial plants, logistics and warehousing buildings and other logistics access |
Other attributes | |
opening mode | Electric/manual |
size | 最小尺寸：W1800mm*H2000mm(5'11“W* 6'7“H） 最大尺寸：W6000mm*H6000mm(19'8“W* 19'8“H） |
door panel | PU sandwich panel, total thickness 42mm |
Polyurethane | Huntsman brand, freon-free, density: 48kg/m³, closed-cell rate>95% |
surface operation | Embossed on the metal surface |
the height of the door panel | 500mm |
window | PC window,Optional heated window |
rail | Patented design of wind-resistant track, and insulation cotton is installed between the track and the wall |
Rail connection method | Bolted connection (easy to maintain) |
accessory | Stainless steel hinge, aluminum alloy pulley bearing |
Lifting mode | Vertical Lift/High Lift/Standard Lift(Right Angle lift) |
speed | 0.25m/s |
motor | Electronic limit motor with absolute encoder for precise positioning |

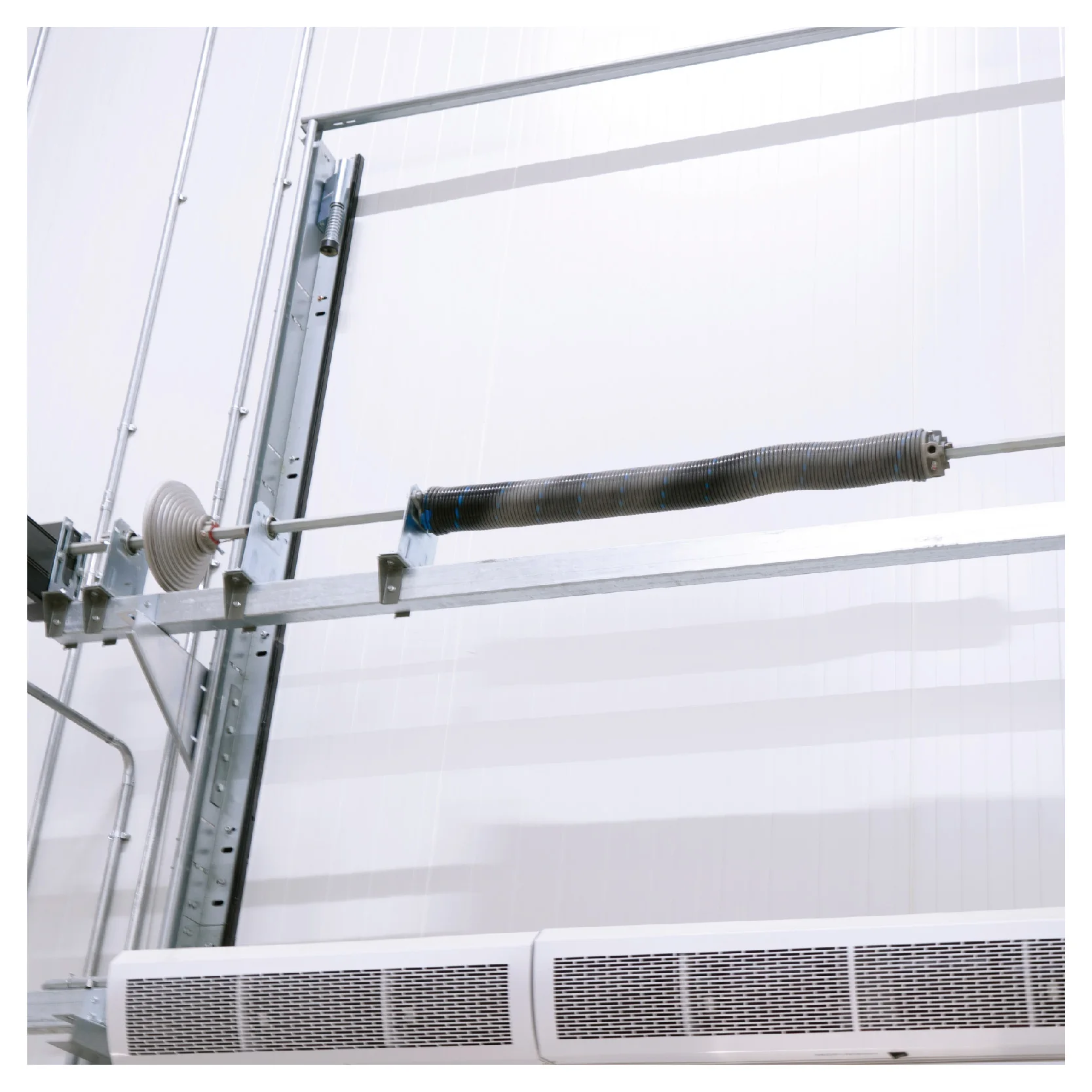

spring | High-strength spring steel, shot blasting electrophoresis treatment, corrosion resistance, not easy to rust, no need for maintenance |
Control box | Intelligent control system: fault code display, operation status display, fire linkage, interlock function, self-safety protection |
Wind resistance rating | 700pa(GB/T 7106-2008) |
Thermal Insulation Property | K=0.7W/(㎡.K) |
watertight | Grade 1(GB/T 7106-2008) watertight rank 1 |
airtightness | Grade 7(GB/T 7106-2008) Air tightness rank 7 |
color | |
the apparatus of security | |

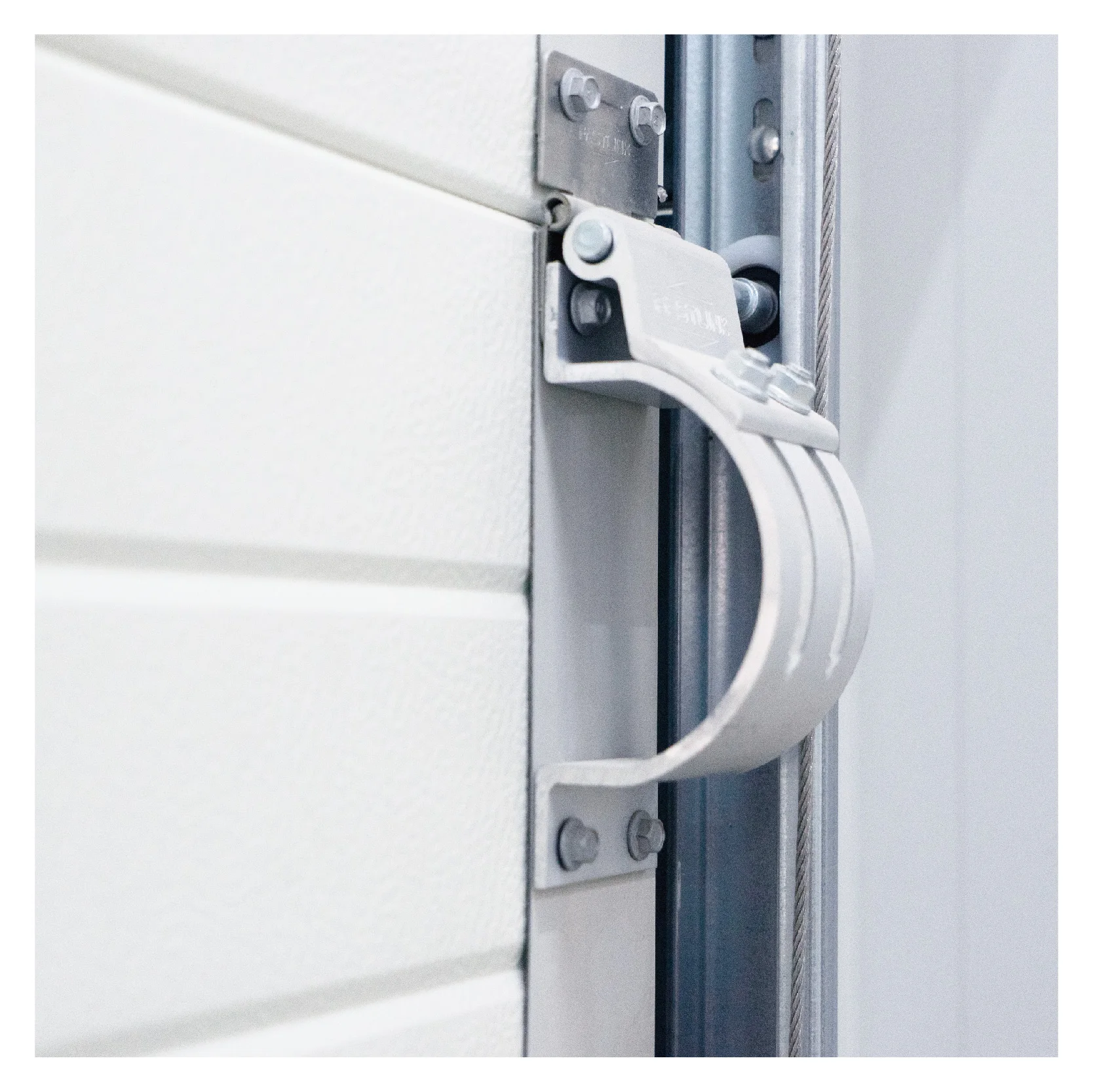

Wire rope anti-breaking device | When the wire rope is broken, the safety gate blade can automatically get stuck on the track to avoid the door body falling directly. |
spring | anti-breakage |
panel | Anti-pinch hand design |
Semi-closed track hand guard design | |
Wire rope built-in safety design | |
infared safty device | optional |
Latch locks | optional |
Windows security network | optional |
Production Facilities | |
Door panel production | Germany Bayer Hennecke imported automatic door panel production line |
Component production | Fully automatic CNC cutting/ making hole equipment, prefabricated mounting holes for easy installation |
Rail production | Automated/Modular Molding Machine |
Electrical production | Modular production line |
Capabilities for Engineering Solutions | |
Product selection | match scenario |
drawing | Product solutaion drawing |
installation guide | Product installation guide video, installation guide manual |
Case Reference | Case videos, case pictures, case descriptions |
Packing box shipping information | |
Sales Units | one set of |
Individual package size | WOODEN BOX SIZE：2564mm*664mm*771mm ；1PCS； WOODEN BOX SIZE：3764mm*664mm*871mm ;1PCS；（W2400*H3000） |
gross weight | 240kg（W2400*H3000） |
Time to Market | |
Time to Market | 3000sets of door per month |
lead time | |
lead time | 30days |
Maximum order quantity for sample | |
price of the sample | |
passdoor-in-door | optional |
window | optional |
Door panel color | optional |
certification | |
certification | CE，CPR，UL |
after-sale service | |
after-sale service | Dealer local service or remote service, user manual, quick response |
Warranty | 1year |
tiered pricing |
Q&A
What environments can it be used in?
The unique door panel cold breaking structure and sealing design of the cold storage insulation sectional door can be used in cold storage environments above 0 ℃, as well as in cold (minimum -30 ℃) natural environments, and will have excellent insulation effect;
Is the lnsulated Sectional Door safe to use?
The Fastlink Sectional Door has passed CE certification and is designed with comprehensive safety considerations, such as: the bottom door panel rebounding when encountering resistance during descent;Design of anti breakage safety protection for steel wire rope; Twisted spring anti breakage safety protection design; Door panel anti pinch design, etc., can be selected with confidence. The manufacturer provides a complete operation and maintenance support manual;
Sectional Door or rolling shutter door？
In coastal cities where typhoons pass through, the sectional doors are unscathed under the adverse weather conditions of the typhoon.
The rolling shutter door curtain is relatively thin and has weak wind resistance, generally at 250Pa. During typhoon weather, rolling shutter doors may be blown away. Generally, choosing insulated sectional doors is a more suitable choice for industrial buildings.
The rolling shutter door curtain is relatively thin and has weak wind resistance, generally at 250Pa. During typhoon weather, rolling shutter doors may be blown away. Generally, choosing insulated sectional doors is a more suitable choice for industrial buildings.
How much installation space is needed above the door opening?
Minimum space of 500mm;
Can sectional doors be used in garages?
As long as the installation space is sufficient, it can be installed in the garage as a vehicle access door;
How many years can sectional doors be used?
Normal maintenance can be used for more than 10 years; Proper usage and regular maintenance can help extend the service life of sectional doors;
